2AE77-DGU12T5Y461A2Car AVN

1 E n glish For Safe Use Safety Cautions ■The product is designed for DC 14V negative-ground vehicle use only. Do not use non-standard power supplies. ■Do not use gasoline, thinner, benzene, or organic solvents, to clean the unit. Information The preset memory is cleared to the default factory state when the power connector or battery is disconnected. Safety Warnings - Do not disassemble or modify this device. Such acts may result in accidents, fire or electric shock. - Please be careful not to introduce water or foreign matter inside the product. Such may be the cause of fumes, ignition, or device malfunction. - If a problem occurs, such as foreign matter entering the device or device exposure to water or smoke, stop use immediately and contact your dealer or a designated maintenance center. Not doing so may result in device malfunction. - Do not use the device under faulty conditions such as no display or sound. Such may result in accidents (fire, electric shock, etc.) or critical product malfunction. - When operating this device, do not operate in no-stop or no-parking zones. Such acts may result in accidents. - Device operation while driving may lead to traffic accidents. When operating the device, first park your vehicle in a safe place. For safety reasons, some features may be disabled while the vehicle is in motion and enabled when the vehicle is parked. - This device is a product specifically designed for use in automobiles. To change the mounting position of the system, please inquire with your place of purchase or service center. Installing or disassembling the device requires technical understanding. - When cleaning the touch screen, turn off the power and wipe it with a dry, soft cloth. Do not use hard cloths, chemical mops or organic solvents (alcohol, benzene, thinner, etc.) as they may scratch or alter the surface of the panel. If any problem occurs with the product, please contact the dealer or service center to take action. - Do not subject the device to excessive impact. Direct pressure to the front of the monitor may damage the LCD panel and touch panel. - Operating the device for prolonged periods of time with the engine turned off will display an electrical discharge warning on the screen. Be sure to operate the system with the engine running. Caution! Warning Selecting Mode 22 System Settings 24 Rear View Camera 25 AVM(Around View Monitoring)26 Selecting Mode 9 Rear View Camera 13 AVM(Around View Monitoring)14 Navigation 15 System Settings11 User Manualuživatelský manuál Manuel de l’utilisateurpoužívateľská príručka Manual del usuarioinstrukcja obsługi Manuale dell’utentehasználati utasítás Gebruikershandleiding Manual do propriétario Bedienungsanleitungmanual de utilizare Руководство пользователя 用户手册(Smart Audio) Kullanım Kılavuzu (Smart Audioدليل المالك) (Smart Audioکتابچه راهنمای مالک) 2 AV System User Guide Contents Language Component Names and Functions 4 Steering Wheel Controller5 Basic Operation 6 I AVN II Smart Audio Component Names and Functions18 Steering Wheel Controller19 Basic Operation 20 AVN Component Names and Functions System Settings Selecting Mode AVM(Around View Monitoring) Rear View Camera Navigation Steering Wheel Controller Basic Operation 4 E n glish Component Names and Functions Front View Button Description 3 Phone • Moves to Bluetooth mode. 4 Radio • Moves to Radio mode. 5 Power Off • Press and hold (more than 1.5 seconds) to turn off the power 6 Back • Moves to the previous screen. Button Description 1 Home • Moves to the HOME screen (PIP, Picture in Picture). • Press and hold to move to Bookmark mode. 2 Navigation • Converts to Navigation mode and displays the current location regardless of whether AV is On/Off. 1 2 4 3 5 6 5 E n glish Steering Wheel Controller ButtonDescription 1 2 3 4 5 • Operates Bluetooth Handsfree mode. • Press and hold the key to end the call. • Turns Mute feature On/Off. • IPress the key during a call to block outgoing sound.(Mic Mute) Press and hold (more than 1.5 seconds) to turn off the power. • In any mode - each press of the key will change the mode in order of Radio → USB Media → My Media → Bluetooth Music mode. (If the media device is not connected, corresponding modes will be disabled) • In Radio mode - press and hold to change the radio mode in order of FM1→ AM → DAB (EU only) mode. • In Media mode - press and hold the switch to change to mode in order of USB Music → Video → Image mode. • While playing - press up/down to move the previous/next file. • In Radio mode - press up/down to move the previous/next preset. - press and hold up/down to move the previous/next broadcast frequency.. • Press up/down to adjust the volume. All New Rexton 6 4 2 3 5 1 1 2 3 4 5 6 Rexton Sport 6 E n glish Basic Operation Starting the System • Press the engine start button once or set the ignition key to the ON or ACC position. • The KG MOBILITY logo is displayed and the system will boot. • Once booting is complete, the most recent mode will operate. (Default mode is navigation) ■Information - The system will automatically turn off if more than 3 minutes has passed in ignition off state and the driver-side door is opened. • When the power is turned off, the current time is displayed. Turning the System Off • Press and hold the Power Off icon (more than 1.5 seconds) to turn off the power 7 E n glish Basic Operation Restarting the System • Press the Restart button using a clip or pin. • The system will turn off and reboot. ■Information - Resetting the system will restore all existing settings and configurations back to their default states. This is to ensure device stability. 8 E n glish Home screen • In any modes, press the Home icon from the sidebar menu. • In the Home screen, select the desired mode. Radio • This feature allows users to play radio broadcasting from FM1/AM/ DAB(EU only). • In Radio Mode, press the DAB button to enter the DAB mode to listen to Digital Audio Broadcasting. My Media • Music files within Media mo…

Text truncated - open the document above for the full version.

DIGEN 89, Seongseo4chacheomdan-ro, Dalseo-gu, Daegu, South Korea Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046 USA Date: July 6, 2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2AE77-DGU12T5Y461A2 “DIGEN” certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Jun Kim / Manager DIGEN DIGEN 89, Seongseo4chacheomdan-ro, Dalseo-gu, Daegu, South Korea Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046 USA Date: July 6, 2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2AE77-DGU12T5Y461A2 “DIGEN” certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Jun Kim / Manager DIGEN

Certification designating a U.S. Agent for service of process: As required by section 2.911(d)(7), the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. In either scenario, the designation of the U.S. agent for service of process should be provided as an attachment to the equipment authorization application. The applicant must provide a written certification, which must: i. Be signed by both the applicant and designated agent for service of process, if the agent is different from the applicant. ii. Acknowledge the applicant’s consent and the designated agent’s obligation to accept service of process. iii. Provide a physical U.S. address and email for the designated agent. iv. Acknowledge the applicant’s acceptance to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Unofficial information provided by FCC personnel on February 14, 2023, via the monthly call with the TCB Council: The Agent for Process of Service: • cannot be a TCB or affiliated with a TCB (e.g. could not be a person who works for a TCB or a company that owns or is owned by the TCB) • cannot be a [FCC recognised] Lab or affiliated with a test lab (e.g. could not be a person who works for a Lab or a company that owns or is owned by the Lab) • Agent can be Individual Entity or a Company Entity • Agent Entity must be located in US, US address/phone • Entity acting as Agent must have FRN (best practice, put FRN on Agent Letter) • Agent letter does not have to be FCC ID specific, can be general Agent for Grantee For devices being marketed or for which marketing has ceased for less than 1 year, if the Agent for Process of Service changes, then for every TC Number the TCB must request the FCC to put application into Audit Mode and Agent Letter needs to be updated (superseded). NOTE: The U.S. Agent for Service of Process should not be confused with the authorized agent used for signing the 731 form, other cover letters within the application, and/or the agent who may interface with the TCB. DIGEN 89, Seongseo4chacheomdan-ro, Dalseo-gu, Daegu, South Korea U.S. Agent Designation for Service of Process ATTENTION: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA REGARDING: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Approve-IT, Inc. Contact Name: Nathan Grinager Street Address: 8011 34 th Ave South, Suite 342 City/Province/Zip: Bloomington, MN 55425 Telephone No: 651-247-1678 Email: [email protected] FRN #: 0027533835 This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: Signed by (Printed Name/Title): Nathan Grinager / Co-President *This letter must be dated within 1-year (update if other terms apply) of the date the application is submitted to the TCB for device certification The Applicant confirms its explicit consent and acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: DIGEN FCC ID: 2AE77-DGU12T5Y461A2 Contact Name: Jun Kim Address: 89, Seongseo4chacheomdan-ro, Dalseo-gu, Daegu, South Korea Zip:704-801 Telephone No: +82 70-7100-1740 Email: [email protected] Applicant Signature: Date: 13 June,2023 Signed by (Printed Name/Title): Jun Kim, Manager June 16, 2023

DIGEN CO.,LTD. 89, Seongseo4chacheomdan-ro, Dalseo-gu, Daegu, South Korea Date: June 16, 2023 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Timco Engineering, Inc. Certification Division 849 N.W. State Road 45 Newberry, Florida 32669 USA Product Declaration FCC ID: 2AE77-DGU12T5Y461A2 To whom it may concern: We, DIGEN Declare that Model name of DGU-12T5-Y461A-2 The product is not supported by Wifi. Only Bluetooth supports Regards, Jun Kim /Manager DIGEN

Declaration of Equivalence For declaration of equality between a product variant to be certified with reference to an original product. To be issued and signed by the company responsible for the product variant. Declare on our sole responsibility that the product - Original Model Product Information Product ID: DGU-12T5-Y461A-2 are in all relevant parts identical to the product - Variant Model Product Information Product ID: DGU-12T5-Y461A-1, DGU-12T5-Q261A-1, DGU-12T5-Q261A-2, DGU-12T5-Y461SA-1, DGU-12T5-Q261SA-1, DGU-12T5-Y461SA-2, DGU-12T5-Q261SA-2, DGU-12T5-Y461SA-3, DGU-12T5-Q261SA-3, DGU-12T5-Y461SA-4, DGU-12T5-Q261SA-4 - The difference between (original design) and (variant design) is : DGU-12T5-Y461A-1 : -Same Bare PCB, Camera support specification difference. DGU-12T5-Q261A-1 : -Same Bare PCB, Camera support specification difference. DGU-12T5-Q261A-2 : -Same Bare PCB, H/W is 100% the same. DGU-12T5-Y461SA-1 : -Same Bare PCB, Camera support specification difference, S/W difference. (Navi not supported) DGU-12T5-Q261SA-1 : -Same Bare PCB, Camera support specification difference, S/W difference. (Navi not supported) DGU-12T5-Y461SA-2 : -Same Bare PCB, H/W is 100% the same, S/W difference. (Navi not supported) DGU-12T5-Q261SA-2 : -Same Bare PCB, H/W is 100% the same, S/W difference. (Navi not supported) DGU-12T5-Y461SA-3 : -Same Bare PCB, Camera support specification difference, S/W difference (Navi not supported), DAB not supported. DGU-12T5-Q261SA-3 : -Same Bare PCB, Camera support specification difference, S/W difference (Navi not supported), DAB not supported. DGU-12T5-Y461SA-4 : -Same Bare PCB, S/W difference (Navi not supported), DAB not supported. DGU-12T5-Q261SA-4 : -Same Bare PCB, S/W difference (Navi not supported), DAB not supported. (Variant model is completely same to original model(electrically and mechanically is same) We, the undersigned, hereby declare that the Second Manufacturer Design is identical in both design and implementation. Signed by Company Name : DIGEN CO.,LTD. Korea / July 6, 2023 (Place, date of issue) (Signature / stamp) Jun Kim / Manager

DIGEN 89, Seongseo4chacheomdan-ro, Dalseo-gu, Daegu, South Korea Date: June 16, 2023 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 ,Industry Canada c.c. Timco Engineering, Inc. Certification Division 849 N.W. State Road 45 Newberry, Florida 32669 USA FCC ID : 2AE77-DGU12T5Y461A2 To whom it may concern: I, the undersigned, hereby authorize Technical Manager Isaac Jin of DEKRA Korea Co., Lt d. and here after referred to as DEKRA Korea Co., Ltd. to act on our behalf in all manners r elating to application for equipment authorization, including signing of all documents rela ting to these matters. Any and all acts carried out by Technical Manager Isaac Jin of DEKRA Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing DEKRA Korea Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding DIGEN 89, Seongseo4chacheomdan-ro, Dalseo-gu, Daegu, South Korea our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jun Kim / Manager DIGEN REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

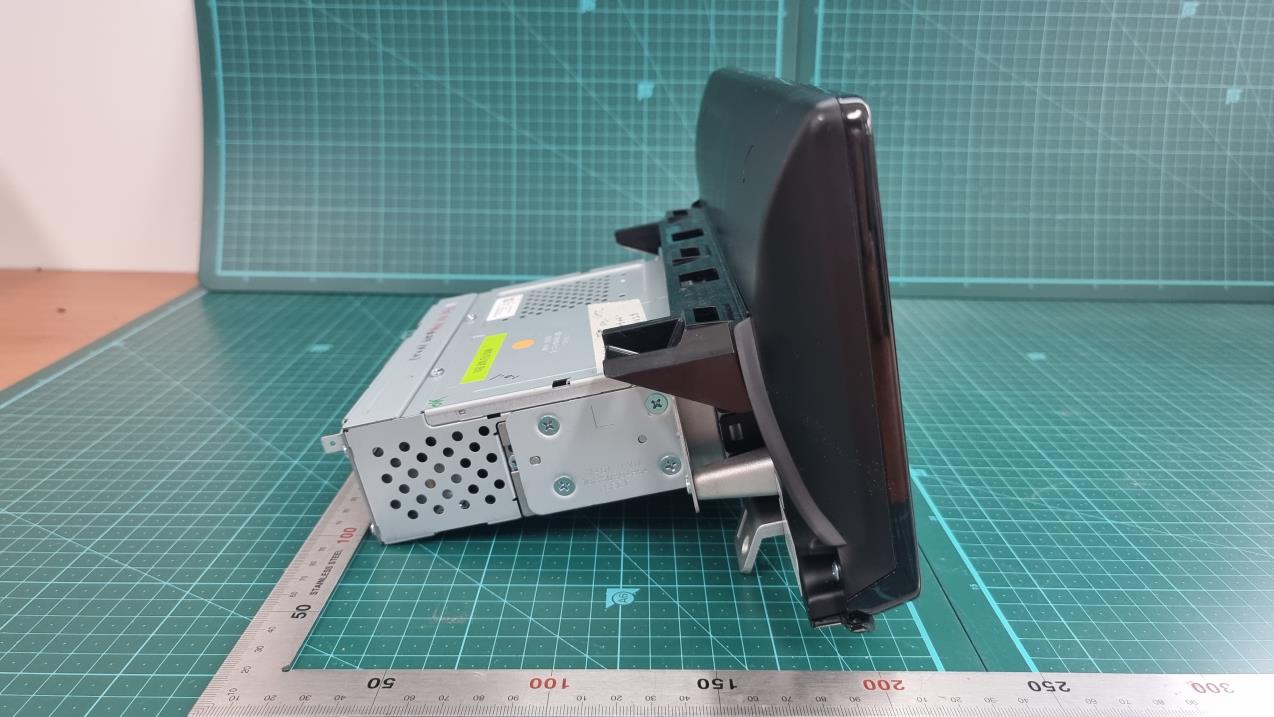

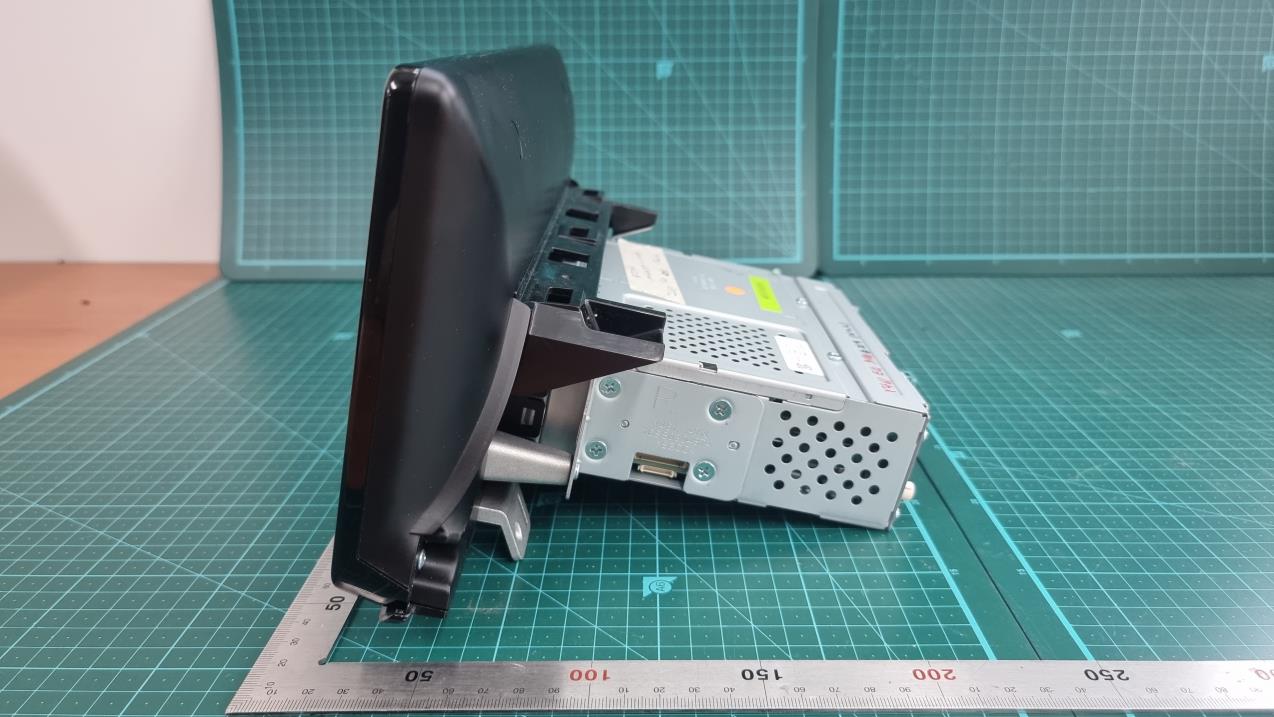

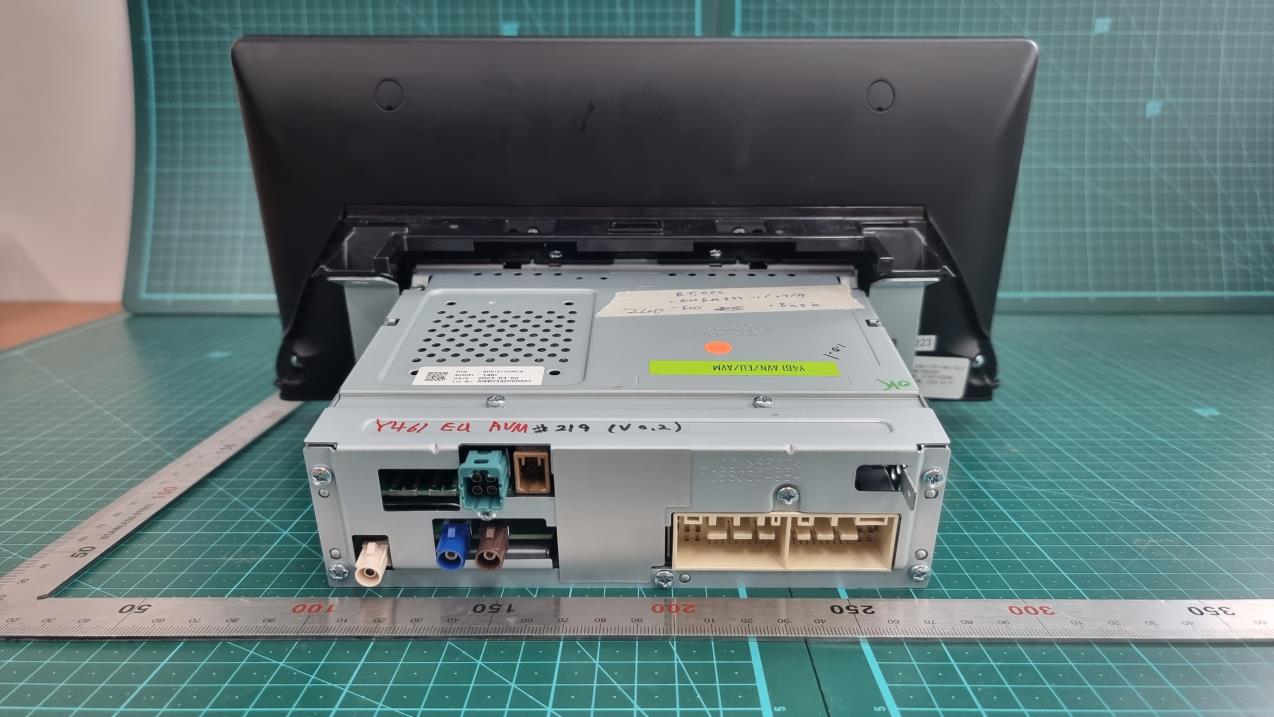

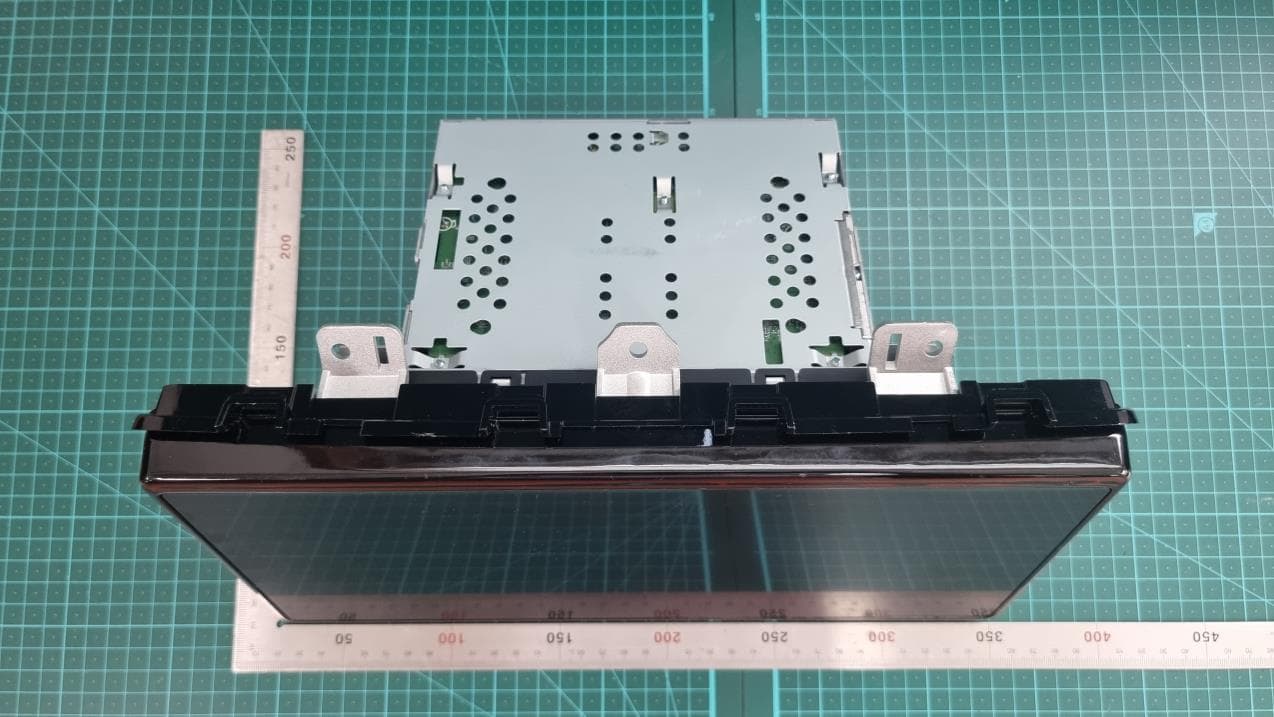

Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. External Photos Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. External Photos Front Rear Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. External Photos Left Right Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. External Photos Top Bottom

Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Label Informaion Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Label information Location&Drawing The location of the label is the top case.

Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Internal Photos Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Internal Photos Main PCB Front Main PCB Rear Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Internal Photos DAB PCB Front DAB PCB Rear Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Internal Photos Display PCB Front Display PCB Rear Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Internal Photos RF PCB Front RF PCB Rear Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Internal Photos Reset PCB Front Reset PCB Rear Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Internal Photos BT Module BT Module Expansion Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Internal Photos Inside Antenna Bluetooth Antenna

South KoreaKorea, 17030 Tel.: +82 70-7100-1740Tel.: +82-31-338-8837 Fax: +82 2-532-8811Fax: +82-31-338-8847 In the configuration tested, the EUT complied with the standards specified above. Issue toIssue by DIGENDEKRA Korea Co., Ltd. 89, Seongseo4chacheomdan-ro498-2, Geumeo-ro, Pogok-eup, Dalseo-gu, Daegu,Cheoin-gu, Yongin-si, Gyeonggi-do, FCC ID2AE77-DGU12T5Y461A2 ApplicantDIGEN ManufacturerDIGEN Date of Test(s)2023. 06. 12 ~ 2023. 06. 28 Date of Issue2023. 07. 03 RF EXPOSURE REPORT Equipment Under Test Car AVN Model Name DGU-12T5-Y461A-2 Variant Model Name DGU-12T5-Y461A-1, DGU-12T5-Q261A-1, DGU-12T5-Q261A-2, DGU-12T5-Y461SA-1, DGU-12T5-Q261SA-1, DGU-12T5-Y461SA-2, DGU-12T5-Q261SA-2, DGU-12T5-Y461SA-3, DGU-12T5-Q261SA-3 DGU-12T5-Y461SA-4, DGU-12T5-Q261SA-4 Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Page :1 / 4 1. Regulation 2. RF Exposure Compliance Issue f=frequency in MHz, *= plane-wave equivalent power density MPE (Maximum Permissive Exposure) Prediction Predication of MPE limit at a given distance: Equation from page 18 of OET Bulletin 65, Edition 97-01 S = power density [mW/cm 2 ] P = Power input to antenna [mW] G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna [cm] The information should be included in the user’s manual: This appliance and its antenna must not be co-located or operation in conjunction with any other antenna or transmitter. A minimum separation distance of 20 cm must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements. 300 ~ 1 500//f/1 50030 1 500 ~ 15 000//130 1.34 ~ 30824/f2.19/f*(180/f2)30 30 ~ 30027.50.0730.230 According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. RF EXPOSURE Limits for Maximum Permissive Exposure: RF exposure is calculated. Limits for General Population / Uncontrolled Exposure 0.3 ~ 1.346141.63*(100)30 Frequency Range Electric Field Strength [V/m] Magnetic Field Strength [A/m] Power Density [mW/cm 2 ] Averaging Time [minute] ( ) S PG R R PG S   4 4 2 =  = Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Page :2 / 4 ( R : Distance to the center of the radiation of the antenna20cm ) EIRP : Equivalent Isotropic Radiated Power (mW) - NOTE P : Max tuneup Power (dBm) G : Maximum Peak Antenna Gain (dBi) Power Density at the specific separation - NOTE- S dBi 4.40dBm =2.75mW = 1.00dBm+ mW/cm 2 = 0.000 548 3.40 - EIRP=P + G = Minimum :-1.00 2.75/( 4 X 20^2 X π ) = EIRP / (4 X R 2 π) = S : Maximum Power Density (mW/cm 2 ) dBm) - Maximum Output Power for the Calculation :1.00 dBm Maximum :1.00 dBm The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the The MPE calculation for this exposure is shown below. dBi (& - Maximum Peak Antenna Gain :3.40 1.00 dB - Measured RF Output Power (Peak) :-0.09 dBm - Target Power & Tolerance :0.00 dBm&± MPE Calculations : Bluetooth BDR - Frequency Range :2 402 MHz~2 480 MHz Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Page :3 / 4 ( = 0.000 651 mW/cm 2 EIRP : Equivalent Isotropic Radiated Power (mW) R : Distance to the center of the radiation of the antenna20cm ) Power Density at the specific separation - S= EIRP / (4 X R 2 π) - NOTE =3.27/( 4 X 20^2 X π ) S : Maximum Power Density (mW/cm 2 ) P : Max tuneup Power (dBm) =5.15dBmG : Maximum Peak Antenna Gain (dBi) =3.27mW =1.75dBm+3.40dBi - Maximum Output Power for the Calculation :1.75 dBm The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the The MPE calculation for this exposure is shown below. - EIRP=P + G- NOTE Minimum :-0.25 dBm) - Maximum Peak Antenna Gain :3.40dBi dB (Maximum :1.75 dBm& - Measured RF Output Power (Peak) :1.73 dBm - Target Power & Tolerance :0.75 dBm&±1.00 MPE Calculations : Bluetooth EDR - Frequency Range :2 402 MHz~2 480 MHz Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Page :4 / 4

DEKRA Korea Co., Ltd. Report Number: YI-QA-23-RF-I025 YI-QA-P016-04(0) Page : (1) of (50) Effective Data : 2022.01.06 FCC Part 15 Subpart B&C §15.247 Test Report Equipment Under Test Car AVN Model Name DGU-12T5-Y461A-2 Variant Model Name DGU-12T5-Y461A-1, DGU-12T5-Q261A-1, DGU-12T5-Q261A-2, DGU-12T5-Y461SA-1, DGU-12T5-Q261SA-1, DGU-12T5-Y461SA-2, DGU-12T5-Q261SA-2, DGU-12T5-Y461SA-3, DGU-12T5-Q261SA-3, DGU-12T5-Y461SA-4, DGU-12T5-Q261SA-4 FCC ID 2AE77-DGU12T5Y461A2 IC Number - Applicant DIGEN Manufacturer DIGEN Date of Test(s) 2023. 06. 12 ~ 2023. 06. 28 Date of Issue 2023. 07. 03 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full Issue to Issue by DIGEN 89, Seongseo4chacheomdan-ro Dalseo-gu, Daegu, South Korea Tel.: +82 70-7100-1740 Fax: +82 2-532-8811 DEKRA Korea Co., Ltd. 498-2, Geumeo-ro, Pogok-eup, Cheoin-gu, Yongin-si, Gyeonggi-do, 17030, Rep. of Korea Tel.: +82 31-338-8837 Fax: +82 31-338-8847 DEKRA Korea Co., Ltd. Report Number: YI-QA-23-RF-I025 YI-QA-P016-04(0) Page : (2) of (50) Effective Data : 2022.01.06 Revision history Revision Date of issue Description Revised by -- 2023.07.03 Initial - -- DEKRA Korea Co., Ltd. Report Number: YI-QA-23-RF-I025 YI-QA-P016-04(0) Page : (3) of (50) Effective Data : 2022.01.06 Table of contents 1.Applicant Information ................................................................................................... 4 2.Laboratory Information ................................................................................................. 4 3.Summary of test results................................................................................................ 5 4.EUT Description ............................................................................................................ 6 5.Measurement equipment .............................................................................................. 7 6.Antenna Requirement ................................................................................................... 8 7.20 dB bandwidth & 99% bandwidth ............................................................................. 9 8.Peak output power ...................................................................................................... 17 9.Carrier frequency separation ..................................................................................... 23 10.Number of hopping frequencies .............................................................................. 26 11.Time of occupancy (Dwell time) ............................................................................... 30 12.Transmitter radiated spurious emissions and conducted spurious emissions .. 33 DEKRA Korea Co., Ltd. Report Number: YI-QA-23-RF-I025 YI-QA-P016-04(0) Page : (4) of (50) Effective Data : 2022.01.06 1.Applicant Information 1.1. Details of applicant Applicant : DIGEN Address : 89, Seongseo4chacheomdan-ro, Dalseo-gu, Daegu, South Korea Contact Person : Myeongcheol Jun Telephone : +82 70-7100-1740 Fax : +82 2-532-8811 1.2. Manufacturer Information Manufacturer : DIGEN Address : 89, Seongseo4chacheomdan-ro, Dalseo-gu, Daegu, South Korea 2.Laboratory Information Company name : DEKRA Korea Co., Ltd. Test site number : FCC (KR0151), IC (24841) Address : 498-2, Geumeo-ro, Pogok-eup, Cheoin-gu, Yongin-si, Gyeonggi-do, 17030, Rep. of Korea Web site : http://www.dekra.kr Telephone : +82 31-338-8837 Facsimile +82 31-338-8847 DEKRA Korea Co., Ltd. Report Number: YI-QA-23-RF-I025 YI-QA-P016-04(0) Page : (6) of (50) Effective Data : 2022.01.06 4.EUT Description Kind of product Car AVN Model Name DGU-12T5-Y461A-2 Variant Model Name DGU-12T5-Y461A-1, DGU-12T5-Q261A-1, DGU-12T5-Q261A-2, DGU-12T5-Y461SA-1, DGU-12T5-Q261SA-1, DGU-12T5-Y461SA-2, DGU-12T5-Q261SA-2, DGU-12T5-Y461SA-3, DGU-12T5-Q261SA-3, DGU-12T5-Y461SA-4, DGU-12T5-Q261SA-4 FCC ID 2AE77-DGU12T5Y461A2 IC Number - Power supply DC 13.50 V Frequency range 2 402 MHz ~ 2 480 MHz Modulation technique GFSK, Pi/4DQPSK, 8DPSK Number of channels 79 ch Antenna gain / Type 3.40 dBi / PCB Antenna Test Site Registration Number FCC (KR0151), IC (24841) H/W version / S/W version 1.0 / 1.0 Test S/W version ADB command 4.1. Table for Test Modes and Frequency (Bluetooth) Preliminary tests were performed in different data rate to find the worst radiated emission. The data rate shown in the table below is the worst-case rate with respect to the specific test item. Investigation has been done on all the possible configurations for searching the worst cases. The following table is a list of the test modes shown in this test report. Mode Data rate (Worst case) Frequency (Freq. MHz) BDR DH5 Lowest (2 402) / Middle (2 441) / Highest (2 480) EDR 3-DH5 Lowest (2 402) / Middle (2 441) / Highest (2 480) 4.2. Information about the FHSS characteristics 4.2.1. Pseudorandom frequency hopping sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is1600 hops/s. 4.2.2. Medium access protocol The manufacturer declares that the device uses Bluetooth protocol. It confirmed that Medium access protocol is implemented. DEKRA Korea Co., Ltd. Report Number: YI-QA-23-RF-I025 YI-QA-P016-04(0) Page : (7) of (50) Effective Data : 2022.01.06 5.Measurement equipment Equipment Manufacturer Model Serial number Calibration Interval Calibration date Calibration due. Test Receiver R&S ESVS30 829673/015 1 year 22.11.23 23.11.23 Signal Generator R&S SMB100A 178128 1 year 23.05.17 24.05.17 Spectrum Analyzer R&S FSVA40 101591 1 year 23.03.…
