2AE77DGU7T45C220SA1Car AUDIO

Copyright ⓒ Movon Corporation. All rights Reserved. User Manual MANUAL : Modelo: DGU-7T45-C220SA Car Navigation System OWNER’S MANUAL Please read this manual carefully before operating your set and retain it for future reference. Designs and specifications are subject to change without prior notice. *Please visit the Ssangyong Motor online Webpage for the detail information about the Car Navigation system. General information Location of control Front View Buttons Function POWER/VOL 1. POWER ON/OFF 2. Volume Control MODE 1. Transit to Mode screen. 2. In Off status, last media will be resumed SETUP 1.Transit to Setting screen MAP 1. Transit to Navigation Map NAVI 1.Transit to Navigation Main Menu Location of control Steering Wheel Controller Buttons Function Receives Incoming Call or Redial Short press(1.5 sec or less) - Change the preset channel in Radio mode - Change the track in Music playback Long press(1.5 sec longer) - Tune the frequency after release of button - Skip the music during press Turns the volume down/up during media playback and BT call During standby - Press to mute the AVN system - Press and hold : to turn the system off When a call comes in - Press / Press and hold : to end a call or decline the call During a call - Press / Press and hold : to end a call or decline the call - Press : to select the functions (MUSIC->VIDEO->PHOTO) - Press and hold : to select the bands (F1->F2->AM) - Press and hold in Screen off : to turn the display on. Basic Operation Turning the System On MODE 1. Turn the ignition key to ACC or On Position Or Press Start if SmartKey system is equipped. 2. Booting log will be shown during system startup. 3. User screen will appear. (Initial mode will be Tuner FM1) 4.To switch to different mode of operation, please press MODE button. Turning the System Off 1. To turn the system off, press and hold the [Power/VOL] button longer than 1.5 sec. The system will remember the last used mode. 2. If the vehicle is turned off while AVN system is running, the system will return to the last media after turning vehicle on. Turning the emergency reset Settings AV O F F AV ON 1.Press [MODE] and [NAVI] buttons together 2. System will terminate and restart and will start again.(User may see booting log and so on.) 1. To switch to System Settings of operation, please press MODE button. 1.In the ON state is AV Press thePWR / VOLbutton(less than 1.5seconds), AV is OFFand only theNAVIscreen. 1.In the OFF state is AV P ress thePWR / VOLbutton(less than1.5 seconds), AV isturned ON. Mode Setection Navigation Mode (TOMTOM Map) MEDIA Mode (USB VIDEO, MUSIC, PHOTO) RADIO Mode BLUETOOTH MUSIC Mode HDMI Mode BLUETOOTH Mode Rearview Camera Operation This system provide the Rearview Camera monitoring feature.(if equipped) • Rearview camera monitor is turns on if the transmission gear is switched to “Reverse” position. • Transmission gear position is moved out from “Reverse” the rearview camera monitor will turned off and the system will be switched to previous screen. • The system will turn the turned on and turned off during Reverse even if the user has switched off the system. • Volume control can be used for better caution and safe drive. 1. Start the vehicle by turning the ignition key to ON or ACC. 2. Change the transmission to “Reverse” † Check... • During the rearview camera monitoring, the user only can receive the HFP call or change the audio volume using VOL control on the front of buttons on the SWC. Getting started with Navigation 1. Navi Button 2. Navi Mode Selection Tap ‘MODE’ shortly on Map View go to ‘MODE’ Go to Current Location SD Card Slot (Include MAP) Tap ‘Navi’ shortly on Map View to go ‘NaviMainMe nu’ Tap ‘SETUP’ shortly on Map View go to ‘Navi Setting’ Go to MODE, Tap 3.Route Navi MainMenu Zoom In/Out Change 2D/3D Destination Starting Point Estimate time of arrival/ Left distance Tap ‘More Option’ to set My places/Starting Point Search and Tap Drive Button to plan a route 4. Navigation Main Menu Enter an Address or Name and tap drive Button or More option After Planning Route, back to Navi Main Menu and Set - Clear Route/Change Route Type/Avoid on This Route/Play Route Preview Tap Setting to set Appearance Route/ /Planning/Sounds&Warnings Set and check Home/Recent Destination Change view of Day/Night Troubleshooting Cannot identify current location. (GPS not receiving) GPS cannot be used indoors and must be connected to a power source with ACC in a vehicle in a location where the signal from the satellite can be received easily. When initially connecting the GPS, it usually takes about 10 minutes to be working normally, but the connection speed can differ depending on the weather condition and surrounding obstacles. If the GPS connection is unstable for a long period of time, try the following. • Check if the product is connected to a power source. • Check if the back of the GPS product is in a location where the sky can be seen well. • If there are high buildings or if you are under a tree, move to a location where there are no obstacles. Cannot hear the voice guide. The volume is not set correctly or turned off. Adjust the volume of voice guidance. There is a difference between the driving road and the road on the map in the product. Even though GPS is usually very accurate, there is a small margin for error. When the GPS receiver is installed, there can be an error of about 10m. But for newly built roads, the problem could come from the data update to the map. Cannot see the map. Perhaps you cannot see the map even when you have executed the navigation menu. This happens when the data within the memory is damaged. Delete all the data in the memory and install the data again. If the issue persists after installation, contact the A/S center. The path guide is different from the actual path (path guide error) • When the road is closely parallel. • When the splitting road angle is very small. • When there is an adjacent road when turning. • When driving on a r…

Text truncated - open the document above for the full version.

DIGEN 89, Seongseo4chacheomdan-ro, Dalseo-gu, Daegu, South Korea Date: Mar. 26, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 ,Industry Canada c.c. Timco Engineering, Inc. Certification Division 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA FCC ID : 2AE77DGU7T45C220SA1 To whom it may concern: I, the undersigned, hereby authorize Technical Manager Issac Jin of MOVON CORPORATION and here after referred to as MOVON CORPORATION, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these m atters. Any and all acts carried out by Technical Manager Issac Jin of MOVON CORPORATION on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing MOVON CORPORATION as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; DIGEN 89, Seongseo4chacheomdan-ro, Dalseo-gu, Daegu, South Korea e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jun Kim /Manager DIGEN REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

DIGEN 89, Seongseo4chacheomdan-ro, Dalseo-gu, Daegu, South Korea Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AE77DGU7T45C220SA1 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics / Block Diagram / Operational Description / Parts List Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. 2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos / Internal Photos / Test Setup Photos / User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Sincerely Yours, Jun Kim /Manager DIGEN

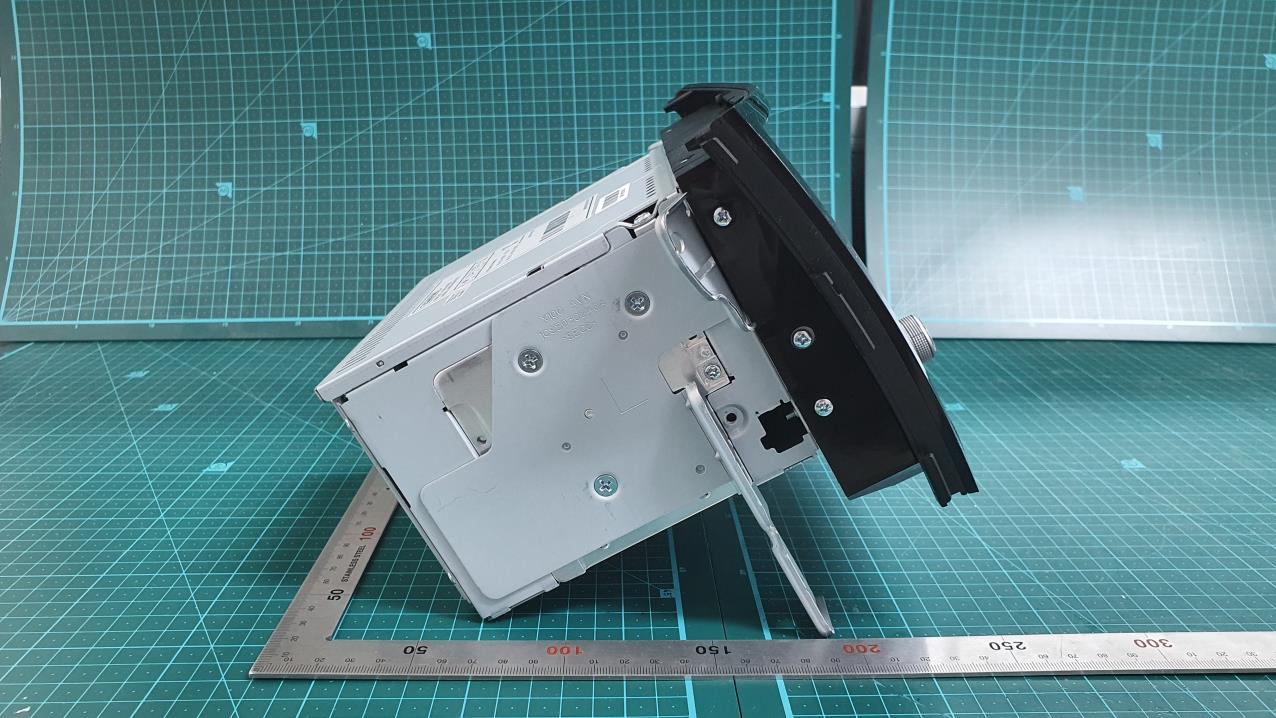

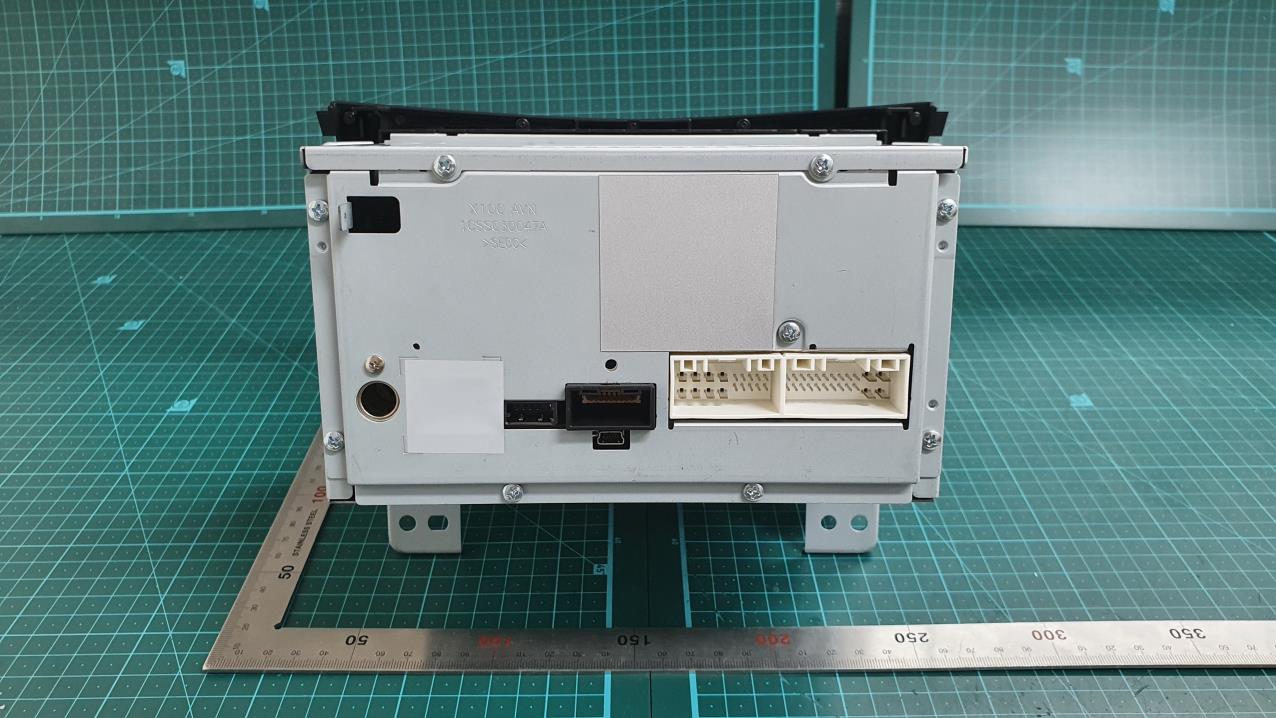

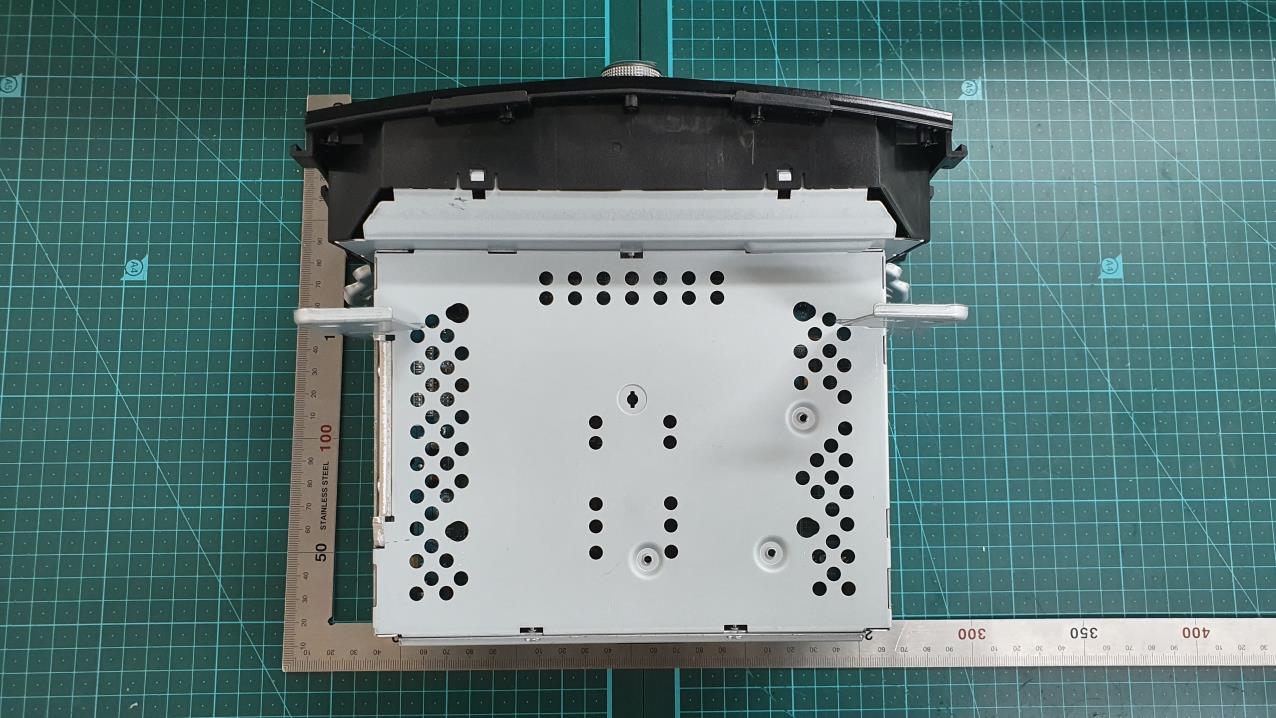

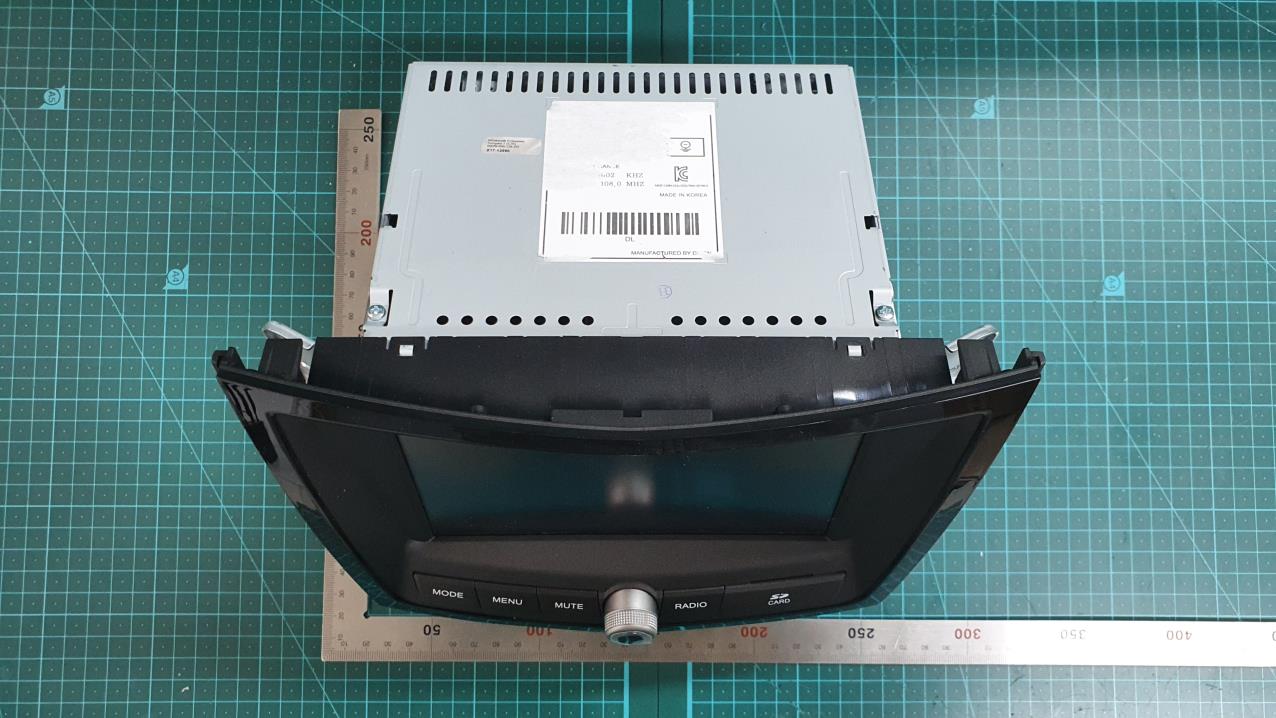

Copyright ⓒ Movon Corporation. All rights Reserved. External Photos Copyright ⓒ Movon Corporation. All rights Reserved. External Photos Front Rear Copyright ⓒ Movon Corporation. All rights Reserved. External Photos Left Right Copyright ⓒ Movon Corporation. All rights Reserved. External Photos Top Bottom

Copyright ⓒ Movon Corporation. All rights Reserved. Label Informaion Copyright ⓒ Movon Corporation. All rights Reserved. Label information Lacation&Drawing The location of the label is the top case.

Copyright ⓒ Movon Corporation. All rights Reserved. Internal Photos Copyright ⓒ Movon Corporation. All rights Reserved. Internal Photos Main Board Front Main Board Rear Copyright ⓒ Movon Corporation. All rights Reserved. Internal Photos LCD Board Front LCD Board Rear Copyright ⓒ Movon Corporation. All rights Reserved. Internal Photos Key Board Front Key Board Rear

Copyright ⓒ Movon Corporation. All rights Reserved. Internal Photos SD Card Board Front SD Card Board Rear Copyright ⓒ Movon Corporation. All rights Reserved. Internal Photos Module Inside Copyright ⓒ Movon Corporation. All rights Reserved. Internal Photos Antenna Antenna

1. Regulation 2. RF Exposure Compliance Issue According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. RF EXPOSURE Limits for Maximum Permissive Exposure: RF exposure is calculated. Limits for General Population / Uncontrolled Exposure 0.3 ~ 1.346141.63*(100)30 Frequency Range Electric Field Strength [V/m] Magnetic Field Strength [A/m] Power Density [mW/cm 2 ] Averaging Time [minute] 1.34 ~ 30824/f2.19/f*(180/f2)30 30 ~ 30027.50.0730.230 300 ~ 1 500//f/1 50030 1 500 ~ 15 000//130 f=frequency in MHz, *= plane-wave equivalent power density MPE (Maximum Permissive Exposure) Prediction Predication of MPE limit at a given distance: Equation from page 18 of OET Bulletin 65, Edition 97-01 S = power density [mW/cm 2 ] P = Power input to antenna [mW] G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna [cm] The information should be included in the user’s manual: This appliance and its antenna must not be co-located or operation in conjunction with any other antenna or transmitter. A minimum separation distance of 20 cm must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements. () SPGRRPGS4 4 2 == Copyright ⓒ Movon Corporation. All rights Reserved. ( MPE Calculations : Bluetooth BDR - Frequency Range :2 402 MHz~2 480 MHz 1.00 dB - Measured RF Output Power (Peak) :5.24 dBm - Target Power & Tolerance :4.30 dBm&± = Minimum :3.30 3.32/( 4 X 20^2 X π ) = EIRP / (4 X R 2 π) = S : Maximum Power Density (mW/cm 2 ) dBm) - Maximum Output Power for the Calculation :5.30 dBm Maximum :5.30 dBm The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the The MPE calculation for this exposure is shown below. dBi (& - Maximum Peak Antenna Gain :-0.09 EIRP : Equivalent Isotropic Radiated Power (mW) - NOTE P : Max tuneup Power (dBm) G : Maximum Peak Antenna Gain (dBi) Power Density at the specific separation - NOTE- S dBi 5.21dBm =3.32mW = 5.30dBm+ mW/cm 2 = 0.000 66 -0.09 - EIRP=P + G R : Distance to the center of the radiation of the antenna20cm ) RF Exposure Compliance Issue Therefore, EUT is not required the SAR Evaluation. Copyright ⓒ Movon Corporation. All rights Reserved. ( MPE Calculations : Bluetooth EDR - Frequency Range :2 402 MHz~2 480 MHz dB (Maximum :3.50 dBm& - Measured RF Output Power (Peak) :3.48 dBm - Target Power & Tolerance :2.50 dBm&±1.00 - Maximum Output Power for the Calculation :3.50 dBm The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the The MPE calculation for this exposure is shown below. - EIRP=P + G- NOTE Minimum :1.50 dBm) - Maximum Peak Antenna Gain :-0.09dBi P : Max tuneup Power (dBm) =3.41dBmG : Maximum Peak Antenna Gain (dBi) =2.19mW =3.50dBm+-0.09dBi Power Density at the specific separation - S= EIRP / (4 X R 2 π) - NOTE =2.19/( 4 X 20^2 X π ) S : Maximum Power Density (mW/cm 2 ) = 0.000 436 mW/cm 2 EIRP : Equivalent Isotropic Radiated Power (mW) R : Distance to the center of the radiation of the antenna20cm ) RF Exposure Compliance Issue Therefore, EUT is not required the SAR Evaluation. Copyright ⓒ Movon Corporation. All rights Reserved.

MOVON CORPORATION Report Number: MOV-20-RF-I036 Page : (1) of (47) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. FCC Part 15 Subpart B&C §15.247 RSS-247 Issue 2 Test Report Equipment Under Test Car AUDIO Model Name DGU-7T45-C220SA-1AS Variant Model Name - FCC ID 2AE77DGU7T45C220SA1 IC Number - Applicant DIGEN Manufacturer DIGEN Date of Test(s) 2020. 03. 17 ~ 2020. 03. 20 Date of Issue 2020. 03. 26 In the configuration tested, the EUT complied with the standards specified above. Issue to Issue by DIGEN 89, Seongseo4chacheomdan-ro, Dalseo-gu, Daegu, South Korea Tel.: +82-70-4850-3311 Fax: +82-2-532-8811 MOVON CORPORATION 498-2, Geumeo-ro, Pogok-eup, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea, 17030 Tel.: +82-31-338-8837 Fax: +82-31-338-8847 MOVON CORPORATION Report Number: MOV-20-RF-I036 Page : (2) of (47) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Revision history Revision Date of issue Description Revised by -- 2020.03.26 Initial - MOVON CORPORATION Report Number: MOV-20-RF-I036 Page : (3) of (47) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Table of contents 1. Applicant Information ................................................................................................... 4 2. Laboratory Information ................................................................................................. 4 3. Summary of test results................................................................................................ 5 4. EUT Description ............................................................................................................ 6 5. Measurement equipment .............................................................................................. 7 6. Antenna requirement .................................................................................................... 8 7. 20 ㏈bandwidth & 99% bandwidth .............................................................................. 9 8. Peak output power ...................................................................................................... 16 9. Carrier frequency separation ..................................................................................... 21 10. Number of hopping frequencies .............................................................................. 23 11. Time of occupancy (Dwell time) ............................................................................... 26 12. Transmitter radiated spurious emissions and conducted spurious emissions .. 28 MOVON CORPORATION Report Number: MOV-20-RF-I036 Page : (4) of (47) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 1. Applicant Information 1.1. Details of applicant Applicant : DIGEN Address : 89, Seongseo4chacheomdan-ro, Dalseo-gu, Daegu, South Korea Contact Person : Jun Kim Telephone : +82-70-4850-3311 Fax : +82-2-532-8811 1.2. Manufacturer Information Manufacturer : DIGEN Address : 89, Seongseo4chacheomdan-ro, Dalseo-gu, Daegu, South Korea 2. Laboratory Information Company name : MOVON CORPORATION Test site number : FCC (KR0151) Address : 498-2, Geumeo-ro, Pogok-eup, Cheoin-gu, Yongin-si, Gyeonggi-do, South Korea Web site : http://www.movonlab.co.kr Telephone : +82-31-338-8837 Facsimile +82-31-338-8847 MOVON CORPORATION Report Number: MOV-20-RF-I036 Page : (6) of (47) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 4. EUT Description Kind of product Car AUDIO Model Name DGU-7T45-C220SA-1AS Variant Model Name - FCC ID 2AE77DGU7T45C220SA1 IC Number - Power supply DC 13.50 V Frequency range 2 402 MHz ~ 2 480 MHz Modulation technique GFSK, Pi/4DQPSK, 8DPSK Number of channels 79 ch Antenna gain / Type -0.09㏈i / Chip Antenna Test Site Registration Number FCC (KR0151) H/W version / S/W version 1.0 / 1.0 Test S/W version 2.6.0(CSR Bluetest3) 4.1. Table for Test Modes and Frequency (Bluetooth) Preliminary tests were performed in different data rate to find the worst radiated emission. The data rate shown in the table below is the worst-case rate with respect to the specific test item. Investigation has been done on all the possible configurations for searching the worst cases. The following table is a list of the test modes shown in this test report. Mode Data rate (Worst case) Frequency (Freq. MHz) BDR DH5 Lowest (2 402) / Middle (2 441) / Highest (2 480) EDR 3-DH5 Lowest (2 402) / Middle (2 441) / Highest (2 480) 4.2. Information about the FHSS characteristics 4.2.1. Pseudorandom frequency hopping sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is1600 hops/s. 4.2.2. Medium access protocol The manufacturer declares that the device uses Bluetooth protocol. It confirmed that Medium access protocol is implemented. MOVON CORPORATION Report Number: MOV-20-RF-I036 Page : (7) of (47) The results shown in this test report refer only to the sa…

Text truncated - open the document above for the full version.

Copyright ⓒ Movon Corporation. All rights Reserved. Test Setup Photos Copyright ⓒ Movon Corporation. All rights Reserved. Test Setup Photos Radiated Emission_9 kHz ~ 30 MHz Test distance : 3 m, height of table : 0.8 m Radiated Emission_30 MHz ~ 1 GHz Test distance : 3 m, height of table : 0.8 m Copyright ⓒ Movon Corporation. All rights Reserved. Test Setup Photos Radiated Emission_1 GHz ~ 18 GHz Test distance : 3 m, height of table : 1.5 m Radiated Emission_18 GHz ~ 26 GHz Test distance : 1 m, height of table : 1.5 m
