DIGEN 89, Seongseo4chacheomdan-ro, Dalseo-gu, Daegu, South Korea Date: Sep. 28, 2022 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 ,Industry Canada c.c. Timco Engineering, Inc. Certification Division 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA FCC ID : 2AE77-DGU9T45J100SA To whom it may concern: I, the undersigned, hereby authorize Technical Manager Isaac Jin of DEKRA Korea Co., Lt d.and here after referred to as DEKRA Korea Co., Ltd. to act on our behalf in all manners r elating to application for equipment authorization, including signing of all documents rela ting to these matters. Any and all acts carried out by Technical Manager Isaac Jin of DEKRA Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing DEKRA Korea Co., Ltd. as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding DIGEN 89, Seongseo4chacheomdan-ro, Dalseo-gu, Daegu, South Kore our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jun Kim / Manager DIGEN REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

DIGEN 89, Seongseo4chacheomdan-ro, Dalseo-gu, Daegu, South Korea Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AE77-DGU9T45J100SA To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics / Block Diagram / Operational Description / Parts List Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. 2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos / Internal Photos / Test Setup Photos / User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Sincerely Yours, Jun Kim / Manager DIGEN

DIGEN CO.,LTD. 89, Seongseo4chacheomdan-ro, Dalseo-gu, Daegu, South Korea Date: Sep. 30, 2022 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Timco Engineering, Inc. Certification Division 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Product Declaration FCC ID: 2AE77-DGU9T45J100SA To whom it may concern: We, DIGEN Declare that Model name of DGU-9T45-J100SA The product is not supported by Wifi. Only Bluetooth supports Regards, Jun Kim /Manager DIGEN DIGEN CO.,LTD. 89, Seongseo4chacheomdan-ro, Dalseo-gu, Daegu, South Korea

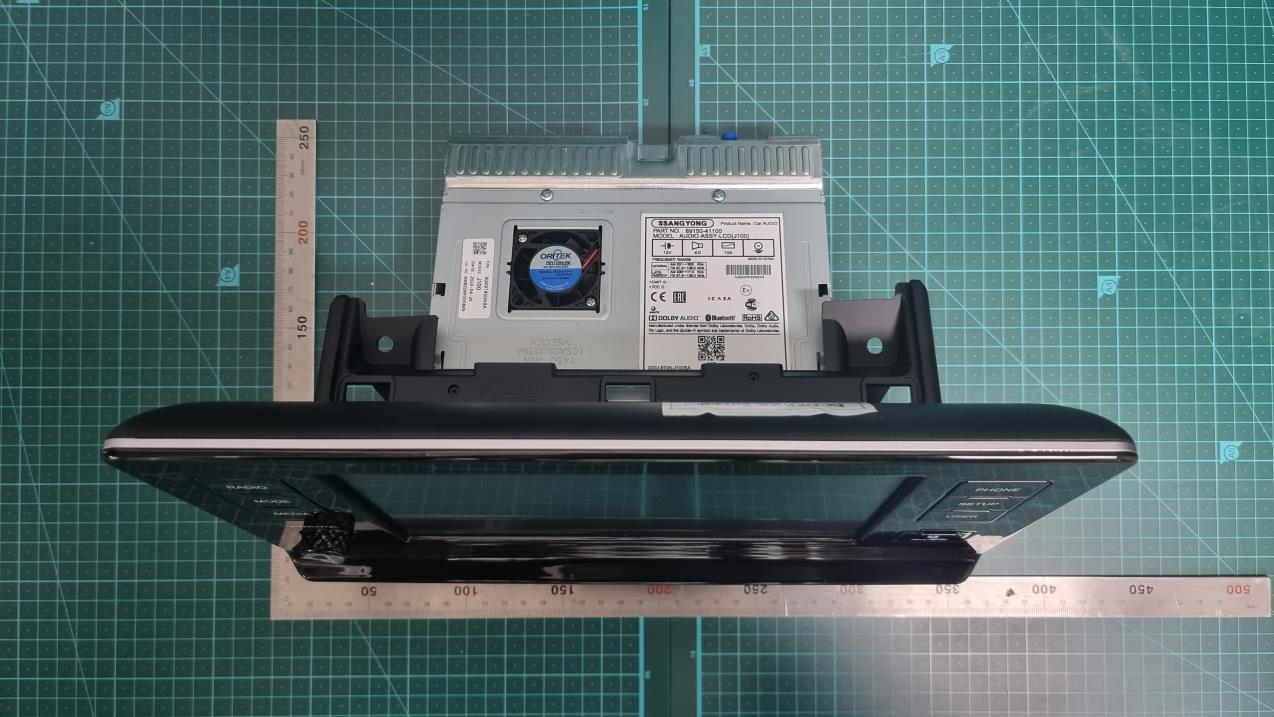

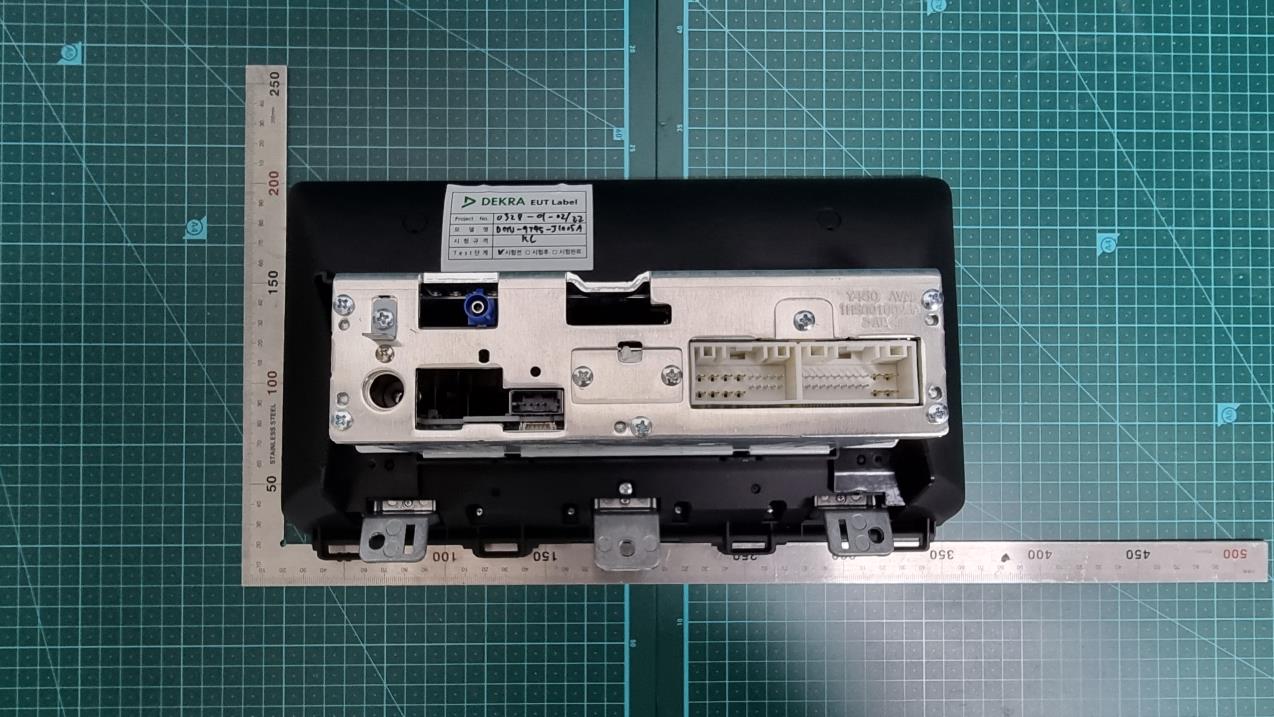

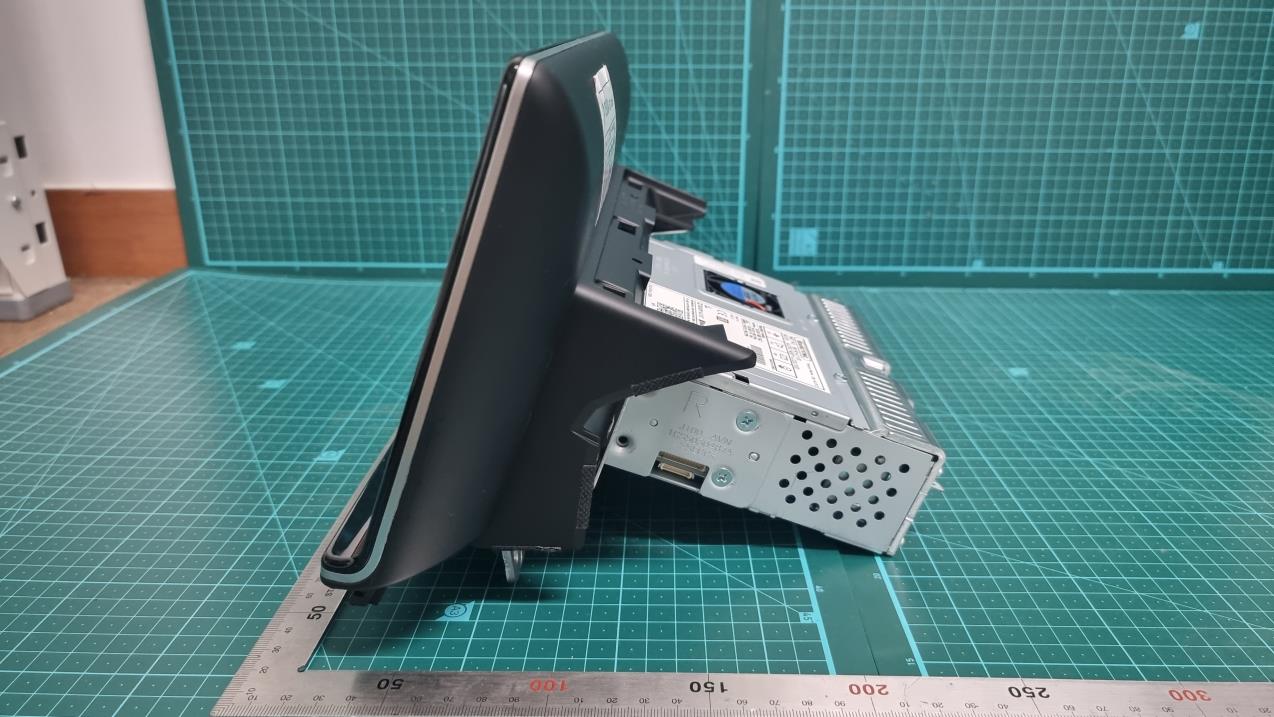

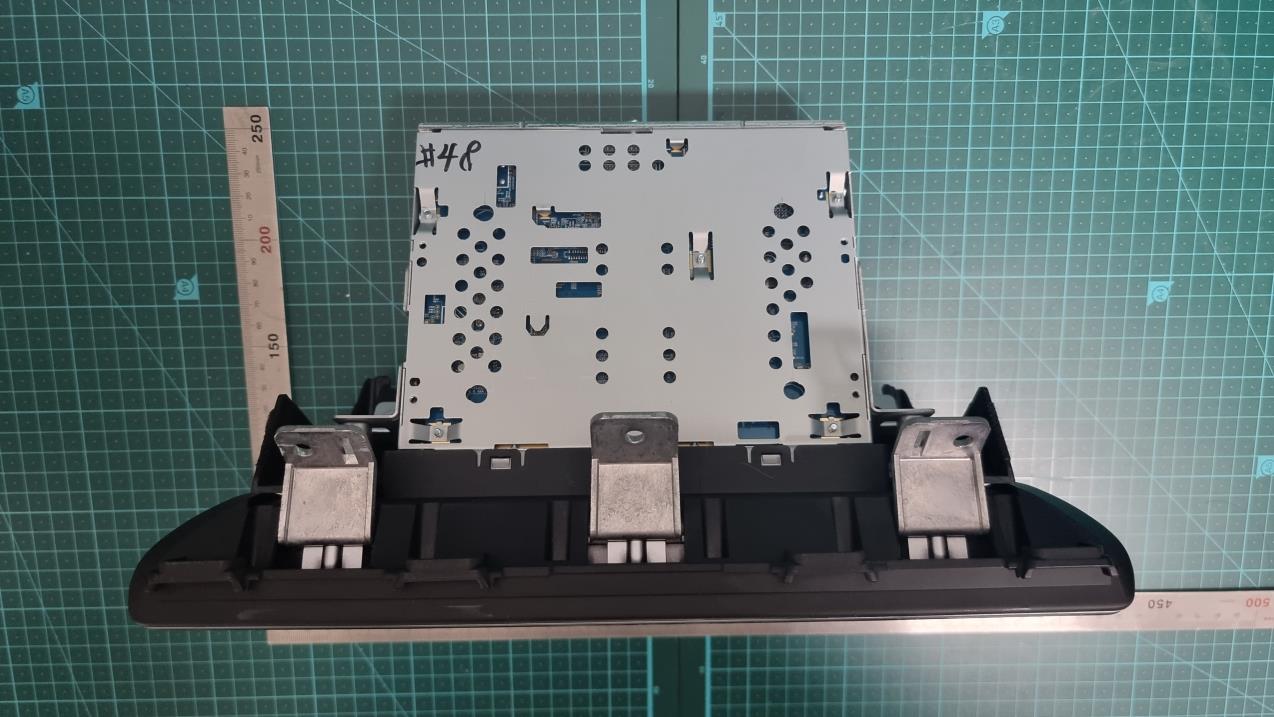

Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. External Photos Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. External Photos Front Rear Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. External Photos Left Right Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. External Photos Top Bottom

Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Label Informaion Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Label information Location&Drawing The location of the label is the top case.

Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Internal Photos Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Internal Photos Main PCB Front Main PCB Rear Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Internal Photos DAB PCB Front DAB PCB Rear Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Internal Photos LCD PCB Front LCD PCB Rear Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Internal Photos Left Key PCB Front Left Key PCB Rear Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Internal Photos Right Key PCB Front Right Key PCB Rear Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Internal Photos SDCard PCB Front SDCard PCB Rear Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Internal Photos Module Module Expansion Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Internal Photos Inside Antenna Bluetooth Antenna

South KoreaKorea, 17030 Tel.: +82 70-7100-1740Tel.: +82-31-338-8837 Fax: +82 2-532-8811Fax: +82-31-338-8847 In the configuration tested, the EUT complied with the standards specified above. Issue toIssue by DIGENDEKRA Korea Co., Ltd. 89, Seongseo4chacheomdan-ro498-2, Geumeo-ro, Pogok-eup, Dalseo-gu, Daegu,Cheoin-gu, Yongin-si, Gyeonggi-do, IC Number- ApplicantDIGEN ManufacturerDIGEN Date of Test(s)2022. 07. 18 ~ 2022. 07. 25 Date of Issue2022. 09. 28 RF EXPOSURE REPORT Equipment Under Test AUDIO ASSY – LCD Modle Name DGU-9T45-J100SA Variant Model Name- FCC ID2AE77-DGU9T45J100SA Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Page :1 / 4 1. Regulation 2. RF Exposure Compliance Issue f=frequency in MHz, *= plane-wave equivalent power density MPE (Maximum Permissive Exposure) Prediction Predication of MPE limit at a given distance: Equation from page 18 of OET Bulletin 65, Edition 97-01 S = power density [mW/cm 2 ] P = Power input to antenna [mW] G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna [cm] The information should be included in the user’s manual: This appliance and its antenna must not be co-located or operation in conjunction with any other antenna or transmitter. A minimum separation distance of 20 cm must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements. 300 ~ 1 500//f/1 50030 1 500 ~ 15 000//130 1.34 ~ 30824/f2.19/f*(180/f2)30 30 ~ 30027.50.0730.230 According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. RF EXPOSURE Limits for Maximum Permissive Exposure: RF exposure is calculated. Limits for General Population / Uncontrolled Exposure 0.3 ~ 1.346141.63*(100)30 Frequency Range Electric Field Strength [V/m] Magnetic Field Strength [A/m] Power Density [mW/cm 2 ] Averaging Time [minute] ( ) S PG R R PG S   4 4 2 =  = Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Page :2 / 4 ( R : Distance to the center of the radiation of the antenna20cm ) EIRP : Equivalent Isotropic Radiated Power (mW) - NOTE P : Max tuneup Power (dBm) G : Maximum Peak Antenna Gain (dBi) Power Density at the specific separation - NOTE- S dBi -5.01dBm =0.32mW = -4.45dBm+ mW/cm 2 = 0.000 063 -0.56 - EIRP=P + G = Minimum :-6.45 0.32/( 4 X 20^2 X π ) = EIRP / (4 X R 2 π) = S : Maximum Power Density (mW/cm 2 ) dBm) - Maximum Output Power for the Calculation :-4.45 dBm Maximum :-4.45 dBm The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the The MPE calculation for this exposure is shown below. dBi (& - Maximum Peak Antenna Gain :-0.56 1.00 dB - Measured RF Output Power (Peak) :-4.48 dBm - Target Power & Tolerance :-5.45 dBm&± MPE Calculations : Bluetooth BDR - Frequency Range :2 402 MHz~2 480 MHz Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Page :3 / 4 ( = 0.000 036 mW/cm 2 EIRP : Equivalent Isotropic Radiated Power (mW) R : Distance to the center of the radiation of the antenna20cm ) Power Density at the specific separation - S= EIRP / (4 X R 2 π) - NOTE =0.18/( 4 X 20^2 X π ) S : Maximum Power Density (mW/cm 2 ) P : Max tuneup Power (dBm) =-7.46dBmG : Maximum Peak Antenna Gain (dBi) =0.18mW =-6.90dBm+-0.56dBi - Maximum Output Power for the Calculation :-6.90 dBm The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the The MPE calculation for this exposure is shown below. - EIRP=P + G- NOTE Minimum :-8.90 dBm) - Maximum Peak Antenna Gain :-0.56dBi dB (Maximum :-6.90 dBm& - Measured RF Output Power (Peak) :-6.99 dBm - Target Power & Tolerance :-7.90 dBm&±1.00 MPE Calculations : Bluetooth EDR - Frequency Range :2 402 MHz~2 480 MHz Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Page :4 / 4

Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Antenna Datasheet ᄆ ᄆᄆ ᄆ PCB Antenna - Application Frequency - Band[MHz] BT / WiFi2400~2485, 5150~5825 PCB+Cable Antenna (2.4 / 5GHz) Data Sheet - Model : Digen Y400 - - P/N : APD2450Y400 - ᄆ ᄆᄆᄆ PCB Antenna ■ ■■■ ANT 구 구구구조 조조조도 도도도 PCB+Cable ANT ① ① ① ① ② ② ② ② ① ① ① ①P PPPC CCCB BBB ② ② ② ②C CCCa aaab bbbl llle eee ᄆ ᄆᄆᄆ PCB Antenna ① ① ① ①P PPPC CCCB BBB PCB 치 치치치수 수수수 ② ② ② ②C CCCa aaab bbbl llle eee Cable 치 치치치수 수수수 ᄆ ᄆᄆ ᄆ PCB Antenna ■ ■■ ■ P/N : APD2450Y400 This specification covers the PCB antenna APD2450Y400 usedin BT/WiFi ■ ■■ ■ ELECTRICAL CHARACTERISTICS ITEMSPEC Frequency Range2400 ~ 2485 MHz.5150 ~ 5825 MHz. VSWR3.0 Max.3.5 Max. PolarizationLinearLinear Gain Azimuth Theta Peak-2.25-4.62 Average-9.12-9.93 Phi Peak-2.86-1.34 Average-8.21-7.57 Elevation 1 Theta Peak-1.90-2.15 Average-7.50-8.69 Phi Peak-3.60-5.53 Average-8.08-12.42 Elevation 2 Theta Peak-5.04-4.75 Average-8.46-11.12 Phi Peak-4.06-1.13 Average-7.86-7.31 ᄆ ᄆᄆ ᄆ PCB Antenna ■ MEASUREMENT V VV VS SS SW WW WR RR R & && & S SS Sm mm mi ii it tt th hh h C CC Ch hh ha aa ar rr rt tt t ᄆ ᄆᄆ ᄆ PCB Antenna ■ RADIATION PATTERN 2 22 2D DD DG GG Ga aa ai ii in nn n/ // /E EE Ef ff ff ff fi ii ic cc ci ii ie ee en nn nc cc cy yy y Theta Phi

DEKRA Korea Co., Ltd. Report Number: YI-QA-22-RF-I028 YI-QA-P016-04(0) Page : (1) of (50) Effective Data : 2022.01.06 FCC Part 15 Subpart B&C §15.247 Test Report Equipment Under Test AUDIO ASSY – LCD Model Name DGU-9T45-J100SA Variant Model Name - FCC ID 2AE77-DGU9T45J100SA IC Number - Applicant DIGEN Manufacturer DIGEN Date of Test(s) 2022. 07. 18 ~ 2022. 07. 25 Date of Issue 2022. 09. 28 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full Issue to Issue by DIGEN 89, Seongseo4chacheomdan-ro Dalseo-gu, Daegu, South Korea Tel.: +82 70-7100-1740 Fax: +82 2-532-8811 DEKRA Korea Co., Ltd. 498-2, Geumeo-ro, Pogok-eup, Cheoin-gu, Yongin-si, Gyeonggi-do, 17030, Rep. of Korea Tel.: +82 31-338-8837 Fax: +82 31-338-8847 DEKRA Korea Co., Ltd. Report Number: YI-QA-22-RF-I028 YI-QA-P016-04(0) Page : (2) of (50) Effective Data : 2022.01.06 Revision history Revision Date of issue Description Revised by -- 2022.09.28 Initial - -- DEKRA Korea Co., Ltd. Report Number: YI-QA-22-RF-I028 YI-QA-P016-04(0) Page : (3) of (50) Effective Data : 2022.01.06 Table of contents 1. Applicant Information ................................................................................................... 4 2. Laboratory Information ................................................................................................. 4 3. Summary of test results................................................................................................ 5 4. EUT Description ............................................................................................................ 6 5. Measurement equipment .............................................................................................. 7 6. Antenna Requirement ................................................................................................... 8 7. 20 dB bandwidth & 99% bandwidth ............................................................................. 9 8. Peak output power ...................................................................................................... 17 9. Carrier frequency separation ..................................................................................... 23 10. Number of hopping frequencies .............................................................................. 26 11. Time of occupancy (Dwell time) ............................................................................... 30 12. Transmitter radiated spurious emissions and conducted spurious emissions .. 33 DEKRA Korea Co., Ltd. Report Number: YI-QA-22-RF-I028 YI-QA-P016-04(0) Page : (4) of (50) Effective Data : 2022.01.06 1. Applicant Information 1.1. Details of applicant Applicant : DIGEN Address : 89, Seongseo4chacheomdan-ro, Dalseo-gu, Daegu, South Korea Contact Person : Myeongcheol Jun Telephone : +82 70-7100-1740 Fax : +82 2-532-8811 1.2. Manufacturer Information Manufacturer : DIGEN Address : 89, Seongseo4chacheomdan-ro, Dalseo-gu, Daegu, South Korea 2. Laboratory Information Company name : DEKRA Korea Co., Ltd. Test site number : FCC (KR0151), IC (24841) Address : 498-2, Geumeo-ro, Pogok-eup, Cheoin-gu, Yongin-si, Gyeonggi-do, 17030, Rep. of Korea Web site : http://www.dekra.kr Telephone : +82 31-338-8837 Facsimile +82 31-338-8847 DEKRA Korea Co., Ltd. Report Number: YI-QA-22-RF-I028 YI-QA-P016-04(0) Page : (6) of (50) Effective Data : 2022.01.06 4. EUT Description Kind of product AUDIO ASSY – LCD Model Name DGU-9T45-J100SA Variant Model Name - FCC ID 2AE77-DGU9T45J100SA IC Number - Power supply DC 13.50 V Frequency range 2 402 MHz ~ 2 480 MHz Modulation technique GFSK, Pi/4DQPSK, 8DPSK Number of channels 79 ch Antenna gain / Type -0.56 dBi / PCB Antenna Test Site Registration Number FCC (KR0151), IC (24841) H/W version / S/W version 1.0 / 1.0 Test S/W version Bluetooth Tester(TC-3000B) 4.1. Table for Test Modes and Frequency (Bluetooth) Preliminary tests were performed in different data rate to find the worst radiated emission. The data rate shown in the table below is the worst-case rate with respect to the specific test item. Investigation has been done on all the possible configurations for searching the worst cases. The following table is a list of the test modes shown in this test report. Mode Data rate (Worst case) Frequency (Freq. MHz) BDR DH5 Lowest (2 402) / Middle (2 441) / Highest (2 480) EDR 3-DH5 Lowest (2 402) / Middle (2 441) / Highest (2 480) 4.2. Information about the FHSS characteristics 4.2.1. Pseudorandom frequency hopping sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is1600 hops/s. 4.2.2. Medium access protocol The manufacturer declares that the device uses Bluetooth protocol. It confirmed that Medium access protocol is implemented. DEKRA Korea Co., Ltd. Report Number: YI-QA-22-RF-I028 YI-QA-P016-04(0) Page : (7) of (50) Effective Data : 2022.01.06 5. Measurement equipment Equipment Manufacturer Model Serial number Calibration Interval Calibration date Calibration due. Test Receiver R&S ESVS30 829673/015 1 year 2021-11-22 2022-11-22 Signal Generator R&S SMB100A 178128 1 year 2022-05-16 2023-05-16 Spectrum Analyzer R&S FSV-40 100832 1 year 2022-05-16 2023-05-16 DC Power Supply Agilent U8002A MY56110033 1 year 2022-05-17 2023-05-17 Power Sensor R&S NRP-Z85 102464 1 year 2022-05-17 2023-05-17 Horn Antenna R&S HF906 100236 1 year 2022-06-27 2023-06-27 Horn Antenna AH Systems SAS-572 269 1 year 2022-05-18 2023-05-18 Horn Antenna AH Systems SAS-573 164 1 year 2022-05-18 2023-05-18 Bi-Log Ant. S…

Text truncated - open the document above for the full version.

Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Test Setup Photos Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Test Setup Photos Radiated Emission_9 kHz ~ 30 MHz Test distance : 3 m, height of table : 0.8 m Radiated Emission_30 MHz ~ 1 GHz Test distance : 3 m, height of table : 0.8 m Copyright ⓒ DEKRA Korea Co., Ltd. All rights Reserved. Test Setup Photos Radiated Emission_1 GHz ~ 18 GHz Test distance : 3 m, height of table : 1.5 m Radiated Emission_Above 18 GHz Test distance : 3 m, height of table : 1.5 m
