2AEBDBU4001IP-CAM

Sunlight Damage: Do not leave the Products in direct sunlight for more than several hours at a time. Exposure to direct sunlight can da- mage the Products. These warnings are periodically updated for completeness. Check www.getmyfox.com/ warnings/ for the latest version. In the event you have any question or pro- blem with your Myfox Product, please contact our support on www.getmyfox.com/support/ FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reaso- nable protection against harmful interference in a residential installation. This equipment ge- nerates, uses and can radiate radio frequency energy and, if not installed and used in accor- dance with the instructions, may cause har- mful interference to radio communications. However, there is no guarantee that interfe- rence will not occur in a particular installation. If this equipment does cause harmful interfe- rence to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/television technician for help FCC Radiation Exposure Statement This equipment complies with FCC RF radia- tion exposure limits set forth for an uncon- trolled environment. This transmitter should be installed and operated with a minimum dis- tance of 20 centimeters between the radiator and your body and must not be collocated or operating in conjunction with any other an- tenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interfe- rence. 2. This device must accept any interference received, including interference that may cause undesired operation. Warning Changes or modifications to this unit not ex- pressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. LEGAL NOTICE IC Statement This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause unde- sired operation of the device. This class B digital apparatus complies with Canadian ICES-003. Cet appareil est conforme à la norme RSS-210 d’Industrie Canada et aux réglementations de la FCC. Son utilisation est soumise aux deux conditions suivantes : (1) cet appareil ne doit pas provoquer d’interférence nuisible et (2) cet appareil doit être capable de recevoir différentes interférences, y compris les inter- férences susceptibles de provoquer un dys- fonctionnement. Cet appareil numérique de classe B est conforme à la norme NMB-003 du Canada. WEEE The directive on Waste Electrical and Electro- nic Equipment (WEEE), which entered into force as European law on 13th February 2003, resulted in a major change in the treatment of electrical equipment at end-of-life. The purpose of this Directive is, as a first priority, the prevention of WEEE, and in addition, to promote the reuse, recycling and other forms of recovery of such wastes so as to reduce disposal. The WEEE logo (shown at the left) on the product or its box indicates that this product must not be dis- posed of or dumped with your other household waste. You are liable to dispose of all your electro- nic or electrical waste equipment by reloca- ting over to the specified collection point for recycling of such hazardous waste. Isolated collection and proper recovery of your elec- tronic and electrical waste equipment at the time of disposal will allow us to help conserve natural resources. Moreover, proper recycling of the electronic and electrical waste equip- ment will ensure safety of human health and the environment. For more information about electronic and electrical waste equipment dis- posal, recovery, and collection points, please contact your local city centre, household waste disposal service, shop from where you purchased the equipment, or manufacturer of the equipment. ROHS This product is in compliance with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011, on the restric- tion of the use of certain hazardous subs- tances in electrical and electronic equipment. EU Declaration of conformity Myfox hereby declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC, ErP 2009/125/EC Directive and RoHS 2011/65/EU Directive. The declaration of conformity may be consulted in the sup- port section of our Web site, accessible from www.getmyfox.com/legal/ BU4001 - User Manual v1.0. - February 24th, 2015 © 2014, Myfox, All rights reserved iPad, iPhone and iPod Touch are trademarks of Apple Inc. 3Volets113x113Camera23032015OKVecto.indd 1-323/03/2015 19:13 3Volets113x113Camera23032015OKVecto.indd 5-623/03/2015 19:13 MYFOX PRODUCT & SERVICES WARRANTY & SAFETY WARNINGS These Myfox Product & Services Warranty and Safety Warnings set forth certain legal terms applicable to your use of the products and services provided by Myfox SAS or any of its subsidiaries, parents, and affiliates for EU customer and Myfox Inc. or any of its subsi- diaries, parents, and affiliates for US and Ca- nada customers (“Myfox”). The terms below form one part of the master commercial agreement between you (“Cus- tomer” or “you”) and Myfox (the “Master Agreement”), which includes the following (each, a “Myfox Agreement”), found at www. getmyfox.com/legal/: • Myfox Sales Terms & Conditions Agreement • Myfox Ha…

Text truncated - open the document above for the full version.

5 16/Mar/2015 To whom it may concern, Letter of Agency I, an officer of Kenxen Electronic (SZ) Limited. do hereby authorize Intertek Testing Services (Mr. Tommy Leung / Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under FCC Part 15 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, ____ Jason Lim General Manager

2AEBDBU4001 Kenxen Electronic (SZ) Limited W hom it may concern, Re: Request for confidentiality Applicant: FCC ID: To Permanent Confidentiality Request is hereby submitted by to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential:  Schematics  Detailed Block diagrams  Detailed Operational/Functional Description Short-term Confidentiality Request is hereby submitted by to withhold from public review for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept confidential for a period of 45 days from the date of Authorization:  Test setup photos  External photos  Internal photos  User manual Rationale for request for confidentiality: has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.][Short term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development.] If you have questions or need further information, please contact the undersigned. Sincerely, Kenxen Electronic (SZ) Limited Kenxen Electronic (SZ) Limited Kenxen Electronic (SZ) Limited Jason Lim General Manager Kenxen Electronic (SZ) Limited

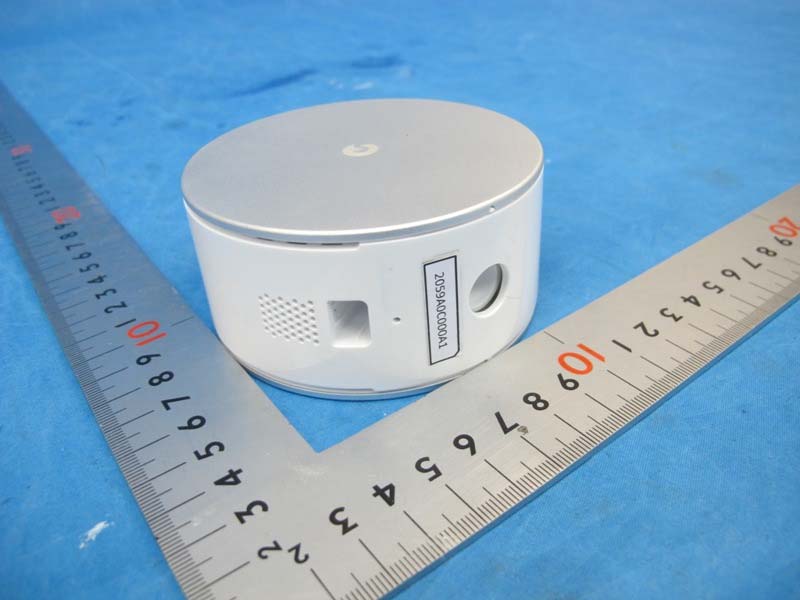

External Photos

20mm 13mm Myfox Designed in France Assembled in China Model BU4001 FCC ID : 2AEBDBU4001 IC : 20045-BU4001 5V 1.5A 32.96mm 23.76mm

Internal Photos

INTERTEK TESTING SERVICES FCC ID: 2AEBDBU4001 RF Exposure report The Equipment Under Test (EUT) is a IP-Cam with WiFi function operating at 2412-2462MHz for 802.11b/g/n-HT20, 11 channels with 5MHz channel spacing and 2422-2452MHz for 802.11n-HT40, 9 channels with 5MHz channel spacing. The EUT was powered by AC120V/60Hz. For more detailed features description, please refer to the user’s manual. Modulation Type: BPSK, QPSK, 16QAM, 64QAM for OFDM. CCK, DQPSK, DBPSK for DSSS. Antenna Type: Integral antenna Antenna Gain: 2dBi The nominal conducted output power specified: 19dBm (Tolerance: +/-5dB) The maximum conducted output power for the EUT is 23.4 dBm in the frequency 2.462GHz 802.11g mode which is within the production variation. The minimum conducted output power for the EUT is 17.8 dBm in the frequency 2.437GHz 802.11b mode which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use. For Maximum Permissible Exposure (MPE) evaluation of the product, the maximum power density at 20 cm from this transmitter shall be less than the General Population / Uncontrolled MPE limit in FCC Part 1.1310. The maximum EIRP= 19+5+2=26dBm=398.1mW The source-based time averaged maximum radiated power = 398.1 x Duty Cycle = 398.1mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: = PG/4πR^2 = EIRP/4πR^2 = 398.1/ 4πR^2 = 0.08 mW/cm^2 INTERTEK TESTING SERVICES FCC ID: 2AEBDBU4001 The MPE limit is 1.0 mWcm-2 for general population and uncontrolled exposure in the WiFi frequency range according to FCC Part 1.1310. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. Transmitter Duty Cycle Calculation The EUT transmit continuously during the test, the duty cycle is 1. The following RF exposure statement or similar sentence is proposed to be included in the user manual: “FCC RF Radiation Exposure Statement Caution: This Transmitter must be installed to provide a separation distance of at least 20 cm from all persons.”

 The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained.  This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program.  For Terms And Conditions of the services, it can be provided upon request.  The evaluation data of the report will be kept for 3 years from the date of issuance. TRF no.: FCC 15C_Tx_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com Kenxen Electronic (SZ) Limited. Application For Certification FCC ID: 2AEBDBU4001 IP-Cam Model: BU4001 2.4GHz WiFi Transceiver Report No.: 141222017SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-13] Prepared and Checked by: Approved by: Sign on file Sunny Zhou Engineer Andy Yan Senior Project Engineer Date: April 09, 2015 INTERTEK TESTING SERVICE TRF no.: FCC 15C_TX_b FCC ID: 2AEBDBU4001 Report No.: 141222017SZN-001 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: Summary of Tests EXHIBIT 2: General Description EXHIBIT 3: System Test Configuration EXHIBIT 4: Measurement Results EXHIBIT 5: Equipment Photographs EXHIBIT 6: Product Labeling EXHIBIT 7: Technical Specifications EXHIBIT 8: Instruction Manual EXHIBIT 9: Confidentiality Request EXHIBIT 10: Miscellaneous Information EXHIBIT 11: Test Equipment List INTERTEK TESTING SERVICES TRF no.: FCC 15C_TX_b FCC ID: 2AEBDBU4001 Report No.: 141222017SZN-001 ii MEASUREMENT/TECHNICAL REPORT IP-Cam Model: BU4001 FCC ID: 2AEBDBU4001 This report concerns (check one) Original Grant X Class II Change Equipment Type: DTS - Part 15 Digital Transmission Systems (WiFi transmitter portion) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-01-13] Edition] provision. Report prepared by: Sunny Zhou Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8614 0695 Fax: (86 755) 8614 6751 INTERTEK TESTING SERVICES TRF no.: FCC 15C_TX_b FCC ID: 2AEBDBU4001 Report No.: 141222017SZN-001 iii Table of Contents 1.0 Summary of Test results ............................................................................................................................. 2 2.0 General Description ...................................................................................................................................... 4 2.1 Product Description ..................................................................................................................................... 4 2.2 Related Submittal(s) Grants ....................................................................................................................... 5 2.3 Test Methodology ........................................................................................................................................ 5 2.4 Test Facility .................................................................................................................................................. 5 3.0 System Test Configuration ......................................................................................................................... 7 3.1 Justification .................................................................................................................................................. 7 3.2 EUT Exercising Software ............................................................................................................................ 7 3.3 Special Accessories .................................................................................................................................... 7 3.4 Measurement Uncertainty .......................................................................................................................... 8 3.5 Equipment Modification .............................................................................................................................. 8 3.6 Support Equipment List and Description ................................................................................................ 8 4.0 Measurement Results ................................................................................................................................. 10 4.1 Maximum Conducted Output Power at Antenna Terminals ..................................................................... 10 4.2 Minimum 6 dB RF Bandwidth .................................................................................................................. 12 4.3 Maximum Power Dens…

Text truncated - open the document above for the full version.

Radiated Emission

Conducted Emission
