2AECY-S-36Bluetooth Speaker

AUX audio cable 1 Product compliance certificate 1 Micro USB 5P data cable 1 User’s manual/warranty card 1 String 1 FCC Information and Copyright This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC RF warning statement: the device has been evaluated to meet general RF exposure requirement , The device can be used in portable exposure condition without restriction.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 SHENZHEN SOAIY TECHNOLOGY CO.,LTD. 2015/03/17 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, ___ SHENZHEN SOAIY TECHNOLOGY CO.,LTD._ _hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product： Bluetooth Speaker Trade Name： N/A Model Name： S-36 Serial Model： N/A FCC ID： 2AECY-S-36 Sincerely, Client’s name / title : Bruce Nan / Manager Contact information / address : 4F, Bldg. D, Fuxinlin Industrial Park, Hangcheng Industrial Zone, Xixiang Street, Bao'an District, Shenzhen, China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 SHENZHEN SOAIY TECHNOLOGY CO.,LTD. 2015-03-17 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AECY-S-36 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Client’s name / title : Bruce Nan / Manager Contact information / address : 4F, Bldg. D, Fuxinlin Industrial Park, Hangcheng Industrial Zone, Xixiang Street, Bao'an District, Shenzhen, China

SHENZHEN SOAIY TECHNOLOGY CO.,LTD. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2015/3/20 SUBJECT: FCC Application for ( FCCID: 2AECY-S-36) To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. We understand that devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm Select the "accredited" option to search for FCC recognized accredited test firms. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. Regards, Signatory Client’s name / title : Bruce Nan / Manager Contact information / address : 4F, Bldg. D, Fuxinlin Industrial Park, Hangcheng Industrial Zone, Xixiang Street, Bao'an District, Shenzhen, China

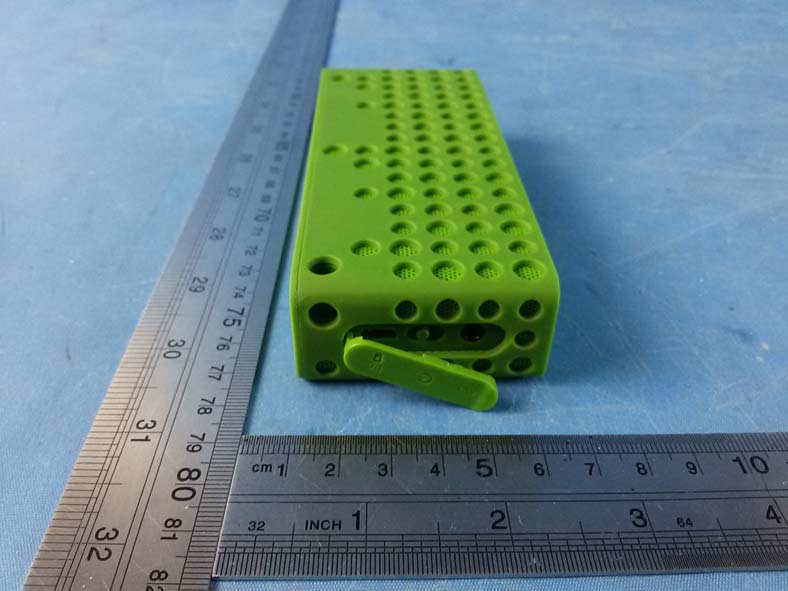

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

FCC ID LABELING AND LOCATION FCC ID Label Bluetooth Speaker Model NO.: S-36 FCC ID: 2AECY-S-36 FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 BT Anntenna Photo 5 Photo 6

FCC ID : 2AECY-S-36 RF EXPOSURE EVALUATION METHOD FCC ID: 2AECY-S-36 SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Maximum measured transmitter power. BT 3.0 1Mbps Test Channel Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) CH00 2402 -3.80 0.417 CH39 2441 -2.71 0.536 CH78 2480 -2.65 0.543 2Mbps CH00 2402 -2.71 0.536 CH39 2441 -3.32 0.466 CH78 2480 -1.47 0.713 3Mbps CH00 2402 -1.62 0.689 CH39 2441 -0.96 0.802 CH78 2480 -0.99 0.796 BLE Te s t Channe Frequency Maximum Conducted Output Power(PK) Maximum Conducted Output Power(mW) (MHz) (dBm) dBm CH00 2402 -5.68 0.270 CH19 2440 -5.04 0.313 CH39 2480 -4.64 0.344 FCC ID : 2AECY-S-36 Remark: The best case gain of the antenna is 0.5dBi. 0. 5 dBi logarithmic terms convert to numeric result is nearly 1.12 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)] BT 3.0 Te s t Channel Range tune up max power (dBm) [(max. power of channel, including tune-up tolerance, mW) (min. test separation distance,mm)] [f(GHz)] Result Limit 1Mbps CH00 -4~-2 -2 0.631 5 2.402 0.196 3 CH39 -4~-2 -2 0.631 5 2.441 0.197 3 CH78 -4~-2 -2 0.631 5 2.480 0.199 3 2Mbps CH00 -3.4~-1.4 -1.4 0.724 5 2.402 0.225 3 CH39 -3.4~-1.4 -1.4 0.724 5 2.441 0.226 3 CH78 -3.4~-1.4 -1.4 0.724 5 2.480 0.228 3 3Mbps CH00 -2~0 0 1.000 5 2.402 0.310 3 CH39 -2~0 0 1.000 5 2.441 0.312 3 CH78 -2~0 0 1.000 5 2.480 0.315 3 BLEI CH00 -6~-4 -4 0.398 5 2.402 0.123 3 CH19 -6~-4 -4 0.398 5 2.441 0.124 3 CH39 -6~-4 -4 0.398 5 2.480 0.125 3 The test Result is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Conclusion: No SAR is required.

FCC RADIO TEST REPORT-BT FCC ID: 2AECY-S-36 Product： Bluetooth Speaker Trade Name： N/A Model Name： S-36 Serial Model： N/A Report No.： NTEK-2015NT02071225F1 Prepared for SHENZHEN SOAIY TECHNOLOGY CO.,LTD. 4F, Bldg. D, Fuxinlin Industrial Park, Hangcheng Industrial Zone, Xixiang Street, Bao'an District, Shenzhen, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 67 Report No.:NTEK-2015NT02071225F1 TEST RESULT CERTIFICATION Applicant’s name ................. : SHENZHEN SOAIY TECHNOLOGY CO.,LTD. Address ................................. : 4F, Bldg. D, Fuxinlin Industrial Park, Hangcheng Industrial Zone, Xixiang Street, Bao'an District, Shenzhen, China Manufacture's Name ............ : SHENZHEN SOAIY TECHNOLOGY CO.,LTD. Address ................................. : 4F, Bldg. D, Fuxinlin Industrial Park, Hangcheng Industrial Zone, Xixiang Street, Bao'an District, Shenzhen, China Product description Product name ........................... : Bluetooth Speaker Model and/or type reference : S-36 Serial Model： N/A Standards ............................. : FCC Part15.247: 01 Oct. 2014 Test procedure .............................. ANSI C63.4-2009 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 07 Feb. 2015 ~ 12 Mar. 2015 Date of Issue ........................................... : 12 Mar. 2015 Test Result ............................................... : Pass Testing Engineer : (Jason Chen) Technical Manager : (Brown Lu) Authorized Signatory : (Bill Yao) Page 3 of 67 Report No.:NTEK-2015NT02071225F1 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BELOW 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30M – 1000 MHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 4 . NUMBER OF HOPPING CHANNEL 25 4.1 APPLIED PROCEDURES / LIMIT 25 4.1.1 TEST PROCEDURE 25 4.1.2 DEVIATION FROM STANDARD 25 4.1.3 TEST SETUP 25 4.1.4 EUT OPERATION CONDITIONS 25 4.1.5 TEST RESULTS 26 5 . AVERAGE TIME OF OCCUPANCY 27 5.1 APPLIED PROCEDURES / LIMIT 27 Page 4 of 67 Report No.:NTEK-2015NT02071225F1 Table of Contents Page 5.1.1 TEST PROCEDURE 27 5.1.2 DEVIATION FROM STANDARD 27 5.1.3 TEST SETUP 28 5.1.4 EUT OPERATION CONDITIONS 28 5.1.5 TEST RESULTS 29 6 . HOPPING CHANNEL SEPARATION MEASUREMENT 35 6.1 APPLIED PROCEDURES / LIMIT 35 6.1.1 TEST PROCEDURE 35 6.1.2 DEVIATION FROM STANDARD 35 6.1.3 TEST SETUP 35 6.1.4 EUT OPERATION CONDITIONS 35 6.1.5 TEST RESULTS 36 7 . BANDWIDTH TEST 42 7.1 APPLIED PROCEDURES / LIMIT 42 7.1.1 TEST PROCEDURE 42 7.1.2 DEVIATION FROM STANDARD 42 7.1.3 TEST SETUP 42 7.1.4 EUT OPERATION CONDITIONS 42 7.1.5 TEST RESULTS 43 8 . PEAK OUTPUT POWER TEST 49 8.1 APPLIED PROCEDURES / LIMIT 49 8.1.1 TEST PROCEDURE 49 8.1.2 DEVIATION FROM STANDARD 49 8.1.3 TEST SETUP 49 8.1.4 EUT OPERATION CONDITIONS 49 8.1.5 TEST RESULTS 50 9 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 56 9.1 DEVIATION FROM STANDARD 56 9.2 TEST SETUP 56 9.3 EUT OPERATION CONDITIONS 56 9.4 TEST RESULTS 57 10 . ANTENNA REQUIREMENT 65 10.1 STANDARD REQUIREMENT 65 10.2 EUT ANTENNA 65 11 . EUT TEST PHOTO 66 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 67 Report No.:NTEK-2015NT02071225F1 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 67 Report No.:NTEK-2015NT02071225F1 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 67 Report No.:NTEK-2015NT02071225F1 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipme…

Text truncated - open the document above for the full version.

Radiated Measurement Photos Conducted Measurement Photos
