2AECY-WXM05Wireless Microphone Headset



SHENZHEN SOAIY TECHNOLOGY CO.,LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020/06/30 Subject; Request for Confidentiality FCC ID: 2AECY-WXM05 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune up In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Bruce Nan Title: Manager Email: [email protected]

Letter of Authorization Company: SHENZHEN SOAIY TECHNOLOGY CO.,LTD Address: 4F, Bldg. D, Fuxinlin Industrial Park, Hangcheng Industrial Zone, Xixiang Street, Bao'an District, Shenzhen,China Product Name: Wireless Microphone Headset Model Number: WXM05, W50 FCC Identifier: 2AECY-WXM05 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Bruce Nan Date: Jun. 30.2020 Title: Manager Signature of applicant:

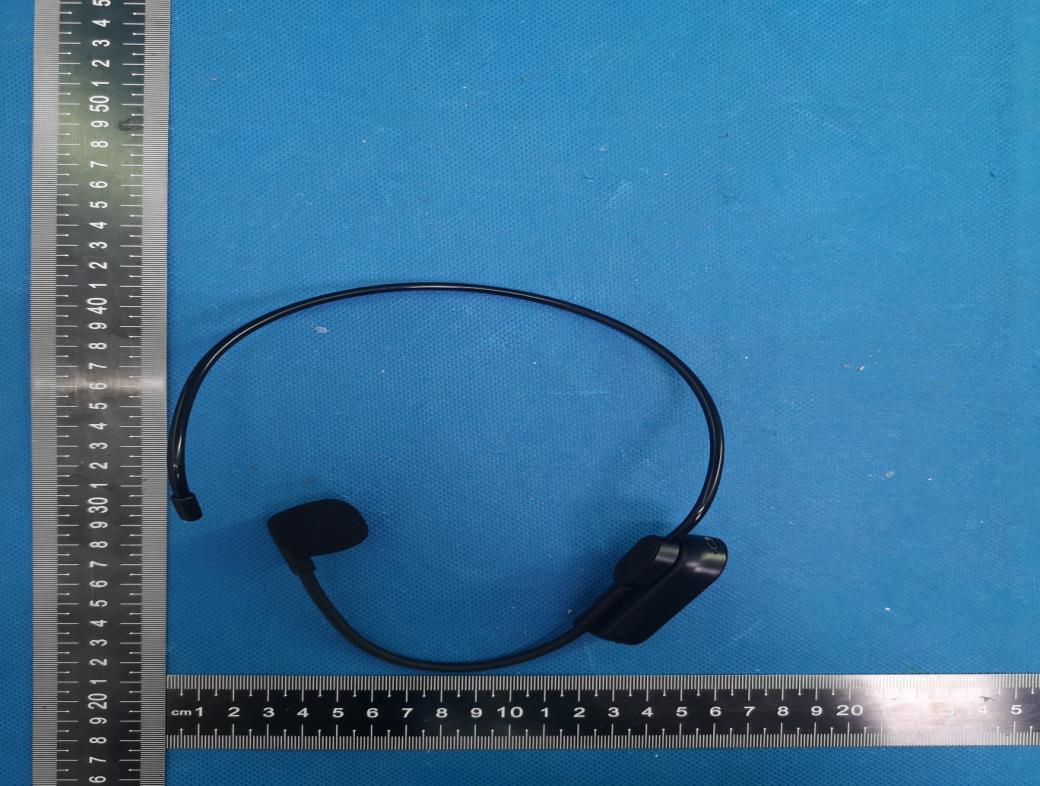

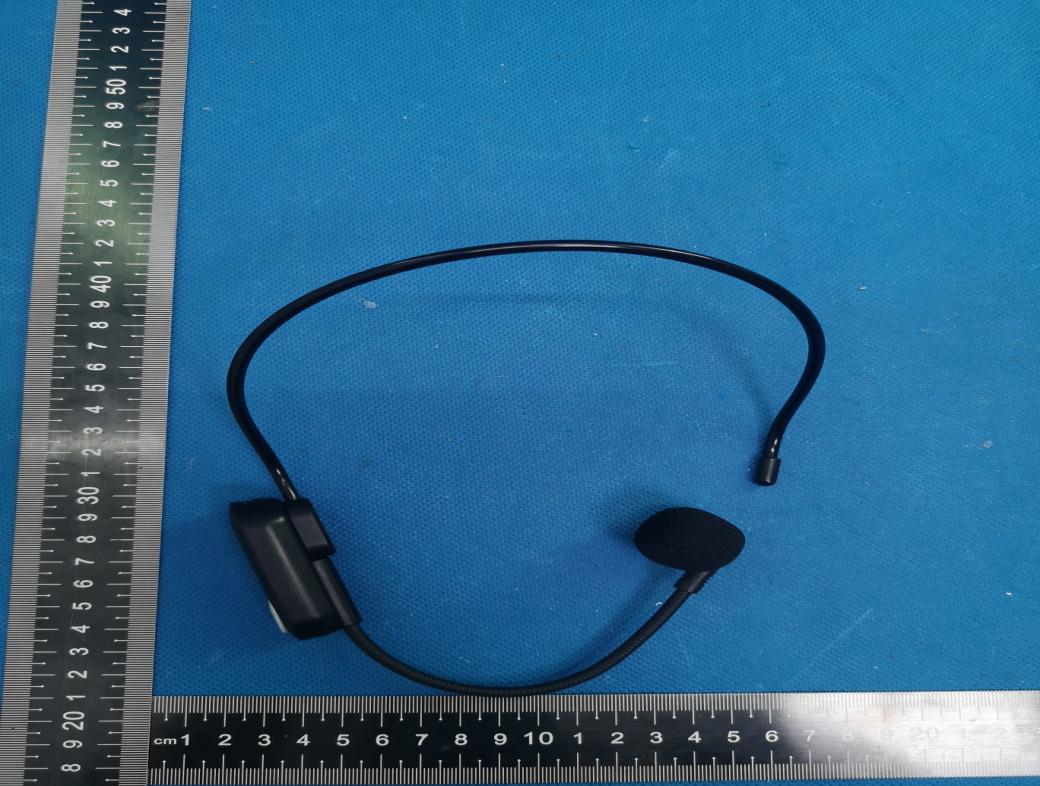

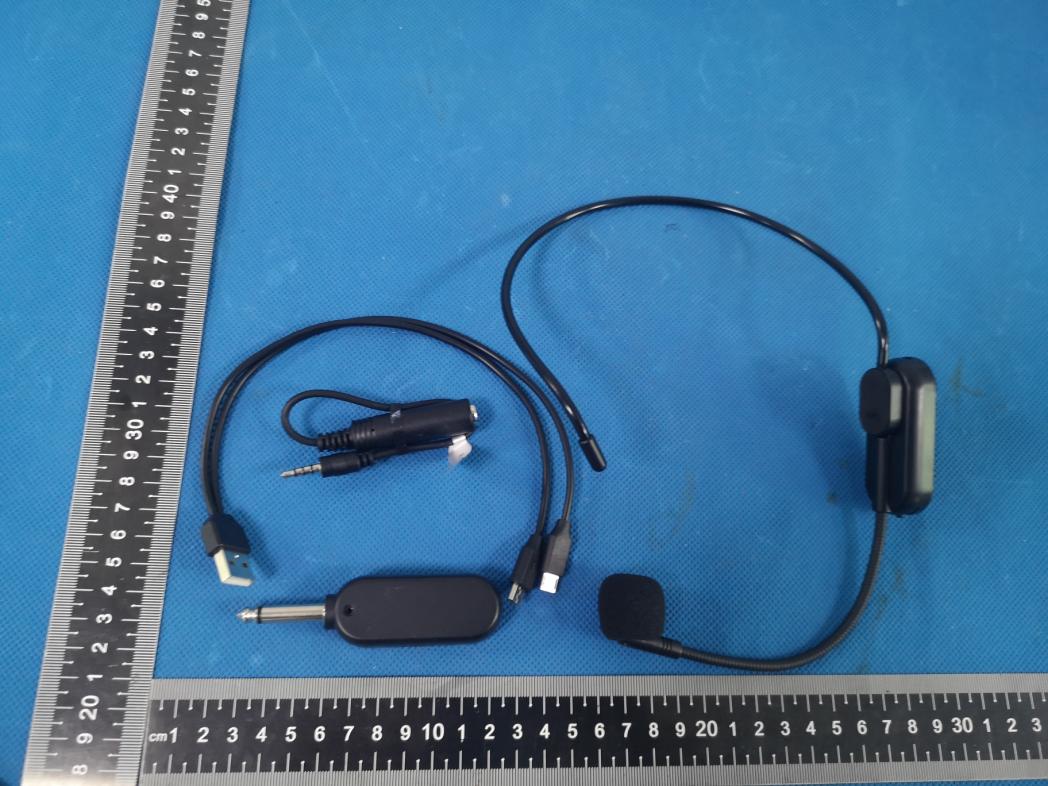

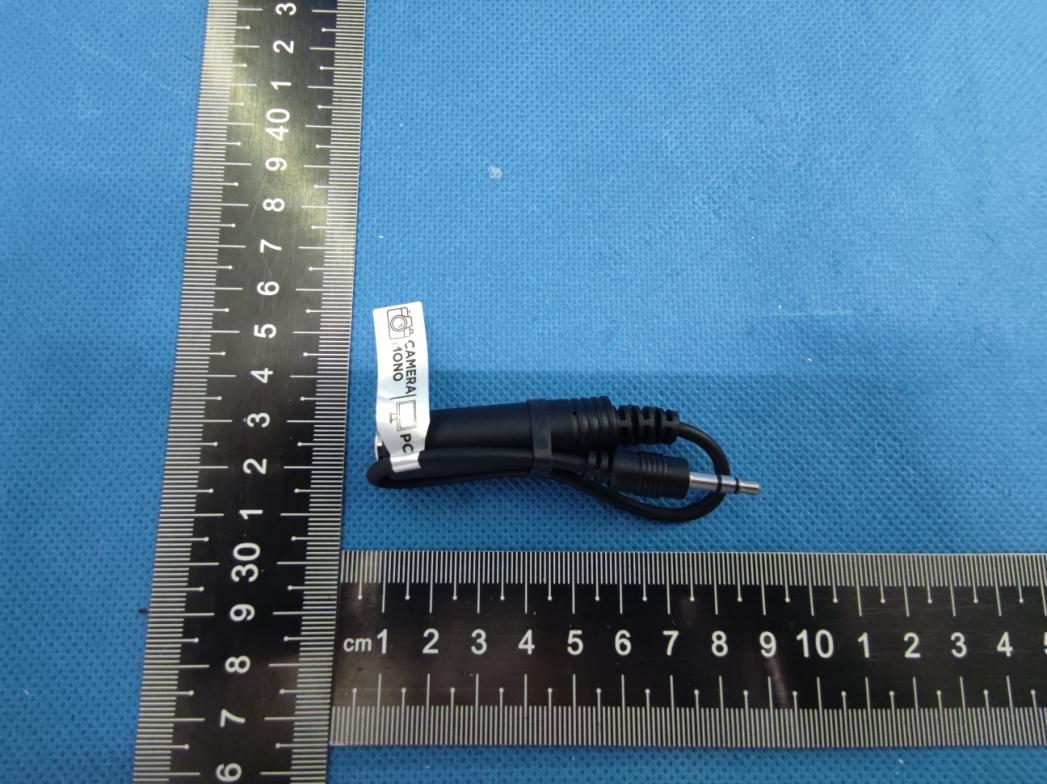

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 TX ANT Photo 3 Photo 4 Photo 5 Photo 6

FCC ID: 2AECY-WXM05 Portable device According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Antenna Type : cable antenna Antenna Gain: 0 dBi Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n 1g SAR Exclusion threshold SAR test exclusion 0.5505 0.99 1.2561±1 2 1.585<50.235183.00YES 0.5705 0.67 1.1671±1 2 1.585<50.239423.00YES 0.5895 0.09 1.0211±1 2 1.585<50.243373.00YES GFSK Conclusion: For the max result : 0.24337≤ 3.0 for 1-g SAR, No SAR is required. Signature: Date: 2020-07-08 NAME AND TITLE (Please print or type): Alex Li /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China

Report No.: S20052500501001 Version.1.0 Page 1 of 44 FCC RADIO TEST REPORT FCC ID: 2AECY-WXM05 Product： Wireless Microphone Headset Trade Name： N/A Model Name： WXM05 Serial Model： W50 Report No.： S20052500501001 Prepared for SHENZHEN SOAIY TECHNOLOGY CO.,LTD 4F, Bldg. D, Fuxinlin Industrial Park, Hangcheng Industrial Zone, Xixiang Street, Bao'an District, Shenzhen,China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Report No.: S20052500501001 Version.1.0 Page 2 of 44 TEST RESULT CERTIFICATION Applicant’s name ................. : SHENZHEN SOAIY TECHNOLOGY CO.,LTD Address ................................. : 4F, Bldg. D, Fuxinlin Industrial Park, Hangcheng Industrial Zone, Xixiang Street, Bao'an District, Shenzhen,China Manufacture's Name ............ : SHENZHEN SOAIY TECHNOLOGY CO.,LTD Address ................................. : 4F, Bldg. D, Fuxinlin Industrial Park, Hangcheng Industrial Zone, Xixiang Street, Bao'an District, Shenzhen,China Product description Product name ........................... : Wireless Microphone Headset Model and/or type reference .............................. : WXM05 Serial Model .............................. : W50 Standards ............................. : FCC CFR47 Part 74 Test procedure ............................... : TIA-603-E: 2016 and KDB 206256 D01 Wireless Microphone Certification v02 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personnel only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 26 May 2020~20 Jun 2020 Date of Issue ........................................... : 20 Jun 2020 Test Result ............................................... : Pass Testing Engineer : (Allen Liu) Technical Manager : (Jason Chen) Authorized Signatory : (Sam Chen) Report No.: S20052500501001 Version.1.0 Page 3 of 44 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1FACILITIES AND ACCREDITATIONS 6 1.1 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMISSION TEST 13 3.1 RADIATED EMISSION MEASUREMENT 13 3.1.1 APPLICABLE STANDARD 13 3.1.2 CONFORMANCE LIMIT 13 3.1.3 MEASURING INSTRUMENTS 13 3.1.4 TEST CONFIGURATION 13 3.1.5 TEST SETUP 13 3.1.6 TEST PROCEDURE 14 3.1.7 TEST RESULTS (BETWEEN 9KHZ – 30MHZ) 15 3.1.8 TEST RESULTS (BETWEEN 30MHZ– 1GHZ) 16 3.1.9 TEST RESULTS (ABOVE 1000 MHZ) 17 4 . RF OUTPUT POWER 18 4.1 CONDUCTED OUTPUT POWER 18 4.1.1 APPLIED PROCEDURES / LIMIT 18 4.1.2 TEST PROCEDURE 18 4.1.3 TEST SETUP 18 4.1.4 EUT OPERATION CONDITIONS 18 4.1.5 TEST RESULTS 19 5 . MODULATION CHARACTERISTICS 22 5.1 APPLIED PROCEDURES / LIMIT 22 5.2 TEST PROCEDURE 22 5.3 EUT OPERATION CONDITIONS 22 5.4 TEST RESULTS 23 Report No.: S20052500501001 Version.1.0 Page 4 of 44 Table of Contents Page 6 . OCCUPIED BANDWIDTH OF EMISSION 24 6.1 APPLIED PROCEDURES / LIMIT 24 6.2 TEST PROCEDURE 24 6.3 DEVIATION FROM STANDARD 24 6.4 TEST SETUP 24 6.5 EUT OPERATION CONDITIONS 24 6.6 TEST RESULT 25 7 . SPURIOUS EMISSIONS AT ANTENNA TERMINALS 29 7.1 TEST PROCEDURE 29 7.2 EUT OPERATION CONDITIONS 29 7.3 TEST RESULTS 30 8 . FREQUENCY STABILITY 36 8.1 STANDARD REQUIREMENT 36 8.2 TEST CONFIGURATION 36 8.3 TEST PROCEDURE 36 8.4 TEST RESULT 37 9 . NECESSARY BANDWIDTH (BN) FOR ANALOGUE SYSTEMS 39 9.1 APPLIED PROCEDURES / LIMIT 39 9.2 TEST PROCEDURE 40 9.3 DEVIATION FROM STANDARD 40 9.4 TEST SETUP 40 9.5 EUT OPERATION CONDITIONS 41 9.6 TEST RESULT 41 10 . EUT TEST PHOTO 44 Report No.: S20052500501001 Version.1.0 Page 5 of 44 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC CFR47 Part 74 Standard Section Test Item Judgment Remark 74.861(e)(1)(ii) RF Output Power PASS 2.1047(a) Modulation Characteristics PASS 2.1049(c)(1) Occupied Bandwidth PASS 2.1053 & 74.861(e)(6) Radiated Emissions PASS 2.1051 Spurious emissions at antenna terminals PASS 2.1055(a)(1) Frequencies Stability PASS 74.861(e) (7) Necessary bandwidth PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Requirement for Radio Equipment on Certification: 1. RF output Power For transmitters, the power output shall be measured at the RF output terminals. 2. Modulation Characteristics For Voice Modulated Communication Equipment, a curve or equivalent data showing the frequency response of the audio modulating circuit over a range of 100 to 5000Hz shall be submitted. 3. Occupied Bandwidth For radiotelephone transmitter, other than single sideband or indenpent sideband transmitter, where modulated by a 2.5KHz tone at an input level 16 dB greater than that necessary to produce 50 percent modulation. 4. Spurious Emission at Antenna Terminals The radio frequency voltage or power generated within the equipment and appearing on a spurious Frequency shall be checked at the equipment output terminal when properly loaded with a suitable artificial antenna. 5. Field Strength of Spurious Emission Measurements shall be made to detect spurious emission that may be radiated directly from the cabinet, control circuits, power leads, or intermediate ciruit elements under normal condition of installation and operation. 6. Frequencies Tolerance The frequency stability shall be measured with variation of ambient temperature. The frequency stability shall be measured wi…
