2AEDZCYG2Remote Shutter

*TheCamera 360 Ultimate app is the property CMYK PROCESSPANTO NE 021 C FOLD FOLD FO LDFOLD party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Email: [email protected] Phone: (03) 9912 9121 Address: 858 Lorimer Street Port Melbourne, Victoria, Australia 3207 GoStick CY1735UNSES Pairing your shutter button with your Apple or Android device is easy. blue. Then go to your smartphone’s Bluetooth settings, ensure Blutooth is turned on, and select for ‘AB Shutter 3’ when it appears. a. iOS/Apple: Settings > Bluetooth > Turn Bluetooth on. It will autmatically start searching for devices. b. Android: Menu > Settings > Wireless & Network > Bluetooth settings > turn Bluetooth on by checking box. Then select ‘Search for Devices’. shutter button on the remote to activate the shutter button. Compatible with Android 4.2.2 OS or newer and iOS 6.0 or newer. In the event of an incompatibe version of Android OS, Cygnett recommends the Camera 360 Ultimate* app, available on Android and iOS platforms. WARNING: KEEP BATTERIES OUT OF REACH OF CHILDREN. Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical burns and potential perfor ation of the oesophagus. If you suspect your child has swallowed or inserted a button batt ery immediately call the 24-hour Poisons Information Centre on 13 11 26 for fas t, expert advice. Examine devices and make sure the batt ery compartment is correctly secured, e.g. that the screw or other mechanical fas tener is tightened. Do not use if compartment is not secure. Dispose of used button batt eries immediately and safely. Flat batt eries can still be dangerous. FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: o Reorient or relocate the receiving antenna. o Increase the separation between the equipment and receiver. o Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. o Consult the dealer or an experienced radio/TV technician for help.

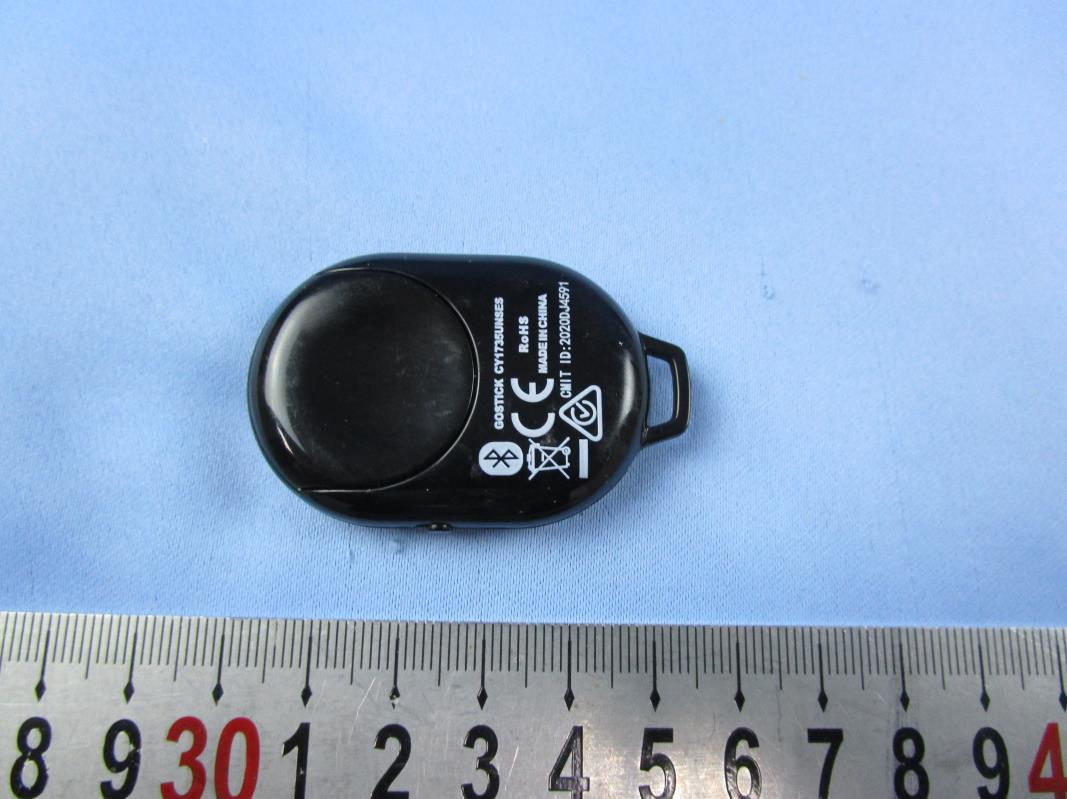

External photos

Internal photos Antenna

FCC ID: 2AEDZCYG2 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a Remote Shutter with Bluetooth function operating in 2402-2480MHz. The EUT is powered by DC 3.0V (CR2032 button battery), For more detail information pls. refer to the user manual. Bluetooth Version: 4.2 Single Mode (BLE) Modulation Type: GFSK Antenna Type: Integral antenna (Gain: 2.99dBi) The nominal conducted output power specified: -16.0dBm (Tolerance: +/-3dB) The nominal radiated output power specified: -13.01dBm (Tolerance: +/-3dB) According to the KDB 447498: The Maximum peak radiated emission for the EUT is 83.1 dBμV/m at 3m in the frequency 2402MHz The EIRP = [(FS*D) ^2 / 30] mW = -12.13dBm which is within the production variation. The Minimum peak radiated emission for the EUT is 80.7 dBμV/m at 3m in the frequency 2480MHz The EIRP = [(FS*D) ^2 / 30] mW = -14.53dBm which is within the production variation. The maximun conducted output power specified is -13.0dBm = 0.05mW The source- based time-averaging conducted output power = 0.05 * Duty cycle mW <= 0.05 mW (Duty Cycle<=100%) The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt (freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing.

CYGNETT PTY LTD TEST REPORT SCOPE OF WORK FCC TESTING–CY1735UNSES REPORT NUMBER 200904001SZN-001 ISSUE DATE [REVISED DATE] October 22, 2020 [---------------------] PAGES 23 DOCUMENT CONTROL NUMBER FCC ID 249_C © 2017 INTERTEK Intertek Report No.: 200904001SZN-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen, P.R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 23 FCC ID 249_C Test Report CYGNETT PTY LTD Application For Certification FCC ID: 2AEDZCYG2 Remote Shutter Model: CY1735UNSES Brand Name: Cygnett 2.4GHz Transceiver Report No.: 200904001SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-19] Prepared and Checked by: Approved by: Judy Xu Asst. Engineer Kidd Yang Technical Supervisor Date: October 22, 2020 Intertek Report No.: 200904001SZN-001 Version: 01-November-2017 Page: 2 of 23 FCC ID 249_C Test Report MEASUREMENT/TECHNICAL REPORT This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-19 Edition] provision. Report prepared by: Judy Xu Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen, P.R. China Tel / Fax: 86-755-8614 0743/86-755-8601 6680 Intertek Report No.: 200904001SZN-001 Version: 01-November-2017 Page: 3 of 23 FCC ID 249_C Test Report Table of Contents 1.0 Summary of Test Result ................................................................................................. 4 2.0 General Description ...................................................................................................... 5 2.1 Product Description .................................................................................................... 5 2.2 Related Submittal(s) Grants ......................................................................................... 5 2.3 Test Methodology ...................................................................................................... 5 2.4 Test Facility ............................................................................................................... 5 3.0 System Test Configuration ............................................................................................. 6 3.1 Justification ............................................................................................................... 6 3.2 EUT Exercising Software .............................................................................................. 6 3.3 Special Accessories ..................................................................................................... 6 3.4 Equipment Modification .............................................................................................. 6 3.5 Measurement Uncertainty .......................................................................................... 7 3.6 Support Equipment List and Description ........................................................................ 7 4.0 Emission Results ........................................................................................................... 8 4.1 Radiated Test Results .................................................................................................. 8 4.1.1 Field Strength Calculation ......................................................................................... 8 4.1.2 Radiated Emission Configuration Photograph .............................................................. 9 4.1.3 Radiated Emissions .................................................................................................. 9 4.1.4 Transmitter Spurious Emissions ............................................................................... 12 5.0 Equipment Photographs .............................................................................................. 16 6.0 Product Labelling ........................................................................................................ 16 7.0 Technical Specifications ............................................................................................... 16 8.0 Instruction Manual ..................................................................................................... 16 9.0 Miscellaneous Information .......................................................................................... 17 9.1 Bandedge Plot ....…

Text truncated - open the document above for the full version.

Radiated photos (The EUT is placed at the center of turntable) (The EUT is placed at the center of turntable)
