2AEGO4020WMWIFI Module

User Guide It is recommended that you read this Guide carefully before using the printer CDW-G4822BU-01 WiFi Module Page 2 1. Overview The CDW-G4822BU-0 1 is based on RTL8822BU-C G, that support 2-s tre am 802.11ac solutions with Multi-u ser MIMO (M ultiple-I nput, Multiple-O utput) with Wire less LAN (W LAN ) USB 2.0 network interface contro ller. It combines a WLAN MAC, a 2T2R capable WLAN baseband, and RF in s single chip. The CDW-G4822BU -01 pro vides a complete solution for a high-p erf orm ance integra ted wire less . ■ IEEE 802.11a/b/g/n/ac compatible WLAN ■ 5MHz / 10MHz / 20MHz / 40MHz / 80MHz ban dwidth tra nsmission ■ Complies with USB2 .0 for WLAN contro ller ■ Dual-b and 2T2R mode with data ra te up to 867Mbps ■ Su pport 802.11ac 2x2,Wave-2 compliant with MU-MIMO ■ Complete 802.11n MIMO solution for 2.4GHz and 5Ghz band Maximum PH Y data ra te up to 173.3 Mbps using 20MHz bandwidth, 400Mbps using 40MHz bandwidth, and 866.7Mbps using 80MHz bandwidth ■ DSSS with DBPS K and DQPSK , CCK modulation with long and short pre amble, OFDM with BPSK, QPSK , 16QAM ,64QAM and 256QAM mod ulation. Convolutional Coding Rate: 1/2, 2/3, 3/4,and 5/6 ■ Su pport ST BC , Su pport LDPC ■ Bu ild-i n both 2.4GHz and 5GHz PA,Bu ild-i n both 2.4GHz and 5GHz LNA ■ En hanced WLAN Coexistence Contro l to impro ve tra nsmission quality in differe nt pro files WiFi Module CDW-G4822BU-01 2. Features conformity is available at the following internet address: www.http:WWW.PANTUM.COM G4822BU-01] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of 5G band I (5150-5350MHz) indoor use only. Pantum Regulatory Type/Model Number CDW-G4822BU-01; FCC ID:2AEGO4020WM 3. Precautions 5.Hereby, [Zhuhai Pantum Electronics Co., Ltd.] declares that the radio equipment type [CDW- FCC regulatory compliance statement §15.19 Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. §15.21 Information to user Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. ⚫ List of applicable FCC rules: 47 CFR Part 15, Subpart C 15.203 47 CFR Part 15, Subpart C 15.205 47 CFR Part 15, Subpart C 15.207 47 CFR Part 15, Subpart C 15.209 47 CFR Part 15, Subpart C 15.247 47 CFR Part 15, Subpart E 15.407 47 CFR Part 2 2.1091 ⚫ Summarize the specific operational use conditions This module can be used in IOT devices, the input voltage to the module is nominally 5V. Only the embedded integral antenna is allowed. Any other external antenna is prohibited. ⚫ Limited module procedures This module is not a limited module. ⚫ Trace antenna designs The antenna is not a trace antenna. ⚫ RF exposure considerations This Module complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This exterior label can use wording such as the ⚫ Antennas If you desire to increase antenna gain and either change antenna type or use same antenna type certified, a Class II permissive change application is required to be filed by us, or you (host manufacturer) can take responsibility through the change in FCC ID (new application) procedure followed by a Class II permissive change application. ⚫ Label and compliance information Please notice that if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. following: “Contains FCC ID: 2AEGO4020WM” any similar wording that expresses the same meaning may be used. § 15.19 Labelling requirements shall be complied on end user device. Labelling rules for special device, please refer to §2.925, § 15.19 (a)(5) and relevant KDB publications. For E-label, please refer to §2.935. ⚫Information on tes t modes and additional testing requirements The OEM integrator is responsible for ensuring that the end-user has no manual instruction to remove or install module. The module is limited to installation in mobile application, a separate approval is required for all other operating configurations, including portable configurations with respect to §2.1093 and difference antenna configurations. ⚫ Additional testing, Part 15 Subpart B disclaimer This modular transmitter is only FCC authorized for the specific rule parts listed on our grant, host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. Host manufacturer in any case shall ensure host product which is installed and operating with the module is in compliant with Part 15B requirements. Please note that For a Class B or Class A digital device or peripheral, the instructions furnished the user manual of the end-user product shall include statement set out in. §15.105 Information to the user or such similar statement and place it in a prominent location in the text of host product manual. Original texts as following: For Class B Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will no…

Text truncated - open the document above for the full version.

ZhuhaiPantumElectronicsCo.,Ltd Date:2020-12-17 TO:FederalCommunicationCommission EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MID21046 Regarding:FCCID:2AEGO4020WM Towhomitmayconcern: We,theundersigned,herebyauthorizeSGS-CSTCStandardsTechnicalServicesCo.,Ltd.(SGS) ShenzhenBranchandKenyXuinSGS-CSTCStandardsTechnicalServicesCo.,Ltd.(SGS)Shenzhen Branchtoactonourbehalfinallmannersrelatingtoapplicationforequipmentauthorizationwithrespect totheFCCIDabove,includingsigningofalldocumentsrelatingtothesematters.Anyandallactscarried outbytheagentonourbehalfshallhavethesameeffectasactsofourown. We,theundersigned,herebycertifythatwearenotsubjecttoadenialoffederalbenefits,thatincludes FCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseActof1988,21U.S.C.853(a). Whereouragentsignstheapplicationforcertificationonourbehalf,Iacknowledgethatallresponsibility forcomplyingwiththetermsandconditionsforCertification,asspecifiedbySGSNorthAmerica,Inc.,still resideswithZhuhaiPantumElectronicsCo.,Ltd Thisauthorizationisvaliduntilfurtherwrittennoticefromtheapplicant. PrintName:EmmaLiTitle:CertificationEngineer Signature: OnbehalfofCompany:ZhuhaiPantumElectronicsCo.,Ltd Telephone:86-18666978959 E-mail:[email protected]

ZhuhaiPantumElectronicsCo.,Ltd Date:2020-12-17 To: FederalCommunicationsCommission OfficeofEngineeringandTechnologyLaboratoryDivision 7435OaklandMillsRd. ColumbiaMD21046 From:ZhuhaiPantumElectronicsCo.,Ltd Regarding:ConfidentialityRequestregardingapplicationforFCCID:2AEGO4020WM LONGTERMCONFIDENTIALITY Pursuantto47CFRSection0.459and0.457ofthecommission’srules,theapplicantherebyrequestsconfidential treatmentofthedocumentslistedbelow,associatedwiththecertificationapplicationreferencedabove. Schematic(s) BlockDiagrams OperationalDescriptions Thedocumentsabovecontainproprietaryinformationnotreleasedtothepublic.Publicdisclosureofthisinformationmay proveharmfultothebusinessoftheapplicant. PrintName:EmmaLiTitle:CertificationEngineer Signature: OnbehalfofCompany:ZhuhaiPantumElectronicsCo.,Ltd Telephone:86-18666978959 E-mail:[email protected]

ApplicantDeclaration ApplicantDeclaration Rev:0.0 SGSNorthAmericaInc. 620OldPeachtreeRoad SUITE100 Suwanee,Georgia30024 UnitedStates ApplicantLegalBusinessName ZhuhaiPantumElectronicsCo.,Ltd Address AreaA,3rdfloor,BuildingNo.1,No.3883,ZhuhaiAvenue,Zhuhai,519060Guangdong, China GranteeCode 2AEGO FCCID 2AEGO4020WM AuthorizedContactName EmmaLi ContactEmail [email protected] ContactPhone 86-18666978959 I,theundersigned,certifythatIamanauthorizedsignatoryfortheApplicantandthereforedeclare; a)inaccordancewith47CFR2.911(d),allofthestatementshereinandtheexhibitsattachedheretoaretrueandcorrecttothebestofmy knowledgeandbelief. b)inacceptingaGrantofEquipmentAuthorizationissuedbyaTCB,undertheauthorityoftheFCC,asaresultoftherepresentationsmadein thisapplication,theApplicantisresponsiblefor: (1)labelingtheequipmentwiththeexactFCCIDasspecifiedinthisapplication, (2)compliancestatementlabelingpursuanttotheapplicablerules, (3)complianceoftheequipmentwiththeapplicabletechnicalrules, c)iftheApplicantisnottheactualmanufactureroftheequipment,appropriatearrangementshavebeenmadewiththemanufacturertoensure thatproductionunitsofthisequipmentwillcontinuetocomplywiththeFCC’stechnicalrequirements. d)inaccordancewith47CFR2.909andKDB394321,theApplicanthasread,understoodandagreestoacceptthattheyaretheresponsible partyandagreetoabidebytheirresponsibilitiesasspecifiedunder47CFR2.909andKDB394321. e)inaccordancewithISO17065,FCCKDB641163,FCCKDB610077,KDB394321andRSP-100,theApplicanthasread,understood,accepts andagreestoabidebythepostmarketsurveillancerequirements. (1)theApplicantunderstands,acceptsandagreesthatasamplemayberequestedforsurveillancetesting. (2)theApplicantshallmakeprovisionstoalwayshaveaproductionsampleavailableuponrequestbySGS,FCCand/orISED. (3)theApplicantshall,uponrequestbySGS,attheApplicant’sexpense,provideaproductionsampleoftherequestedproducttoSGS, FCCand/orISEDasinstructed.Thesampleshallincludeallsupportdevices,cables,software,accessoriesorotherhardwareor softwarerequiredforevaluation,review,certificationandauditsurveillanceofproductscertifiedbySGS. f)neithertheApplicantnoranypartytotheapplicationissubjecttoadenialofFederalbenefits,thatincludesFCCbenefits,pursuanttoSection 5301oftheAnti-DrugAbuseActof1988,21U.S.C.§862becauseofaconvictionforpossessionordistributionofacontrolledsubstance.See 47CFR1.2002(b)forthedefinitionofa“party”forthesepurposes. g)theApplicanthasread,understood,acceptsandagreestoabidebytheSGSNorthAmerica,Inc.(TCB)termsandconditions. LinktoCFRs:https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 LinktoKDBs:https://apps.fcc.gov/oetcf/kdb/index.cfm LinktoRSP-100:https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html ApplicantSignature: Date:2020-12-17 PrintName: EmmaLi Title: CertificationEngineer *NOTE:ThisdeclarationcannotbesignedbyanAgent,itshallbesignedbyanauthorizedpersonlistedintheFCCdatabase ApplicantDeclaration ApplicantDeclaration Rev:0.0 SGSNorthAmericaInc. 620OldPeachtreeRoad SUITE100 Suwanee,Georgia30024 UnitedStates

ZhuhaiPantumElectronicsCo.,Ltd ModularApprovalRequestLetter FCCID:2AEGO4020WM DearExaminer, There’saWi-Fimodulethatwouldliketohaveyourauthorizationasamodularapproval. Thespecificproductasbelow,MonochromeLaserPrinterwithitsdesignedfeaturesandspecified description,meetsspecialrequirementsforSingle,LimitedSingleModularApprovalonFCC KDB996369bycross-referencelistbelow. RequirementofFCCKDB996369Comply ( Y/N) 1.Themodulartransmittermusthaveits ownRFshielding. Y TheEUTprovidestheRFshielding.See EUTphoto. 2.Themodulartransmittermusthavebuffered modulation/datainputs(ifsuchinputsareprovided) toensurethatthemodulewillcomplywithPart15 requirementsunderconditionsofexcessivedata ratesorover-modulation. Y TheEUThasitsbufferedmodulation. PleaseseetheSchematicDiagram. 3.Themodulartransmittermusthaveits ownpowersupplyregulation. Y TheEUThasitsownpowersupply regulation,pleaseseetheSchematic Diagram. 4.Themodulartransmittermustcomplywiththe antennaandtransmissionsystemrequirementsof Sections15.203,15.204(b)and15.204(c).The antennamusteitherbepermanentlyattachedor employa“unique”antennacoupler(atall connectionsbetweenthemoduleandtheantenna, includingthecable).The“professionalinstallation” provisionofSection15.203isnotapplicableto modulesbutcanapplytolimitedmodularapprovals underparagraph(b)ofthissection. Y TheEUTmeetstheFCCantenna requirements;uniqueantennaconnector andphotoofantennaareshowninthe testreport. 5.Themodulartransmittermustbetestedinastand- aloneconfiguration,i.e.,themodulemustnotbe insideanotherdeviceduringtesting. Y TheEUTwastestedwithatestboard, pleaseseetestreportandsetupphoto 6.Themodulartransmittermustbelabeledwithits ownFCCIDnumber,and,iftheFCCIDisnotvisible whenthemoduleisinstalledinsideanotherdevice, thentheoutsideofthedeviceintowhichthemodule isinstalledmustalsodisplayalabelreferringtothe enclosedmodule. Y Pleaseseeexhibitionlabelsampleforthe FCCIDofthismodule.Alsointhe exhibitionUsersmanual,thereare instructionsgivetotheOEMonhowto labeltheendproduct. 7.Themodulartransmittermustcomplywithany specificruleoroperatingrequirementsapplicableto thetransmitterandthemanufacturermustprovide adequateinstructionsalongwiththemoduleto Y TheEUTiscompliantwithallapplicable FCCrules.Detailsinstructionsfor ZhuhaiPantumElectronicsCo.,Ltd explainanysuchrequirements.Acopyofthese instructionsmustbeincludedintheapplicationfor equipmentauthorization. maintainingcompliancearegiveinthe UserManual. 8.Themodulartransmittermustcomplywithany applicableRFexposurerequirements.Forexample, FCCRulesin Sections2.1091,2.1093andspecificSectionsofPart 15,including 15.319(i),15.407(f),15.253(f)and15.255(g),require thatUnlicensedPCS,UNIIandmillimeterwave deviceperformingroutineenvironmentalevaluation forRFExposuretodemonstratecompliance.In addition,spreadspectrum TransmittersoperatingunderSection15.247are requiredtoaddressRFExposurecompliancein accordancewithSection15.247(b)(4). Y TheEUTcomplieswithRFexposure requirement. Sincerely, PrintName:EmmaLiTitle:CertificationEngineer Signature: OnbehalfofCompany:ZhuhaiPantumElectronicsCo.,Ltd Telephone:86-18666978959 E-mail:[email protected]

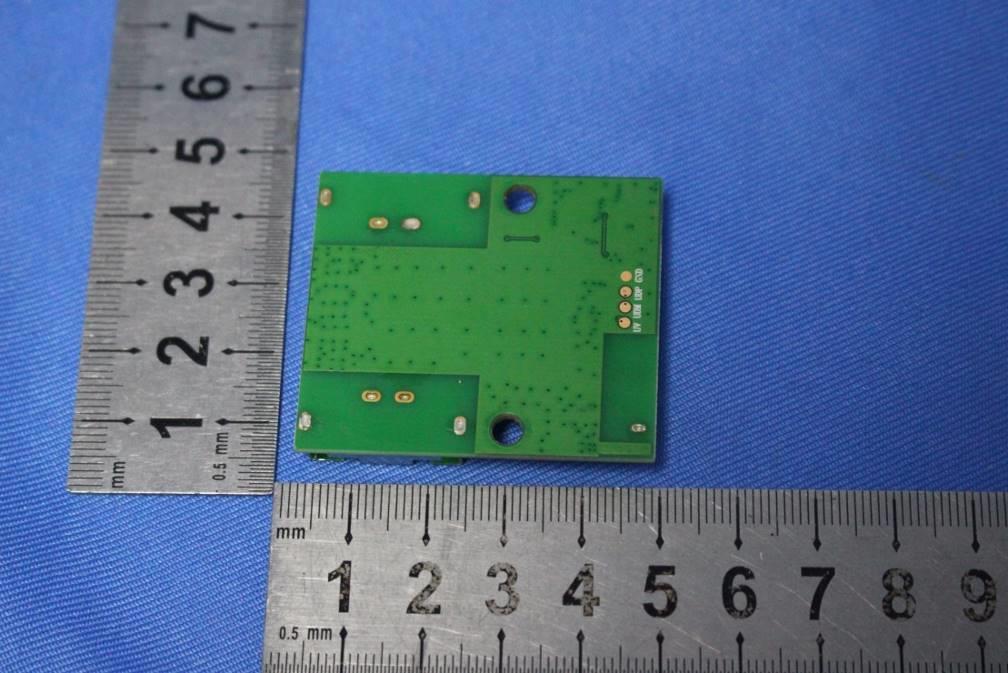

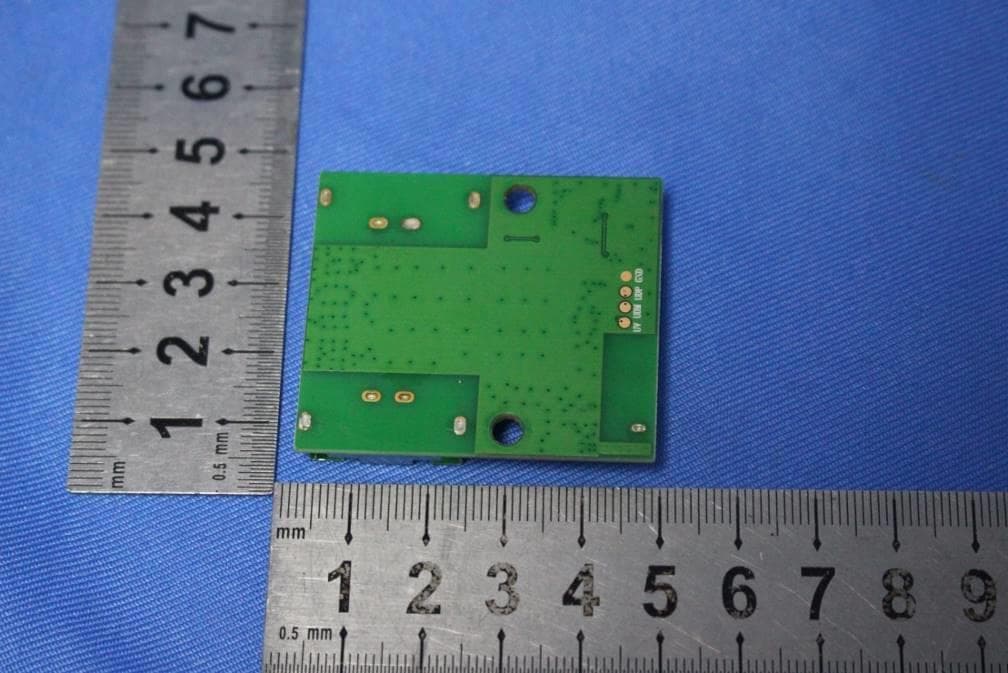

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 2 External Photos for SZEM2009008725CR FCC ID: 2AEGO4020WM SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 2 1 EUT Constructional Details

CDW-G4822BU-01 5.8GHz/5.1GHz/2.4GHz 无线局域网模块 CMIIT ID:2020AP8438 珠海奔图电子有限公司 中国制造 FCC ID:2AEGO4020WM WIFI module Zhuhai PANTUM Electronics Co., Ltd. Made in China Loaction

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 3 Internal Photos for SZEM2009008725CR FCC ID: 2AEGO4020WM SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 3 1 EUT Constructional Details Antenna SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 3

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200900872503 Page: 1 of 9 Keny Xu EMC Laboratory Manager 1 Cover page RF Exposure Evaluation Report Application No.: SZEM2009008725CR Applicant: Zhuhai Pantum Electronics Co., Ltd Address of Applicant: Area A, 3rd floor, Building No.1, No.3883, Zhuhai Avenue, Zhuhai, Guangdong, China 519060 Manufacturer: Zhuhai Pantum Electronics Co., Ltd. Address of Manufacturer: Area A, 3rd floor, Building No. 1, No. 3883, Zhuhai Avenue, Zhuhai, Guangdong, China Factory: Zhuhai Pantum Electronics Co., Ltd. Address of Factory: Area A, 3rd floor, Building No. 1, No. 3883, Zhuhai Avenue, Zhuhai, Guangdong, China Equipment Under Test (EUT): EUT Name: WIFI Module Model No.: CDW-G4822BU-01 Trade mark: PANTUM FCC ID: 2AEGO4020WM Standards: 47 CFR Part 1.1310 47 CFR Part 2.1091 Date of Receipt: 2020-09-02 Date of Test: 2020-09-05 to 2020-11-20 Date of Issue: 2020-12-12 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200900872503 Page: 2 of 9 2 Version Revision Record Version Chapter Date Modifier Remark 01 2020-12-12 Original Authorized for issue by: Bill Chen/Project Engineer Eric Fu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200900872503 Page: 3 of 9 3 Contents Page 1 COVER PAGE .....................................................................................................................................................1 2 VERSION..............................................................................................................................................................2 3 CONTENTS ..........................................................................................................................................................3 4 GENERAL INFORMATION ................................................................................................................................4 4.1 GENERAL DESCRIPTION OF EUT ..........................................................................................................................4 4.2 TEST LOCATION ..................................................................................................................................................6 4.3 TEST FACILITY ...................................................................................................................................................6 4.4 DEVIATION FROM STANDARDS ............................................................................................................................6 4.5 ABNORMALITIES FROM STANDARD CONDITIONS ..................................................................................................6 4.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER .........................................................................................6 5 RF EXPOSURE EVALUATION ..........................................................................................................................7 5.1 RF EXPOSURE COMPLIANCE REQUIREMENT .........................................................................................................7 5.1.1 Limits .......................................................................................................................................................7 5.1.2 Test Procedure .......................................................................................................................................7 4.1.3 EUT RF EXPOSURE EVALUATION.................................................................................................................... 8-9 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200900872503 Page: 4 of 9 4 General Information 4.1 General Description of EUT Power supply: DC 5V 1A For 2.4G: Number of Channels: 802.11b/g/n(HT20): 11, 802.11n(HT40):7 Channel Spacing: 5MHz Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK), 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Operation Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz, 802.11n(HT40): 2422MHz to 2452MHz Channel Spacing: 5MHz Sample Type: Fixed production Antenna Type: Integral Antenna Gain: Antenna 1: -2dBi Antenna 2: -2dBi For 5G: Operation Frequency: Band Mode Frequency Range(MHz) Number of channels UNII Band 1 IEEE 802.11a 5180-5240 4 IEEE 802.11n/ac 20MHz 5180-5240 4 IEEE 802.11n/ac 40MHz 5190-5230 2 IEEE 802.11ac 80MHz 5210 1 UNII Band 2A IEEE 802.11a 5260-5320 4 IEEE 802.11n/ac 20MHz 5260-5320 4 IEEE 802.11n/ac 40MHz 5270-5310 2 IEEE 802.11ac 80MHz 5290 1 UNII Band 2C IEEE 802.11a 5500-5700 11 IEEE 802.11n/ac 20MHz 5500-5700 11 IEEE 802.11n/ac 40MHz 5510-5670 5 IEEE 802.11ac 80MHz 5530-5610 2 UNII Band 3 IEEE 802.11a 5745-5825 5 IEEE 802.11n/ac 20MHz 5745-5825 5 IEEE 802.11n/ac 40MHz 5755-5795 2 IEEE 802.11ac 80MHz 5775 1 Type of Modulation: IEEE 802.11a: OFDM(BPSK/QPSK/16QAM/64QAM) SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200900872503 Page: 5 of 9 IEEE 802.11n: OFDM(BPSK/QPSK/16QAM/64QAM) IEEE 802.11ac: OFDM (BPSK/QPSK/16QAM/64QAM/256QAM) Sample Type: Fixed production DFS Function: Slave without Radar detection Antenna Type: Integral Antenna Antenna Gain: Antenna 1: 2dBi Antenna 2:1.5dBi SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200900872503 Page: 6 of 9 4.2 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 No tests were sub-contracted. 4.3 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 3816.01) SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC La…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200900872502 Page: 1 of 581 Keny Xu EMC Laboratory Manager TEST REPORT Application No.: SZEM2009008725CR Applicant: Zhuhai Pantum Electronics Co., Ltd Address of Applicant: Area A, 3rd floor, Building No.1, No.3883, Zhuhai Avenue, Zhuhai, Guangdong, China 519060 Manufacturer: Zhuhai Pantum Electronics Co., Ltd. Address of Manufacturer: Area A, 3rd floor, Building No. 1, No. 3883, Zhuhai Avenue, Zhuhai, Guangdong, China Factory: Zhuhai Pantum Electronics Co., Ltd. Address of Factory: Area A, 3rd floor, Building No. 1, No. 3883, Zhuhai Avenue, Zhuhai, Guangdong, China Equipment Under Test (EUT): EUT Name: WIFI Module Model No.: CDW-G4822BU-01 Trade mark: PANTUM FCC ID: 2AEGO4020WM Standard(s) : 47 CFR Part 15, Subpart E 15.407 Date of Receipt: 2020-09-02 Date of Test: 2020-09-05 to 2020-11-20 Date of Issue: 2020-12-12 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200900872502 Page: 2 of 581 Revision Record Version Chapter Date Modifier Remark 01 2020-12-12 Original Authorized for issue by: Bill Chen/Project Engineer Eric Fu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200900872502 Page: 3 of 581 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart E 15.407 N/A 47 CFR Part 15, Subpart C 15.203 Pass Transmission in the Absence of Data 47 CFR Part 15, Subpart E 15.407 N/A 47 CFR Part 15, Subpart C 15.407 (c) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart E 15.407 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 & 15.407 b(6) Pass Duty Cycle 47 CFR Part 15, Subpart E 15.407 KDB 789033 II B 1 KDB 789033 D02 II B 1 Pass 99% Bandwidth 47 CFR Part 15, Subpart E 15.407 KDB 789033 II D N/A Pass 26dB Emission bandwidth 47 CFR Part 15, Subpart E 15.407 KDB 789033 D02 II C 1 47 CFR Part 15, Subpart C 15.407 (a) Pass Minimum 6 dB bandwidth (5.725- 5.85 GHz band ) 47 CFR Part 15, Subpart E 15.407 KDB 789033 D02 II C 2 47 CFR Part 15, Subpart C 15.407 (e) Pass Maximum Conducted output power 47 CFR Part 15, Subpart E 15.407 KDB 789033 D02 II E 47 CFR Part 15, Subpart C 15.407 (a) Pass Peak Power spectrum density 47 CFR Part 15, Subpart E 15.407 KDB 789033 D02 II F 47 CFR Part 15, Subpart C 15.407 (a) Pass Radiated Emissions 47 CFR Part 15, Subpart E 15.407 KDB 789033 D02 II G 47 CFR Part 15, Subpart C 15.209 & 15.407(b) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart E 15.407 KDB 789033 D02 II G 47 CFR Part 15, Subpart C 15.209 & 15.407(b) Pass Frequency Stability 47 CFR Part 15, Subpart E 15.407 ANSI C63.10 (2013) Section 6.8 47 CFR Part 15, Subpart C 15.407 (g) Pass Non-occupancy period 47 CFR Part 15, Subpart E 15.407 KDB 905462 D02 Section 7.8.3 KDB 905462 D02 Section 5.1 Pass Channel Move Time 47 CFR Part 15, Subpart E 15.407 KDB 905462 D02 Section 7.8.3 KDB 905462 D02 Section 5.1 Pass Channel Closing Transmission Time 47 CFR Part 15, Subpart E 15.407 KDB 905462 D02 Section 7.8.3 KDB 905462 D02 Section 5.1 Pass U-NII Detection Bandwidth 47 CFR Part 15, Subpart E 15.407 KDB 905462 D02 Section 7.8.1 KDB 905462 D02 Section 5.1 Pass Transmitter Power Control 47 CFR Part 15, Subpart E 15.407 KDB 789033 D02 II E 47 CFR Part 15, Subpart C 15.407 (h)(1) Pass SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200900872502 Page: 4 of 581 3 Contents Page 1 COVER PAGE ..................................................................................................................................... 1 2 TEST SUMMARY ................................................................................................................................. 3 3 CONTENTS ......................................................................................................................................... 4 4 GENERAL INFORMATION .................................................................................................................. 7 4.1 DETAILS OF E.U.T. ......................................................................................................................... 7 4.2 DESCRIPTION OF SUPPORT UNITS .................................................................................................... 7 4.3 MEASUREMENT UNCERTAINTY ......................................................................................................... 8 4.4 TEST LOCATION ............................................................................................................................. 9 4.5 TEST FACILITY ............................................................................................................................... 9 4.6 DEVIATION FROM STANDARDS ......................................................................................................... 9 4.7 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................. 9 5 EQUIPMENT LIST ..............................................................................................................................10 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................14 6.1 ANTENNA REQUIREMENT ................................................................................................................14 6.1.1 Test Requirement: ..................................................................................................................14 6.1.2 Conclusion ..............................................................................................................................14 6.2 TRANSMISSION IN THE ABSENCE OF D…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200900872502 Page: 356 of 581 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200900872502 Page: 357 of 581 2. Bandwidth 2.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Emission Bandwidth Verdict Test Result (MHz) Limits (MHz) 802.11a 5180 SISO 1 25.303 Only for Report Use PASS 5200 SISO 1 23.671 Only for Report Use PASS 5240 SISO 1 21.573 Only for Report Use PASS 5260 SISO 1 20.312 Only for Report Use PASS 5300 SISO 1 19.896 Only for Report Use PASS 5320 SISO 1 19.810 Only for Report Use PASS 5500 SISO 1 19.663 Only for Report Use PASS 5580 SISO 1 26.063 Only for Report Use PASS 5600 SISO 1 28.526 Only for Report Use PASS 5700 SISO 1 30.750 Only for Report Use PASS 802.11n(HT20) 5180 MIMO 1 25.895 Only for Report Use PASS 5200 MIMO 1 26.089 Only for Report Use PASS 5240 MIMO 1 21.702 Only for Report Use PASS 5260 MIMO 1 21.577 Only for Report Use PASS 5300 MIMO 1 20.747 Only for Report Use PASS 5320 MIMO 1 20.678 Only for Report Use PASS 5500 MIMO 1 20.658 Only for Report Use PASS 5580 MIMO 1 26.653 Only for Report Use PASS 5600 MIMO 1 29.728 Only for Report Use PASS 5700 MIMO 1 32.671 Only for Report Use PASS SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200900872502 Page: 358 of 581 802.11n(HT40) 5190 MIMO 1 69.774 Only for Report Use PASS 5230 MIMO 1 59.037 Only for Report Use PASS 5270 MIMO 1 43.283 Only for Report Use PASS 5310 MIMO 1 43.122 Only for Report Use PASS 5510 MIMO 1 43.157 Only for Report Use PASS 5550 MIMO 1 43.300 Only for Report Use PASS 5590 MIMO 1 73.247 Only for Report Use PASS 5670 MIMO 1 76.011 Only for Report Use PASS 802.11ac(VHT20) 5180 MIMO 1 25.919 Only for Report Use PASS 5200 MIMO 1 25.917 Only for Report Use PASS 5240 MIMO 1 21.670 Only for Report Use PASS 5260 MIMO 1 21.564 Only for Report Use PASS 5300 MIMO 1 20.725 Only for Report Use PASS 5320 MIMO 1 20.767 Only for Report Use PASS 5500 MIMO 1 20.623 Only for Report Use PASS 5580 MIMO 1 24.784 Only for Report Use PASS 5600 MIMO 1 27.611 Only for Report Use PASS 5700 MIMO 1 33.390 Only for Report Use PASS 802.11ac(VHT40) 5190 MIMO 1 65.321 Only for Report Use PASS 5230 MIMO 1 55.952 Only for Report Use PASS 5270 MIMO 1 43.042 Only for Report Use PASS 5310 MIMO 1 43.232 Only for Report Use PASS 5510 MIMO 1 43.027 Only for Report Use PASS 5550 MIMO 1 43.172 Only for Report PASS SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200900872502 Page: 359 of 581 Use 5590 MIMO 1 65.470 Only for Report Use PASS 5670 MIMO 1 74.362 Only for Report Use PASS 802.11ac(VHT80) 5210 MIMO 1 91.759 Only for Report Use PASS 5290 MIMO 1 82.127 Only for Report Use PASS 5530 MIMO 1 82.635 Only for Report Use PASS 5610 MIMO 1 113.906 Only for Report Use PASS Test Mode Frequency (MHz) TX Type ANT No. Emission Bandwidth Verdict Test Result (MHz) Limits (MHz) 802.11a 5745 SISO 1 16.512 ≥0.5 PASS 5785 SISO 1 16.512 ≥0.5 PASS 5825 SISO 1 16.523 ≥0.5 PA…

Text truncated - open the document above for the full version.
