2AEGOPANTUM-1Monochrome Laser Multifunctional Printer

It is recommended to carefully read this Guide before using the printer Pantum M6550 Series Monochrome Laser MFP User Guide I Preface Welcome to the Pantum series products! We heartily appreciate your using of Pantum series products! To protect your vital interests, please carefully read the following statements. Legal Notice Trademark Pantum and Pantum logos are registered trademarks of Zhuhai Seine Technology Co., Ltd. Microsoft ® , Windows ® , Windows Server ® and Windows Vista ® are trademarks registered by Microsoft Corporation in the United States or other countries/regions. The ownership to the names of the software in this User Guide belongs to their respective companies in accordance with corresponding license agreement, and they are referred for instructions only. All other product and brand names herein may be the registered trademarks, trademarks or service marks of their respective owners, and they are referred for instructions only. Copyright The copyright of this User Guide is owned by Zhuhai Seine Technology Co., Ltd. It is prohibited to copy, translate, modify and transmit this User Guide by any means or in any form without the prior written consent of Zhuhai Seine Technology Co., Ltd. Version: V1.0 Disclaimer For a better user experience, Zhuhai Seine Technology Co., Ltd. reserves the right to make changes to the User Guide. The information contained herein is subject to change without notice. Users are responsible for any damages arising from failing to follow this User Guide. Meanwhile, except the express warranty made in the product maintenance manual or service commitment, Zhuhai Seine Technology Co., Ltd. does not make any express or implied warranty or guarantee to this User Guide (including composing or words). Using this product to copy, print, scan certain documents or images or make other forms of operations may be prohibited by the local laws. If you are uncertain about the legality of using this product for certain documents or images, you should consult your legal advisor in advance. The product can only be used safely in the non-tropical areas at an altitude no higher than 2000 meters. II Safety Precautions Laser Safety The laser radiation is harmful to the human body. Since laser components are completely sealed in the printer, laser radiation will not leak. To avoid laser radiation, please do not randomly disassemble the printer! The printer follows the provisions of Class 1 laser products under CFR standard. The printer has a Class III b laser diode, which has no laser radiation leakage among laser components. The following label is attached to the laser components inside the printer: Reclamation and recycling To protect the environment, our corporation has already established the system of reclamation DQGUHF\FOLQJIRUZDVWHSURGXFWV3OHDVHUHIHUWRWKH3DQWXPRI¿FLDOZHEVLWHIRUSURGXFW recovery at www.pantum.com. Safety Warning Please note the following safety warnings before using the printer: There is high-voltage electrode inside the printer. Before cleaning the printer, make sure the power is turned off! Plugging and unplugging the power cord plug with a wet hand can result in an electric shock. The fuser unit is attached with a high temperature warning label. Please do not remove or damage this label. The fuser unit is hot when and after printing. Touching the fuser unit (the shaded area as shown) may cause burns! Warning ,,,  3UHFDXWLRQV 3UHFDXWLRQVEHIRUH8VLQJWKH3ULQWHU  5HDGDQGXQGHUVWDQGDOOLQVWUXFWLRQV  )DPLOLDUL]H\RXUVHOIZLWKWKHEDVLFSULQFLSOHVDVVRFLDWHGZLWKRSHUDWLQJHOHFWULFDODSSOLDQFHV  & RPSO\ZLWKDOOZDUQLQJVDQGLQVWUXFWLRQVPDUNHGRQWKHHTXLSPHQWRUVSHFL¿HGLQWKHPDQXDO VXSSOLHGZLWKWKHHTXLSPHQW  ,IWKHRSHUDWLQJLQVWUXFWLRQVFRQÀLFWZLWKWKHVDIHW\LQIRUPDWLRQSOHDVHUHIHUEDFNWRWKHVDIHW\ LQIRUPDWLRQDV\RXPD\KDYHPLVXQGHUVWRRGWKHRSHUDWLQJLQVWUXFWLRQV,I\RXFDQQRWUHVROYHWKH FRQÀLFWVSOHDVHFDOOWKH&XVWRPHU6HUYLFH+RWOLQHRUFRQWDFWDVHUYLFHUHSUHVHQWDWLYHIRUKHOS  %HIRUHFOHDQLQJWKHHTXLSPHQWUHPRYHWKHSRZHUFRUGIURPWKH$&SRZHUVXSSO\RXWOHW'RQRW XVHOLTXLGRUDHURVROFOHDQHUV  3OHDVHPDNHVXUHWKDWWKHHTXLSPHQWLVSXWRQDVWDEOHGHVNWRSVXUIDFHWRDYRLGVHULRXVGDPDJH FDXVHGE\WKHIDOOLQJRIWKHHTXLSPHQW  'RQRWSXWWKHHTXLSPHQWQHDUDUDGLDWRUDQDLUFRQGLWLRQHURUDYHQWLODWLRQSLSH  'RQRWSODFHDQ\DUWLFOHVRQWRSRIWKHSRZHUFRUG'RQRWSXWW KHHTXLSPHQWLQDSODFHZKHUHLWV SRZHUFRUGZLOOEHVWHSSHGRQE\SHRSOH  2XWOHWVDQGH[WHQVLRQFRUGVPXVWQRWEHRYHUORDGHG 7KLVPD\UHGXFHSHUIRUPDQFHDQGFRXOG UHVXOWLQ¿UHRUHOHFWULFVKRFN 'RQRWDOORZSHWVWRFKHZRQWKH $&SRZHUFRUGRUWKHFRPSXWHULQWHUIDFHFDEOH  'RQRWDOORZVKDUSREMHFWVSLHUFLQJHTXLSPHQWVORWVRDVWRDYRLGFRQWDFWZLWKWKH KLJKYROWDJHGHYLFHZKLFKRWKHUZLVHPD\UHVXOWLQ¿UHRUHOHFWULFVKRFN7DNHFDUHQRWWRVSLOO OLTXLGVRQWRWKHHTXLSPHQW 'RQRWGLVDVVHPEOHWKHHTXLSPHQWVRDVWRDYRLGWKHULVNRIHOHFWULFVKRFN1HFHVVDU\UHSDLUVPD\ RQO\EHFDUULHGRXWE\SURIHVVLRQDOPDLQWHQDQFHSHUVRQQHO2SHQLQJRUUHPRYLQJWKHFRYHUFRXOG UHVXOWLQDQHOHFWULFVKRFNRURWKHUSRWHQWLDOKD]DUGV,QFRUUHFWGLVDVVHPEO\DQGDVVHPEO\FRXOG DOVRUHVXOWLQDQHOHFWULFVKRFNGXULQJIXWXUHXVH ,IDQ\RQHRIWKHIROORZLQJRFFXUVGLVFRQQHFWWKHHTXLSPHQWIURPWKHFRPSXWHUDQGSXOORXWWKH SRZHUFRUGIURPWKH$ &ZDOOVRFNHWDQGFRQWDFWDTXDOL¿HGPHPEHURIWKHVHUYLFHSHUVRQQHOIRU PDLQWHQDQFH ‡/LTXLGKDVEHHQVSLOOHGLQWRWKHHTXLSPHQW ‡7 KHHTXLSPHQWKDVEHHQH[SRVHGWRUDLQRUZDWHU ‡7KHHTXLSPHQWIDOOVRUWKHFRYHULVGDPDJHG ‡6LJQL¿FDQWFKDQJHVLQWKHHTXLSPHQWȏVSHUIRUPDQFH 2QO\DGMXVWWKHFRQWUROPHQWLRQHGLQWKHLQVWUXFWLRQV,QFRUUHFWDGMXVWPHQWRIRWKHUFRQWUROVPD\UHVXOW LQGDPDJHDQGPHDQWKDWSURIHVVLRQDOPDLQWHQDQFHSHUVRQQHOQHHGWRVSHQGPRUHWLPH¿[LQJLW ' RQRWXVHWKHHTXLSPHQWLQDWKXQGHUVWRUPV…

Text truncated - open the document above for the full version.

To Intertek Testing Services, Letter of Agency I, an officer of do hereby authorize Intertek Testing Services (Mr. Shawn Xing ) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Emma Li Certification engineer 2015-4-15 Zhuhai Pantum Electronics Co.,Ltd. Zhuhai Pantum Electronics Co.,Ltd.

Zhuhai Pantum Electronics Co.,Ltd. 2AEGO W hom it may concern, Re: Request for confidentiality Applicant: FCC ID: PANTUM-1 To Permanent Confidentiality Request is hereby submitted by .to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential:  Schematics  Detailed Block diagrams  Detailed Operational/Functional Description Short-term Confidentiality Request is hereby submitted by to withhold from public review for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept confidential for a period of 45 days from the date of Authorization:  Test setup photos  External photos  Internal photos  User manual Rationale for request for confidentiality: . has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.][Short term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development.] If you have questions or need further information, please contact the undersigned. Sincerely, Emma Li Certification engineer Zhuhai Pantum Electronics Co.,Ltd. Zhuhai Pantum Electronics Co.,Ltd. Zhuhai Pantum Electronics Co.,Ltd. Zhuhai Pantum Electronics Co.,Ltd.

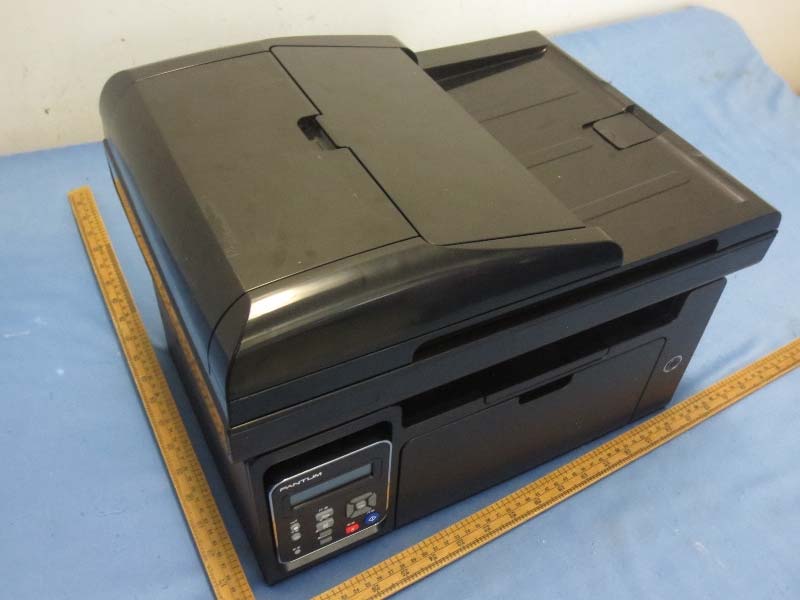

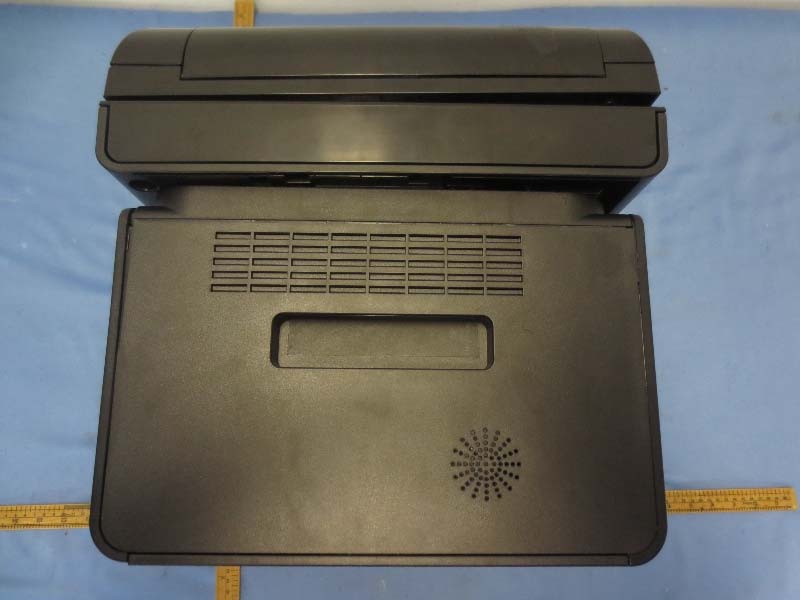

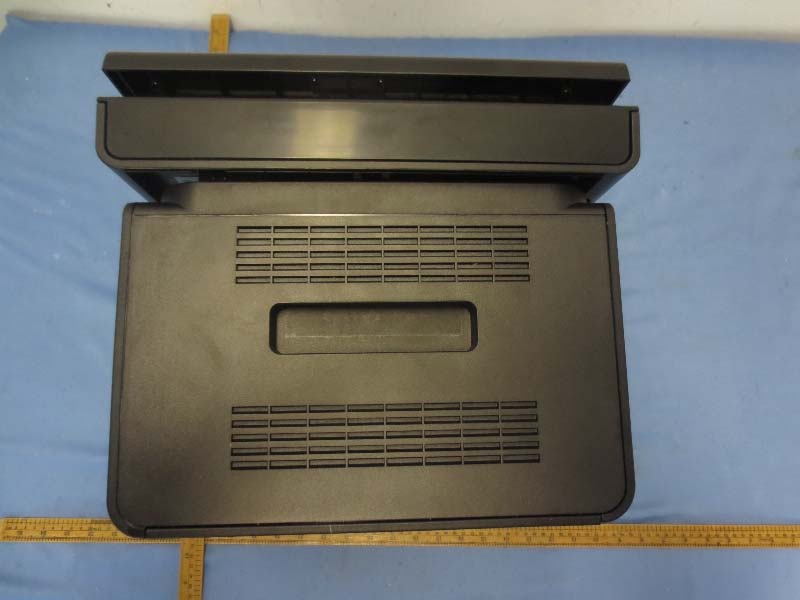

External Photos

Internal Photos

INTERTEK TESTING SERVICES FCC ID: 2AEGOPANTUM-1 RF Exposure report The Equipment Under Test (EUT) is a Monochrome Laser Multifunctional Printer with WiFi function operating at 2412-2462MHz for 802.11b/g/n-HT20, 11 channels with 5MHz channel spacing and 2422-2452MHz for 802.11n-HT40, 9 channels with 5MHz channel spacing. The EUT was powered by AC120V/60Hz. For more detailed features description, please refer to the user’s manual. Modulation Type: BPSK, QPSK, 16QAM, 64QAM for OFDM. CCK, DQPSK, DBPSK for DSSS. Antenna Type: Integral antenna Antenna Gain: 2dBi The nominal conducted output power specified: 17dBm (Tolerance: +/-5dB) The maximum conducted output power for the EUT is 21 dBm in the frequency 2.412GHz 802.11n-HT20 mode which is within the production variation. The minimum conducted output power for the EUT is 12.8dBm in the frequency 2.462GHz 802.11b mode which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use. For Maximum Permissible Exposure (MPE) evaluation of the product, the maximum power density at 20 cm from this transmitter shall be less than the General Population / Uncontrolled MPE limit in FCC Part 1.1310. The maximum EIRP= 17+5+2=24dBm=251.2mW The source-based time averaged maximum radiated power = 251.2 x Duty Cycle = 251.2mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: = PG/4πR^2 = EIRP/4πR^2 = 251.2/ 4πR^2 = 0.05 mW/cm^2 INTERTEK TESTING SERVICES FCC ID: 2AEGOPANTUM-1 The MPE limit is 1.0 mWcm-2 for general population and uncontrolled exposure in the WiFi frequency range according to FCC Part 1.1310. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. Transmitter Duty Cycle Calculation The EUT transmit continuously during the test, the duty cycle is 1. The following RF exposure statement or similar sentence is proposed to be included in the user manual: “FCC RF Radiation Exposure Statement Caution: This Transmitter must be installed to provide a separation distance of at least 20 cm from all persons.”

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF no.: FCC 15C_Tx_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com Zhuhai Pantum Electronics Co.,Ltd. Application For Certification FCC ID: 2AEGOPANTUM-1 Monochrome Laser Multifunctional Printer Model: M6550NW, M6552NW 2.4GHz WiFi Transceiver Report No.: 150319019SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-13] Prepared and Checked by: Approved by: Sign on file Sunny Zhou Engineer Andy Yan Senior Project Engineer Date: May 19, 2015 INTERTEK TESTING SERVICE TRF no.: FCC 15C_TX_b FCC ID: 2AEGOPANTUM-1 Report No.: 150319019SZN-001 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: Summary of Tests EXHIBIT 2: General Description EXHIBIT 3: System Test Configuration EXHIBIT 4: Measurement Results EXHIBIT 5: Equipment Photographs EXHIBIT 6: Product Labeling EXHIBIT 7: Technical Specifications EXHIBIT 8: Instruction Manual EXHIBIT 9: Confidentiality Request EXHIBIT 10: Miscellaneous Information EXHIBIT 11: Test Equipment List INTERTEK TESTING SERVICES TRF no.: FCC 15C_TX_b FCC ID: 2AEGOPANTUM-1 Report No.: 150319019SZN-001 ii MEASUREMENT/TECHNICAL REPORT Monochrome Laser Multifunctional Printer Model: M6550NW, M6552NW FCC ID: 2AEGOPANTUM-1 This report concerns (check one) Original Grant X Class II Change Equipment Type: DTS - Part 15 Digital Transmission Systems (WiFi transmitter portion) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-01-13] Edition] provision. Report prepared by: Sunny Zhou Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8614 0695 Fax: (86 755) 8614 6751 INTERTEK TESTING SERVICES TRF no.: FCC 15C_TX_b FCC ID: 2AEGOPANTUM-1 Report No.: 150319019SZN-001 iii Table of Contents 1.0 Summary of Test results ............................................................................................................................. 2 2.0 General Description ...................................................................................................................................... 4 2.1 Product Description ..................................................................................................................................... 4 2.2 Related Submittal(s) Grants ....................................................................................................................... 5 2.3 Test Methodology ........................................................................................................................................ 5 2.4 Test Facility .................................................................................................................................................. 5 3.0 System Test Configuration ......................................................................................................................... 7 3.1 Justification .................................................................................................................................................. 7 3.2 EUT Exercising Software............................................................................................................................ 7 3.3 Special Accessories .................................................................................................................................... 7 3.4 Measurement Uncertainty .......................................................................................................................... 8 3.5 Equipment Modification .............................................................................................................................. 8 3.6 Support Equipment List and Description ................................................................................................ 8 4.0 Measurement Results................................................................................................................................. 10 4.1 Maximum Conducted Output Power at Antenna Terminals ..................................................................... 10 4.2 Minimum 6 dB RF Bandwidth ..........................................…
