2AEJAS1NAPOLI2G Feature phone

1 Thanks for selecting this mobile phone. For the best performance we recommend that you read the manual carefully. Contents Overview. ............................................................................................................................1 1. Introduction .......................................................................................................................1 2. Function of main menu.........................................................................................................1 3. Maintenance and service...........................................................................................................3  Overview Please read the following concise rules carefully. Nonobservance to the rules may lead to danger or violence of the laws. The user’s manual gives details about the safety precautions.  Emergency call Make sure the equipment is in the covered area of the network service and the calling f unction is activated. As per the specific requirements, press the key of finish to clear the screen and return to the standby state. Input the emergency call number （112）and press the call key.  Function Description The phone is a perfect combination of humanized design and exquisite workmanship, the streamline and ingenious body is comfortable to hold. With streamline and ingenious frame, it feels comfortable to hold the mobile phone in your hand. It supports TXT electronic book, Blue-tooth, dual SIM cards with one standby, network camera, camera, FM and etc，It makes your work more convenient and your free time more fun with the combination of keyboard, florid colored screen, pleasant bells, cartoon head portrait for incoming calls, strong file management function (supporting T-FLASH card), fashionable camera function and long time tape recording function, music player, video player.  Introduction Insert the SIM card and the battery Ask your SIM card dealer whether he has provided SIM card service and the method of usage who may be service provider or other dealers，SIM card and its contacts are vulnerable to scratch or bending. Attention shall be attached when use, insert or take out the card.  Inserting/taking out T-FLASH CARD Only use approved and compatible T-FLASH card applicable to the mobile phone. Approved memory card trade standard is applied; however, certain bands may not be completely compatible with the mobile phone. Using incompatible memory card may damage not only the card and the mobile, but also the data stored in the card.  Charging the battery Check the model number of the charger before using it to charge the mobile，Only use approved battery, charger and accessories applicable to the specific mobile model. Using other types of battery, charger and accessories may violate the certification or warranty terms of the equipment and may result in danger，Refer to the dealer for supply of relative approved accessories.  Startup and shutdown Press the key of power supply to start up or shut down the mobile phone，If it is prompted to input PIN or UPIN, please input the required password (shown as **** on the screen). Function of main menu  Contacts Save the information of contacts , including names and telephone numbers in the contacts.  Message Write a message: You can choose to send the complete message from SIM card 1 or SIM card 2, You can choose multiple receivers to send the message to more than 1 person..  Call logs By telephone if you need to check you call logs>click select call logs menu>View: 1.All calls 2.SIM1/2 missed calls 3.SIM1/2 Dialed calls 4.SIM1/2 Received calls 5.SIM1/2 Rejected calls 6.Delete call logs 7.call timers.  Settings Phone settings 1.1.Date&Time :You can set the phone's time and date and the format. 1.2.Language Settings:You can select the phone’s display language . 1.3.Shortcut Settings:You can set the phone right soft keys and the navigation key shortcut functions. 1.4.Auto power on/off:After setting the time, and by that time the phone will auto power on/off. 1.5.Power management:Battery remains. 1.6.Restore factory settings:Enter the correct password of the phone will have to change your phone settings back to factory default state value, the user of the function be used with caution. (Default password: 1234). Display Settings 1.1.Animation effect: Set power on/off animation. 2 1.2.Wallpaper setting: Set wallpaper. 1.3.Idle display settings :You can choose to display or not display. 1.4.Brightness: The menu is to control of mobile phone screen brightness 1.5.Display backlight :The menu is to control of mobile phone display backlight time. 1.6.Keypad backlight :The menu is to control of mobile phone Keypad backlight time. Call settings This is some of the communications settings. There are have Dual-SM,Call divert,Call waiting,Call barring,Hide ID and others. Security PIN/PIN2: The SIM1/2 security setting need provided network operator .for more details, please contact your operator. Phone locked: You can switch on or off to activate the phone lock function to protect your phone. Modify the phone password: You can change password here. The default password is “1234”. Privacy: You can open the privacy protection function, set up mobile privacy. Auto keypad lock: You can set the on/off automatically lock screen mobile phone. Lock screen by end key: Set end key as dedicated key to lock the phone. Fixed dialing: You can set a fixed dialing. Connections Configure the network parameter in the place.  Multimedia  Camera In the options of camera, you may set the photometry mode, flash light，exposure compensation, avoidance of flickering, postponing shooting, white balance, photo quality, photo size, special effect, profile and etc. You may enter the album to check the formats that the cell phone supports.  Image viewer Check the pictures in the memorial card in formats supported by the cell phone.  Video Recorder Phone provides video recording, select video footage that can enter the video re…

Text truncated - open the document above for the full version.

GSM GLOBE.COM INC Agent Authorization Company: GSM GLOBE.COM INC Address: 8212 NW 30 TERRACE, DORAL, Florida 33122 United States Product Name: 2G Feature phone Trade Mark: GOL Model Number(s): S1 Napoli FCC ID: 2AEJAS1NAPOLI We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-05-06 Name: Madatali Panjwani Title: President Company: GSM GLOBE.COM INC

GSM GLOBE.COM INC Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-05-06 Subject; Request for Confidentiality FCC ID: 2AEJAS1NAPOLI To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Madatali Panjwani Title: President

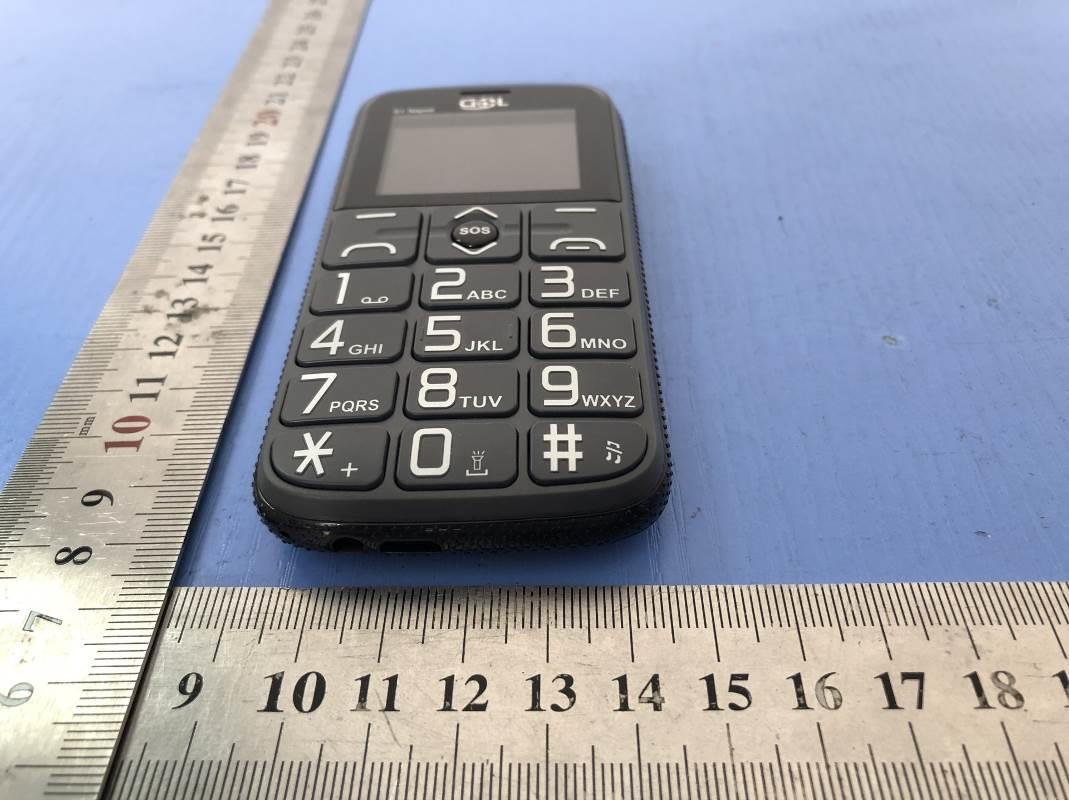

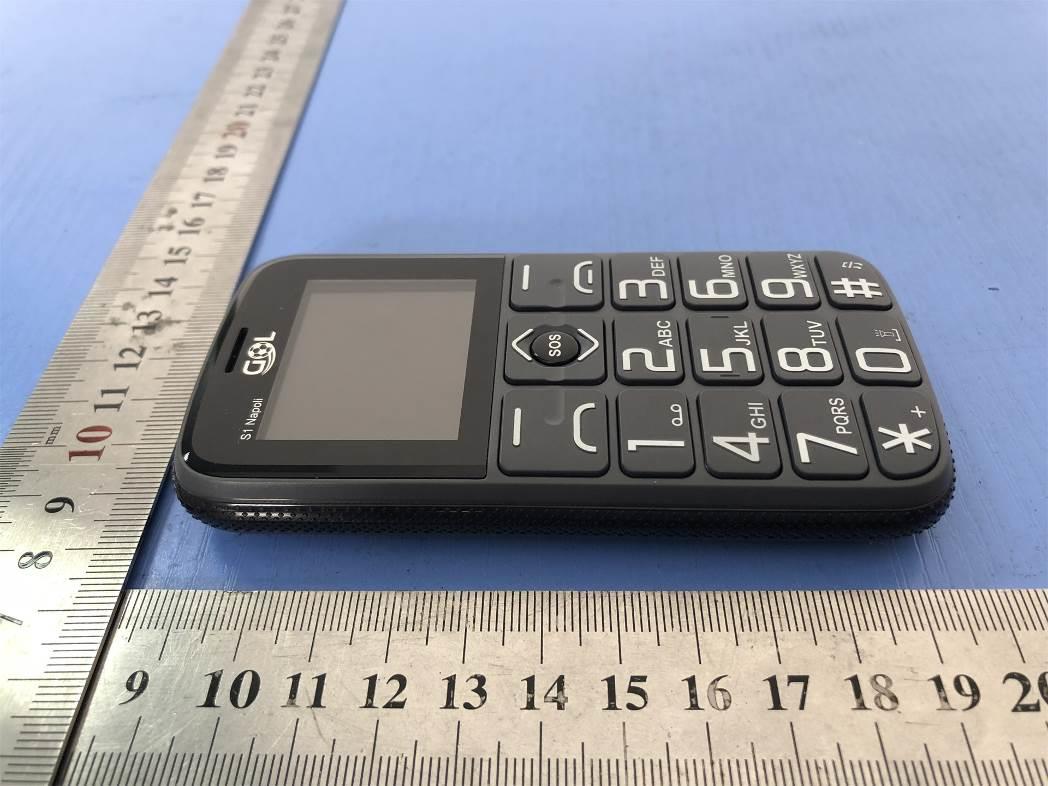

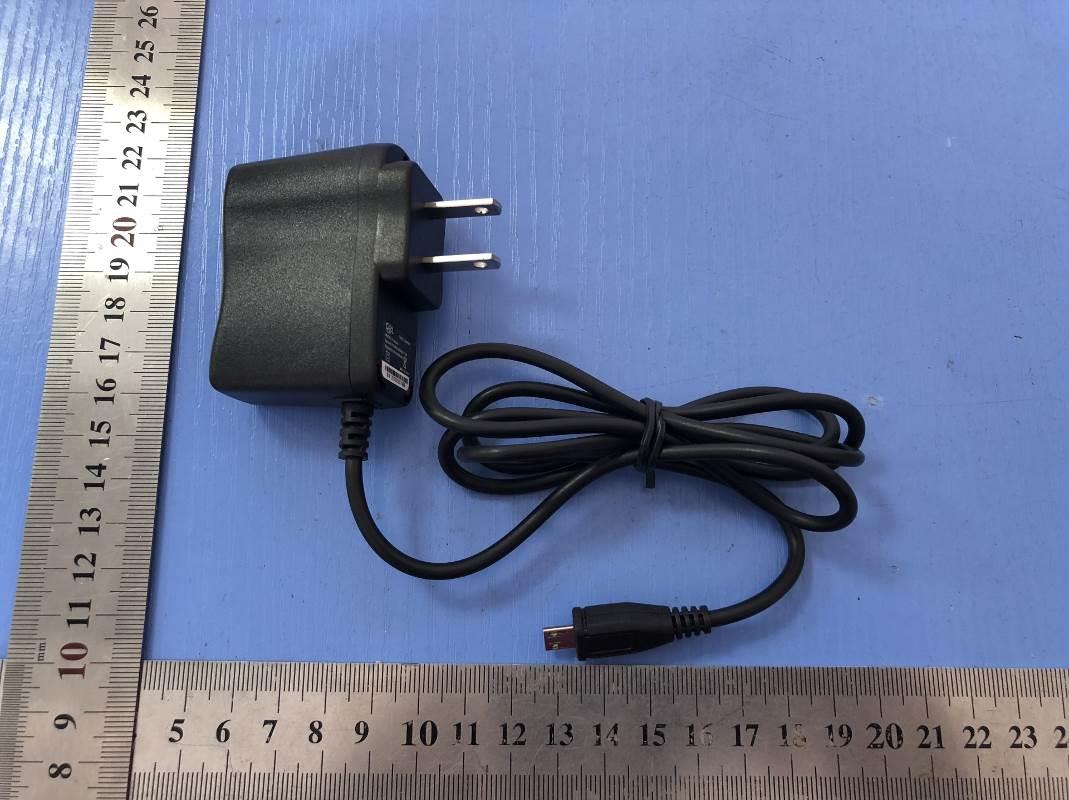

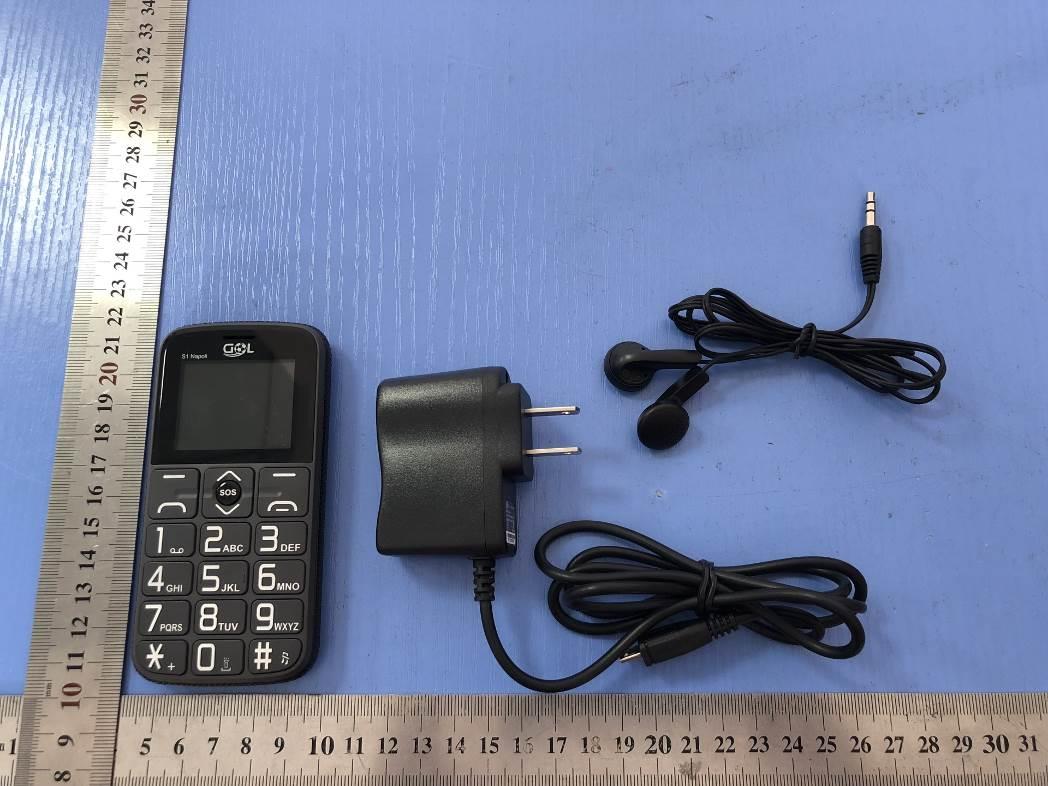

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Fig. 7 Fig. 8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 6 Label and Location Size: L: 4.5cm*W: 2.0cm Label and Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Interior Photographs Fig.1 Fig.2 GSM ANT SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Fig.5 Fig.6 BT ANT SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Fig.9 Fig.10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Fig.11

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 1 of 47 Appendix A RF Test Data for BT V4.2(BDR/EDR) (Conducted Measurement) Product Name: 2G feature phone Trade Mark: GOL Test Model: S1 Napoli Environmental Conditions Temperature: 24.8  C Relative Humidity: 54.2% ATM Pressure: 100.0 kPa Test Engineer: Diamond.Lu Supervised by: Li Huan A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 2.577 21 PASS MCH 2.249 21 PASS HCH 1.400 21 PASS π/4DQPSK LCH 1.766 21 PASS MCH 1.630 21 PASS HCH 0.809 21 PASS 8DPSK LCH 2.012 21 PASS MCH 1.808 21 PASS HCH 0.929 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 1.034 Not Specified PASS MCH 1.032 Not Specified PASS HCH 1.030 Not Specified PASS π/4DQPSK LCH 1.287 Not Specified PASS MCH 1.291 Not Specified PASS HCH 1.292 Not Specified PASS 8DPSK LCH 1.299 Not Specified PASS MCH 1.293 Not Specified PASS HCH 1.297 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.160 0.689 PASS MCH 0.968 0.689 PASS HCH 1.200 0.689 PASS π/4DQPSK LCH 1.290 0.861 PASS MCH 0.932 0.861 PASS HCH 1.042 0.861 PASS 8DPSK LCH 1.080 0.866 PASS MCH 0.900 0.866 PASS HCH 0.964 0.866 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.88 106.7 0.307 0.4 PASS DH5 MCH 2.88 106.7 0.307 0.4 PASS DH5 HCH 2.88 106.7 0.307 0.4 PASS π/4DQPSK 2DH5 LCH 2.88 106.7 0.307 0.4 PASS 2DH5 MCH 2.88 106.7 0.307 0.4 PASS 2DH5 HCH 2.88 106.7 0.307 0.4 PASS 8DPSK 3DH5 LCH 2.88 106.7 0.307 0.4 PASS 3DH5 MCH 2.88 106.7 0.307 0.4 PASS 3DH5 HCH 2.88 106.7 0.307 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH 2.226 -37.988 -17.774 PASS MCH 1.783 -37.060 -18.217 PASS HCH 0.886 -38.488 -19.114 PASS π/4DQPSK LCH 0.614 -36.915 -19.386 PASS MCH 0.593 -37.572 -19.407 PASS HCH -0.093 -37.606 -20.093 PASS 8DPSK LCH 0.778 -37.796 -19.222 PASS MCH 0.644 -37.893 -19.356 PASS HCH -0.087 -37.911 -20.087 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA Page 28 of 47 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 38 FCC TEST REPORT For GSM GLOBE.COM INC 2G Feature phone Test Model: S1 Napoli Prepared for : GSM GLOBE.COM INC Address : 8212 NW 30 TERRACE, DORAL, Florida 33122 United States Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : March 18, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : March 18, 2020 ~ March 27, 2020 Date of Report : April 02, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 38 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS200313085AEA Date of Issue .................................. : April 02, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : GSM GLOBE.COM INC Address .......................................... : 8212 NW 30 TERRACE, DORAL, Florida 33122 United States Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No.................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : 2G Feature phone Trade Mark ..................................... : GOL Test Model ...................................... : S1 Napoli Ratings ........................................... DC 3.7V by Rechargeable Li-Polymer Battery(1000mAh) Adapter Input: AC 110-240V, 50/60Hz, 0.12A Adapter Output: DC 5.0V/500mA Result ............................................ : Positive Compiled by: Supervised by: Approved by: Jin Wang / File administrators Linda He / Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 38 FCC -- TEST REPORT Test Model............................... : S1 Napoli EUT......................................... : 2G Feature phone Applicant............................... : GSM GLOBE.COM INC Address.................................. : 8212 NW 30 TERRACE, DORAL, Florida 33122 United States Telephone............................... : Fax.......................................... : Manufacturer........................ : SHENZHEN KECHAODA TECHNOLOGY CO., LTD Address................................... : Hongxin lndustrial Park, Guanlan Street, Baoan District, Shenzhen, China. Telephone............................... : Fax.......................................... : Factory................................... : / Address................................... : / Telephone............................... : Fax.......................................... : Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200313085AEA April 02, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 38 Revision History Revision Issue Date Revisions Revised By 000 April 02, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI Report No.: LCS200313085AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 38 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 7 1.3. EXTERNAL I/O CABLE ......................................................................................................................................... 7 1.4. DESCRIPTION OF TEST FACILITY ........................................................................................................................ 7 1.5. STATEMENT OF THE MEASUREMENT UNCERTAINTY .…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI _______________________________________________________________________________________________ TEST SETUP PHOTOGRAPHS Radiated Emissions of BT Below 1GHz Above 1GHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI _______________________________________________________________________________________________ Conducted Emissions of BT SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI _______________________________________________________________________________________________ Radiated Emissions of GSM Below 1GHz Above 1GHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI _______________________________________________________________________________________________ TEST SETUP OF SAR Head Setup Photo (Left Cheek) Head Setup Photo (Left Tilt) SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI _______________________________________________________________________________________________ Head Setup Photo (Right Cheek) Head Setup Photo (Right Tilt) SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI _______________________________________________________________________________________________ 10mm body-worn Back Side Setup Photo 10mm body-worn Front Side Setup Photo SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI _______________________________________________________________________________________________ 10mm body-worn Left Side Setup Photo 10mm body-worn Right Side Setup Photo SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEJAS1NAPOLI _______________________________________________________________________________________________ 10mm body-worn Bottom Side Setup Photo
