  3. 2AEMI-BRN404X

2AEMI-BRN404XBoron 404X

Particle Industries, Inc.
Boron 404X - FCC ID 2AEMI-BRN404X - Particle Industries, Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
May 04, 2023
Application Purpose
Original Equipment
Date of Application
May 04, 2023
Equipment Note
Boron 404X
Frequency Range
2402.00000000 - 2480.00000000
Company
Particle Industries, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗
↗
↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Boron BRN404X datasheet Functional description The Boron is a powerful LTE Cat M1 enabled development kit that supports cellular networks and Bluetooth LE (BLE). It is based on the Nordic nRF52840 and has built-in battery charging circuitry so it’s easy to connect a Li-Po and deploy your local network in minutes. The Boron is great for connecting existing projects to the Particle Device Cloud where Wi-Fi is missing or unreliable. Features - BRN404X (Boron LTE) u-blox SARA-R510S-01B LTE modem LTE Cat M1 module Support for United States, Canada, and Mexico only 3GPP Release 14 LTE Cat M1 LTE Cat M1 bands: 2, 4, 5, 12, 13 Embedded Particle EtherSIM Requires Device OS 4.0.0 LTS (or later) Features - All Models Nordic Semiconductor nRF52840 SoC ARM Cortex-M4F 32-bit processor @ 64MHz 1MB flash, 256KB RAM Bluetooth 5: 2 Mbps, 1 Mbps, 500 Kbps, 125 Kbps Supports DSP instructions, HW accelerated Floating Point Unit (FPU) and encryption functions Up to +8 dBm TX power (down to -20 dBm in 4 dB steps) NFC-A tag On-board additional 4MB SPI flash 20 mixed signal GPIO (6 x Analog, 8 x PWM), UART, I2C, SPI Micro USB 2.0 full speed (12 Mbps) Integrated Li-Po charging and battery connector JTAG (SWD) Connector RGB status LED Reset and Mode buttons Dual SIM support: Nano 4FF and MFF2 On-board PCB antenna U.FL connector for external antenna Meets the Adafruit Feather specification in dimensions and pinout FCC and IC certified RoHS compliant (lead-free) It is recommended that you use the latest version in the 4.x LTS release line with the BRN404X. The minimum required version is 4.0.0. You cannot use the BRN404X with Device OS 2.x LTS. For information on upgrading Device OS, see Version information. For the latest version shipped from the factory, see Manufacturing firmware versions page. See also Long Term Support (LTS) releases. OVERVIEW FEATURES DEVICE OS SUPPORT Interfaces USB PORT The USB port is the easiest way to power up the Boron. Please make sure that the USB port is able to provide at least 500mA. Power from the USB is regulated down to 3.3V by the on board Torex XC9258A step-down regulator. VUSB PIN The pin is internally connected to the VBUS of the USB port. The nominal output should be around 4.5 to 5 VDC when the device is plugged into the USB port and 0 when not connected to a USB source. You can use this pin to power peripherals that operate at such voltages. Do not exceed the current rating of the USB port, which is nominally rated to 500mA. LiPo If you want to make your projects truly wireless, you can power the device with a single cell LiPo (3.7V). The Boron has an on board LiPo charger that will charge and power the device when USB source is plugged in, or power the device from the LiPo alone in the absence of the USB. NOTE: Please pay attention to the polarity of the LiPo connector. Not all LiPo batteries follow the same polarity convention! BLOCK DIAGRAM POWER Li+ PIN This pin is internally connected to the positive terminal of the LiPo connector. You can connect a single cell LiPo/Lithium Ion or a DC supply source to this pin for powering the Boron. Remember that the input voltage range on this pin is 3.6 to 4.2 VDC. 3V3 PIN This pin is the output of the on board 3.3V step-down switching regulator (Torex XC9258A). The regulator is rated at 1000mA max. When using this pin to power other devices or peripherals remember to budget in the current requirement of the Boron first. Unlike the Photon, this pin CANNOT be used to power the Boron. EN PIN The EN pin is not a power pin, per se, but it controls the 3V3 and cellular modem power via a load switch (XC8107, U2). The EN pin is pulled high by a 100K resistor to PMIC_SYS (3.8V), which is powered by VUSB, the micro USB connector, or the LiPo battery. Because the pull-up can result in voltages above 3.3V you should never directly connect EN to a 3.3V GPIO pin. Instead, you should only pull EN low, such as by using an N-channel MOSFET or other open-collector transistor. The EN pin can force the device into a deep power-down state where it uses very little power. It also can used to assure that the device is completely reset, similar to unplugging it, with one caveat: If using the EN pin to deeply reset the device, you must be careful not to allow leakage current back into the nRF52 MCU by GPIO or by pull-ups to 3V3. If you only power external devices by 3V3 you won't run into this, as 3V3 is de-powered when EN is low. However, if you have circuitry that is powered by a separate, external power supply, you must be careful. An externally powered circuit that drives a nRF52 GPIO high when EN is low can provide enough current to keep the nRF52 from powering down and resetting. Likewise, a pull-up to an external power supply can do the same thing. Be sure that in no circumstances can power by supplied to the nRF52 when 3V3 is de-powered. See the power supply schematic, below, for more information. There are two radios on the Boron. A BLE radio (nRF52840) and a cellular radio (u-blox). For the cellular radio, we have provided a u.FL connector to plug in the cellular antenna. This is required if you wish to use the cellular connectivity. There are two options for the BLE antenna on the Boron. It comes with an on-board PCB antenna which is selected by default in the device OS and a u.FL connector if you wish to connect an external antenna. If you wish to use the external antenna, you'll need to issue an appropriate command in the firmware. Certified Cellular Antenna AntennaSKUDetailsLinks Wide band LTE-CAT M1 cell antenna, [x1]PARANTC41EAB404X, BRN404X, and E404XDatasheet Wide band LTE-CAT M1 cell antenna, [x50]PARANTC41TYB404X, BRN404X, and E404XDatasheet General antenna parameters: ParameterValueUnit Antenna TypeDipole Radiation PropertiesOmnidirectional Maximum Input Power5watts PolarizationLinear Impedance50ohms Antenna parameters in frequency ranges: Parameter698 MHz - 894 MHz1700 MHz - 2690 MHzUnit Peak Gain2.463.86dBi Efficiency65.4654.95% Av…

Text truncated - open the document above for the full version.

Attestation Statements

Letter of Authorization and Anti-Drug Statement Applicant Name:Particle Industries, Inc. Address:325 9th Street, San Francisco, CA 94103 Product Name:Boron BRN404X Model Number:BRN404X FCC ID:2AEMI-BRN404X We authorize: CETECOM Inc., to act on our behalf on all matters concerning the above named equipment. We declare that CETECOM Inc. is allowed to forward all information related to the approval project to the Federal Communications Commission and discuss any issues concerning the approval application. The applicant must certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Does the applicant or authorized agent so certify? ☑ Yes I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. In accepting a Grant of Equipment Authorization as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC's technical requirements. Authorizing an agent to sign this application, is done solely at the applicant's discretion; however, the applicant remains responsible for all statements in this application. If an agent has signed this application on behalf of the applicant, a written letter of authorization which includes information to enable the agent to respond to the above section 5301 (Anti-Drug Abuse) Certification statement has been provided by the applicant. It is understood that the letter of authorization must be submitted to the FCC upon request, and that the FCC reserves the right to contact the applicant directly at any time. Signature of Authorized Person Filing: Zach Supalla Title: CEO Date: September 20, 2022 325 9th St San Francisco, CA 94103(415)316-1024 •[email protected]

Attestation Statements

Particle Industries, Inc 325 9th Street San Francisco, CA 94103 Date: February 21, 2023 Federal Communication Commission 7435 Oakland Mills Road Columbia, MD 21048 Subject: Attestation Statement according to 2.911(d)(5)(i) and 2.911(d)(5)(ii) FCC ID: 2AEMI-BRN404X To Whom It May Concern: Particle Industries, Inc. hereby certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving and equipment authorization pursuant to section 2.903 of the FCC rules. Further, we certify that, as of the date of the filing of the application, Particle Industries, Inc. is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Zach Supalla CEO 325 9th St San Francisco, CA 94103(415) 316-1024 •[email protected]

Attestation Statements

Date:April7,2023 FederalCommunicationCommission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21048 Subject:USAgentAttestationStatement FCCID:2AEMI-BRN404X To whom it may concern: This letter is to certify that, as of the date of the filing of this statement with the TCB, Particle Industries, Inc. (“Applicant”) accepts responsibilities to act as its own agent pursuant to 47 CFR part §2.911(d)(7) of the FCC rules for service of process for the above referenced FCC ID. Particle Industries, Inc. acknowledges the requirement to maintain an agent extends for no less than one year after the termination of all marketing and importation or the conclusion of any commission-related proceeding involving the equipment. Applicant Information Company Name:Particle Industries, Inc. FCC Registration Number (FRN): 0024539330 Contact Name:Zach Supalla Address:325 9th Street, San Francisco, CA 94103 Telephone No:(415) 316-1024 Email:[email protected] Sincerely, Zach Supalla CEO 325 9th St San Francisco, CA 94103(415) 316-1024 •[email protected]

Attestation Statements

Date: September 20, 2022 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 Certification and Engineering Bureau Innovation, Science and Economic Development Canada Spectrum Engineering Branch 3701 Carling Avenue, Building 94 Ottawa, Ontario K2H 8S2 Subject: Modular Approval Statement FCC Certification Number:2AEMI-BRN404X ISED Certification Number:20127-BRN404XPMN:(Product Marketing Name)Boron BRN404X HVIN(Hardware Version Identification Number): v1.5.0FVIN:(Firmware Version Identification Number) v4.0.0 HMN:(Host Marketing Name)BRN404X ☑Single-modulartransmitter:AcompleteRFtransmissionsub-assembly,designedtobeincorporatedintoanother device, that must demonstrate compliance with FCC rules and policies independent of any host; ☐Limitedsingle-modulartransmitter:Asingle-modulartransmitterthatcomplieswiththe§15.212(a)(1)modularrules, only when constrained to specific operating host(s) and/or associated grants condition(s); TO WHOM IT MAY CONCERN Pursuant to Paragraphs FCC part 15.212, we herewith declare for our module. Singlemodulartransmittersmustmeetallofthefollowingrequirementstoobtainamodulartransmitterapproval.Limited modular approval may be granted for single that do not comply with all of the following requirements, Single Modular approval requirementYesNo (i)Theradioelementsofthemodulartransmittermusthavetheirown shielding.Thephysicalcrystalandtuningcapacitorsmaybelocatedexternal to the shielded radio elements. Y Comment: (ii)Themodulemusthavebufferedmodulation/datainputs(ifsuchinputsare provided)toensurethatthemodulewillcomplywithpart15requirements under conditions of excessive data rates or over-modulation. Y Comment: (iii)Themoduleshallhaveitsownpowersupplyregulationonthemodule.This istoensurethatthemodulewillcomplywiththerequirementssetoutinthe applicablestandardregardlessofthedesignofthepowersupplyingcircuitryin the host device which houses the module. Y 325 9th St San Francisco, CA 94103(415)316-1024 •[email protected] Comment: (iv)Themodulemustcontainapermanentlyattachedantenna,orcontaina uniqueantennaconnector,andbemarketedandoperatedonlywithspecific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), and 15.212(a). The“professionalinstallation”provisionof§15.203isnotapplicabletomodules butcanapplytolimitedmodularapprovals.Theequipmentcertification submission shall contain i)adetaileddescriptionoftheconfigurationofhighestantennagainforeach type of antenna. ii) the maximum transmitting antenna gain for license modules iii)adetaileddescriptionoftheconfigurationoflowestantennagainforeach typeofreceivingantennaforDynamicFrequencySelection(DFS)modules with removable antenna(s) Y Comment: (v)Themoduleshallbetestedforcompliancewiththeapplicablestandardina stand-aloneconfiguration,i.e.themodulemustnotbelocatedinsideanother device during testing. Y Comment: (vi)ThemodulemustbelabelledwithitspermanentlyaffixedFCCIDlabel,or useanelectronicdisplay(SeeKDBPublication784748aboutlabelling requirements). Y Comment: (vii)Themodulartransmittermustcomplywithanyspecificrulesoroperating requirementsthatordinarilyapplytoacompletetransmitterandthe manufacturermustprovideadequateinstructionsalongwiththemoduleto explainanysuchrequirements.Acopyoftheseinstructionsmustbeincluded in the application for equipment authorization. Y Comment: (viii)ThemoduleshallcomplywithapplicableFCCRFexposurerequirements, which are based on the intended use/configurations. Y Comment: Best Regards, ______________________ Zach Supalla CEO 325 9th St San Francisco, CA 94103(415)316-1024 •[email protected]

Cover Letter(s)

Date: September 20, 2022 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 Subject:Request for Permanent Confidentiality FCC ID: 2AEMI-BRN404X To Whom It May Concern: In accordance with §0.457(d) and §0.459 of CFR 47, and KDB 726920, Particle Industries, Inc. hereby requests permanent confidentiality for documents filed under the following exhibit types: ●Parts List & Placement/BOM ●Operational Description ●Tune-up Procedure These items contain detailed system and equipment description and related information about the product which Particle Industries, Inc. considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Particle Industries, Inc. also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. We are aware that exhibit typescover letters, attestations,label document, test reports, RF exposure information (SAR and MPE reports), cannotbe requested to be classified confidential and are thus subject to publication, as will be documents of all other exhibit types for which we have not requested a confidentiality classification. Best Regards, Zach Supalla CEO 325 9th St San Francisco, CA 94103(415)316-1024 •[email protected]

Cover Letter(s)

Date: September 20, 2022 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 Subject:Request for Short Term Confidentiality FCC ID: 2AEMI-BRN404X To Whom It May Concern: In accordance with §0.457(d) and §0.459 of CFR 47, and KDB 726920, Particle Industries, Inc. hereby requests short term confidentiality for documents filed under the following exhibit types: ●External Photographs ●Internal Photographs ●Test Setup Photographs until the product will be publicly announced. Short term confidentiality release date / period: 180 days from grant issue date. These items contain detailed system and equipment description and related information about the product which Particle Industries, Inc. considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Particle Industries, Inc. also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. We are aware that exhibit typescover letters, attestations,label document, test reports, RF exposure information (SAR and MPE reports), cannotbe requested to be classified confidential and are thus subject to publication, as will be documents of all other exhibit types for which we have not requested a confidentiality classification. Best Regards, Zach Supalla CEO 325 9th St San Francisco, CA 94103(415)316-1024 •[email protected]

External Photos

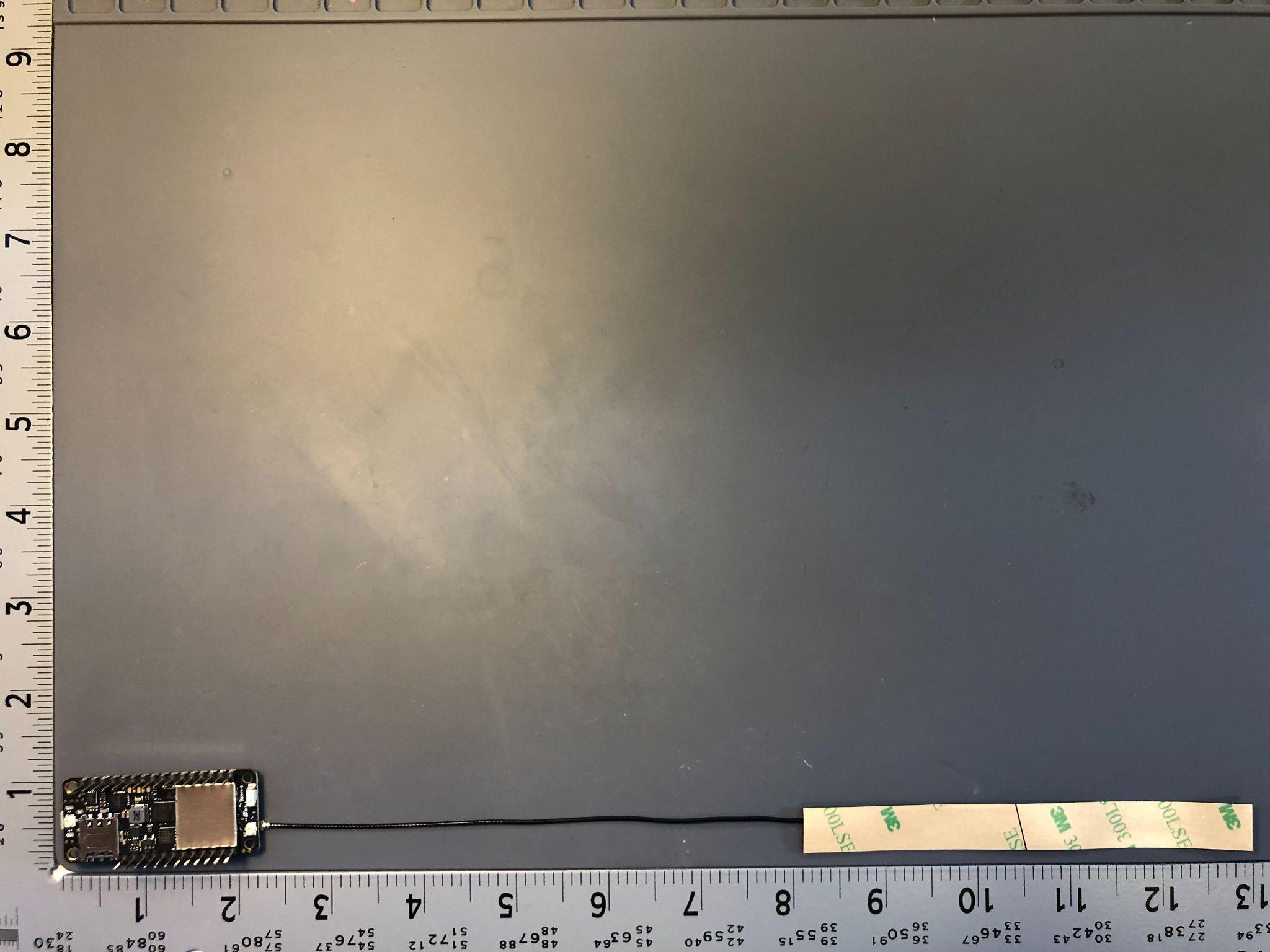

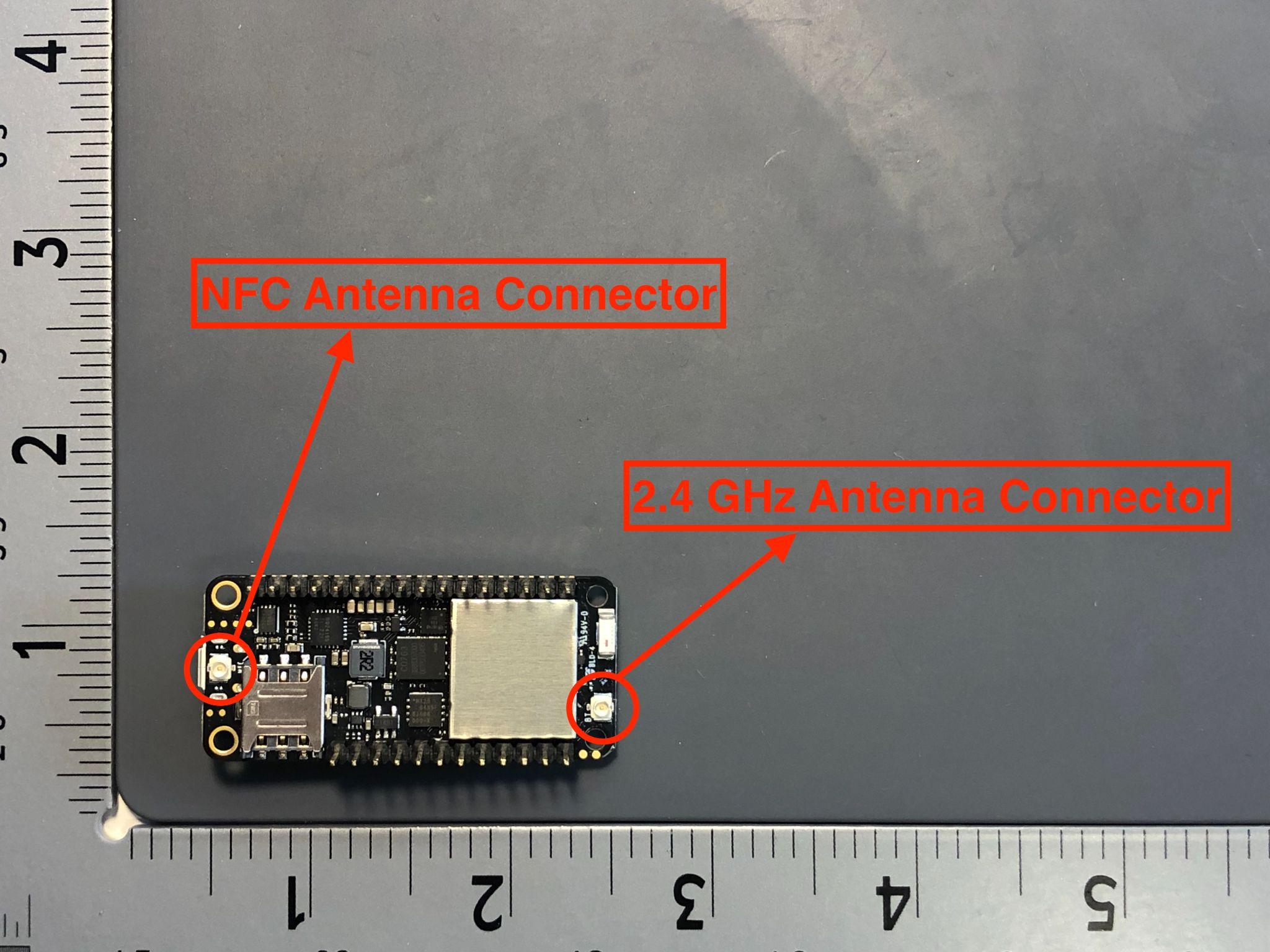

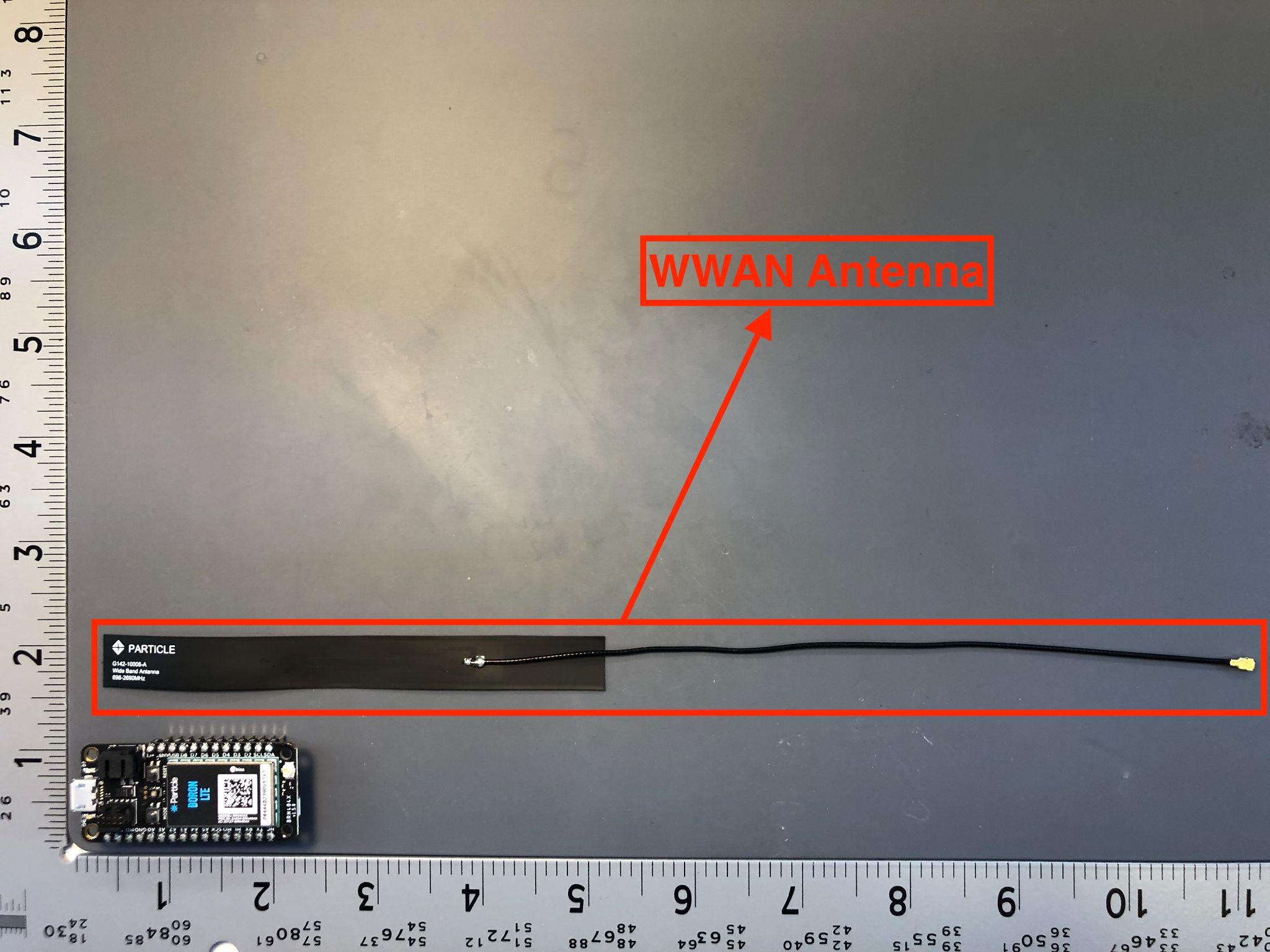

FCC ID: 2AEMI-BRN404X External Photographs of the EUT 325 9th St San Francisco, CA 94103(415)316-1024 •[email protected] FCC ID: 2AEMI-BRN404X 325 9th St San Francisco, CA 94103(415)316-1024 •[email protected] FCC ID: 2AEMI-BRN404X 325 9th St San Francisco, CA 94103(415)316-1024 •[email protected] FCC ID: 2AEMI-BRN404X 325 9th St San Francisco, CA 94103(415)316-1024 •[email protected] FCC ID: 2AEMI-BRN404X 325 9th St San Francisco, CA 94103(415)316-1024 •[email protected]

ID Label/Location Info

FCC ID: 2AEMI-BRN404X EUT ID Label and Location ID Label - Old Logo and Branding Size: 14mm x 24mm 325 9th St San Francisco, CA 94103(415)316-1024 •[email protected] FCC ID: 2AEMI-BRN404X ID Label - New Logo and Branding Size: 14mm x 24mm 325 9th St San Francisco, CA 94103(415)316-1024 •[email protected] FCC ID: 2AEMI-BRN404X Label Location - Affixed to RF shield cover of EUT, top side Material: High temperature label 325 9th St San Francisco, CA 94103(415)316-1024 •[email protected]

Internal Photos

FCC ID: 2AEMI-BRN404X Internal Photographs of the EUT 325 9th St San Francisco, CA 94103(415)316-1024 •[email protected] FCC ID: 2AEMI-BRN404X 325 9th St San Francisco, CA 94103(415)316-1024 •[email protected]

RF Exposure Info

Radio Frequency Exposure Evaluation Report FOR: Particle Industries, Inc. Model: BRN404X BORON 404X with BQ24195L (PMIC) Product Description: LTE Development Board with EtherSIM FCC ID: 2AEMI-BRN404X IC: 20127-BRN404X Per: CFR Part Part1 (1.1307 &1.1310), Part 2 (2.1091), FCC KDB 447498 D01 General RF Exposure Guidance v06 ISEDC RSS-102 Issue 5 Report number: EMC_PARTI-001-21001_FCC_ISED_MPE DATE: 2023-02-28 CETECOM Inc. 411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. Phone: + 1 (408) 586 6200  Fax: + 1 (408) 586 6299  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 V5.0 2015-10-27 © Copyright by CETECOM Test Report #: EMC_PARTI-001-21001_FCC_ISED_MPE FCC ID: 2AEMI-BRN404X Date of Report 2023-02-28 Page 2 of 8 IC: 20127-BRN404X Page 2 of 8 1 Assessment This RF Exposure evaluation report provides evidence for compliance of the below identified device with the RF Exposure limits for mobile devices as defined in FCC CFR Part 1 (1.1307 &1.1310), Part 2 (2.1091) and IC standard RSS-102 issue 5 under worst case conditions (measured or rated RF output power, antenna gain, distance towards human body, multiple transmitter information as presented by the applicant). In addition, maximum antenna gain or minimum distance towards the human body is calculated respectively, where relevant. The device meets the limits as stipulated by the above given FCC and IC rule parts based on available specifications for worst case conditions at 20cm distance to the body. Company Description Model Particle Industries, Inc. LTE Development Board with EtherSIM BRN404X BORON 404X with BQ24195L (PMIC) Report reviewed by: TCB Evaluator 2023-02-28 Compliance Arndt Stoecker (Director of Regulatory Services) Date Section Name Signature Responsible for the Report: 2023-02-28 Compliance Cheng Song (EMC Engineer) Date Section Name Signature Test Report #: EMC_PARTI-001-21001_FCC_ISED_MPE FCC ID: 2AEMI-BRN404X Date of Report 2023-02-28 Page 3 of 8 IC: 20127-BRN404X Page 3 of 8 2 Administrative Data 2.1 Identification of the Testing Laboratory Issuing the Test Report Company Name: CETECOM Inc. Department: Compliance Street Address: 411 Dixon Landing Road City/Zip Code Milpitas, CA 95035 Country USA Telephone: +1 (408) 586 6200 Fax: +1 (408) 586 6299 Lab Manager: Arndt Stoecker Responsible Project Leader: Phillip Quintal 2.2 Identification of the Client / Manufacturer Client’s Name: Particle Industries, Inc. Street Address: 325 9th St City/Zip Code San Francisco, CA 94103 Country USA Identification of the Manufacturer Manufacturer’s Name: Same as Client Manufacturers Address: City/Zip Code Country Test Report #: EMC_PARTI-001-21001_FCC_ISED_MPE FCC ID: 2AEMI-BRN404X Date of Report 2023-02-28 Page 4 of 8 IC: 20127-BRN404X Page 4 of 8 3 Equipment under Assessment Model: BRN404X, BORON 404X with BQ24195L (PMIC) HW Version : V1.5.0 SW Version : V4.0.0 Product Marketing Name (PMN): Boron Radio Information: Cellular:  u-blox SARA-R510S  FCC ID: XPYUBX19KM01; IC: 8595A-UBX19KM01 Bluetooth:  Nordic Semiconductor nRF52840 SoC  Bluetooth 5 LE Antenna Information: Cellular:  G142-10006-A antenna  Wide band FPC antenna: 3.86dBi max gain Bluetooth:  PCB antenna: 2dBi max gain Power Supply/ Rated Operating Voltage Range: DC 5V from Host Unit or DC 3.7V from Li-ion battery Vmin = 3.4V, Vmax = 4.4V, Vnom = 3.7V Operating Temperature Range: Tmin: -20 ºC / Tmax: 60 ºC / Tnom: 25 ºC Sample Revision: Prototype Unit; Production Unit; Pre-Production Test Report #: EMC_PARTI-001-21001_FCC_ISED_MPE FCC ID: 2AEMI-BRN404X Date of Report 2023-02-28 Page 5 of 8 IC: 20127-BRN404X Page 5 of 8 4 RF Exposure Limits and FCC and IC Basic Rules For the specific described radio apparatus the following basic limits and rules apply for both, FCC and IC where not indicated differently. 4.1 Power Density Limits acc. to FCC 1.1310(e) / RSS-102 i5, cl. 4: FCC Frequency Range (MHz) Power density (mW/cm 2 ) Averaging time (minutes) 300 – 1500 f (MHz) /1500 30 1500 – 100000 1.0 30 IC 300 – 6000 0.02619 x f (MHz) 0.6834 6 4.2 Routine Environmental Evaluation Categorical Exclusion Limits acc. to FCC 2.1091(c) / RSS-102, cl. 2.5 (rounded to 1 decimal point): FCC operating frequency < 1.5GHz: excluded if ERP < 1.5W / 31.8dBm (EIRP: 33.9 dBm); operating frequency > 1.5GHz: excluded if ERP < 3.0W / 34.8dBm (EIRP: 36.9 dBm); IC 300MHz < = operating frequency < 6 GHz: excluded if EIRP < 0.0131 x f (MHz) 0.6834 W 4.3 RF Exposure Estimation (MPE Estimation) Having available the source based average output power and peak antenna gain or the ERP/EIRP of the specified device and for a known minimum distance of its radiating structures from the body of persons according to its use cases (at least 20cm) the power density at that distance can be estimated by the following formula for plane-wave equivalent conditions (far-field conditions), when ground reflection is neglected. 2 4R PG S   where: S = power density (mW/cm 2 or W/m 2 ) P = power input to the antenna (mW or W) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (cm or m) Test Report #: EMC_PARTI-001-21001_FCC_ISED_MPE FCC ID: 2AEMI-BRN404X Date of Report 2023-02-28 Page 6 of 8 IC: 20127-BRN404X Page 6 of 8 5 Evaluations 5.1 Analysis of RF Exposure FCC: LTE 2 Operating frequency > 1.5GHz, ERP20cm Limit = 3060mW = 3.06W Actual ERP = 0.469W < 3.06W; Excluded. LTE 4 Operating frequency > 1.5GHz, ERP20cm Limit = 3060mW = 3.06W Actual ERP = 0.469W < 3.06W; Excluded. LTE 5 Operating frequency < 1.5GHz, ERP20cm Limit = 2040 x 0.824 = 1680.96mW = 1.68W Actual ERP = 0.469W < 1.68W; Excluded. LTE 12 Operating frequency < 1.5GHz, ERP20cm Limit = 2040 x 0.699 = 1425.96mW = 1.43W Actual ERP = 0.469W < 1.43W; Excluded. LTE 13 Operating frequency < 1.5GHz, ERP20cm Limit = 2040 x 0.777 = 1585.08mW = 1.59W Actual ERP = 0.469W < 1.59W; Excluded. BLE Operat…

Text truncated - open the document above for the full version.

Test Report

A2LA Accredited IC recognized # 3462B-1 CETECOM Inc. 411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. Phone: + 1 (408) 586 6200  Fax: + 1 (408) 586 6299  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 © Copyright by CETECOM FCC / ISED Test Report For: Particle Industries, Inc. Model: BRN404X BORON 404X with BQ24195L (PMIC) Product Description: LTE Development Board with EtherSIM FCC ID: 2AEMI-BRN404X IC: 20127-BRN404X Applied Rules and Standards: 47 CFR Part 15.247 (DTS) RSS-247 Issue 2 (DTSs) & RSS-Gen Issue 5 REPORT #: EMC_PARTI-001-21001_FCC_15_247_Rev1 DATE: 2023-03-27 Test Report #: EMC_PARTI-001-21001_FCC_15_247_Rev1 FCC ID: 2AEMI-BRN404X Date of Report 2023-03-27 Page 2 of 27 IC: 20127-BRN404X TABLE OF CONTENTS 1 ASSESSMENT .............................................................................................................................................................. 3 2 ADMINISTRATIVE DATA ............................................................................................................................................... 4 2.1 IDENTIFICATION OF THE TESTING LABORATORY ISSUING THE EMC TEST REPORT ........................................................................... 4 2.2 IDENTIFICATION OF THE CLIENT ............................................................................................................................................. 4 2.3 IDENTIFICATION OF THE MANUFACTURER ................................................................................................................................. 4 3 EQUIPMENT UNDER TEST (EUT) ................................................................................................................................... 5 3.1 EUT SPECIFICATIONS ......................................................................................................................................................... 5 3.2 EUT SAMPLE DETAILS ......................................................................................................................................................... 6 3.3 ACCESSORY EQUIPMENT (AE) DETAILS ................................................................................................................................... 6 3.4 TEST SAMPLE CONFIGURATION ............................................................................................................................................. 6 3.5 MODE OF OPERATION.......................................................................................................................................................... 6 4 SUBJECT OF INVESTIGATION ...................................................................................................................................... 7 5 MEASUREMENT RESULTS SUMMARY .......................................................................................................................... 7 6 MEASUREMENT UNCERTAINTY.................................................................................................................................... 8 6.1 ENVIRONMENTAL CONDITIONS DURING TESTING: ...................................................................................................................... 8 6.2 DATES OF TESTING: ............................................................................................................................................................ 8 7 MEASUREMENT PROCEDURES .................................................................................................................................... 9 7.1 RADIATED MEASUREMENT .................................................................................................................................................... 9 7.2 POWER LINE CONDUCTED MEASUREMENT PROCEDURE .......................................................................................................... 11 7.3 RF CONDUCTED MEASUREMENT PROCEDURE ....................................................................................................................... 11 8 TEST RESULT DATA .................................................................................................................................................. 12 8.1 RADIATED TRANSMITTER SPURIOUS EMISSIONS AND RESTRICTED BANDS ................................................................................... 12 9 TEST SETUP PHOTOS ................................................................................................................................................ 26 10 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTING ......................................................................................... 26 11 HISTORY ................................................................................................................................................................... 27 Test Report #: EMC_PARTI-001-21001_FCC_15_247_Rev1 FCC ID: 2AEMI-BRN404X Date of Report 2023-03-27 Page 3 of 27 IC: 20127-BRN404X 1 Assessment The following device was evaluated against the applicable criteria specified in FCC rules Parts 15.247 of Title 47 of the Code of Federal Regulations and the relevant ISED Canada standard RSS-247. No deviations were ascertained. Company Description Model Particle Industries, Inc. LTE Development Board with EtherSIM BRN404X BORON 404X with BQ24195L (PMIC) Responsible for Testing Laboratory: 2023-03-27 Compliance Arndt Stoecker (Director of Regulatory Services) Date Section Name Signature Responsible for the Report: 2023-03-27 Compliance Cheng S…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Zach Supalla(CEO)
[email protected]+1-415-316-1024Fax: +1-415-316-1024

Test Firm

CETECOM Inc.Meinolf Glunz
[email protected]408-586-6301

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz4.00 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Power out is conducted. The antennas used with this device must be installed to provide a minimum separation distance of 20 cm from all persons. Only those antennas approved in this filing may be used, or similar antennas with equal or lesser gain. End users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance
