2AEMI-T40XTracker SoM LTE M1

Tracker SoM Datasheet (008) T402M T404M Functional description The AssetTracker SoM is a System-on-a-Module (SoM) with: LTE Cat 1 (EMEAA, Europe only at this time) or LTE Cat M1 (North America) cellular modem GNSS (supports GPS, SBAS, QZSS, GLONASS, BeiDou, and Galileo) with up to 1.8m accuracy and untethered dead-reckoning Support for CAN bus and 5V power for CAN devices Built-in Inertial Measurement Unit (IMU) Castellated module can be reflow soldered to your base board, and is available on an evaluation board or carrier board ModelRegion T402M / T404MNorth America T523M / T524MEurope/Middle East/Africa/Asia; Europe only at this time OVERVIEW GNSS u-blox Neo M8U for GNSS with on-board dead-reckoning for up to 1.8m CEP50 GPS accuracy Supports GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1-SAIF, GLONASS L1OF, BeiDou B1I, Galileo E1B/C Support for battery-backup for almanac and ephemeris data Quectel BG96-MC modem (T402M / T404M) LTE Cat M1 module for North America (United States, Canada, and Mexico) LTE FDD bands supported: B2，B4，B5, B12，B13, B25 Quectel EG91-EX modem (T523M / T524M) LTE Cat 1 module for EMEAA region 3GPP E-UTRA Release 13 Cat 1 bands supported: B1, B3, B7, B8, B20, B28 Support for Europe only at this time Nordic Semiconductor nRF52840 SoC ARM Cortex-M4F 32-bit processor @ 64MHz 1MB flash, 256KB RAM in SoC Bluetooth 5: 2 Mbps, 1 Mbps, 500 Kbps, 125 Kbps Supports DSP instructions, HW accelerated Floating Point Unit (FPU) calculations ARM TrustZone CryptoCell-310 Cryptographic and security module Up to +8 dBm TX power (down to -20 dBm in 4 dB steps) NFC-A tag Wi-Fi location: on-board ESP32 offers SSID scanning for using third-party Wi-Fi location services PMIC (Power Management IC) and Fuel Gauge On-module additional 8MB SPI flash CAN Bus: on-board, integrated CAN Bus controller and transceiver making it ideal for fleet and micromobility Boost Converter to power 5V CAN devices from a 3.6V battery RTC: External real-time clock with support for an optional separate battery Watchdog Timer: integrated hardware WDT 10 Mixed signal GPIO (8 x Analog, 10 x Digital, UART, I2C, SPI) USB 2.0 full speed (12 Mbps) JTAG (SWD) pins Support for external RGB status LED Support for external Reset and Mode buttons On-module MFF2 Particle SIM Bluetooth chip antenna on module, switchable to use U.FL connector in software. Five on-module U.FL connectors for cellular, GNSS, BLE, Wi-Fi, and alternative GNSS. Castellated module designed to be reflow soldered to your own custom base board, or pre- populated on a Particle Evaluation Board or Carrier Board. FCC, IC, and CE certified RoHS compliant (lead-free) FEATURES Interfaces The Tracker SoM can be powered via the VIN (3.88V-12VDC) pin, over USB, or a LiPo battery. VIN The input voltage range on VIN pin is 3.88VDC to 12VDC. When powering from the VIN pin alone, make sure that the power supply is rated at 10W (for example 5 VDC at 2 Amp). If the power source is unable to meet this requirement, you'll need connect the LiPo battery as well. An additional bulk capacitance of 470uF to 1000uF should be added to the VIN input when the LiPo Battery is disconnected. The amount of capacitance required will depend on the ability of the power supply to deliver peak currents to the cellular modem. LiPo This pin serves two purposes. You can use this pin to connect a LiPo battery (either directly or using a JST connector), or it can be used to connect an external DC power source (and this is where one needs to take extra precautions). When powering it from an external regulated DC source, the recommended input voltage range on this pin is between 3.6V to 4.4VDC. Make sure that the supply can handle currents of at least 3Amp. This is the most efficient way of powering the module since the PMIC bypasses the regulator and supplies power to the module via an internal FET leading to lower quiescent current. When powered from a LiPo battery alone, the power management IC switches off the internal regulator and supplies power to the system directly from the battery. This reduces the conduction losses and maximizes battery run time. The battery provided with the module is a Lithium-Ion Polymer battery rated at 3.7VDC 1,800mAh. You can substitute this battery with another 3.7V LiPo with higher current rating. Remember to never exceed this voltage rating and always pay attention BLOCK DIAGRAM POWER 2402-2480MHz Y1 Y2 Y3 to the polarity of the connector. A LiPo battery with internal protection circuits is recommended. Typical current consumption is around 180mA and up to 1.8A transients at 5VDC. In deep sleep mode, the quiescent current is 130uA [this value may change] (powered from the battery alone). The MAX17043 fuel gauge is only compatible with single cell lithium-ion batteries. The state-of- charge (SoC) values will not be accurate with other battery chemistries. VBUS VBUS is connected to the USB detect pin of nRF52840 to enables the USB interface. The recommended input voltage range is between 4.35V to 5.5V DC. It is also connected to the bq24195 PMIC to allow for DPDM, detection of the power capacity of the USB port. 3V3 Pin This pin is the output of the on-board 3.3V switching regulator that powers the microcontroller and the peripherals. This pin can be used as a 3.3V power source with a max load of 800mA. Unlike the Photon, this pin CANNOT be used as an input to power the module. RTC_BAT This is the supply to the real-time clock battery backup. 1.4 to 3.6V. VoltageTypical CurrentMaximum CurrentUnit 3.0V56330nA 1.8V52290nA If the RTC battery is not used, connect RTC_BAT to ground. GNSS_BAT This is the supply for maintaining the u-blox GNSS ephemeris and almanac data when removing power. This can use the same battery as RTC_BAT, can be a super-capacitor, or can be omitted. 1.5 to 3.6V. Typical current is 15 uA. If you are not powering GNSS_BAT with a battery or super-capacitor, connect GNSS_BAT to 3V3. Saving the ephemeris and almanac data can improve fix/lock time. I…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 6.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526- 1188 Fax: 408-526-1088 Email: [email protected] PURMHFW DQG PURGXFW CHUWLILFDWLRQ RHSUHVHQWDWLYH AXWKRUL]DWLRQ LHWWHU RHYLVLRQ HLVWRU\ RHDVRQ IRU APHQGPHQW (FXUUHQW / REVROHWH) FURP TR ASSURYHG DDWH IQLWLDO RHOHDVH (REVROHWH) 1.0 1.0 NRY-14-2006 RHYLVHG ZRUGLQJ (REVROHWH) 1.0 2.0 SHSW²25-2007 USGDWHG FRPSDQ\ WHPSODWH (REVROHWH) 2.0 3.0 JDQ-31-2012 USGDWHG OHWWHU LQIRUPDWLRQ (REVROHWH) 3.0 4.0 MD\-23-2014 AGGHG FCC ID ILHOG (REVROHWH) 4.0 5.0 SHS-16-2014 USGDWHG FRPSDQ\ QDPH & ORJR (FXUUHQW) 5.0 6.0 JXQ-27-2018 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 6.0 PaUWicle IndXVWUieV,Inc 126 PRVW SW, 4Wh flRRU, San FUanciVcR, CA 94108 USA 2020.08.12 To: BVCPS, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, PDUWLFOH IQGXVWULHV, IQF. hereby authorize Bureau Veritas Consumer Product Services, Inc. to act as a Certification Body for certifying for the following project(s): FCC ID: 2AEMI-T40X Product Description: TUackeU SRM LTE M1 Model: 7020, 700 Sincerely, Client’s signature Client’s name / title: Zach Supalla / CEO Contact information / address: PaUWicle IndXVWUieV,Inc 126 Post St, 4th floor, San Francisco, CA 94108, USA Tel:(415) 660-6095 E-mail：[email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 6.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526- 1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (obsolete) 4.0 5.0 Nov-19-2015 Updated company logo (current) 5.0 6.0 Jun-26-2019 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 6.0 Particle Industries,Inc 126 Post St, 4th floor, San Francisco, CA 94108 USA 2020.8.12 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AEMI- T40X Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name & title: Zach Supalla / CEO Contact information / address: Particle Industries,Inc 126 Post St, 4th floor, San Francisco, CA 94108, USA Tel:(415) 660-6095 E-mail：[email protected]. - Bom - Tune up procedure

SCS-F26 Modular Approval Letter Page 1 of 2 Rev 12.0 775 MRQWaJXH E[SUHVVZa\ MLOSLWaV, CA 95035 THO: 408-526-1188 Fa[: 408-526-1088 EPaLO: [email protected] Modular Approval Declaration Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (Obsolete) 1.0 1.0 Dec-04-2006 Added IC Modular Letter (Obsolete) 1.0 2.0 Feb 16 2009 Add LMA and MA option (Obsolete) 2.0 3.0 April 14 2010 Revised per RSS Gen issue 3.0 (Obsolete) 3.0 4.0 Jan 12 2011 Removed Foot(2) (obsolete) 4.0 5.0 July 19 2011 Adding New note per KDB996369 D01 V01R03 (obsolete) 5.0 6.0 August 29 2011 Updated company template & Added text box (obsolete) 6.0 7.0 Jan-31-2012 Updated modular requirement (obsolete) 7.0 8.0 Sept 05 2014 Updated template to meet RSP 100 issue 10 (obsolete) 8.0 9.0 Nov 20 2014 Updated template to meet RSP 100 issue 11 (obsolete)) 9.0 10.0 March 19 2015 Revised the Modular Requirement statements (obsolete) 10.0 11.0 July 28, 2016 Updated template with BV logo (current) 11.0 12.0 June 26, 2019 SCS-F26 Modular Approval Letter Page 2 of 2 Rev 12.0 PaUWLFOH IQGXVWULHV,IQF 126 PRVW SW, 4WK IORRU, SaQ FUaQFLVFR, CA 94108 USA (Date) 2020.8.12 ( TUaFNHU SRM LTE M1) FCC ID: 2AEMI-T40X is seeking FCC Authori]ation as a Single ModXlaU TUanVmiWWeU / Single LimiWed ModXlaU TUanVmiWWeU (Please check one) The EUT meets the requirements for Single ModXlaU ASSUoYal / Single LimiWed ModXlaU ASSUoYal (Please check one) as detailed in KDB 996369. Compliance to each of the requirements is described below: Item Modular requirement Yes No Please provide a detailed explanation if the answer is ³No. ́ 1 Have its own RF shielding V 2 Have buffered modulation/data inputs (if such inputs are provided) V 3 The modular transmitter must have its own power suppl\ regulation. V 4 Meet the antenna requirements of section 15.203 V 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing. V 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also displa\ a label referring to the enclosed module. V 7 The modular transmitter is manufactured so that the user can not influence the operation of the transmitter that will operate outside of the scope of the regulations. V 8 Address compliance with the Commission`s RF exposure limits in Sections 1.1310 and 2.1093. V Note: (1) LMA ma\ be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that the\ will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must state that the module is onl\ approved for use when installed in devices produced b\ a specific manufacturer. When LMA is sought, the application for equipment certification must specificall\ state how control of the end product into which the module will be installed, and will be maintained, such that full compliance of the end product is alwa\s ensured. (2) Please provide Clear and specific instructions describing the conditions, limitations and procedures for third-parties to use and/or integrate the module into a host device. (3) For non-Software Defined Radio transmitter modules where software is used to ensure compliance of the device, technical description of how such control is implemented to ensure prevention of third part\ modification must be provided (see KDB 594280). Note 1: Compliance of a module in its final configuration is the responsibilit\ of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separatel\ certified modules it contains, were not followed. Example: A separatel\ certified low-power transceiver module using Bluetooth technolog\ which is housed in a desktop computer, laptop or peripheral does not require the overall s\stem to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standards. Client¶s signature Client¶s name / title : Zach Supalla / CEO Contact information / address : PaUWLFOH IQGXVWULHV,IQF 126 Post St, 4th floor, San Francisco, CA 94108, USA Tel:(415) 660-6095 E-mail： [email protected]

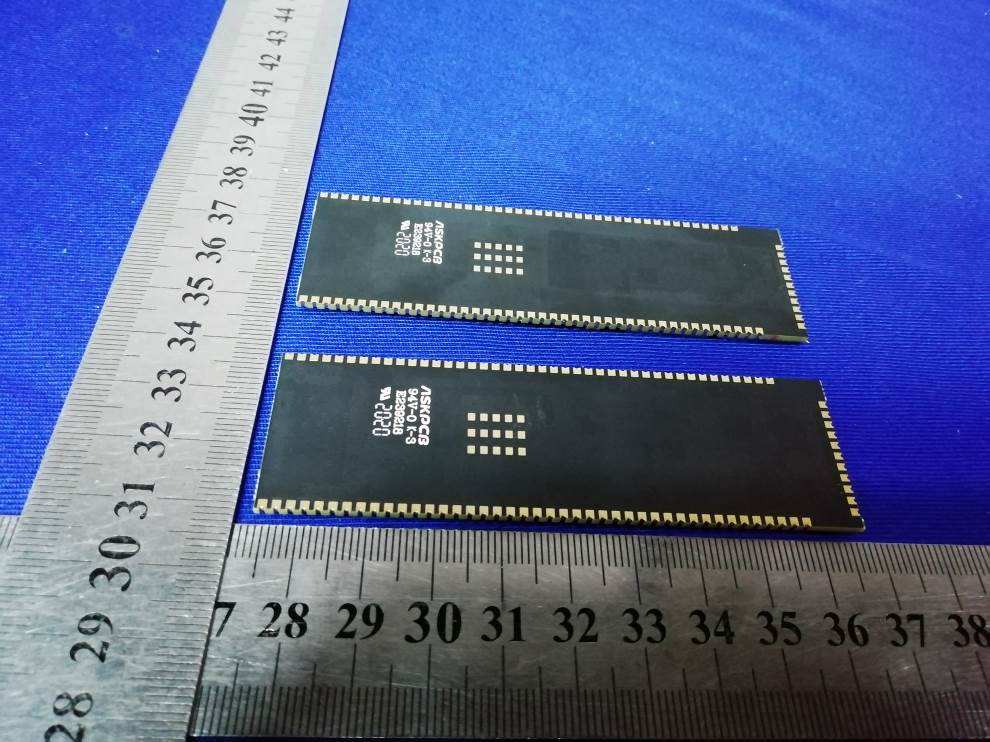

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 1 Report Version 1 Reference No.: 200518N028 PHOTOGRAPHS OF THE EUT

Label location: on the RF IC shielding cover

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 3 Report Version 1 Reference No.: 200518N028 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 3 Report Version 1 Reference No.: 200518N028 BT ANT Connector BT ANT WIFI ANT Connector Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 3 Report Version 1 Reference No.: 200518N028 BT ANT WIFI ANT EUT

BV 7Layers Communications Technology (Shenzhen) Co. Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 1 of 58 Test Report No.: RF200520W003-1 FCC TEST REPORT (PART 22) Applicant: Particle Industries,Inc Address: 126 Post St,4th floor, San Francisco,CA 94108 USA Manufacturer or Supplier: Particle Industries,Inc Address: 126 Post St,4th floor, San Francisco,CA 94108 USA Product: Tracker SoM LTE M1 Brand Name: Particle Model Name: T402M/T404M FCC ID: 2AEMI-T40X Date of tests: May. 21, 2020 ~ Jun. 09, 2020 The tests have been carried out according to the requirements of the following standard: FCC PART 22, Subpart H FCC Part 2 ANSI/TIA/EIA-603-D ANSI C63.26-2015 ANSI/TIA/EIA-603-E CONCLUSION: The submitted sample was found to COMPLY with the test requirement Prepared by Alex Chen Engineer / Mobile Department Approved by Luke Lu Manager / Mobile Department Date: Jun. 09, 2020 Date: Jun. 09, 2020 This report is governed by, and incorporates by reference, CPS Conditions of Service as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our-business/cps/about-us/terms-conditions/and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute you unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. BV 7Layers Communications Technology (Shenzhen) Co. Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 2 of 58 Test Report No.: RF200520W003-1 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................................... 4 1 SUMMARY OF TEST RESULTS ............................................................................................................ 5 1.1 MEASUREMENT UNCERTAINTY ............................................................................................... 6 1.2 TEST SITE AND INSTRUMENTS ................................................................................................ 7 2 GENERAL INFORMATION ................................................................................................................... 8 2.1 GENERAL DESCRIPTION OF EUT ............................................................................................. 8 2.2 CONFIGURATION OF SYSTEM UNDER TEST ........................................................................ 10 2.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................... 11 2.4 TEST ITEM AND TEST CONFIGURATION................................................................................ 11 2.5 EUT OPERATING CONDITIONS ............................................................................................... 12 2.6 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................ 13 3 TEST TYPES AND RESULTS ............................................................................................................. 14 3.1 OUTPUT POWER MEASUREMENT ......................................................................................... 14 3.1.1 LIMITS OF OUTPUT POWER MEASUREMENT ............................................................... 14 3.1.2 TEST PROCEDURES ........................................................................................................ 14 3.1.3 TEST SETUP ...................................................................................................................... 15 3.1.4 TEST RESULTS ................................................................................................................. 15 3.2 FREQUENCY STABILITY MEASUREMENT ............................................................................. 21 3.2.1 LIMITS OF FREQUENCY STABILIITY MEASUREMENT .................................................. 21 3.2.2 TEST PROCEDURE ........................................................................................................... 21 3.2.3 TEST SETUP ...................................................................................................................... 21 3.2.4 TEST RESULTS ................................................................................................................. 22 3.3 OCCUPIED BANDWIDTH MEASUREMENT ............................................................................ 23 3.3.1 TEST PROCEDURES ........................................................................................................ 23 3.3.2 TEST SETUP .........................................................…

Text truncated - open the document above for the full version.

BV 7Layers Communications Technology (Shenzhen) Co. Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 1 of 87 Test Report No.: RF200520W003-2 FCC TEST REPORT (PART 24) Applicant: Particle Industries,Inc Address: 126 Post St,4th floor, San Francisco,CA 94108 USA Manufacturer or Supplier Particle Industries,Inc Address 126 Post St,4th floor, San Francisco,CA 94108 USA Product Tracker SoM LTE M1 Brand Name Particle Model Name T402M/T404M FCC ID 2AEMI-T40X Date of tests May. 21, 2020 ~ Jun. 09, 2020 The tests have been carried out according to the requirements of the following standard: FCC PART 24, Subpart E FCC PART 2 ANSI/TIA/EIA-603-D ANSI/TIA/EIA-603-E ANSI C63.26-2015 CONCLUSION: The submitted sample was found to COMPLY with the test requirement Prepared by Alex Chen Engineer / Mobile Department Approved by Luke Lu Manager / Mobile Department Date: Jun. 09, 2020 Date: Jun. 09, 2020 This report is governed by, and incorporates by reference, CPS Conditions of Service as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our-business/cps/about-us/terms-conditions/and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute you unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. BV 7Layers Communications Technology (Shenzhen) Co. Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 2 of 87 Test Report No.: RF200520W003-2 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................................ 4 1 SUMMARY OF TEST RESULTS ....................................................................................................... 5 1.1 MEASUREMENT UNCERTAINTY ................................................................................................. 6 1.2 TEST SITE AND INSTRUMENTS .................................................................................................. 7 2 GENERAL INFORMATION .................................................................................................................. 8 2.1 GENERAL DESCRIPTION OF EUT ............................................................................................... 8 2.2 CONFIGURATION OF SYSTEM UNDER TEST .......................................................................... 12 2.3 DESCRIPTION OF SUPPORT UNITS ......................................................................................... 13 2.4 TEST ITEM AND TEST CONFIGURATION .................................................................................. 13 2.5 EUT OPERATING CONDITIONS ............................................................................................. 14 2.6 GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................................... 15 3 TEST TYPES AND RESULTS ........................................................................................................... 16 3.1 OUTPUT POWER MEASUREMENT ........................................................................................... 16 3.1.1 LIMITS OF OUTPUT POWER MEASUREMENT ................................................................. 16 3.1.2 TEST PROCEDURES ........................................................................................................... 16 3.1.3 TEST SETUP ...................................................................................................................... 17 3.1.4 TEST RESULTS .................................................................................................................... 17 3.2 FREQUENCY STABILITY MEASUREMENT ............................................................................... 31 3.2.1 LIMITS OF FREQUENCY STABILIITY MEASUREMENT .................................................... 31 3.2.2 TEST PROCEDURE ............................................................................................................. 31 3.2.3 TEST SETUP ........................................................................................................................ 31 3.2.4 TEST RESULTS .................................................................................................................... 32 3.3 OCCUPIED BANDWIDTH MEASUREMENT ............................................................................ 33 3.3.1 TEST PROCEDURES ........................................................................................................ 33 3.3.2 TEST SETUP .............................................…

Text truncated - open the document above for the full version.

BV 7Layers Communications Technology (Shenzhen) Co. Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 1 of 78 Report Version 1 Test Report No.: RF200520W003-3 FCC TEST REPORT (PART 27) Applicant: Particle Industries,Inc Address: 126 Post St,4th floor, San Francisco,CA 94108 USA Manufacturer or Supplier: Particle Industries,Inc Address: 126 Post St,4th floor, San Francisco,CA 94108 USA Product: Tracker SoM LTE M1 Brand Name: Particle Model Name: T402M/T404M FCC ID: 2AEMI-T40X Date of tests: May. 21, 2020 ~ Jun. 09, 2020 The tests have been carried out according to the requirements of the following standard: FCC Part 27, Subpart C, L ANSI/TIA/EIA-603- D FCC Part 2 ANSI/TIA/EIA-603-E ANSI C63.26-2015 CONCLUSION: The submitted sample was found to COMPLY with the test requirement Prepared by Alex Chen Engineer / Mobile Department Approved by Luke Lu Manager / Mobile Department Date: Jun. 09, 2020 Date: Jun. 09, 2020 This report is governed by, and incorporates by reference, CPS Conditions of Service as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our-business/cps/about-us/terms-conditions/and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute you unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. BV 7Layers Communications Technology (S…

Text truncated - open the document above for the full version.
