2AENN-E1508Z CAM E2Ls 4K Cinema Camera

Quick User Guide 4K Cinema Camera Z CAM E2 CAMERA INTRODUCTION [ 01 ] Fn Buttons [02] Power Button [03] Lens Release Button [ 04] LCD Screen [05] FN/ISO Button [06] MENU Button [ 07 ] Up/Shutter Button [08] Screw Hole (¼") [09] Record Button [ 1 1 ] OK Button [ 1 0 ] Down/EV Button [ 1 2 ] 3.5mm Audio-out Port [ 1 3 ] 3.5mm Audio-in Port [ 1 4 ] SD Card Slot [ 1 6 ] Ethernet Port [ 1 7 ] XLR Audio-in Port [ 18 ] Battery Socket [ 19 ] HDMI Port [20] Wi-Fi Antenna Port [ 22] USB Type-C Port [ 23] Battery Release Button [ 24 ] Power Socket [ 1 5 ] Indicator [ 21 ] Sync Port Bottom 1 Rear LeftRight Front To p [ 26] Screw Hole (¼") [ 25 ] M-I-S Selector Disclaimer: All product features and technical specifications stated are subject to the sole interpretation and explanation of Shenzhen ImagineVision Technology Limited, and subject to change without notice. POWER SUPPLY Mount LP-E6 battery onto Battery Socket [18] of camera; Push gently downwards and lock into position. Connect AC DC power adapter (12V/5A) to the Power Socket [24] through LEMO connector; Connect AC DC power adapter to AC power outlet (110~240V, 50/60 Hz). Using 12V DC ** Using Camera Battery (LP-E6 compatible) * * Z CAM E2Ls is only compatible with LP-E6 battery which is not included in the standard package. ** AC DC power adapter and LEMO connector are optional accessories and not included in standard package. HOW TO TURN ON Wi-Fi Connect the antenna to the Wi-Fi Antenna Port [20] Turn on the camera. Set Wi-Fi to ON in “Connect” – “Network” settings; Press MENU button [06] to return to home screen. Wi-Fi icon shall be displayed at the top; Connect a mobile phone to the camera over Wi-Fi. Default password : 12345678 2 Disclaimer: All product features and technical specifications stated are subject to the sole interpretation and explanation of Shenzhen ImagineVision Technology Limited, and subject to change without notice. Green : Standby Red : Recording Flashing Red (every 1s) : No storage Flashing Red (every 0.5s) : Storage full Flashing Red (every 0.2s) : Overheat Flashing Red (very fast) : Critical error Flashing Red (fast & slow alternant) : Low Battery INDICATOR STATUS Z CAMERA APP iOS & Android Download and install the “Z Camera” app from App Store (iOS) or Google Play (Android) on mobile device for camera control and live view. Mobile device can be connected over Wi-Fi or through USB cable. AndroidiOS 3 [1 5] Disclaimer: All product features and technical specifications stated are subject to the sole interpretation and explanation of Shenzhen ImagineVision Technology Limited, and subject to change without notice. 4 LIMITED WARRANTY Warranty Scope Warranty Service covers defects in material and workmanship of Z CAM E2Ls (hereinafter collectively referred to as “this Product”). Warranty Period Warranty Period is 12 months from the date of original purchase. Warranty period will start 90 days from date of shipment according to internal record of Shenzhen ImagineVision Technology Limited (herein after referred to as "ImagineVision"), whichever is later, in case of failure to provide valid purchase invoice or other valid proof showing date of original purchaseserviced or replacement product will continue to be covered under the original warranty period of the product. Warranty Arrangement In case the product is found defective either due to material or workmanship issues by ImagineVision or its designated/approved service partners within the warranty period, ImagineVision or its designat- ed/approved service partners will carry out repair service or product replacement at no cost. Note that all costs and risks associated with the transportation and delivery of the defective product to Imagine- Vision or its designated/approved service partners shall be borne by the customer. Limited Warranty · This warranty is non-transferable and non-assignable, and only applicable to the original purchase customer. · This warranty does not cover any misused, abused, accidentally or intentionally damaged, altered/de leted serial number product. · This warranty does not cover repaired or replacement products serviced by non ImagineVision authorized service center or personnel. FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Shenzhen ImagineVision Technology Limited 1A, Block F5, TCL International E City, 1001 Zhong Shan Park Road, Nan Shan, Shenzhen, China. Post Code: 518055 Copyright © 2023 Shenzhen ImagineVision Technology Ltd. All Rights Reserved. All trademarks are property of their respective owners. www.z-cam.com R Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications to this unit not expressly approved by the part responsible for compliance could void th…

Text truncated - open the document above for the full version.

1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: Soltys Cameras FRN: 0034637827 Contact Name: Yaroslav Soltys Address: 248 Main Street #408 Westlake, OH 44145 USA Telephone No: +12063831773 Email: [email protected] Applicant: Company name: Shenzhen ImagineVision Technology Limited Product Description: Z CAM E2Ls 4K Cinema Camera Grantee code: 2AENN FCC ID: 2AENN-E1508 FRN：0024554552 Contact Name: Peizhi Chen Address: 1A, Block F5, TCL International E City, 1001 Zhong Shan Park Road, Nan Shan, Shenzhen, China Telephone No: +86-13631616831 Email: [email protected] [Shenzhen ImagineVision Technology Limited] certifies that, as of the date of this filing of the application with the TCB, [Soltys Cameras] is our designated US agent for service of process for the above referenced FCC ID. [Shenzhen ImagineVision Technology Limited] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [Soltys Cameras] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 2023/09/27 Applicant’s Name: Shenzhen ImagineVision Technology Limited US Agent’s Name: Soltys Cameras Title: Vice President Title: Manger Signature Signature

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Shenzhen ImagineVision Technology Limited Grantee code: 2AENN FCC ID: 2AENN-E1508 Contact Name: Peizhi Chen Address: 1A, Block F5, TCL International E City, 1001 Zhong Shan Park Road, Nan Shan, Shenzhen, China Telephone No: +86-13631616831 Fax No: 0755-86556411 Email: [email protected] i.[Shenzhen ImagineVision Technology Limited](“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii.[Shenzhen ImagineVision Technology Limited] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [ is not] (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. [Shenzhen ImagineVision Technology Limited] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List as an entity producing “covered”equipment . Date: 2024/01/30 Applicant’s Name: Shenzhen ImagineVision Technology Limited Title: Vice President Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist FRN： 0024554552

Shenzhen ImagineVision Technology Limited Product Similarity Declaration Product name: Z CAM E2Ls 4K Cinema Camera Model name: E1508,E1509 We (Shenzhen ImagineVision Technology Limited) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), the only difference is the model names and colors. Signature: Name: Peizhi Chen Title: Vice President Date: 2024.01.30 FCC ID: 2AENN-E1508

C5266091_X8_Ed.1 1/1 Letter of Authorization Shenzhen ImagineVision Technology Limited Company: Shenzhen ImagineVision Technology Limited Address: 1A, Block F5, TCL International E City, 1001 Zhong Shan Park Road, Nan Shan, Shenzhen, China Product Name: Z CAM E2Ls 4K Cinema Camera Model Number: E1508,E1509 FCC Identifier: 2AENN-E1508 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Peizhi Chen Date: Jan.30, 2024 Title: Vice President Signature of applicant:

C5266091_X10_Ed.2 1/1 Hangzhou Ruideng Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2024. 01.30 Subject: Request for Confidentiality FCC ID: 2AENN-E1508 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos ☐ ☒ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☒ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of _180_ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued Sincerely, Signature: Name: Peizhi Chen Title: Vice President ☒

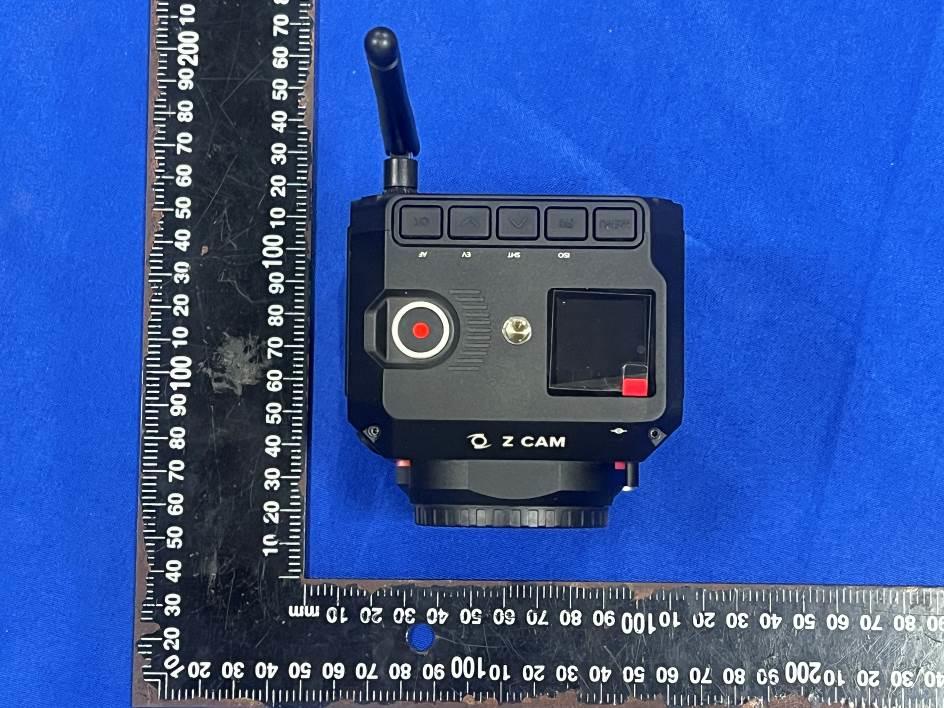

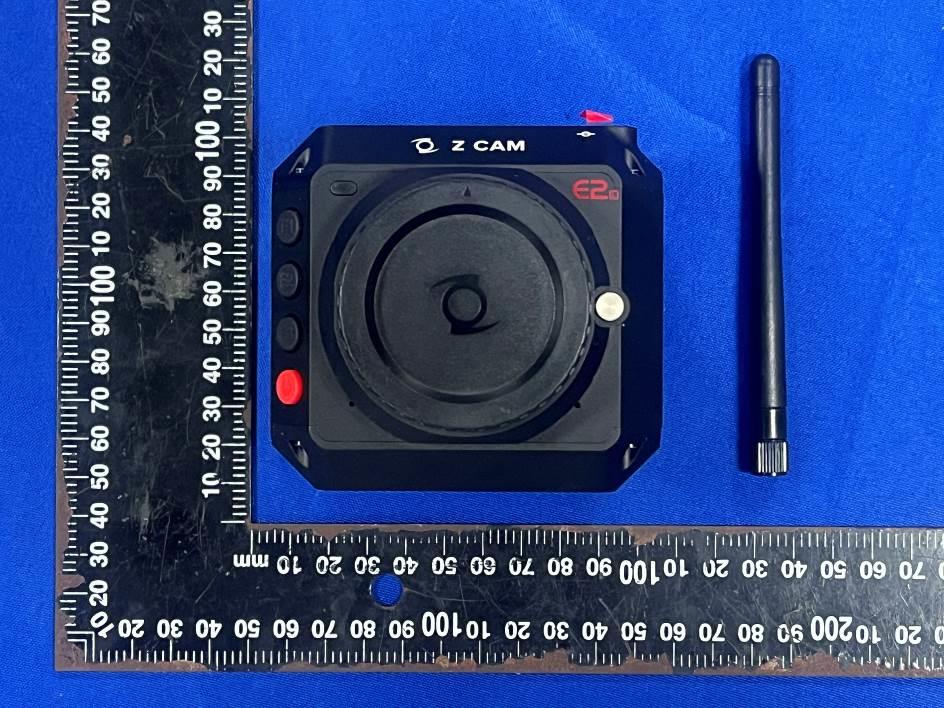

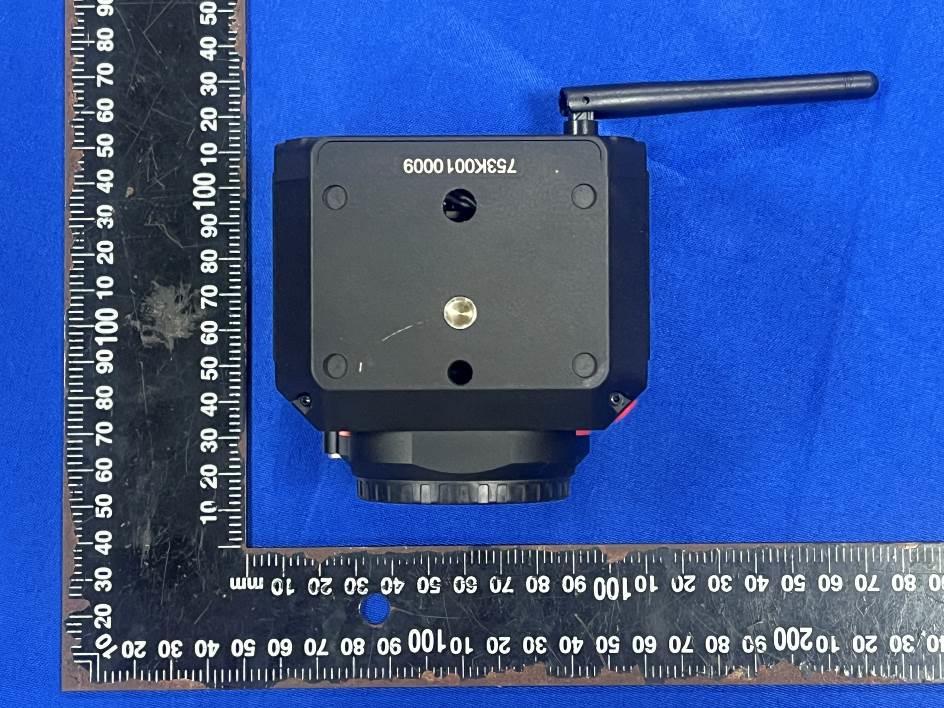

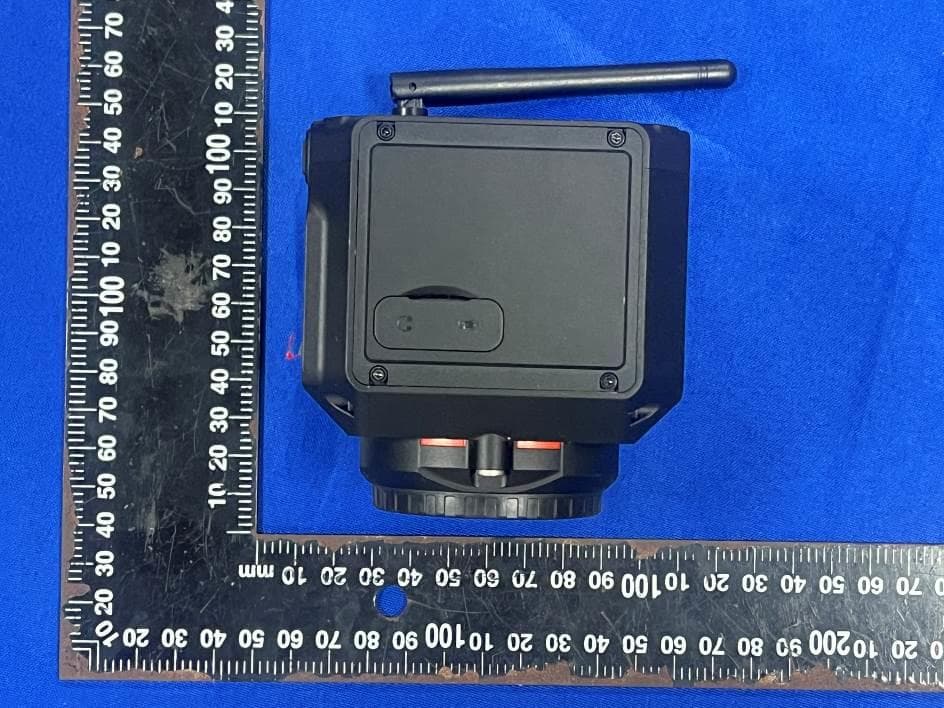

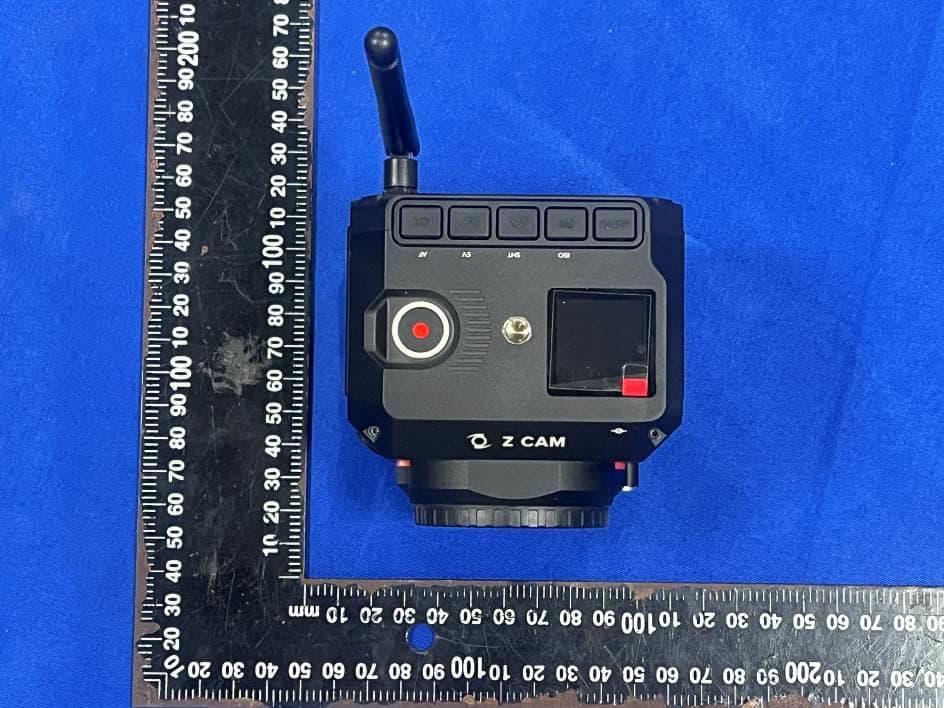

- Page 1 of 4 - ET-23080977 Product Name: Z CAM E2Ls 4K Cinema Camera Test Model No.: E1508 Ext Photos - Page 2 of 4 - ET-23080977 RF ANT - Page 3 of 4 - ET-23080977 - Page 4 of 4 - ET-23080977 -----END-----

1 / 1 Label size:30mm *56mm Label

- Page 1 of 11 - ET-23080977 Product Name: Z CAM E2Ls 4K Cinema Camera Test Model No.: E1508 Internal photos - Page 2 of 11 - ET-23080977 - Page 3 of 11 - ET-23080977 - Page 4 of 11 - ET-23080977 - Page 5 of 11 - ET-23080977 - Page 6 of 11 - ET-23080977 - Page 7 of 11 - ET-23080977 - Page 8 of 11 - ET-23080977 - Page 9 of 11 - ET-23080977 - Page 10 of 11 - ET-23080977 - Page 11 of 11 - ET-23080977 ------END-----

FCC ID: 2AENN-E1508 RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v06 and and part 2.1093 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] *[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, For 2.4G WIFI Frequency (MHz) Max power (dBm) Max power (mW) Min. distance (mm) Calculation Value Threshold Value 2462 9.17 8.26 5 2.59 3.0 For 5.2G WIFI Frequency (MHz) Max power (dBm) Max power (mW) Min. distance (mm) Calculation Value Threshold Value 5180 7.74 5.94 5 2.71 3.0 For 5.8G WIFI Frequency (MHz) Max power (dBm) Max power (mW) Min. distance (mm) Calculation Value Threshold Value 5785 7.72 5.91 5 2.84 3.0 So SAR test is not required

0769--38940168 3rd Floor, Building BC, No. 3 Shayuan 1st Road, Keyuan City, Tangxia Town, Dongguan City 0769--38940199 www.rflink.net.cn SPECIFICATION FOR APPROVAL CUSTOMER NAME: Visual technology PRODUCT NAME: 2.4~5G 2dBi SMA ANT CUSTOMER P/N: Ren Feng P/N:RF21S00909AREV: A Internal structure： Grounding pipe+solid column MANUFACTURER SIGNATURE CUSTOMER SIGNATURE CHECKED BY: AUDITOR BY: Liu Cailiang APPROVED BY: Yao Dingjun DATE:2019-10-29 地址：东莞市塘厦镇科苑城沙苑一路 3 号 BC 栋 3 楼电话：0769--38940168 传真：0769--38940199网址：www.rflink.net.cn Main technical specifications Frequency Range (MHZ) 2400-2500 5150-5825 Impedance(Ω)50±10 Gain(dBi) 2±0.5 ReTurnLoss(dB) ≤-9.5 VSWR≤2.0 Admitted Power1W PolarizationLinear,Vertical Radiation Omni-directional Connector Type SMA Physical Properties Antenna Base TPEE Operating Temp-20 °C ~+60 °C Storage Temp-20°C~+70°C AB c DE F 严 A 12019-10-29 G DESCRIPTION NEW ISSU E 109士3 2 2 勹 丿丿CD 83士3 3 灼35土02 4 88士3 3 31士1 4 5 5 1 4 2 3 1 2 1 6 I 1 1 NO. DESCRIPTION Q 'lY TPEE; Black POM; Black PC; Black PC+PBT; Black xx. 士 3.0 SMA PLUG -PIN(M); Brass Nickelage 士 1.0 I CHECKE D REMARK X. .x 士 0.5 .xx士 0. ll DRA W ING 寄 三 AB c C Specification) : (Frequen cy Ran g e) : 2.4G~2.SGHz 5 . 1 5 ~ 5 . 8 2 5 G H z C R e t u r n l o s s ) : - 9 . S d B o r l e s s (VSWR) : 2.0max C Gain) : 2dBi COSTOMER: PARTNO : D PARTNAM E : RF Antenna Assembly R.F P/NO : R F 21S00909A � RenFeng Electronic U__ri'1_rT1J 1:1 I A4 I lO Fl E RF link technology Co., LTD. 5 6 F G 地址：东莞市塘厦镇科苑城沙苑一路 3 号 BC 栋 3 楼电话：0769--38940168 传真：0769--38940199网址：www.rflink.net.cn 3.test report 3.1：Network analyzer test report 3.2： 2D、3DRaditation Pattern 2400 MHzGain:1.92dBiEfficiency:84.8% 地址：东莞市塘厦镇科苑城沙苑一路 3 号 BC 栋 3 楼电话：0769--38940168 传真：0769--38940199网址：www.rflink.net.cn 2500 MHzGain:1.94dBiEfficiency:80.7% 5150 MHzGain:1.82dBiEfficiency: 70.6% 5500MHzGain:1.73dBiEfficiency: 76.6% 5800MHzGain:1.83Efficiency: 76.6%

Report No.: ET-23080977E01 Tel:+86 755 85259392Email: [email protected] No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China TEST REPORT Applicant: Shenzhen ImagineVision Technology Limited Address of Applicant: 1A, Block F5, TCL International E City, 1001 Zhong Shan Park Road, Nan Shan, Shenzhen, China Manufacturer/Factory: Shenzhen ImagineVision Technology Limited Address of Manufacturer 1A, Block F5, TCL International E City, 1001 Zhong Shan Park Road, Nan Shan, Shenzhen, China Product Name: Z CAM E2Ls 4K Cinema Camera Model No.: E1508,E1509 Trade Mark: Z CAM FCC ID: 2AENN-E1508 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Test: Aug.28, 2023-Dec.05, 2023 Date of report issued: Jan.30, 2024 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Remark: The results shown in this test report refer only to the sample(s) tested , this test report cannot be reproduced, except in full without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver Prepared By Shenzhen ETR Standard Technology Co., Ltd. Address: No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Compiledby:Reviewed by:Approved by: Project EngineerProject ManagerAuthorized Signature -Page 2of 55-Report No.: ET-23080977E01 Report Revision History Report No.DescriptionIssue Date ET-23080977E02 Original Jan.30, 2024 -Page 3of 55-Report No.: ET-23080977E01 Tel:+86 755 85259392Email:[email protected]:www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Contents Page 1. TEST SUMMARY ......................................................................................................................................4 2. GENERAL INFORMATION .......................................................................................................................5 2.1GENERAL DESCRIPTION OF EUT .................................................................................................................5 2.2TEST MODE................................................................................................................................................7 2.3DESCRIPTION OF SUPPORT UNITS...............................................................................................................7 2.4DEVIATION FROM STANDARDS.....................................................................................................................7 2.5 ABNORMALITIES FROM STANDARD CONDITIONS....................................................................................7 2.6TEST FACILITY............................................................................................................................................7 2.7TEST LOCATION..........................................................................................................................................7 2.8ADDITIONAL INSTRUCTIONS.........................................................................................................................7 3. TEST INSTRUMENTS LIST ......................................................................................................................8 4. TEST RESULTS AND MEASUREMENT DATA .......................................................................................9 4.1ANTENNA REQUIREMENT.............................................................................................................................9 4.2CONDUCTED EMISSIONS...........................................................................................................................10 4.3DUTY CYCLE.............................................................................................................................................13 4.4CONDUCTED OUTPUT POWER...................................................................................................................16 4.56DB BANDWIDTH & 99%CHANNEL BANDWIDTH........................................................................................17 4.6POWER SPECTRAL DENSITY......................................................................................................................22 4.7BAND EDGES............................................................................................................................................25 Conducted Emission Method ...................................................................................................................25 Radiated Emission Method ......................................................................................................................28 4.8SPURIOUS EMISSION.................................................................................................................................33 Conducted Emission Method ...................................................................................................................33 Radiated Emission Method ......................................................................................................................38 5. TEST SETUP PHOTO .............................................................................................................................55 6. EUT CONSTRUCTIONAL DETAILS .......................................................................................................55 -Page 4of 55-Report No.: ET-23080977E01 Tel:+86 755 85259392Email:[email protected]:www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China 1. Test Summary Test ItemSectionResultTest by Antenna requirementFCC part 15.203/15.247 (c)Pass / AC Power Line Conducted Em…

Text truncated - open the document above for the full version.

ET-23080977 Page 1 of 2 Product Name: Z CAM E2Ls 4K Cinema Camera Test Model No.: E1508 Test Setup Photo Conducted Emission Radiated emissions 30MHz to 1GHz ET-23080977 Page 2 of 2 Above 1GHz ------End------
