2AENNE2FZ CAM E2 Series Camera with 5G WiFi

Z CAME2 Flagship Series （Z CAM E2-S6 / E2-F6 / E2-F8 / E2-M4） Product NameModel Name Z CAM E2-S6E1701 ZCAME2-F6E1901 ZCAME2-F8E1902 Z CAM E2-M4E1511 User Manual v0.2 (Firmware 0.93) 1. Introduction 1.1. Camera Introduction 1.2. Lens Mount There are EF or PL lens mount options for Z CAM E2 flagship series, and MFT lens mount for Z CAM E2-S6 only. It’s interchangeable and you can purchase additional lens mount module to change it with professional tools (only for EF and PL lens mount) *. ModelLens Mount ZCAME2-M4MFT ZCAME2-S6EF/PL/MFT ZCAME2-F6EF/PL ZCAME2-F8EF/PL *Replacement of lens mount is recommended to be operated by the manufacturer's designated agent/dealer or under professional guidance. The failure of the camera may be appearing due to changing the lens mount by the user. MFT lens mountEF lens mountPL lens mount 1.3. LCD Screen The content displayed on the LCD Screen will be different when the camera is in different mode. Standby & Recording Preview PressFN + OKbutton when the camera is inStandbymode, it will switch to Previewmode. PressFN + OKagain to come back toStandbymode. Playback Short pressPowerbutton when the camera is inStandby / Previewmode, it will switch toPlaybackmode. Short pressPowerbutton again to come back toStandby /Previewmode. 1.4. LED Indicator Status Green : Standby Red : Recording. Flashing Red(every 1s) : No memory card. Flashing Red(every 0.5s) : Memory card is full. Flashing Red(every 0.2s) : Camera overheat. Flashing Red(very fast) : Critical error. Flashing Red(fast & slow alternant) : Low battery 1.5. Buttons MENU button: Enter / exit the camera settings, or return to the previous menu in camera settings. FN / ISO button: FN function in camera settings, or ISO quick setting in standby / preview / recording mode by default. Up / SHT button: Up selection (or add value) in camera settings, or Shutter Speed / ShutterAngle quick setting in standby / preview / recording mode by default. Down / EV button: Down selection (or reduce value) in camera settings, or EV quick setting in standby / preview / recording mode by default. OK button: Confirmation in camera settings, or to trigger the Auto Focus function in standby / preview / recording mode by default (with lens supports auto focus and the Auto Focus function on the camera is enabled). F1 button: AEL (Auto Exposure Lock) by default. F2 button: Load profile by default. F3:Aperture quick setting by default. F4: No function by default. Power button: Long press for 3 seconds to power on / off the camera, short press to switch to / back fromPlaybackmode. Note: Quick setting function of FN / Up / Down / OK / F1 / F2 / F3 / F4 buttons can be changed in system menu (2.10 System – User button). 1.6. Interfaces Auxiliary Power Output: DC 12V (2-pin LEMO socket), can supply power to other devices. Remote: 2.5mm jack socket, compatible with Sony LANC protocol. XLR audio-in: 5-pin LEMO port for dual-channel XLR microphone, require additional XLR audio connector (compatible withARRI Mini XLR connector). Control Port:2x serial port (4 pinaviation connector), support RS232 protocol. HDMI port: HDMI 2.0 TypeA standard port Wi-Fi antenna port: Connect Wi-Fi antenna to use 5GHz Wi-Fi antenna port, support 802.11 a/n/ac standard. Ethernet port: Gigabit Ethernet port for camera control, setting & live preview. USB Type C port: USB 3.0 standard. Can be connected to mobile devices for camera control, setting and live preview, and be connected to computers for data transmission. *Due to the used enclosure material, the product shall only be connected to a USB Interface of version 3.0. The connection to so called power USB is prohibited. 3.5mm Audio-in: 3.5mm (TRS) jack socket for stereo audio input (Mic Level & Line Level supported), can connect to microphone or audio output device. 3.5mm Audio-out: 3.5mm (TRS) jack socket for support stereo output, can be connected to headset or earphone. 1.7. Power Options External Power Source: The camera comes with a power cable (D-TAP plug end), D-TAP/DC connector ， and can be connected to an AC/DC power adapter with 12V / 5A output, and 2.1 x 5.5mm DC plug. (Power adapter not included in the package) AC/DC power adapter not included in the standard package. Please use an appropriate & qualified power adapter, or consult the dealer to buy one. The recommended AC/DC Power Adapter is12V/5A output, 5.5x2.1mm DC plug, and the adapter shall be CE approval type. Camera Battery: The battery socket is compatible with SONY NP-F series batteries, including NP-F970/770/550 etc. (Battery not included in the package) V Mount Battery: Connect the camera to a V mount battery (with D-TAP port) with the power cable (D-TAP plug). 1.8. Storage The camera uses CFast 2.0 card or SSD as storage. CFast card: The camera has 1 x internal CFast card slot, which supports CFast 2.0 standard. Insert the CFast card with correct direction, push it to the end until it’s locked. To take out the CFast card, push in the card and it will be unlocked, then take it out from the slot. SSD:Connect the SSD through USB-C port on back of camera as storage. (Note: USB-C port must be in “Host” mode, see2.9 Connect - USB) Please not that the SSD will NOT be recognized if there is CFast card in the camera. Attention:WhenusingaCFastorSSDonZCAME2forthefirsttime,pleaseformatit before recording (2.10 System – Format Card). 2. Camera Settings 2.1. Quick Setting When the camera is inStandbyorRecordingmode, some key settings can be quickly accessed by pressing the buttons on the camera. ISO:PressFNtosetISO,thenpressUp/Downto adjust the value, andOKto confirm. Shutter:PressUPto set shutter speed / angle (refer to2.5 Exposure – Shutter Operationabout shutter speed / shutter angle), then pressUp/Downto adjust the value, andOKto confirm. Aperture：PressF3to set the aperture, then pressUp / Downto adjust the value, and OK to confirm. EV:PressDOWNto set EV, then pressUp/Downto adjust the value, andOKto confirm. …

Text truncated - open the document above for the full version.

Shenzhen ImagineVision Technology Limited UNII Declaration Letter We have declared below featured for FCC equipment authorization, device FCC ID: 2AENNE2F (1) DFS Device -- Master,Client with Radar detection capability , Client without radar detection capability,N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412 –2462 MHzYes,NoYes,NoYes,NoYes,No 2422 –2452 MHzYes,NoYes,NoYes,NoYes,No 5745 –5825 MHzYes,NoYes,NoYes,NoYes,No 5755 –5795 MHzYes,NoYes,NoYes,NoYes,No 5180 –5240 MHzYes,NoYes,NoYes,NoYes,No 5190 –5230 MHzYes,NoYes,NoYes,NoYes,No 5260 –5320 MHzYes,NoYes,NoYes,NoYes,No 5270 –5310 MHzYes,NoYes,NoYes,NoYes,No 5500 –5700 MHzYes,NoYes,NoYes,NoYes,No 5510 – 5670 MHz Yes,NoYes,NoYes,NoYes,No (3) Country code selection ability -Yes ,No If no, pls explain how was implemented : Country is selected as US by default and user can not change the country code. (4) Meet 15.202 requirement - Yes ,No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. N/A (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply ,No Apply , (If apply , pls help to provide explanation on how it was implement (By hardware or software , and how software was controlled) The device configuration can not be modified by user as program is not exposed to user by any means. Hardware does not allow USB connection for user which is must to change the configuration. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Printed Name : Peizhi Chen Position :VP

Shenzhen ImagineVision Technology Limited Supplier’s Declaration Of Conformity for the FCC SDoC Procedure The following Equipment adapt FCC SDoC Procedure according to FCC part 2.906 : Product Name: _Z CAM E2 Series Camera_ Brand Nam: _Z CAM_ Model Number: _E1701, E1901, E1902, E1511_ Report Number: _SZ19080383E01_ It’s herewith confirmed to comply with the requirements of FCC Part 15 Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. It is understood that each unit marketed is identical to the device as tested, and any changes to the device that could adversely affect the emission characteristics will require retest. The following importer / responsible party in United States: Not Available at Certification Stage Company Name: Shenzhen ImagineVision Technology Limited Company Address: 1A, Block F5, TCL International E City, 1001 Zhong Shan Park Road, Nan Shan, Shenzhen, China Telephone: +86-13631616831 Fax: 0755-86556411 Person is responsible for marking this declaration: Peizhi Chen / Vice President ____________________________________ ______________________________________ Name (Full name)Position / Title ____________________________________ ____2020-1-15___________________ Legal Signature Date

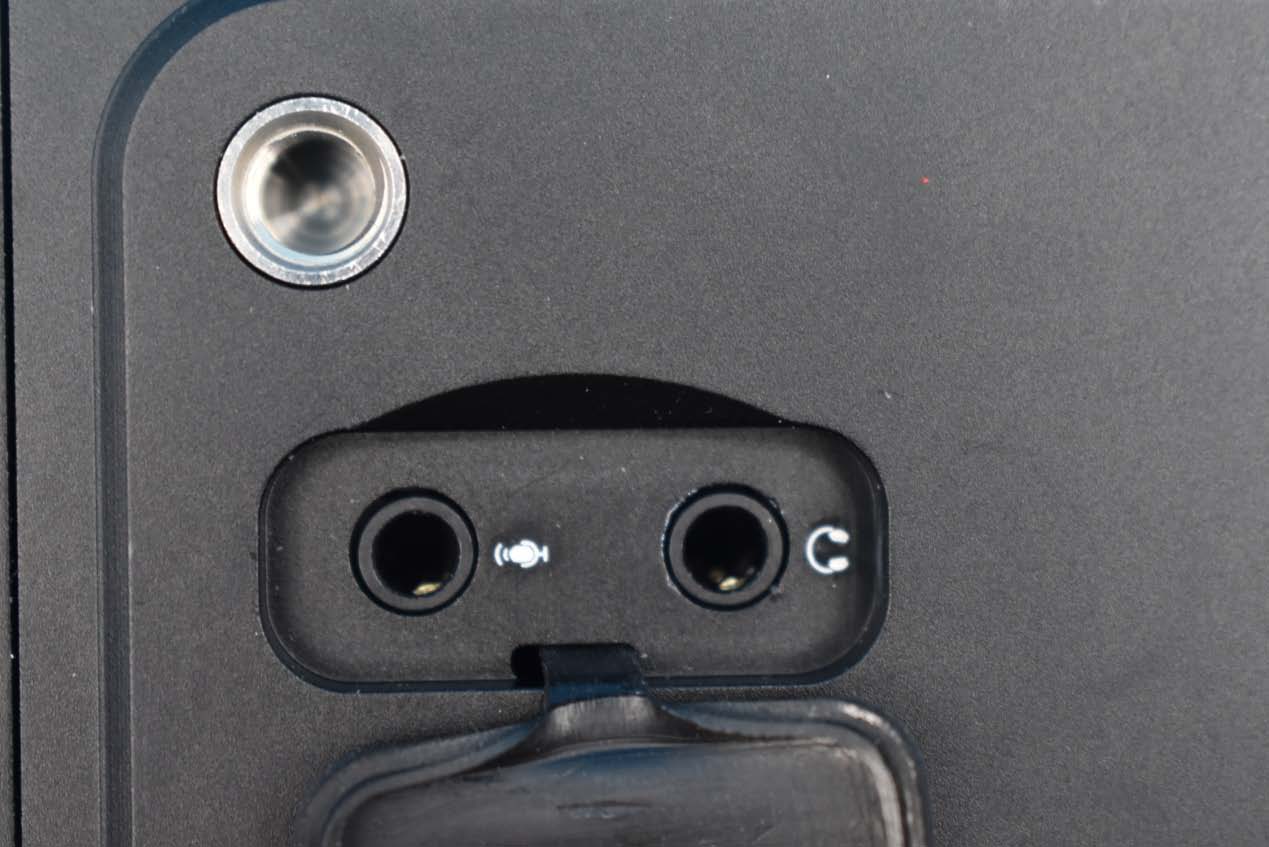

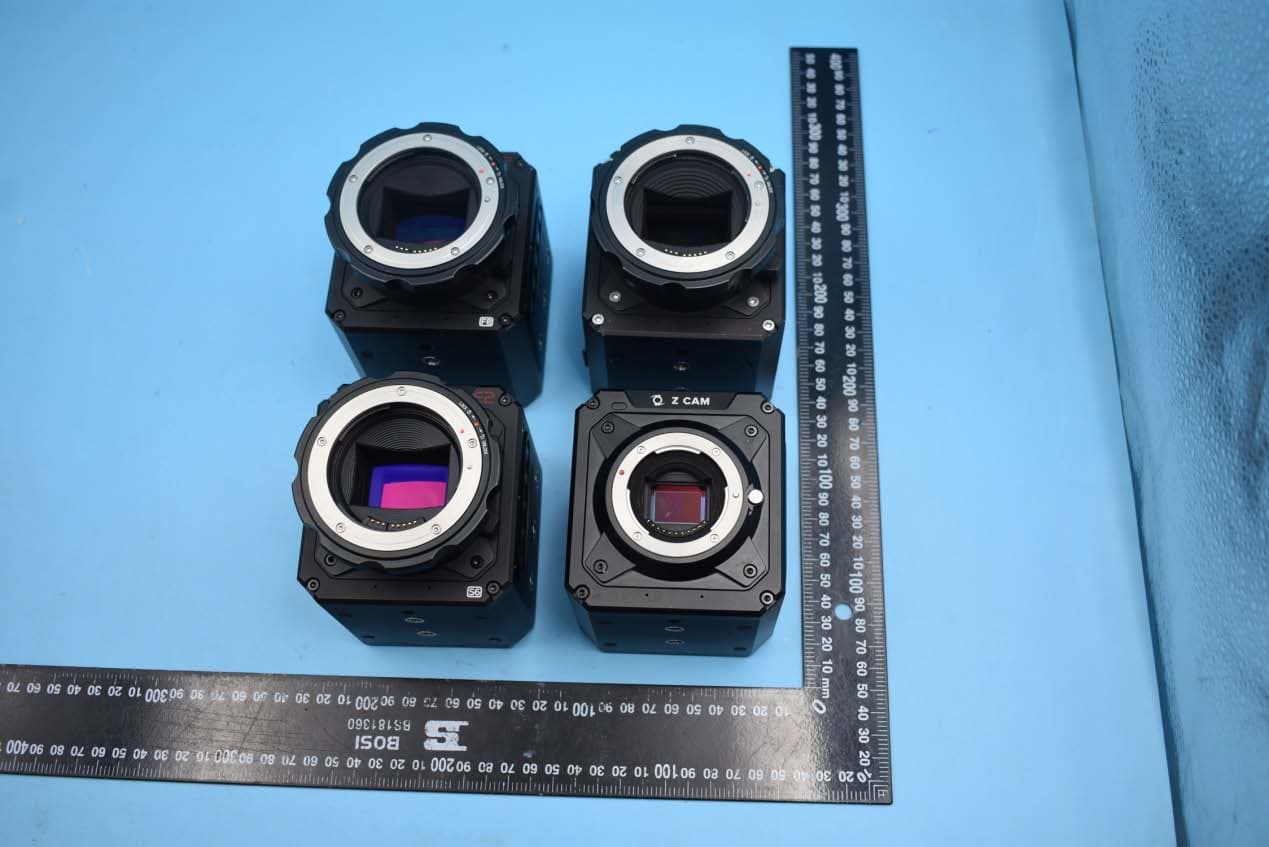

FCC ID:2AENNE2F External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Ports and slots supported by this device 8. Accessories

FCC ID: 2AENNE2F Location：

FCC ID:2AENNE2F Internal Photos 1. EUT uncover view 2. Antenna view WIFI Antenna

NOTE: This document is issued by MORLAB, the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page1of 10 REPORT No.：SZ19080383S01 RF EXPOSURE EVALUATION REPORT APPLICANT : Shenzhen ImagineVision Technology Limited PRODUCT NAME : Z CAM E2 Series Camera MODEL NAME : E1701, E1901, E1902, E1511 BRAND NAME : Z CAM FCC ID : 2AENNE2F STANDARD(S) : 47CFR 2.1091 KDB 447498 RECEIPT DATE : 2019-09-12 TEST DATE : 2019-09-30 to 2019-10-15 ISSUE DATE : 2020-01-11 Edited by: Peng Mi (Rapporteur) Approved by: Peng Huarui (Supervisor) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ19080383S01 Page2of 10 DIRECTORY 1. Technical Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 1.1 Applicant and Manufacturer Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 1.2 Equipment under Test (EUT) Description ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 1.3 Applied Reference Documents ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 5 2. Device Category and RF Exposure Limit ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 3. RF Output Power ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 7 4. RF Exposure Evaluation ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9 Annex A General Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 10 MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ19080383S01 Page3of 10 Change History Version Date Reason of Changed 1.0 2020-01-11 Original MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ19080383S01 Page4of 10 1. Technical Information Note: Provide by applicant. 1.1 Applicant and Manufacturer Information Applicant: Shenzhen ImagineVision Technology Limited Applicant Address: 1A, Block F5, TCL International E City, 1001 Zhong Shan Park Road, Nan Shan, Shenzhen, China Manufacturer: Shenzhen ImagineVision Technology Limited Manufacturer Address: 1A, Block F5, TCL International E City, 1001 Zhong Shan Park Road, Nan Shan, Shenzhen, China 1.2 Equipment under Test (EUT) Description Product Name: Z CAM E2 Series Camera Serial No: (N/A, marked #1 by test site) Hardware Version: ver1 Software Version: 2019086_0.88 Frequency Bands: WLAN 5GHz: 5.180 GHz- 5.240 GHz; 5.745GHz- 5.825GHz Modulation Mode: OFDM Antenna Type: Monopole Antenna Antenna Gain: 2.0dBi Note 1: According to the certificate holder, they declared that the models: E1701, E1901, E1902, E1511, only different in lens mount of the appearance structure, correspond sensor & sensor's PCBA and the model name, everything else is the same. The main measuring model is E1701, only the results for E1701 were recorded in this report. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ19080383S01 Page5of 10 1.3 Applied Reference Documents Leading reference documents for testing: No. Identity Document Title Method determination /Remark 1 47 CFR§2.1091 Radio Frequency Radiation Exposure Evaluation: mobile devices No deviation 2 KDB 447498 D01v06 General RF Exposure Guidance No deviation Note 1: Additions to, deviation, or exclusions from the method shall be judged in the "method determination" column of add, deviate or exclude from the specific method shall be explained in the "Remark" of the above table. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ19080383S01 Page6of 10 2. Device Category and RF Exposure Limit Per user manual, Based on 47CFR 2.1091, this device belongs to mobile device category with General Population/Uncontrolled exposure. Mobile Devices: 47CFR 2.1091(b) For purposes of this section, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structure(s) and the body of the user or nearby persons. In this context, the term “fixed location” means that the device is physically secured at one location and is not able to be easily moved to another location. Transmitting devices des…

Text truncated - open the document above for the full version.

NOTE: This document is issued by MORLAB, the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 131 REPORT No.：SZ19080383W01 TEST REPORT APPLICANT : Shenzhen ImagineVision Technology Limited PRODUCT NAME : Z CAM E2 Series Camera MODEL NAME : E1701, E1901, E1902, E1511 BRAND NAME : Z CAM FCC ID : 2AENNE2F STANDARD(S) : 47 CFR Part 15 Subpart E RECEIPT DATE : 2019-09-12 TEST DATE : 2019-09-30 to 2019-10-15 ISSUE DATE : 2020-01-08 Edited by: Peng Mi (Rapporteur) Approved by: Peng Huarui ( Supervisor ) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 131 REPORT No.：SZ19080383W01 DIRECTORY 1. Technical Information ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 4 1.1. Applicant and Manufacturer Information ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 4 1.2. Equipment Under Test (EUT) Description ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 4 1.3. Modulation Type and Data Rate of EUT ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 5 1.4. The Channel Number and Frequency ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 6 1.5. Test Standards and Results ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 7 1.6. Environmental Conditions ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 8 2. 47 CFR Part 15E Requirements ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 9 2.1. Antenna Requirement ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 9 2.2. Duty Cycle of the Test Signal ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 10 2.3. Maximum Conducted Output Power ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 15 2.4. Emission Bandwidth ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 18 2.5. Peak Power spectral density ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 39 2.6. Frequency Stability ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 60 2.7. Conducted Emission ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 62 2.8. Restricted Frequency Bands ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 66 2.9. Radiated Emission ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 95 Annex A Test Uncertainty ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 128 Annex B Testing Laboratory Information ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 129 MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 131 REPORT No.：SZ19080383W01 Change History Version Date Reason for change 1.0 2020-01-08 First edition MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 131 REPORT No.：SZ19080383W01 1. Technical Information Note: Provide by applicant. 1.1. Applicant and Manufacturer Information Applicant: Shenzhen ImagineVision Technology Limited Applicant Address: 1A, Block F5, TCL International E City, 1001 Zhong Shan Park Road, Nan Shan, Shenzhen, China Manufacturer: Shenzhen ImagineVision Technology Limited Manufacturer Address: 1A, Block F5, TCL International E City, 1001 Zhong Shan Park Road, Nan Shan, Shenzhen, China 1.2. Equipment Under Test (EUT) Description Product Name: Z CAM E2 Series Camera Serial No: (N/A, marked #1 by test site) Hardware Version: ver1 Software Version: 2019086_0.88 Modulation Technology: OFDM Modulation Mode: 802.11a, 802.11n(HT20), 802.11n(HT40) 802.11ac(VHT20), 802.11ac(VHT40), 802.11ac(VHT80), Operating Frequency Range: 5.180 GHz- 5.240 GHz; 5.745GHz- 5.825GHz Channel Number: Refer to 1.4 Antenna Type: Monopole Antenna Antenna Gain: 2.0dBi Note 1: According to the certificate holder, they declared that the models: E1701, E1901, E1902, E1511, only different in lens mount of the appearance structure, correspond sensor & sensor's PCBA and the model name, everything else is the same. The main measuring model is E1701, only the results for E1701 were recorded in this report. Note 2: WIFI hotspot does not support U-NII band. Note 3: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 5 of 131 REPORT No.：SZ19080383W01 1.3. Modulation Type and Data Rate of EUT Modulation Technology Modulation Type Data Rate (Mbps) Note1 OFDM (802.11a) BPSK 6/9 QPSK 12/18 16QAM 24/36 64QAM 48/54 OFDM (802.11n) BPSK 6.5 QPS…

Text truncated - open the document above for the full version.

MORLA AB SHENZ FL1-3, B Block67 ZHEN MORLAB COM Building A, FeiYang S 7, BaoAn District, Sh MMUNICATIONS TEC Science Park, No.8 L enZhen , GuangDon (Channe (Channe CHNOLOGY Co., Ltd LongChang Road, ng Province, P. R. Ch el 165, PEAK el 165, AVG d. ina Tel: 8 Http: RE K, 802.11a) G, 802.11a) 86-755-36698555 //www.morlab.cn EPORT No ) Fax: 86-755-3669 E-mail: service@ o.：SZ1908 98525 @morlab.cn Page 71 of 13 80383W01 31 1 MORLA 802.11n A. Test Channel 36 36 48 48 149 149 165 165 B. Test AB SHENZ FL1-3, B Block67 (HT20) Tes Verdict: Frequen c (MHz) 5150.00 5150.00 5361.76 5350.00 5721.92 5725.00 5851.43 5850.00 Plots: ZHEN MORLAB COM Building A, FeiYang S 7, BaoAn District, Sh st mode cy Detect o PK/ AV 0 PK 0 AV 6 PK 0 AV 2 PK 0 AV 3 PK 0 AV ( MMUNICATIONS TEC Science Park, No.8 L enZhen , GuangDon or Receive Readin U R (dBu V V 64.95 53.08 59.75 48.63 72.07 58.79 62.53 52.14 (Channel 36 CHNOLOGY Co., Ltd LongChang Road, ng Province, P. R. Ch er ng V) A T (dB) 5 -41.55 8 -41.55 5 -41.55 3 -41.55 7 -42.15 9 -42.15 3 -42.15 4 -42.15 6, PEAK, 80 d. ina Tel: 8 Http: RE A Factor (dB@3m ) 31.70 31.70 31.70 31.70 32.50 32.50 32.50 32.50 02.11n (HT2 86-755-36698555 //www.morlab.cn EPORT No ) Max. Emissio n E (dBμV/ m 55.10 43.23 49.90 38.78 62.42 49.14 52.88 42.49 20)) Fax: 86-755-3669 E-mail: service@ o.：SZ1908 n m) Limit (dBμV/ m 74 54 74 54 115.21 54 118.97 54 98525 @morlab.cn Page 72 of 13 80383W01 m) Verdic t PASS PASS PASS PASS 1 PASS PASS 7 PASS PASS 31 1 t MORLA AB SHENZ FL1-3, B Block67 ZHEN MORLAB COM Building A, FeiYang S 7, BaoAn District, Sh ( (C MMUNICATIONS TEC Science Park, No.8 L enZhen , GuangDon (Channel 36 Channel 48 CHNOLOGY Co., Ltd LongChang Road, ng Province, P. R. Ch 6, AVG, 802 8, PEAK, 80 d. ina Tel: 8 Http: RE 2.11 n (HT2 02.11 n (HT2 86-755-36698555 //www.morlab.cn EPORT No 20)) 20)) Fax: 86-755-3669 E-mail: service@ o.：SZ1908 98525 @morlab.cn Page 73 of 13 80383W01 31 1 MORLA AB SHENZ FL1-3, B Block67 ZHEN MORLAB COM Building A, FeiYang S 7, BaoAn District, Sh (C MMUNICATIONS TEC Science Park, No.8 L enZhen , GuangDon (Channel 4 Channel 149 CHNOLOGY Co., Ltd LongChang Road, ng Province, P. R. Ch 48, AVG, 802 9, PEAK, 80 d. ina Tel: 8 Http: RE 2.11n (HT2 02.11 n (HT 86-755-36698555 //www.morlab.cn EPORT No 0)) T20)) Fax: 86-755-3669 E-mail: service@ o.：SZ1908 98525 @morlab.cn Page 74 of 13 80383W01 31 1 MORLA AB SHENZ FL1-3, B Block67 ZHEN MORLAB COM Building A, FeiYang S 7, BaoAn District, Sh ( (C MMUNICATIONS TEC Science Park, No.8 L enZhen , GuangDon (Channel 14 Channel 165 CHNOLOGY Co., Ltd LongChang Road, ng Province, P. R. Ch 49, AVG, 80 5, PEAK, 80 d. ina Tel: 8 Http: RE 02.11n (HT2 02.11 n (HT 86-755-36698555 //www.morlab.cn EPORT No 20)) T20)) Fax: 86-755-3669 E-mail: service@ o.：SZ1908 98525 @morlab.cn Page 75 of 13 80383W01 31 1 MORLA AB SHENZ FL1-3, B Block67 ZHEN MORLAB COM Building A, FeiYang S 7, BaoAn District, Sh ( MMUNICATIONS TEC Science Park, No.8 L enZhen , GuangDon (Channel 16 CHNOLOGY Co., Ltd LongChang Road, ng Province, P. R. Ch 65, AVG, 80 d. ina Tel: 8 Http: RE 02.11n (HT2 86-755-36698555 //www.morlab.cn EPORT No 20)) Fax: 86-755-3669 E-mail: service@ o.：SZ1908 98525 @morlab.cn Page 76 of 13 80383W01 31 1 MORLA 802.11n A. Test Channel 38 38 46 46 151 151 159 159 B. Test AB SHENZ FL1-3, B Block67 (HT40) Tes Verdict: Frequen c (MHz) 5150.00 5150.00 5379.30 5361.13 5716.36 5725.00 5866.38 5850.00 Plots: ZHEN MORLAB COM Building A, FeiYang S 7, BaoAn District, Sh st mode cy Detect o PK/ AV 0 PK 0 AV 0 PK 3 AV 6 PK 0 AV 8 PK 0 AV ( MMUNICATIONS TEC Science Park, No.8 L enZhen , GuangDon or Receive Readin U R (dBu V V 66.99 55.13 59.46 48.85 69.23 56.81 62.17 51.14 (Channel 38 CHNOLOGY Co., Ltd LongChang Road, ng Province, P. R. Ch er ng V) A T (dB) 9 -41.55 3 -41.55 6 -41.55 5 -41.55 3 -42.15 -42.15 7 -42.15 4 -42.15 8, PEAK, 80 d. ina Tel: 8 Http: RE A Factor (dB@3m ) 31.70 31.70 31.70 31.70 32.50 32.50 32.50 32.50 02.11n (HT4 86-755-36698555 //www.morlab.cn EPORT No ) Max. Emissio n E (dBμV/ m 57.14 45.28 49.61 39.00 59.58 47.16 52.52 41.49 40)) Fax: 86-755-3669 E-mail: service@ o.：SZ1908 n m) Limit (dBμV/ m 74 54 74 54 109.81 54 78.96 54 98525 @morlab.cn Page 77 of 13 80383W01 m) Verdic t PASS PASS PASS PASS 1 PASS PASS PASS PASS 31 1 t MORLA AB SHENZ FL1-3, B Block67 ZHEN MORLAB COM Building A, FeiYang S 7, BaoAn District, Sh ( MMUNICATIONS TEC Science Park, No.8 L enZhen , GuangDon (Channel 3 (Channel 46 CHNOLOGY Co., Ltd LongChang Road, ng Province, P. R. Ch 38, AVG, 802 6, PEAK, 80 d. ina Tel: 8 Http: RE 2.11n (HT4 02.11n (HT4 86-755-36698555 //www.morlab.cn EPORT No 0)) 40)) Fax: 86-755-3669 E-mail: service@ o.：SZ1908 98525 @morlab.cn Page 78 of 13 80383W01 31 1 MORLA AB SHENZ FL1-3, B Block67 ZHEN MORLAB COM Building A, FeiYang S 7, BaoAn District, Sh (C MMUNICATIONS TEC Science Park, No.8 L enZhen , GuangDon (Channel 4 Channel 15 CHNOLOGY Co., Ltd LongChang Road, ng Province, P. R. Ch 46, AVG, 802 1, PEAK, 8 d. ina Tel: 8 Http: RE 2.11n (HT4 02.11n (HT 86-755-36698555 //www.morlab.cn EPORT No 0)) T40)) Fax: 86-755-3669 E-mail: service@ o.：SZ1908 98525 @morlab.cn Page 79 of 13 80383W01 31 1 MORLA AB SHENZ FL1-3, B Block67 ZHEN MORLAB COM Building A, FeiYang S 7, BaoAn District, Sh ( (C MMUNICATIONS TEC Science Park, No.8 L enZhen , GuangDon (Channel 15 Channel 15 CHNOLOGY Co., Ltd LongChang Road, ng Province, P. R. Ch 51, AVG, 80 9, PEAK, 8 d. ina Tel: 8 Http: RE 02.11n (HT4 02.11n (HT 86-755-36698555 //www.morlab.cn EPORT No 40)) T40)) Fax: 86-755-3669 E-mail: service@ o.：SZ1908 98525 @morlab.cn Page 80 of 13 80383W01 31 1 MORLA AB SHENZ FL1-3, B Block67 ZHEN MORLAB COM Building A, FeiYang S 7, BaoAn District, Sh ( MMUNICATIONS TEC Science Park, No.8 L enZhen , GuangDon (Channel 15 CHNOLOGY Co., Ltd LongChang Road, ng Province, P. R. Ch 59, AVG, 80 d. ina Tel: 8 Http: RE 02.11n (HT4 86-755-36698555 //www.morlab.cn EPORT No 40)) Fax: 86-755-3669 E-mail: service@ o.：SZ1908 98525 @morlab.cn Page 81 of 13 80383W01 31 1 MORLA 802.11 ac A. Tes…

Text truncated - open the document above for the full version.

FCC ID: 2APD4-P26A Test Setup Photos 1. Conducted emission main’s port front view 2. Conducted emission main’s port side view 3. Radiated emission (9KHz-30MHz) 4. Radiated emission (30MHz-1GHz) 5. Radiated emission (above 1GHz) 6. RF measurement setup (5G)
