2AENNCT001ZOLAR Controller Unit

Shenzhen ImagineVision Technology Limited
ZOLAR Controller Unit - FCC ID 2AENNCT001 - Shenzhen ImagineVision Technology Limited
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Dec 01, 2024
Application Purpose
Original Equipment
Date of Application
Dec 01, 2024
Equipment Note
ZOLAR Controller Unit
Frequency Range
2412.00000000 - 2462.00000000
Company
Shenzhen ImagineVision Technology Limited
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Quick User Guide Blade 120C Super Wide Screen RGBAW LED Panel ZOLAR ® ®  LED Panel [ 0 1 ] Receptor Cable Front Controller Unit *The Gold-mount Battery option to be followed. [02] Rear [0 5] V-Mount* Battery Plate [0 4] Quick Release Button [ 03 ] Controller FrontRear Left [06] Power Switch Right [07] DC Power Input [08] Controller Cable Port To p [ 10 ] DMX Output [ 09] DMX Input Bottom 2 [29] Tilt Lock Clamping Lever [ 1 1 ] Controller LCD Screen [ 12 ] Indicator [ 16 ] Rotary Encoder [ 17 ] Mode Button [ 18 ] Menu Button [ 19 ] Favorite Button [ 13 ] F1 Button [ 14 ] F2 Button [ 15 ] F3 Button [03] Controller Accessories included in Basic Kit [27] Yoke for ZOLAR Blade 120C Power Supply Unit [20] [22] Quick Release Button [ 21 ] V-Mount Battery Plate FrontRear [ 23] AC Power Input [ 24] AC Loop Out [ 25] Power Switch [ 26] DC Power Output To pBottom [30] ZOLAR Controller Cable 16M [31] AC Power Cable* CN Plug UK Plug EU Plug Power plug varies according to socket types for each country. * US Plug [28] Spigot [32] DC Power Cable (3-pin) 3 Safety Guidelines This Product is not intended for use by persons under the age of 18. Keep out of reach of children. 1. Keep children away when operating the product. 2. Do not stare at the light source as it may cause permanent eye damage. 3. Wear gloves before touching heated surfaces of the product to prevent burns. 4. Wear gloves when touching sharp edges and corners of the product to prevent cuts. 5. Position the power cables so that it will not be tripped over, or accidentally pulled out causing the product to shut down. 6. If an extension power cable is required, the minimum amperage rating must not be lower than that of the product’s own power cable. 7. When using the device with AC DC Power Adapter, connect it to a grounded power outlet only. 8. Do not place the product near any flammable or volatile liquids to prevent potential damage. 9. ZOLAR® Blade 120C is rated IP66 and must not be submerged in water. 10. If using the ZOLAR® Blade 60C near water or in the rain, it is recommended that an earth leakage circuit breaker (RCD or GFI) be used to protect the user and the device. Preface Please read this document carefully in order to understand the ZOLAR® Blade 120C (hereinafter collectively referred to as “this Product”) and use it reasonably. Refer to the ocial website (www.z-cam.com/zolar) for the latest version of this document and updated product information. Please contact Shenzhen ImagineVision Technology Limited (hereinafter referred to as “ImagineVision”) or its authorized distributors/resellers, in case of any product queries about installation or operation. Before You Begin Please read and follow this Safety Guideline and all terms associated with this Product carefully to understand your legal rights, responsibilities, and safety instructions; otherwise, this may lead to product damages, safety accidents, and personal injuries. By using this Product, you are deemed to have read, understood, acknowledged, and accepted this Safety Guideline and all the terms and conditions associated with this Product, and assume responsibility for any actions or consequences. You agree to use this Product only for its intended and reasonable purposes, and agree to this Guideline and all the terms and conditions associated with this Product, as may be added, reduced, amended, or modified by ImagineVision from time to time. ImagineVision provides no express or implied warranties in relation to this Product, assumes no liability for any loss or legal responsibility arising from misuse of this Product contrary to this Safety Guideline and the terms associated with this Product, and accepts no liability for indirect, consequential, punitive, or special damages. Under any circumstances, the total liability of ImagineVision shall not exceed the price paid by you to ImagineVision for the product. 4 Installation 1. Rotate the Tilt Lock Clamping Lever [29] to adjust the inclination between the LED panel and Yoke for ZOLAR Blade 120C [27] (Hereafter referred to as Yoke). Rotate counterclockwise to loosen and clockwise to tighten. The angle of inclination is adjustable ±360°. 2. Mount the LED panel onto the light stand's head mount through the Spigot [28] 3. Repeat Step 1 to adjust the inclination between the LED panel and Yoke [27] afterwards. Menu Operation 1. Press Menu Button [18] on the Controller [03] to enter the menu; 2. Rotate Rotary Encoder [16] clockwise to move cursor downward, anti-clockwise to move cursor upward. Press to confirm selection. Press Menu Button [18] to return to the upper level menu. Power Supply Power On/O 1. Verify power supply connection. 2. Turn Controller Unit Power Switch [06] and Power Supply Unit Power Switch [25] to “ | ” position. 3. To power o, simply turn both Power Switch to “O” position each. Using Power Supply Unit [20] 1. Connect ZOLAR Controller Cable 16M [30] to Receptor Cable [01] of the LED panel. 2. Connect ZOLAR Controller Cable 16M [30] to Controller Cable Port [08] of the Controller Unit [02]. 3. Slide V-Mount battery to V-Mount Battery Plate** [05] from the top of the Controller Unit [02]. 4. Push gently downwards until lock into position. 5. To unmount the battery, press and hold Quick Release Button [04], then lift the battery upward. * Only 14.4V~28.8V V-Mount batteries can be used, not included in the standard package; When using battery power, there is no need to use the Power Supply Unit [20], DC Power Cable (3-pin) [32] and AC Power Cable [31]. **Controller Unit has V-mount and Gold-mount Battery options. The Gold-mount Battery option to be followed. Using Battery* 1. Connect ZOLAR Controller Cable 16M [30] to Receptor Cable [01] of the LED panel. 2. Connect ZOLAR Controller Cable 16M [30] to Controller Cable Port [08] of the Controller Unit [02]. 3. Connect DC Power Cable (3-pin) [32] to DC Power Input [07] of the Controller Unit [02]. 4. Connect DC Power Cable (3-pin) [32] to DC Power Output [26] o…

Text truncated - open the document above for the full version.

Attestation Statements

Shenzhen ImagineVision Technology Limited 1A, Block F5, TCL International E City, 1001 Zhong Shan Park Road, Nan Shan,Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-12-1 To whom it may concern: We, Shenzhen ImagineVision Technology Limited, hereby certify that the equipment for which authorization is sought (FCC ID: 2AENNCT001) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Peizhi Chen Vice President Shenzhen ImagineVision Technology Limited 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Attestation Statements

Shenzhen ImagineVision Technology Limited 1A, Block F5, TCL International E City, 1001 Zhong Shan Park Road, Nan Shan, Shenzhen, China. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/11/27 U.S. Agent Designation Shenzhen ImagineVision Technology Limited acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2AENNCT001): Name and company of U.S. agent: REP America LLC Physical U.S. address of agent: 1942 Broadway St. STE 314C Boulder, Co 80302 United States FRN of U.S. agent: 0034192500 Email address of U.S. agent: [email protected] REP America LLC acknowledges their obligation to accept service of process on behalf of Shenzhen ImagineVision Technology Limited By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7) Shenzhen ImagineVision Technology Limitedwith the FRN [0024554552] accepts its obligation to maintain an agent for service of process in theUnited States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. . The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Peizhi Chen Manager Shenzhen ImagineVision Technology Limited Signature Ben Xu Manager REP America LLC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Cover Letter(s)

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-12-1> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AENNCT001 CT001 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title: Peizhi Chen/Vice President Company: Shenzhen ImagineVision Technology Limited Address: 1A, Block F5, TCL International E City, 1001 Zhong Shan Park Road, Nan Shan,Shenzhen China Phone: +86-13631616831 Fax: N/A E-Mail: [email protected]

Cover Letter(s)

Shenzhen ImagineVision Technology Limited 1A, Block F5, TCL International E City, 1001 Zhong Shan Park Road, Nan Shan,Shenzhen China Date: 2024-12-1 FCC ID: 2AENNCT001 Model Number: CT001 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Shenzhen ImagineVision Technology Limited, declare that this EUT (FCC ID: 2AENNCT001) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title: Peizhi Chen/Vice President Company: Shenzhen ImagineVision Technology Limited Address: 1A, Block F5, TCL International E City, 1001 Zhong Shan Park Road, Nan Shan,Shenzhen China Phone: +86-13631616831 Fax: N/A E-Mail: [email protected]

Cover Letter(s)

Shenzhen ImagineVision Technology Limited 1A, Block F5, TCL International E City, 1001 Zhong Shan Park Road, Nan Shan,Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-12-1 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AENNCT001 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title: Peizhi Chen/Vice President Company: Shenzhen ImagineVision Technology Limited Address: 1A, Block F5, TCL International E City, 1001 Zhong Shan Park Road, Nan Shan,Shenzhen China Phone: +86-13631616831 Fax: N/A E-Mail: [email protected]

External Photos

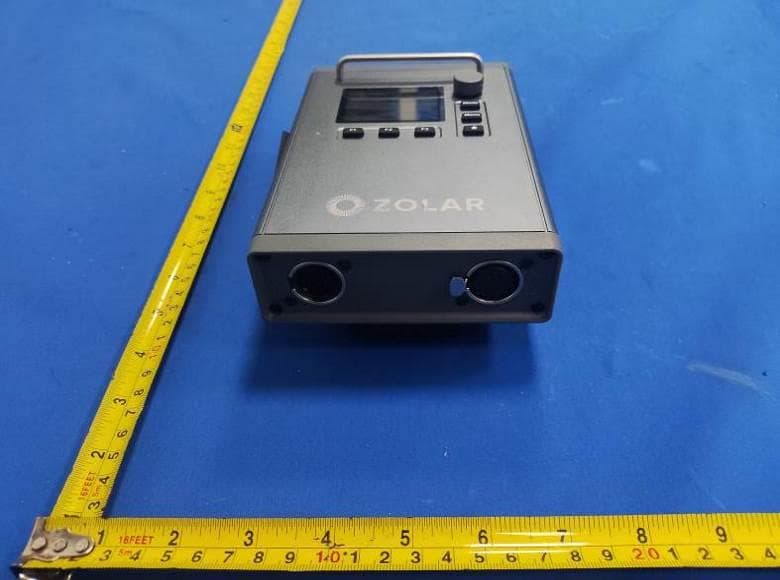

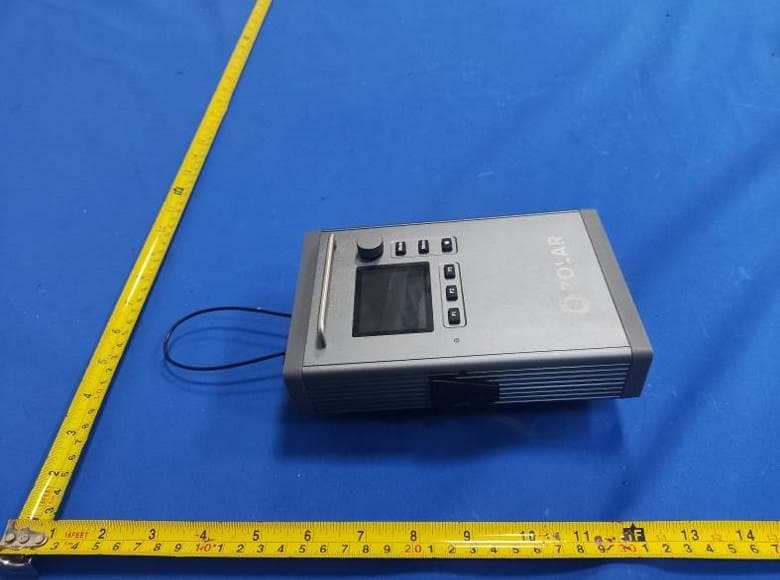

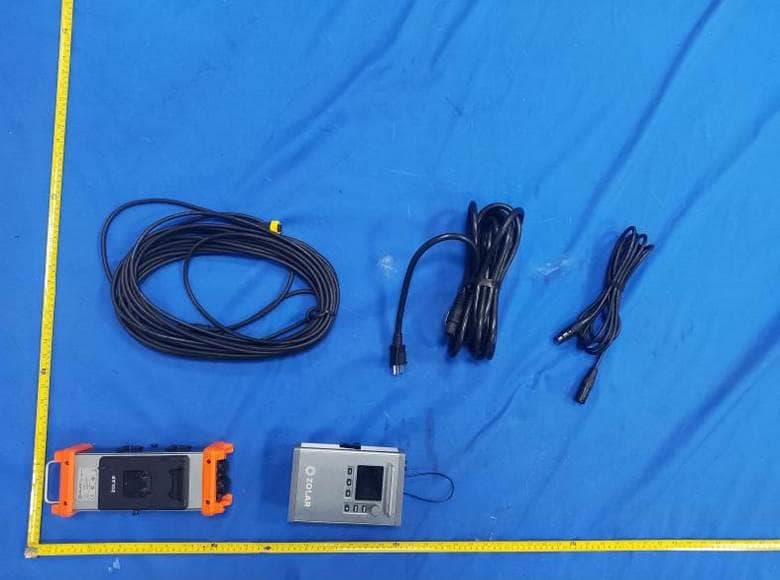

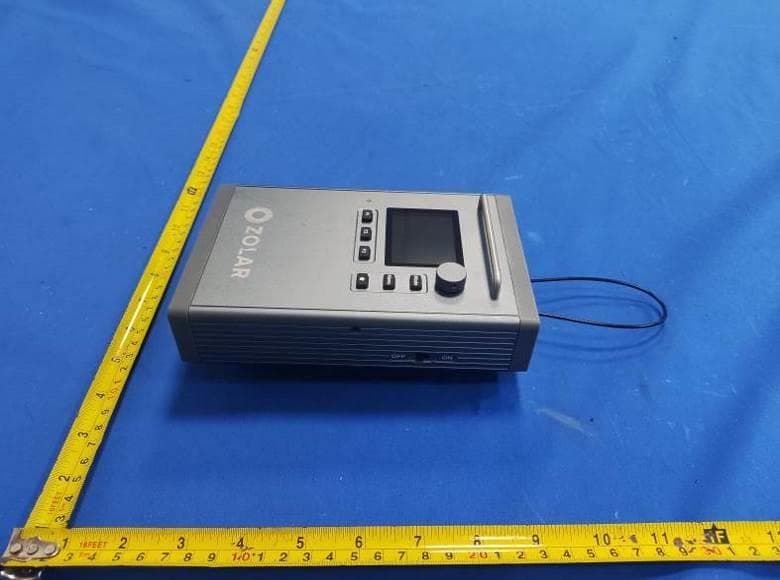

FCC ID: 2AENNCT001 External Photos of the EUT FCC ID: 2AENNCT001 FCC ID: 2AENNCT001

ID Label/Location Info

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2AENNCT001

Internal Photos

FCC ID: 2AENNCT001 Internal Photos of the EUT FCC ID: 2AENNCT001 FCC ID: 2AENNCT001 FCC ID: 2AENNCT001 BT ANT WIFI ANT FCC ID: 2AENNCT001 FCC ID: 2AENNCT001 FCC ID: 2AENNCT001

RF Exposure Info

RF Exposure evaluation FCC ID: 2AENNCT001 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information CT001 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BLE / Internal antenna 1.25dBi for 2400-2500MHz 2.4GWIFI / PIFA antenna 1.10dBi for 2400-2500MHz 5. Manufacturing Tolerance Mode Max. Peak Conducted Output Power (dBm) Max. tune-up BLE 1.64 1±1 2.4GWIFI 14.29 14±1 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is refer to section 4, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BLE 1.0 1.2589 1.25 1.3335 0.0003 1.0000 2.4GWIFI 15.0 31.6228 1.10 1.2882 0.0081 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. simultaneous MPE Result 2.4GWIFI MPE (Ratio) BLE MPE (Ratio) simultaneous MPE (Ratio) MPE Limits (Ratio) 0.0081 0.0003 0.0084 1.0000 8. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

Test Report

1. Antenna Description: Antenna type Internal antenna Model CT001-BT Frequency range 2400-2500MHz Manufacturer Shenzhen ImagineVision Technology Limited ANT Peak Gain 1.25 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4.Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Test Report

1. Antenna Description: Antenna type PIFA antenna Model CT001-WIFI Frequency range 2400-2500MHz Manufacturer Shenzhen ImagineVision Technology Limited ANT Peak Gain 1.10 dBi 2. Antenna Photo: Length :27.45mm Width:6.73mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4.Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Test Report

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : CTA24091300601 2AENNCT001 Compiled by ( position+printed name+signature) .. : File administrators Xudong Zhang Supervised by ( position+printed name+signature) .. : Project Engineer Zoey Cao Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Oct. 24, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhen ImagineVision Technology Limited Address ............................................ : 1A, Block F5, TCL International E City, 1001 Zhong Shan Park Road, Nan Shan, Shenzhen, China. Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description...................: ZOLAR Controller Unit Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen ImagineVision Technology Limited Model/Type reference....................... : CT001 Listed Models .................................. : N/A Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 36-48V From external circuit Result................................................ : PASS Report No.: CTA24091300601 Page 2 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : ZOLAR Controller Unit Model /Type : CT001 Listed Models : N/A Applicant : Shenzhen ImagineVision Technology Limited Address : 1A, Block F5, TCL International E City, 1001 Zhong Shan Park Road, Nan Shan, Shenzhen, China. Manufacturer : Shenzhen ImagineVision Technology Limited Address : 1A, Block F5, TCL International E City, 1001 Zhong Shan Park Road, Nan Shan, Shenzhen, China. Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24091300601 Page 3 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description* 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emissions and Band Edge 14 4.3 Maximum Peak Output Power 21 4.4 Power Spectral Density 22 4.5 6dB Bandwidth 24 4.6 Out-of-band Emissions 26 4.7 Antenna Requirement 30 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 31 6 P H O T O S O F T H E E U T ........................................................... 32 Report No.: CTA24091300601 Page 4 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 TES T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 Report No.: CTA24091300601 Page 5 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 S U M M A R Y 2.1…

Text truncated - open the document above for the full version.

Test Report

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA24091300602 2AENNCT001 Compiled by ( position+printed name+signature) . : File administrators Xudong Zhang Supervised by ( position+printed name+signature) . : Project Engineer Zoey Cao Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Oct. 24, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen ImagineVision Technology Limited Address ............................................ : 1A, Block F5, TCL International E City, 1001 Zhong Shan Park Road, Nan Shan, Shenzhen, China. Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : ZOLAR Controller Unit Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen ImagineVision Technology Limited Model/Type reference ...................... : CT001 Listed Models .................................. : N/A Modulation Type ............................... : CCK/DSSS/OFDM Operation Frequency ........................ : From 2412 - 2462MHz Rating ............................................... : DC 36-48V From external circuit Result ............................................... : PASS Report No.: CTA24091300602 Page 2 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : ZOLAR Controller Unit Model /Type : CT001 Listed Models : N/A Applicant : Shenzhen ImagineVision Technology Limited Address : 1A, Block F5, TCL International E City, 1001 Zhong Shan Park Road, Nan Shan, Shenzhen, China. Manufacturer : Shenzhen ImagineVision Technology Limited Address 1A, Block F5, TCL International E City, 1001 Zhong Shan Park Road, Nan Shan, Shenzhen, China. Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24091300602 Page 3 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E ST E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emission 14 4.3 Maximum Peak Conducted Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 24 4.6 Out-of-band Emissions 27 4.7 Antenna Requirement 34 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 35 6 P H O T O S O F T H E E U T ........................................................... 36 Report No.: CTA24091300602 Page 4 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 v05r02: Guidance for Compliance Measurements on Digital Transmission Systems (DTS) ,Frequency Hopping Spread Spectrum System(HFSS), and Hybrid System Devices Operating Under §15.247 of The FCC rules. Report No.: CTA24091300602 Page 5 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaoto…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: 2AENNCT001 Test Setup Photos of the EUT

Contact Information

Applicant

Peizhi Chen(Vice President)
[email protected]+86-13631616831Fax: 0755-86556411

Test Firm

SHENZHEN CTA TESTING TECHNOLOGY CO., LTD.Eric Wang
[email protected]+86 755 2322 5875

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.41 GHz - 2.46 GHz26.90 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is peak conducted. This device supports 802.11b, 802.11g and 802.11n with a 20 MHz bandwidth mode. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
