1 BLACK C PRO User Guide 2 Contents I. C AUTIONS ON MOBILE PHONE USE ............................................................................................................... 4 1.1 I NTERFERENCE ............................................................................................................................... .......... 4 1.2 R EASONABLE USE ............................................................................................................................... ..... 4 1.3 Q UALIFIED MAINTENANCE SERVICE .......................................................................................................... 4 1.4 W AT E R - RESISTANCE ............................................................................................................................... .. 4 1.5 E MERGENCY CALLS ............................................................................................................................... ... 4 2 P RECAUTIONS FOR USE OF BATTERY ........................................................................................................... 4 3 C AUTIONS FOR CHILDREN ............................................................................................................................ 5 II. K EYS AND PARTS ............................................................................................................................... ......... 6 III. S TART TO USE ............................................................................................................................... ............ 7 3.1 T O INSERT SIM CARD (S): ......................................................................................................................... 7 3.2 C HARGE THE BATTERY ............................................................................................................................. 9 IV. B ASIC FUNCTIONS ............................................................................................................................... .... 10 1. L OCK AND UNLOCK THE SCREEN .............................................................................................................. 10 2. M AKE IT YOURS ............................................................................................................................... ......... 11 3. S WITCH TO R ECENTLY U SED A PPLICATION ............................................................................................... 17 4. M AKE A CALL ............................................................................................................................... ............. 18 5. C ALL LOG ............................................................................................................................... .................. 19 3 6. A NSWERING PHONE CALLS AND REJECTION ............................................................................................. 20 7. A DD A CONTACT ............................................................................................................................... ......... 21 8. S END AND R ECEIVE MESSAGE ( S ) ............................................................................................................. 22 9. B ROWSER THE W EB ............................................................................................................................... .. 24 10. E NJOY MUSIC ............................................................................................................................... .......... 24 11. D OWNLOAD APPLICATIONS FROM P LAY S TORE ....................................................................................... 25 12. M ANAGE A PPLICATIONS ......................................................................................................................... 26 13. APPLICATIONS & UTILITIES ............................................................................................................. 27 14. S ETTINGS ............................................................................................................................... ................ 27 V. T ECHNICAL I NFORMATION ......................................................................................................................... 32 4 I. Cautions on mobile phone use 1.1 Interference All phones may be interfered, which affect phone calls. 1.2 Reasonable use Use only in the normal position. Do not touch the antenna area unnecessarily. 1.3 Qualified maintenance service Only qualified personnel may install or repair this product. 1.4 Water-resistance Your device is non water-resistant. Keep it dry. 1.5 Emergency calls Ensure the phone is switched on and in service. Enter the emergency number and press the Dialer icon. 2 Precautions for use of battery 2.1 Do not dispose of batteries near or in a fire to avoid dangers. 2.2 Do not dispose of batteries in the garbage. Dispose of batteries to assigned battery recycling center. 5 3 Cautions for children Keep your device out the reach of children in case of accidental injury caused by incorrect use of the device as toys. 6 II. Keys and parts 7  1. Receiver  2. Front Camera  3. Light sensor / Proximity sensor 4. Volumn key  5. Power key & Fingerprint  6. Audio Jack  7. Mic  8. USB port  9. Speaker  10. Sim card tray  11. Rear camera  12. Flash light III. Start to use 3.1 To insert SIM card(S): Insert the SIM card correctly in the card slot(s) (See figure below), suggest switch off the phone when you insert SIM card. Insert the Micro SD card into the slot with the correct direction (See figure below), suggest switch off the phone when you insert Micro SD. Note: Use only compatible memory cards with this device. Incompatible memory cards may damage the card or the device and corrupt the data stored in the card. 8 9 3.2 Charge the battery During charging, the battery indicator on the phone is a thunder icon. If the device is switched off during…

Text truncated - open the document above for the full version.

Rev 1/26/2023 (COLOMBIANA DE COMERCIO S.A.) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 05‐09‐2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: (2AEPIBLACKCPRO) [COLOMBIANA DE COMERCIO S.A.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Julian Orozco) Rev 1/26/2023 (COLOMBIANA DE COMERCIO S.A.) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 05‐09‐2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: (2AEPIBLACKCPRO) [COLOMBIANA DE COMERCIO S.A.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Julian Orozco)

[COLOMBIANA DE COMERCIO S.A.] [Car. 43E No 8-71] [Medellin] [Colombia] Date: [2023-05-09] Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: [2AEPIBLACKCPRO] US Agent – Attestation Statement / Part 2.911(d)(7) [COLOMBIANA DE COMERCIO S.A.] certifies, that as of [2023-05-09], we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: [2AEPIBLACKCPRO]. [COLOMBIANA DE COMERCIO S.A], accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of [COLOMBIANA DE COMERCIO S.A] for FCC ID: [2AEPIBLACKCPRO]. Designated Agent Information: Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company: [COLOMBIANA DE COMERCIO S.A] Designated Agent: FCC US Agent, LLC Company Representative: [Julian Orozco] Designated Agent Representative: Tim Payne Signature: [Signature] Signature:

COLOMBIANA DE COMERCIO S.A. FCC ID: 2AEPIBLACKCPRO POWER OF ATTORNEY Date: May 09, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Testing Group Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Testing Group Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on May 08, 2024. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, COLOMBIANA DE COMERCIO S.A. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, COLOMBIANA DE COMERCIO S.A. Signature Julian Orozco / Manager Typed name and Title

COLOMBIANA DE COMERCIO S.A. Date: 2023-05-09 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AEPIBLACKCPRO To Whom It May Concern: This letter is to statement that BLACK C PRO / Smart Phone. has been tested according to FCC Part 15B by Waltek Testing Group Co., Ltd. (Test Report No.: WTD23D03064335W001). And the SDOC file, meetting the requirements of the FCC regulations, would been provided when the device is sold by the responsible party in US. The service will not be sold until the SDOC is provided. If the sale does not have an SDOC, all responsibility is the responsibility of the applicant. Sincerely, Signature [Julian Orozco] [Manager] [COLOMBIANA DE COMERCIO S.A.]

COLOMBIANA DE COMERCIO S.A. Date: May 09, 2023 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AEPIBLACKCPRO Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type Schematics Block Diagram Operational Description Part List Part Placement Schematics PCB Layout Schematics Tune-up Procedure U-NII Device Security Statement File Name Schematics.pdf Block Diagram.pdf Operational Description.pdf Part List.pdf Part Placement Schematics.pdf PCB Layout Schematics.pdf Tune-up Procedure.pdf U-NII Device Security Statement.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, COLOMBIANA DE COMERCIO S.A. Signature Julian Orozco / Manager Typed name and Title

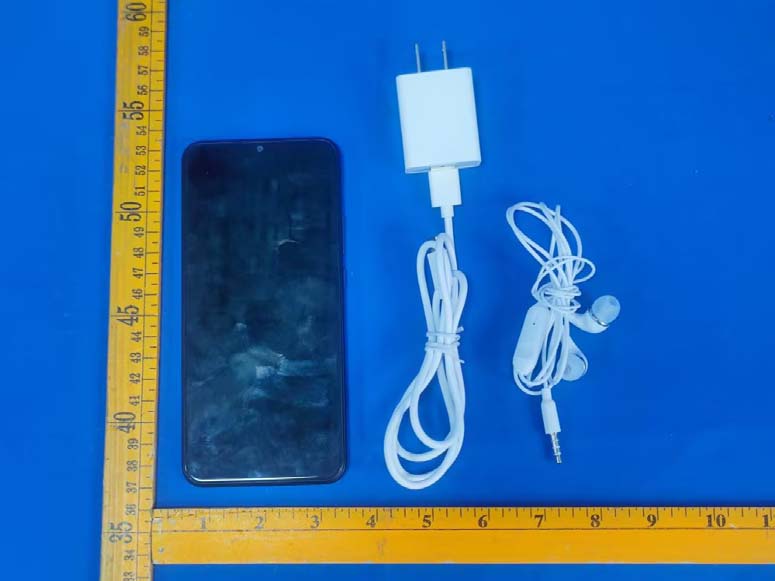

Appendix- BLACK C PRO -Photos Page 4 of 14 1. Photographs –Constructional Details 1.1. EUT – External View Model BLACK C PRO FCC ID: 2AEPIBLACKCPRO Appendix- BLACK C PRO -Photos Page 5 of 14 Appendix- BLACK C PRO -Photos Page 6 of 14 Appendix- BLACK C PRO -Photos Page 7 of 14 Appendix- BLACK C PRO -Photos Page 8 of 14

BLACK C PRO Label Sample and Location

Appendix- BLACK C PRO -Photos Page 9 of 14 1.2. EUT – Internal View Model BLACK C PRO FCC ID: 2AEPIBLACKCPRO GSM/WCDMA/LTE Main ANT. BT/WIFI ANT. GSM/WCDMA/LTE Diversity ANT. Appendix- BLACK C PRO -Photos Page 10 of 14 diversity Appendix- BLACK C PRO -Photos Page 11 of 14 Appendix- BLACK C PRO -Photos Page 12 of 14 Appendix- BLACK C PRO -Photos Page 13 of 14 Appendix- BLACK C PRO -Photos Page 14 of 14 ======End======

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 60 TEST REPORT Reference No. .................... : WTD23X03064891W FCC ID ................................ : 2AEPIBLACKCPRO Applicant ........................... : COLOMBIANA DE COMERCIO S.A. Address ............................. : Car. 43E No 8-71, Medellin, Colombia Manufacturer ..................... Sichuan Koobee Communication Equipment Co., Ltd. Address ............................. 3 Floor, Building 2, 69 Gangyuan Road West Section, Lingang Development Zone, Yibin City, Sichuan Province, China Product Name ................... : Smart Phone Model No. ........................... : BLACK C PRO Standards .......................... : FCC Part 2.1093 IEEE Std C95.1: 2019 IEEE Std C95.3: 2002 + Rev. 2008 IEC/IEEE 62209-1528 Ed. 1.0 (2020-10) Date of Receipt sample .... : 2023-04-03 Date of Test........................ : 2023-04-03 to 2023-04-20 Date of Issue ..................... : 2023-04-21 Test Report Form No. ....... : WTX_IEEE_1528W Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Jack Sun Silin Chen Reference No.: WTD23X03064891W Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 60 TABLE OF CONTENTS 1. General Information ................................................................................................................................................... 4 1.1 Product Description for Equipment Under Test (EUT) ......................................................................................... 4 1.2 Test Standards .................................................................................................................................................... 5 1.3 Test Methodology ................................................................................................................................................ 5 1.4 Test Facility ......................................................................................................................................................... 5 2. Summary of Test Results .......................................................................................................................................... 6 3. Specific Absorption Rate (SAR) ................................................................................................................................ 7 3.1 Introduction .......................................................................................................................................................... 7 3.2 SAR Definition ..................................................................................................................................................... 7 4. SAR Measurement System ........................................................................................................................................ 8 4.1 The Measurement System .................................................................................................................................. 8 4.2 Probe ................................................................................................................................................................... 8 4.3 Probe Calibration Process ................................................................................................................................. 10 4.4 Phantom ............................................................................................................................................................ 11 4.5 Device Holder .................................................................................................................................................... 11 4.6 Test Equipment List ........................................................................................................................................... 12 5. Tissue Simulating Liquids ....................................................................................................................................... 13 5.1 Composition of Tissue Simulating Liquid ........................................................................................................... 13 5.2 Tissue Dielectric Parameters for Head and Body Phantoms ............................................................................. 14 5.3 Tissue Calibration Result ................................................................................................................................... 15 6. SAR Measurement Evaluation ................................................................................................................................ 16 6.1 Purpose of System Performance Check ............................................................................................................ 16 6.2 System Setup .................................................................................................................................................... 16 6.3 Validation Results .............................................................................................................................................. 17 7. EUT Testing Position ............................................................................................................................................... 18 7.1 Define Two Imaginary Lines on The Handset .........................…

Text truncated - open the document above for the full version.

Ref : ACR.240.1.17.SATU.A WALTEK TESTING GROUP (SHENZHEN) CO., LTD. 1/F, BUILDING A, HONGWEI INDUSTRIAL PARK, LIUXIAN 2ND ROAD BAO'AN DISTRICTSHENZHEN (518101), CHINAMVG COMOSAR REFERENCE WAVEGUIDE FREQUENCY: 5000-6000 MHZ SERIAL NO.: SN 49/16 WGA45 Calibrated at MVG US 2105 Barrett Park Dr. - Kennesaw, GA 30144 Calibration Date: 07/03/2020 Summary: This document presents the method and results from an accredited SAR reference waveguide calibration performed in MVG USA using the COMOSAR test bench. All calibration results are traceable to national metrology institutions. SAR Reference Waveguide Calibration Report SAR REFERENCE WAVEGUIDE CALIBRATION REPORT Ref: ACR.240.1.17.SATU.A Page: 2/13 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. Name Function Date Signature Prepared by : Jérôme LUC Product Manager 07/3/2020 Checked by : Jérôme LUC Product Manager 07/3/2020 Approved by : Kim RUTKOWSKI Quality Manager 07/3/2020 Customer Name Distribution : Waltek Testing Group (Shenzhen) Co., Ltd. Issue Date Modifications A 07/15/2019 Initial release SAR REFERENCE WAVEGUIDE CALIBRATION REPORT Ref: ACR.240.1.17.SATU.A Page: 3/13 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. TABLE OF CONTENTS 1 Introduction ................................................................................................................ 4 2 Device Under Test ..................................................................................................... 4 3 Product Description ................................................................................................... 4 3.1 General Information _______________________________________________________ 4 4 Measurement Method ................................................................................................ 4 4.1 Return Loss Requirements __________________________________________________ 4 4.2 Mechanical Requirements ___________________________________________________ 4 5 Measurement Uncertainty .......................................................................................... 5 5.1 Return Loss ______________________________________________________________ 5 5.2 Dimension Measurement ___________________________________________________ 5 5.3 Validation Measurement ____________________________________________________ 5 6 Calibration Measurement Results .............................................................................. 5 6.1 Return Loss ______________________________________________________________ 5 6.2 Mechanical Dimensions ____________________________________________________ 6 7 Validation measurement ............................................................................................ 7 7.1 Head Liquid Measurement __________________________________________________ 7 7.2 Measurement Result _______________________________________________________ 7 7.3 Body Measurement Result _________________________________________________ 10 8 List of Equipment .................................................................................................... 13 SAR REFERENCE WAVEGUIDE CALIBRATION REPORT Ref: ACR.240.1.17.SATU.A Page: 4/13 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 1INTRODUCTION This document contains a summary of the requirements set forth by the IEEE 1528 and CEI/IEC 62209 standards for reference waveguides used for SAR measurement system validations and the measurements that were performed to verify that the product complies with the fore mentioned standards. 2DEVICE UNDER TEST Device Under Test Device Type COMOSAR 5000-6000 MHz REFERENCE WAVEGUIDE Manufacturer MVG Model SWG5500 Serial Number SN 49/16 WGA45 Product Condition (new / used) New A yearly calibration interval is recommended. 3PRODUCT DESCRIPTION 3.1 GENERAL INFORMATION MVG’s COMOSAR Validation Waveguides are built in accordance to the IEEE 1528 and CEI/IEC 62209 standards. 4 MEASUREMENT METHOD The IEEE 1528 and CEI/IEC 62209 standards provide requirements for reference waveguides used for system validation measurements. The following measurements were performed to verify that the product complies with the fore mentioned standards. 4.1 RETURN LOSS REQUIREMENTS The waveguide used for SAR system validation measurements and checks must have a return loss of -8 dB or better. The return loss measurement shall be performed with matching layer placed in the open end of the waveguide, with the waveguide and matching layer in direct contact with the phantom shell as outlined in the fore mentioned standards. 4.2 MECHANICAL REQUIREMENTS The IEEE 1528 and CEI/IEC 62209 standards specify the mechanical dimensions of the validation waveguide, the specified dimensions are as shown in Section 6.2. Figure 1 shows how the dimensions relate to the physical construction of the waveguide. SAR REFERENCE WAVEGUIDE CALIBRATION REPORT Ref: ACR.240.1.17.SATU.A Page: 5/13 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 5MEASUREMENT UNCERTAINTY All uncertainties listed below represent an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2, tr…

Text truncated - open the document above for the full version.

Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 203 SAR TEST REPORT Reference No. ................... : WTD23D03064335W009 FCC ID ................................ : 2AEPIBLACKCPRO Applicant ........................... : COLOMBIANA DE COMERCIO S.A. Address ............................. : Car. 43E No 8-71, Medellin, Colombia Manufacturer .................... : Sichuan Koobee Communication Equipment Co., Ltd. Address ............................. : 3 Floor, Building 2, 69 Gangyuan Road West Section, Lingang Development Zone, Yibin City, Sichuan Province, China Product .............................. : Smart Phone Model(s).. ........................... : BLACK C PRO Brand ................................. : Kalley Standards .......................... : FCC 47 CFR Part2(2.1093) ANSI/IEEE C95.1-2006 IEC/IEEE 62209-1528:2020 & Published RF Exposure KDB Procedures Date of Receipt sample .... : 2023-03-30 Date of Test ....................... : 2023-03-30 to 2023-04-24 Date of Issue ..................... : 2023-05-06 Test Result ........................ : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: Ford Wang / Project Engineer Deval Qin / Designated Reviewer Reference No.: WTD23D03064335W009 Page 2 of 203 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 CONTENTS ............................................................................................................................................... 2 3 REVISION HISTORY ................................................................................................................................. 3 4 GENERAL INFORMATION ....................................................................................................................... 4 4.1 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................... 4 4.2 DETAILS OF E.U.T. ............................................................................................................................. 4 4.3 TEST FACILITY .................................................................................................................................... 7 5 EQUIPMENT USED DURING TEST ......................................................................................................... 8 5.1 EQUIPMENT LIST ................................................................................................................................. 8 6 SAR INTRODUCTION............................................................................................................................... 9 6.1 INTRODUCTION .................................................................................................................................... 9 6.2 SAR DEFINITION ................................................................................................................................. 9 7 SAR MEASUREMENT SETUP ............................................................................................................... 10 8 EXPOSURE LIMIT .................................................................................................................................. 19 9 SYSTEM AND LIQUID VALIDATION ..................................................................................................... 20 9.1 SYSTEM VALIDATION .......................................................................................................................... 20 9.2 LIQUID VALIDATION ............................................................................................................................. 22 10 TYPE A MEASUREMENT UNCERTAINTY............................................................................................ 31 11 OUTPUT POWER VERIFICATION ......................................................................................................... 34 11.1 TEST CONDITION........................................................................................................................... 34 11.2 TEST PROCEDURES ...................................................................................................................... 34 11.3 TEST RESULT ............................................................................................................................... 35 12 EXPOSURE CONDITIONS CONSIDERATION ...................................................................................... 73 12.1 EUT ANTENNA LOCATION .............................................................................................................. 73 12.2 TEST POSITION CONSIDERATION .................................................................................................... 73 12.3 RF EXPOSURE .............................................................................................................................. 74 13 SAR TEST RESULTS .......................................................................…
