2AEPJ-A2LRBCAR ALARM

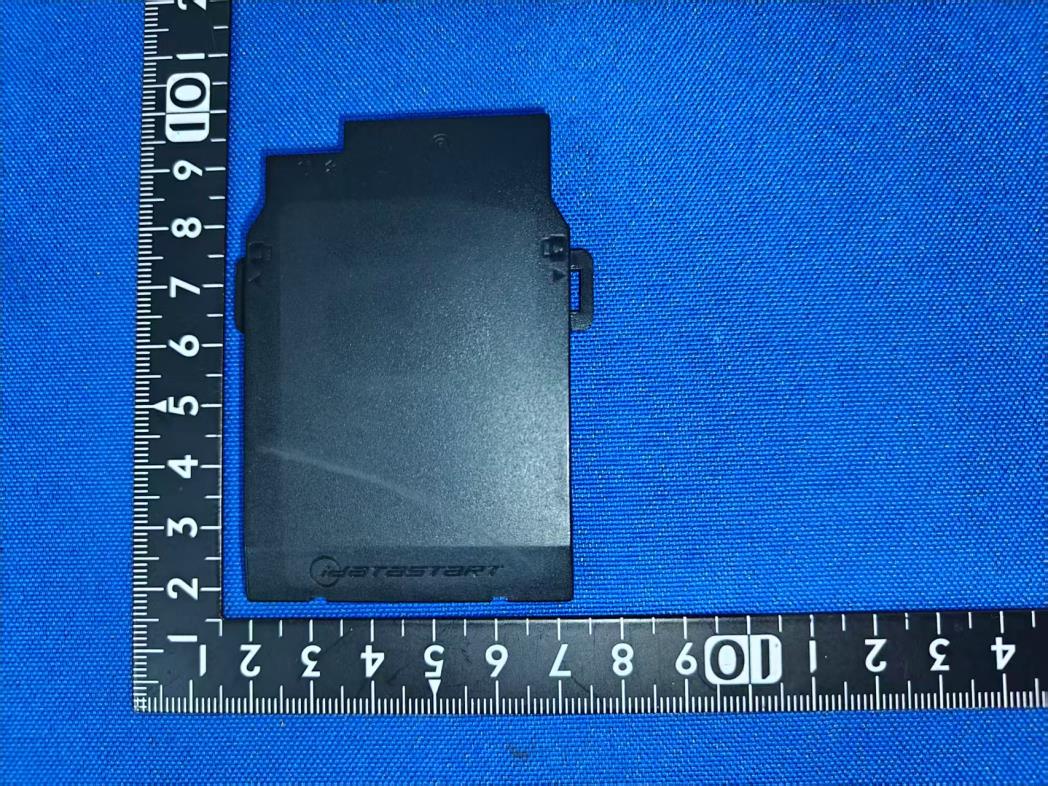

A2LRB MANUAL 1. Antenna Model : A2LRB 2. Technology : LORA 2-WAY,BLE6.0 3. MaxRange : 2 miles 4. LED : status indication 5. Connect to HCX (To plug Weblink or RF-Decoder/Antenna) pin1- 12V pin2- 5V pin3- RXD2 pin4- TXD2 pin5- RXD1 pin6- TXD1 pin7- RESET pin8- GND pin9- GND pin10- GND The RF transceiver module is installed on the ADS HCX main unit. It includes:  One 915 MHz LORA spring antenna and one 2.4 GHz BLE PCB antenna  One connector for the HCX main unit, and one connector for the Telematic unit  One LORA LED and one BLE LED Installation: Align the HCX connector on the EX4400 with the HCX main unit. Insert it firmly, then push the latch on the main unit to the locked position. LED Indication:  LORA LED: Indicates communication with the remote  BLE LED: Indicates communication with the mobile phone This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 25cm between the radiator and any part of your body. IC Statement This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada . Son fonctionnement est soumis aux deux conditions suivantes : ( 1 ) Ce dispositif ne peut causer d'interférences ; et ( 2 ) Ce dispositif doit accepter toute interférence , y compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil. FCC Statement This device complies with FCC Rules part 15. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference that may be received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modification could void the user’s authority to use the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 1 of 22 Test Data Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) NVNT BLE 2402 Ant1 13 8.86 NVNT BLE 2442 Ant1 13.41 8.73 NVNT BLE 2480 Ant1 14.75 8.31 Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 22 Test Graphs Duty Cycle NVNT BLE 2402MHz Ant1 Duty Cycle NVNT BLE 2442MHz Ant1 Duty Cycle NVNT BLE 2480MHz Ant1 Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 22 Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 4 of 22 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 2402 Ant1 7.058 30 Pass NVNT BLE 2442 Ant1 7.193 30 Pass NVNT BLE 2480 Ant1 7.199 30 Pass Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 5 of 22 Test Graphs Power NVNT BLE 2402MHz Ant1 Power NVNT BLE 2442MHz Ant1 Power NVNT BLE 2480MHz Ant1 Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 6 of 22 Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 7 of 22 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) limit (MHz) Verdic NVNT BLE 2402 Ant1 1.012 0.5 Pass NVNT BLE 2442 Ant1 1.112 0.5 Pass NVNT BLE 2480 Ant1 0.959 0.5 Pass Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 8 of 22 Test Graphs -6dB Bandwidth NVNT BLE 2402MHz Ant1 -6dB Bandwidth NVNT BLE 2442MHz Ant1 -6dB Bandwidth NVNT BLE 2480MHz Ant1 Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 9 of 22 Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 10 of 22 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT BLE 2402 Ant1 2.107 NVNT BLE 2442 Ant1 2.154 NVNT BLE 2480 Ant1 2.14 Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 11 of 22 Test Graphs OBW NVNT BLE 2402MHz Ant1 OBW NVNT BLE 2442MHz Ant1 OBW NVNT BLE 2480MHz Ant1 Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 12 of 22 Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 13 of 22 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Max PSD (dBm/3KHz) Limit (dBm/3KHz) Verdict NVNT BLE 2402 Ant1 -7.175 8 Pass NVNT BLE 2442 Ant1 -7.849 8 Pass NVNT BLE 2480 Ant1 -6.645 8 Pass Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 14 of 22 Test Graphs PSD NVNT BLE 2402MHz Ant1 PSD NVNT BLE 2442MHz Ant1 PSD NVNT BLE 2480MHz An…

Text truncated - open the document above for the full version.

JianYan Testing Group Shenzhen Co., Ltd. JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 1 of 2 BLE, Lora Test Setup Photos Radiated Spurious Emission Below 1GHz Above 1GHz JianYan Testing Group Shenzhen Co., Ltd. JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 2 Conducted method ------End------

JianYan Testing Group Shenzhen Co., Ltd. JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 1 of 2 BLE, Lora Test Setup Photos Radiated Spurious Emission Below 1GHz Above 1GHz JianYan Testing Group Shenzhen Co., Ltd. JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 2 Conducted method ------End------

JianYan Testing Group Shenzhen Co., Ltd. Report No.: JYTSZ-R12-2600204 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in above the application standard version. Test results reported herein relate only to the item(s) tested. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. Cover Page RF Test Report (BLE) Report No.: JYTSZ-R12-2600204 Applicant: Automotive Data Solutions Inc. Address of Applicant: 8400 Bougainville Montreal Quebec Canada H4P 2G1 Equipment Under Test (EUT) Product Name: CAR ALARM Model No.: A2LRB Trade Mark: N/A FCC ID: 2AEPJ-A2LRB Applicable Standards: FCC CFR Title 47 Part 15C (§15.247) Date of Sample Receipt: 13 Apr., 2026 Date of Test: 14 Apr., to 07 May, 2026 Date of Report Issued: 22 May, 2026 Test Result: PASS Project by: Date: 22 May, 2026 Project Engineer Reviewed by: Date: 22 May, 2026 Senior Engineer Approved by: Date: 22 May, 2026 Manager Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Report Template No.: JYTSZ4b-148-C1 Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 36 Version 1 Version No. Date Description 00 07 May, 2026 Original 01 22 May, 2026 Update page 8 Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Report Template No.: JYTSZ4b-148-C1 Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 36 Contents 2 Page Cover Page ............................................................................................................................................................. 1 Version ........................................................................................................................................................... 2 1 Contents ......................................................................................................................................................... 3 2 General Information ...................................................................................................................................... 4 3 Client Information ................................................................................................................................... 4 3.1 General Description of E.U.T. ................................................................................................................ 4 3.2 Disclaimer ............................................................................................................................................... 4 3.3 Test Mode and Test Environment .......................................................................................................... 5 3.4 Description of Test Auxiliary Equipment ................................................................................................ 5 3.5 Measurement Uncertainty ...................................................................................................................... 5 3.6 Additions to, Deviations, or Exclusions from the Method ....................................................................... 5 3.7 Laboratory Facility .................................................................................................................................. 6 3.8 Laboratory Location ................................................................................................................................ 6 3.9 Test Instruments List .............................................................................................................................. 6 3.10 Measurement Setup and Procedure ........................................................................................................... 8 4 Test Channel .......................................................................................................................................... 8 4.1 Test Setup .............................................................................................................................................. 8 4.2 Test Procedure ..................................................................................................................................... 10 4.3 Test Results ................................................................................................................................................. 11 5 Summary .............................................................................................................................................. 11 5.1 Clause and Data Summary .............................................................................................................. 11 5.1.1 Test Limit .......................................................................................................................................... 12 5.1.2 Antenna requirement ............................................................................................................................ 14 5.2 Emissions in Restricted Frequency Bands ........................................................................................... 15 5.3 Emissions in Non-restricted Frequency Bands ...........…

Text truncated - open the document above for the full version.

EX4400A-915MHzANTENNA Antenna Specification The antenna radiation pattern measurements are carried out in an anechoic chamber. Radiation patterns are presented for 3D; XZ planes with horizontal and vertical polarization of the receiving antenna. Measurements are carried out for the module installed in the upper right corner on the reference board with no laminate below the antenna trace. 5MM 28.5M M EX4400A-915MHzANTENNA Radiation Pattern for Antenna Trace Figure1: 3D Figure2: Radiation Pattern for XZ-Plane, Horizontal Polarization EX4400A-915MHzANTENNA Antenna efficiency and gain Freq (MHz) Efficiency (%) Gain (dBi) 915 45.85 2.09 Model number EX4400A-ANTENNA Antenna Manufacturer’s name & address Company: DONGUANG POETMAN EIECTRONIC SCIENCE AND TECHNOLOGY CO, Name: Wayne Ding Add: NO,10,LUYI 2 ROAD ,TANGXIA TOWN,DONGGUAN CITY GUANGDONG PROVINCE Email: [email protected]

EX4400A-2.4GHzANTENNA Antenna Specification The antenna radiation pattern measurements are carried out in an anechoic chamber. Radiation patterns are presented for 3D; XZ planes with horizontal and vertical polarization of the receiving antenna. Measurements are carried out for the module installed in the upper right corner on the reference board with no laminate below the antenna trace. EX4400A-2.4GHzANTENNA Radiation Pattern for Antenna Trace Figure1: 3D Figure2: Radiation Pattern for XZ-Plane, Horizontal Polarization EX4400A-2.4GHzANTENNA Antenna efficiency and gain Freq (MHz) Efficiency (%) Gain (dBi) 2402 41.85 1.38 2410 41.42 1.38 2420 41.25 1.38 2430 41.39 1.38 2440 42.25 1.44 2450 41.26 1.37 2460 41.15 1.37 2470 41.77 1.37 2480 40.95 1.38 Model number EX4400A-ANTENNA Antenna Manufacturer’s name & address Company: DONGUANG POETMAN EIECTRONIC SCIENCE AND TECHNOLOGY CO, Name: Wayne Ding Add: NO,10,LUYI 2 ROAD ,TANGXIA TOWN,DONGGUAN CITY GUANGDONG PROVINCE Email: [email protected]

JianYan Testing Group Shenzhen Co., Ltd. Report No.: JYTSZ-R12-2600205 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in above the application standard version. Test results reported herein relate only to the item(s) tested. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. Cover Page RF Test Report (DTS) Report No.: JYTSZ-R12-2600205 Applicant: Automotive Data Solutions Inc. Address of Applicant: 8400 Bougainville Montreal Quebec Canada H4P 2G1 Equipment Under Test (EUT) Product Name: CAR ALARM Model No.: A2LRB Trade Mark: N/A FCC ID: 2AEPJ-A2LRB Applicable Standards: FCC CFR Title 47 Part 15C (§15.247) Date of Sample Receipt: 13 Apr., 2026 Date of Test: 14 Apr., to 28 Apr., 2026 Date of Report Issued: 22 May, 2026 Test Result: PASS Tested by: Date: 22 May, 2026 Project Engineer Reviewed by: Date: 22 May, 2026 Senior Engineer Approved by: Date: 22 May, 2026 Manager Report No.: JYTSZ-R12-2600205 JianYan Testing Group Shenzhen Co., Ltd. Report Template No.: JYTSZ4b-168-C Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 28 Version 1 Version No. Date Description 00 28 Apr., 2026 Original 01 22 May, 2026 Update page 27/28 Report No.: JYTSZ-R12-2600205 JianYan Testing Group Shenzhen Co., Ltd. Report Template No.: JYTSZ4b-168-C Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 28 Contents 2 Page Cover Page ............................................................................................................................................................. 1 Version ........................................................................................................................................................... 2 1 Contents ......................................................................................................................................................... 3 2 General Information ...................................................................................................................................... 4 3 Client Information ................................................................................................................................... 4 3.1 General Description of E.U.T. ................................................................................................................ 4 3.2 Disclaimer ............................................................................................................................................... 4 3.3 Test Mode and Test Environment .......................................................................................................... 5 3.4 Description of Test Auxiliary Equipment ................................................................................................ 5 3.5 Measurement Uncertainty ...................................................................................................................... 5 3.6 Additions to, Deviations, or Exclusions from the Method ....................................................................... 5 3.7 Laboratory Facility .................................................................................................................................. 5 3.8 Laboratory Location ................................................................................................................................ 6 3.9 Test Instruments List .............................................................................................................................. 6 3.10 Measurement Setup and Procedure ........................................................................................................... 8 4 Test Channel .......................................................................................................................................... 8 4.1 Test Setup .............................................................................................................................................. 8 4.2 Test Procedure ..................................................................................................................................... 10 4.3 Test Results ................................................................................................................................................. 11 5 Summary .............................................................................................................................................. 11 5.1 Clause and Data Summary .............................................................................................................. 11 5.1.1 Test Limit .......................................................................................................................................... 12 5.1.2 Antenna requirement ............................................................................................................................ 14 5.2 Conducted Output Power ..................................................................................................................... 15 5.3 Emission Bandwidth ........................…

Text truncated - open the document above for the full version.

Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 1 of 22 Test Data Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) NVNT BLE 2402 Ant1 67.82 1.69 NVNT BLE 2442 Ant1 67.8 1.69 NVNT BLE 2480 Ant1 67.05 1.74 Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 22 Test Graphs Duty Cycle NVNT BLE 2402MHz Ant1 Duty Cycle NVNT BLE 2442MHz Ant1 Duty Cycle NVNT BLE 2480MHz Ant1 Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 22 Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 4 of 22 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 2402 Ant1 7.207 30 Pass NVNT BLE 2442 Ant1 7.305 30 Pass NVNT BLE 2480 Ant1 7.272 30 Pass Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 5 of 22 Test Graphs Power NVNT BLE 2402MHz Ant1 Power NVNT BLE 2442MHz Ant1 Power NVNT BLE 2480MHz Ant1 Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 6 of 22 Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 7 of 22 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) limit (MHz) Verdic NVNT BLE 2402 Ant1 0.606 0.5 Pass NVNT BLE 2442 Ant1 0.608 0.5 Pass NVNT BLE 2480 Ant1 0.606 0.5 Pass Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 8 of 22 Test Graphs -6dB Bandwidth NVNT BLE 2402MHz Ant1 -6dB Bandwidth NVNT BLE 2442MHz Ant1 -6dB Bandwidth NVNT BLE 2480MHz Ant1 Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 9 of 22 Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 10 of 22 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT BLE 2402 Ant1 1.076 NVNT BLE 2442 Ant1 1.077 NVNT BLE 2480 Ant1 1.075 Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 11 of 22 Test Graphs OBW NVNT BLE 2402MHz Ant1 OBW NVNT BLE 2442MHz Ant1 OBW NVNT BLE 2480MHz Ant1 Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 12 of 22 Report No.: JYTSZ-R12-2600204 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2604028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. T…
