2AEPJ-BLENRF1BLE MOUDLE

ADS-BLEnRF1 MANUAL  Nordic nRF52832 with ARM Cortex M4F.  -96 dBm sensitivity  2 Mbps Bluetooth low energy mode  1 Mbps, 2 Mbps supported data rates  TX power -20 to +4 dBm in 4 dB steps  Single-pin antenna interface  5.3 mA peak current in TX (0 dBm)  5.4 mA peak current in RX  Integrated high performance PCB trace antenna:  Operation voltage: 1.7V to 3.6V  Operation temperature: -40°C to +85°Cpin1- Rx (Data from antenna, 0-5 Volts) pin# pin name pin# pin name 1 3.3V 12 P0.08 2 GND 13 BLE_TX 3 P0.31 14 BLE_RX 4 P0.30 15 P0.13 5 Debug_tx 16 P0.14 6 Debug_rx 17 P0.15 7 EEPROM-SCK 18 P0.18 8 EEPROM-MOSI 19 P0.19 9 EEPROM-MISO 20 RESET 10 EEPROM-NPSC 21 BLE_SC 11 P0.07 22 BLE_SD This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. DONGGUAN PORTMAN ELECTRONIC SCIENCE ANDTECHNOLOGY CO., LTD. /ADS-BLEnRF1-ANT2402MHz ~ 2480MHz: -0.5dBi(declare by Applicant) Compliance list INTEGRATION INSTRUCTIONS for 996369 D03 OEM the and 996369 D03 OEM by Sections 2.2 through 2.12. Requirement Yes N/A Comment 2.2 List of applicable FCC rules List the FCC rules that are applicable to the modular transmitter. These are the rules that specifically establish the bands of operation, the power, spurious emissions, and operating fundamental frequencies. DO NOT list compliance to unintentional-radiator rules (Part 15 Subpart B) since that is not a condition of a module grant that is extended to a host manufacturer. See also Section 2.10 below concerning the need to notify host manufacturers that further testing is required.3 YES FCC standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 2.3 Summarize the specific operational use conditions Describe use conditions that are applicable to the modular transmitter, including for example any limits on antennas, etc. For example, if point-to-point antennas are used that require reduction in power or compensation for cable loss, then this information must be in the instructions. If the use condition limitations extend to professional users, then instructions must state that this information also extends to the host manufacturer’s instruction manual. In addition, certain information may also be needed, such as peak gain per frequency band and minimum gain, specifically for master devices in 5 GHz DFS bands. YES PCB antenna with antenna gain -0.5dBi 2.4 Limited module procedures If a modular transmitter is approved as a “limited module,” then the module manufacturer is responsible for approving the host environment that the limited module is used with. The manufacturer of a limited module must describe, both in the filing and in the installation instructions, the alternative means that the limited module manufacturer uses to verify that the host meets the necessary requirements to satisfy the module limiting conditions. A limited module manufacturer has the flexibility to define its alternative method to address the conditions that limit the initial approval, such as: shielding, minimum N/A Not applicable signaling amplitude, buffered modulation/data inputs, or power supply regulation. The alternative method could include that the limited module manufacturer reviews detailed test data or host designs prior to giving the host manufacturer approval. This limited module procedure is also applicable for RF exposure evaluation when it is necessary to demonstrate compliance in a specific host. The module manufacturer must state how control of the product into which the modular transmitter will be installed will be maintained such that full compliance of the product is always ensured. For additional hosts other than the specific host originally granted with a limited module, a Class II permissive change is required on the module grant to register the additional host as a specific host also approved with the module. 2.5 Trace antenna designs For a modular transmitter with trace antenna designs, see the guidance in Question 11 of KDB Publication 996369 D02 FAQ – Modules for Micro-Strip Antennas and traces. The integration information shall include for the …

Text truncated - open the document above for the full version.

Automotive Data Solutions Inc. DATE :2022-10-10 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AEPJ-BLENRF1 Product Name: BLE MOUDLE Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: •Sc hematics •Block diagram •Operation description •BOM Thes e materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2022-10-10 By: Thanh LiemTrinh Signature Printed Title: On behalf of : Automotive Data Solutions Inc. Telephone: 5148072888

Modular approval Declaration letter We, Automotive Data Solutions Inc. apply single modular approval for Product Name: BLE MOUDLE Model: ADS-BLENRF1 FCC ID: 2 AEPJ-BLENRF1 According to 996369 D01 Module Equip Auth Guide v01r04 and 15.212 requirements: 1) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; Answer: Yes, the radio elements shielded by cover.The cover is metal. 2) The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; Answer: Yes, All inputs to the modules are buffered through logic or microprocessor inputs. 3) The modular transmitter must have its own power supply regulation. Answer: Yes, A low drop out regulator is used for modular power supply regulation. 4) The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Answer: Yes, Device has permanently attached ceramic chip antenna,version without antenna has unique HSC connector. 5) The module must demonstrate compliance in a stand-alone configuration; Answer: Yes, the module demonstrates compliance in a stand-alone configuration. 6) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); Answer: Yes. The modular has a permanent fixed label, and the statement was listed in the User Manual 7) The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; Answer: Yes, The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual. 8) The module must comply with RF exposure requirements Answer: Yes, Transmitter meets MPE calculation of 47 CFR 1.1307. Refer to MPE Reports and Refer to modular installation manual Dated this 2022-11-15 By: Thanh LiemTrinh Signature Printed Title: Manager On behalf of : Automotive Data Solutions Inc. Telephone: 5148072888

Automotive Data Solutions Inc. DATE:2022-10-20 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act asAgent On our behalf, I appoint Jianyan Testing Group Shenzhen Co., Ltd.; No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. , to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Automotive Data Solutions Inc. 8400 Bougainville Montreal Quebec Canada H4P 2G1 Dated this 2022-10-20 By: Thanh LiemTrinh Signature Printed Title: On behalf of : Automotive Data Solutions Inc. Telephone: 5148072888

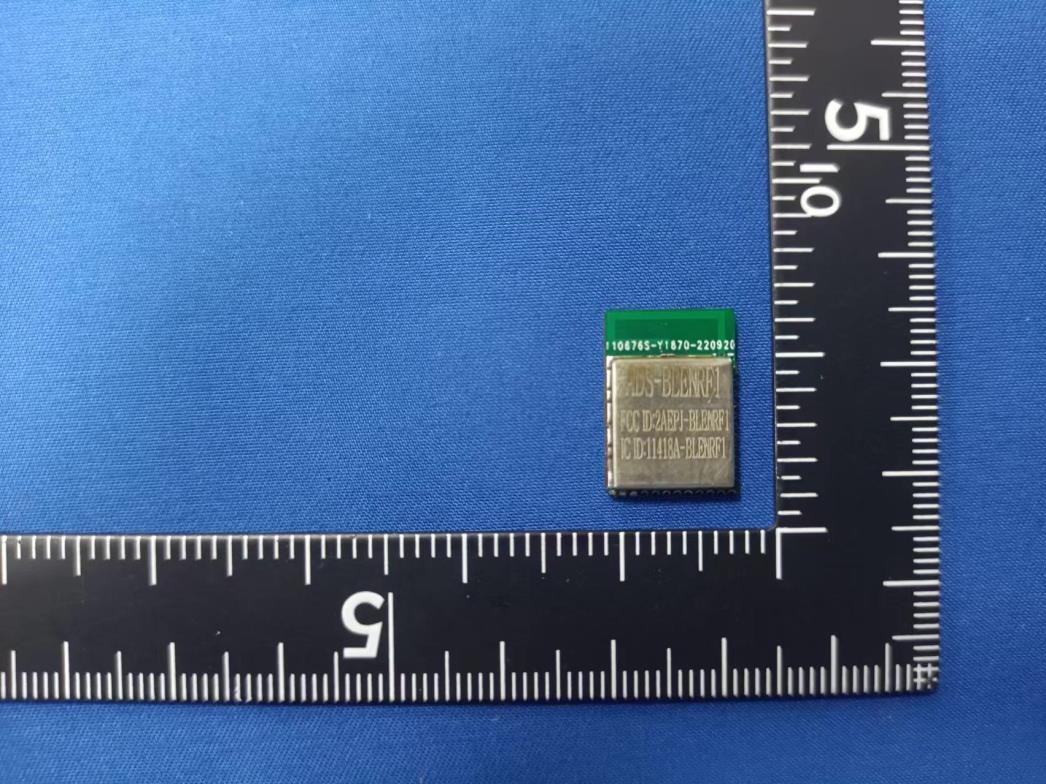

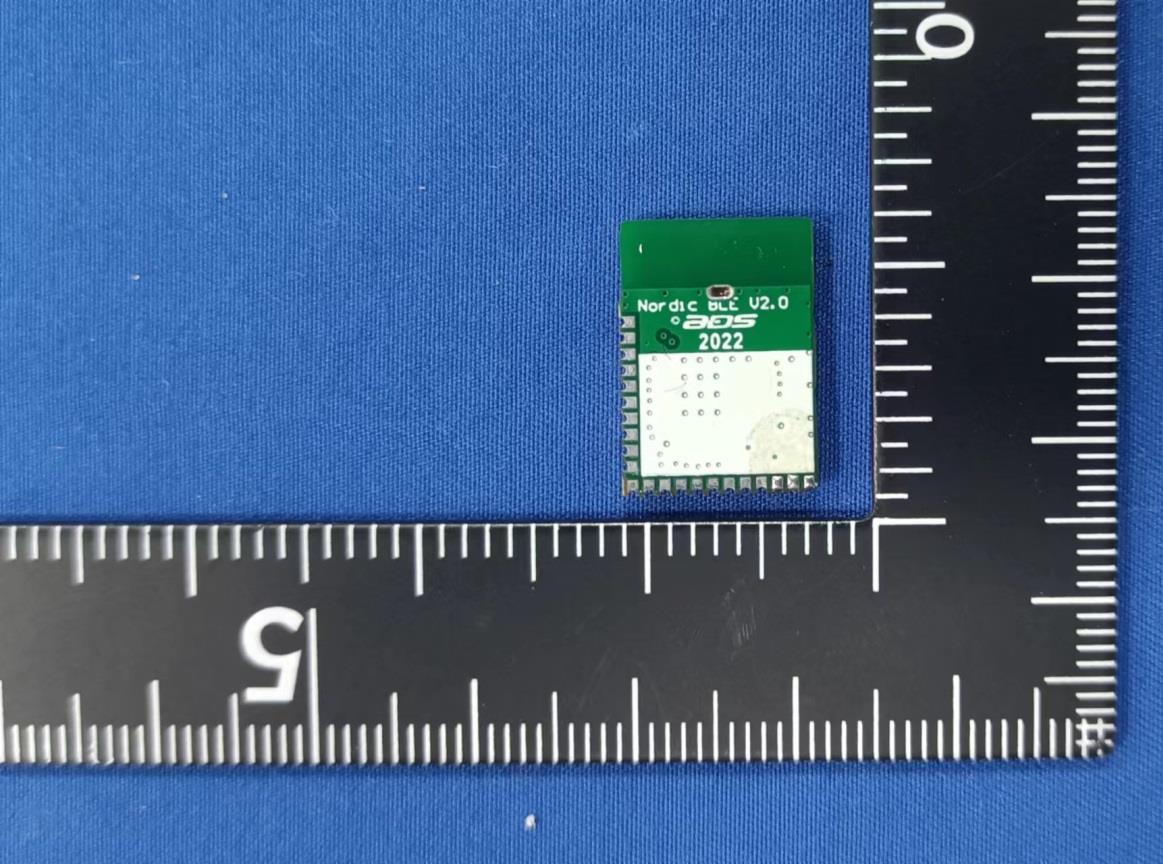

JianYan Testing Group Shenzhen Co., Ltd. JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2209111 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 1 of 2 EUT External Photos JianYan Testing Group Shenzhen Co., Ltd. JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2209111 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 2 ------End------

JianYan Testing Group Shenzhen Co., Ltd. JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2209111 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 1 of 1 EUT Internal Photos ------End------

JianYan Testing Group Shenzhen Co., Ltd. Report No.: JYTSZ-R12-2202029 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in above the application standard version. Test results reported herein relate only to the item(s) tested. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. Cover Page RF Exposure Evaluation Report Applicant: Automotive Data Solutions Inc. Address of Applicant: 8400 Bougainville Montreal Quebec Canada H4P 2G1 Equipment Under Test (EUT) Product Name: BLE MODULE Model No.: ADS-BLENRF1 FCC ID: 2AEPJ-BLENRF1 Applicable standards: FCC CFR Title 47 Part 2 (§2.1091) Date of sample receipt: 08 Oct., 2022 Date of Test: 09 Oct., to 25 Oct., 2022 Date of report issue: 11 Nov., 2022 Test Result: PASS Tested by: Date: 11 Nov., 2022 Test Engineer Reviewed by: Date: 11 Nov., 2022 Project Engineer Approved by: Date: 11 Nov., 2022 Manager Report No.: JYTSZ-R12-2202029 JianYan Testing Group Shenzhen Co., Ltd. Report Template No.: JYTSZ4b-177-C Project No.: JYTSZR2209111 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 7 Version 1 Version No. Date Description 00 26 Oct., 2022 Original 01 11 Nov., 2022 Update Product Name. Report No.: JYTSZ-R12-2202029 JianYan Testing Group Shenzhen Co., Ltd. Report Template No.: JYTSZ4b-177-C Project No.: JYTSZR2209111 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 7 Contents 2 Page Cover Page ............................................................................................................................................................. 1 Version ........................................................................................................................................................... 2 1 Contents ......................................................................................................................................................... 3 2 General Information ...................................................................................................................................... 4 3 Client Information ................................................................................................................................... 4 3.1 General Description of E.U.T. ................................................................................................................ 4 3.2 Operating Modes .................................................................................................................................... 4 3.3 Additions to, deviations, or exclusions from the method ........................................................................ 4 3.4 Laboratory Facility .................................................................................................................................. 5 3.5 Laboratory Location ................................................................................................................................ 5 3.6 Technical Requirements Specification ....................................................................................................... 6 4 Limits ...................................................................................................................................................... 6 4.1 Test Procedure ....................................................................................................................................... 6 4.2 Result ..................................................................................................................................................... 7 4.3 Conclusion .............................................................................................................................................. 7 4.4 Report No.: JYTSZ-R12-2202029 JianYan Testing Group Shenzhen Co., Ltd. Report Template No.: JYTSZ4b-177-C Project No.: JYTSZR2209111 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 4 of 7 General Information 3 Client Information 3.1 Applicant: Automotive Data Solutions Inc. Address: 8400 Bougainville Montreal Quebec Canada H4P 2G1 Manufacturer/Factory: DONGGUAN PORTMAN ELECTRONIC SCIENCE AND TECHNOLOGY CO., LTD. Address: NO.10,LUYI 2 ROAD,TANGXIA TOWN, DONGGUAN CITY GUANGDONG PROVINCE General Description of E.U.T. 3.2 Product Name: BLE MODULE Model No.: ADS-BLENRF1 Operation Frequency: BLE: 2402MHz~2480MHz Modulation technology: BLE: GFSK Antenna Type: PCB Antenna Antenna gain: BLE: -0.5 dBi Test Sample Condition: The test samples were provided in good working order with no visible defects. Operating Modes 3.3 Operating mode Detail description BLE mode Keep the EUT in continuously transmitting in BLE mode Additions to, deviations, or exclusions from the method 3.4 No Report No.: JYTSZ-R12-2202029 JianYan Testing Group Shenzhen Co., Ltd. Report Template No.: JYTSZ4b-177-C Project No.: JYTSZR2209111 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong…

Text truncated - open the document above for the full version.

JianYan Testing Group Shenzhen Co., Ltd. Report No.: JYTSZ-R12-2202028 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in above the application standard version. Test results reported herein relate only to the item(s) tested. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. Cover Page FCC RF Test Report (BLE) Applicant: Automotive Data Solutions Inc. Address of Applicant: 8400 Bougainville Montreal Quebec Canada H4P 2G1 Equipment Under Test (EUT) Product Name: BLE MODULE Model No.: ADS-BLENRF1 FCC ID: 2AEPJ-BLENRF1 Applicable Standards: FCC CFR Title 47 Part 15C (§15.247) Date of Sample Receipt: 08 Oct., 2022 Date of Test: 09 Oct., to 25 Oct., 2022 Date of Report Issued: 11 Nov., 2022 Test Result: PASS Tested by: Date: 11 Nov., 2022 Test Engineer Reviewed by: Date: 11 Nov., 2022 Project Engineer Approved by: Date: 11 Nov., 2022 Manager Report No.: JYTSZ-R12-2202028 JianYan Testing Group Shenzhen Co., Ltd. Report Template No.: JYTSZ4b-148-C1 Project No.: JYTSZR2209111 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 26 Version 1 Version No. Date Description 00 26 Oct., 2022 Original 01 11 Nov., 2022 Update Product Name. Report No.: JYTSZ-R12-2202028 JianYan Testing Group Shenzhen Co., Ltd. Report Template No.: JYTSZ4b-148-C1 Project No.: JYTSZR2209111 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 26 Contents 2 Page Cover Page ............................................................................................................................................................. 1 Version ........................................................................................................................................................... 2 1 Contents ......................................................................................................................................................... 3 2 General Information ...................................................................................................................................... 4 3 Client Information ................................................................................................................................... 4 3.1 General Description of E.U.T. ................................................................................................................ 4 3.2 Test Mode and Test Environment .......................................................................................................... 5 3.3 Description of Test Auxiliary Equipment ................................................................................................ 5 3.4 Measurement Uncertainty ...................................................................................................................... 5 3.5 Additions to, Deviations, or Exclusions from the Method ....................................................................... 5 3.6 Laboratory Facility .................................................................................................................................. 5 3.7 Laboratory Location ................................................................................................................................ 5 3.8 Test Instruments List .............................................................................................................................. 6 3.9 Measurement Setup and Procedure ........................................................................................................... 8 4 Test Channel .......................................................................................................................................... 8 4.1 Test Setup .............................................................................................................................................. 8 4.2 Test Procedure ..................................................................................................................................... 10 4.3 Test Results ................................................................................................................................................. 11 5 Summary .............................................................................................................................................. 11 5.1 Clause and Data Summary .............................................................................................................. 11 5.1.1 Test Limit .......................................................................................................................................... 12 5.1.2 Antenna requirement ............................................................................................................................ 13 5.2 AC Power Line Conducted Emission ................................................................................................... 14 5.3 Emissions in Restricted Frequency Bands ........................................................................................... 16 5.4 Emissions in Non-restricted Frequency Bands .......................................................…

Text truncated - open the document above for the full version.

Report No.: JYTSZ-R12-2202028 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2209111 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 1 of 19 Test Data Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 2402 Ant1 3.385 30 Pass NVNT BLE 2442 Ant1 3.889 30 Pass NVNT BLE 2480 Ant1 3.975 30 Pass Report No.: JYTSZ-R12-2202028 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2209111 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 19 Test Graphs Power NVNT BLE 2402MHz Ant1 Power NVNT BLE 2442MHz Ant1 Power NVNT BLE 2480MHz Ant1 Report No.: JYTSZ-R12-2202028 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2209111 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 19 Report No.: JYTSZ-R12-2202028 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2209111 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 4 of 19 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) limit Verdic NVNT BLE 2402 Ant1 0.68 0.5 Pass NVNT BLE 2442 Ant1 0.689 0.5 Pass NVNT BLE 2480 Ant1 0.679 0.5 Pass Report No.: JYTSZ-R12-2202028 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2209111 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 5 of 19 Test Graphs -6dB Bandwidth NVNT BLE 2402MHz Ant1 -6dB Bandwidth NVNT BLE 2442MHz Ant1 -6dB Bandwidth NVNT BLE 2480MHz Ant1 Report No.: JYTSZ-R12-2202028 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2209111 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 6 of 19 Report No.: JYTSZ-R12-2202028 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2209111 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 7 of 19 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT BLE 2402 Ant1 1.041874972 NVNT BLE 2442 Ant1 1.043903864 NVNT BLE 2480 Ant1 1.043469707 Report No.: JYTSZ-R12-2202028 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2209111 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 8 of 19 Test Graphs OBW NVNT BLE 2402MHz Ant1 OBW NVNT BLE 2442MHz Ant1 OBW NVNT BLE 2480MHz Ant1 Report No.: JYTSZ-R12-2202028 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2209111 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 9 of 19 Report No.: JYTSZ-R12-2202028 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2209111 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 10 of 19 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Max PSD (dBm) Limit (dBm) Verdict NVNT BLE 2402 Ant1 -13.99 8 Pass NVNT BLE 2442 Ant1 -13.378 8 Pass NVNT BLE 2480 Ant1 -13.209 8 Pass Report No.: JYTSZ-R12-2202028 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2209111 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 11 of 19 Test Graphs PSD NVNT BLE 2402MHz Ant1 PSD NVNT BLE 2442MHz Ant1 PSD NVNT BLE 2480MHz Ant1 Report No.: JYTSZ-R12-2202028 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2209111 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 12 of 19 Report No.: JYTSZ-R12-2202028 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2209111 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 13 of 19 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 2402 Ant1 -53.94 -20 Pass NVNT BLE 2480 Ant1 -52.12 -20 Pass Report No.: JYTSZ-R12-2202028 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2209111 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 14 of 19 Test Graphs Band Edge NVNT BLE 2402MHz Ant1 Ref Band Edge NVNT BLE 2402MHz Ant1 Emission Band Edge NVNT BLE 2480MHz Ant1 Ref…

Text truncated - open the document above for the full version.

Report No.: JYTSZ-R12-2202028 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2209111 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 1 of 19 Test Data Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 2402 Ant1 3.265 30 Pass NVNT …

Text truncated - open the document above for the full version.
