FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party. Responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Shenzhen Sunshine Technology Development Co.,Ltd 2015-05-22 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ Shenzhen Sunshine Technology Development Co.,Ltd ____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Action camera, A04C, A04A, A04B) FCC ID: 2AEUS-A04C Sincerely, Client’s signature Client’s name / title MiaoQiong Ye / Purchasing Manager Contact information / address 4/F, block 4, HongHuaLing Industrial Park(zone 2), Taoyuan street, Xili, Nanshan District, Shenzhen, China

Shenzhen Sunshine Technology Development Co.,Ltd SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 Shenzhen Sunshine Technology Development Co.,Ltd SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 2015-05-22 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AEUS-A04C We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : MiaoQiong Ye Client’s name & title : Purchasing Manager Contact information / address: 4/F, block 4, HongHuaLing Industrial Park(zone 2), Taoyuan street, Xili, Nanshan District, Shenzhen, China

To whom We hav e 13 opera Please c h Compan y Address : Name / Tit Signature Phone : 1 5 Email : ym Date : 201 m it may conc e declared be ating capabilit heck Produc t Produc t Howeve Produc t And me Pls exp Others Pls ex p Name: Shenzh 4/F, block 4, H tle : MiaoQiong : 5899754200 [email protected] 15-05-22 She WIF cern : elow featured ty for FCC ID t hardware does t hardware has er , these 2 cha t hardware has eeting KDB 594 plain detail here plain detail here en Sunshine Te ongHuaLing Ind Ye/ Purchasin enzhen Sunshin I Channel for FCC equ D : 2AEUS-A04 s not have the c the capability to annels will be dis the capability to 280 D01 requir . . echnology Deve dustrial Park(zo g Manager ne Technology D 12 & 13 De uipment autho 4C capability to ope o operate on ch sabled via softw o operate on ch ement. elopment Co.,Lt one 2), Taoyuan Development C eclaration orization in re erate on channe hannel 12 & 13. ware and user w hannel 12 & 13. td n street, Xili, Na o.,Ltd Letter egard to 802. el 12 & 13 will not able to e anshan District, .11b/g/n chan enable these 2 c Shenzhen, Chin nnel 12 & channels na

2015-05-22 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: 2AEUS-A04C To Whom It May Concern: This letter is to ascertain that Shenzhen Sunshine Technology Development Co.,Ltd Product Action camera has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature : Client’s name / title : MiaoQiong Ye / Purchasing Manager

Model Declaration Letter For FCC ID: 2AEUS-A04C We, the undersigning company Company Name: Shenzhen Sunshine Technology Development Co.,Ltd Address: 4/F, block 4, HongHuaLing Industrial Park(zone 2), Taoyuan street, Xili, Nanshan District, Shenzhen, China Product description: Action camera Type designation: A04A, A04B, A04C Trade name or Brand(s): N/A That All models are identical in the same PCB layout, interior structure and electrical circuits, The only difference is model name for commercial purpose. City and Country: Date: Name: Function: Signature: Shenzhen 05/22/2015 MiaoQiong Ye Purchasing Manager

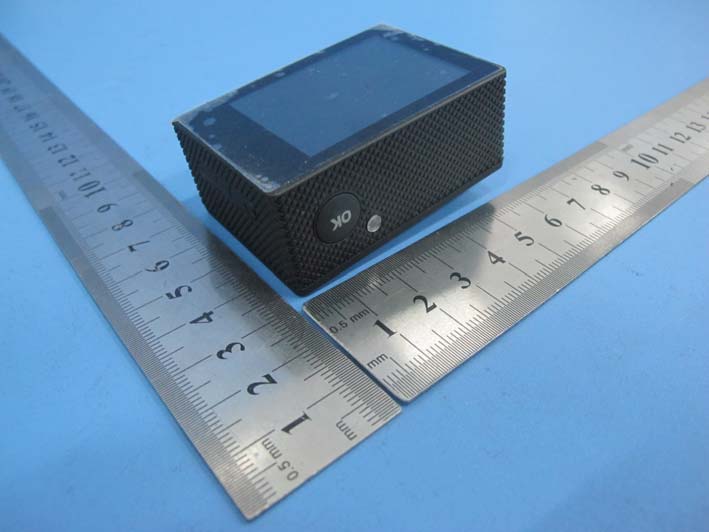

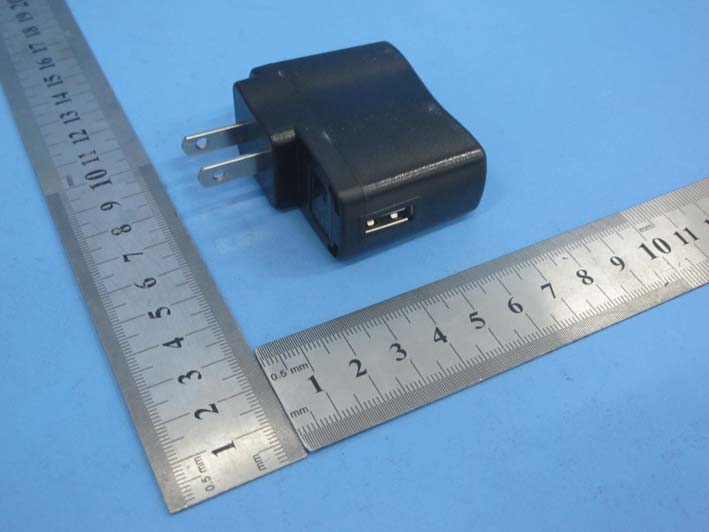

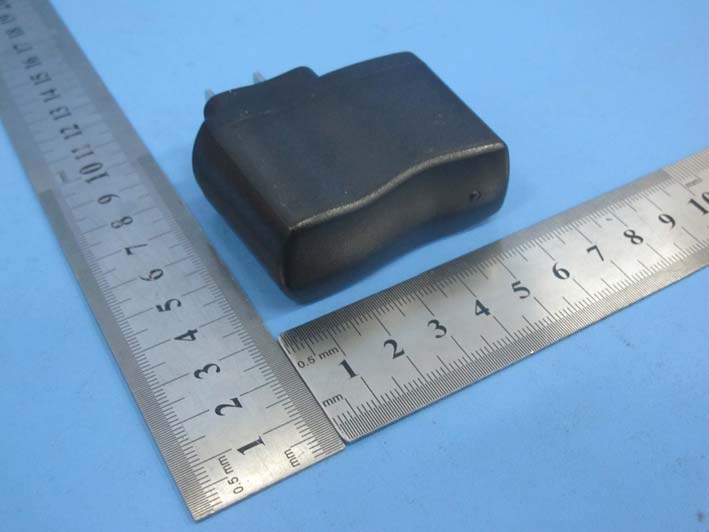

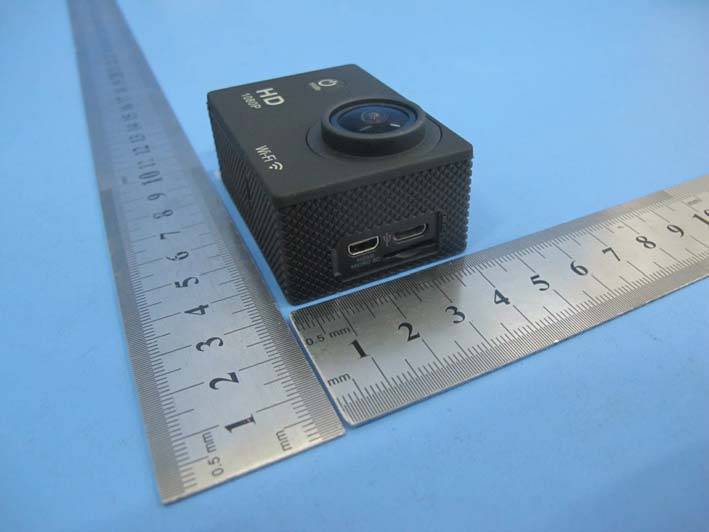

Report No.: TB-FCC144279 Page: 3 of 11 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No.: TB-FCC144279 Page: 4 of 11 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT Report No.: TB-FCC144279 Page: 5 of 11 TB-RF-075-1.0 Photo 5 Appearance of EUT

Report No.: TB-FCC144279 Page: 1 of 11 TB-RF-074-1.0 Appendix IFCC ID Label FCC ID: 2AEUS-A04C This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Shenzhen Sunshine Technology Development Co.,Ltd Model: A04C

Report No.: TB-FCC144279 Page: 2 of 11 TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

Report No.: TB-FCC144279 Page: 6 of 11 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 6 Internal of EUT Photo 7 Internal of EUT Report No.: TB-FCC144279 Page: 7 of 11 TB-RF-075-1.0 Photo 8 Internal of EUT Photo 9 Appearance of PCB 2.4G Antenna Report No.: TB-FCC144279 Page: 8 of 11 TB-RF-075-1.0 Photo 10 Appearance of PCB Photo 11 Appearance of PCB Report No.: TB-FCC144279 Page: 9 of 11 TB-RF-075-1.0 Photo 12 Appearance of PCB Photo 13 Appearance of Battery

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE144280 Page: 1 of 3 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2AEUS-A04C 1. Client Information Applicant : Shenzhen Sunshine Technology Development Co.,Ltd Address : 4/F, block 4, HongHuaLing Industrial Park(zone 2), Taoyuan street, Xili, Nanshan District, Shenzhen, China Manufacturer : Shenzhen Sunshine Technology Development Co.,Ltd Address : 4/F, block 4, HongHuaLing Industrial Park(zone 2), Taoyuan street, Xili, Nanshan District, Shenzhen, China 2. General Description of EUT EUT Name : Action camera Models No. : A04C, A04A, A04B Model Difference : All models are identical in the same PCB layout, interior structure and electrical circuits, the only difference is model name for commercial purpose. Product Description : Operation Frequency: 802.11b/g/n(HT20): 2412MHz~2462MHz 802.11n(HT40): 2422MHz~2452MHz Number of Channel: 802.11b/g/n(HT20):11 channels see note(3) 802.11n(HT40): 7 channels see note(3) Max Peak Output Power: 802.11b: 9.18 dBm 802.11g: 9.11 dBm 802.11n (HT20): 9.06dBm 802.11n (HT40): 9.07dBm Antenna Gain: 2 dBi (Integral Antenna) Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g: OFDM 802.11n: OFDM Power Supply : DC power supplied by AC/DC Adapter DC power by Li-ion Battery Power Rating : Input: AC 120V~240V 50/60Hz 0.5A. Output: 5V, 1000mA. DC 3.7V 900mAh Li-ion Battery. Connecting I/O Port(S) : Please refer to the User's Manual Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE144280 Page: 2 of 3 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v05r02. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR Report No.: TB-MPE144280 Page: 3 of 3 TB-RF-074-1.0 2. Calculation: Test separation: 5mm WiFi Mode(802.11b) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.412 9.13 2 ±0.5 9.18 2.85 3.0 2.437 9.18 2 ±0.5 9.29 2.90 3.0 2.462 9.15 2 ±0.5 9.23 2.90 3.0 WiFi Mode(802.11g) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.412 9.08 2 ±0.5 9.08 2.82 3.0 2.437 9.06 2 ±0.5 9.04 2.82 3.0 2.462 9.11 2 ±0.5 9.14 2.87 3.0 WiFi Mode(802.11n(HT20)) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.412 9.06 2 ±0.5 9.36 2.81 3.0 2.437 9.02 2 ±0.5 8.95 2.80 3.0 2.462 9.03 2 ±0.5 8.97 2.82 3.0 WiFi Mode(802.11n(HT40)) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.422 9.01 2 ±0.5 8.93 2.78 3.0 2.437 9.07 2 ±0.5 9.06 2.83 3.0 2.452 9.05 2 ±0.5 9.02 2.82 3.0 So standalone SAR measurements are not required.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC144279 Page: 1 of 87 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2AEUS-A04C Original Grant Report No. : TB-FCC144279 Applicant : Shenzhen Sunshine Technology Development Co.,Ltd Equipment Under Test (EUT) EUT Name : Action camera Model No. : A04C Serial No. : A04A, A04B Receipt Date : 2015-05-19 Test Date : 2015-05-20 to 2015-05-22 Issue Date : 2015-05-23 Standards : FCC Part 15, Subpart C (15.247:2014) Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC and IC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC144279 Page: 2 of 87 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 5 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting ................................................................................ 7 1.7 Measurement Uncertainty .................................................................................................. 7 1.7 Test Facility ........................................................................................................................... 8 2. TEST SUMMARY ....................................................................................................................... 9 3. TEST EQUIPMENT .................................................................................................................. 10 4. CONDUCTED EMISSION TEST ........................................................................................... 11 4.1 Test Standard and Limit .................................................................................................... 11 4.2 Test Setup ........................................................................................................................... 11 4.3 Test Procedure ................................................................................................................... 11 4.4 EUT Operating Mode ........................................................................................................ 12 4.5 Test Data ............................................................................................................................. 12 5. RADIATED EMISSION TEST ................................................................................................ 15 5.1 Test Standard and Limit .................................................................................................... 15 5.2 Test Setup ........................................................................................................................... 16 5.3 Test Procedure ................................................................................................................... 17 5.4 EUT Operating Condition ................................................................................................. 18 5.5 Test Data ............................................................................................................................. 18 6. RESTRICTED BANDS REQUIREMENT ............................................................................. 45 6.1 Test Standard and Limit .................................................................................................... 45 6.2 Test Setup ........................................................................................................................... 45 6.3 Test Procedure ................................................................................................................... 45 6.4 EUT Operating Condition ................................................................................................. 46 6.5 Test Data ............................................................................................................................. 46 7. BANDWIDTH TEST ................................................................................................................. 67 7.1 Test Standard and Limit .................................................................................................... 67 7.2 Test Setup ........................................................................................................................... 67 7.3 Test Procedure ................................................................................................................... 67 7.4 EUT Operating Condition ................................................................................................. 67 7.5 Test Data ......................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: TB-FCC144279 Page: 10 of 11 TB-RF-075-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz) Report No.: TB-FCC144279 Page: 11 of 11 TB-RF-075-1.0 Photo of Setup for Conducted Emission
