2AEUS-A07Action camera

User’s Guide 3-in -1 HD Car/Sports Camera Recorder with built-in Wi-Fi Model: A07B Dashcam Caution: Please charge unit completely with car charger and not USB for first charge. Doing so may cause battery damage Table of Contents Introduction The 3-in-1 A07B Dashcam is an easy-to-use high-definition (1080P Full HD) car cam recorder with a 1.5” LCD display and built-in Wi-Fi antenna. It records both audio and video with time & date stamp which can be used to pinpoint exactly when an event occurred. The events are recorded to a Micro SD card which can be used as evidence for auto insurance company if there are any legal complications during an insurance claim. The A07B Dashcam is perfect for all motorists and it is budget-friendly. One button switch to Car mode, photo mode and Sports mode ,makes it perfect device for your driving and entertainment, you can download the video to your smartphone via W-Fi, and share to your friends, no need to use Card reader and connect to your computer anymore. Features • HD video quality and real time recording (30fps/60fps) • One button switch to Car Video / Photo / Sports Video mode. • 20 meters waterproof (use waterproof case). • Auto recording, video motion detection recording and manual recording (video or snapshot) modes • Smart impact sensing recording (non-over writable video) and locks up current and post impact sensing video clips • Records up to 474/237 total minutes (at 720P/1080FHD) on a 32GB micro SD (not included) • Auto overwrite when SD is full (for regular recording in Car Mode) • Built-in microphone and speaker • 170 degree wide angle lens • Records 1-min, 3-min or 5-min of continuous video clips • Built-in rechargeable battery for up 90-mins of usage (recording without Wi-Fi on) • Download free Wi-Fi viewer app for live preview, playback, archive, setup and sharing. Important This guide provides important information on the use and operation of your A07B Dashcam and the images/features shown throughout the manual are subject to change without notice due to system and firmware upgrades. Please read all the information carefully prior to using the product for the best performance and to prevent any damage/injuries or misuse of the device(s). Customers are entitled to have read through this complete user’s manual before using the A07B Dashcam. Any unapproved changes or modifications will void your warranty. Please ensure to have a complete understanding of the following restrictions. NOTE: Please check the state laws and regulations to determine if windshield mounting is legal in your Country and state. -1- Restrictions When using this product, the safety precautions below must be taken to avoid possible legal lia- bilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the product operating instructions. To reduce the risk of bodily injury, electric shock, fire and damage to the equipment, observe the following precautions. PLEASE NOTE that under certain circumstances, audio/video recording may be PROHIBITED by law. • DO NOT use this product near water, for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool . • DO NOT place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product. • DO NOT disassemble this product. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock during subsequent use. • DO NOT use this product to infringe on one’s privacy, spying intercepting and related activities are illegal and punishable by law. Monitoring one’s private activities without consent is illegal and this product is not designed or manufactured for these purposes. • DO NOT use this product to carry out any illegal activities such as sneak preview, etc. The Seller and Manufacturer of the product shall not be responsible for any consequences of illegal conducts made by users. • DO NOT put the plastic packaging bags in reach of children or babies. Plastic bags can create a suffocation hazard when placed over the nose and mouth. • DO NOT plug the AC adapter into the outlet in improper situations. • Plugging in an AC adapter with wet hands might cause electric shock. • Plugging in the AC adapter unsteadily might cause fire or electric shock. • DO NOT cover the AC adapter when it is connected to an outlet, place the adapter near heaters, or put it on the floor which is equipped with a heater. The above mentioned operation might cause fire or incidents. -2- Disclaimers • Please make sure that you are following the regulations and laws set by your Country and State DMV(Department of Motor Vehicles) prior to mounting your camera. This manual does not intent to provide any specific legal advice. • Please check the A07B Dashcam‘s features periodically to ensure that it is operating as required. • During a car accident, the impact of the collision must be hard enough to trigger the G-Sensor In order for the A07B Dashcam’s to begin recording (G-Sensor sets to be off in Sports Mode). • Please use the A07B Dashcam as a tool while driving and use driver’s safety while driving. • The Seller and Manufacturer of A07B Dashcam shall not be held responsible for any traffic violations related to the positioning or improper use of our product. • Avoid mounting the camera outside of an airbag deployment zone. • Knowing most vehicles runs off 12VDC power supply from the battery, please double check our cigarette power adapter’s output rating before attempting to run power directly from the car battery. Conditions Please read the following messages to make sure your working environment is suitable. • If your vehicle does not cut off power to your cigarette lighter port, then you may have to manually turn off or unplug the charger to prevent it from overheating. • The temperature should be kept between –10 ̊C and 50 ̊C (14 ̊F to 122 ̊F). The rela…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Shenzhen Sunshine Technology Development Co.,Ltd 2015-09-15 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ Shenzhen Sunshine Technology Development Co.,Ltd ____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Action camera: A07, A01, A04, A05, A06, A07B, A07C) FCC ID: 2AEUS-A07 Sincerely, Client’s signature Client’s name / title MiaoQiong Ye / Purchasing Manager Contact information / address 4/F, block 4, HongHuaLing Industrial Park(zone 2), Taoyuan street, Xili, Nanshan District, Shenzhen, China

Shenzhen Sunshine Technology Development Co.,Ltd SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 Shenzhen Sunshine Technology Development Co.,Ltd SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 2015-09-15 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AEUS-A07 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : MiaoQiong Ye Client’s name & title : Purchasing Manager Contact information / address: 4/F, block 4, HongHuaLing Industrial Park(zone 2), Taoyuan street, Xili, Nanshan District, Shenzhen, China

Shenzhen Sunshine Technology Development Co.,Ltd Model Declaration Letter For FCC ID: 2AEUS-A07 We, the undersigning company Company Name: Shenzhen Sunshine Technology Development Co.,Ltd Address: 4/F, block 4, HongHuaLing Industrial Park(zone 2), Taoyuan street, Xili, Nanshan District, Shenzhen, China Product description: Action camera Type designation: A07, A01, A04, A05, A06, A07B, A07C Trade name or Brand(s): N/A That All models are identical in the same PCB layout, interior structure and electrical circuits, The only difference is model name for commercial purpose. City and Country: Date: Name: Function: Signature: Shenzhen 09/15/2015 MiaoQiong Ye Purchasing Manager

2015-09-15 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: 2AEUS-A07 To Whom It May Concern: This letter is to ascertain that Shenzhen Sunshine Technology Development Co.,Ltd Product Action camera has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature : Client’s name / title : MiaoQiong Ye / Purchasing Manager

Shenzhen Sunshine Technology Development Co.,Ltd WIFI Channel 12 & 13 Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization in regard to 802.11b/g/n channel 12 & 13 operating capability for FCC ID : 2AEUS-A07 Please check Product hardware does not have the capability to operate on channel 12 & 13 Product hardware has the capability to operate on channel 12 & 13. However , these 2 channels will be disabled via software and user will not able to enable these 2 channels Product hardware has the capability to operate on channel 12 & 13. And meeting KDB 594280 D01 requirement. Pls explain detail here. Others Pls explain detail here. Company Name: Shenzhen Sunshine Technology Development Co.,Ltd Address : 4/F, block 4, HongHuaLing Industrial Park(zone 2), Taoyuan street, Xili, Nanshan District, Shenzhen, China Name / Title : MiaoQiong Ye/ Purchasing Manager Signature : Phone : 15899754200 Email : [email protected] Date : 2015-09-15

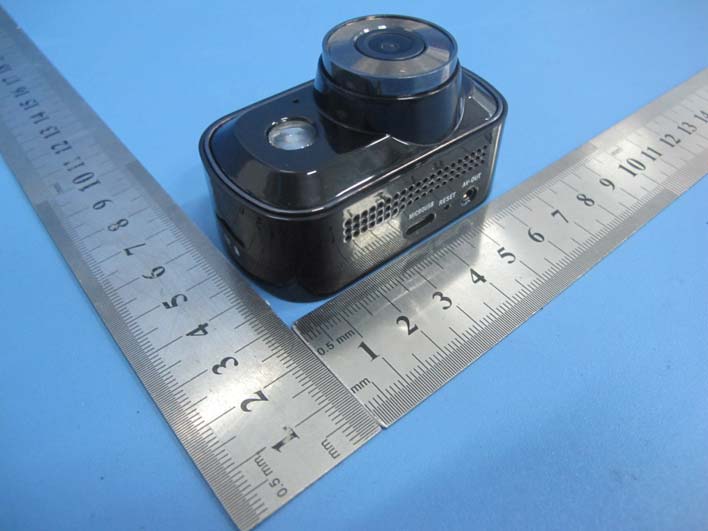

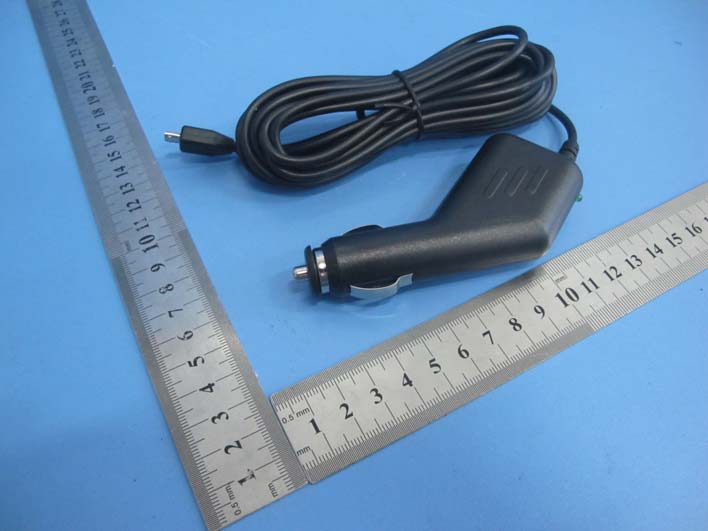

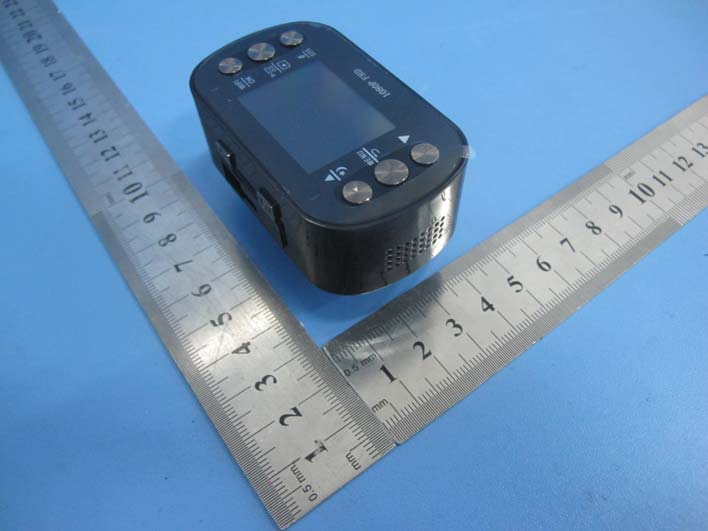

Report No.: TB-FCC144239 Page: 3 of 12 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No.: TB-FCC144239 Page: 4 of 12 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT

Report No.: TB-FCC144239 Page: 1 of 12 TB-RF-074-1.0 Appendix IFCC ID Label FCC ID : 2AEUS-A07 Action camera Shenzhen Sunshine Technology Development Co.,Ltd This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Model: A07

Report No.: TB-FCC144239 Page: 2 of 12 TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

Report No.: TB-FCC144239 Page: 5 of 12 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 5 Internal of EUT Photo 6 Internal of EUT Report No.: TB-FCC144239 Page: 6 of 12 TB-RF-075-1.0 Photo 7 Internal of EUT Photo 8 Appearance of PCB Report No.: TB-FCC144239 Page: 7 of 12 TB-RF-075-1.0 Photo 9 Appearance of PCB Photo 10 Appearance of PCB Report No.: TB-FCC144239 Page: 8 of 12 TB-RF-075-1.0 Photo 11 Appearance of PCB Photo 12 Appearance of PCB 2.4G Antenna Report No.: TB-FCC144239 Page: 9 of 12 TB-RF-075-1.0 Photo 13 Appearance of PCB Photo 14 Appearance of PCB Report No.: TB-FCC144239 Page: 10 of 12 TB-RF-075-1.0 Photo 15 Appearance of Screen Photo 16 Appearance of Battery

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE144240 Page: 1 of 3 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2AEUS-A07 1. Client Information Applicant : Shenzhen Sunshine Technology Development Co.,Ltd Address : 4/F, block 4, HongHuaLing Industrial Park(zone 2), Taoyuan street, Xili, Nanshan District, Shenzhen, China Manufacturer : Shenzhen Sunshine Technology Development Co.,Ltd Address : 4/F, block 4, HongHuaLing Industrial Park(zone 2), Taoyuan street, Xili, Nanshan District, Shenzhen, China 2. General Description of EUT EUT Name : Action camera Models No. : A07, A01, A04, A05, A06, A07B, A07C Model Difference : All models are identical in the same PCB layout, interior structure and electrical circuits, the only difference is model name for commercial purpose. Product Description : Operation Frequency: 802.11b/g/n(HT20): 2412MHz~2462MHz 802.11n(HT40): 2422MHz~2452MHz Number of Channel: 802.11b/g/n(HT20):11 channels see note(3) 802.11n(HT40): 7 channels see note(3) Max Peak Output Power: 802.11b: 9.27 dBm 802.11g: 9.09 dBm 802.11n (HT20): 8.85 dBm 802.11n (HT40): 9.08 dBm Antenna Gain: 2 dBi (FPC Antenna) Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g: OFDM 802.11n: OFDM Power Supply : DC power supplied by Car Charger. DC power by Li-ion Battery. Power Rating : Input: DC 12V~24V. Output: 5V, 1A. DC 3.7V 700mAh Li-ion Battery. Connecting I/O Port(S) : Please refer to the User's Manual Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE144240 Page: 2 of 3 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v05r02. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR Report No.: TB-MPE144240 Page: 3 of 3 TB-RF-074-1.0 2. Calculation: Test separation: 5mm WiFi Mode(802.11b) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.412 9.08 2 ±0.5 9.08 2.820 3.0 2.437 9.13 2 ±0.5 9.18 2.867 3.0 2.462 9.27 2 ±0.5 9.48 2.976 3.0 WiFi Mode(802.11g) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.412 9.04 2 ±0.5 8.99 2.794 3.0 2.437 9.09 2 ±0.5 9.10 2.841 3.0 2.462 9.06 2 ±0.5 9.04 2.836 3.0 WiFi Mode(802.11n(HT20)) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.412 8.51 2 ±0.5 7.96 2.473 3.0 2.437 8.77 2 ±0.5 8.45 2.639 3.0 2.462 8.85 2 ±0.5 8.61 2.702 3.0 WiFi Mode(802.11n(HT40)) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.422 9.00 2 ±0.5 8.913 2.774 3.0 2.437 8.97 2 ±0.5 8.851 2.763 3.0 2.452 9.08 2 ±0.5 9.078 2.843 3.0 So standalone SAR measurements are not required.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC144239 Page: 1 of 91 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2AEUS-A07 Original Grant Report No. : TB-FCC144239 Applicant : Shenzhen Sunshine Technology Development Co.,Ltd Equipment Under Test (EUT) EUT Name : Action camera Model No. : A07 Serial No. : A01, A04, A05, A06, A07B, A07C Receipt Date : 2015-05-18 Test Date : 2015-05-19 to 2015-09-13 Issue Date : 2015-09-15 Standards : FCC Part 15, Subpart C (15.247:2014) Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC and IC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC144239 Page: 2 of 91 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 5 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting ................................................................................ 7 1.7 Measurement Uncertainty .................................................................................................. 7 1.7 Test Facility ........................................................................................................................... 8 2. TEST SUMMARY ....................................................................................................................... 9 3. TEST EQUIPMENT .................................................................................................................. 10 4. CONDUCTED EMISSION TEST ........................................................................................... 11 4.1 Test Standard and Limit .................................................................................................... 11 4.2 Test Setup ........................................................................................................................... 11 4.3 Test Procedure ................................................................................................................... 11 4.4 EUT Operating Mode ........................................................................................................ 12 4.5 Test Data ............................................................................................................................. 12 5. RADIATED EMISSION TEST ................................................................................................ 17 5.1 Test Standard and Limit .................................................................................................... 17 5.2 Test Setup ........................................................................................................................... 18 5.3 Test Procedure ................................................................................................................... 19 5.4 EUT Operating Condition ................................................................................................. 20 5.5 Test Data ............................................................................................................................. 20 6. RESTRICTED BANDS REQUIREMENT ............................................................................. 49 6.1 Test Standard and Limit .................................................................................................... 49 6.2 Test Setup ........................................................................................................................... 49 6.3 Test Procedure ................................................................................................................... 49 6.4 EUT Operating Condition ................................................................................................. 50 6.5 Test Data ............................................................................................................................. 50 7. BANDWIDTH TEST ................................................................................................................. 71 7.1 Test Standard and Limit .................................................................................................... 71 7.2 Test Setup ........................................................................................................................... 71 7.3 Test Procedure ................................................................................................................... 71 7.4 EUT Operating Condition ................................................................................................. 71 7.5 Test Data ....................................................................................................…

Text truncated - open the document above for the full version.

Report No.: TB-FCC144239 Page: 11 of 12 TB-RF-075-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz) Report No.: TB-FCC144239 Page: 12 of 12 TB-RF-075-1.0 Photo of Setup for Conducted Emission
