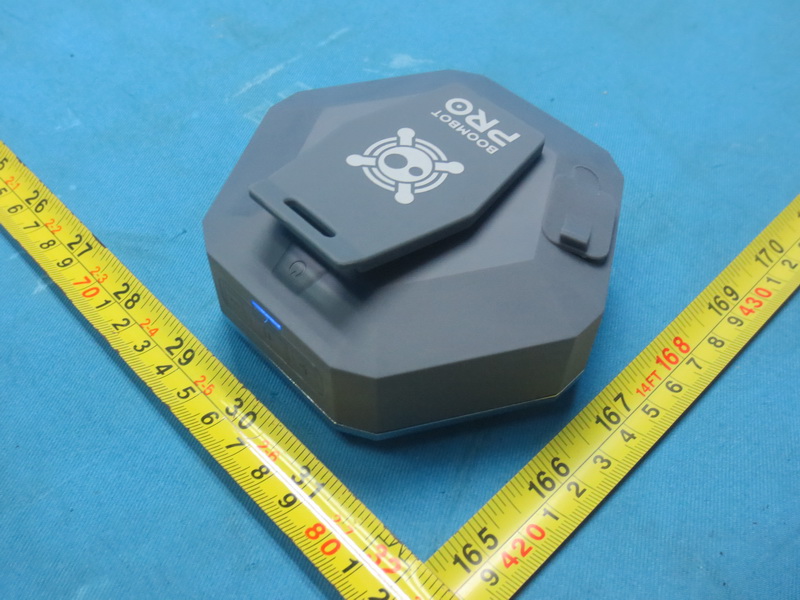

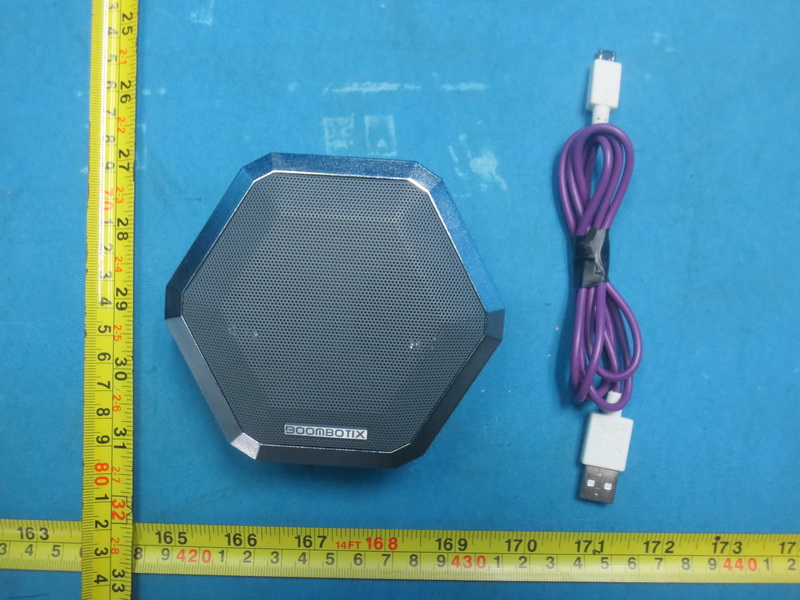

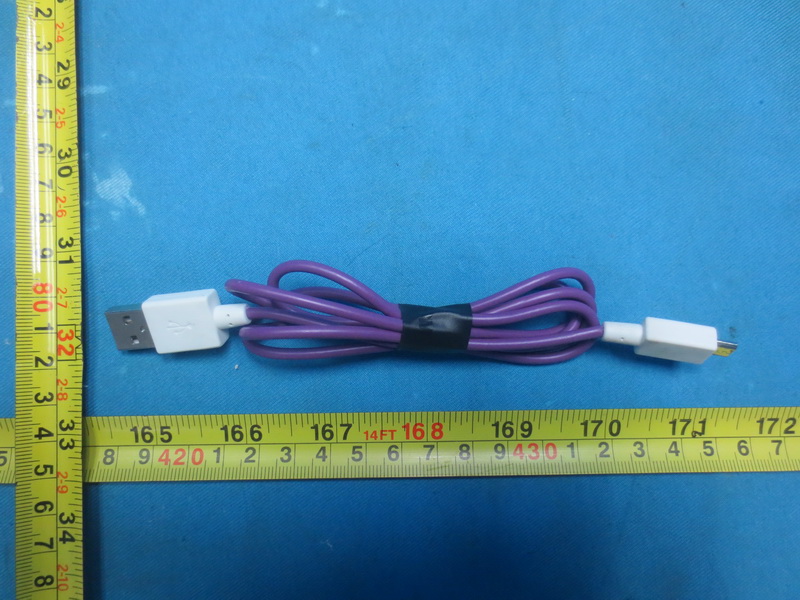

2AEZY-BOOMBOTPRO-01WIRELESS SPEAKER

USER GUIDE 1. BOOMBOT ANATOMY 2. GETTING STARTED 4. AUDIO CONTROLS 3. BLUETOOTH PAIRING 5. SPEAKERPHONE 6. FLASH MEMORY 7. SPECIFICATIONS 8. TROUBLESHOOTING 9. WARRANTY CONTENTS VOLUME +VOLUME - P L AY/ PAU S E COMMAND 2 x 40mm DRIVERS MICROPHONEPOWER BUTTON HIP CLIP REMOVABLE GRILL WATERPROOF DOOR INDICATOR LED BOOMBOT ANATOMY G E T T I N G S TA RT E D FULLY CHARGE YOUR BOOMBOT PRO BEFORE USE WITH INCLUDED MICRO USB CABLE PULSING ORANGE - CHARGING SOLID ORANGE - FULLY CHARGED BLINKING RED - LOW BATTERY FULL CHARGE IS REACHED IN 1.5 - 3 HOURS BATTERY LIFE TYPICALLY RANGES FROM 2.5 - 16 HOURS, 8 HOURS OF PLAYBACK AT 70% VOLUME YOUR BOOMBOT PRO IS NOT WATERPROOF WHILE CHARGING, IT IS ONLY WATERPROOF WITH THE REAR DOOR CLOSED INDICATOR LED CHARGING PORT BLUETOOTH PAIRING YOUR BOOMBOT PRO CONNECTS EASILY WITH YOUR BLUETOOTH DEVICE 1. POWER ON BOOMBOT PRO INDICATED BY A BLINKING BLUE LED 2. SELECT BOOMBOT PRO ON YOUR BLUETOOTH DEVICE’S DISCOVERABLE DEVICE LIST 3. BOOMBOT PRO WILL CHIME WITH A PAIRING ALERT AND A SOLID BLUE LED YOUR BOOMBOT PRO WILL AUTOMATICALLY BE PAIRED TO THE MOST RECENTLY CONNECTED DEVICE TO DISCONNECT YOUR BOOMBOT PRO, HOLD BOTH VOLUME BUTTONS (+ AND -) SIMULTANEOUSLY FOR 2 SECONDS TO RESET BLUETOOTH CONNECTION, HOLD BOTH VOLUME BUTTONS (+ AND -) SIMULTANEOUSLY FOR 2 SECONDS HOLD (2 SECONDS) HOLD HOLD AUDIO CONTROLS YOUR BOOMBOT PRO IS BUILT FOR OPTIMAL AUDIO QUALITY WITH THE SPEAKER CLIPPED ON OR SEATED WITH BUTTONS FACING UPWARD PLAY - PRESS COMMAND PAUSE - PRESS COMMAND PREVIOUS TRACK - PRESS COMMAND X 3 NEXT TRACK - PRESS COMMAND X 2 VOLUME DOWN - PRESS VOLUME DOWN VOLUME UP - PRESS VOLUME UP VOLUME CONTROLS RAMP IN SPEED WHEN HELD DOWN -OR-HOLDHOLD SPEAKERPHONE THE BUILT IN MICROPHONE TURNS YOUR BOOMBOT PRO INTO A WIRELESS SPEAKERPHONE FOR BEST RESULTS, SPEAK WITHIN 3 FEET OF THE FRONT OF THE SPEAKER ANSWER CALL - PRESS COMMAND END CALL - HOLD COMMAND IGNORE CALL - PRESS A VOLUME BUTTON SPEAKERPHONE CONTROLS ARE ENABLED WHEN RECEIVING A CALL -OR- SIRI / GOOGLE VOICE YOUR BOOMBOT PRO CAN UTILIZE SIRI OR GOOGLE VOICE ASSISTANT WHILE CONNECTED TO A BLUETOOTH DEVICE OR SMARTPHONE HOLD OPEN ASSISTANT - HOLD COMMAND HOLD CLOSE ASSISTANT - HOLD COMMAND HOLD FLASH MEMORY YOUR BOOMBOT PRO INCLUDES AN ON-BOARD, 2GB OF FLASH MEMORY, CAPABLE OF STORING UP TO 250 TRACKS FOR FLASH MEMORY PLAYBACK, DOUBLE TAP POWER BUTTON WHEN DEVICE IS IN STANDARD BLUETOOTH MODE - THIS WILL BE INDICATED BY A SOLID PURPLE LED POWER BUTTON ONCE IN FLASH MEMORY PLAYBACK MODE, REFER TO AUDIO CONTROLS FOR PLAYBACK FOR FLASH MEMORY SHUFFLE PLAYBACK, SINGLE TAP POWER BUTTON WHILE IN FLASH MEMORY MODE - THIS WILL BE INDICATED BY A SOLID GREEN LED MODIFY FLASH MEMORY TO CHANGE CONTENT STORED ON YOUR BOOMBOT PRO, CONNECT TO A LAPTOP OR COMPUTER WITH INCLUDED USB CABLE 1. POWER ON BOOMBOT PRO, THEN DOUBLE TAP POWER BUTTON 2. BOOMBOT PRO WILL MOUNT AS A DRIVE, INDICATED BY A SOLID WHITE LED 3. DRAG AND DROP MP3 OR MP4 AUDIO FILES ON TO BOOMBOT DRIVE NOTE: ON MAC OSX, AFTER REMOVING THE CONTENT FROM THE BOOMBOT DRIVE IT IS NECESSARY TO EMPTY TRASH TO REMOVE THE FILES SPECIFICATIONS 8 HOURS OF CONTINUOUS PLAYPLAY TIME 2GB (UP TO 250 TRACKS), STANDARD PLAYBACK OR SHUFFLE FLASH DRIVE PRO-TUNED 40mm 4W DUAL COIL ACOUSTIC DRIVERS WITH PROGRESSIVE DSP TUNING AUDIO UP TO 14 DAYSSTANDBY TIME 232g/ 8.2ozWEIGHT 105mm L x 49mm W x 95mm HDIMENSIONS INPUT: BLUETOOTH WIRELESS OUTPUT: N/A STEREO INFORMATION BLUETOOTH-ENABLED DEVICES INCLUDING iPHONE, iPAD, iPOD TOUCH, ANDROID SMARTPHONES AND TABLETS, AND MOST MAC OR PC COMPUTERS DEVICE COMPATIBILITY IPX7 WATER RESISTANT TO 3 METERS SUBMERSION INGRESS PROTECTION ACCEPT CALLS WHILE IN PLAY MODEMULTI-POINT TECHNOLOGY PROFILES: ADVANCED AUDIO DISTRIBUTION PROFILE(A 2DP) 1 . 2, HANDS-FREE PROFILE(HFP) 1.5, HEADSET PROFILE(HSP) 1.1, 100-FOOT RANGE BLUETOOTH 4.0 SIRI AND GOOGLE VOICE COMPATIBLEMIC CONTROL FUNCTIONS RECHARGEABLE, NON-REPLACEABLE LITHIUM POLYMER BATTERY TYPE/CAPACITY DISPLAYED ON HANDSET, AUTOMATICALLY SHUTS DOWN AFTER 5 MINUTES OF INACTIVITY OR UNPAIRED BATTERY STATUS MICRO USB (CABLE INCLUDED)CHARGE CONNECTOR PORT LESS THAN 100 MINUTES FOR FULL CHARGECHARGE TIME (MAXIMUM) 1-YEAR LIMITED WARRANTY BARRING SALT WATER WARRANTY AND SERVICE TROUBLESHOOTING DOUBLE TAP THE POWER BUTTON (WHITE LED) AND MAKE SURE THE USB CABLE IS SECURELY CONNECTED TO YOUR DEVICE BOOMBOT DRIVE NOT SHOWING UP ON COMPUTER TURN UNIT ON AND OFF AND RESET BLUETOOTH BY HOLDING + AND - DELETE ADDITIONAL BLUETOOTH DEVICES FROM BLUETOOTH SETTINGS DEVICE NOT PAIRING CHECK MUSIC SOURCE AND INTERNET/DATAMUSIC NOT PLAYING MAKE SURE FILE FORMAT IS MP3 OR MP4 AND LESS THAN 2GB IN SIZE MUSIC NOT LOADING ONTO FLASH STORAGE CONFIRM MICRO USB CABLE IS SEATED PROPERLY IN PORT AND DEVICE HAS APPROPRIATE POWER INPUT DEVICE NOT CHARGING FOR ADDITIONAL SUPPORT HEAD OVER TO BOOMBOTIX.COM/SUPPORT BE SURE USER VOICE INPUT IS WITHIN 3 FEET OF THE FRONT OF PRO SPEAKER MICROPHONE INPUT UNCLEAR WARRANTY Boombotix warrants to the original retail purchaser of this Boombotix portable speaker that should this product or any part thereof during normal consumer usage and conditions, be proven defective in material or workmanship that results in product failure within the first twelve (12) month period from the date of purchase, such defect(s) will be repaired or replaced (with new or rebuilt parts) at the Company’s option, without charge for parts or labor directly related to the defect(s). The antenna, keypad, display, rechargeable battery and battery charger, if included, are similarly warranted for twelve (12) months from date of purchase. This Warranty is not transferable or assignable. This Warranty does not apply to: (a) Product subjected to abnormal use or conditions, accident, mishandling, neglect, unauthorized alteration, misuse, improper installation or repair or improper storage; (b) Product whose mechanical serial number or electronic serial number has been removed, altered or defaced; (c) Damage from excessive exp…

Text truncated - open the document above for the full version.

Project No.: 1505C067 Page 2 of 12 Project No.: 1505C067 Page 3 of 12 Project No.: 1505C067 Page 4 of 12

FCC ID：2AEZY-BOOMBOTPRO-01

Project No.: 1505C067 Page 5 of 14 Project No.: 1505C067 Page 6 of 14 Project No.: 1505C067 Page 7 of 14 Project No.: 1505C067 Page 8 of 14 Project No.: 1505C067 Page 9 of 14 Project No.: 1505C067 Page 10 of 14 Project No.: 1505C067 Page 11 of 14 Project No.: 1505C067 Page 12 of 14 Project No.: 1505C067 Page 13 of 14 Project No.: 1505C067 Page 14 of 14

Report No.: BTL-FCCP-1-1505C067 Page 1 of 110 FCC Radio Test Report FCC ID: 2AEZY-BOOMBOTPRO-01 This report concerns (check one): Original Grant Class II Change Project No. : 1505C067 Equipment : WIRELESS SPEAKER Model Name : BOOMBOX PRO, BOOMBOT PRO-01, BOOMBOT PRO-XX-01 (“X” means A to Z, denote as color) Applicant : BOOMBOTIX, INC. Address : 1501 Mariposa St. Suite 412 , FRANCISCO CA 94107 Date of Receipt : May. 22, 2015 Date of Test : May. 22, 2015 ~ Jun. 02, 2015 Issued Date : Jun. 03, 2015 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FCCP-1-1505C067 Page 2 of 110 Declaration BTL represents to the client t hat testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo i s limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-1-1505C067 Page 3 of 110 Table of Contents Page 1 . CERTIFICATION 7 2 . SUMMARY OF TEST RESULTS 8 2.1 TEST FACILITY 9 2.2 MEASUREMENT UNCERTAINTY 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 12 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 17 4.2.1 RADIATED EMISSION LIMITS 17 4.2.2 TEST PROCEDURE 18 4.2.3 DEVIATION FROM TEST STANDARD 18 4.2.4 TEST SETUP 19 4.2.5 EUT OPERATING CONDITIONS 20 4.2.6 EUT TEST CONDITIONS 20 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 20 4.2.8 TEST RESULTS (BETWEEN 30MHZ TO 1000 MHZ) 21 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 21 5 . NUMBER OF HOPPING CHANNEL 22 5.1 APPLIED PROCEDURES 22 5.1.1 TEST PROCEDURE 22 5.1.2 DEVIATION FROM STANDARD 22 5.1.3 TEST SETUP 22 5.1.4 EUT OPERATION CONDITIONS 22 5.1.5 EUT TEST CONDITIONS 22 5.1.6 TEST RESULTS 22 Report No.: BTL-FCCP-1-1505C067 Page 4 of 110 Table of Contents Page 6 . AVERAGE TIME OF OCCUPANCY 23 6.1 APPLIED PROCEDURES / LIMIT 23 6.1.1 TEST PROCEDURE 23 6.1.2 DEVIATION FROM STANDARD 23 6.1.3 TEST SETUP 23 6.1.4 EUT OPERATION CONDITIONS 24 6.1.5 EUT TEST CONDITIONS 24 6.1.6 TEST RESULTS 24 7 . HOPPING CHANNEL SEPARATION MEASUREMENT 25 7.1 APPLIED PROCEDURES / LIMIT 25 7.1.1 TEST PROCEDURE 25 7.1.2 DEVIATION FROM STANDARD 25 7.1.3 TEST SETUP 25 7.1.4 EUT TEST CONDITIONS 25 7.1.5 TEST RESULTS 25 8 . BANDWIDTH TEST 26 8.1 APPLIED PROCEDURES 26 8.1.1 TEST PROCEDURE 26 8.1.2 DEVIATION FROM STANDARD 26 8.1.3 TEST SETUP 26 8.1.4 EUT OPERATION CONDITIONS 26 8.1.5 EUT TEST CONDITIONS 26 8.1.6 TEST RESULTS 26 9 . PEAK OUTPUT POWER TEST 27 9.1 APPLIED PROCEDURES / LIMIT 27 9.1.1 TEST PROCEDURE 27 9.1.2 DEVIATION FROM STANDARD 27 9.1.3 TEST SETUP 27 9.1.4 EUT OPERATION CONDITIONS 27 9.1.5 EUT TEST CONDITIONS 27 9.1.6 TEST RESULTS 27 10 . ANTENNA CONDUCTED SPURIOUS EMISSION 28 10.1 APPLIED PROCEDURES / LIMIT 28 10.1.1 TEST PROCEDURE 28 10.1.2 DEVIATION FROM STANDARD 28 10.1.3 TEST SETUP 28 10.1.4 EUT OPERATION CONDITIONS 28 10.1.5 EUT TEST CONDITIONS 28 10.1.6 TEST RESULTS 28 11 . MEASUREMENT INSTRUMENTS LIST 29 Report No.: BTL-FCCP-1-1505C067 Page 5 of 110 Table of Contents Page 12 . EUT TEST PHOTO 31 ATTACHMENT A - CONDUCTED EMISSION 35 ATTACHMENT B - RADIATED EMISSION (9KHZ-30MHZ) 38 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 40 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 47 ATTACHMENT E - NUMBER OF HOPPING CHANNEL 72 ATTACHMENT F - AVERAGE TIME OF OCCUPANCY 74 ATTACHMENT G - HOPPING CHANNEL SEPARATION MEASUREMENT 87 ATTACHMENT H - BANDWIDTH 92 ATTACHMENT I - PEAK OUTPUT POWER 97 ATTACHMENT J - ANTENNA CONDUCTED SPURIOUS EMISSION 102 Report No.: BTL-FCCP-1-1505C067 Page 6 of 110 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-1-1505C067 Original Issue. Jun. 03, 2015 Report No.: BTL-FCCP-1-1505C067 Page 7 of 110 1. CERTIFICATION Equipment : WIRELESS SPEAKER Brand Name : BOOMBOTIX Model Name : BOOMBOX PRO, BOOMBOT PRO-01, BOOMBOT PRO-XX-01 (“X” means A to Z, denote as color) Applicant BOOMBOTIX, INC. Manufacturer : BOOMBOTIX, INC. Address : 1501 Mariposa St. Suite 412 , FRANCISCO CA 94107 Factory : Universal Telecom Technology (Shenzhen) Co., Ltd. Address : San Lian Industry Zone, Shi Yan Town, Bao An District, Shenzhen, China Date of Test : May. 22, 2015 ~ Jun. 02, 2015 Test Sample : ENGINEERING SAM…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-1505C067 Page 30 of 109 12. EUT TEST PHOTO Conducted Measurement Photos Report No.: BTL-FCCP-1-1505C067 Page 31 of 109 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FCCP-1-1505C067 Page 32 of 109 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FCCP-1-1505C067 Page 33 of 109 Radiated Measurement Photos Above 1000MHz
