2AEZYREXPortable Speaker

USER GUIDE CONTENTS 1. BOOMBOT ANATOMY 2. GETTING STARTED 4. AUDIO CONTROLS 3. BLUETOOTH PAIRING 5. SPEAKERPHONE 6. SPECIFICATIONS 7. TROUBLESHOOTING 8. WARRANTY BOOMBOT ANATOMY VOLUME +VOLUME - P L AY/ PAU S E COMMAND 2 x 36mm DRIVERS MICROPHONE HIP CLIP REMOVABLE GRILL INDICATOR LED POWER ON/OFF WATER RESISTANT DOOR G E T T I N G S TA RT E D FULLY CHARGE YOUR BOOMBOT REX BEFORE USE WITH INCLUDED MICRO USB CABLE PULSING ORANGE - CHARGING SOLID ORANGE - FULLY CHARGED BLINKING RED - LOW BATTERY FULL CHARGE IS REACHED IN 1.5 - 3 HOURS BATTERY LIFE TYPICALLY RANGES FROM 2.5 - 16 HOURS, 8 HOURS OF PLAYBACK AT 70% VOLUME YOUR BOOMBOT REX IS NOT WATER RESISTANT WHILE CHARGING, IT IS ONLY WATER RESISTANT WITH THE REAR DOOR CLOSED INDICATOR LED CHARGING PORT BLUETOOTH PAIRING YOUR BOOMBOT REX CONNECTS EASILY WITH YOUR BLUETOOTH DEVICE 1. POWER ON BOOMBOT REX INDICATED BY A BLINKING BLUE LED 2. SELECT BOOMBOT REX ON YOUR BLUETOOTH DEVICE’S DISCOVERABLE DEVICE LIST 3. BOOMBOT REX WILL CHIME WITH A PAIRING ALERT AND A SOLID BLUE LED YOUR BOOMBOT REX WILL AUTOMATICALLY BE PAIRED TO THE MOST RECENTLY CONNECTED DEVICE TO DISCONNECT YOUR BOOMBOT REX, HOLD BOTH VOLUME BUTTONS (+ AND -) SIMULTANEOUSLY FOR 2 SECONDS TO RESET BLUETOOTH CONNECTION, HOLD BOTH VOLUME BUTTONS (+ AND -) SIMULTANEOUSLY FOR 2 SECONDS HOLD (2 SECONDS) HOLD HOLD AUDIO CONTROLS YOUR BOOMBOT REX IS BUILT FOR OPTIMAL AUDIO QUALITY WITH THE SPEAKER CLIPPED ON OR SEATED WITH BUTTONS FACING UPWARD PLAY - PRESS COMMAND PAUSE - PRESS COMMAND NEXT TRACK - PRESS COMMAND X 2 VOLUME DOWN - PRESS VOLUME DOWN VOLUME UP - PRESS VOLUME UP VOLUME CONTROLS RAMP IN SPEED WHEN HELD DOWN -OR-HOLDHOLD SPEAKERPHONE THE BUILT IN MICROPHONE TURNS YOUR BOOMBOT PRO INTO A WIRELESS SPEAKERPHONE FOR BEST RESULTS, SPEAK WITHIN 3 FEET OF THE FRONT OF THE SPEAKER ANSWER CALL - PRESS COMMAND END CALL - HOLD COMMAND IGNORE CALL - PRESS A VOLUME BUTTON SPEAKERPHONE CONTROLS ARE ENABLED WHEN RECEIVING A CALL -OR- HOLD SPECIFICATIONS 8 HOURS OF CONTINUOUS PLAYPLAY TIME PROPRIETARY DUAL 36MM 3W ACOUSTIC DRIVER + PASSIVE BASS WOOFER AUDIO UP TO 14 DAYSSTANDBY TIME 180g/ 6.3ozWEIGHT 90mm L x 51mm W x 85mm HDIMENSIONS INPUT: BLUETOOTH WIRELESS OUTPUT: 3.5mm JACK FOR DAISY CHAIN +BLUETOOTH RECEIVER FUNCTIONALITY STEREO INFORMATION BLUETOOTH-ENABLED DEVICES INCLUDING iPHONE, iPAD, iPOD TOUCH, ANDROID SMARTPHONES AND TABLETS, AND MOST MAC OR PC COMPUTERS DEVICE COMPATIBILITY IPX4 WATER RESISTANT INGRESS PROTECTION ACCEPT CALLS WHILE IN PLAY MODEMULTI-POINT TECHNOLOGY PROFILES: ADVANCED AUDIO DISTRIBUTION PROFILE(A 2DP) 1 . 2, HANDS-FREE PROFILE(HFP) 1.5, HEADSET PROFILE(HSP) 1.1, 100-FOOT RANGE BLUETOOTH 2.1 SPEAKERPHONE TO ANSWER, END, OR DENY PHONE CALLS MIC CONTROL FUNCTIONS RECHARGEABLE, NON-REPLACEABLE LITHIUM POLYMER BATTERY TYPE/CAPACITY DISPLAYED ON HANDSET, AUTOMATICALLY SHUTS DOWN AFTER 5 MINUTES OF INACTIVITY OR UNPAIRED BATTERY STATUS MICRO USB (CABLE INCLUDED)CHARGE CONNECTOR PORT LESS THAN 100 MINUTES FOR FULL CHARGECHARGE TIME (MAXIMUM) 1-YEAR LIMITED WARRANTY WARRANTY AND SERVICE TROUBLESHOOTING BE SURE USER VOICE INPUT IS WITHIN 3 FEET OF THE FRONT OF REX SPEAKER MICROPHONE INPUT UNCLEAR CHECK MUSIC SOURCE AND INTERNET/DATAMUSIC NOT PLAYING CONFIRM MICRO USB CABLE IS SEATED PROPERLY IN PORT AND DEVICE HAS APPROPRIATE POWER INPUT DEVICE NOT CHARGING FOR ADDITIONAL SUPPORT HEAD OVER TO BOOMBOTIX.COM/SUPPORT TURN UNIT ON AND OFF AND RESET BLUETOOTH BY HOLDING + AND - DELETE ADDITIONAL BLUETOOTH DEVICES FROM BLUETOOTH SETTINGS DEVICE NOT PAIRING WARRANTY Boombotix warrants to the original retail purchaser of this Boombotix portable speaker that should this product or any part thereof during normal consumer usage and conditions, be proven defective in material or workmanship that results in product failure within the first twelve (12) month period from the date of purchase, such defect(s) will be repaired or replaced (with new or rebuilt parts) at the Company’s option, without charge for parts or labor directly related to the defect(s). The antenna, keypad, display, rechargeable battery and battery charger, if included, are similarly warranted for twelve (12) months from date of purchase. This Warranty is not transferable or assignable. This Warranty does not apply to: (a) Product subjected to abnormal use or conditions, accident, mishandling, neglect, unauthorized alteration, misuse, improper installation or repair or improper storage; (b) Product whose mechanical serial number or electronic serial number has been removed, altered or defaced; (c) Damage from excessive exposure to moisture, humidity, excessive temperatures or extreme environmental conditions; (d) Damage resulting from connection to, or use of any accessory or other product not approved or authorized by the Company; (e) Defects in appearance, cosmetic, decorative or structural items such as framing and nonoperative parts; (f) Product damaged from external causes such as fire, flooding, dirt, sand, weather conditions, blown fuse, theft or improper usage of any electrical source. (g) Product taken apart without written permission by Boombotix. This includes and is not limited to removing the metal clip or removing the screws holding the casing together. Boombotix reserves the right to inspect any Product subject to a warranty claim to determine, at its sole discretion, whether the claimed defect is a Manufacturing Defect or otherwise. Note that Boombotix regularly changes the models, colorways, and styles of its Products and cannot guarantee the availability of an exact replacement for any Product. BOOMBOTIX DOES NOT ASSUME ANY LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES UNDER THIS LIMITED WARRANTY. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment ge…

Text truncated - open the document above for the full version.

< Boombotix, Inc. > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2015.09.11 Subject; Request for Confidentiality FCC ID: 2AEZYREX To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. • Schematic Diagram • Block Diagram • Operational Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Chris Mckleroy Title: Vice President Email: [email protected]

Boombotix, Inc. Letter of Authorization Company: Boombotix, Inc. Address: 1501 Mariposa St. Ste #412, San Francisco, CA 94107 Product Name: Portable Loudspeaker Model Number: Boombot Rex We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, CA 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. This shall include the following: • Testing • Approval applications (includes complete product documentation package, including Confidential information) and procedures • Payment of approval fees We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, CA 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Chris Mckleroy Date: 2015.09.11 Title: Vice President Signature of applicant:

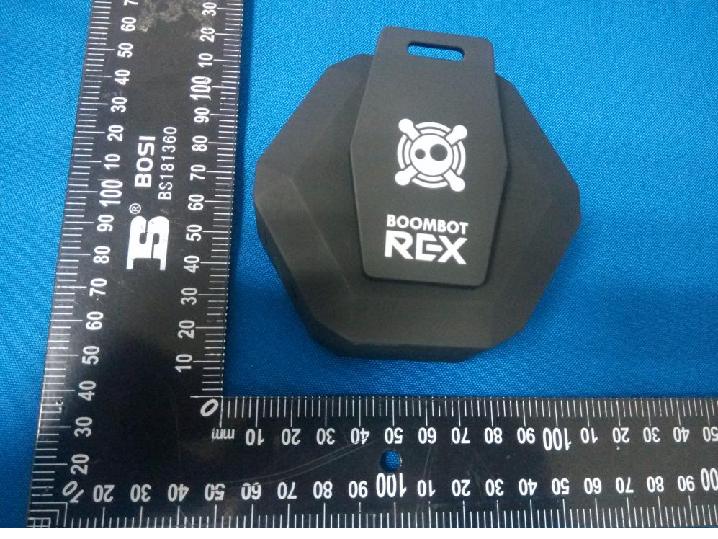

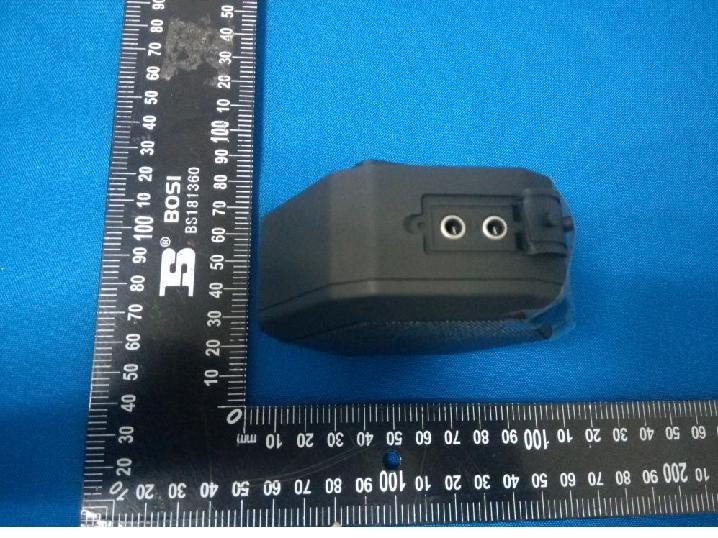

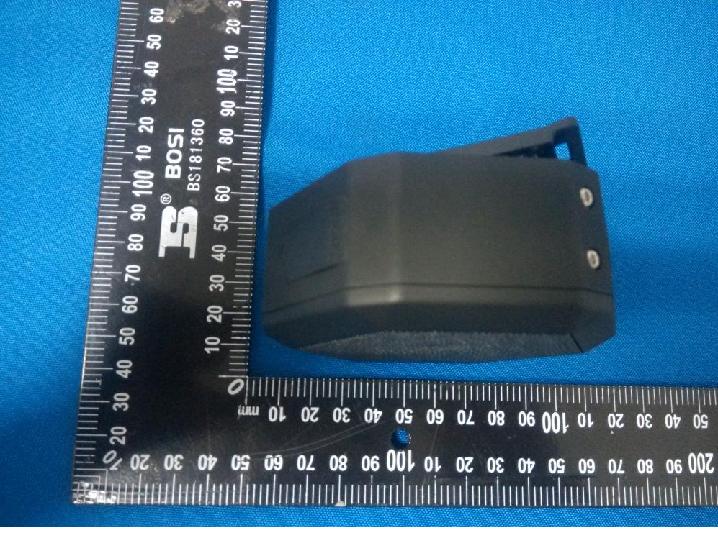

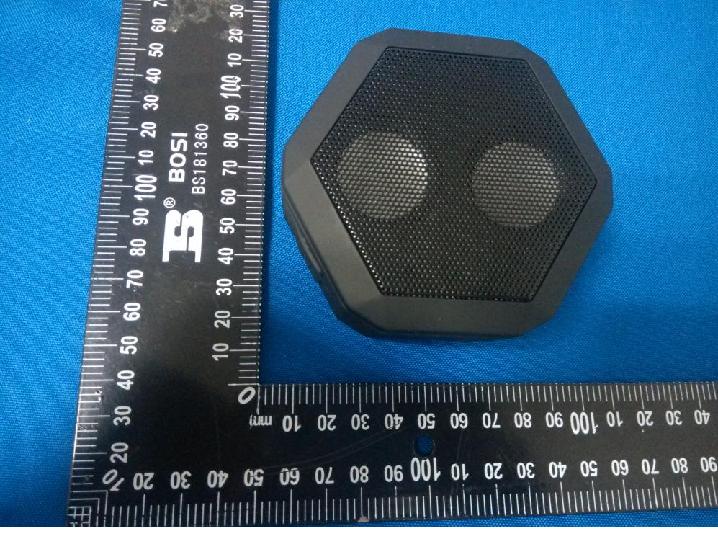

Page1of11 AppendixB: PhotographsofEUT Model:BoombotRex ExternalPhotos Page2of11 Page3of11 Page4of11 Page5of11 Page6of11

FCCLabel: LabelLocation: labellocation 36mm*17mm

Page7of11 Model:BoombotRex InternalPhotos Page8of11 Page9of11 Page10of11 Page11of11

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2AEZYREX Product: Portable Loudspeaker Model No.: Boombot Rex Additional Model: N/A Trade Mark: N/A Report No.: TCT150701E013 Issued Date: July 28, 2015 Issued for : Boombotix, Inc. 1501 Mariposa St. Ste #412, San Francisco, CA 94107 Issued By: Shenzhen Tongce Testing Lab. 1F, Leinuo Watch Building, Fuyong Town, Baoan Dist, Shenzhen, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.:TCT150701E013 Page 2 of 50 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification.................................................................................................3 2. Test Result Summary.........................................................................................4 3. EUT Description ................................................................................................... 5 4. Genera Information.............................................................................................6 4.1. Test environment and mode...........................................................................................6 4.2. Description of Support Units..........................................................................................6 5. Facilities and Accreditations............................................................................7 5.1. Facilities ............................................................................................................................... 7 5.2. Location................................................................................................................................7 5.3. Measurement Uncertainty...............................................................................................7 6. Test Results and Measurement Data.............................................................8 6.1. Antenna requirement ........................................................................................................ 8 6.2. Conducted Emission.........................................................................................................9 6.3. Conducted Output Power..............................................................................................13 6.4. 20dB Occupy Bandwidth...............................................................................................18 6.5. Carrier Frequencies Separation..................................................................................23 6.6. Hopping Channel Number ............................................................................................. 28 6.7. Dwell Time.........................................................................................................................31 6.8. Pseudorandom Frequency Hopping Sequence......................................................34 6.9. Conducted Band Edge Measurement........................................................................35 6.10. Conducted Spurious Emission Measurement.......................................................39 6.11.Radiated Spurious Emission Measurement ............................................................ 43 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.:TCT150701E013 Page 3 of 50 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Portable Loudspeaker Model No.: Boombot Rex Additional Model: N/A Applicant: Boombotix, Inc. Address: 1501 Mariposa St. Ste #412,San Francisco, CA 94107 Manufacturer: Plus Innovations Ltd. Address: 1302 43rd Blvd, Minzhi District, Longhua Zone, SZ 518131, China Date of Test: July 01 –July 27, 2015 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 The above equipment has been tested by Shenzhen Tongce Testing Lab . and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By:Date:July 27, 2015 Neil Wong Reviewed By:Date:July 28, 2015 Joe Zhou Approved By:Date:July 28, 2015 Tomsin Report No.:TCT150701E013 Page 4 of 50 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary RequirementCFR 47 SectionResult Antenna Requirement§15.203/§15.247 (c)PASS AC Power Line Conducted Emission §15.207PASS Conducted Peak Output Power §15.247 (b)(1)PASS 20dB Occupied Bandwidth§15.247 (a)(1)PASS Carrier Frequencies Separation §15.247 (a)(1)PASS Hopping Channel Number§15.247 (a)(1)PASS Dwell Time§15.247 (a)(1)PASS Radiated Emission§15.205/§15.209PASS Band Edge§15.247(d)PASS Note: 1. PASS: Test itemmeets the requirement. 2. Fail: Test itemdoes not meet the requirement. 3. N/A:Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.:TCT150701E013 Page 5 of 50 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product Name: Portable Loudspeaker Model : Boombot Rex Additional Model: N/A Trade Mark: N/A BT Version: V3.0+EDR Operation Frequency: 2402MHz~2480MHz Transfer Rate: 1/2/3 Mbits/s Number of Channel: 79 Modulation Type: GFSK, π/4-DQPSK, 8DPSK Modulation Technology: FHSS Antenna Type:Internal Antenna Antenna Gain:1.0dBi Power Supply:Rechargeable Li-ion Battery DC3.7V Operation…

Text truncated - open the document above for the full version.

Page 1 of 2 AppendixA: PhotographsofTestSetup Model:BoombotRex RadiatedEmission Page 2 of 2 ConductedEmission
