2AF62-AESRZBV2LSKGRZBoard V2L

P age 1 RZBoard V2L Hardware User Guide v1.0 Oct ober 05, 2022 AI-Accel erated RZ/V2L Development Board AES-RZB-V2L-SK-G Page 2 1 Document Control Document Version: 1.0 Document Date: 10/05/2022 Document Author: Peter Fenn Document Classification: Public Document Distribution: Public 2 Version History Version Date Comment 1.0 10/05/2022 Initial public release (Rev 1.2 production PCB) Page 3 Contents 1 Document Control................................................................................................. 2 2 Version History ..................................................................................................... 2 3 Hardware Checklist .............................................................................................. 6 4 Software Checklist ................................................................................................ 6 5 Introduction ........................................................................................................... 7 5.1 RZBoard V2L Info .......................................................................................... 8 5.2 Items Included with RZBoard V2L .................................................................. 8 5.3 Important Reference Documents ................................................................... 8 6 RZBoard V2L Architecture & Features ................................................................. 9 6.1 Features ......................................................................................................... 9 6.2 Block Diagram – Renesas RZ/V2L Processor ............................................. 10 6.3 DRP-AI Accelerator Core ............................................................................. 10 6.4 RZ/V2L Architecture (ACPU bus, MCPU bus, System bus) ......................... 11 6.5 RZBoard V2L Block Diagram ....................................................................... 12 Renesas parts on RZBoard (8 devices) .................................................................... 12 6.6 RZBoard V2L Component Locations (Top) .................................................. 13 6.7 RZBoard V2L BaseBoard Component Locations (Bottom) .......................... 14 6.8 Debug Header, Switches and LEDs ............................................................. 15 6.8.1 Debug UART 4-pin Header (J19)................................................................................ 15 6.8.2 DIP Switches (SW1) and Boot-Mode Selection ........................................................... 15 6.8.3 Push-Button Switches ................................................................................................ 17 6.8.4 Status LEDs ............................................................................................................... 17 6.9 Memory Resources ...................................................................................... 18 6.9.1 eMMC Memory (Partition size and Programming) ....................................................... 18 6.10 Peripheral Devices and Interfaces ............................................................... 19 6.10.1 J1: Pi-HAT compatible 40-pin header ......................................................................... 19 6.10.2 J1: Pinout Comparison with MikroE Pi-2-Click HAT Adapter ....................................... 20 6.10.3 MikroE Click Boards ................................................................................................... 21 6.10.4 Pi HAT Expansion Boards .......................................................................................... 21 6.10.5 J16: SWD/JTAG debugger 10-pin mini-header ........................................................... 21 6.10.6 J3: USB 2.0 OTG Interface ......................................................................................... 22 6.10.7 J6, J20: USB 2.0 Host Interfaces ................................................................................ 22 6.10.8 J1: CAN0 Interface ..................................................................................................... 22 Page 4 6.10.9 J18: CAN1 and ADC[3:0] interfaces (10-pin WTB header) .......................................... 22 6.10.10 J20: USB1 and SSI3 (10-pin WTB header) ................................................................. 23 6.10.11 J13: HDMI Display Output .......................................................................................... 23 6.10.12 J5: MIPI-DSI Display and Touchscreen Interface ........................................................ 24 6.10.13 J4: MIPI-CSI Camera Interface ................................................................................... 25 6.10.14 J7: Gigabit Ethernet RJ45 Interface ............................................................................ 25 6.10.15 Audio Codec .............................................................................................................. 26 6.10.16 J9: Stereo Audio Jack ................................................................................................ 26 6.11 Wireless Connectivity ................................................................................... 27 6.11.1 Wi-Fi SDIO Interface .................................................................................................. 27 6.11.2 BT/BLE UART Interface ............................................................................................. 28 6.11.3 BT PCM Audio Interface ............................................................................................. 28 6.11.4 Wi-Fi / BT antenna ..................................................................................................... 28 6.12 Power Architecture ....................................................................................... 28 6.12.1 Power Input (+5V USB type-C Connector) .................................................................. 28 6.12.2 Power Regulatio…

Text truncated - open the document above for the full version.

Avnet Inc 2211 S 47th St Phoenix Arizona United States Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023-1-6 U.S. Agent Designation Avnet Inc acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2AF62-AESRZBV2LSKG): Name and company of U.S. agent: Avnet Inc Physical U.S. address of agent: 2211 S 47th St Phoenix, AZ 85034, USA FRN of U.S. agent: 0024965477 Email address of U.S. agent: [email protected] Avnet Inc acknowledges their obligation to accept service of process on behalf of Avnet Inc. Avnet Inc with the FRN [0024965477] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Brandon Quintana Director, Advanced Solutions Engineering Avnet Inc Signature Brandon Quintana Director, Advanced Solutions Engineering Avnet Inc 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

FCC ID: 2AF62-AESRZBV2LSKG IC: 21571-AESRZBV2LSK Antenna

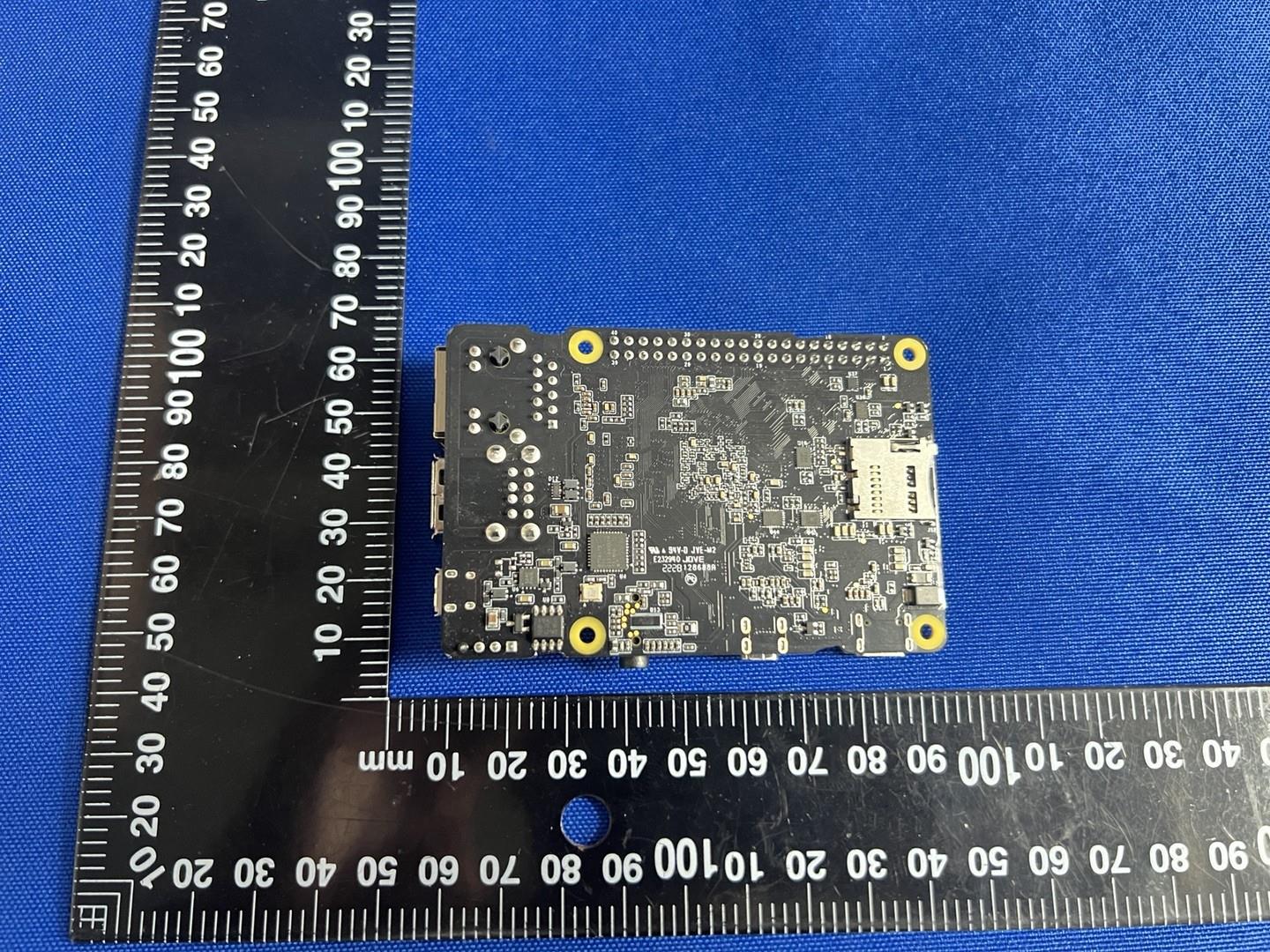

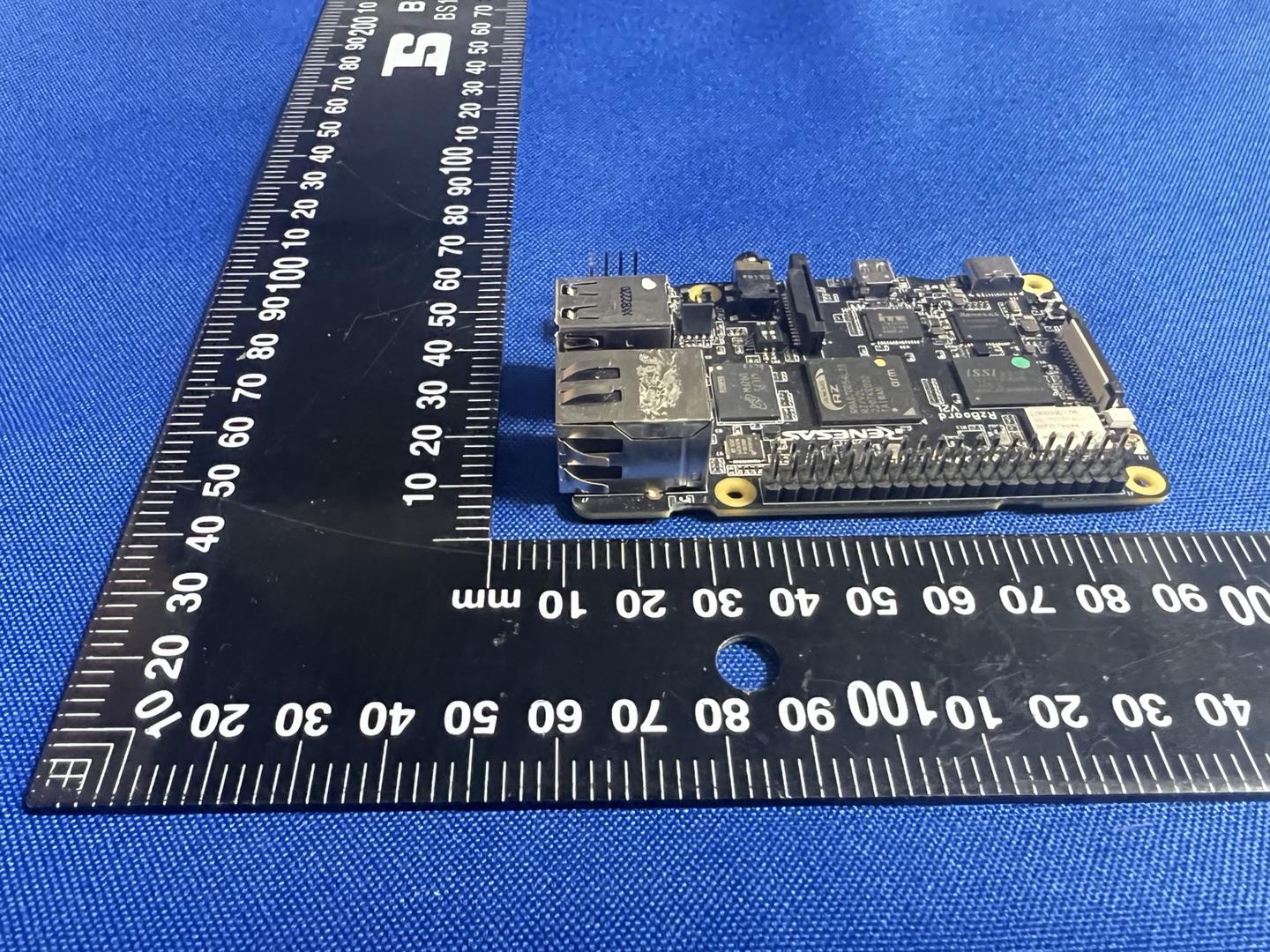

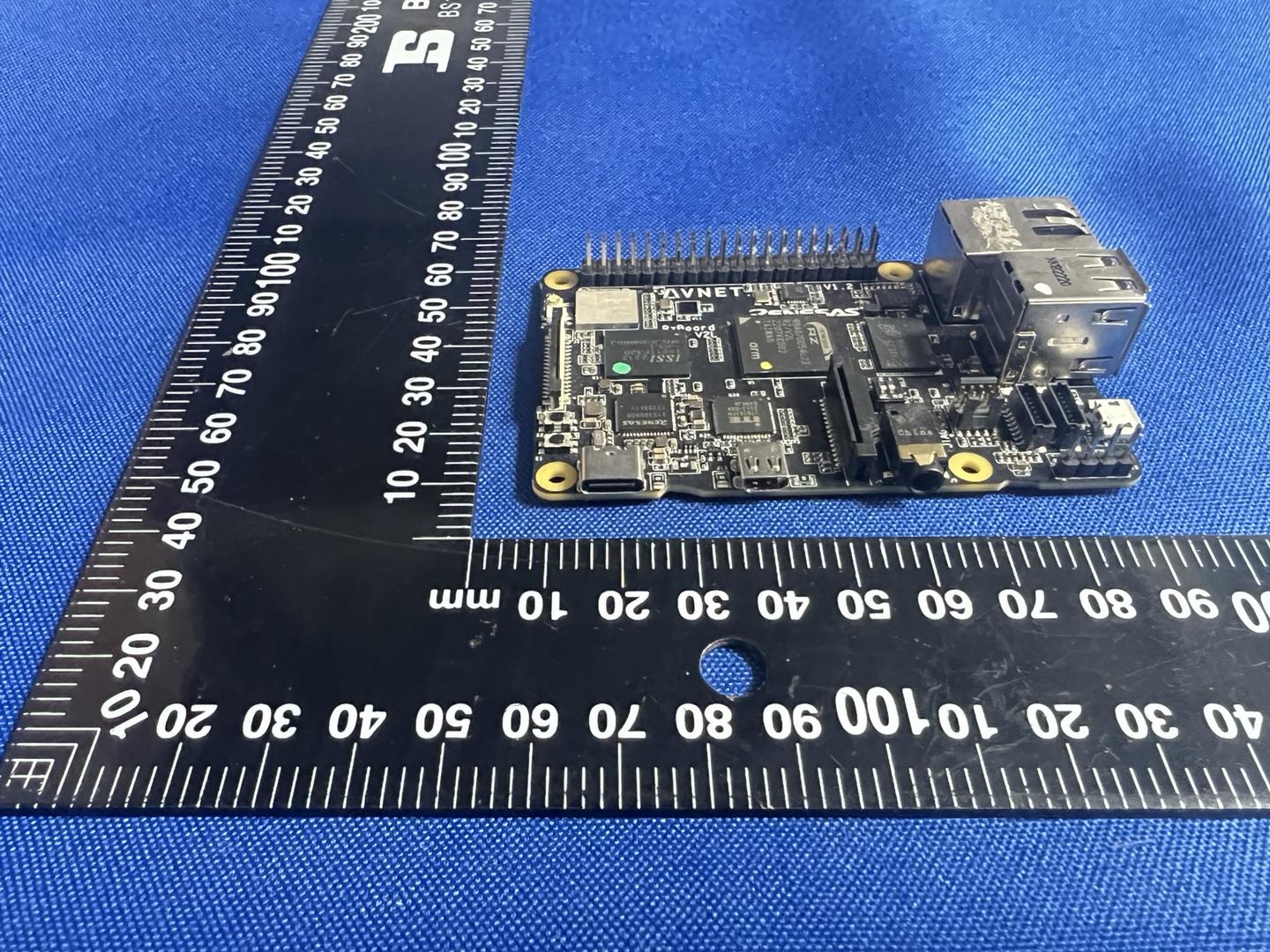

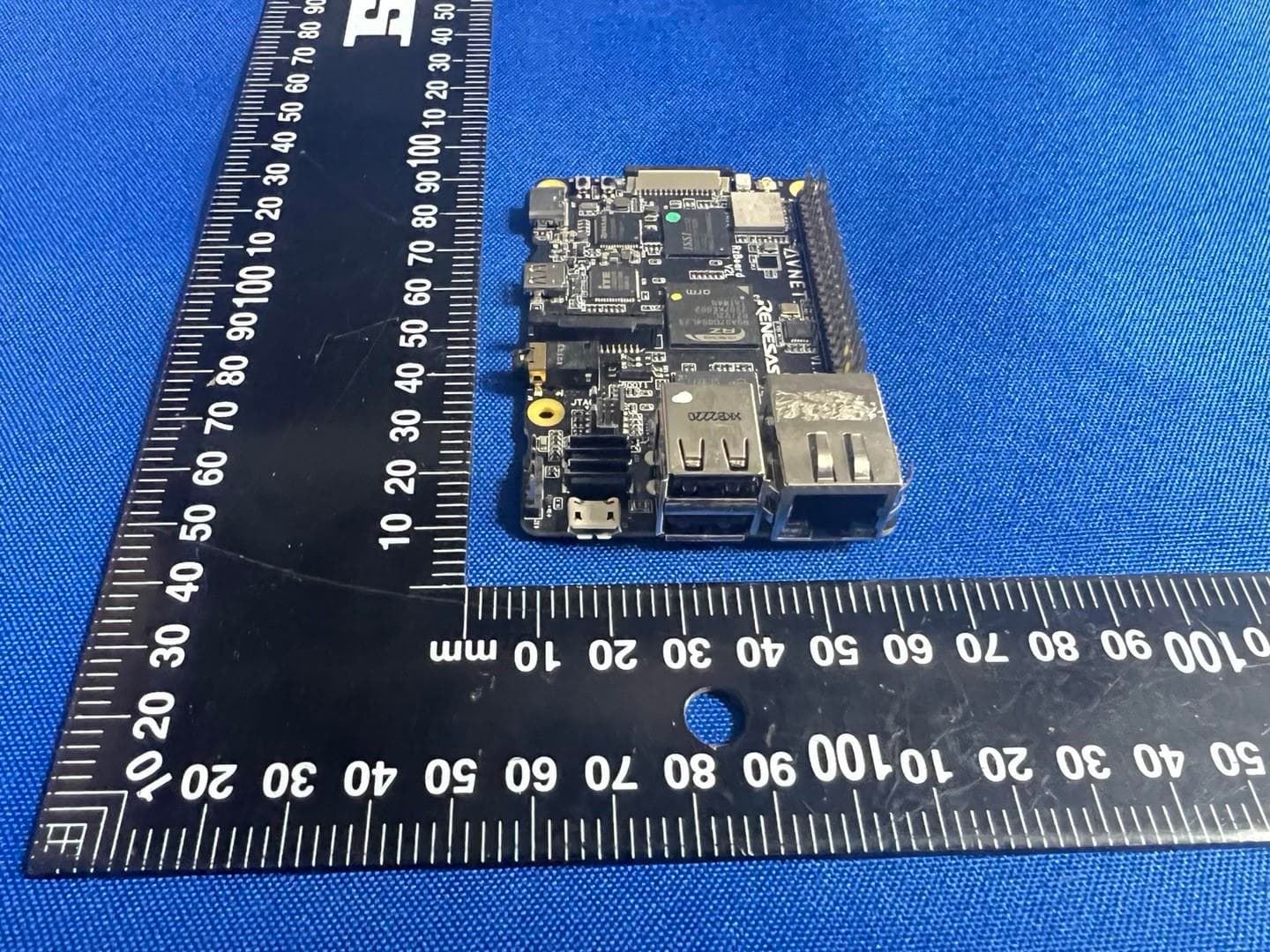

RZBoard V2L Model(HVIN): AES-RZB-V2L-SK-G FCC ID: 2AF62-AESRZBV2LSKG IC:21571-AESRZBV2LSK

FCC ID: 2AF62-AESRZBV2LSKG IC: 21571-AESRZBV2LSK

RF Exposure evaluation FCC ID: 2AF62-AESRZBV2LSKG Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information The device evaluated with antennas certificated as follows provided by manufacturer. Antenna model Antenna type and antenna number Operate frequency band Maximum antenna gain 146187 PCB antenna 2.4GHz – 2.5 GHz 5.15GHz – 5.85 GHz 3.20 dBi 4.25 dBi 5. Conducted power and Manufacturing Tolerance 2.4GHz WLAN Mode Channel Output Power[dBm] Tune up [dBm] 11B 2412 8.22 9±1 2437 8.48 9±1 2462 8.36 9±1 11G 2412 8.13 9±1 2437 8.49 9±1 2462 8.49 9±1 11N20SISO 2412 8.28 9±1 2437 9.27 9±1 2462 8.58 9±1 11N40SISO 2422 8.30 9±1 2437 8.56 9±1 2452 8.71 9±1 5GHz WLAN Band 1 Mode Channel Output Power[dBm] Tune-Up[dBm] 11A 5180 9.81 9±1 5200 10.33 10±1 5240 11.07 11±1 11N20SISO 5180 9.83 9±1 5200 10.34 10±1 5240 11.14 11±1 11N40SISO 5190 10.75 11±1 5230 11.72 11±1 11AC20SISO 5180 9.57 9±1 5200 10.08 10±1 5240 10.84 11±1 11AC40SISO 5190 10.69 11±1 5230 11.93 11±1 11AC80SISO 5210 12.18 12±1 5GHz WLAN Band 2A Mode Channel Output Power[dBm] Tune-Up[dBm] 11A 5260 11.08 11±1 5300 10.78 11±1 5320 11.12 11±1 11N20SISO 5260 10.83 11±1 5300 10.92 11±1 5320 10.66 11±1 11N40SISO 5270 11.39 11±1 5310 11.35 11±1 11AC20SISO 5260 11.24 11±1 5300 11.36 11±1 5320 11.19 11±1 11AC40SISO 5270 11.49 11±1 5310 11.40 11±1 11AC80SISO 5290 12.09 12±1 5GHz WLAN Band 2C Mode Channel Output Power[dBm] Tune-Up[dBm] 11A 5500 11.28 12±1 5580 13.41 13±1 5700 13.39 13±1 11N20SISO 5500 11.13 12±1 5580 12.87 13±1 5700 12.85 13±1 11N40SISO 5510 11.97 10±1 5550 12.95 12±1 5670 13.50 13±1 11AC20SISO 5500 11.02 12±1 5580 12.48 13±1 5700 12.43 13±1 11AC40SISO 5510 10.96 10±1 5550 12.15 12±1 5670 13.12 13±1 11AC80SISO 5530 12.15 13±1 5610 13.54 13±1 5GHz WLAN Band 3 Mode Channel Output Power[dBm] Tune-Up[dBm] 11A 5745 11.41 11±1 5785 11.09 11±1 5825 11.00 11±1 11N20SISO 5745 11.19 11±1 5785 10.88 11±1 5825 10.81 11±1 11N40SISO 5755 8.93 9±1 5795 8.64 9±1 11AC20SISO 5745 11.16 11±1 5785 10.86 11±1 5825 10.77 11±1 11AC40SISO 5755 9.35 9±1 5795 8.86 9±1 11AC80SISO 5775 12.11 12±1 Bluetooth Mode Channel Output Power[dBm] Tune-Up[dBm] DH5 2402 5.92 6±1 2441 6.30 6±1 2480 6.07 6±1 2DH5 2402 5.17 5±1 2441 5.59 5±1 2480 5.29 5±1 3DH5 2402 4.90 5±1 2441 5.33 5±1 2480 5.03 5±1 BLE 2402 1.82 2±1 2440 2.17 2±1 2480 1.89 2±1 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna, the RF power density can be obtained. 2.4GHz WLAN Type Max. Output power With Tune-Up Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW IEEE 802.11b 10.00 10.0000 2.0893 0.0042 1.0000 IEEE 802.11g 10.00 10.0000 2.0893 0.0042 1.0000 IEEE 802.11n HT20 10.00 10.0000 2.0893 0.0042 1.0000 IEEE 802.11n HT40 10.00 10.0000 2.0893 0.0042 1.0000 5GHz WLAN Band 1 Type Max. Output power With Tune-Up Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW IEEE 802.11a 12.00 15.8489 2.6607 0.0084 1.0000 IEEE 802.11n HT20 12.00 15.8489 2.6607 0.0084 1.0000 IEEE 802.11n HT40 12.00 15.8489 2.6607 0.0084 1.0000 IEEE 802.11ac VHT20 12.00 15.8489 2.6607 0.0084 1.0000 IEEE 802.11ac VHT40 12.00 15.8489 2.6607 0.0084 1.0000 IEEE 802.11ac VHT80 13.00 19.9526 2.6607 0.0106 1.0000 5GHz WLAN Band 2A Type Max. Output power With Tune-Up Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW IEEE 802.11a 12.00 15.8489 2.6607 0.0084 1.0000 IEEE 802.11n HT20 12.00 15.8489 2.6607 0.0084 1.0000 IEEE 802.11n HT40 12.00 15.8489 2.6607 0.0084 1.0000 IEEE 802.11ac VHT20 12.00 15.8489 2.6607 0.0084 1.0000 IEEE 802.11ac VHT40 12.00 15.8489 2.6607 0.0084 1.0000 IEEE 802.11ac VHT80 13.00 19.9526 2.6607 0.0106 1.0000 5GHz WLAN Band 2C Type Max. Output power With Tune-Up Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW IEEE 802.11a 14.00 25.1189 2.6607 0.0133 1.0000 IEEE 802.11n HT20 14.00 25.1189 2.6607 0.0133 1.0000 IEEE 802.11n HT40 14.00 25.1189 2.6607 0.0133 1.0000 IEEE 802.11ac VHT20 14.00 25.1189 2.6607 0.0133 1.0000 IEEE 802.11ac VHT40 14.00 25.1189 2.6607 0.0133 1.0000 IEEE 802.11ac VHT80 14.00 25.1189 2.6607 0.0133 1.0000 5GHz WLAN Band 3 Type Output power Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 )…

Text truncated - open the document above for the full version.

FCC ID: 2AF62-AESRZBV2LSKG Page 1 of 40 IC: 21571-AESRZBV2LSK Test Data for 2.4G-WIFI Product Name: RZBoard V2L Test Model(HVIN): AES-RZB-V2L-SK-G 1. Bandwidth 1.1 OBW 1.1.1 Test Result Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result 802.11b SISO 2412 1 13.382 Pass 2437 1 13.386 Pass 2462 1 13.448 Pass 802.11g SISO 2412 1 17.460 Pass 2437 1 17.481 Pass 2462 1 17.498 Pass 802.11n (HT20) SISO 2412 1 18.218 Pass 2437 1 18.227 Pass 2462 1 18.246 Pass 802.11n (HT40) SISO 2422 1 36.853 Pass 2437 1 36.734 Pass 2452 1 36.752 Pass FCC ID: 2AF62-AESRZBV2LSKG Page 2 of 40 IC: 21571-AESRZBV2LSK 1.1.2 Test Graph 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 3 of 40 IC: 21571-AESRZBV2LSK 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 4 of 40 IC: 21571-AESRZBV2LSK 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 5 of 40 IC: 21571-AESRZBV2LSK 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 6 of 40 IC: 21571-AESRZBV2LSK 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 7 of 40 IC: 21571-AESRZBV2LSK 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 8 of 40 IC: 21571-AESRZBV2LSK 1.2 6dB BW 1.2.1 Test Result Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 1 10.061 >=0.5 Pass 2437 1 10.073 >=0.5 Pass 2462 1 10.074 >=0.5 Pass 802.11g SISO 2412 1 16.545 >=0.5 Pass 2437 1 16.530 >=0.5 Pass 2462 1 16.546 >=0.5 Pass 802.11n (HT20) SISO 2412 1 17.754 >=0.5 Pass 2437 1 17.744 >=0.5 Pass 2462 1 17.759 >=0.5 Pass 802.11n (HT40) SISO 2422 1 36.438 >=0.5 Pass 2437 1 36.436 >=0.5 Pass 2452 1 36.439 >=0.5 Pass FCC ID: 2AF62-AESRZBV2LSKG Page 9 of 40 IC: 21571-AESRZBV2LSK 1.2.2 Test Graph 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 10 of 40 IC: 21571-AESRZBV2LSK 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 11 of 40 IC: 21571-AESRZBV2LSK 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 12 of 40 IC: 21571-AESRZBV2LSK 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 13 of 40 IC: 21571-AESRZBV2LSK 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 14 of 40 IC: 21571-AESRZBV2LSK 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 15 of 40 IC: 21571-AESRZBV2LSK 2. Maximum Conducted Output Power 2.1 Power 2.1.1 Test Result Mode TX Type Frequency (MHz) Maximum Average Conducted Output Power (dBm) Verdict ANT1 Limit EIRP Limit 802.11b SISO 2412 8.22 <=30 11.42 <=36 Pass 2437 8.48 <=30 11.68 <=36 Pass 2462 8.36 <=30 11.56 <=36 Pass 802.11g SISO 2412 8.13 <=30 11.33 <=36 Pass 2437 8.49 <=30 11.69 <=36 Pass 2462 8.49 <=30 11.69 <=36 Pass 802.11n (HT20) SISO 2412 8.28 <=30 11.48 <=36 Pass 2437 9.27 <=30 12.47 <=36 Pass 2462 8.58 <=30 11.78 <=36 Pass 802.11n (HT40) SISO 2422 8.30 <=30 11.50 <=36 Pass 2437 8.56 <=30 11.76 <=36 Pass 2452 8.71 <=30 11.91 <=36 Pass Note1: Antenna Gain: Ant1: 3.20dBi; Note2: The Duty Cycle Factor and RBW Factor is compensated in the result; FCC ID: 2AF62-AESRZBV2LSKG Page 16 of 40 IC: 21571-AESRZBV2LSK 3. Maximum Power Spectral Density 3.1 PSD 3.1.1 Test Result Mode TX Type Frequency (MHz) Maximum PSD (dBm/3kHz) Verdict ANT1 Limit 802.11b SISO 2412 -19.28 <=8 Pass 2437 -17.41 <=8 Pass 2462 -18.60 <=8 Pass 802.11g SISO 2412 -23.59 <=8 Pass 2437 -23.58 <=8 Pass 2462 -23.58 <=8 Pass 802.11n (HT20) SISO 2412 -23.47 <=8 Pass 2437 -22.65 <=8 Pass 2462 -23.40 <=8 Pass 802.11n (HT40) SISO 2422 -24.82 <=8 Pass 2437 -24.96 <=8 Pass 2452 -24.75 <=8 Pass Note1: Antenna Gain: Ant1: 3.20dBi; Note2: The Duty Cycle Factor and RBW Factor is compensated in the graph; FCC ID: 2AF62-AESRZBV2LSKG Page 17 of 40 IC: 21571-AESRZBV2LSK 3.1.2 Test Graph 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 18 of 40 IC: 21571-AESRZBV2LSK 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 19 of 40 IC: 21571-AESRZBV2LSK 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 20 of 40 IC: 21571-AESRZBV2LSK 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 21 of 40 IC: 21571-AESRZBV2LSK 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 22 of 40 IC: 21571-AESRZBV2LSK 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 23 of 40 IC: 21571-AESRZBV2LSK 4. Unwanted Emissions In Non-restricted Frequency Bands 4.1 Ref 4.1.1 Test Result Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 802.11b SISO 2412 1 -1.23 2437 1 -1.14 2462 1 -1.10 802.11g SISO 2412 1 -2.65 2437 1 -2.05 2462 1 -2.22 802.11n (HT20) SISO 2412 1 -2.69 2437 1 -2.00 2462 1 -2.24 802.11n (HT40) SISO 2422 1 -4.96 2437 1 -4.83 2452 1 -4.93 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. FCC ID: 2AF62-AESRZBV2LSKG Page 24 of 40 IC: 21571-AESRZBV2LSK 4.1.2 Test Graph 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 25 of 40 IC: 21571-AESRZBV2LSK 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 26 o…

Text truncated - open the document above for the full version.

APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E PCB Cabled Balanced Antenna Application Specification SHEET No. F EC No: 641299 1 of 22 DATE: 2020/05/27 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: AS-1461870100 Liu Hai 2020/05/27 Cheng Kang 2020/05/27 Andy Zhang 2020/05/27 TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC TITLE WIFI 6E PCB CABLED BALANCED ANTENNA TABLE OF CONTENTS 1.0 SCOPE 2.0 PRODUCT DESCRIPTION 3.0 APPLICABLE DOCUMENTS 4.0 ANTENNA PERFORMANCE 5.0 ASSEMBLY GUIDELINE 6.0 RF PERFORMANCE AS A FUNCTION OF IMPLEMENTATION 7.0 THE ANTENNA PERFORMANCE VARIATION WITH CABLE LENGTH 8.0 CHANGE HISTORY Mole x CVS Dabendorf GmbH Mae rkische Strasse 72, Zossen, 15806, Germany APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E PCB Cabled Balanced Antenna Application Specification SHEET No. F EC No: 641299 2 of 22 DATE: 2020/05/27 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: AS-1461870100 Liu Hai 2020/05/27 Cheng Kang 2020/05/27 Andy Zhang 2020/05/27 TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC WIFI 6E PCB CABLED BALANCED ANTENNA 1.0 SCOPE This specification describes the antenna application and surrounding. The information in this document is for reference and benchmark purposes only. The user is responsible for validating antenna rf performance based on the user’s actual implementation. Antenna illustrations in this document are generic representations. They are not intended to be an image of any antenna listed in the scope. 2.0 PRODUCT DESCRIPTION 2.1 PRODUCT NAME AND SERIES NUMBER (S) Product name: WIFI 6E PCB Cable Balanced Antenna Series Number: 146187 Series 2.2 DESCRIPTION Series 146187 is a balanced, dipole-type, high efficiency antenna for applications, including WiFi 6E, Bluetooth, Zigbee and others. This antenna is made from poly PCB material with small size. 2.3 PRODUCT STRUCTURE INFORMATION Please refer to PS-1461870100 for full information. ANTENNA 3D VIEW APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E PCB Cabled Balanced Antenna Application Specification SHEET No. F EC No: 641299 4 of 22 DATE: 2020/05/27 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: AS-1461870100 Liu Hai 2020/05/27 Cheng Kang 2020/05/27 Andy Zhang 2020/05/27 TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC 3.0 APPLICABLE DOCUMENTS DOCUMENT NUMBER DESCRIPTION Sale Drawing (SD) SD-1461870050 Mechanical Dimension of the product Product Specification (PS) PS-1461870100 Product Specification Packing Drawing (PK) PK-1461870100 Product packaging specifications 4.0 ANTENNA PERFORMANCE 4.1 RF TEST CONDITIONS All measurements are done of the antenna in free space with VNA Agilent E5071C and Over- The-Air (OTA) chamber. All measurements in this document are done with the part no.1461870100 with a cable length of 100mm. FIGURE4.1.1 ANTENNA IN FREE SPACE WITH VNA AGILENT E5071C DUT APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E PCB Cabled Balanced Antenna Application Specification SHEET No. F EC No: 641299 5 of 22 DATE: 2020/05/27 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: AS-1461870100 Liu Hai 2020/05/27 Cheng Kang 2020/05/27 Andy Zhang 2020/05/27 TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC FIGURE4.1.2 ANTENNA IN FREE SPACE WITH OTA CHAMBER DESCRIPTION EQUIPMENT REQUIREMENT Frequency Range VNA E5071C 2.4-2.5GHz 5.15- 5.85GHz 5.925- 7.125GHz Return Loss VNA E5071C <- 10dB <- 10dB <- 5dB Peak Gain (Max) OTA Chamber 3.20 dBi 4.25 dBi 4.2dBi Average Total Efficiency OTA Chamber >80% >80% >70% Polarization OTA Chamber Linear Input Impedance VNA E5071C 50 ohms Note that the above antenna performance is measured with just the antenna in a free-space condition. When implement into the system, the frequency resonant might be off-tune due to the loading of surrounding components especially metal plane. This off-tune can be compensated through matching. Although module manufacturers specify a peak gain limit, it is based on free- space conditions. The peak gain will be degraded by 1 to 2dBi in the actual implementation as the radiation pattern will change due to the surround components. As such, during selection of antenna, you can select one with high peak gain to compensate for the loss. Molex can offer assistant to choose the best location and best tuning in-order to meet this peak gain requirement. DUT APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E PCB Cabled Balanced Antenna Application Specification SHEET No. F EC No: 641299 6 of 22 DATE: 2020/05/27 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: AS-1461870100 Liu Hai 2020/05/27 Cheng Kang 2020/05/27 Andy Zhang 2020/05/27 TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC 4.3 RETURN LOSS PLOT All measurements in this document are done with a cable length of 100mm. FIGURE 4.3.1 RETURN LOSS OF ANTENNA AT 2.4GHZ BAND IN FREE SPACE FIGURE 4.3.2 RETURN LOSS OF ANTENNA AT 5GHZ BAND IN FREE SPACE APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E PCB Cabled Balanced Antenna Application Specification SHEET No. F EC No: 641299 7 of 22 DATE: 2020/05/27 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: AS-1461870100 Liu Hai 2020/05/27 Cheng Kang 2020/05/27 Andy Zhang 2020/05/27 TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC FIGURE 4.3.3 RETURN LOSS OF ANTENNA AT 6GHZ BAND IN FREE SPACE 4.4 EFFICIENCY PLOT All measurements in this document are done with a cable length of 100mm. FIGURE 4.4.1 EFFICIENCY OF ANTENNA AT 2.4GHZ BAND IN FREE SPACE APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E PCB Cabled Balanced Antenna Application Specification SHEET No. F EC No: 641299 8 of 22 DATE: 2020/05/27 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: AS-1461870100 Liu Hai 2020/05/27 Cheng Kang 2020/05/27 Andy Zhang 2020/05/27 TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC F…

Text truncated - open the document above for the full version.

FCC ID: 2AF62-AESRZBV2LSKG Page 1 of 19 IC: 21571-AESRZBV2LSK Test Data for BLE Product Name: RZBoard V2L Test Model(HVIN): AES-RZB-V2L-SK-G 1. Bandwidth 1.1 OBW 1.1.1 Test Result Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result 1M SISO 2402 1 1.031 Pass 2440 1 1.031 Pass 2480 1 1.031 Pass FCC ID: 2AF62-AESRZBV2LSKG Page 2 of 19 IC: 21571-AESRZBV2LSK 1.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 3 of 19 IC: 21571-AESRZBV2LSK 1M_HCH_2480MHz_Ant1_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 4 of 19 IC: 21571-AESRZBV2LSK 1.2 6dB BW 1.2.1 Test Result Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.715 >=0.5 Pass 2440 1 0.716 >=0.5 Pass 2480 1 0.713 >=0.5 Pass FCC ID: 2AF62-AESRZBV2LSKG Page 5 of 19 IC: 21571-AESRZBV2LSK 1.2.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 6 of 19 IC: 21571-AESRZBV2LSK 1M_HCH_2480MHz_Ant1_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 7 of 19 IC: 21571-AESRZBV2LSK 2. Maximum Conducted Output Power 2.1 Power 2.1.1 Test Result Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit EIRP Limit 1M SISO 2402 1.82 <=30 5.02 <=36 Pass 2440 2.17 <=30 5.37 <=36 Pass 2480 1.89 <=30 5.09 <=36 Pass Note1: Antenna Gain: Ant1: 3.20dBi; FCC ID: 2AF62-AESRZBV2LSKG Page 8 of 19 IC: 21571-AESRZBV2LSK 2.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 9 of 19 IC: 21571-AESRZBV2LSK 1M_HCH_2480MHz_Ant1_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 10 of 19 IC: 21571-AESRZBV2LSK 3. Maximum Power Spectral Density 3.1 PSD 3.1.1 Test Result Mode TX Type Frequency (MHz) Maximum PSD (dBm/3kHz) Verdict ANT1 Limit 1M SISO 2402 -13.14 <=8 Pass 2440 -12.83 <=8 Pass 2480 -13.20 <=8 Pass Note1: Antenna Gain: Ant1: 3.20dBi; FCC ID: 2AF62-AESRZBV2LSKG Page 11 of 19 IC: 21571-AESRZBV2LSK 3.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 12 of 19 IC: 21571-AESRZBV2LSK 1M_HCH_2480MHz_Ant1_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 13 of 19 IC: 21571-AESRZBV2LSK 4. Unwanted Emissions In Non-restricted Frequency Bands 4.1 Ref 4.1.1 Test Result Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 0.97 2440 1 1.30 2480 1 1.01 Note1: Refer to RSS-247 Issue 2 section 5.5 and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. FCC ID: 2AF62-AESRZBV2LSKG Page 14 of 19 IC: 21571-AESRZBV2LSK 4.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 15 of 19 IC: 21571-AESRZBV2LSK 1M_HCH_2480MHz_Ant1_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 16 of 19 IC: 21571-AESRZBV2LSK 4.2 CSE 4.2.1 Test Result Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 1.30 -18.70 Pass 2440 1 1.30 -18.70 Pass 2480 1 1.30 -18.70 Pass Note1: Refer to RSS-247 Issue 2 section 5.5 and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. FCC ID: 2AF62-AESRZBV2LSKG Page 17 of 19 IC: 21571-AESRZBV2LSK 4.2.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 18 of 19 IC: 21571-AESRZBV2LSK 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV FCC ID: 2AF62-AESRZBV2LSKG Page 19 of 19 IC: 21571-AESRZBV2LSK 1M_HCH_2480MHz_Ant1_NTNV

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No. ................ : CTL2205063042-WF02 Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Gray Gao (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : RZBoard V2L Model/Type reference ................ : AES-RZB-V2L-SK-G List Model(s) ............................... : N/A Trade Mark ..............................…

Text truncated - open the document above for the full version.
