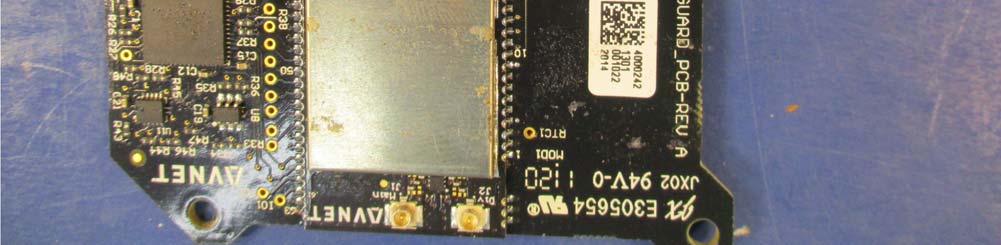

2AF62-AVT3620UAvnet Azure Sphere Wi-Fi SoC module for highly-secured IoT applications

Avnet Inc
Avnet Azure Sphere Wi-Fi SoC module for highly-secured IoT applications - FCC ID 2AF62-AVT3620U - Avnet Inc
Click to zoom

Application Details

Equipment Class
NII - Unlicensed National Information Infrastructure TX
Date of Grant
May 18, 2023
Application Purpose
Original Equipment
Date of Application
May 15, 2023
Equipment Note
Avnet Azure Sphere Wi-Fi SoC module for highly-secured IoT applications
Frequency Range
5745.00000000 - 5825.00000000
Company
Avnet Inc
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗
↗

Test Report

↗
↗
↗
↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Page 1 of 37 July 22, 2020 Data Sheet and User Manual AES-MS-MT3620-UFL-M-G-2 Module Data Sheet and User Manual Data Sheet and User Manual / Features • Microsoft Azure Sphere SoC based module solution for advanced end-to-end IOT security • Based on MediaTek MT3620AN Wi-Fi SoC - 1x 500MHz Arm Cortex A7 application processor with 4MB SRAM - 2x 200MHz Arm Cortex M4F cores, each with 64KB SRAM - 4MB embedded RAM (shared) - 16MB QSPI flash memory - Dual-band 2.4/5GHz 802.11 b/g/n Wi-Fi • Module I/O peripheral support - 3x ISU interfaces, pre-configured for UART, SPI, I2C - ADC/GPIO: 3x 12-bit ADC inputs (or GPIOs) - PWM/GPIO: 9x PWM outputs (or up to 24 GPIOs) - RTC (requires VBAT supply) - Programming & recovery interface • Microsoft Visual Studio IDE for accelerated application software development & debug • OTA authentication & updates (device lifetime) • Dimensions: 33mm x 22mm x 3.5mm - Dual U.FL Antenna Ports • Operating temperature: - -40C to +85°C • Certifications: - FCC (pending), IC (pending) Applications • IoT edge devices • Smart home appliances / security • Smart retail • Remote access • Building automation • Factory automation For more info on Azure Sphere MT3620 modules, visit: http://avnet.me/mt3620-modules For the summarized Product Brief, visit: http://avnet.me/mt3620-module-pb To purchase an Azure Sphere MT3620 Starter Kit visit: http://avnet.me/mt3620-kit Note: For the latest MT3620 support status, visit: https://docs.microsoft.com/en- us/azuresphere/hardware/mt3620-product-status AES-MS-MT3620-UFL- M-G-2 Azure Sphere MT3620 module (with dual U.FL antenna ports) Page 2 of 37 Aug 4, 2020 , 2020 Data Sheet and User Manual AES-MS-MT3620-UFL-M-G-2 Module Data Sheet and User Manual Document Control Document Version: 1.4.1 Document Date: 11/18/2021 Document Author: Peter Fenn, Dan Ramnytz Document Classification: Public Document Distribution: Public Version History Version Date Comment 1.0 05/07/2019 Initial release, new document scope, photos, pinout detail and content 1.1 05/07/2019 Added FCC Module Statement (USA) 1.2 05/16/2019 Updated OEM instructions 1.3 09/19/2019 Added Note 3 to page 22 for DFS. 1.4 07/22/2020 Removed references to 802.11a 1.4.1 08/04/2021 Revised for Rev2 U.FL Module Variant Ordering Information Part Number Description AES-MS-MT3620-M-G-2 AES-MS-MT3620-UFL-M-G-2 Azure Sphere MT3620 Module (U.FL antenna ports) Product Page: http://avnet.me/mt3620-modules AES-MS-MT3620-SK-G-2 Azure Sphere MT3620 Starter Kit Product Page: http://avnet.me/mt3620-kit Page 3 of 37 Aug 4, 2020 , 2020 Data Sheet and User Manual AES-MS-MT3620-UFL-M-G-2 Module Data Sheet and User Manual Table of Contents Features ...................................................................................................................... 1 Applications ................................................................................................................. 1 Document Control ....................................................................................................... 2 Ordering Information ................................................................................................... 2 Overview ..................................................................................................................... 6 Module Block Diagram ................................................................................................ 7 Module Application Development and Programming .................................................. 8 Development Computer Software Installation ...................................................................................... 8 Module Interfaces with the Development Computer ............................................................................ 8 Module Integration onto an OEM Board ...................................................................... 9 Module Power Interfaces ..................................................................................................................... 9 Wi-Fi Network Settings ......................................................................................................................... 9 Wi-Fi Subsystem ................................................................................................................................ 10 Wi-Fi Antenna Ports ........................................................................................................................... 10 A7 Application Processor ................................................................................................................... 10 M4F IO Processors ............................................................................................................................ 10 Flash Memory ..................................................................................................................................... 10 Pluton Security Subsystem ................................................................................................................ 10 Real Time Clock (RTC) ...................................................................................................................... 10 Peripheral Serial Interfaces ................................................................................................................ 10 Other I/O Interfaces ............................................................................................................................ 10 MT3620 Bootstrap Pins ...................................................................................................................... 11 Module Placement and Ground plane requirements ......................................................................... 12 Module Pinout Locations .................................................................................................................... 13 Module Pinout Table ...............................................................................…

Text truncated - open the document above for the full version.

Attestation Statements

Attestation For United States Agent for Service of Process Self-Designation for US Based Manufacturers Only CKC CS PUB FCC AFSOP Self Designation v4 Applicant / Equipment Manufacturer Information Company Name: Avnet Inc Grantee Code: 2AF62 FRN: 0024965477 Applicant Attestation The undersigned hereby consents: a) to self-designation as US Agent for Service of Process; and b) to accept responsibility and obligation to maintain self-designation for no less than one year after either all marketing and importation of the applicable equipment within the U.S has been permanently terminated, or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later; and c) to accept service of process in the US for matters related to the applicable equipment and at the physical address and email address identified in the applicant’s grantee code registration for equipment authorization applications under certification pursuant to 47 CFR Part 2 Subpart J; and d) to maintain current grantee code information on file in accordance with 47 CFR Part 2.929. Signature of Applicant: Printed Name: James Jaksich Date: 5/17/2023

Cover Letter(s)

Avnet, Inc. 2211 South 47 th Street Phoenix, Arizona 85034 1/19/2022 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Permanent Confidentiality To whom it may concern: In accordance with 47CFR Section 0.457 and Section 0.459 pertaining to confidential material, we hereby request to hold permanently confidential all information contained within the below identified exhibits/document categories submitted pursuant to radio equipment certification requirements for FCC ID: 2AF62-AVT3620U. 1. Block Diagrams 2. Operational Descriptions 3. Schematics 4. Parts List The above material contains trade secrets and proprietary information as specified by 47CFR 0.457(d) and technical data, which would customarily be guarded from competitors. The public disclosure of this information might be harmful to our company and provide unjustified benefits to our competitors. Sincerely, Brandon Quintana Director, Advanced Solutions Engineering Avnet, Inc.

Cover Letter(s)

Avnet, Inc. 2211 South 47 th Street Phoenix, Arizona 85034 1/21/2022 Federal Communications Commission Office of Engineering and Technology 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: This letter is to request Single Modular Approval in accordance with under FCC Rule Part 15.212(a)(1) for certification request under FCC ID: 2AF62-AVT3620U. This product provides a highly integrated Microsoft Azure Sphere end-to-end solution for high security, Wi-Fi connected embedded microcontroller-type applications. Declaration of conditions. Y/N 15.212(a)(1) Condition Y (i) The radio elements of the module have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements Y (ii) The module has buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over- modulation. Y (iii) The module has its own power supply regulation. Y (iv) The module complies with the antenna and transmission system requirements of §§15.203, 15.204(b) and 15.204(c). The antenna(s) are either permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Y (v) The module was tested in a stand-alone configuration, i.e., the module was not inside another device during testing for compliance with part 15 requirements. Unless the transmitter module will be battery powered, it complies with the AC line conducted requirements found in §15.207. AC or DC power lines and data input/output lines connected to the module do not contain ferrites, unless they will be marketed with the module (see §15.27(a)). The length of these lines was the length typical of actual use or, if that length is unknown, at least 10 centimeters was used to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing were unmodified and commercially available (see §15.31(i)). Y (vi) The module is equipped with either a permanently affixed label or is capable of electronically displaying its FCC identification number. Y (vii) The module complies with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the applicant has provided adequate instructions along with the module to explain any such requirements. Y (viii) The module complies with any applicable RF exposure requirements in its final configuration. The instructions provided with the module adequately explain any usage conditions or restrictions. I acknowledge on behalf of the applicant that compliance of this module in all final configurations is the responsibility of the applicant under the condition that the integrator follows all provided installation instructions. Sincerely, Brandon Quintana Director, Advanced Solutions Engineering Avnet, Inc.

ID Label/Location Info

AES-MS-MT3620-UFL-M-G-2 Label to be applied to U.FL modules: - country code “00” - E-Fuses are locked Label 2D Data Matrix contains: - SKU #: xxxxxxxx - Contract Manufacturer Code # - SN 8 digits - Date Code: 2140 = 40 th week of 2021 - MAC Address: 00:02:B5:xx:xx:xx Size 23mm x 18 Materials High Temperature (280C min) Adhesive and paper Azure Sphere AES-MS-MT3620-UFL-M-G-2 FCC: 2AF62-AVT3620U IC: 21571-AVT3620U MAC: 00:02:B5:XX:XX:XX

RF Exposure Info

RADIO FREQUENCY EXPOSURE REPORT REVISED TEST REPORT FOR 105053-17 Device: Secure Wi-Fi module Model: AES-MS-MT3620-UFL-M-G Rev2 Report No.: 105053-17A Date of Issue: January 26, 2022 PREPARED FOR: Avnet, Inc. 2211 S 47th Street Phoenix, AZ 85034 USA PREPARED BY: E. Wong CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 The test data contained in this report documents the observed testing parameters pertaining to and are relevant for only the sample equipment tested in the agreed upon operational mode(s) and configuration(s) as identified herein. Compliance assessment remains the client’s responsibility. This report may not be used to claim product endorsement by A2LA or any government agencies. This test report has been authorized for release under quality control from CKC Laboratories, Inc. Steve Behm Director of Quality Assurance & Engineering Services CKC Laboratories, Inc. Page 2 of 10 Report No: 105053-17A Revision History Original: Radio Frequency Exposure Report for Device: Secure Wi-Fi module Model: AES-MS-MT3620-UFL-M-G Rev2 Revision A: To update US and IC MPE Assessment Tables. Purpose: To demonstrate compliance with United States, Canada, Australia and/or European Union RF Exposure requirements for Portable equipment (devices used ≤20cm from the body) with power output below exemption levels or Mobile equipment (devices used >20cm from the body) where Maximum Permissible Exposure (MPE) Calculations apply. Device and Antenna Operating Configuration: Device operating at maximum output power with continuous transmission of modulated data. Test Procedure: This equipment is evaluated in accordance with the guidelines set forth in KDB 447498 & ANSI C95.1 for the US, Health Canada Safety Code 6 & RSS 102 for Canada, ARPANSA RPS3 for AU and EN 62479 or EN 62311 for EU. Other Considerations: Report considers stand-alone configurations only. RF Exposure limits are calculated at the mid-point of each operating band. The device does not transmit simultaneously in the 2.4and 5 GHz band Referenced Test Reports: The following test reports were referenced in conjunction with this assessment: 105053-12, 105053-23, 105053-24, 105053-25 12.4dBm, 12.2dBm, 12.6dBm (max) , 11.7dBm 105053-13 13.1dBm (max) 105053-29, 105053-26, 105053-27, 105053-2812.4dBm, 12.2dBm, 12.6dBm (max) , 11.7dBm 105053-15 13.1dBm (Max) Page 3 of 10 Report No: 105053-17A RF Exposure Power Density Assessment (Single Transmitter, Stand Alone) MPE Calculation: 푃표푤푒푟 퐷푒푛푠푖푡푦 ( 푆 ) = 퐸퐼푅푃 4휋 푑 2 Given: EIRP in mW or W and d in cm or m US MPE Assessment Power Reported is: ☒ Peak ☐ Average Limit Used is: ☒ General Population ☐ Occupational Exposure Operating Band MHz Power dBm Ant Type/Gain dBi EIRP dBm Distance cm MPE mW/cm 2 Limit mW/cm 2 Comments 2400-2483.5 13.1 Ext Patch / 1.9 15.0 20 0.0063 1.0 Pass 5150 - 5850 12.6 Ext Patch / 2.7 15.3 20 0.0067 1.0 Pass The device does not transmit simultaneously in the 2.4 and 5 GHz band IC MPE Assessment Power Reported is: ☒ Peak ☐ Average Limit Used is: ☒ General Population ☐ Occupational Exposure Operating Band MHz Power dBm Ant Type/Gain dBi EIRP dBm Distance m MPE W/m 2 Limit W/m 2 Comments 2400-2483.5 13.1 Ext Patch / 1.9 15.0 0.2 0.0629 5.41 Pass 5150 - 5850 12.6 Ext Patch / 2.7 15.3 0.2 0.0674 9.52 Pass The device does not transmit simultaneously in the 2.4 and 5 GHz band Page 4 of 10 Report No: 105053-17A Summary: Exemptions: Equipment demonstrating compliance by portable RF exposure exemption have been evaluated, without further testing, for use under either portable or mobile RF exposure configurations. Additional configurations including collocation or simultaneous transmission with other transmitters (including necessary separation distances) are subject to further assessment. Certain exemption criteria may define specific separation distances. It is assumed that the manufacturer shall design the equipment such that these minimum separation distance is met. MPE Calculation Results: Equipment demonstrating compliance with MPE calculations have been evaluated, without further testing, for use under mobile RF exposure configurations as identified herein. Additional configurations including collocation or simultaneous transmission with other transmitters (including necessary separation distances) are subject to further assessment. It is assumed that the manufacturer shall design the equipment such that the minimum separation distance of 20cm (or greater, as listed above) is met or that the manufacturer provides a protection guide (e.g. installation instructions) to the end user such that the antenna(s) may be installed in accordance with the manufacturer’s instructions in such a manor to maintain the minimum separation distance. General Comments: The absorption and distribution of Electromagnetic energy in the body is a very complex phenomena that depends on the mass, shape and physiological condition of the body; the orientation of the body with respect to the fields; and, the electrical properties of the body and the environment. Variables that may play a substantial role in possible biological effects are those that characterize the environment (including but not limited to: ambient temperature, air velocity, relative humidity and body insulation); and those that characterize the individual (including but not limited to: age, gender, activity level and existing debilitation or disease). Because innumerable factors may interact to determine specific biological effects of exposure to electromagnetic fields, any protection guide should consider both intended and unintended operational environments and provide guidance for installation and use of the product such that proper separation distances can be maintained. (ANSI C95.1). Page 5 of 10 Report No: 105053-17A APPENDIX A - RF Exposure Limits United States Compliance Requirements (1.1310): RF Exposure Evaluation Limits Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic F…

Text truncated - open the document above for the full version.

RF Exposure Info

RE: Dual Antenna Port Letter To whom it may concern: Regarding the dual antenna feature of the product, the manufacturer declares that simultaneous transmission on multiple antenna ports is not a permitted operational mode. Furthermore, transmission in multiple simultaneous bands of operation is not a permitted operational mode. Therefore, the RF exposure assessment including standalone, single port, single band configurations remains applicable for product compliance. Signature: (on behalf of applicant) Date: 1/26/22 Name and title: Michelle Branum, Administrative Assistant Company: CKC Certification Services, LLC.

Test Report

Unlicensed Transmitters: Approved Antennas List Manufacturer Antenna Description Type Peak Gain (dBi) Min Cable loss (dB) Ω Connector Type Notes Molex 1461530050 WiFi 6E flex cable balance antenna Flex 3.2 < -10 50 U.FL 1 Molex 1461530050 WiFi 6E flex cable balance antenna Flex 4.75 < -10 50 U.FL 2 Notes: 1) Specifications for antenna operating in the 2.4GHz to 2.5GHz bands 2) Specifications for antenna operating in the 5.15GHz – 5.85GHz bands

Test Report

This report contains a total of 49 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Avnet, Inc. REVISED EMC TEST REPORT TO 105053-12 Secure Wi-Fi module Model: AES-MS-MT3620-UFL-M-G Rev2 Tested to The Following Standards: FCC Part 15 Subpart E Section(s) 15.207 & 15.407 (NII 5.15 – 5.25GHz) Report No.: 105053-12A Date of issue: February 8, 2023 This test report bears the accreditation symbol indicating that the testing performed herein meets the test and reporting requirements of ISO/IEC 17025 under the applicable scope of testing for CKC Laboratories, Inc. We strive to create long-term, trust based relationships by providing sound, adaptive, customer first testing services. We embrace each of our customers’ unique EMC challenges, not as an interruption to set processes, but rather as the reason we are in business. Test Certificate # 803.01 Page 2 of 49 Report No.: 105053-12A TABLE OF CONTENTS Administrative Information .......................................................................................................................... 3 Test Report Information ............................................................................................................................................ 3 Revision History ......................................................................................................................................................... 3 Report Authorization ................................................................................................................................................. 3 Test Facility Information ............................................................................................................................................ 4 Software Versions ...................................................................................................................................................... 4 Site Registration & Accreditation Information .......................................................................................................... 4 Summary of Results ................................................................................................................................................... 5 Modifications During Testing ..................................................................................................................................... 5 Conditions During Testing.......................................................................................................................................... 5 Equipment Under Test ............................................................................................................................................... 6 General Product Information..................................................................................................................................... 6 FCC Part 15 Subpart E ................................................................................................................................. 10 15.215 Occupied Bandwidth.................................................................................................................................... 10 15.407(a)(1)(iv) Output Power................................................................................................................................ 16 15.407(a)(1)(iv) Power Spectral Density .................................................................................................................. 22 15.407(g) Frequency Stability .................................................................................................................................. 27 15.407(b) Radiated Emissions & Band Edge ............................................................................................................ 29 15.207 AC Conducted Emissions .............................................................................................................................. 41 Supplemental Information .......................................................................................................................... 48 Measurement Uncertainty ...................................................................................................................................... 48 Emissions Test Details .............................................................................................................................................. 48 Page 3 of 49 Report No.: 105053-12A ADMINISTRATIVE INFORMATION Test Report Information REPORT PREPARED FOR: REPORT PREPARED BY: Avnet, Inc. 2211 S 47th Street Phoenix, AZ 85034 Viviana Prado CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 Representatives: Avnet, Inc. - Brian Willess F-Squared Laboratories - Karen Whipkey Project Number: 105053 Customer Reference Number: 5313 DATE OF EQUIPMENT RECEIPT: July 13, 2021 DATE(S) OF TESTING: July 13-29, 2021 and October 11, 2021 January 30, 2023 Revision History Original: Testing of the Secure Wi-Fi module, Model: AES-MS-MT3620-UFL-M-G Rev2 to FCC Part 15 Subpart E Section(s) 15.207 & 15.407 (NII 5.15 – 5.25GHz). Revision A: To add additional information and photo to the Output Power section. Report Authorization The test data contained in this report documents the observed testing parameters pertaining to and are relevant for only the equipment provided by the client, tested in the agreed upon operational mode(s) and configuration(s) as identified herein. Compliance assessment remains the client’s responsibility. This report may not be used to claim product endorsement by A2LA or any government agencies. This test report has been authorized for release under quality control from CKC Laboratories, Inc. Steve Behm Director of Quality Assurance & Engineering Services CKC Laboratories, Inc. Page 4 of 49 Report No.: 105053-12A Test Facility Informatio…

Text truncated - open the document above for the full version.

Test Report

This report contains a total of 50 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Avnet, Inc. REVISED EMC TEST REPORT TO 105053-23 Secure Wi-Fi module Model: AES-MS-MT3620-UFL-M-G Rev2 Tested to The Following Standards: FCC Part 15 Subpart E Section(s) 15.207 & 15.407 (NII 5.250 – 5.350GHz) Report No.: 105053-23A Date of issue: February 8, 2023 This test report bears the accreditation symbol indicating that the testing performed herein meets the test and reporting requirements of ISO/IEC 17025 under the applicable scope of testing for CKC Laboratories, Inc. We strive to create long-term, trust based relationships by providing sound, adaptive, customer first testing services. We embrace each of our customers’ unique EMC challenges, not as an interruption to set processes, but rather as the reason we are in business. Test Certificate # 803.01 Page 2 of 50 Report No.: 105053-23A TABLE OF CONTENTS Administrative Information .......................................................................................................................... 3 Test Report Information ............................................................................................................................................ 3 Revision History ......................................................................................................................................................... 3 Report Authorization ................................................................................................................................................. 3 Test Facility Information ............................................................................................................................................ 4 Software Versions ...................................................................................................................................................... 4 Site Registration & Accreditation Information .......................................................................................................... 4 Summary of Results ................................................................................................................................................... 5 Modifications During Testing ..................................................................................................................................... 5 Conditions During Testing.......................................................................................................................................... 5 Equipment Under Test ............................................................................................................................................... 6 General Product Information..................................................................................................................................... 6 FCC Part 15 Subpart E ................................................................................................................................. 10 15.215 Occupied Bandwidth.................................................................................................................................... 10 15.407(a) Output Power .......................................................................................................................................... 16 15.407(a) Power Spectral Density ........................................................................................................................... 22 15.407(g) Frequency Stability .................................................................................................................................. 27 15.407(b) Radiated Emissions & Band Edge ............................................................................................................ 29 15.207 AC Conducted Emissions .............................................................................................................................. 42 Supplemental Information .......................................................................................................................... 49 Measurement Uncertainty ...................................................................................................................................... 49 Emissions Test Details .............................................................................................................................................. 49 Page 3 of 50 Report No.: 105053-23A ADMINISTRATIVE INFORMATION Test Report Information REPORT PREPARED FOR: REPORT PREPARED BY: Avnet, Inc. 2211 S 47th Street Phoenix, AZ 85034 Viviana Prado CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 Representatives: Avnet, Inc. - Brian Willess F-Squared Laboratories - Karen Whipkey Project Number: 105053 Customer Reference Number: 5313 DATE OF EQUIPMENT RECEIPT: July 16, 2021 DATE(S) OF TESTING: July 16 - 29, 2021 and October 8, 2021 January 30, 2023 Revision History Original: Testing of the Secure Wi-Fi module, Model: AES-MS-MT3620-UFL-M-G Rev2 to FCC Part 15 Subpart E Section(s) 15.207 & 15.407 (NII 5.250 – 5.350GHz). Revision A: To add additional information and photo to the O…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Brandon Quintana(Director, Advanced Solutions Engineering)
[email protected]480-643-8648Fax: 1111111111

Technical Contact

Avnet Inc.Brian Willess
[email protected](480) 794-8648

2211 S 47th Street · Phoenix, Arizona · United States

Test Firm

CKC Laboratories, Inc.Steve Behm
[email protected]209-966-5240Fax: 866 779 9776

Technical Specifications

#Rule PartsFrequency RangePower Output
415E5.75 GHz - 5.83 GHz14.00 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Output power is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Single modular approval Approved for use with antenna(s) as listed in this filing.
