2AF6B-3112WisDuo Module

RAK3112/RAK3312 WisDuo Module Datasheet Overview Description The RAK3112 is a low-power, long-range LoRaWAN module based on the Espressif ESP32-S3 MCU with an integrated Semtech SX1262 LoRa transceiver. Supporting LoRa, BLE, and Wi-Fi, this module is ideal for various IoT applications such as home automation, sensor networks, building automation, and other IoT network applications. NOTE There are two variants available for the RAK3112 Module: 1 .With MHF4 IPEX connector to connect external antennas. 2 .No IPEX connector but with RF pinout to connect custom antenna. Features Based on Espressif ESP32-S3 Xtensa® 32-bit LX7 dual-core microprocessor 16 MB Flash 512 kB SRAM 512 kB RAM 8 MB PSRAM 16 kB RTC SRAM LoRa transceiver Semtech SX1262 LoRa and LoRaWAN support Frequency support from 863 MHz to 928 MHz LoRaWAN 1.0.2 specification compliant (LoRaWAN BasicModem support in preparation) Supported bands: IN865, EU868, AU915, US915, KR920, RU864, and AS923-1/2/3/4 LoRaWAN Activation by OTAA/ABP LoRa Point-to-Point (P2P) communication BLE 5.0 support Wi-Fi support Custom firmware using Arduino I/O ports: UART/I2C/SPI/ADC/GPIO Long-range: greater than 10 km with optimized antenna Supply Voltage: 3.0 V ~ 3.6 V Temperature range: -40° C ~ 85° C Specifications Interfaces USB (Default for AT command and FW update) 2 x I2C 1 x UART 1 x SPI Overview Hardware The hardware specification is categorized into three parts: RF, electrical, and mechanical parameters. These include tabular data of the functionalities and standard values for the RAK3112 WisDuo LPWAN Module. Interfaces Pin Definition INFO GPIO33 to GPIO37 are on the stamp modules pins, but with the 16 MB Flash chip, these GPIO's are not available. GPIO4 is used internally and not available. Figure 2: RAK3112 module pinout diagram Pin No. NameTypeDescription 1NC--Not connected 2USB_D-USBUSB - 3USB_D+USBUSB + 4GPIO33 / NC*--GPIO (not available with 16MB Flash) 5GPIO34 / NC*--GPIO (not available with 16MB Flash) 6 GPIO44 / UART0_RX I/O UART GPIO / UART RX 7 GPIO43 / UART1_TX I/O UART GPIO / UART TX 8GPIO35 / NC*--GPIO (not available with 16MB Flash) 9GPIO36 / NC*--GPIO (not available with 16MB Flash) 10GPIO37 / NC*--GPIO (not available with 16MB Flash) Pin No. NameTypeDescription 11GPIO38I/OGPIO 12GPIO39I/OGPIO 13 GPIO40 / I2C1_SCL I/O I2CGPIO / I2C SCL 14GNDPOWERGround connections 15RF_WiFiRF Wi-Fi RF Port (only available on RAK3112 NO-IPEX connector variant) 16GNDPOWERGround connections 17RESETResetESP32S3 Reset 18GPIO41I/OGPIO 19GPIO42I/OGPIO 20VDDPOWERVDD - Voltage Supply 21VDDPOWERVDD - Voltage Supply 22GNDPOWERGround connections 23GPIO45I/OGPIO 24GPIO0 / BootI/O BootGPIO Bootloader force 25GPIO46I/OGPIO 26GPIO1I/OGPIO 27GPIO2I/OGPIO 28 GPIO9 / I2C1_SDA I/O I2CGPIO / I2C SDA 29GPIO4 / NCI/OGPIO (not available) 30 GPIO10 / SPI_MISO I/O SPIGPIO / SPI MISO 31 GPIO11 / SPI_MOSI I/O SPIGPIO / SPI MOSI 32 GPIO12 / SPI_CS I/O SPIGPIO / SPI CS 33 GPIO13 / SPI_SCK I/O SPIGPIO / SPI SCK Pin No. NameTypeDescription 34 GPIO14 / AIN1 I/O Analog In GPIO / Analog In 35GNDPOWERGround connections 36GNDPOWERGround connections 37RF_LoRaRF LoRa RF Port (only available on RAK3112 NO-IPEX connector variant) 38GNDPOWERGround connections 39 GPIO18 / I2C2_SCL I/O I2CGPIO / I2C SCL 40 GPIO17 / I2C2_SDA I/O I2CGPIO / I2C SDA 41 GPIO21 / AIN0 I/O Analog In GPIO / Analog In 42GNDI/OGround connections 43NC--Not connected 44NC--Not connected Warning When using RF_LoRa, RF_WIFI pins for antenna and not the IPEX connector variant, there are design considerations to make sure optimum RF performance. RF traces must be away from interference (switching nodes of DC-DC supplies, high- current/voltage pulses from controllers of inductive loads like motors, signal generators, etc.). RF traces must have 50 Ω impedance. It is advisable to use an impedance simulation software tool to achieve this requirement. If using an external antenna connector, place it close to the LoRa RF and BLE RF pins. Ground plane optimization is critical for certain antenna types like monopoles. The GND trace used for the RF return path must be directly connected to the GND plane and not treated as a thermal relief. It is recommended that RF traces be routed in curves, not sharp 90 degree angles. In addition, with our commitment to making IoT easy, we offer dedicated service for Antenna RF Design which includes PCB design, tuning, matching and RF testing. ModuleRegionFrequency RAK3112 (H)EuropeEU868 North AmericaUS915 AustraliaAU915 KoreaKR920 AsiaAS923-1/2/3/4 IndiaIN865 RussiaRU864 RateType (dBm) 802.11b, 1 Mbps21.0 802.11b, 11 Mbps21.0 802.11g, 6 Mbps20.5 802.11g, 54 Mbps19.0 802.11n, HT20, MCS019.5 802.11n, HT20, MCS719.0 802.11n, HT40, MCS019.5 802.11n, HT40, MCS718.0 RF Characteristics LoRa Transceiver The RAK3112 module supports many LoRaWAN bands as shown in the table below. TX Power Transmitter output power, programmable up to +22 dBm. RX Sensitivity -124 dBm for LoRa（BW = 125 kHz, SF = 7） -121 dBm for LoRa (BW = 250 kHz, SF = 7) -137 dBm for LoRa (BW = 125 kHz, SF = 12) -134 dBm for LoRa（BW = 250 kHz, SF = 12） Wi-Fi Operating Frequencies 2400-2483.5 MHz TX Power RateType (dBm) 802.11b, 1 Mbps–98.4 802.11b, 11 Mbps-88.6 802.11g, 6 Mbps–93.2 802.11g, 54 Mbps–76.5 802.11n, HT20, MCS0–92.6 802.11n, HT20, MCS7–74.2 802.11n, HT40, MCS0–90.0 802.11n, HT40, MCS7–71.4 RateType (dBm) BLE @1 MbpsProgrammable from -24 dBm to 20 dBm BLE @2 MbpsProgrammable from -24 dBm to 20 dBm BLE @125 KbpsProgrammable from -24 dBm to 20 dBm BLE @500 KbpsProgrammable from -24 dBm to 20 dBm RateType (dBm) BLE @1 Mbps–97.5 BLE @2 Mbps–93.5 BLE @125 Kbps–104.5 BLE @500 Kbps–101 RX Sensitivity Bluetooth Operating Frequencies 2402 ~ 2480 MHz TX Power RX Sensitivity Electrical Characteristics FeatureMinimumTypicalMaximumUnit VDD3.03.33.6Volts (V) Work ModeConditionPeak currentUnit Wi-Fi TX802.11b, 1 Mbps, @21 dBm340mA 802.11g, 54 Mbps, @19 dBm291mA 802.11n, HT20, MCS7, @18.5 dBm283mA 802.11n, HT40, MCS7, @18 dBm286mA Wi-Fi RX802.11b…

Text truncated - open the document above for the full version.

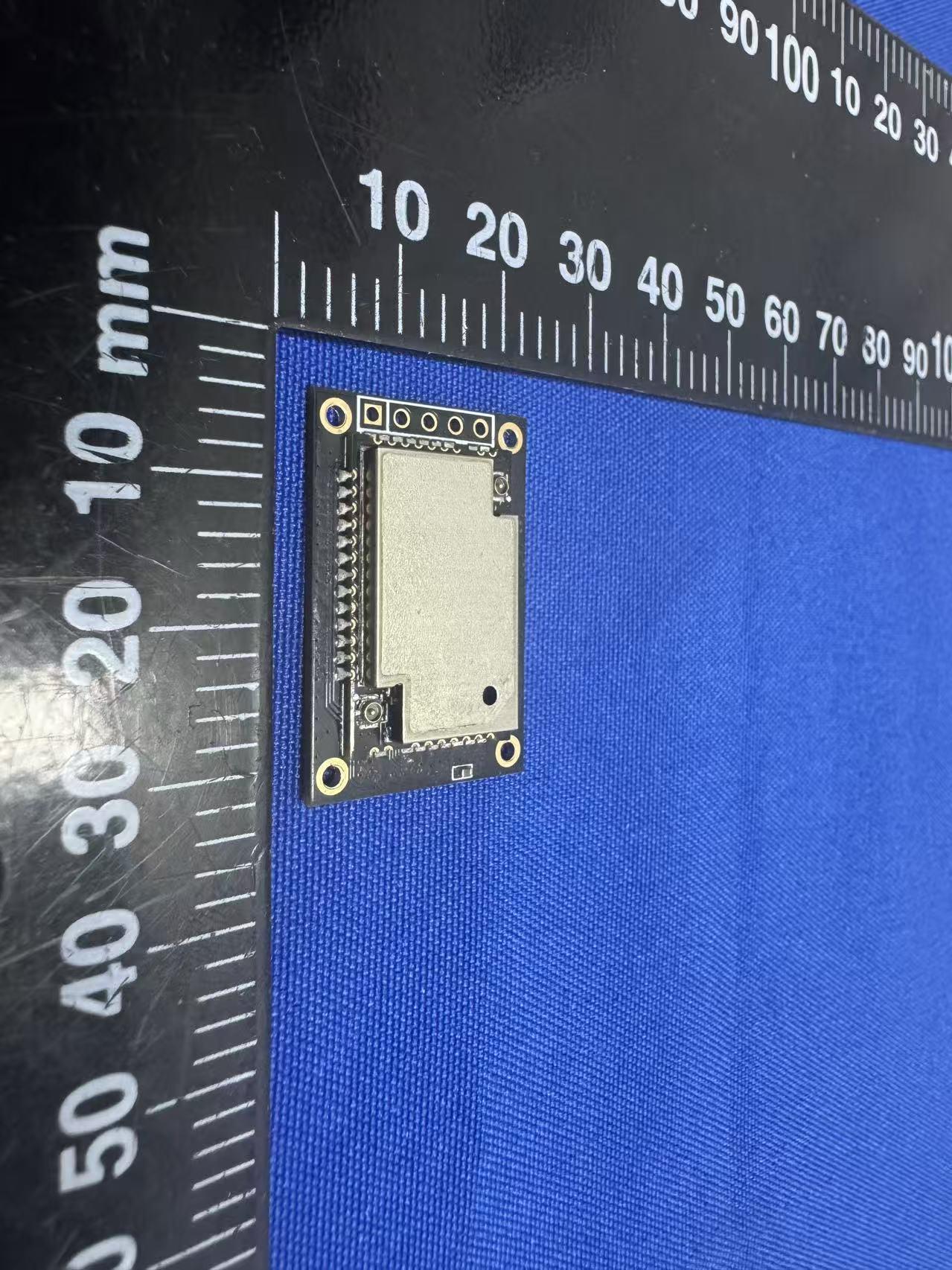

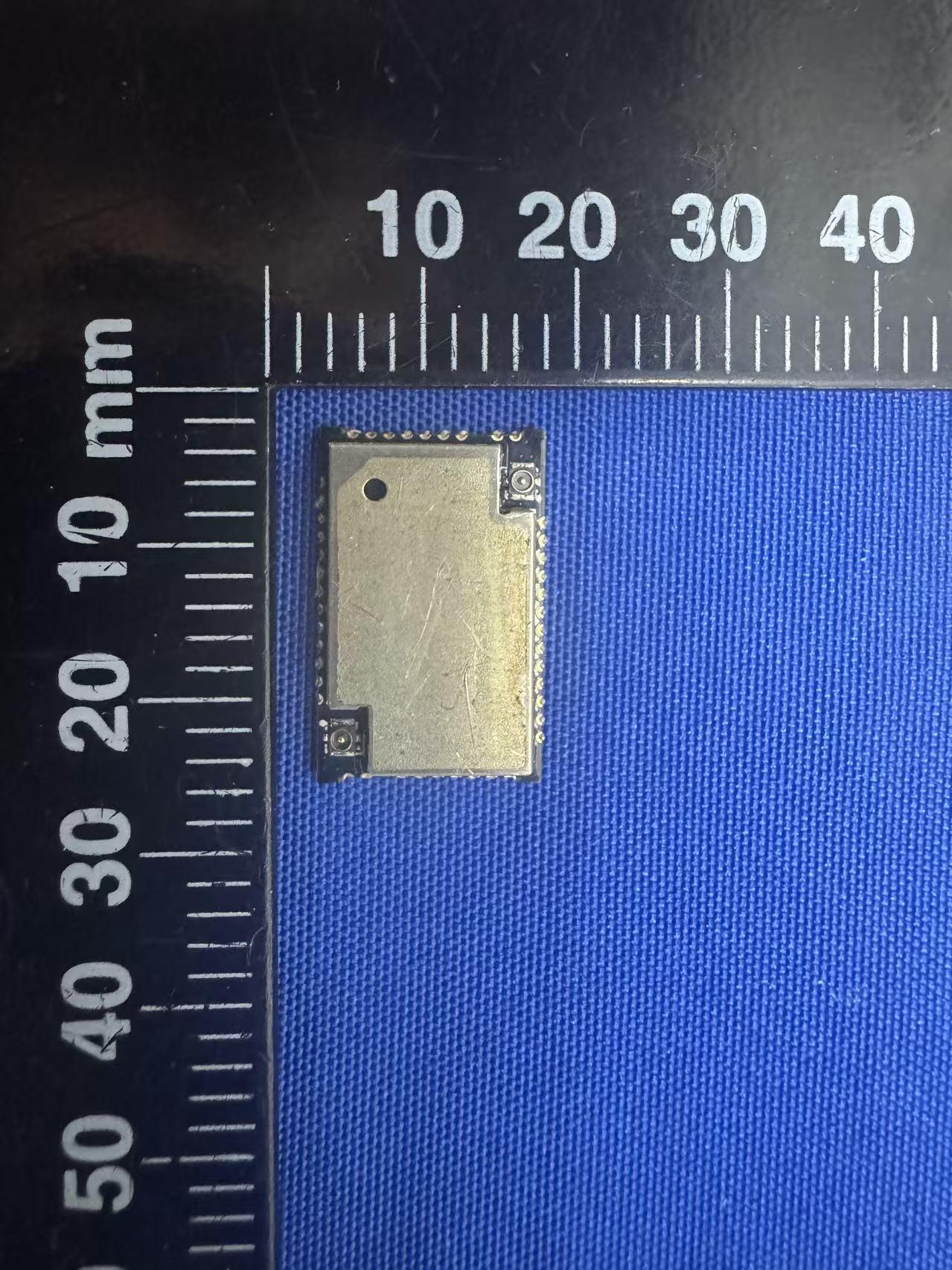

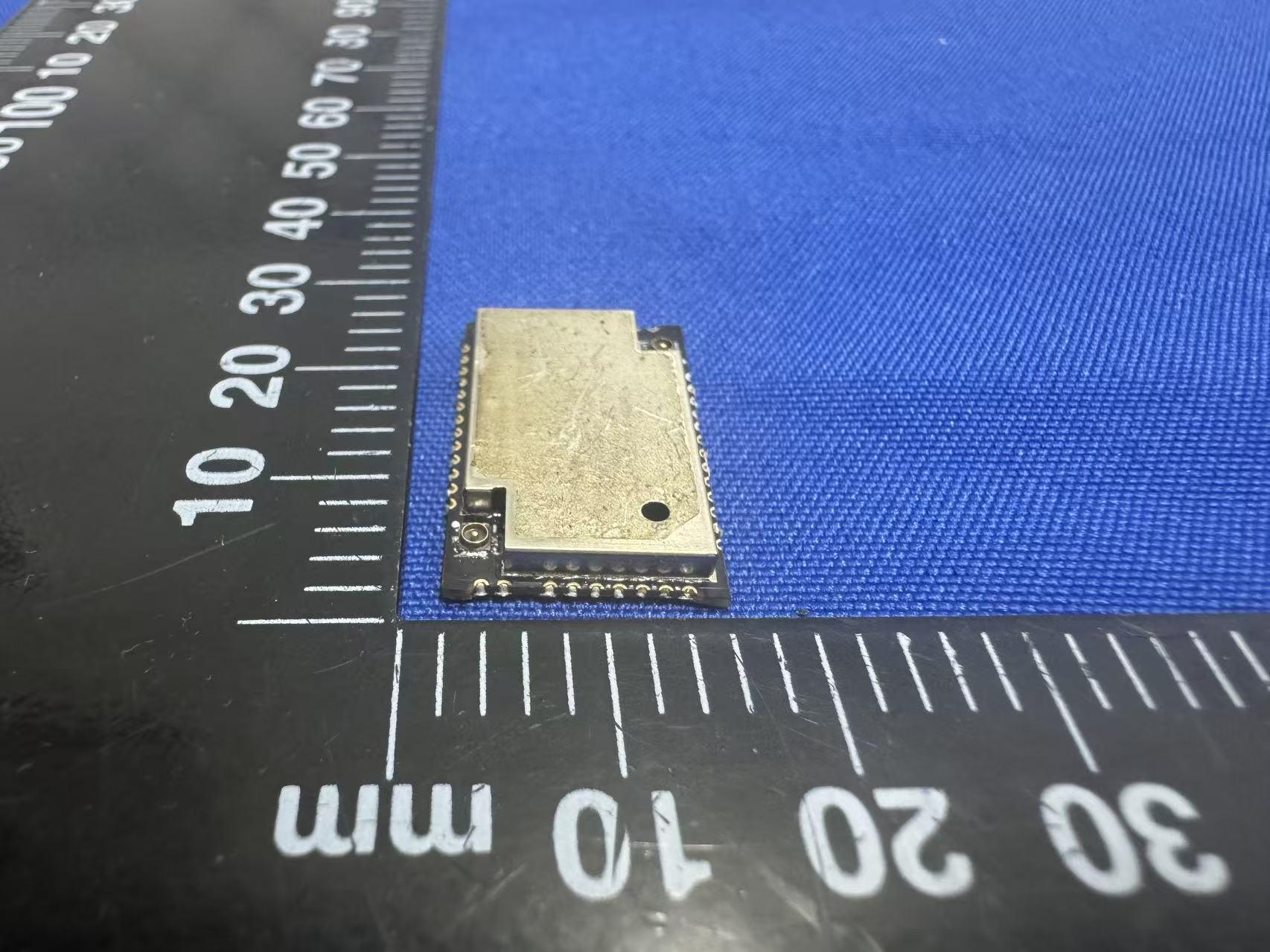

ReportNo.:BL-SZ25A0043-AI 1 / 5 EUTINTERNALPHOTOS EUTTOPVIEWRAK3112 EUTREARVIEWRAK3112 ReportNo.:BL-SZ25A0043-AI 2 / 5 EUTTOPVIEWRAK3112(WITHOUTSHIELDING) EUTTOPVIEWRAK3312 ReportNo.:BL-SZ25A0043-AI 3 / 5 EUTREARVIEWRAK3312 EUTTOPVIEWRAK3312(WITHOUTSHIELDING) ReportNo.:BL-SZ25A0043-AI 4 / 5 EUTUNCOVERVIEW1(WITHACCESSORYPOWERSUPPLYBOARD) EUTUNCOVERVIEW2(WITHACCESSORYPOWERSUPPLYBOARD) ReportNo.:BL-SZ25A0043-AI 5 / 5 SECONDARYBOARD1TOPVIEW(WITHACCESSORYPOWERSUPPLYBOARD) SECONDARYBOARD1REARVIEW(WITHACCESSORYPOWERSUPPLYBOARD) --BLANKBELOW--
