RAK5167 WisLink LPWAN Concentrator Datasheet Overview Product Description The RAK5167 is an LPWAN Concentrator Module with PCI Express M.2 Type 2280 form factor and Key B-M Dual Key IDs based on Semtech SX1303 and SX126X for Listen Before Talk feature, which enables easy integration into an existing router or other network equipment with LPWAN Gateway capabilities. It can be used in any embedded platform offering a free PCIe M.2 slot with a USB connection. Furthermore, the ZOE- M8Q GPS chip is integrated onboard. This module is an exceptional, complete, and cost-efficient gateway solution offering up to 10 programmable parallel demodulation paths, 8 x 8 channel LoRa packet detectors, 8 x SF5-SF12 LoRa demodulators, and 8 x SF5-SF10 LoRa demodulators. It is capable of detecting an uninterrupted combination of packets at 8 different spreading factors and 10 channels with continuous demodulation of up to 16 packets. This product is best for smart metering fixed networks and Internet-of-Things (IoT) applications. Product Features • Designed based on PCI Express M.2 Type 2280 form factor and Key B-M Dual Key IDs • SX1303 baseband processor emulates 8 x 8 channels LoRa packet detectors • 8x SF5-SF12 LoRa demodulators • 8x SF5-SF10 LoRa demodulators • High-speed 125/250/500 kHz LoRa demodulator • (G)FSK demodulator • 3.3 V PCI Express M.2 • Compatible with Type 2280 Socket 2 Key B-M PCIe-based WWAN Module • Tx power up to 27 dBm • Rx sensitivity down to -139 dBm @ SF12, BW 125 kHz • Supports global license-free frequency band (EU868, IN865, RU864, US915, AU915, KR920, AS923-1, AS923-2, AS923-3, AS923-4) • Supports USB interfaces • Listen Before Talk • Fine Timestamp • Built-in ZOE-M8Q GPS module Specifications Overview The overview shows the top and back views of the RAK5167 board. It also presents the block diagram that discusses how the board works. Board Overview RAK5167 is a compact LPWAN Gateway Module, making it suitable for integration in systems where mass and size constraints are essential. It has been designed with the PCI Express M.2 Type 2280 form factor in mind, so it can easily become a part of products that comply with the standard, where they allow cards with a thickness of at least 3.7 mm. The board has two MHF4 IPEX connectors for the LoRa and GNSS antennas and a standard 75-pin connector (M.2) with Key B-M Dual Key IDs. Block Diagram The RAK5167 concentrator is equipped with one SX1303 chip and two SX1250. The first chip is utilized for the RF signal and the core of the device, while the latter provides the related LoRa modem and processing functionalities. Additional signal conditioning circuitry is implemented for PCI Express M.2 compliance, and two MHF4 IPEX connectors are available for external antenna integration. Hardware The hardware is categorized into seven (7) parts. It discusses the interfacing, pinouts, and their corresponding functions and diagrams. It also covers the parameters and standard values of the board. Interfaces • Power Supply - The RAK5167 concentrator module must be supplied through the 3.3Vaux pins by a DC power supply. The voltage needs to be stable since the current drawn can vary significantly during operation based on the power consumption profile of the SX1303 chip (for more information, see the SX1303 Datasheet). • USB Interface - The USB interface mainly provides for the USB_D+, USB_D- pins of the system connector. The USB interface gives access to the configuration register of SX1303 via an MCU STM32L412KBU6. Only the slave side is implemented. • UART and I2C Interface - RAK5167 integrates a ZOE-M8Q GPS module which has UART and I2C interface. The PINs on the golden finger provide a UART connection and an I2C connection, which allows direct access to the GPS module. The PPS signal is not only connected to SX1303 internally but also connected to the golden finger which can be used by the host board. • GPS_PPS - RAK5167 reserved the GPS_PPS input for received packets time-stamped and Fine timestamp. • MCU RESET - RAK5167 USB card includes the RESET active-low input signal to reset the MCU. SX1303’s RESET is controlled by MCU to reset the radio operations as specified by the SX1303 Specification. • Antenna RF Interface - The module has two RF interfaces over a standard MHF4 IPEX connector with a characteristic impedance of 50 Ω. The RF port (J1) supports both Tx and Rx, providing the antenna interface for LoRa. The RF port (J2) provides the antenna interface for GPS. Pin Definition Pinout Diagram Pinout Description Type Description IO Bidirectional DI Digital input DO Digital output OC Open collector Type Description OD Open drain PI Power input PO Power output NC No connection Pin No. RAK5167 Pin Type Description Remarks 1 NC (CONFIG_3=GND) No connection by default Reserved for CONFIG_3 2 3.3 V PI 3.3 V DC supply 3 GND Ground 4 3.3 V PI 3.3 V DC supply 5 GND Ground 6 NC No connection 7 USB_D+ IO USB differential data (+) Require differential impedance of 90 Ω 8 NC No connection 9 USB_D- IO USB differential data (-) Require differential impedance of 90 Ω 10 NC No connection 11 GND Ground KEY-B Notch 20 NC No connection 21 NC (CONFIG_0=GND) No connection by default Reserved for CONFIG_0 22 NC No connection Pin No. RAK5167 Pin Type Description Remarks 23 NC No connection 24 NC No connection 25 NC No connection 26 NC No connection 27 GND Ground 28 NC No connection 29 NC No connection 30 NC (Optional: MCU_RESET) No connection by default Reserved for MCU_RESET 31 NC No connection 32 NC No connection 33 GND Ground 34 NC No connection 35 NC No connection 36 NC No connection 37 NC No connection 38 NC No connection 39 GND Ground 40 NC (Optional: I2C_SCL) No connection by default Reserved for connecting to GPS module ZOE-M8Q's I2C_SCL internally 41 NC No connection 42 NC (Optional: I2C_SDA) No connection by default Reserved for connecting to GPS module Pin No. RAK5167 Pin Type Description Remarks ZOE-M8Q's I2C_SDA internally 43 NC No connection 44 NC No …

Text truncated - open the document above for the full version.

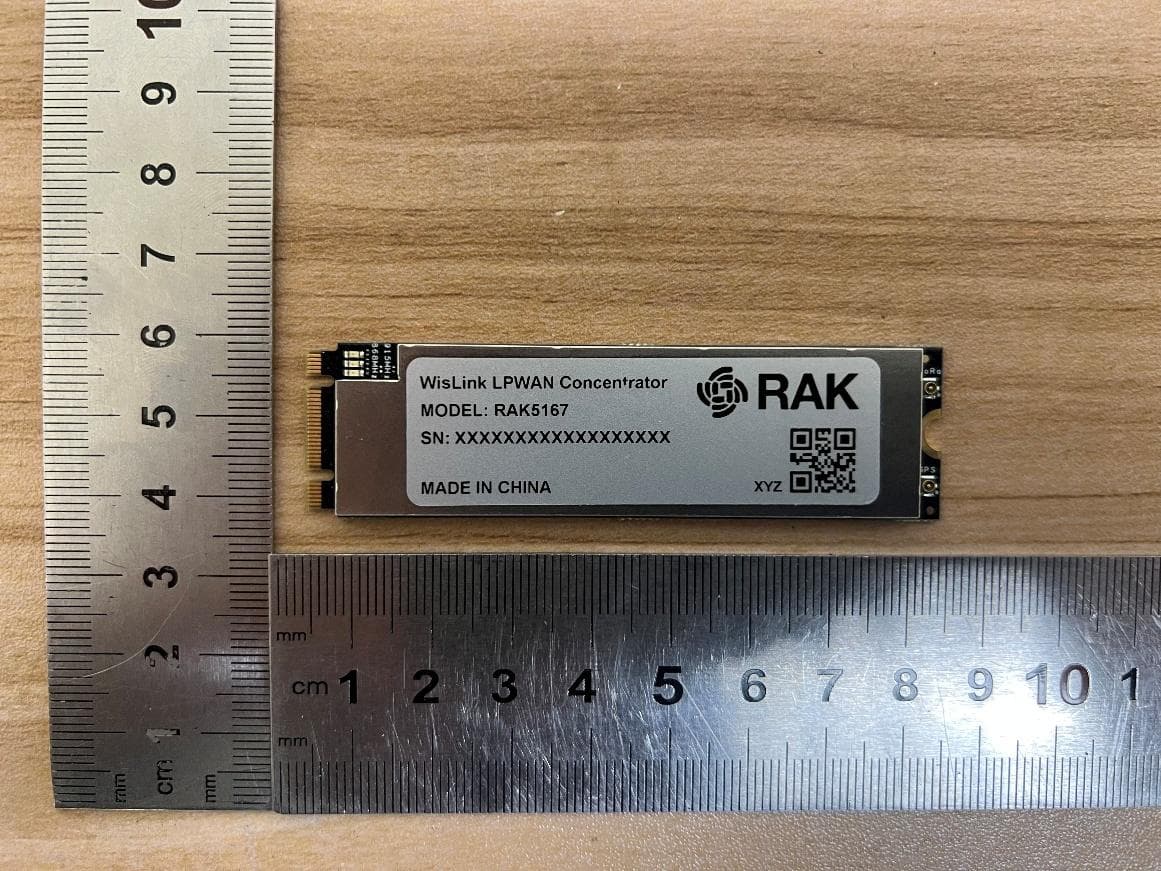

LABEL: LABEL LOCATION: The label is attached to the surface of the shield with apermanent adhesive.

Appendix II Setup Photographs Project No.: 4792017333-1 Page 2 of 9 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. AC Power Line Conducted Emission RAKARG15 Page 3 of 9 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. RAKARJ14 Page 4 of 9 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Radiated Band edge and Spurious Emission RAKARG15 RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz) MEASUREMENT POSITION MEASUREMENT POSITION (X axis) Page 5 of 9 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. MEASUREMENT POSITION (Y axis) MEASUREMENT POSITION (Z axis) Page 6 of 9 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. RAKARJ14 RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz) MEASUREMENT POSITION MEASUREMENT POSITION (X axis) Page 7 of 9 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. MEASUREMENT POSITION (Y axis) MEASUREMENT POSITION (Z axis) Page 8 of 9 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. RADIATED RF MEASUREMENT SETUP (30MHz~1GHz) RAKARG15 Note: Location of the table was adjusted to maintain the test distance between EUT Ant and measuring Ant RAKARJ14 Page 9 of 9 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. RADIATED RF MEASUREMENT SETUP (Below 30MHz) RAKARG15 Note: Location of the table was adjusted to maintain the test distance between EUT Ant and measuring Ant RAKARJ14

Page 1 of 6 902-928 MHz 5.8 dBi Fiber Glass Antenna (RAKARG14) Datasheet Features • Frequency range: 902 ~ 930 MHz • Max gain: 5.8 dBi • VSWR: ≤ 2.0 • Radome body: Fiberglass • High efficiency • Vertically polarized dipole • Omni-directional • Easy to mount with the included Installation kit • Outdoor use Page 2 of 6 Specifications Parameter Value Model RAKARG14 Frequency range 902 ~ 930 MHz Peak gain 5.8 dBi VSWR ≤ 2.0 Efficiency ≤ 79% Feed impedance 50 Ohms Radiation pattern Omni-directional Polarization Vertical Cover material (color) Fiberglass (white) Connector type N-type male Dimensions (mm) Փ 29.8 mm x 800.0 mm Operation temp (°C) -20 °C ~ +65 °C Storage temperature -30 °C ~ +75 °C Humidity range 5% ~ 95% Page 3 of 6 VSWR Frequency (MHz) VSWR 900 MHz 1.32 902 MHz 1.33 930 MHz 1.47 Figure 2: RAKARG14 VSWR graph Page 4 of 6 Peak Gain & Efficiency Frequency (MHz) Gain (dBi) Efficiency (%) 902 5.4 74.02 904 5.6 76.58 906 5.6 76.34 908 5.6 74.85 910 5.5 74.11 912 5.6 74.09 914 5.7 76.16 916 78.27 918 79.42 920 79.10 922 77.99 924 5.8 76.85 926 5.8 76.56 928 5.7 77.45 930 5.7 78.16 Average: 71.73 5.8 5.8 5.8 5.8 Page 5 of 6 Radiation Patterns Figure 3: RAKARG14 radiation patterns Page 6 of 6 Mechanical Specifications Figure 4: RAKARG14 mechanical specifications Manufacturer Shenzhen RAKwireless Technology Co.,Ltd. Room 506, Building B, New Compark, Pingshan First Road, Taoyuan Street, Nanshan District, Shenzhen, Guangdong, China

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART C ISED RSS-247 Issue 4 CERTIFICATION TEST REPORT For WisLink Module MODEL NUMBER: RAK5167 FCC ID: 2AF6B-5167 IC: 25908-5167 REPORT NUMBER: 4792017333-1-RF-1 ISSUE DATE: December 23, 2025 Prepared for Shenzhen RAKwireless Technology Co.,Ltd. Room 506, Building B, New Compark, Pingshan First Road, Taoyuan Street, Nanshan District, Shenzhen, Guangdong, China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Room 101, Building 2, No.4, Information Road, Songshan Lake, Dongguan, Guangdong, China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4792017333-1-RF-1 Page 2 of 91 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0087 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 December 23, 2025 Initial Issue REPORT NO.: 4792017333-1-RF-1 Page 3 of 91 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0087 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203 RSS-GEN Clause 6.8 Pass AC Power Line Conducted Emission ANSI C63.10-2020, Clause 6.2 FCC Part 15.207 RSS-GEN Clause 8.8 Pass Conducted Output Power ANSI C63.10-2020, Clause 11.9.1.2 FCC Part 15.247 (b) (3) RSS-247 Clause 6.3.2 Pass 6dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2020, Clause 11.8.1 FCC Part 15.247 (a) (2) RSS-247 Clause 6.3.1 (a) RSS-Gen Clause 6.7 Pass Power Spectral Density ANSI C63.10-2020, Clause 11.10.2 FCC Part 15.247 (e) RSS-247 Clause 6.3.1 (b) Pass Conducted Band edge and spurious emission ANSI C63.10-2020, Clause 11.11 FCC Part 15.247 (d) RSS-247 Clause 6.6 Pass Radiated Band edge and Spurious Emission ANSI C63.10-2020, Clause 11.12 FCC Part 15.247 (d) FCC Part 15.209 FCC Part 15.205 RSS-247 Clause 6.6 RSS-GEN Clause 8.9 Pass Duty Cycle ANSI C63.10-2020, Clause 11.6 None; for reporting purposes only. Pass Note: This report is also performed according to ANSI C63.10-2020 + Cor.1-2023 + C63.10a- 2024 + Errata to C63.10a-2024 standards. *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to < CFR 47 FCC PART 15 SUBPART C ISED RSS-247 Issue 4> when <Simple Acceptance> decision rule is applied. REPORT NO.: 4792017333-1-RF-1 Page 4 of 91 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0087 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 6 2. TEST METHODOLOGY ..................................................................................................... 7 3. FACILITIES AND ACCREDITATION ................................................................................. 7 4. CALIBRATION AND UNCERTAINTY ................................................................................ 8 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 8 4.2. MEASUREMENT UNCERTAINTY ............................................................................... 8 5. EQUIPMENT UNDER TEST ............................................................................................... 9 5.1. DESCRIPTION OF EUT .............................................................................................. 9 5.2. CHANNEL LIST ..........................................................................................................10 5.3. MAXIMUM OUTPUT POWER.....................................................................................10 5.4. TEST CHANNEL CONFIGURATION ..........................................................................10 5.5. THE WORSE CASE POWER SETTING PARAMETER ..............................................10 5.6. WORST-CASE CONFIGURATIONS...........................................................................11 5.7. DESCRIPTION OF AVAILABLE ANTENNAS AND CABLES ......................................12 5.8. DESCRIPTION OF TEST SETUP ...............................................................................13 6. MEASURING INSTRUMENT AND SOFTWARE USED ....................................................14 7. ANTENNA PORT TEST RESULTS ...................................................................................17 7.1. ON TIME AND DUTY CYCLE .....................................................................................17 7.2. 6 dB DTS BANDWIDTH AND 99 % OCCUPIED BANDWIDTH ..................................18 7.3. CONDUCTED OUTPUT POWER ...............................................................................20 7.4. POWER SPECTRAL DENSITY ..................................................................................21 7.5. CONDUCTED BANDEDGE AND SPURIOUS EMISSIONS ........................................23 8. RADIATED TEST RESULTS .............................................................................................25 8.1. SPURIOUS EMISSIONS (1 GHz ~ 10 GHz) ...............................................................31 8.1.1. …

Text truncated - open the document above for the full version.

Page 1 of 6 902-928 MHz 2.3 dBi Blade Antenna White (RAKARJ16) Datasheet Features • Frequency range: 902~928 MHz • VSWR: ≤ 1.5 • Max Gain: 2.3 dBi • High efficiency • Vertically polarized dipole Figure 1 RAKARJ16 overview Page 2 of 6 Specifications Parameter Value Model RAKARJ16 Frequency range 902 ~ 928 MHz Peak gain 2.3 dBi VSWR ≤ 1.5 Efficiency > 80% Feed impedance 50 Ohms Radiation pattern Omni-directional Polarization Vertical Cover material (color) Plastic (black) Connector type RP-SMA Dimensions (mm) Փ 13.00 mm x 198.0 mm Operation temp (°C) -30 °C ~ +75 °C Storage temperature -30 °C ~ +75 °C Humidity range 5% ~ 95% Page 3 of 6 S11&VSWR Frequency (MHz) S11 VSWR 902 MHz -18.3 1.28 928 MHz -14.6 1.46 Figure 2 Return Loss Page 4 of 6 Peak Gain & Efficiency Frequency (MHz) Peak Gain (dBi) Efficiency (%) 902 2.3 82.6 904 2.2 82.3 906 2.2 82.7 908 2.3 84.0 910 2.3 85.0 912 2.3 85.7 914 2.3 86.0 916 2.2 86.1 918 2.2 85.9 920 2.2 86.0 922 2.3 86.4 924 1.9 85.9 926 1.9 85.1 928 2.1 85.5 Average - 84.9 Page 5 of 6 Radiation Patterns 4 Page 6 of 6 Mechanical Specifications 5 Manufacturer Shenzhen RAKwireless Technology Co.,Ltd. Room 506, Building B, New Compark, Pingshan First Road, Taoyuan Street, Nanshan District, Shenzhen, Guangdong, China

Page 1 of 6 902-928 MHz 2.3 dBi Blade Antenna White (RAKARJ14) Datasheet Features • Frequency range: 902~928 MHz • VSWR: ≤ 1.5 • Max Gain: 2.3 dBi • High efficiency • Vertically polarized dipole Figure 1 RAKARJ14 overview 1 Page 2 of 6 Specifications Parameter Value Model RAKARJ14 Frequency range 902 ~ 928 MHz Peak gain 2.3 dBi VSWR ≤ 1.5 Efficiency > 80% Feed impedance 50 Ohms Radiation pattern Omni-directional Polarization Vertical Cover material (color) Plastic (white) Connector type RP-SMA Dimensions (mm) Փ 13.00 mm x 198.0 mm Operation temp (°C) -20 °C ~ +75 °C Storage temperature -30 °C ~ +75 °C Humidity range 5% ~ 95% Page 3 of 6 S11&VSWR Frequency (MHz) S11 VSWR 902 MHz -18.3 1.28 928 MHz -14.6 1.46 Figure 2 Return Loss Page 4 of 6 Peak Gain & Efficiency Frequency (MHz) Peak Gain (dBi) Efficiency (%) 902 2.3 82.6 904 2.2 82.3 906 2.2 82.7 908 2.3 84.0 910 2.3 85.0 912 2.3 85.7 914 2.3 86.0 916 2.2 86.1 918 2.2 85.9 920 2.2 86.0 922 2.3 86.4 924 1.9 85.9 926 1.9 85.1 928 2.1 85.5 Average - 84.9 Page 5 of 6 Radiation Patterns 4 + Z + Y + X Page 6 of 6 Mechanical Specifications 5 Manufacturer Shenzhen RAKwireless Technology Co.,Ltd. Room 506, Building B, New Compark, Pingshan First Road, Taoyuan Street, Nanshan District, Shenzhen, Guangdong, China

Page 1 of 7 900-930 MHz 8 dBi Fiber Glass Antenna (RAKARG15) Datasheet Features • Frequency range: 900 ~ 930 MHz • Max gain: 8.0 dBi • VSWR: ≤ 1.5 • Radome body: Fiberglass • High efficiency • Vertically polarized dipole • Omni-directional • Easy to mount with the included Installation kit • Outdoor use Figure 1 RAKARG16 Overview Page 2 of 7 Specifications Parameter Value Model RAKARG15 Frequency range 900 ~ 930 MHz Peak gain 8 dBi VSWR ≤ 1.5 Efficiency ≤ 65% Feed impedance 50 Ohms Radiation pattern Omni-directional Polarization Vertical Cover material (color) Fiberglass (white) Connector type N-type male Dimensions (mm) Փ 25.0 mm x 900.0 mm Operation temp (°C) -20 °C ~ +65 °C Storage temperature -30 °C ~ +75 °C Humidity range 5% ~ 95% Page 3 of 7 VSWR Frequency (MHz) VSWR 902 MHz 1.28 910 MHz 1.20 928 MHz 1.17 Figure 2: RAKARG15 VSWR graph Page 4 of 7 Peak Gain & Efficiency Frequency (MHz) Gain (dBi) Efficiency (%) 900 6.3 43.3 905 6.6 47.1 910 7.6 50.4 915 7.3 52.6 920 7.4 52.4 925 7.6 52.7 930 8.0 50.9 Average: 50.0 Page 5 of 7 Radiation Patterns IVE-900 IVH.900 Figure 3: Radiation pattern at 900MHz IVE-910 IVH-910 Figure 4: Radiation pattern at 910MHz Page 6 of 7 IVE-920 IVH-920 Figure 5: Radiation pattern at 920MHz IVE-930 to IVH.930 Figure 6: Radiation pattern at 930MHz Page 7 of 7 Mechanical Specifications Figure 7: RAKARG15 mechanical specifications Manufacturer Shenzhen RAKwireless Technology Co.,Ltd. Room 506, Building B, New Compark, Pingshan First Road, Taoyuan Street, Nanshan District, Shenzhen, Guangdong, China

Page 1 of 6 902-928 MHz 5.1 dBi Fiber Glass Antenna (RAKARG19) Datasheet Features • Frequency range: 902 ~ 928 MHz • Max gain: 5.1 dBi • VSWR: ≤ 1.47 • High efficiency • Vertically polarized dipole • Omni-directional • Outdoor use Figure 1: RAKARG19 overview Page 2 of 6 Specifications Parameter Value Model RAKARG19 Frequency range 902 ~ 928 MHz Peak gain 5.1 dBi VSWR ≤ 1.47 Efficiency ≤ 84% Feed impedance 50 Ohms Radiation pattern Omni-directional Polarization Vertical Cover material (color) Fiber glass (white) Connector type N-type male Dimensions (mm) Ø 27.0 mm x 480.0 mm Operation temperature (°C) -40 °C ~ +75 °C Storage temperature (°C) -40 °C ~ +85 °C Humidity range 5% ~ 95% Page 3 of 6 VSWR Frequency (MHz) VSWR Return Loss (dB) 902 MHz 1.47 - 14.4 928 MHz 1.46 - 14.5 Figure 2: RAKARG19 VSWR graph Page 4 of 6 Peak Gain & Efficiency Frequency (MHz) Gain (dBi) Efficiency (%) 902 4.8 82 904 4.9 83 906 5.0 83 908 5.0 83 910 5.0 84 912 5.0 84 914 5.1 84 916 5.1 84 918 5.1 84 920 5.1 84 922 5.1 84 924 5.0 84 926 5.0 84 928 5.0 84 Average: 83.64 Page 5 of 6 Radiation Patterns Page 6 of 6 Mechanical Specifications Figure 4: RAKARG19 mechanical specifications Manufacturer Shenzhen RAKwireless Technology Co.,Ltd. Room 506, Building B, New Compark, Pingshan First Road, Taoyuan Street, Nanshan District, Shenzhen, Guangdong, China

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC RF EXPOSURE REPORT For WisLink Module MODEL NUMBER: RAK5167 REPORT NUMBER: 4792017333-1-RF-2 ISSUE DATE: December 23, 2025 FCC ID: 2AF6B-5167 Prepared for Shenzhen RAKwireless Technology Co.,Ltd. Room 506, Building B, New Compark, Pingshan First Road, Taoyuan Street, Nanshan District, Shenzhen, Guangdong, China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Room 101, Building 2, No.4, Information Road, Songshan Lake, Dongguan, Guangdong, China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4792017333-1-RF-2 Page 2 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 December 23, 2025 Initial Issue REPORT NO.: 4792017333-1-RF-2 Page 3 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. REQUIREMENT ................................................................................................................. 6 REPORT NO.: 4792017333-1-RF-2 Page 4 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Shenzhen RAKwireless Technology Co.,Ltd. Address: Room 506, Building B, New Compark, Pingshan First Road, Taoyuan Street, Nanshan District, Shenzhen, Guangdong, China Manufacturer Information Company Name: Shenzhen RAKwireless Technology Co.,Ltd. Address: Room 506, Building B, New Compark, Pingshan First Road, Taoyuan Street, Nanshan District, Shenzhen, Guangdong, China EUT Information EUT Name: WisLink Module Model: Brand: RAK5167 RAK Sample Received Date: November 17, 2025 Sample Status: Normal Sample ID: 9134152 Date of Tested: November 18, 2025 to December 22, 2025 APPLICABLE STANDARDS STANDARD TEST RESULTS 447498 D04 Interim General RF Exposure Guidance v01 PASS Prepared By: Checked By: Daniel Zhang Kebo Zhang Project Engineer Operations Leader Approved By: Stephen Guo Operations Manager REPORT NO.: 4792017333-1-RF-2 Page 5 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with 47 CFR FCC Part 1 Subpart I, section 1.1307 and KDB 447498 D04 Interim General RF Exposure Guidance v01. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4102.01) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1187) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. Has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. ISED (Company No.: 21320) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been registered and fully described in a report filed with ISED. The Company Number is 21320 and the test lab Conformity Assessment Body Identifier (CABID) is CN0046. VCCI (Registration No.: C-20202, G-20240, R-20248 and T-20202) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with VCCI, the Membership No. is 3793. Facility Name: Chamber E, the VCCI registration No. is G-20240 and R-20248 Shielding Room F, the VCCI registration No. is C-20202 and T-20202 Note 1: All tests measurement facilities use to collect the measurement data are located at Room 101, Building 2, No.4, Information Road, Songshan Lake, Dongguan, Guangdong, China. Note 2: The test anechoic chamber in UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. Note 3: For below 30 MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. And these measurements below 30 MHz had been correlated to measurements performed on an OFS. REPORT NO.: 4792017333-1-RF-2 Page 6 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 4. REQUIREMENT LIMIT AND CALCULATION METHOD According to 447498 D04 Interim General RF Exposure Guidance v01, 2.1.4 MPE-Based Exemption An alternative to the SAR-based exemption is …

Text truncated - open the document above for the full version.

Internal Photographs Project No.: 4792017333-1 Page 2 of 2 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-1 Internal View of EUT-2

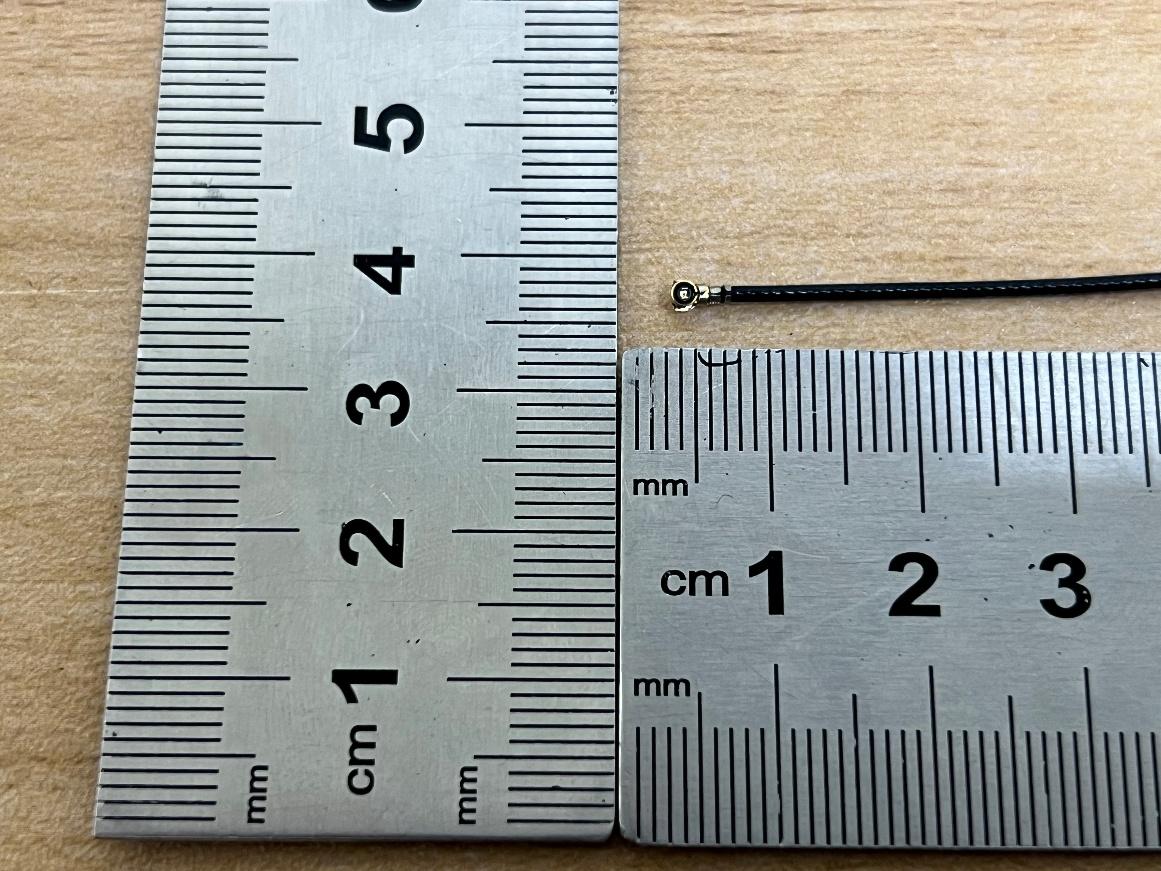

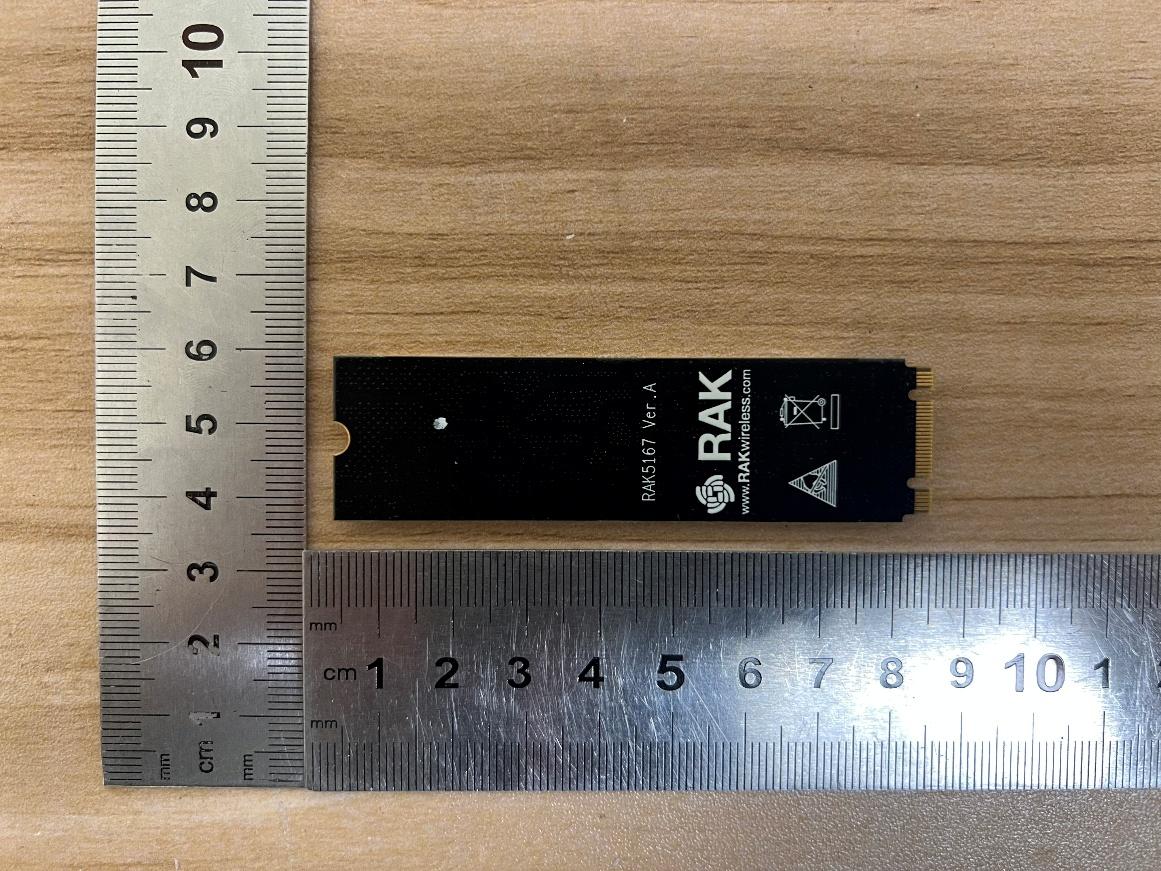

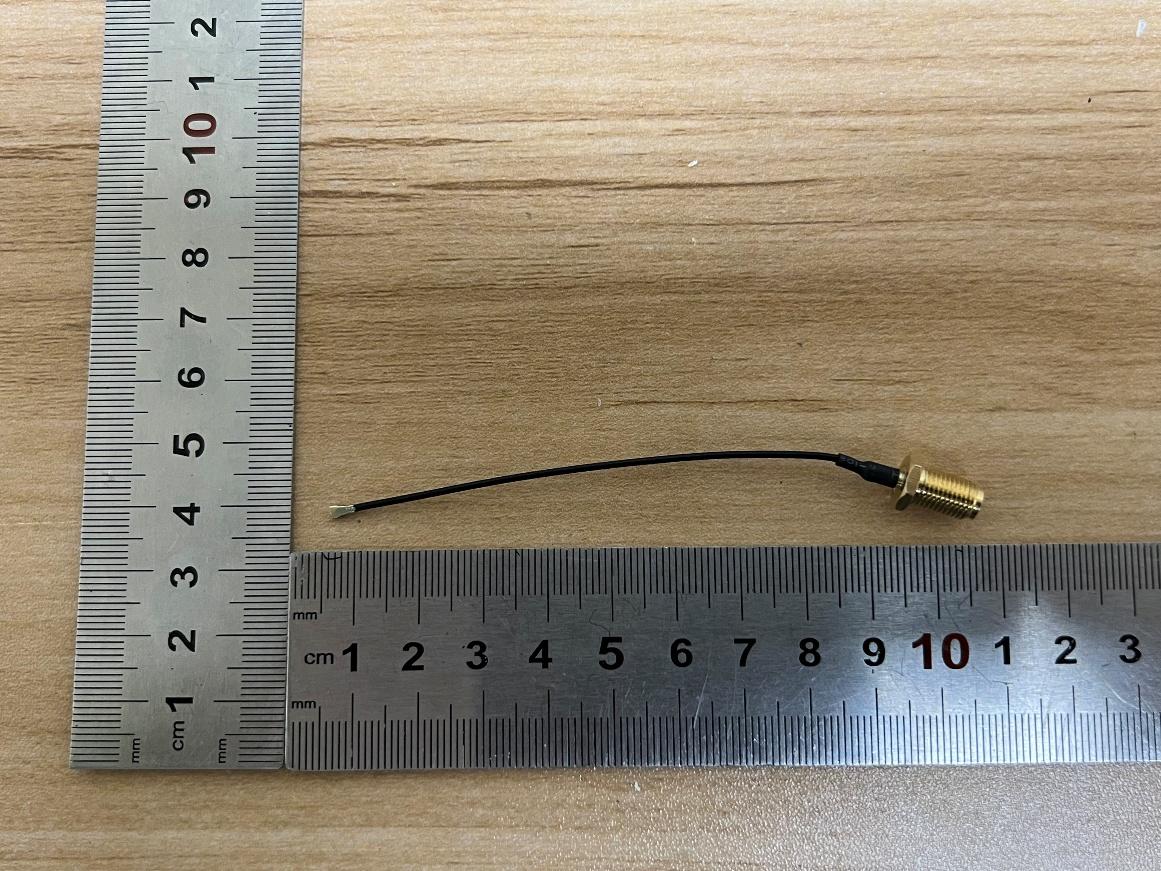

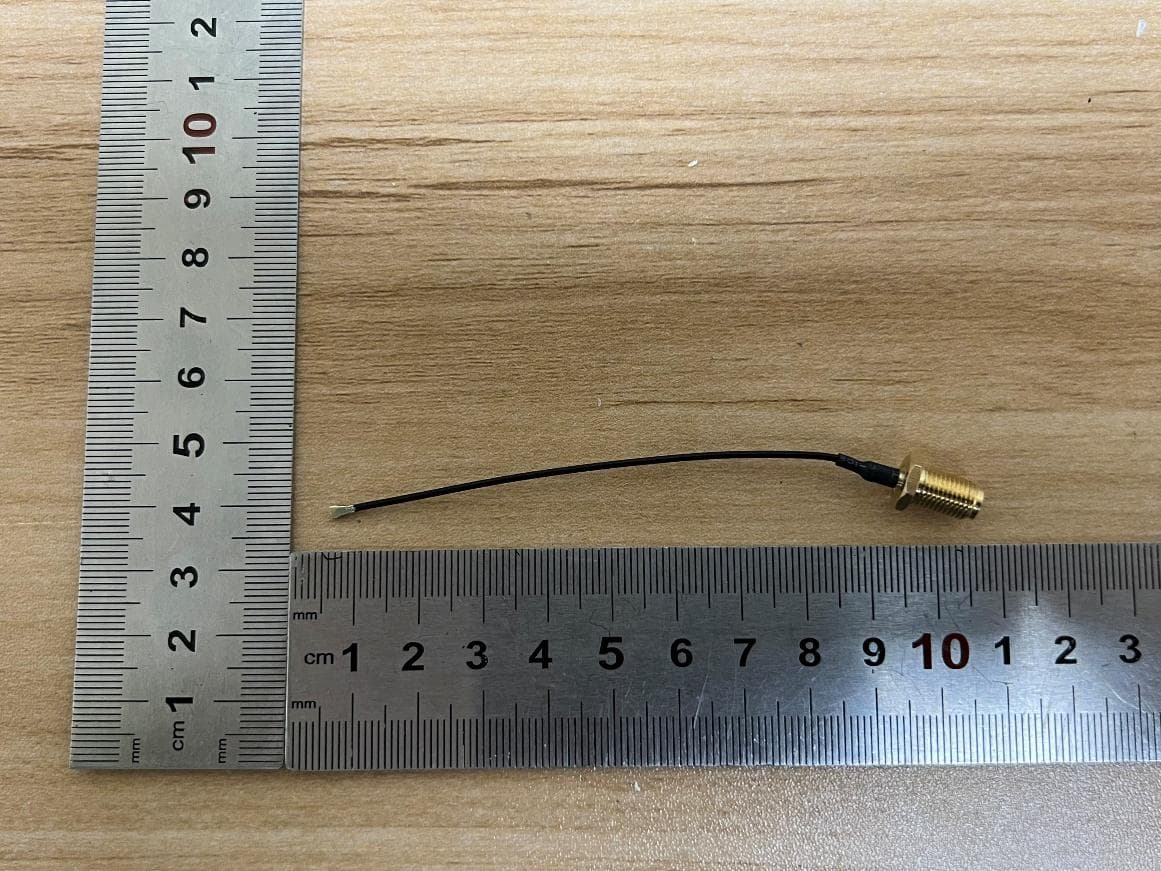

External Photographs Project No.: 4792017333-1 Page 2 of 16 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-1 View of EUT-2 RAKARG15 Lora Ant RAKARG15 Lora Ant RAKARJ16 GPS Ant Lora Ant RAKARG19 Lora Ant RAKARJ14 Lora Ant RAKARG14 Cable RPSMA- C-J3/N-C-K316- 1-1000m Cable SLEingC10066 0088-C01 Page 3 of 16 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-3 RAKARG15 View of EUT-4 RAKARG15 Page 4 of 16 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-5 RAKARG14 View of EUT-6 RAKARG14 Page 5 of 16 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-7 RAKARG14 View of EUT-8 RAKARG19 Page 6 of 16 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-9 RAKARG19 View of EUT-10 RAKARG19 Page 7 of 16 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-11 RAKARJ14 View of EUT-12 RAKARJ14 Page 8 of 16 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-13 RAKARJ14 View of EUT-14 RAKARJ16 Page 9 of 16 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-15 RAKARJ16 View of EUT-16 RAKARJ16 Page 10 of 16 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-17 GPS Ant View of EUT-18 GPS Ant Page 11 of 16 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-19 RPSMA-C-J3/N-C-K316-1-1000m View of EUT-20 RPSMA-C-J3/N-C-K316-1-1000m Page 12 of 16 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-21 RPSMA-C-J3/N-C-K316-1-1000m View of EUT-22 SLEingC100660088-C01 Pag…
