2AF6B-RAK2560CSensor Hub

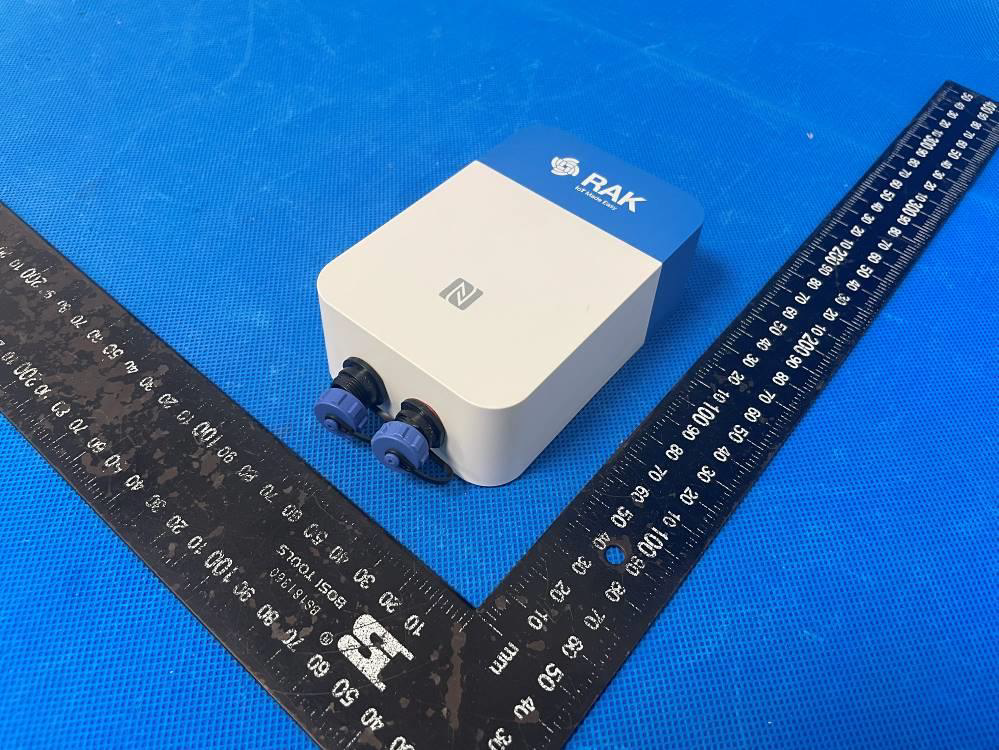

Documentation Center RAK2560C WisNode Sensor Hub atasheet Overview Description The RAK2560C WisNode Sensor Hub is a modular sensor ecosystem consisting of the main body and multiple pre-configured sensor probes. With pluggable, interchangeable probes, and the option to add third-party sensors to the mixture, the Sensor Hub is a suitable and versatile solution platform for various IoT applications where environmental monitoring is needed. The Sensor Hub consists of a robust waterproof enclosure with two (2) sensor probe ports to connect the sensors or an external power source like a solar panel. The device can work in full battery mode or with an external power supply depending on the deployment location. The Sensor Hub and its sensor probes are easily configured via the WisToolBox app, available for mobile and desktop. Product Features LoRa 868-930 MHz support Based on RAK4630(MCU: nRF52840, Radio Chip: SX1262) RUI3- based code Auto-detection of the power source Auto-detection of the Sensor Probes 2~4 pcs 3.6 V ER18505 4000 mAh Li-SOCl2 primary lithium batteries 12 V DC over power supply or solar panel NB-IoT interface module (RAK5860C) support (optional) Embedded antenna High efficiency (over 75%) LoRa Band 860~930 MHz Support 700~960 MHz and 1700~2170 MHz. NFC tag for power on and smart connect over BLE Prevent theft via the hall effect sensor on the exclusive mounting bracket IP67-rated waterproof enclosure Sensor ports can host multiple Sensor Probes via Probe Splitters pecifications Overview Main Specifications Documentation Center IP67 rated SP11 connector for professional installation and fast deployment Plastic top (UL-746C), UV-resistant Metal body, die-casted, with solid and good thermal dissipation Internal gasket (UL-94V0) Weatherproof design Surge and ESD6 kV surge and 8 kV ESD protection Storage temperature-40° C to +80° C FeatureSpecification Wireless technology Support LoRa end node (915 MHz / 868 MHz) Support Bluetooth for easy setup Support NFC for easy setup 1 x internal: high-gain and high-efficiency LoRa antenna (also support NB-IoT) 1 x internal: NFC antenna 1 x internal: Bluetooth antenna Antenna External interfaces 2 x SP11 connector (IP67) for multiple-purpose sensors The SP11 supports a 12 V power adapter and a solar panel kit for external power Power source +12 V DC at 1 A (12 W) power adapter Support 12 V DC solar panel 4 x ER18505 Li-SOCl2 batteries (4000 mAh) Solid mounting kit for wind speed load of 215 km/h Pole-mount (vertical or horizontal) Wall-mount Mounting options Enclosure dimensions120 x 80 x 39 mm Working environment -30° C to +60° C Suitable for indoor use Dimensions The dimensions for the body of the Sensor Hub are 120 x 80 x 39 mm. There are two equal physical ports for Sensor Probe—the DC supply and the Probe IO at the bottom of the enclosure. Figure 1: RAK2560C WisNode Sensor Hub dimensions Documentation Center Block Diagram The RAK2560C Sensor Hub uses RAK4630 as a core. The One-wire protocol provides easy connection and easy assembly. The device supports two kinds of wireless communication, LoRa, and NB-IoT that are switchable. A hybrid power system provides more possibilities to customize the Hub to correspond to the customer/market demands. Hardware Figure 2: RAK2560C WisNode Sensor Hub block diagram The hardware specification is categorized into five (5) parts. It shows the pinouts of the sensor hub and their corresponding functions and diagram. It also covers the rf, power supply, and environmental characteristics that include the tabular data of the functionalities and standard values of the RAK2560C WisNode Sensor Hub. Pin Definition Each of the two ports has five (5) pins and they are the same for both ports. Figure 3: RAK2560C WisNode Sensor Hub pin definition Pin No. NameTypeDescriptionRemarks 1VinPI12 V DC supplyInput 5~16 V Documentation Center No. 3 One-wire UART IO Communication with - probe 3.3 V DC support mode; 3.4 V battery mode Power supply for the probe POVcc_Probe4 5Reserved-Not definedReserved for future applications RF Characteristics Operating Frequencies The board supports the following LoRa frequency channels, allowing easy configuration while building the firmware from the source code. RegionFrequency EuropeEU868 AsiaAS923, AS920 KoreaKR920 Power Supply The RAK2560C Sensor Hub must be supplied through the 12 V SP11 pins by a DC power supply or 4 x EVE ER18505 3.6 V Lithium 4000 mAh battery and the voltage must be stable. Power Consumption ModeConditionMinTypicalMax Active mode (TX) The power of TX channel is 20 dBm and 3.6 V supply 110 mA120 mA130 mA 15 mA8.55 mA7.5 mATX disabled and RX enabled Active mode (RX) North AmericaUS915 AustraliaAU915 IndiaIN865 ￿ NOTE: The above frequency band parameters are different, depending on the region, and comply with the local regulatory requirements. Have your location in mind when placing an order. Pin Name TypeDescriptionRemarks 2GND-Ground- Documentation Center (idle) The RAK2560C can support both Sensor Probes and Probe IO in all possible combinations. Figure 4: RAK2560C WisNode Sensor Hub connection schematics Software ￿ NOTE: If you want to add a Probe IO to your setup, the Sensor Hub must be supplied by an external 12 V DC power source. ModeConditionMinTypicalMax Active mode TX disabled and RX disabled. MCU wake up 3.0 mA3.3 mA3.6 mA Sleep modeSleep mode13 uA15 uA20 uA Environmental Requirements Operating Conditions ParameterMinTypicalMax Normal operating temperature–30° C+25° C+80° C Sensor Connection Diagram Documentation Center Supported Protocol Description NFCFor waking up the Sensor Hub via the WisToolBox App LoRaWANFor data transfer, provided by the RAK4630 WisBlock LPWAN module One-wire UARTFor communication between the Sensor Probe/Probe IO and the Hub This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference receiv…

Text truncated - open the document above for the full version.

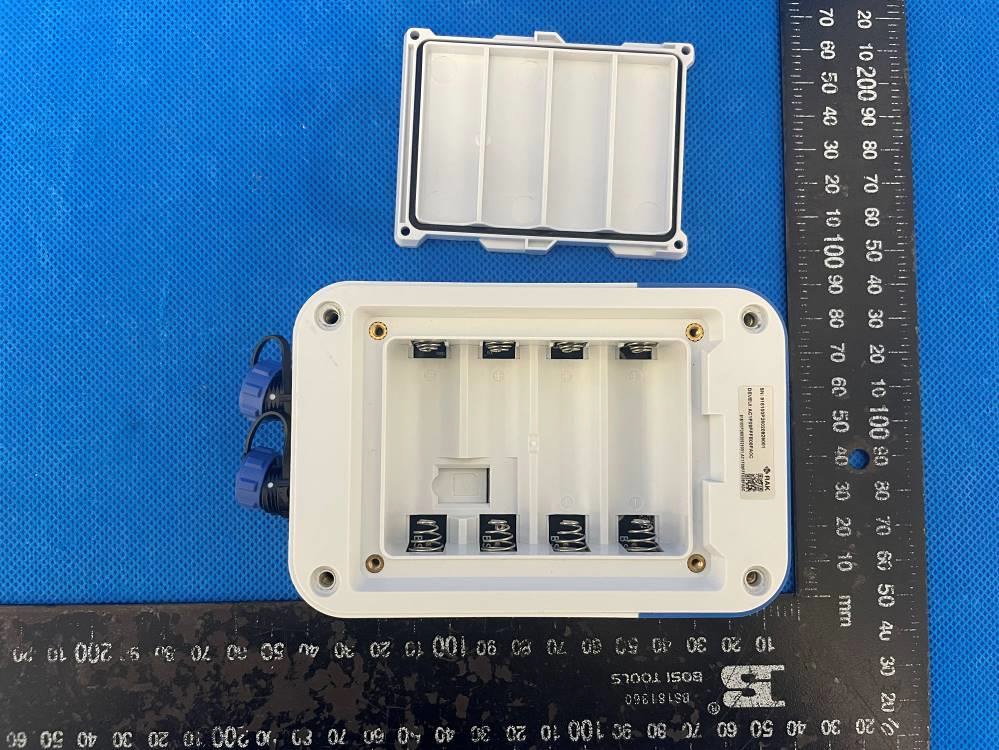

Documentation Center RAK2560 WisNode Sensor Hub Installation Guide During installation, make sure that the installer complies with all the necessary safety regulations to ensure personal safety. ⚠ WARNING Do not place the device and mounting kit on pedestrian walkways to avoid accidental damage to the device or harm to bystanders. Inserting the SIM Card and Batteries 1. Remove the back cover by unscrewing the four screws using a Philips screwdriver. Figure 1: Removing the back cover 2. Put the SIM card in the groove and push it into the socket. Figure 2: Inserting the SIM card 3. Insert the batteries by pressing the negative spring with the battery and fit the positive end in its place. Figure 3: Fitting the batteries  NOTE: The battery should be 18505 in size. 4. Put the back cover back and screw it in place. Documentation Center Figure 4: Closing the back cover  NOTE: Make sure that the rubber seal is fitting nicely in its place to ensure waterproof sealing. Make sure that you put enough force in the screwing to properly seal the back cover but not such as to break it. Mounting of the Sensor Hub Wall Mounting 1. Using a 5 mm drill head, drill holes on the wall and plug the screw anchors in the holes. Figure 5: Drilling the wall 2. Using the tapping screws, attach the mounting bracket to the wall. Figure 6: Install the bracket on the wall Pole Mounting 1. Fix the mounting bracket on the pole with one steel strip. Documentation Center Figure 7: Installing the bracket on a pole  NOTE: The diameter of the pole that is supported by the brackets is 50-80 mm. If the pole diameter is more than this value, larger steel strips can be used. The standard mounting kit does not include larger steel strips. If needed, you should purchase them separately. 2. Align the hanging tab of the device with the slot on the bracket, and put the tab into the slot. Then, pull the device down until it clicks in place. Figure 8: Placing the Hub on the bracket 3. Add the security screw on top so the device and bracket are locked together. Figure 9: Adding a security screw Mounting of the Sensor Probe Wall mounting Documentation Center 1. Using a 5 mm drill head, drill holes on the wall and plug the screw anchors in the holes. Figure 10: Drilling the wall 2. Use two tapping screws to attach the mounting bracket to the wall. Figure 11: Installing the bracket to the wall 3. Clip the probe into the bracket. Figure 12: Clipping the probe to the bracket Pole mounting Fix the probe on the pole with a steel strip directly. Figure 13: Pole mounting Documentation Center Connecting Probes to the Sensor Hub Connecting the Sensor Probe You have multiple options, depending on the deployment requirements and available space. 1. Connect the Sensor Probe to the Hub directly by plugging the cable into one of the free ports on the main body. Figure 14: Direct connection 2. Connect the probe to the Hub via an extender cable for better placement of the Probe. Figure 15: Connection via an extender 3. Connect the Probe to the Hub via a splitter cable for the option to connect multiple Probes to the same port of the Hub. Figure 16: Connection via a splitter 4. Connect the Probe to the Hub using a splitter and extender cable at once for maximum placement freedom. Documentation Center Figure 17: Connection via splitter and extender Connecting the Probe IO RAK2560 Sensor Hub can support third-party sensors through the Probe IO. 1. Remove the lid using a Philips screwdriver. Figure 18: Removing the lid 2. Pass the cable of the sensor through the cable gland and the opening of the Probe IO, connect the cable to the wiring terminal. Figure 19: Connecting the cable 3. Screw the cable gland body and lock nut in the proper sequence. Figure 20: Screw the cable gland 4. Put the back cover back and screw it in place. Documentation Center Figure 21: Closing the Probe IO 5. Connect the Probe IO to the Hub the same way you would connect a Sensor Probe. Figure 22: Connection the Probe IO to the Hub Last Updated: 10/14/2022, 8:53:31 PM
