2AF6B-RAK7268C113WisGate

Specification for WisGate Edge Lite 2 WisGate Series RAK7268C (Contains RAK7268C-112 and RAK7268C-113) Version V1.3 | November 2020 1 Overview This document helps customers quickly understand the hardware interface, RF, software and electrical specifications of RAK7268C. 1.1 Description RAK7268C is an indoor gateway based on low power LoRaWAN protocol. It supports PoE power supply and can connect the standard LoRaWAN terminals and carry out bidirectional communication. Gateway can connect the NS (network server) via standard Ethernet, and support network and firewall functions. RAK7268C also supports 2.4G WiFi and BLE .support LTE (optional) uplink communication connections. RAK7268C built-in OpenWRT operating system, users can flexibly configure network parameters and LoRaWAN protocol parameters through the Web management platform. RAK7268C supports MQTT Bridge function, can use the MQTT integrated to third-party platforms. RAK7268C can connect the standard NS (network server) and the local NS. And it also supports the built-in NS (By default, a license that supports 128 terminals and 5 external gateways is embedded. If your demand exceeds the above limit, please contact the sales department for a new license). It does not need users to deploy NS in the cloud and locally. It is especially suitable for small and medium-sized scenarios in industry applications, saves the cost for server and R&D investment, and has the advantages of high execution efficiency and shorter delay. According to customer's choice,RAK7268C integrates the RAK2287 or RAK2247 LoRa concentrator module, The RAK2287 LoRa module supports eight uplink channels and one downlink transmission channel. For the heating problem of SX1302 centralized operation,RAK2287 uses the graphene, silicone grease to optimize the heat dissipation performance of chips and modules and ensure the stability of transmission.The RAK2247 is a LoRa concentrator module with the mini PCIe form factor based on SX1301, which enables an easy integration into an existing routers and others network equipment with LoRa Gateway capabilities. The product model with RAK2247 module is RAK7268C-112，The product model with RAK2287 module is RAK7268C-113. 1.2 Product Features Supports 8RX /1TX channels LoRa Supports 2.4G WiFi 100Mbase-T Ethernet with POE Multi uplink backup with Ethernet, WiFi OpenWRT software supports LoRaWAN gateway and network configuration Heat sink to dissipate heat Can integrate with both private and public(TTN) Network Servers Supports TF card for storage Supports for LTE Cat 4 network 2 Specifications 2.1 Hardware Interfaces The hardware interfaces of RAK7268C gateway include DC 12V, ETH interface, Console interface, Reset key, TF Card slot, Status indicator LEDs, LoRa Antenna connector etc. As shown in the following figure. Figure 2: RAK7268C Interfaces Table 1: LEDs Status Description The function of the Reset key is as follows: Short press: Restart the Gateway. Long press (5s and above): Restore Factory Settings. The following table shows the LEDs status of RAK7268C. LEDsStatus Indication Description PWR LED● Power Indicator, Led on when device power on Breathing LED● Breathing after system up ETH LED ● ON - linkup ● OFF - linkdown ● Flicker - Data Transmitting and Receiving LoRa LED ● ON - LoRa is working ● OFF - LoRa is not working ● Flicker - Indicate that LoRa Packet receiving and sending WLAN LED ● AP Mode: ON - WLAN is working; Flicker - Data Transmitting and Receiving ● STA Mode: Flicker slowly (1Hz) - Connection Disconnected; ON - Connection Successful; Flicker - Data Receiving and Sending; LTE LED ● ON - LTE is working ● OFF - LTE is not working Table 2: Main Specifications of RAK7268C 2.2 Main Specifications FeatureSpecifications Computing● MT7628,DDR2RAM 128MB WIFI Feature ● Frequency: 2.4GHz(802.11b/g/n) ● RX Sensitivity: -95dBm (Min), ● Operation Channels: 2.4GHz,1-13 ● TX Power: 18.1dBm (Max) Bluetooth Feature ● Frequency: 2.4GHz(LE 1M/2M) ● RX Sensitivity: -103dBm (Min), ● Operation Channels: 2.4GHz,0-39 ● TX Power: 3.23dBm (Max) LoRa Feature ● SX1302 Mini PCIe card(RAK2287),SX1301 Mini PCIe card(RAK2247) ● 8 Channels ● RX Sensitivity: -142 dBm (Min) ● Frequency:902MHz~928MHz LTE Feature ● LTE FDD: B2/B4/B5/B12/B13 ● WCDMA: B2/B4/B5 Power Supply ● DC 12V-2A ● POE (IEEE 802.3af), 36~57VDC Power Consumption● 12W (typical) ETH● RJ45(10/100M) Console● Type-C(USB) Antenna ● LoRa:RP-SMA Female Connector ● Wi-Fi: Internal Antenna LEDs ● POWER LED ● Breathing LED(Top Side) ● ETH LED(On ETH Connector) ● LoRa LED ● WLAN LED ● LTE LED Enclosure Material● Plastics Weight● 0.3kg FeatureSpecifications Dimension● 166mm x 127mm x 36mm Operating Temp.● -10 to 55 ̊C Installation method● Wall mounting Table 3: WiFi Radio Specifications 2.3 RF Specifications 2.3.1 WiFi Radio Specifications FeatureSpecifications Wireless Standard● IEEE 802.11b/g/n Operating Frequency● ISM band: 2.412~2.462(GHz) Operation Channels● 2.4GHz: 1-11 Transmit Power (The max. power maybe different depending on local regulations) -per chain ● 802.11b 18.1dBm@ 1Mbps 18.1dBm@ 11Mbps ● 802.11g 16.14dBm@ 6Mbps 16.14dBm@ 54Mbps ● 802.11n(2.4G) 16.26dBm@MCS0 (HT20) 16.26dBm@MCS7 (HT20) 15.78dBm@MCS0 (HT40) 15.78dBm@MCS7 (HT40) Receiver Sensitivity (Typical) ● 802.11b -95dBm@ 1Mbps 88dBm @11Mbps ● 802.11g -90dBm @6 Mbps -75dBm@54Mbps ● 802.11n(2.4G) -89dBm@MCS0 (HT20) -72dBm @MCS7(HT20) -86dBm @MCS0(HT40) -68dBm @MCS7(HT40) Table 4: LoRa Radio Specifications 2.3.2 LoRa Radio Specifications 2.4 Software Specifications The following chapters introduce software specifications of RAK7268C indoor gateway. It includes LoRa, network and management. 2.4.1 LoRa Supports class A, C Supports LoRa package forward Supports country code setup Supports TX power setup Supports data logger Supports statistic Supports location setup Supports server address & port setup 2.4.2 Network Supports WiFi AP mode Supports uplink backup Supports 802.1q Supports DHCP Server/Client Supports router modul…

Text truncated - open the document above for the full version.

ShenzhenRAKwirelessTechnologyCo.,Ltd. Address:Room506,BldgB,NewCompark,PingshanFirstRoad,TaoyuanStreet,XiLi townNanshanDistrict,Shenzhen,China Tel:17666100770 Email:[email protected] Date:2020-11-27 FEDERALCOMMUNICATIONSCOMMISSIONS AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Attestationletter DearSirorMadam, We,ShenzhenRAKwirelessTechnologyCo.,Ltd.herebydeclarethattheBTchip, model:nRF52840,installedinourproductnamedasWisGate,ModelNo: RAK7268C-113,FCCID:2AF6B-RAK7268C113,whichsupportsBluetooth5.0, Bluetoothmesh,Thread,Zigbee,802.15.4,ANT,2.4GHz.Butformarketingpurpose, thischipinthisproductonlysupportsBluetoothLE1M/2M.Theotherfunctionshas beenshieldedbythemanufacturerbyusingthesoftware. AndtheBTmoduleinstalledaLorachipmodel:SX1262soupportLorafunction,But formarketingpurpose,thisLorafunctionhasbeenshieldedbythemanufacturerby usingthesoftware. Sincerely, Signature: ZiweiZhang Title:Engineer

Shenzhen RAKwireless Technology Co.,Ltd. Address: Room 506, Bldg B, New Compark, Pingshan First Road, Taoyuan Street,XiLi town Nanshan District, Shenzhen, China Tel: 17666100770 Email: [email protected] Declaration letter Date: 2021-01-21 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, Shenzhen RAKwireless Technology Co.,Ltd., hereby declare that we have a product named as WisGate, model: RAK7268C-113, FCC ID: 2AF6B-RAK7268C113 was tested by BACL. The BLE and Wi-Fi modules contained in the EUT are the same as the model number RAK7268-112 (FCC ID: 2AF6B-RAK7268112), so the RF direct data are referred to model number RAK7268-112 (FCC ID: 2AF6B-RAK7268112). Sincerely, Signature: Ziwei Zhang Engineer

Shenzhen RAKwireless Technology Co., Ltd. Address: Room 506, Bldg B, New Compark, Pingshan First Road, Taoyuan Street, XiLi town Nanshan District, Shenzhen, China Email: [email protected] Tel: 17666100770 FCC Confidential Authorization 2020-11-27 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AF6B-RAK7268C113 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (Shenzhen RAKwireless Technology Co., Ltd. ) hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Ziwei Zhang Title: Engineer

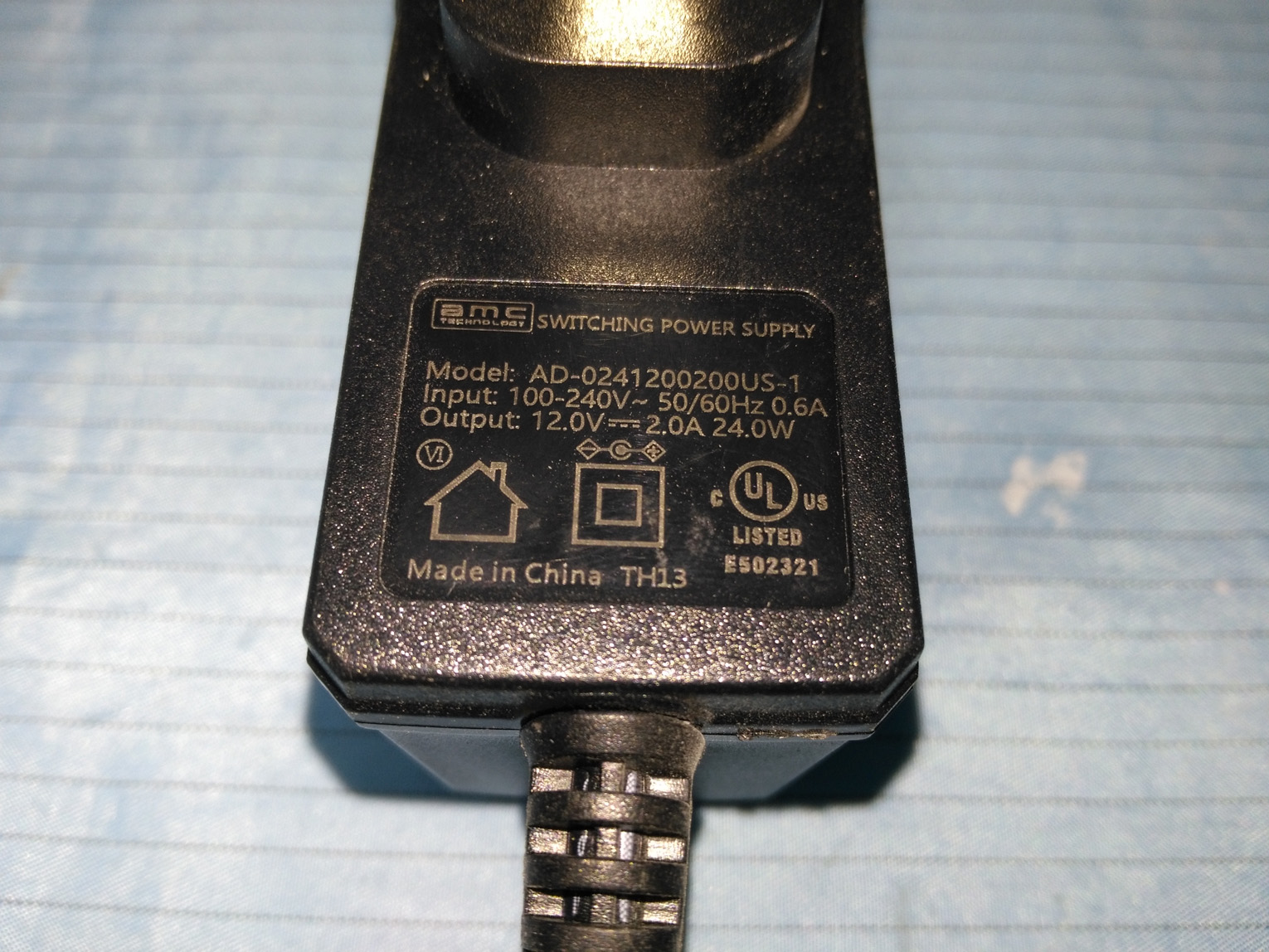

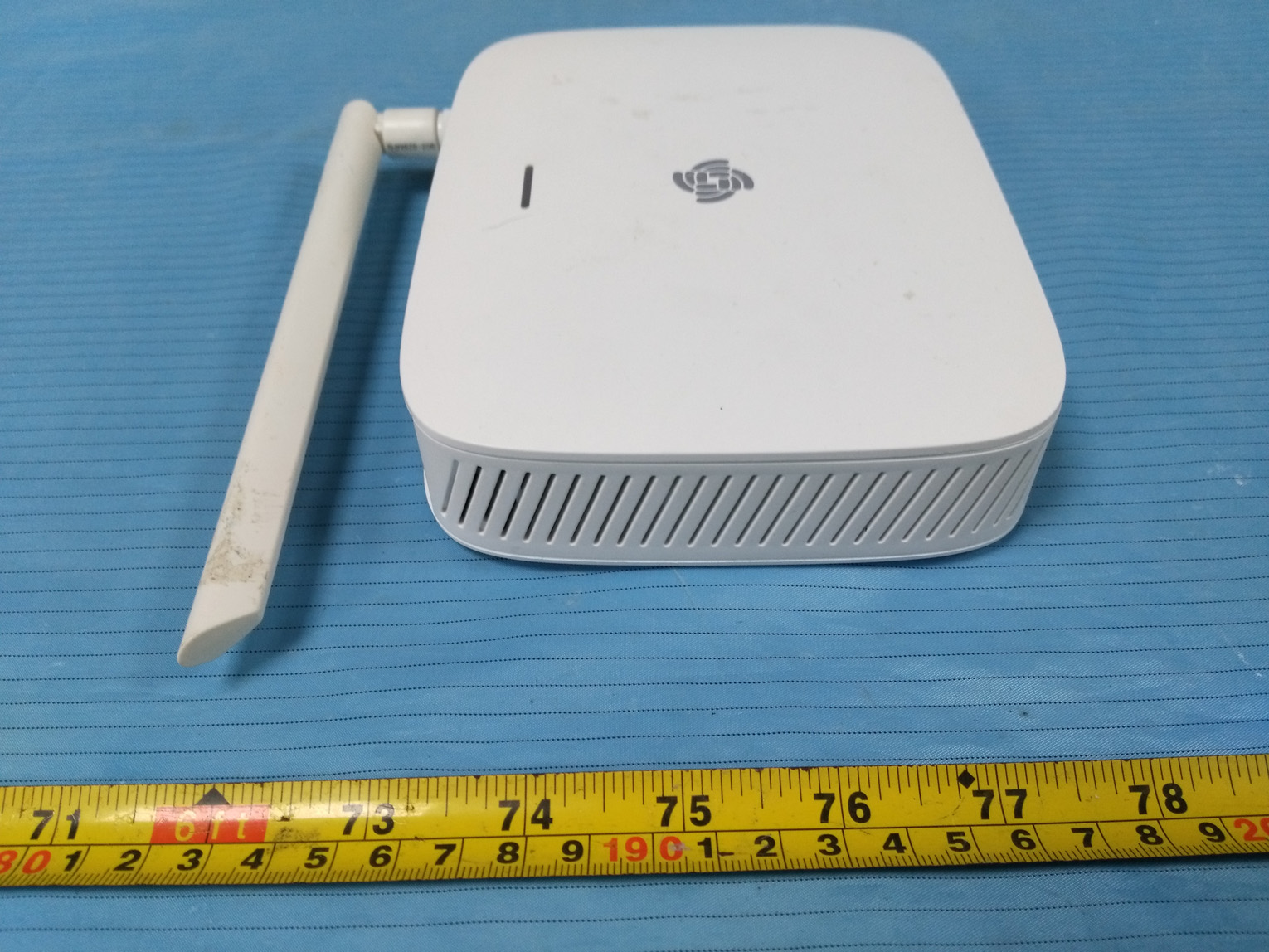

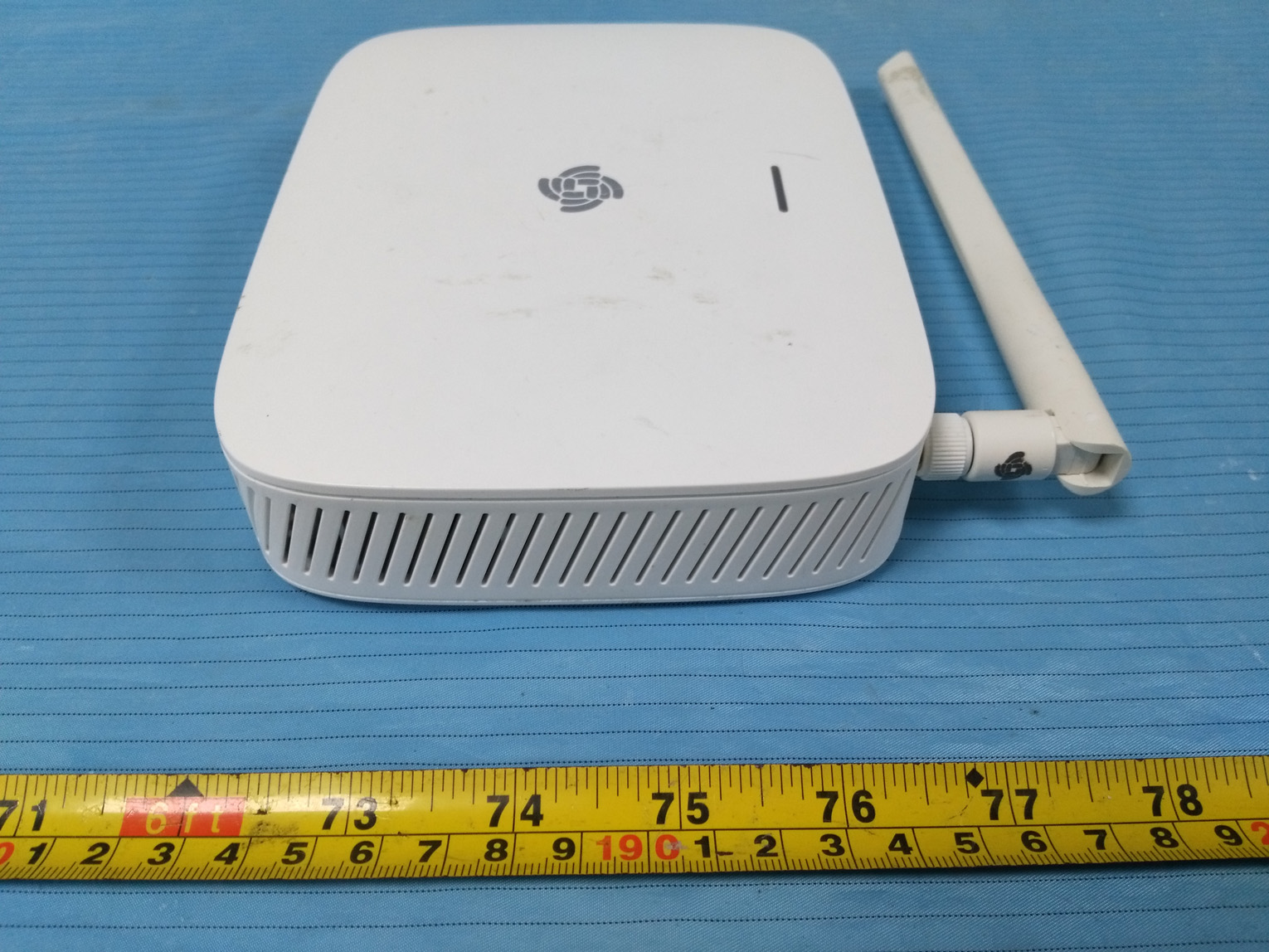

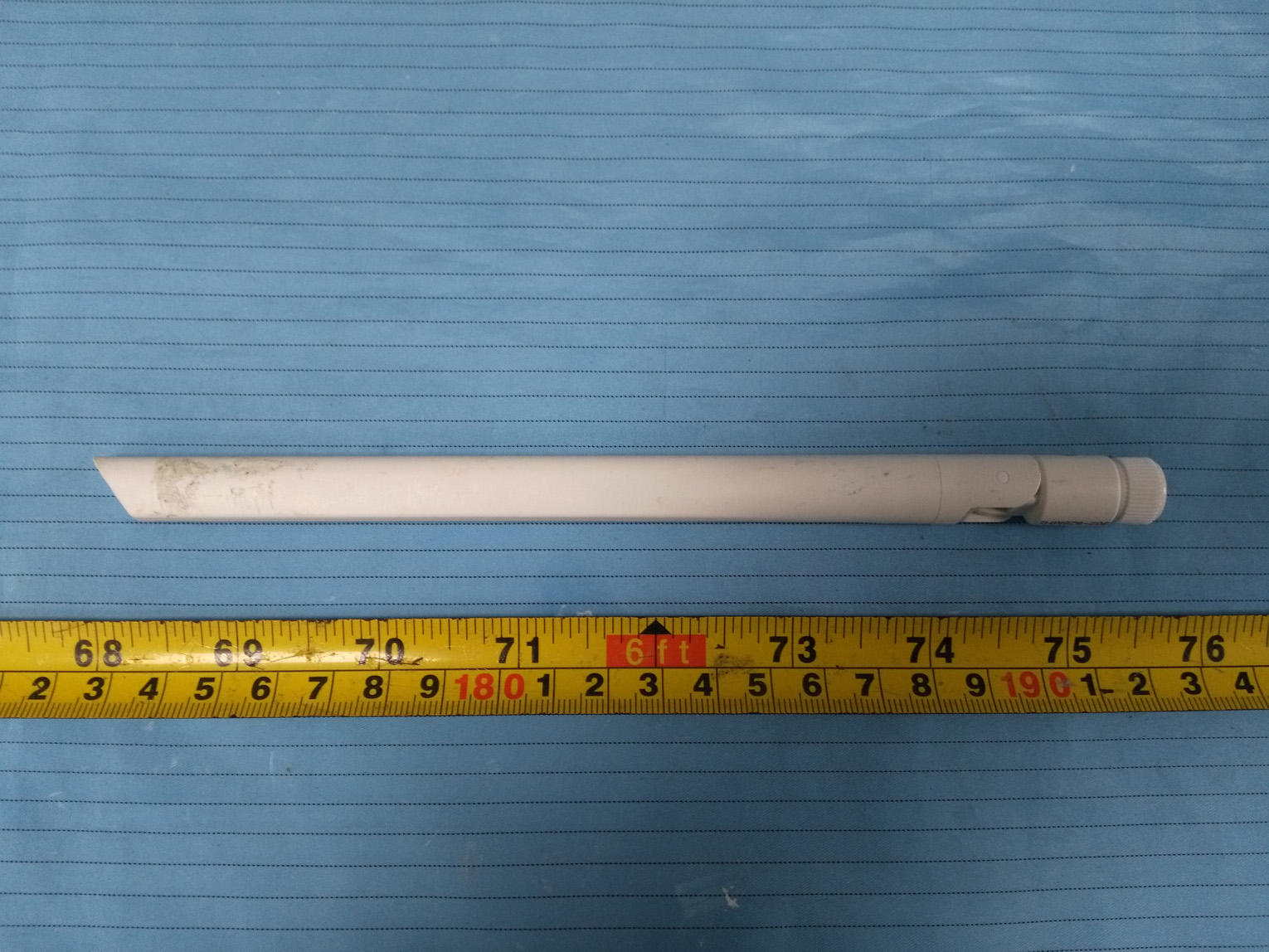

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF Page 1 of 7 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF Page 2 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF Page 3 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF Page 4 of 7 Adapter 1 (Model: PSY1202000US) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF Page 5 of 7 Adapter 2 (Model: AD-0241200200US-1) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF Page 6 of 7 Lora antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF Page 7 of 7

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF Page 1 of 13 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS LTE Aux antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF Page 2 of 13 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF Page 3 of 13 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF Page 4 of 13 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF Page 5 of 13 LTE module Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF Page 6 of 13 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF Page 7 of 13 Lora module Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF Page 8 of 13 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF Page 9 of 13 Wi-Fi IC Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF Page 10 of 13 BLE module Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF Page 11 of 13 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF Page 12 of 13 Wi-Fi antenna Antenna 1 Antenna 2 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF Page 13 of 13 LTE main antenna BT antenna

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200812006-00C FCC Part 15.247 Page 10 of 35 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247 (i) and subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Result Calculated Formulary: Predication of MPE limit at a given distance S = 2 4R PG  S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200812006-00C FCC Part 15.247 Page 11 of 35 Mode Frequency (MHz) Antenna Gain* Tune up conducted power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) BLE 2402-2480 1.75 1.50 3.5 2.24 20 0.001 1.0 Wi-Fi 2412-2462 1.75 1.50 18.5 70.79 20 0.021 1.0 Lora 923.3-927.5 2.3 1.70 13.5 22.39 20 0.008 0.6 WCDMA Band II 1850-1910 2.3 1.70 25 316.23 20 0.107 1.0 WCDMA Band IV 1710-1755 3.4 2.19 25 316.23 20 0.138 1.0 WCDMA Band V 824-849 1.0 1.26 25 316.23 20 0.079 0.55 LTE Band 2 1850-1910 2.3 1.70 25 316.23 20 0.107 1.0 LTE Band 4 1710-1755 3.4 2.19 25 316.23 20 0.138 1.0 LTE Band 5 824-849 1.0 1.26 25 316.23 20 0.079 0.55 LTE Band 12 699-716 2.9 1.95 25 316.23 20 0.123 0.466 LTE Band 13 777-787 2.9 1.95 25 316.23 20 0.123 0.518 Note: 1.The tune up conducted power was declared by the applicant 2. Lora, BLE, Wi-Fi and WCDMA/LTE can transmit simultaneously for this device. 3. Please refer to the MPE report of the FCC ID: 2AF6B-RAK2287 for the Lora output power. 4. Please refer to the MPE report of the FCC ID: XMR201807EG95NA for the WCDMA/LTE output power. 5. The antenna gain was provided by the applicant. So the worst simultaneous transmitting consideration: The ratio=MPE BLE /limit + MPE Wi-Fi /limit + MPE Lora /limit + MPE LTE /limit =0.001/1.0+0.021/1.0+0.008/0.6+0.123/0.466 =0.299＜1.0 To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliance

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For Shenzhen RAKwireless Technology Co.,Ltd. Room 506, Bldg B, New Compark, Pingshan First Road, Taoyuan Street, XiLi town, Nanshan District, Shenzhen, China FCC ID: 2AF6B-RAK7268C113 Report Type: Original Report Product Type: WisGate Re port Number: RSZ200812006-00C Re port Date: 2021-01-12 Reviewed B y: Nancy Wang RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200812006-00C FCC Part 15.247 Page 2 of 35 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................................................ 10 APPLICABLE STANDARD ............................................................................................................................................ 10 RESULT ...................................................................................................................................................................... 10 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 12 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 EUT SETUP ................................................................................................................................................................ 13 EMI TEST RECEIVER SETUP ....................................................................................................................................... 13 TEST PROCEDURE ...................................................................................................................................................... 13 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 14 TEST DATA ................................................................................................................................................................ 14 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ........................................…

Text truncated - open the document above for the full version.

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For Shenzhen RAKwireless Technology Co.,Ltd. Room 506, Bldg B, New Compark, Pingshan First Road, Taoyuan Street, XiLi town, Nanshan District, Shenzhen, China FCC ID: 2AF6B-RAK7268112 Report Type: Original Report Product Type: WisGate Re port Number: RSZ200812005-00B Re port Date: 2020-09-27 Reviewed B y: Nancy Wang RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200812005-00B FCC Part 15.247 Page 2 of 93 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 DUTY CYCLE ................................................................................................................................................................ 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 TEST EQUIPMENT LIST ......................................................................................................................................... 10 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................................................ 11 APPLICABLE STANDARD ............................................................................................................................................ 11 RESULT ...................................................................................................................................................................... 11 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 13 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 EUT SETUP ................................................................................................................................................................ 14 EMI TEST RECEIVER SETUP ....................................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................................... 14 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 15 TEST DATA ................................................................................................................................................................ 15 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ..........................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF EXHIBIT D - TEST SETUP PHOTOGRAPHS Powered by adapter 1 (Model: PSY1202000US) Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF Radiated Emissions View (Below 1 GHz) Powered by adapter 2 (Model: AD-0241200200US-1) Conducted Emissions - Front View Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF Conducted Emissions - Side View Radiated Emissions View (Below 1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF Powered by POE Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200812006-RF Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
