FCC ID: 2AFCB-G600-PRO Prediction of MPE at a given distance 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) 2. Test Procedure Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna FCC ID: 2AFCB-G600-PRO 3. Result Mode Frequency (MHz) Prediction distance (cm) Peak RF power output MPE (mW/cm 2 ) Limit (mW/cm 2 ) SAR Test Exclusion dBm mW BT LE 2402-2480 20 2.505 1.7803 0.0008 1 Yes 2.4G WIFI 2412-2462 20 13.64 23.1206 0.0078 1 Yes Maximum Simultaneous transmission MPE Ratios for BT+WIFI Max MPE Ratio BT /Limit Max MPE ratio WIFI /Limit ∑MPE ratios Limit Result 0.0008 0.0078 0.0086 1 PASS BT Antenna Gain: PCB antenna, max gain 3.41dBi, 2.19(numeric) 2.4GWiFi Antenna Gain: PCB antenna, max gain 2.29dBi, 1.69(numeric) Then SAR evaluation is not required.

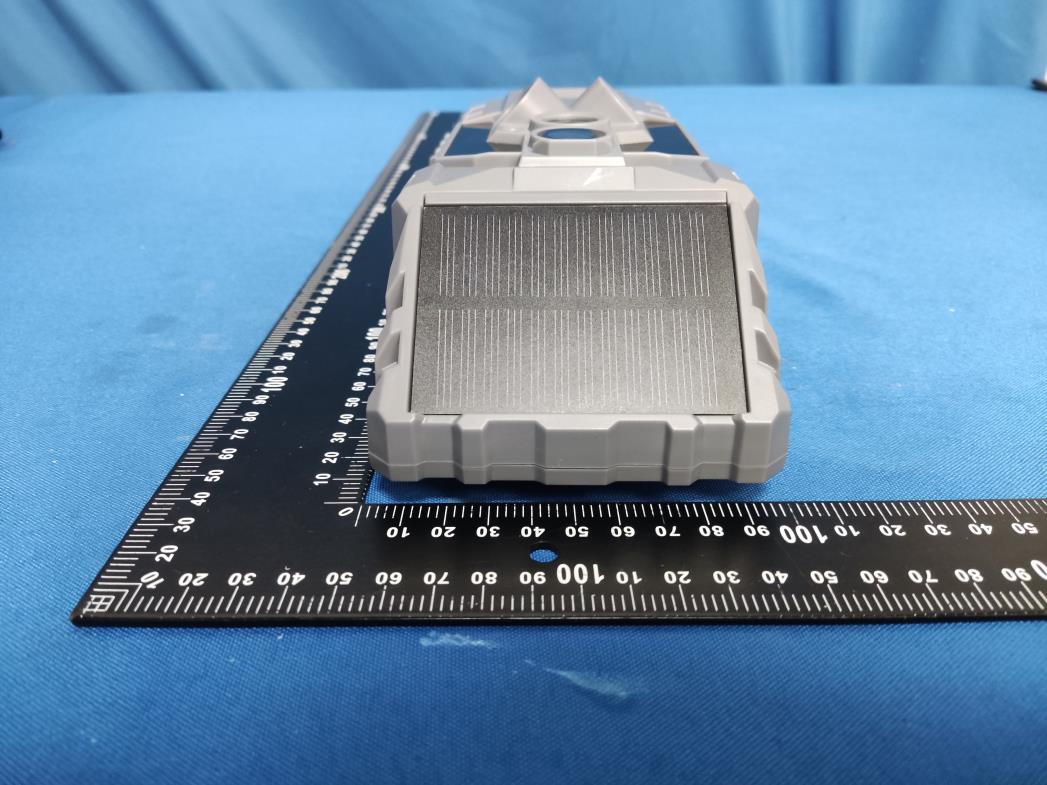

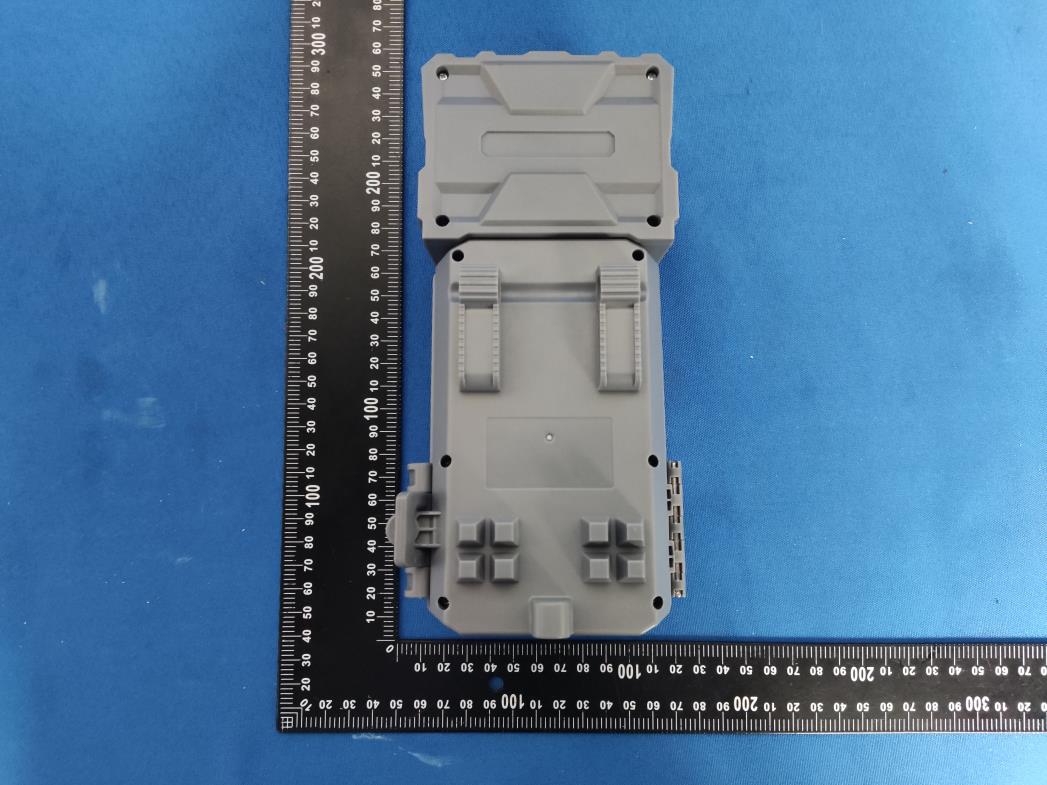

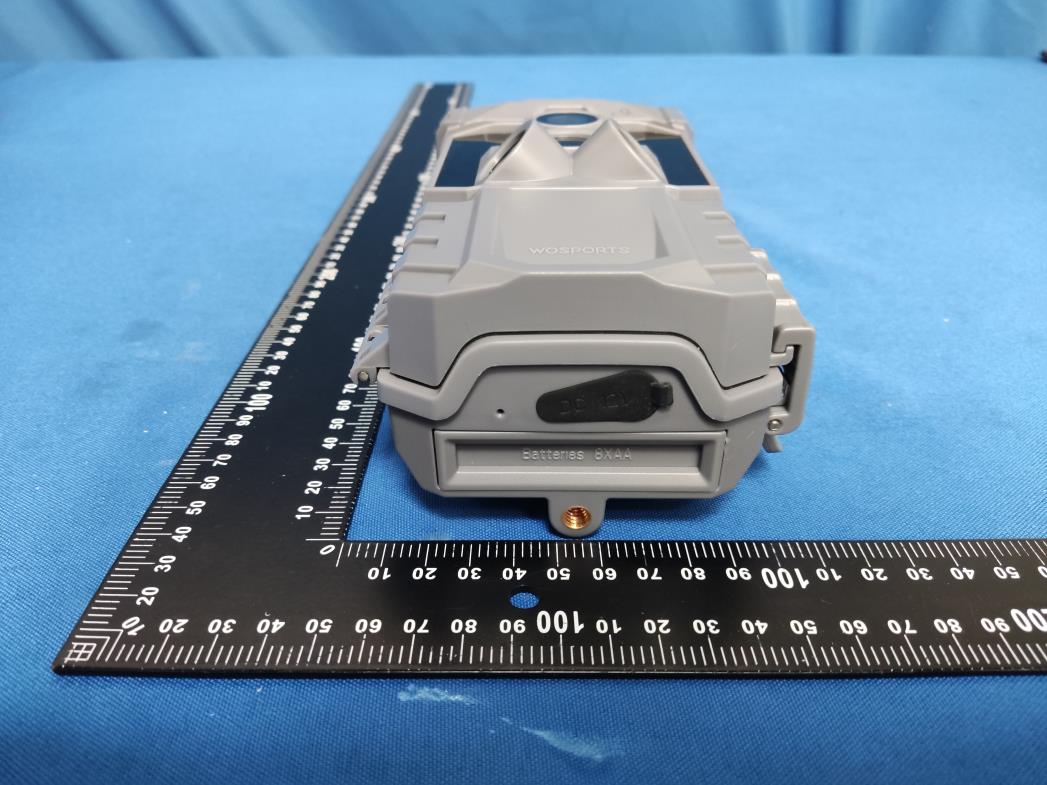

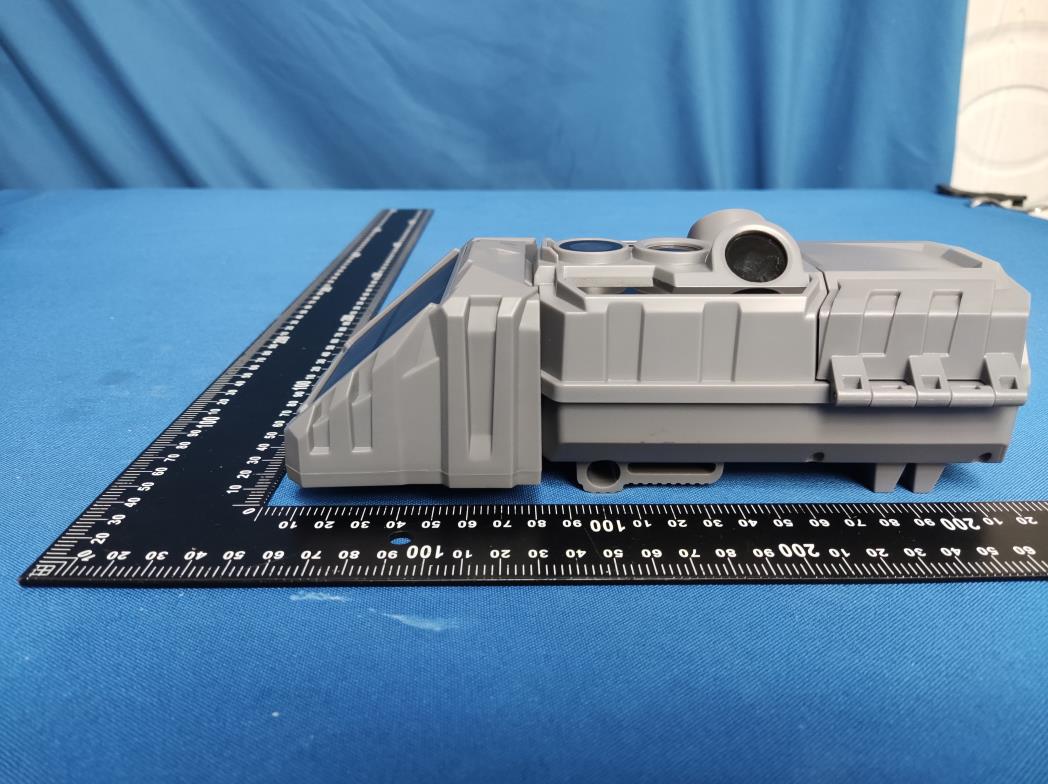

ALPHA's reports is using a digital certificate that is trusted on Adobe's official server. If there is no digital certificate or the digital certificate shows damaged in your report. Please do not accept the report. E-mail: [email protected] Tel: 400-8300-895 Website: http://www.a-lab.cn FCC&IC TEST REPORT FCC ID: 2AFCB-G600-PRO On Behalf of Shenzhen Longzhiyuan Technology Co., Ltd. WiFi trail camera Model No.: G600 PRO Prepared for : Shenzhen Longzhiyuan Technology Co., Ltd. Address : 2F&5F, Bldg #2, Zhuangbian 2nd Industrial Park, Hezhou Community, Hangcheng, Bao’an, Shenzhen City, China Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao'an District, 518103, Shenzhen, Guangdong, China Report Number : A2403225-C01-R10 Date of Receipt : March 27, 2024 Date of Test : March 27, 2024 - May 10, 2024 Date of Report : May 10, 2024 Version Number : V0 Result Pass Page 2 of 73 Report No.: A2403225-C01-R10 TABLE OF CONTENTS Description Page 1. Summary of Standards And Results -------------------------------------------------------------- 6 1.1. Description of Standards and Results ------------------------------------------------------- 6 2. General Information ------------------------------------------------------------------------------------ 7 2.1. Description of Device (EUT) ------------------------------------------------------------------- 7 2.2. Accessories of Device (EUT) ------------------------------------------------------------------ 8 2.3. Tested Supporting System Details------------------------------------------------------------ 8 2.4. Block Diagram of connection between EUT and simulators --------------------------- 8 2.5. Test Mode Description --------------------------------------------------------------------------- 9 2.6. Test Conditions ------------------------------------------------------------------------------------ 9 2.7. Test Facility --------------------------------------------------------------------------------------- 10 2.8. Measurement Uncertainty -------------------------------------------------------------------- 10 2.9. Test Equipment List----------------------------------------------------------------------------- 11 3. Spurious Emission ------------------------------------------------------------------------------------ 12 3.1. Test Limits ----------------------------------------------------------------------------------------- 12 3.2. Test Procedure ----------------------------------------------------------------------------------- 13 3.3. Test Setup ----------------------------------------------------------------------------------------- 14 3.4. Test Results--------------------------------------------------------------------------------------- 15 4. Power line Conducted Emission ----------------------------------------------------------------- 34 4.1. Test Limits ----------------------------------------------------------------------------------------- 34 4.2. Test Procedure ----------------------------------------------------------------------------------- 34 4.3. Test Setup ----------------------------------------------------------------------------------------- 34 4.4. Test Results--------------------------------------------------------------------------------------- 35 5. Conducted Maximum Output Power ------------------------------------------------------------ 37 5.1. Test limits ------------------------------------------------------------------------------------------ 37 5.2. Test Procedure ----------------------------------------------------------------------------------- 37 5.3. Test Setup ----------------------------------------------------------------------------------------- 37 5.4. Test Results--------------------------------------------------------------------------------------- 37 6. Peak Power Spectral Density --------------------------------------------------------------------- 38 6.1. Test limits ------------------------------------------------------------------------------------------ 38 6.2. Test Procedure ----------------------------------------------------------------------------------- 38 6.3. Test Setup ----------------------------------------------------------------------------------------- 38 6.4. Test Results--------------------------------------------------------------------------------------- 39 7. Bandwidth ------------------------------------------------------------------------------------------------ 46 7.1. Test limits ------------------------------------------------------------------------------------------ 46 7.2. Test Procedure ----------------------------------------------------------------------------------- 46 7.3. Test Setup ----------------------------------------------------------------------------------------- 46 7.4. Test Results--------------------------------------------------------------------------------------- 46 8. Band Edge Check ------------------------------------------------------------------------------------- 60 8.1. Test limits ------------------------------------------------------------------------------------------ 60 8.2. Test Procedure ----------------------------------------------------------------------------------- 60 8.3. Test Setup ----------------------------------------------------------------------------------------- 60 8.4. Test Results--------------------------------------------------------------------------------------- 60 9. Antenna Requirement ------------------------------------------------------------------------------- 71 Page 3 of 73 Report No.: A2403225-C01-R10 9.1. Standard Requirement ------------------------------------------------------------------------- 71 9.2. Antenna Connected Construction ---------------------------------------------------------- 71 9.3. Results --------------------------------------------------------------------------------------------- 71 10. Test setup photo -----------------------------------…

Text truncated - open the document above for the full version.

Page 50 of 73 Report No.: A2403225-C01-R10 -6dB Bandwidth NVNT n20 2412MHz Ant1 -6dB Bandwidth NVNT n20 2437MHz Ant1 Page 51 of 73 Report No.: A2403225-C01-R10 -6dB Bandwidth NVNT n20 2462MHz Ant1 -6dB Bandwidth NVNT n40 2422MHz Ant1 Page 52 of 73 Report No.: A2403225-C01-R10 -6dB Bandwidth NVNT n40 2437MHz Ant1 -6dB Bandwidth NVNT n40 2452MHz Ant1 Page 53 of 73 Report No.: A2403225-C01-R10 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT b 2412 Ant1 13.427 NVNT b 2437 Ant1 13.427 NVNT b 2462 Ant1 13.457 NVNT g 2412 Ant1 16.633 NVNT g 2437 Ant1 16.633 NVNT g 2462 Ant1 16.603 NVNT n20 2412 Ant1 17.682 NVNT n20 2437 Ant1 17.682 NVNT n20 2462 Ant1 17.682 NVNT n40 2422 Ant1 36.264 NVNT n40 2437 Ant1 36.264 NVNT n40 2452 Ant1 36.324 OBW NVNT b 2412MHz Ant1 Page 54 of 73 Report No.: A2403225-C01-R10 OBW NVNT b 2437MHz Ant1 OBW NVNT b 2462MHz Ant1 Page 55 of 73 Report No.: A2403225-C01-R10 OBW NVNT g 2412MHz Ant1 OBW NVNT g 2437MHz Ant1 Page 56 of 73 Report No.: A2403225-C01-R10 OBW NVNT g 2462MHz Ant1 OBW NVNT n20 2412MHz Ant1 Page 57 of 73 Report No.: A2403225-C01-R10 OBW NVNT n20 2437MHz Ant1 OBW NVNT n20 2462MHz Ant1 Page 58 of 73 Report No.: A2403225-C01-R10 OBW NVNT n40 2422MHz Ant1 OBW NVNT n40 2437MHz Ant1 Page 59 of 73 Report No.: A2403225-C01-R10 OBW NVNT n40 2452MHz Ant1 Page 60 of 73 Report No.: A2403225-C01-R10 8. BAND EDGE CHECK 8.1. Test limits Please refer FCC PART 15: 15.247 All the lower and upper band-edges emissions appearing within 2310MHz to 2390MHz and 2483.5MHz to 2500MHz restricted frequency bands shall not exceed the limits shown in 15.209, all the other emissions outside operation frequency band 2400MHz to 2483.5MHz shall be at least 20dB below the fundamental emissions, or comply with 15.209 limits and RSS-GEN limits. 8.2. Test Procedure Details see the KDB558074 D01 Meas Guidance v05r02 8.2.1 Put the EUT on a 1.5m high table, power on the EUT. Emissions were scanned and measured rotating the EUT to 360 degrees, Find the maximum Emission 8.2.2 Check the spurious emissions out of band. 8.2.3 RBW 1MHz, VBW 3MHz, peak detector for peak value, RBW 1MHz, VBW 10Hz, RMS detector for AV value. 8.3. Test Setup Same as 5.2.2. 8.4. Test Results PASS. Detailed information please see the following page. Page 61 of 73 Report No.: A2403225-C01-R10 Radiation testing Test Mode: IEEE 802.11b-Low Test Mode: IEEE 802.11b-High Test Mode: IEEE 802.11g-Low Test Mode: IEEE 802.11g-High Page 62 of 73 Report No.: A2403225-C01-R10 Test Mode: IEEE 802.11n20-Low Test Mode: IEEE 802.11n20-High Test Mode: IEEE 802.11n40-Low Test Mode: IEEE 802.11n40-High Page 63 of 73 Report No.: A2403225-C01-R10 Conduction method testing Band Edge NVNT b 2412MHz Ant1 Ref Band Edge NVNT b 2412MHz Ant1 Emission Page 64 of 73 Report No.: A2403225-C01-R10 Band Edge NVNT b 2462MHz Ant1 Ref Band Edge NVNT b 2462MHz Ant1 Emission Page 65 of 73 Report No.: A2403225-C01-R10 Band Edge NVNT g 2412MHz Ant1 Ref Band Edge NVNT g 2412MHz Ant1 Emission Page 66 of 73 Report No.: A2403225-C01-R10 Band Edge NVNT g 2462MHz Ant1 Ref Band Edge NVNT g 2462MHz Ant1 Emission Page 67 of 73 Report No.: A2403225-C01-R10 Band Edge NVNT n20 2412MHz Ant1 Ref Band Edge NVNT n20 2412MHz Ant1 Emission Page 68 of 73 Report No.: A2403225-C01-R10 Band Edge NVNT n20 2462MHz Ant1 Ref Band Edge NVNT n20 2462MHz Ant1 Emission Page 69 of 73 Report No.: A2403225-C01-R10 Band Edge NVNT n40 2422MHz Ant1 Ref Band Edge NVNT n40 2422MHz Ant1 Emission Page 70 of 73 Report No.: A2403225-C01-R10 Band Edge NVNT n40 2452MHz Ant1 Ref Band Edge NVNT n40 2452MHz Ant1 Emission Page 71 of 73 Report No.: A2403225-C01-R10 9. ANTENNA REQUIREMENT 9.1. Standard Requirement An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this Section. The manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited. 9.2. Antenna Connected Construction The antenna connector is unique antenna and no consideration of replacement. Please see EUT photo for details. 9.3. Results The EUT antenna is internal Antenna. It complies with the standard requirement. Page 72 of 73 Report No.: A2403225-C01-R10 10. TEST SETUP PHOTO 10.1.Photo of Radiated Emission test Page 73 of 73 Report No.: A2403225-C01-R10 10.2.Photo of Conducted Emission test ---------END OF REPORT-------

ALPHA's reports is using a digital certificate that is trusted on Adobe's official server. If there is no digital certificate or the digital certificate shows damaged in your report. Please do not accept the report. E-mail: [email protected] Tel: 400-8300-895 Website: http://www.a-lab.cn FCC&IC TEST REPORT FCC ID: 2AFCB-G600-PRO On Behalf of Shenzhen Longzhiyuan Technology Co., Ltd. WiFi trail camera Model No.: G600 PRO Prepared for : Shenzhen Longzhiyuan Technology Co., Ltd. Address : 2F&5F, Bldg #2, Zhuangbian 2nd Industrial Park, Hezhou Community, Hangcheng, Bao’an, Shenzhen City, China Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao'an District, 518103, Shenzhen, Guangdong, China Report Number : A2403225-C01-R11 Date of Receipt : March 27, 2024 Date of Test : March 27, 2024 - May 10, 2024 Date of Report : May 10, 2024 Version Number : V0 Result Pass Page 2 of 49 Report No.: A2403225-C01-R11 TABLE OF CONTENTS Description Page 1. Summary of Standards And Results ------------------------------------------------------------ 6 1.1. Description of Standards and Results ----------------------------------------------------- 6 2. General Information ---------------------------------------------------------------------------------- 7 2.1. Description of Device (EUT) ----------------------------------------------------------------- 7 2.2. Accessories of Device (EUT) ---------------------------------------------------------------- 8 2.3. Tested Supporting System Details---------------------------------------------------------- 8 2.4. Block Diagram of connection between EUT and simulators ------------------------- 8 2.5. Test Mode Description ------------------------------------------------------------------------- 8 2.6. Test Conditions ---------------------------------------------------------------------------------- 8 2.7. Test Facility --------------------------------------------------------------------------------------- 9 2.8. Measurement Uncertainty -------------------------------------------------------------------- 9 2.9. Test Equipment List--------------------------------------------------------------------------- 10 3. Spurious Emission -----------------------------------------------------------------------------------11 3.1. Test Limits --------------------------------------------------------------------------------------- 11 3.2. Test Procedure --------------------------------------------------------------------------------- 12 3.3. Test Setup --------------------------------------------------------------------------------------- 13 3.4. Test Results------------------------------------------------------------------------------------- 14 4. Power Line Conducted Emission -------------------------------------------------------------- 25 4.1. Test Limits --------------------------------------------------------------------------------------- 25 4.2. Test Procedure --------------------------------------------------------------------------------- 25 4.3. Test Setup --------------------------------------------------------------------------------------- 25 4.4. Test Results------------------------------------------------------------------------------------- 25 5. Conducted Maximum Output Power ---------------------------------------------------------- 28 5.1. Test limits ---------------------------------------------------------------------------------------- 28 5.2. Test Procedure --------------------------------------------------------------------------------- 28 5.3. Test Setup --------------------------------------------------------------------------------------- 28 5.4. Test Results------------------------------------------------------------------------------------- 28 6. Peak Power Spectral Density ------------------------------------------------------------------- 29 6.1. Test limits ---------------------------------------------------------------------------------------- 29 6.2. Test Procedure --------------------------------------------------------------------------------- 29 6.3. Test Setup --------------------------------------------------------------------------------------- 29 6.4. Test Results------------------------------------------------------------------------------------- 29 7. Bandwidth ---------------------------------------------------------------------------------------------- 33 7.1. Test limits ---------------------------------------------------------------------------------------- 33 7.2. Test Procedure --------------------------------------------------------------------------------- 33 7.3. Test Setup --------------------------------------------------------------------------------------- 33 7.4. Test Results------------------------------------------------------------------------------------- 33 8. Band Edge Check ----------------------------------------------------------------------------------- 40 8.1. Test limits ---------------------------------------------------------------------------------------- 40 8.2. Test Procedure --------------------------------------------------------------------------------- 40 8.3. Test Setup --------------------------------------------------------------------------------------- 40 8.4. Test Results------------------------------------------------------------------------------------- 40 9. Antenna Requirement ----------------------------------------------------------------------------- 47 9.1. Standard Requirement ----------------------------------------------------------------------- 47 9.2. Antenna Connected Construction -------------------------------------------------------- 47 Page 3 of 49 Report No.: A2403225-C01-R11 9.3. Results ------------------------------------------------------------------------------------------- 47 10. Test Setup Photo ------------------------------------------------------------------------------------ 48 10.1. Photos of Radiated emission ----…

Text truncated - open the document above for the full version.

Test report Testing location Moore Laboratory 1、Testing environment Humidity 25%-75%RH Temperature +10°C-30°C 2、Testing System 3、Test references NumberDocument Name 1GB/T9410-2008 4、Product Information Model :8258-18 Reference standards : GB/T 9410-2008 Date of issuance : 2019.7.15 5、S11 parameter 6、Test result Frequency(MHz)Gain(dBi)Efficiency(%) 24003.0626957.64% 24103.071658.51% 24202.9504659.79% 24303.201661.42% 24403.4100768.62% 24503.2984276.57% 24603.2683777.78% 24702.8527669.50% 24802.7251566.58% 7、 Directional diagram 1》、3D 2》、2D Phi=0 Phi=90 Theta=90

FCC ID: 2AFCB-G600-PRO Photo of Radiated Emission test Photo of Conducted Emission test
