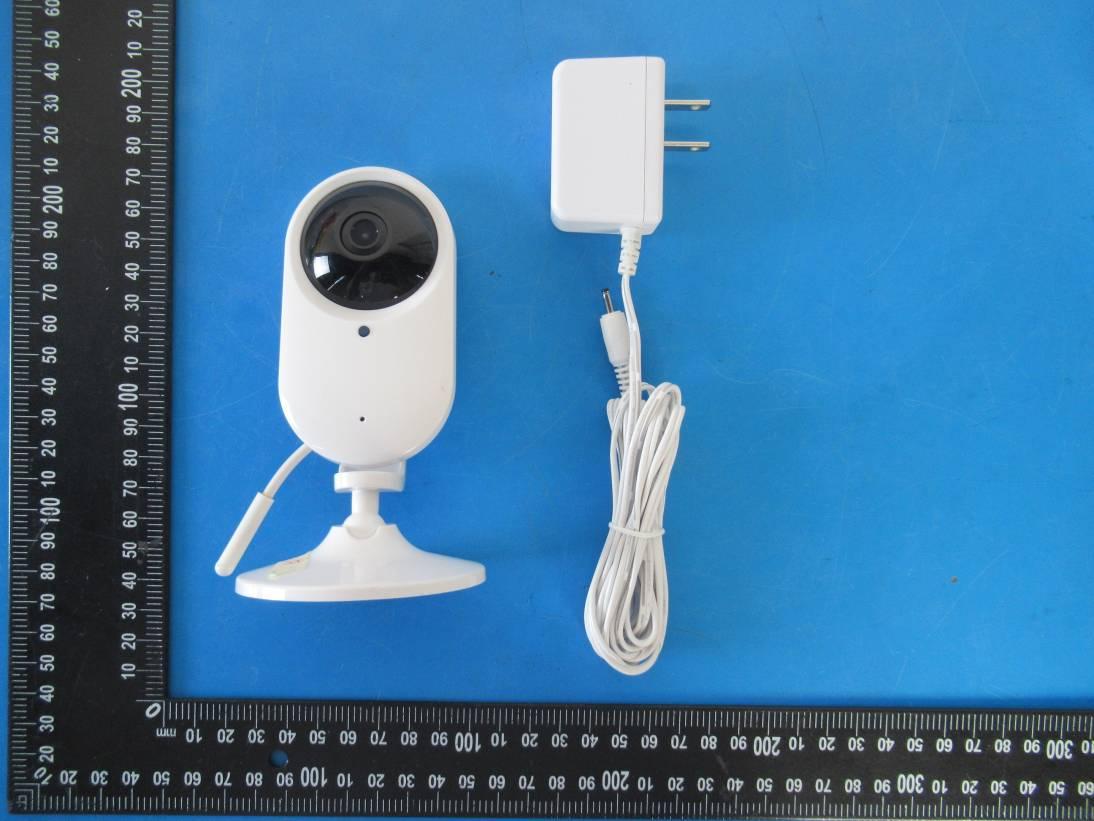

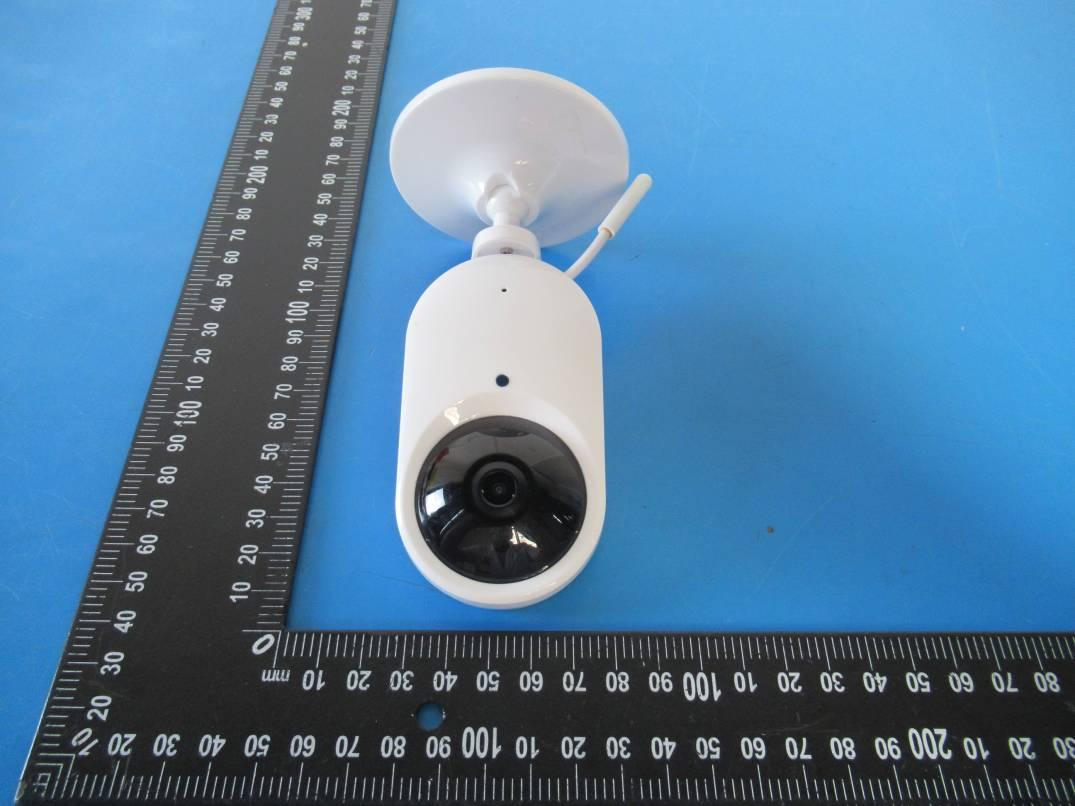

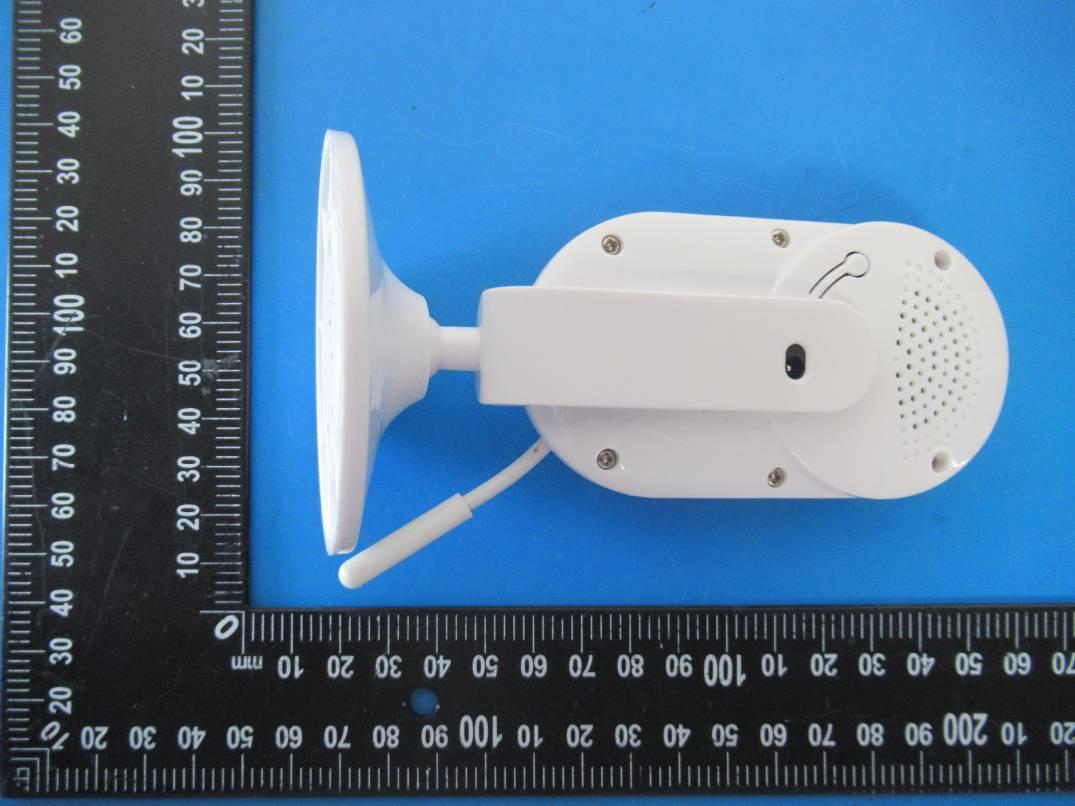

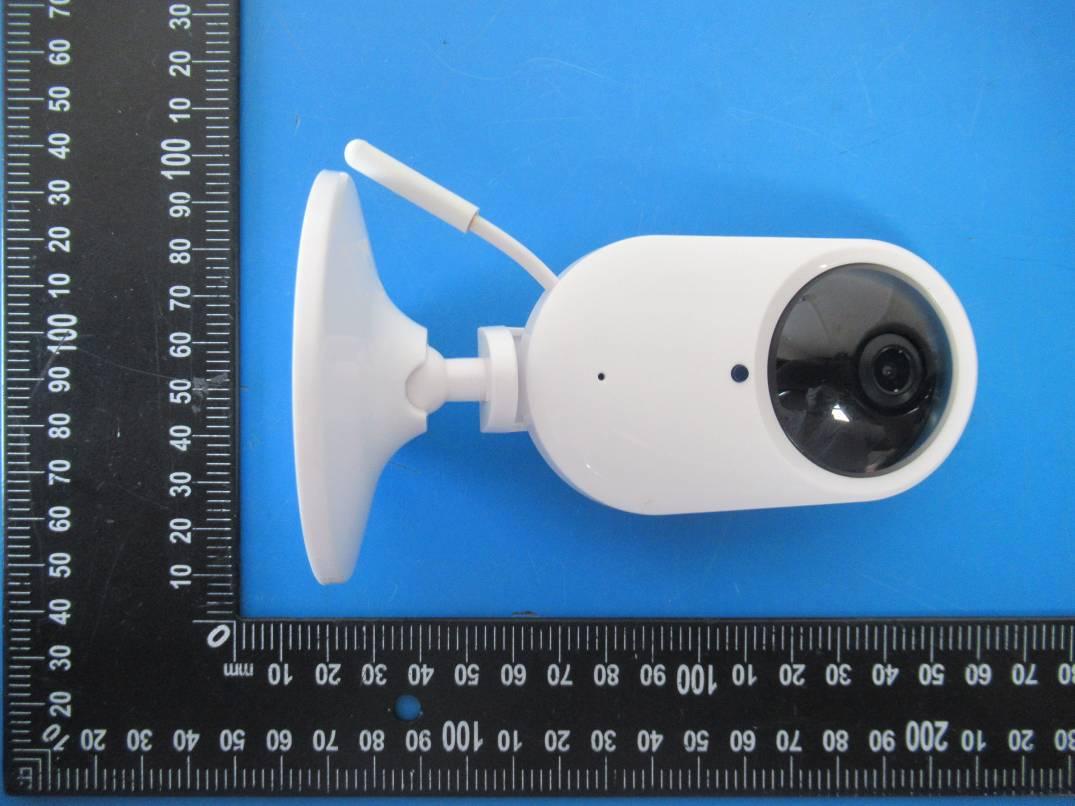

2AFCB-LY135Baby monitor

INSTRUCTION MANUAL Baby Monitor Thank you for purchasing our baby series products. We kindly recommend you to read the following instructions before using this product. FCC WARNING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. The distance between user and products should be no less than 20cm. WARNING 1. Please keep the product away from the baby more than 3feet (1meter). 2. Please place the product in a dry place to prevent short circuit caused by damp. 3. Please use Ac adapter(s) provided by us only. We do not recommend to use Ac adapters and charging cables from other brands. 4. This product is not medical equipment. Check your baby's activities regularly as this product is not designed for supervision but for assisting your supervising. PACKING LIST ①Monitor ②Camera ③Monitor AC power Adapter Manual ④Camera AC power Adapter ⑤Mount kit ⑥User Manual ①②③ ④⑤⑥ CAMERA STRUCTURE ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ①Power indicator ②Camera Lens ③IR Led ④Night Vision Sensor ⑤Microphone ⑥Temperature sensor ⑦Speaker ⑧Pair button ⑨DC interface MONITOR OK + ③ ④ ⑤ ⑥ ⑨ ⑩ ② ⑦ ⑧ 11 ① 12 1. Power /Sleep: Long press to turn on/off the monitor. Short press to turn on /off the screen. 2. Menu/Black: Press to enter menu page or press as a Back button. 3. Up: Press to shortcuts for adding brightness (Live video). Press to change your selection upward (Menu setting). 4. Down: Press to shortcuts for subtracting brightness (Live video ). Press to change your selection downward (Menu setting). 5. Left: Press to shortcuts for play lullabies (Live video). Press to change your selection leftward (Menu setting ). 6. Right: Press to shortcuts for Zoom in /out (Live video). Press to change your selection rightward (Menu setting). 7. OK/Camera Switch: Press to confirm your selection or switch cameras if connected with 2 or more cameras. 8. Talk: Press to talk to your baby in the monitoring image. 9. Charging Indicator: It gives off red light while the monitor is being charged. 10. Power Indicator: The green light turns on if connected to electricity. 11. Microphone. 12. Volume Button: Press to adjust the monitor’s volume in the monitoring image. 13 14 16 15 17 2.5mm DC charging head Display bracket Speaker 13 14 15 Antenna Reset hole 16 17 STATUS BAR ICON DESCRIPTION : 2:30 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ①Signal strength ②Temperature ③Camera connected ④Alarm prompt ⑤Feeding ⑥Lullaby ⑦Camera cycle time ⑧Sound sensitivity ⑨Date/time ⑩Battery capacity HOW TO USE? Getting started Step1: 1. Connect the camera to the AC adapter(2.5mm). 2. Plug the AC adapter into a socket. Note: Place the camera away from your baby 3ft/1m at least. Step2: 1. Connect the monitor to the AC adapter(3.5mm). 2. Plug the AC adapter into a socket. Note: The monitor takes about 3 hours to be fully charged, and it lasts about 4hours. Step3: Long press the power button to turn on the monitor then you can see the monitoring interface. Note: The camera and monitor were paired already before you get them. So you don’t need to pair them. CAMERA SETTING This function is to add a new camera to the monitor. a. Press button enter to the menu page. Select and press OK to enter camera settings. b. Select and press Add Camera OK button. c. Pop up pairing interface . Countdown 60sec. d. Press the button on the Pair back of the camera.Then see the camera added successfully. Note: Four cameras at most can be connected to one monitor. Cycle Cameras Delete Camera Add Camera CAMERAS Add Camera 1. Add camera Add Camera a. Press enter menu page. Select and press OK to enter camera settings. b. Press to select the Delete Camera
and press OK. c. Press or to select the camera you need to delete. Press OK to confirm you choose. d. Select the
option and Delete


go to delete your camera. Use

button to select
to Cancel return to the superior menu. Delete Camera Cycle Cameras Delete Camera Add Camera CAMERAS Camera 3 Camera 2 Camera 1 Camera 4 Camera 1 Cancel Delete 2. Delete Cameras This function is setting the time for switch one camera to another camera if connecting multiple cameras. a. Press enter menu page. Select and press OK to enter camera settings. b. Press to select the Cycle Cameras and press OK. c. Choose the time you want. Press OK to confirm. Cycle Camera Cycle Cameras Delete Camera Add Camera CAMERAS 10 Sec 5 Sec OFF 15 Sec 30 Sec 3. Cycle Cameras SLEEP MODE This function is to prolong your monitor’s run time by shutting down the screen. CAMERAS SLEEP MODE a. Press to enter menu page. Select . …

Text truncated - open the document above for the full version.

2020-04 -08 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AFCB-LY135 Product Name: Baby monitor Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: Schematics Long-term confidential Block diagram Long-term confidential Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name Wangxing Yu Position Manager Company Name Shenzhen Longzhiyuan Technology Co., Ltd. Address 2F & 5F, Bldg #2, Zhuangbian 2nd Industrial Park, Hezhou Community, Hangcheng, Bao’an, Shenzhen City, China Tel 0755-27948826-830 Fax 0755-27948676 Email [email protected] Shenzhen Longzhiyuan Technology Co., Ltd.

FCC ID: 2AFCB-LY135

Label Size: 1.5x1.0cm FCC ID: 2AFCB-LY135 Shenzhen Longzhiyuan Technology Co., Ltd. Model name: Baby monitor Model No.: LY-135 Location

FCC ID: 2AFCB-LY135 Antenna

MPE Calculation Method Predication of MPE limit at a given distance Equation from page 19 of OET Bulletin 65, Edition 97-01 퐒= 푬푰푹푷 ퟒ흅푹 ퟐ where: S = power density (in appropriate units, e.g. mW/cm 2 ) EIRP = equivalent (or effective) isotropically radiated power (in appropriate units, e.g., mW) R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 2dBi, the RF power density can be obtained. So, the worst result is below: Max Output Power = 13.141 dBm, Ant gain 3.5dBi EIRP=PG= (13.141+3.5) dBm=16.641 dBm=10 (16.641/10) mW=46.14mW So, 퐒= 푬푰푹푷 ퟒ흅푹 ퟐ = ퟒퟔ.ퟏퟒ ퟒ흅×ퟐퟎ ퟐ =0.009mW/cm 2 <1.0 mW/cm 2 Conclusion: Pass.

FCC TEST REPORT FCC ID: 2AFCB-LY135 On Behalf of Shenzhen Longzhiyuan Technology Co., Ltd. Baby monitor Model No.: LY-135 Prepared for : Shenzhen Longzhiyuan Technology Co., Ltd. Address : 2F & 5F, Bldg #2, Zhuangbian 2nd Industrial Park, Hezhou Community, Hangcheng, Bao’an, Shenzhen City, China Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzhen, Guangdong, China Report Number : A2002052-C01-R02 Date of Receipt : March 12, 2020 Date of Test : March 12-April 14, 2020 Date of Report : April 17, 2020 Version Number : V0 Page 2 of 45 Report No.: A2002052-C01-R02 TABLE OF CONTENTS Description Page 1. Summary of Standards And Results .................................................................................................... 6 1.1. Description of Standards and Results .......................................................................... 6 2. General Information .............................................................................................................................. 7 2.1. Description of Device (EUT) ....................................................................................... 7 2.2. Accessories of Device (EUT) ...................................................................................... 8 2.3. Tested Supporting System Details ............................................................................... 8 2.4. Block Diagram of connection between EUT and simulators ...................................... 8 2.5. Test Mode Description ................................................................................................. 8 2.6. Test Conditions ............................................................................................................ 9 2.7. Test Facility ................................................................................................................. 9 2.8. Measurement Uncertainty ............................................................................................ 9 2.9. Test Equipment List ................................................................................................... 10 3. Maximum Peak Output power ........................................................................................................... 11 3.1. Limit .......................................................................................................................... 11 3.2. Test Procedure ........................................................................................................... 11 3.3. Test Setup ................................................................................................................... 11 3.4. Test Result ................................................................................................................. 11 4. Bandwidth ............................................................................................................................................. 12 4.1. Limit .......................................................................................................................... 12 4.2. Test Procedure ........................................................................................................... 12 4.3. Test Result ................................................................................................................. 12 5. Carrier Frequency Separation ............................................................................................................ 14 5.1. Limit .......................................................................................................................... 14 5.2. Test Procedure ........................................................................................................... 14 5.3. Test Result ................................................................................................................. 14 6. Number Of Hopping Channel ............................................................................................................. 15 6.1. Limit .......................................................................................................................... 15 6.2. Test Procedure ........................................................................................................... 15 6.3. Test Result ................................................................................................................. 15 7. Dwell Time ............................................................................................................................................ 16 7.1. Test limit .................................................................................................................... 16 7.2. Test Procedure ........................................................................................................... 16 7.3. Test Result ................................................................................................................. 16 8. Radiated emissions ............................................................................................................................... 18 8.1. Limit .......................................................................................................................... 18 8.2. Block Diagram of Test setup ..................................................................................... 19 8.3. Test Procedure ........................................................................................................... 20 8.4. Test Result ................................................................................................................. 20 9. Band Edge Compliance ....................................................................................................................... 26 Page 3 of 45 Report No.: A2002052-C01-R02 9.1. Block Diagram of Test Setup …

Text truncated - open the document above for the full version.

FCC ID: 2AFCB-LY135 Photos of Radiated emission Photos of Power Line Conducted Emission Test
