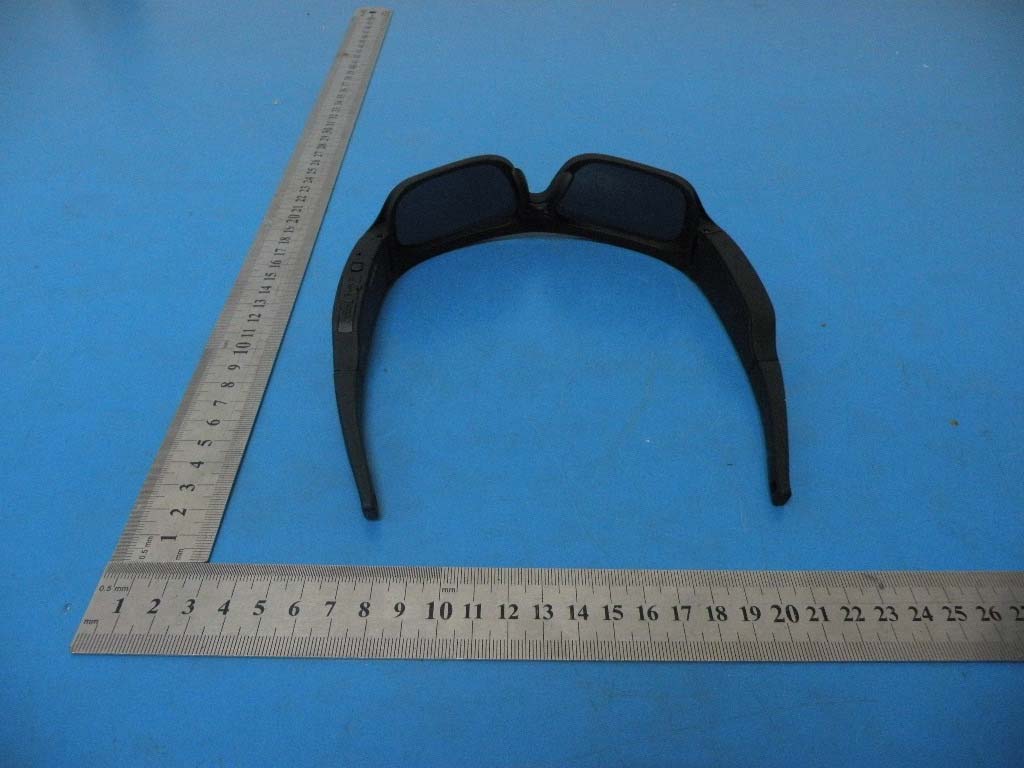

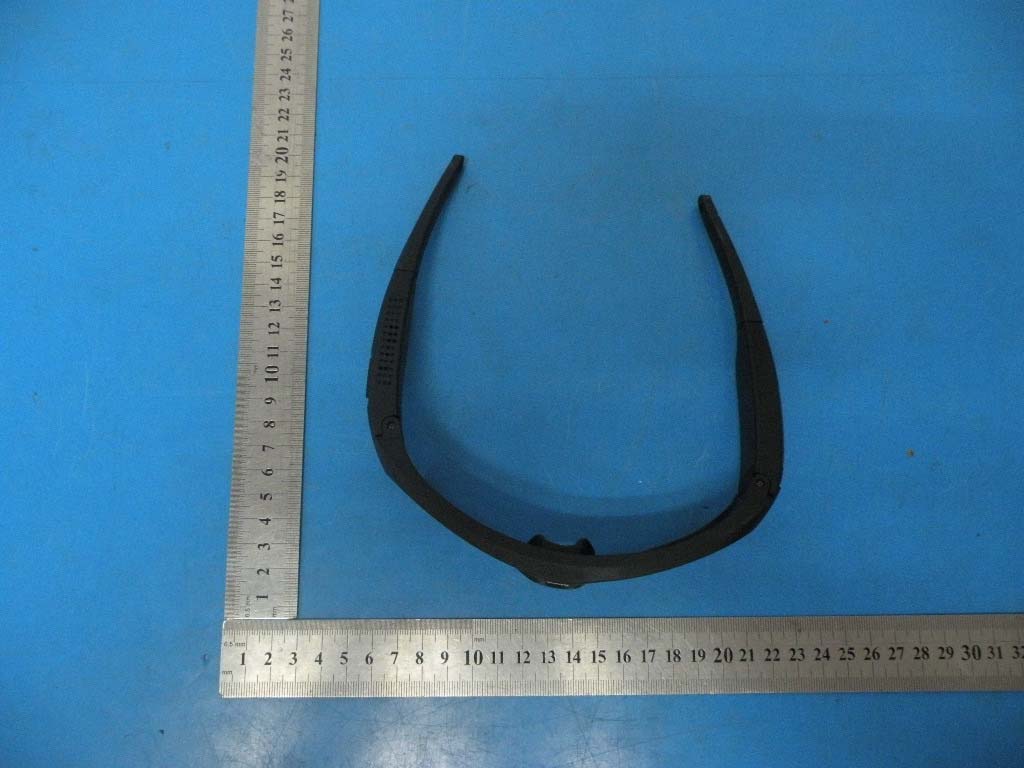

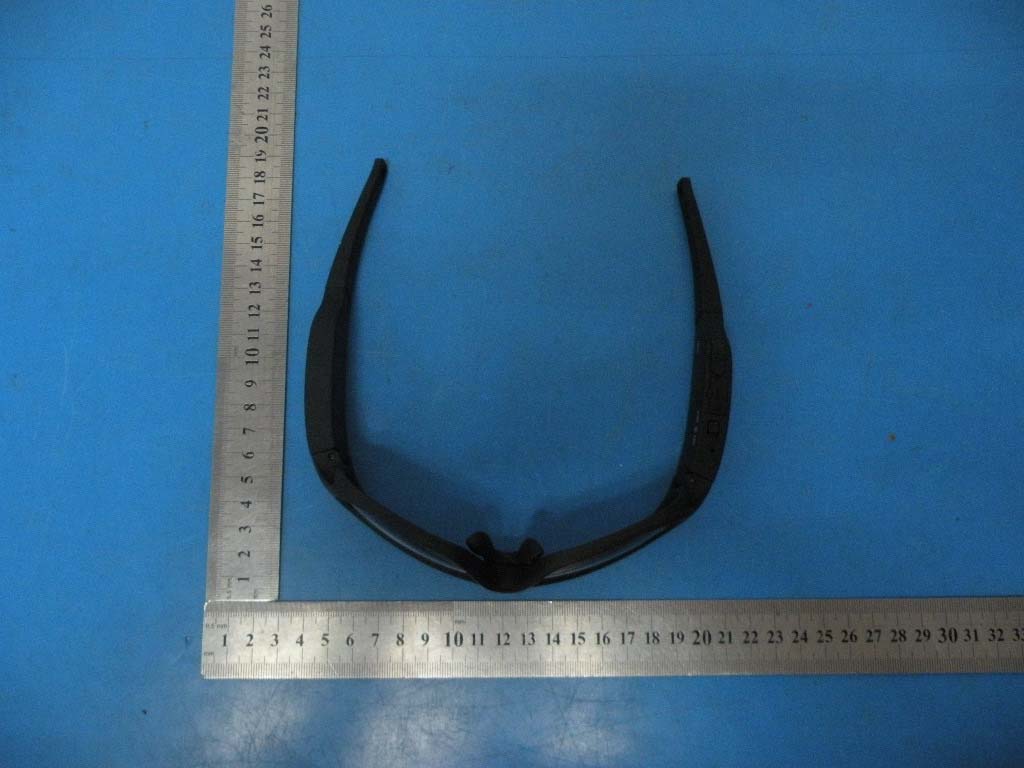

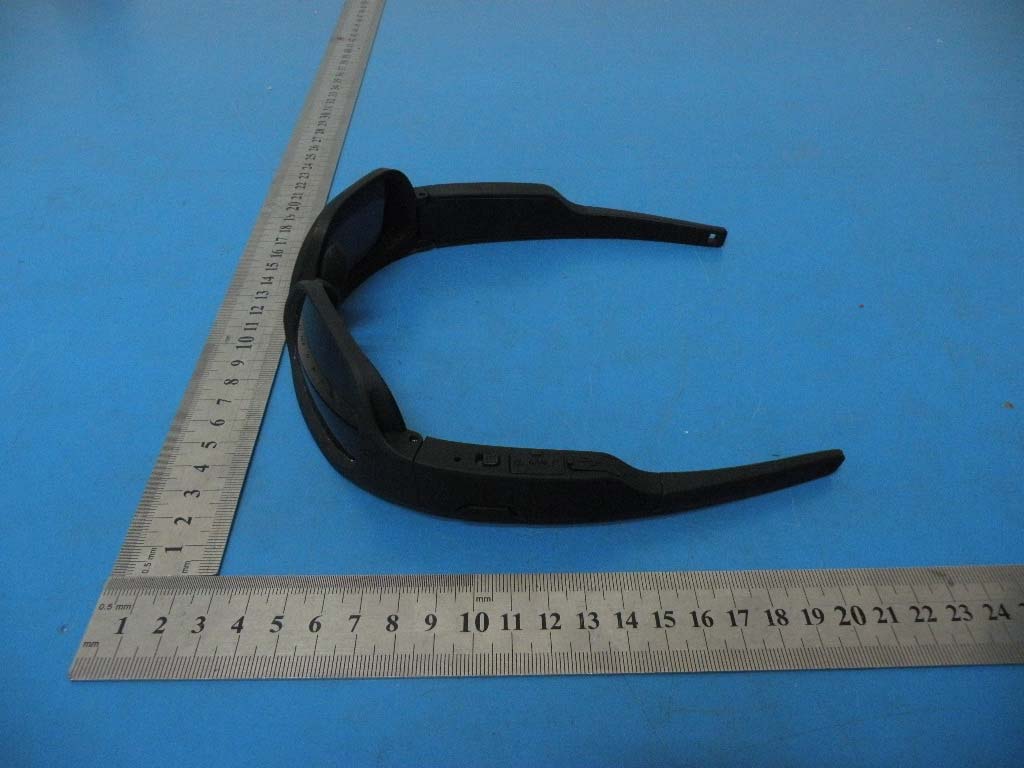

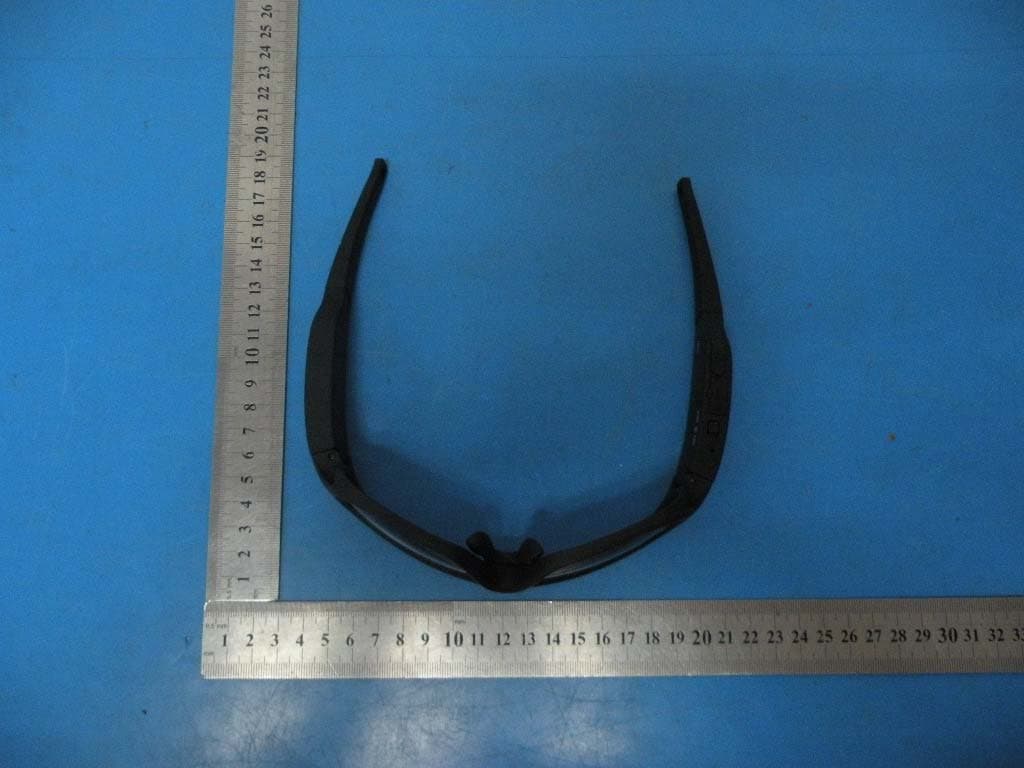

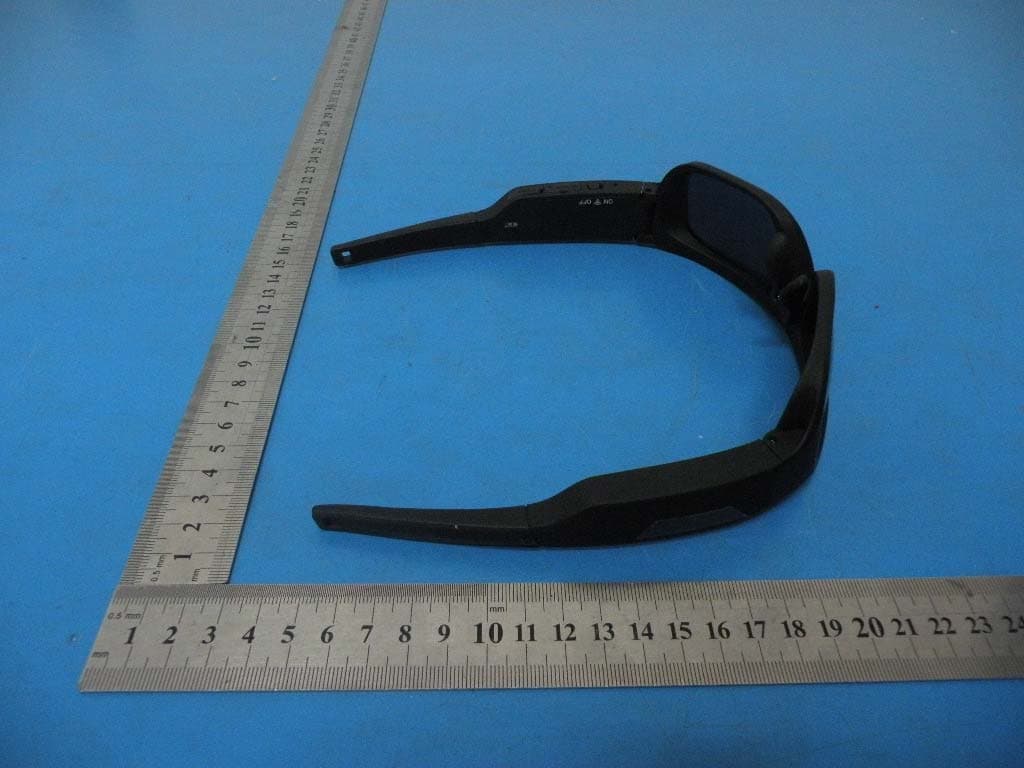

2AFCBLY-801080P WiFi Glasses Camera

camera will turn off automatically. Re-start camera to record video normally. 4) Check if blue light keeps on when turn on camera? If camera is at pause status, please have a short press on the turn on button to start recording. Notice: 1) If there is important data in your micro SD card, when blue light flash quickly, we suggest you take out micro SD card, use card reader to connect it with computer, open the data or copy to save it. Then put the card back to camera to continue format. That step is to avoid any unwanted trouble or data lose from format. 2) If no need wifi please turn the switch to OFF position, that can save battery power and reduce camera heat. 6) Re-start camera to run the new firmware. 13. Time Setting 1) Use USB line to connect camera with computer 2) Open the disc and create a txt file named 'setdate.txt' under root directory 3) Open the file setdate.txt, input Year, Month, Date, Hour, Minute, Second totally 14 digits, leave a space between each of them, for example: 2015 11 16 11 30 59, then save the file.Notice: default time is 24 hours 4) Disconnect camera with computer, pull out USB line, turn on camera to start recording to update the time setting. 14. Question and Answer The sunglasses camera can't be connected with wifi? 1) Check the wifi switch to see if it is at the ON position 2) Check if your cell phone is connected with other wifi device, if it does please cancel the connection, then connect it with sunglasses wifi. 3) Do you forget the wifi name and password? Please create a txt file named 'SSDIREST.TXT' under the root directory of micro SD card, then turn off the camera to reset wifi name and password to be default, txt file will be deleted automatically. The sunglasses camera can't be started? 1) The camera turn off automatically when turn it on? If battery capacity indicator is red, the battery is at low power, please re-charge it immediately. 2) Check if micro SD card is full or no card in the slot. 3) Check if blue light flash fast when turn on camera? If it is, please have a short press on the turn on button, to format micro SD card, the the 12. Firmware Update 1) Use USB line to connect camera with computer 2) Copy file name Fw96658a.bin to Micro SD card root directory 3) Disconnect USB connection 4) Turn on camera, blue light flash for 12 seconds, then quick flash for 8 seconds to be off, means the update is finished. It takes around 20 seconds in total. 5) Take out Micro SD card, use card reader to connect computer, delete the file Fw96658a.bin 10. Parameter Pixels 3 mega Resolution 1920x1080P@30FPS ; 1280x720P@60FPS Power Supply Embedded 760mAh Li-ion Battery Power Duration About 80 minute（WiFi off） about 45 minute(wifi on) Power Consumption <2.3 W(wifi on) <1.7W(wifi off) Memory Card Support high speed Micro SD Card Max 32GB Photo Graphing Angle 63 Degree Video Format H.264 Working Temp 5°C–40°C Storage Temp -20°C-60°C Wifi Distance About 10 meters Wifi Protocol TCP/UDP/ICMP/DHCP/DNS/HTTP Buzzer AlertYes Physical Weight74g Dimension 170mm*48mm*170mm USB 2.0(HS) Player KM Player; Quick Time7.6; Storm2012; RealPlayer11 Operating System Win7/WinXP/Win8/ Win10/ Mac Os10.7 or above 11. LED Light and Buzzer Alert Setting: Function Battery Capacity Indicator Blue Light Recording Indicator Red Light Buzzer Alert Remark Power On Light color display per battery capacity Keep on for 5 seconds On for 1 second then off When Wifi is on, alarm 2 times by 0.5sec/time When Wifi is off, alarm 1 times by 0.5sec/time Power OffOffOffOff Long alarm for 1.5 sec Reset OffOff On for 1 sec to be off Off Recording color display per battery capacity Flash 1 time/sec OffOff USER MANUAL TF card 32GB Pixels 3M Degree 63 FPS 720P@60 EYEWEAR Video Recorder Pause Light color display per battery capacity Keep on Off Alarm 1 times by 0.5sec/time Connect USD Blue light keep on Keep on for 2 sec then turn off On when charge, off when charge full Off USB Disconnect USB OffOffOff Long alarm for 1.5 sec Turn Off Wifi Light color display per battery capacity Keep on for 5 sec, then flash by 1 time/sec Off Alarm 1 time for 0.5 sec Turn On Wifi Light color display per battery capacity Keep on for 5 sec, then flash by 1 time/sec Off Alarm 2 times, 0.5 sec/ time Camera format Light color display per battery capacity, turn off when format finish Blue light flash quickly, short press ON button, blue light keep on 3 to 8 seconds then turn off OffOff Firmware Update Light color display per battery capacity Flash for 12 sec,then quick flash for 8 sec to be off OffOff Charge Charge Full Light color display per battery capacity Pause to Recording Flash 1 time/sec Off Alarm 2 times by 0.5sec/time No Micro SD Card or Card is Full Light color display per battery capacity, turn off after 2 seconds Keep on for 2 sec then turn off On for 1 sec to be off Long alarm for 1.5 sec Low Power Red light keep on for 5 to 10 minutes then turn off When camera turn off the blue light keep on for 2 sec then turn off Off When camera turn off, long alarm for 1.5 sec OffOffOnOff OffOffOffOff 7. Connect Computer To replay the video on computer, you can transfer the files to computer, or connect the camera to computer to play the video in Micro SD card. 1) Use USB line to connect camera with computer 2) To delete, copy files the same as U disc operation 3) When connect via USB the camera is charging simultaneously. 8. Battery This product has built-in lithium ion battery: When battery capacity is 75% above, LED indicator is green; When battery capacity is between 45% and 75%, LED indicator is blue; When battery capacity is below 25%, LED indicator is red; When battery capacity is below 10%, camera turns off automatically. Prolong battery life: extreme cold temperature may reduce battery life, if you want to prolong battery life, please place the camera at warm condition. Charging time: use 5V/1A charger, it takes about 2 to 3 hours. Battery storage: Please avoid use the camera under extreme cold or hot environment, a…

Text truncated - open the document above for the full version.

November 09, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AFCBLY-80 _ Product Name: 1080P WiFi Glasses Camera Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics Long-term confidential • Block diagram Long-term confidential • Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name Colin Cao Position Electronic Engineer Company Name Shenzhen Longzy Technology Co., Ltd Address 5F Building B, zhuangbian 2nd Industrial Park Hezhou industrial District, Xixiang, Baoan, Shenzhen, China Tel 0755-27948595 Fax 0755-27948676 Email [email protected]

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 07.03.2008 Datum: 00.00.00 Seite 1 von 1 Shenzhen Longzy Technology Co., Ltd Date:November09, 2015 FCC ID:2AFCBLY-80 Subject: Attestation Letter “Declaration of Conformity” Dear Sirs, Our products with the above FCC ID are defined as composite device. The transmitter is authorized under the “Certification” procedure. The device is also defined as “PC Periphery” acc to §15.101 Equipment authorization of unintentional radiators, where we hereby declare, that we apply and follow the “Declaration of Conformity” procedure. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Name Colin Cao Position Electronic Engineer Company Name Shenzhen Longzy Technology Co., Ltd Address 5F Building B, zhuangbian 2nd Industrial Park Hezhou industrial District, Xixiang, Baoan, Shenzhen, China Tel 0755-27948595 Fax 0755-27948676 Email [email protected] to apply FCC DOC at FCC recognized and accredited MRA lab .



Label 40mm 100mm Label FCC ID: 2AFCBLY‐80 Shenzhen Longzy Technology Co., Ltd Model name: 1080P WiFi Glasses Camera Model No.: LY‐80



FCCID:2AFCBLY80    RFExposureevaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances İ50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] g[Ĝf(GHz)]İ3.0 for 1-g SAR and İ7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2412MHz 5.34(3.42mW) output power] (3.42mW /5mm) g[Ĝ2.412(GHz)]= 1.062 <3.0 for 1-g SAR ThenSARevaluationisnotrequired 5.34dBm(3.42mW)output power]
