2AFEGFRWL46ROU19MODAS(Multi-Operator DAS)

Sierra ROU 40W User Manual © FRTek Co. Ltd 2015 1 Confidential: Any reproduction or distribution without the express written consent of FRTek is strictly prohibited P/N: FR-RMDL40U @ revision 1.0 Sierra ROU 40W Multi-Operator/Multi-Band DAS User Manual VER 1.0 Sierra ROU 40W User Manual © FRTek Co. Ltd 2015 2 Confidential: Any reproduction or distribution without the express written consent of FRTek Co. Ltd or FRTek US LLC is strictly prohibited Table of Contents 1. Overview...............................................................................................................7 1.1 Product Overview....................................................................................7 1.2 System Features.......................................................................................7 2. System Network Configuration..........................................................................9 3. System Architecture.............................................................................................13 3.1 Architecture..............................................................................................13 4. System Specifications...........................................................................................23 4.1 System Specification 4.2 Environmental conditions 5. Operational Program 5.1 Overview 5.2 Screen configuration 5.3 ROUStatus Verification and Control 5.4 Reset 5.5 Set-up T ime Advance 5.6 Download 5.7 Debug 6. Main Technical Details 6.1 Main Technical details 6.2 Technical Details 7. Alarm and Troubleshooting Sierra ROU 40W User Manual © FRTek Co. Ltd 2015 3 Confidential: Any reproduction or distribution without the express written consent of FRTek Co. Ltd or FRTek US LLC is strictly prohibited FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. INFORMATION TO THE USER Part 27.5 Booster Warning Label WARNING. This is NOT a CONSUMER device. It is designed for installation by FCC LICENSEES and QUALIFIED INSTALLERS. You MUST have an FCC LICENSE or express consent of an FCC Licensee to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Specification or recommendation about Antennas is not available or not mention in this manual. As per default antennas, cables or coupling devices, contact www.frtek.net for further information. The head end unit must always be connected to the Base Station using a direct cabled connection. This system has not been approved for use with a wireless connection via server antenna to the base station. Antennas must be installed in accordance with FCC 27.50. With 17dBi gain antennas the height of the antenna above average terrain (HAAT) must not exceed 915m. For difference gain antennas refer to the relevant rules. Sierra ROU 40W User Manual © FRTek Co. Ltd 2015 4 Confidential: Any reproduction or distribution without the express written consent of FRTek Co. Ltd or FRTek US LLC is strictly prohibited 1. Overview 1.1 SIERRA Overview This manual is created for operators who is using or will use Sierra DAS system to give an information and an instructions how to figure out the system. Operator shall be acknowledged, experienced and properly educated about the overalls of repeater system and the experience of the installation & maintenance of DAS system. 1.2 Use of recommendation and warning Booster Warning Label WARNING. This is NOT a CONSUMER device. It is designed for installation by FCC LICENSEES and QUALIFIED INSTALLERS. You MUST have an FCC LICENSE or express consent of an FCC Licensee to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Warning Use of unauthorized antennas, cables, and/or coupling devices not conforming with ERP/EIRP and/or indoor-only restrictions is prohibited. Caution This symbol indicates cautions which operators shall be careful while installing and managing systems 1.3 System Features Sierra is an in-building/outdoor DAS system and provides 4 bands of service; 700MHz (LTE, 27MHz), 850MHz (WCDMA, LTE 32MHz), 1.9GHz (WCDMA, LTE 65MHz), 2.1GHz (WCDMA, LTE, 45MHz) at the same time. The system is scalable to extend additional 2 bands services - 2.3GHz and 2.5GHz frequencies. Sierra system is configured and features: A. ROU : Remote Optic Unit - Type 1. ROU 10W : 700MHz SISO, 700MHz MIMO, 850MHz SISO, 1.9GHz SISO, 2.1GHz SISO, 2.1GHz MIMO 2. SROU 10W : 2.3GHz SISO, 2.3GHz MIMO, 2.5GHz SISO, 2.5GHz MIMO(Future ordering option) Sierra ROU 40W User Manual © FRTek Co. Ltd 2015 5 Confidential: Any reproduction or distribution without the express written consent of FRTek Co. Ltd or FRTek US LLC is strictly prohibited - Conversion and amplification of digital optical signal into an RF signal (Downlink) - Converting the RF signal into a digital optical signal (Uplink) - Optic interfaces with MHU - Node Isolation : Bypass to avoid impact on service of lower nodes in case of failure of upper nodes or power off condition - System Delay Equalizer (110us) 1.4 System Port Configuration - Unauthorized cables and devices would give damages to the system. Approved devices and cables are recommended to use. A. ROU 40W Port Configuration Port Type Description Port Location Input Power Single AC Power Input Bottom side Antenna 6 ports (700MHz SISO, 700MHz MIMO, 850MHz SISO, 1.9GHz SISO, 2.1GHz SISO, 2.1GHz MIMO) Optic Cable Optic Cable inputs – 3 ports (TR, IR, EX) BATTERY Pb BATT, Li-BATT inputs – 2 ports External Fan External Fan Power Input – Single port Power Ground Single port Telecom Ground 2 ports 1 for each Left/Right side Sierra …

Text truncated - open the document above for the full version.

FRTEK CO., LTD. 1001, Doosan Venture Digm, 415, Heungandaero, Dongan-Gu, Anyang-Si, Gyeonggi-do, 431-755 Korea Tel : +82-31-478-2114 Fax : +82-31-478-2116 ____________________________________________________________________________ Date: Sept. 4, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Subject: Letter for Warning Label Message FCC ID: 2AFEGFRWL40ROU70, 2AFEGFRWL40ROU80, 2AFEGFRWL40ROU19, 2AFEGFRWL40ROU21, 2AFEGFRWL46ROU70, 2AFEGFRWL46ROU80, 2AFEGFRWL46ROU19, 2AFEGFRWL46ROU21 To Whom It May Concern: Warning label messages will be also shown in online and point-of-sale marketing materials and on outside packaging of device per KDB 935210 D02 in Section IV clause (d). Best Regards Signature Donald Kim/ General Manager FRTeK CO.,LTD.

FCC ID: 2AFEGFRWL46ROU19 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 13 EXTERNAL PHOTOGRAPHS FCC ID: 2AFEGFRWL46ROU19 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 13 FCC ID: 2AFEGFRWL46ROU19 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 13 FCC ID: 2AFEGFRWL46ROU19 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 13 FCC ID: 2AFEGFRWL46ROU19 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 13 FCC ID: 2AFEGFRWL46ROU19 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 13 FCC ID: 2AFEGFRWL46ROU19 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 13 FCC ID: 2AFEGFRWL46ROU19 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 13 FCC ID: 2AFEGFRWL46ROU19 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ９ of 13 FCC ID: 2AFEGFRWL46ROU19 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １０ of 13 FCC ID: 2AFEGFRWL46ROU19 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １１ of 13 FCC ID: 2AFEGFRWL46ROU19 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １２ of 13 FCC ID: 2AFEGFRWL46ROU19 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １３ of 13

11 10. FCC 40W – 19 LABEL / Location < FRWL46ROU19 Label Location > < WARNING Label Location > < FRWL46ROU19 label> < WARNING label>

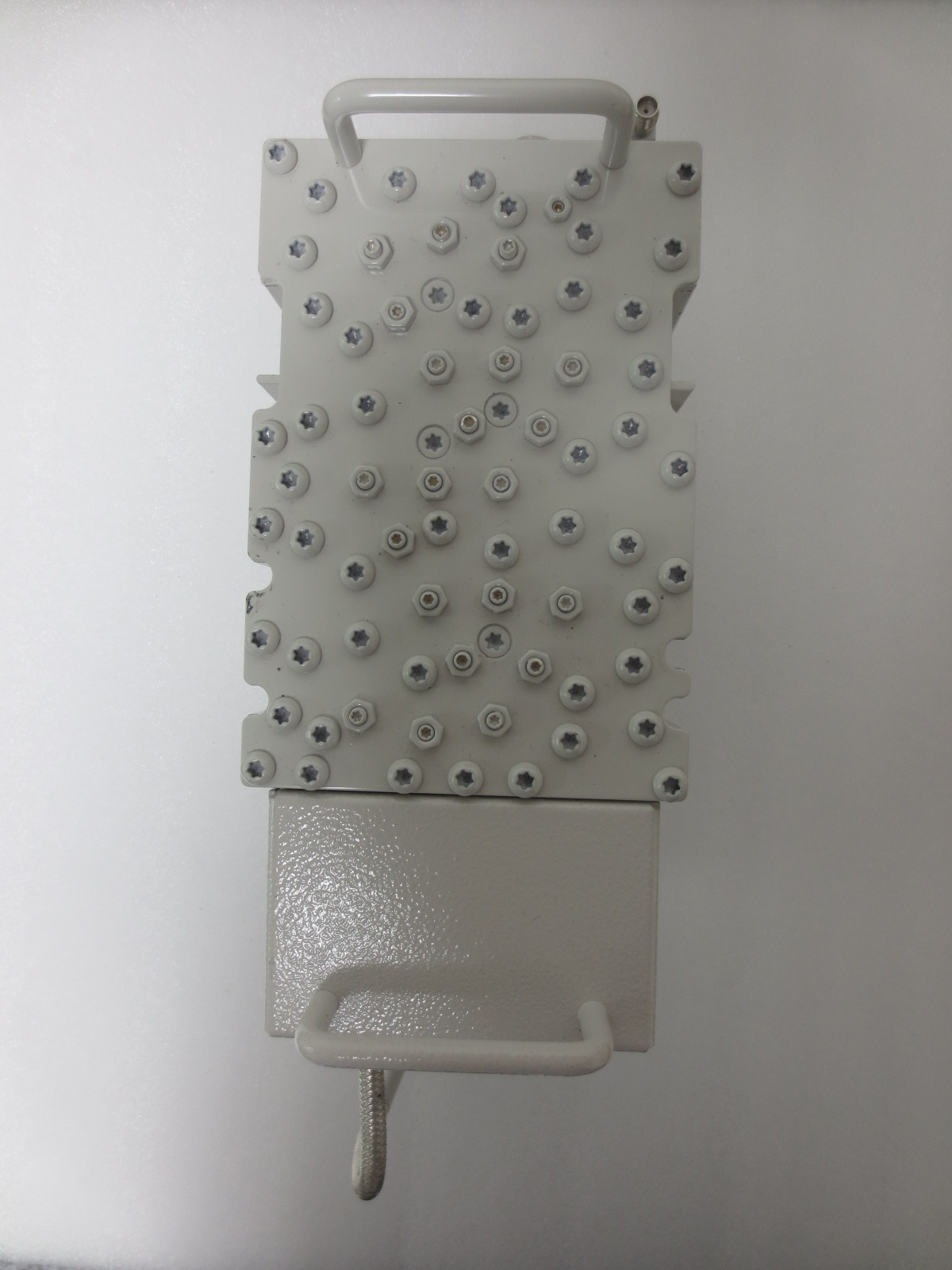

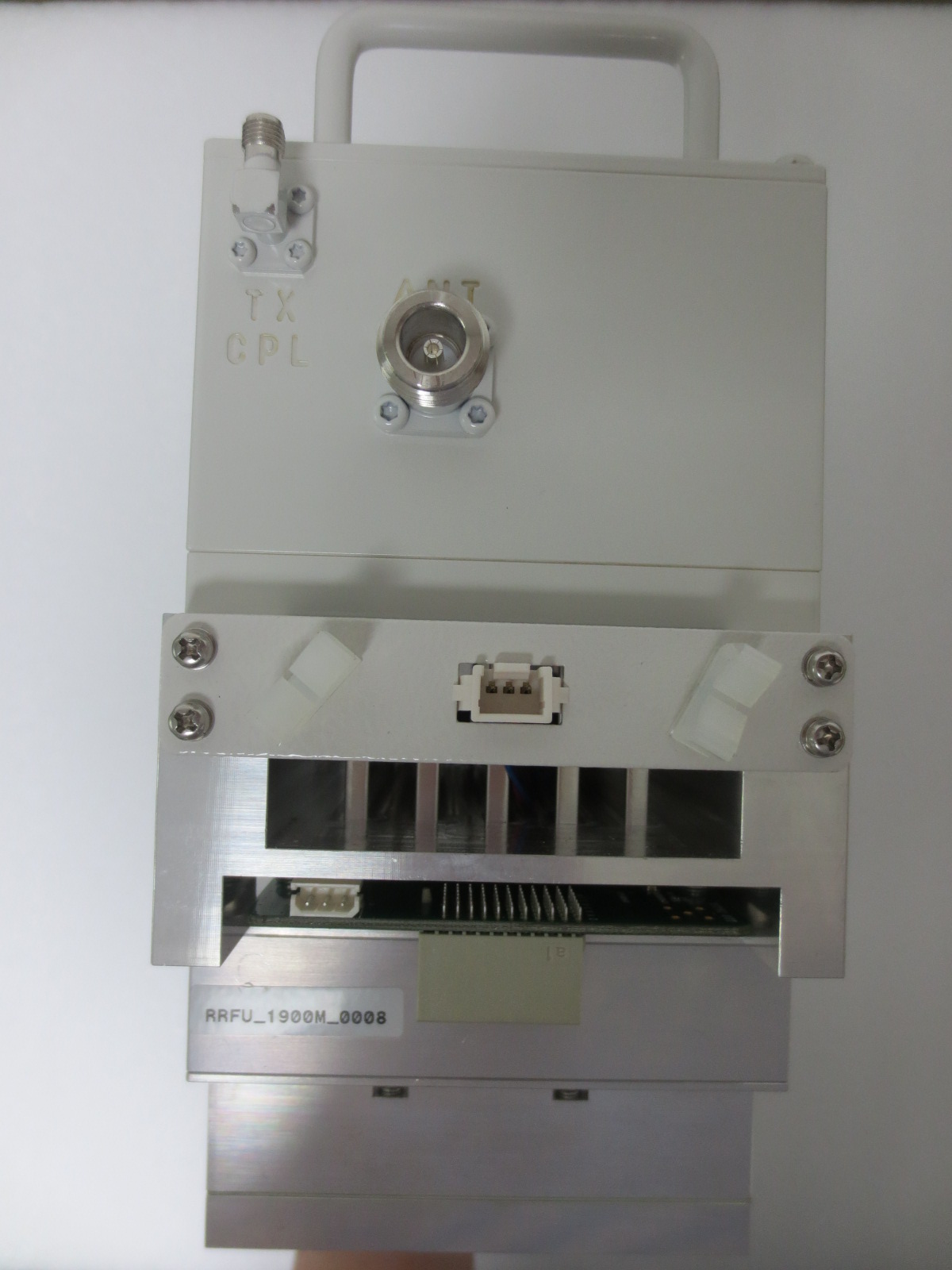

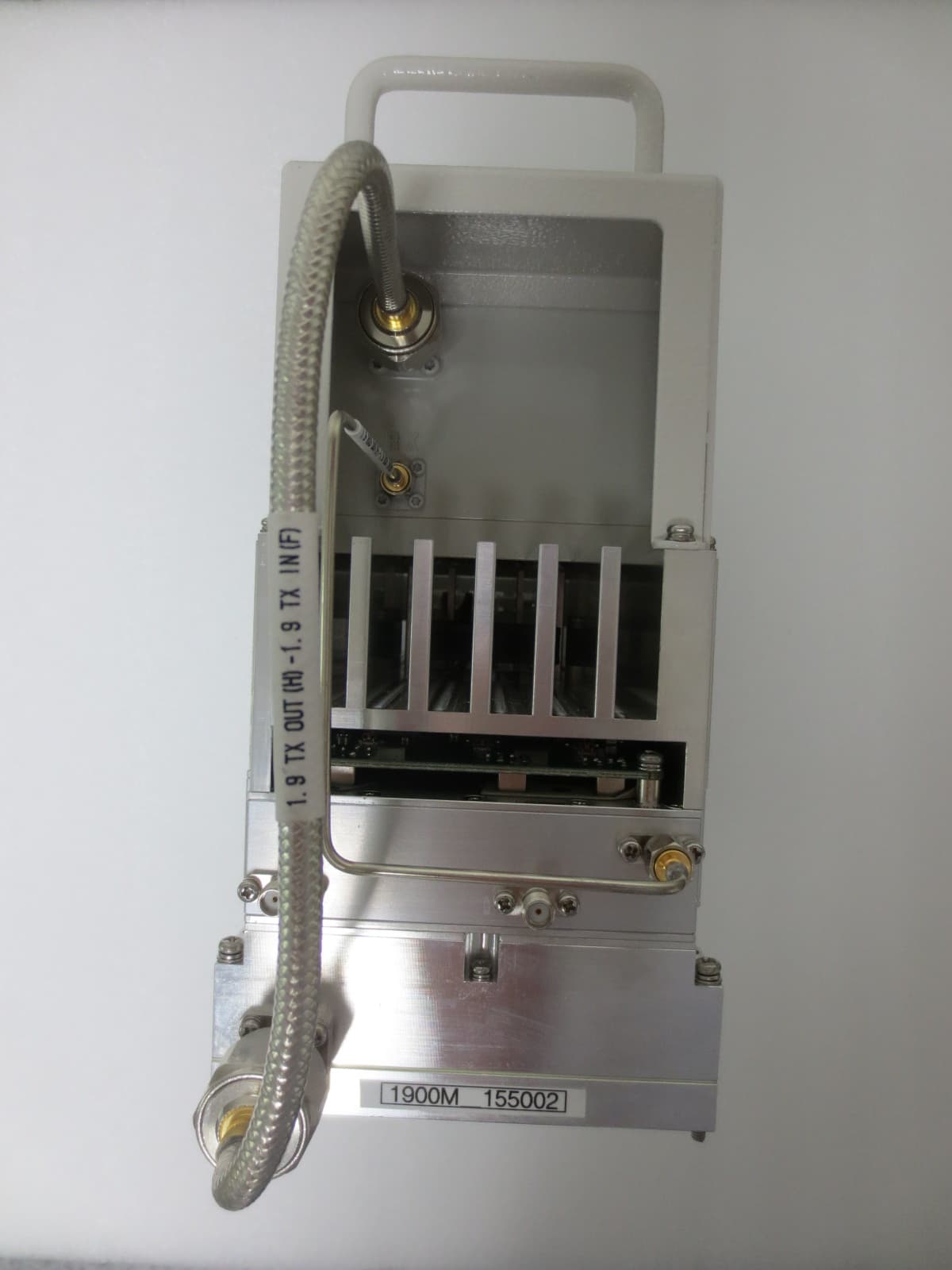

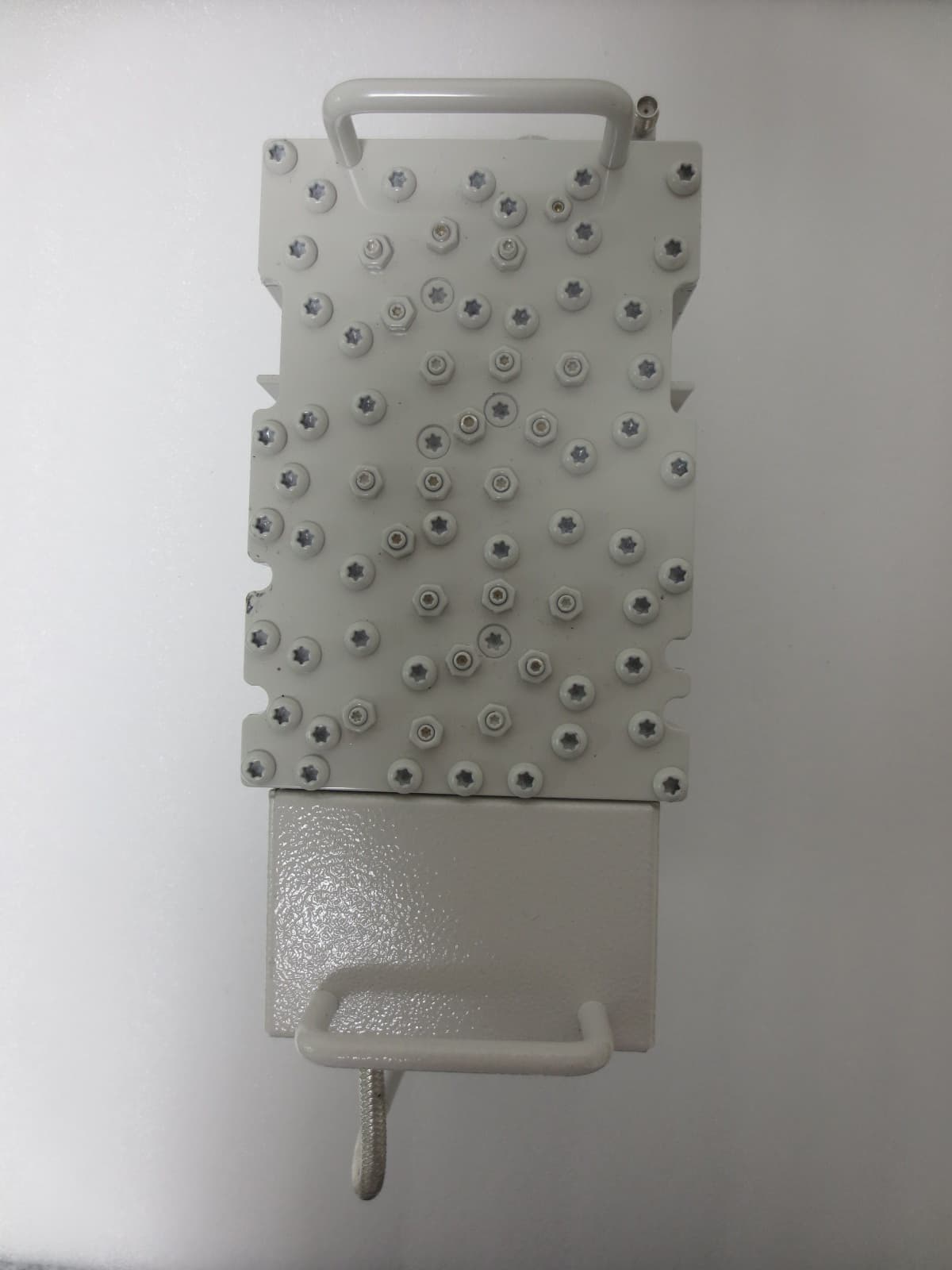

FCC ID : 2AFEGFRWL46ROU19 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 1/ 9 INTERNAL PHOTOGRAPHS FCC ID : 2AFEGFRWL46ROU19 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 2/ 9 1. RADA 1.9G FCC ID : 2AFEGFRWL46ROU19 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 3/ 9 2. RRFU 1.9G FCC ID : 2AFEGFRWL46ROU19 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 4/ 9 FCC ID : 2AFEGFRWL46ROU19 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 5/ 9 FCC ID : 2AFEGFRWL46ROU19 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 6/ 9 3. HPA 1.9G AMP FCC ID : 2AFEGFRWL46ROU19 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 7/ 9 APD FCC ID : 2AFEGFRWL46ROU19 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 8/ 9 4. RFEU 1.9G FCC ID : 2AFEGFRWL46ROU19 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 9/ 9

Report No.: HCT-R -1 510-F014 Model: FRWL46ROU19 Page 2 of 86 F-TP22-0 3 (Rev.00) FCC ID: 2AFEGFRWL46ROU19 2 / 86 Version TEST REPORT NO. DATE DESCRIPTION HCT-R-1510-F014 October 15, 2015 - First Approval Report Report No.: HCT-R -1 510-F014 Model: FRWL46ROU19 Page 3 of 86 F-TP22-0 3 (Rev.00) FCC ID: 2AFEGFRWL46ROU19 3 / 86 Table of Contents 1. CLIENT INFORMATION ................................................................................................................................ 4 2. FACILITIES AND ACCREDITATIONS .......................................................................................................... 5 2.1. FACILITIES ......................................................................................................................................... 5 2.2. EQUIPMENT ....................................................................................................................................... 5 3. TEST SPECIFICATIONS ............................................................................................................................... 6 3.1. STANDARDS ...................................................................................................................................... 6 3.2. MODE OF OPERATION DURING THE TEST .................................................................................... 6 3.3. Maximum measurement uncertainty ............................................................................................... 7 4. STANDARDS ENVIRONMENTAL TEST CONDITIONS .............................................................................. 8 5. TEST EQUIPMENT ....................................................................................................................................... 9 6. RF OUTPUT POWER.................................................................................................................................. 10 7. OCCUPIED BANDWIDTH........................................................................................................................... 25 8. OUT OF BAND REJECTION ...................................................................................................................... 44 9. SPURIOUS AND HARMONIC EMISSION AT ANTENNA TERMINAL ...................................................... 47 10. RADIATED SPURIOUS EMISSIONS ....................................................................................................... 82 11. FREQUENCY STABILITY OVER TEMPERATURE AND VOLTAGE VARIATIONS ................................ 85 Report No.: HCT-R -1 510-F014 Model: FRWL46ROU19 Page 4 of 86 F-TP22-0 3 (Rev.00) FCC ID: 2AFEGFRWL46ROU19 4 / 86 1. CLIENT INFORMATION The EUT has been tested by request of Company FRTEK CO., LTD. 1001, Doosan Venture Digm, 415, Heungandaero, Dongan-Gu, Anyang-Si, Gyeonggi-do, 431-755 Korea FCC ID: 2AFEGFRWL46ROU19 EUT Type: MODAS(Multi-Operator DAS) FCC Model(s): FRWL46ROU19 Frequency Ranges: 1 930 MHz – 1 995 MHz Conducted Output Power: 40 W (46 dBm) Antenna Gain(s): Manufacturer does not provide an antenna. Measurement standard(s): ANSI/TIA-603-C-2004, KDB 971168 D01 v02r02 KDB 935210 D02 v03, KDB 935210 D05 v01 FCC Rule Part(s): CFR Title 47 Part 24 Place of Tests: HCT CO., LTD., 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi- do, 17383, Rep. of KOREA (IC Recognition No. : 5944A-5) Report No.: HCT-R -1 510-F014 Model: FRWL46ROU19 Page 5 of 86 F-TP22-0 3 (Rev.00) FCC ID: 2AFEGFRWL46ROU19 5 / 86 2. FACILITIES AND ACCREDITATIONS 2.1. FACILITIES The SAC(Semi-Anechoic Chamber) and conducted measurement facility used to collect the radiated data are located at the 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA. The site is constructed in conformance with the requirements of ANSI C63.4. (Version :2003) and CISPR Publication 22. Detailed description of test facility was submitted to the Commission and accepted dated July 07, 2015 (Registration Number: 90661). 2.2. EQUIPMENT Radiated emissions are measured with one or more of the following types of Linearly polarized antennas: tuned dipole, bi-conical, log periodic, bi-log, and/or ridged waveguide, horn. Spectrum analyzers with pre- selectors and quasi-peak detectors are used to perform radiated measurements. Calibrated wideband preamplifiers, coaxial cables, and coaxial attenuators are also used for making measurements. All receiving equipment conforms to CISPR Publication 16-1, “Radio Interference Measuring Apparatus and Measurement Methods.” Report No.: HCT-R -1 510-F014 Model: FRWL46ROU19 Page 6 of 86 F-TP22-0 3 (Rev.00) FCC ID: 2AFEGFRWL46ROU19 6 / 86 3. TEST SPECIFICATIONS 3.1. STANDARDS The following tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 24. Description Reference Results RF Output Power §2.1046; §24.232 Compliant Occupied Bandwidth §2.1049 Compliant Out of Band Rejection KDB 935210 D02 v03 Compliant Spurious Emissions at Antenna Terminals §2.1051, §24.238 Compliant Radiated Spurious Emissions §2.1053, §24.238 Compliant Frequency Stability §2.1055, §24.235 Compliant 3. 2. MODE OF OPERATION DURING THE TEST The EUT was operated in a manner representative of the typical usage of the equipment. During all testing, system components were manipulated within the confines of typical usage to maximize each emission. The device does not supply antenna(s) with the system, so the dummy loads were connected to the RF output ports for radiated spurious emission testing. Report No.: HCT-R -1 510-F014 Model: FRWL46ROU19 Page 7 of 86 F-TP22-0 3 (Rev.00) FCC ID: 2AFEGFRWL46ROU19 7 / 86 3. 3. Maximum measurement uncertainty The value of the measurement uncertainty for the measurement of each parameter. Coverage factor k = 2, Confidence levels of 95 % Description Condition Uncertainty Conducted RF Output Power - ± 0.72 dB Occupied Bandwidth OBW ≤ 20 MHz ± 52 kHz Passband Gain and Bandwid…

Text truncated - open the document above for the full version.

Report No.: HCT-R -1 510-F014 Model: FRWL46ROU19 Page 44 of 86 F-TP22-0 3 (Rev.00) FCC ID: 2AFEGFRWL46ROU19 44 / 86 8. OUT OF BAND REJECTION Test Requirement(s): KDB 935210 D02 v03 Out of Band Rejection – Test for rejection of out of band signals. Filter freq. response plots are acceptable. Test Procedures: Measurements were in accordance with the test methods section 3.3 of KDB 935210 D05 v01. a) Connect a signal generator to the input of the EUT. b) Configure a swept CW signal with the following parameters: 1) Frequency range = ± 250 % of the passband from the center of the passband. 2) Level = a sufficient level to affirm that the out-of-band rejection is > 20 dB above the noise floor and will not engage the AGC during the entire sweep. 3) Dwell time = approx. 10 ms. 4) Number of points = SPAN/(RBW/2). c) Connect a spectrum analyzer to the output of the EUT using appropriate attenuation. d) Set the span of the spectrum analyzer to the same as the frequency range of the signal generator. e) Set the resolution bandwidth of the spectrum analyzer to be 1 % to 5 % of the passband and the video bandwidth shall be set to ≥ 3 × RBW. f) Set the detector to Peak Max-Hold and wait for the spectrum analyzer’s spectral display to fill. g) Place a marker to the peak of the frequency response and record this frequency as f0. h) Place two markers, one at the lowest and the other at the highest frequency of the envelope of the spectral display such that each marker is at or slightly below the −20 dB down amplitude to determine the 20 dB bandwidth. Capture the frequency response of the EUT. Test Results: The EUT complies with the requirements of this section. Input Level (dBm) Input Signal : Sinusoidal Maximum Amp Gain DL: -30 dBm DL : 76 dB Report No.: HCT-R -1 510-F014 Model: FRWL46ROU19 Page 45 of 86 F-TP22-0 3 (Rev.00) FCC ID: 2AFEGFRWL46ROU19 45 / 86 [Downlink] 20 dB point frequency (MHz) Output power (dBm) Gain (dB) 1929.25 MHz ~ 1965.95 MHz 46.28 76.28 1964.17 MHz ~ 1995.73 MHz 46.28 76.28 Report No.: HCT-R -1 510-F014 Model: FRWL46ROU19 Page 46 of 86 F-TP22-0 3 (Rev.00) FCC ID: 2AFEGFRWL46ROU19 46 / 86 Plots of Out of Band Rejection [Downlink] Report No.: HCT-R -1 510-F014 Model: FRWL46ROU19 Page 47 of 86 F-TP22-0 3 (Rev.00) FCC ID: 2AFEGFRWL46ROU19 47 / 86 9. SPURIOUS AND HARMONIC EMISSION AT ANTENNA TERMINAL Test Requirement(s): § 2.1051 Measurements required: Spurious emissions at antenna terminals: The radio frequency voltage or powers generated within the equipment and appearing on a spurious frequency shall be checked at the equipment output terminals when properly loaded with a suitable artificial antenna. Curves or equivalent data shall show the magnitude of each harmonic and other spurious emission that can be detected when the equipment is operated under the conditions specified in § 2.1049 as appropriate. The magnitude of spurious emissions which are attenuated more than 20 dB below the permissible value need not be specified. § 24.238 Emission limitations for Broadband PCS equipment. The rules in this section govern the spectral characteristics of emissions in the Broadband Personal Communications Service. (a) Out of band emissions. The power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10 log(P) dB. (b) Measurement procedure. Compliance with these rules is based on the use of measurement instrumentation employing a resolution bandwidth of 1 MHz or greater. However, in the 1 MHz bands immediately outside and adjacent to the frequency block a resolution bandwidth of at least one percent of the emission bandwidth of the fundamental emission of the transmitter may be employed. A narrower resolution bandwidth is permitted in all cases to improve measurement accuracy provided the measured power is integrated over the full required measurement bandwidth (i.e. 1 MHz or 1 percent of emission bandwidth, as specified). The emission bandwidth is defined as the width of the signal between two points, one below the carrier center frequency and one above the carrier center frequency, outside of which all emissions are attenuated at least 26 dB below the transmitter power. (c) Alternative out of band emission limit. Licensees in this service may establish an alternative out of band emission limit to be used at specified band edge(s) in specified geographical areas, in lieu of that set forth in this section, pursuant to a private contractual arrangement of all affected licensees and applicants. In this event, each party to such contract shall maintain a copy of the contract in their station files and disclose it to prospective assignees or transferees and, upon request, to the FCC. (d) Interference caused by out of band emissions. If any emission from a transmitter operating in this service results in interference to users of another radio service, the FCC may require a greater attenuation of that emission than specified in this section. Report No.: HCT-R -1 510-F014 Model: FRWL46ROU19 Page 48 of 86 F-TP22-0 3 (Rev.00) FCC ID: 2AFEGFRWL46ROU19 48 / 86 Test Procedures: Measurements were in accordance with the test methods section 3.6 of KDB 935210 D05 v01. 1. General Spurious emissions shall be measured using a single test signal sequentially tuned to the low, middle and high channels or frequencies within each authorized frequency band of operation. Out-of-band/block emissions (including intermodulation products) shall be measured under each of the following two stimulus conditions: a) two adjacent test signals sequentially tuned to the lower and upper frequency band/block edges; b) a single test signal, sequentially tuned to the lowest and highest frequencies or channels within the frequency band/block under examination. NOTE—Single channel boosters that cannot accommodate two simultaneous signals within the passband, can be excluded from the test stipulated in step a). 2. EUT out-of-band/block…

Text truncated - open the document above for the full version.

FCC ID: 2AFEGFRWL46ROU19 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 6 TEST SETUP PHOTOGRAPHS FCC ID: 2AFEGFRWL46ROU19 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 6 ■ Conducted Test Setup Photo-1 FCC ID: 2AFEGFRWL46ROU19 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 6 ■ Conducted Test Setup Photo-2 FCC ID: 2AFEGFRWL46ROU19 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 6 ■ Conducted Test Setup Photo-3 FCC ID: 2AFEGFRWL46ROU19 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 6 ■ Radiated front Test Setup Photo FCC ID: 2AFEGFRWL46ROU19 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 6 ■ Radiated rear Test Setup Photo
