2AFG6-SA05Android Module

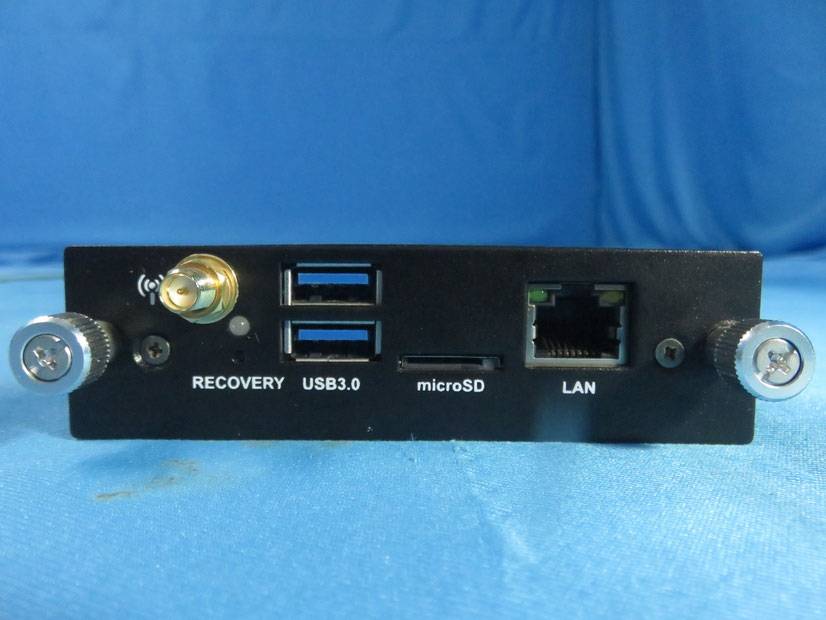

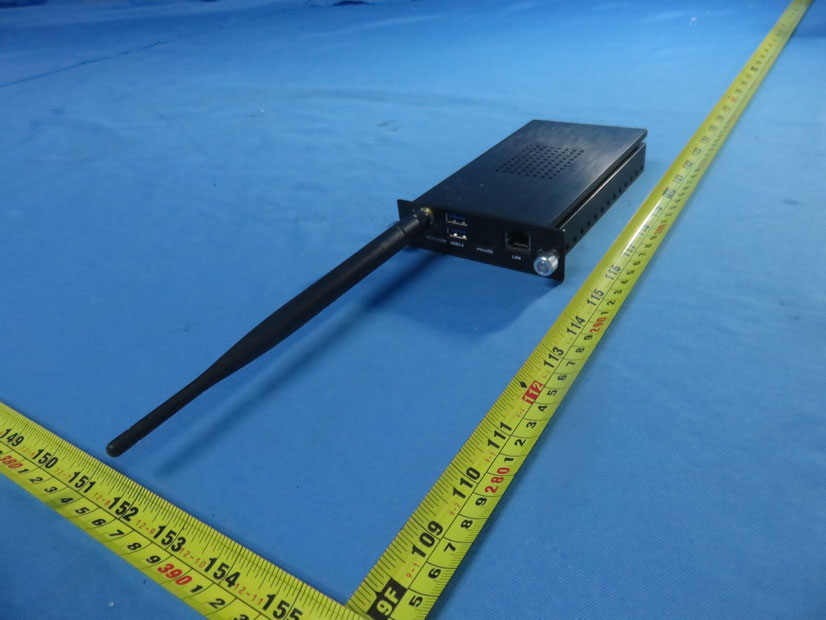

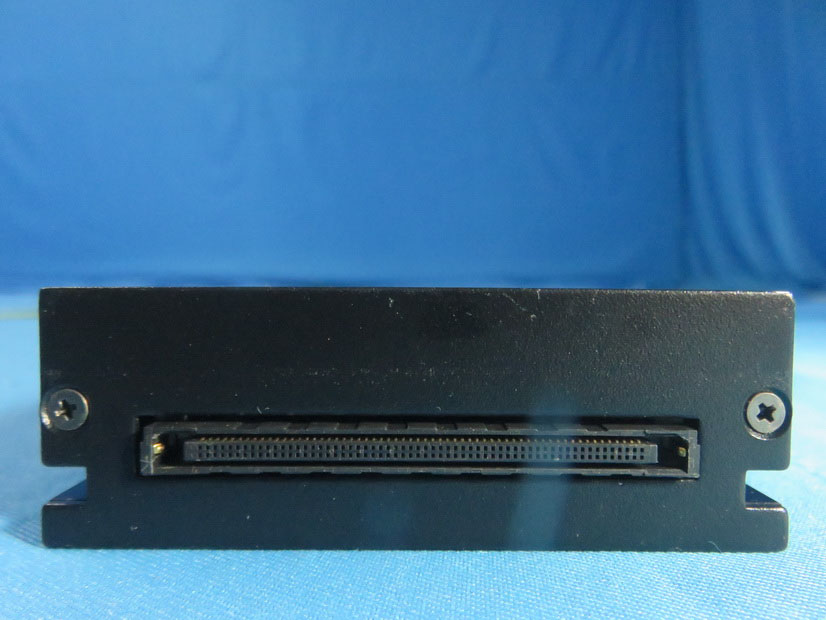

Android Module 3. External Interface Android Module User Manual 1. Safety and Precautions Before using the device, please read this instruction carefully in avoidance of any potential dangers or operations that may may cause faults to the product. Usage Environment Do not place the product in dusty and humid environments in case of internal circuit fault. Do not place the product near heating devices (such as electrical heater). Normal operating temperature is 0~40°C, normal operating humidity is 10%~90%RH. Children Safety The product and accessories may contain some tiny components. Please place them beyond the reach of children in avoidance of swallowing danger. Waterproof Function The product is not waterproofPlease keep it dry. Maintenance and Care Maintenance of this product should be only performed by qualified technicians. Do not insert any sharp objects into this product. Please avoid of intense hit or drop on the product. Before moving the product, please unplug the AC power cord from power socket. T o avoid damages caused by frequent startup and shutdown, wait for at least 30 seconds before restaring the product. All the operations such as removal or installation shall be implemented on the electrostatic discharge (ESD) worktable, because some precision components are sensitive to electrostatic discharge. If there is no ESD worktable, please take the following measures to minimize possible damages from electrostatic discharge: Wear an antistatic wrist strap during operation; Always touch the metal chassis of frame of the corresponding products before removal or installation of any components. 6. Statements The image shown in this manual is indicative only. If there is inconsistency between the image and the actual product, the actual product shall govern. 2. Installation Steps 5. Connection and Settings Warning: Please make sure the power cord is disconnected before conducting the following operations. Screw of f and take off the metal plate. Insert the Android module as showed on the left picture. Screw down the module as showed on the left picture.The installation is finished. Do not plug or unplug wires or other devices when the unit is powered on. Note: The android module can only work when the unit is in Android channel. 12345 6 RECOVER Y USB3.0 microSDLAN 1 ItemsFunction Description WIFI antenna interface Working indicator light, normal working is blue USB3.0 interface, to connect USB devices, such as mobile hard disk, U disk, USB keyboard and mouse, USB drives, etc Micro SD card slot Netrwork interface, connecting RJ45 port to connect to the Internet (it can only work in Android system for Internet) Recovery slotonly for professional maintenance personnel 2 3 4 5 6 Router and other network signal output USB Equipment RECOVERY USB3.0 micro SDLAN USB equipment connection Network cable connection 4. Power Power supply mode: DC IN Voltage range: 12/19V Power supply current: 1.5A 7. RF & Power Frequency Range 2402 to 2480 MHz (BT) 5150 to 5250 MHz Output Power (Max.) 6.92 dBm 19.75 dBm 2412 to 2462 MHz17.35 dBm Software: V1.0.0 Antenna Type:Dipole Antenna Gain: BT/ 2.4G Wifi 2.55dBi;5G wifi 3.87dBi Antenna Impedance:50Ω 5150-5250MHz is only for indoor use. This device should be installed and operated with a minimum distance of 20cm between the radiator and your body. 5725 to 5850 MHz 19.25 dBm Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter module must not be co-located or operating in conjunction with any other antenna or transmitter. This End equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. ISED This device complies with license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas pro…

Text truncated - open the document above for the full version.

Declaration of Authorization We Name: Guangzhou Shirui Electronics Co., Ltd Address: 192 Kezhu Road, Scientech Park, Guangzhou Economic & Technology Development District, City: Guangzhou State: Guangdong Country: China Declare that: Name Representative of agent: Ms. Rose Liu Agent Company name: BTL Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification and signing related documents of the following product(s), including 731 form(s): Product description: Android Module Type designation: SA05 Trademark: SEEWO FCC ID: 2AFG6-SA05 on our behalf. Date: 2020-07-22 City: Guangzhou Name: Sarah Sun Function: Regulatory Engineer Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 <2020-07-22> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AFG6-SA05 SA05 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name: Sarah Sun Company: Guangzhou Shirui Electronics Co., Ltd Address: 192 Kezhu Road, Scientech Park, Guangzhou Economic & Technology Development District, Guangzhou, Guangdong, China Phone: +86-13640798230 Fax: +86-20-82086168 E-Mail: [email protected]

< Guangzhou Shirui Electronics Co., Ltd > <192 Kezhu Road, Scientech Park, Guangzhou Economic & Technology Development District, Guangzhou, China> Date: 2020-07-22 FCC ID: 2AFG6-SA05 Model Number: SA05 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Guangzhou Shirui Electronics Co., Ltd declare that this EUT (FCC ID: 2AFG6-SA05) doesn’t have Ad Hoc mode function on “on-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Sarah Sun/Regulatory Engineer Company: Guangzhou Shirui Electronics Co., Ltd Address: 192 Kezhu Road, Scientech Park, Guangzhou Economic & Technology Development District, Guangzhou, China Tel: +86-13640798230 Fax: +86-20-82086168 E-Mail: [email protected]

Project No.: 1703C056J Page 2 of 7 Ant. Project No.: 1703C056J Page 3 of 7

SA05定制铭牌--seewo 哑银龙 SA05-P01-K10301-V1.0 V1.0 mm 工艺参数： 1. 材质： 75#哑银龙， 2. 尺寸： 86*70mm 3. 卷装来料，无印刷 R4 R4 135° R4 86 70.6 R3 70 CAUTION: TO PREVENT ELECTRICAL SHOOK, DO NOT REMOVE THE COVER OR SCREWS. FCC ID: 2AFG6-SA05 IC: 22166-SA05 Android Module Model No.: SA05 Supply source: NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: DISCONNECT ELECTRICAL POWER PLUG FROM WALL OUTLET WHEN NOT IN USE. DANGEROUS HIGH VOLTAGE INSIDE. 12/19V 1.5A label location

Project No.: 1703C056J Page 4 of 7 Project No.: 1703C056J Page 5 of 7 Project No.: 1703C056J Page 6 of 7 Project No.: 1703C056J Page 7 of 7

Report No.: BTL-FCCP-5-1703C056J Page 1 of 4 FCC RF EXPOSURE REPORT FCC ID: 2AFG6-SA05 Project No. : 1703C056J Equipment : Android Module Brand Name : SEEWO Test Model : SA05 Series Model : N/A Applicant : Guangzhou Shirui Electronics Co., Ltd Address : 192 Kezhu Road, Scientech Park, Guangzhou Economic & Technology Development District, Guangzhou, Guangdong, China Manufacturer : Guangzhou Shirui Electronics Co.,Ltd Address : 192 Kezhu Road, Scientech Park, Guangzhou Economic & Technology Development District, Guangzhou, Guangdong, China Date of Receipt : May 21, 2020 Date of Test : May 29, 2020 ~ Jul. 01, 2020 Issued Date : Jul. 22, 2020 Report Version : R00 Test Sample : Engineering Sample No.: DG2020052225 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Nick Chen Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Tel: +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-5-1703C056J Page 2 of 4 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Jul. 22, 2020 Report No.: BTL-FCCP-5-1703C056J Page 3 of 4 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3,Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna: For BT/BLE/2.4G: Ant. Brand Model Name Antenna Type Connector Gain(dBi) 1 N/A N/A Dipole N/A 2.55 For 5G: Ant. Brand Model Name Antenna Type Connector Gain(dBi) 1 N/A N/A Dipole N/A 3.87 Report No.: BTL-FCCP-5-1703C056J Page 4 of 4 3. TEST RESULTS For BT: Antenna Gain (dBi) Antenna Gain (numeric) Max. Peak Output Power (dBm) Max. Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2.55 1.7989 6.92 4.9204 0.00176 1 Complies For LE: Antenna Gain (dBi) Antenna Gain (numeric) Max. Peak Output Power (dBm) Max. Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2.55 1.7989 6.68 4.6559 0.00167 1 Complies For 2.4GHz: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2.55 1.7989 17.35 54.3250 0.01945 1 Complies For 5GHz UNII-1: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3.87 2.4378 19.75 94.4061 0.04581 1 Complies For 5GHz UNII-3: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3.87 2.4378 19.25 84.1395 0.04083 1 Complies Note: The calculated distance is 20 cm. End of Test Report

Report No.: BTL-FCCP-3-1703C056J Page 1 of 107 FCC Radio Test Report FCC ID: 2AFG6-SA05 This report concerns: Original Grant Project No. : 1703C056J Equipment : Android Module Brand Name : SEEWO Test Model : SA05 Series Model : N/A Applicant : Guangzhou Shirui Electronics Co., Ltd Address : 192 Kezhu Road, Scientech Park, Guangzhou Economic & Technology Development District, Guangzhou, Guangdong, China Manufacturer : Guangzhou Shirui Electronics Co.,Ltd Address : 192 Kezhu Road, Scientech Park, Guangzhou Economic & Technology Development District, Guangzhou, Guangdong, China Date of Receipt : May 21, 2020 Date of Test : May 29, 2020 ~ Jul. 01, 2020 Issued Date : Jul. 22, 2020 Report Version : R00 Test Sample : Engineering Sample No.: DG2020052225 Standard(s) : FCC Part15, Subpart C (15.247) ANSI C63.10-2013 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Nick Chen Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-3-1703C056J Page 2 of 107 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-3-1703C056J Page 3 of 107 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 DESCRIPTION OF TEST MODES 11 2.3 PARAMETERS OF TEST SOFTWARE 12 2.4 DUTY CYCLE 13 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 14 2.6 SUPPORT UNITS 14 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 15 3.1 LIMIT 15 3.2 TEST PROCEDURE 15 3.3 DEVIATION FROM TEST STANDARD 15 3.4 TEST SETUP 16 3.5 EUT OPERATION CONDITIONS 16 3.6 TEST RESULTS 16 4 . RADIATED EMISSIONS TEST 17 4.1 LIMIT 17 4.2 TEST PROCEDURE 18 4.3 DEVIATION FROM TEST STANDARD 18 4.4 TEST SETUP 19 4.5 EUT OPERATION CONDITIONS 20 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 20 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 20 4.8 TEST RESULTS - ABOVE 1000 MHZ 20 5 . BANDWIDTH TEST 21 5.1 LIMIT 21 5.2 TEST PROCEDURE 21 5.3 DEVIATION FROM STANDARD 21 5.4 TEST SETUP 21 Report No.: BTL-FCCP-3-1703C056J Page 4 of 107 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 21 5.6 TEST RESULTS 21 6 . MAXIMUM OUTPUT POWER TEST 22 6.1 LIMIT 22 6.2 TEST PROCEDURE 22 6.3 DEVIATION FROM STANDARD 22 6.4 TEST SETUP 22 6.5 EUT OPERATION CONDITIONS 22 6.6 TEST RESULTS 22 7 . CONDUCTED SPURIOUS EMISSIONS 23 7.1 LIMIT 23 7.2 TEST PROCEDURE 23 7.3 DEVIATION FROM STANDARD 23 7.4 TEST SETUP 23 7.5 EUT OPERATION CONDITIONS 23 7.6 TEST RESULTS 23 8 . POWER SPECTRAL DENSITY TEST 24 8.1 LIMIT 24 8.2 TEST PROCEDURE 24 8.3 DEVIATION FROM STANDARD 24 8.4 TEST SETUP 24 8.5 EUT OPERATION CONDITIONS 24 8.6 TEST RESULTS 24 9 . MEASUREMENT INSTRUMENTS LIST 25 10 . EUT TEST PHOTO 27 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 31 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 36 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 41 APPENDIX D - RADIATED EMISSION- ABOVE 1000 MHZ 44 APPENDIX E - BANDWIDTH 93 APPENDIX F - MAXIMUM OUTPUT POWER 98 APPENDIX G - CONDUCTED SPURIOUS EMISSIONS 100 Report No.: BTL-FCCP-3-1703C056J Page 5 of 107 Table of Contents Page APPENDIX H - POWER SPECTRAL DENSITY 105 Report No.: BTL-FCCP-3-1703C056J Page 6 of 107 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Jul. 22, 2020 Report No.: BTL-FCCP-3-1703C056J Page 7 of 107 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart C (15.247) Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.247(a)(2) Bandwidth APPENDIX E PASS ------ 15.247(b)(3) Maximum Output Power APPENDIX F PASS ------ 15.247(d) Conducted Spurious Emissions APPENDIX G PASS ------ 15.247(e) Power Spectral Density APPENDIX H PASS ------…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-3-1703C056J Page 102 of 107 Test Mode TX G Mode Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-3-1703C056J Page 103 of 107 Test Mode TX N-20M Mode Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-3-1703C056J Page 104 of 107 Test Mode TX N-40M Mode Bandedge-CH03 Bandedge-CH09 CH03 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH09 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-3-1703C056J Page 105 of 107 APPENDIX H - POWER SPECTRAL DENSITY Report No.: BTL-FCCP-3-1703C056J Page 106 of 107 Test Mode TX B Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -15.23 8 Complies 06 2437 -15.63 8 Complies 11 2462 -15.74 8 Complies CH01 CH06 CH11 Test Mode TX G Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -14.20 8 Complies 06 2437 -12.78 8 Complies 11 2462 -14.54 8 Complies CH01 CH06 CH11 Report No.: BTL-FCCP-3-1703C056J Page 107 of 107 Test Mode TX N-20M Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -13.76 8 Complies 06 2437 -11.81 8 Complies 11 2462 -14.24 8 Complies CH01 CH06 CH11 Test Mode TX N-40M Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -16.87 8 Complies 06 2437 -16.20 8 Complies 09 2452 -15.13 8 Complies CH03 CH06 CH09 End of Test Report

Report No.: BTL-FCCP-2-1703C056J Page 1 of 63 FCC Radio Test Report FCC ID: 2AFG6-SA05 This report concerns: Original Grant Project No. : 1703C056J Equipment : Android Module Brand Name : SEEWO Test Model : SA05 Series Model : N/A Applicant : Guangzhou Shirui Electronics Co., Ltd Address : 192 Kezhu Road, Scientech Park, Guangzhou Economic & Technology Development District, Guangzhou, Guangdong, China Manufacturer : Guangzhou Shirui Electronics Co.,Ltd Address : 192 Kezhu Road, Scientech Park, Guangzhou Economic & Technology Development District, Guangzhou, Guangdong, China Date of Receipt : May 21, 2020 Date of Test : May 29, 2020 ~ Jul. 01, 2020 Issued Date : Jul. 28, 2020 Report Version : R01 Test Sample : Engineering Sample No.: DG2020052225 Standard(s) : FCC Part15, Subpart C (15.247) ANSI C63.10-2013 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Nick Chen Approved by : Ethan Ma Add: No.3, Jinshagang 1 st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-1703C056J Page 2 of 63 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL’s reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority’s logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-2-1703C056J Page 3 of 63 Table of Contents Page REPORT ISSUED HISTORY 5 1 . SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 1.3 TEST ENVIRONMENT CONDITIONS 8 2 . GENERAL INFORMATION 9 2.1 GENERAL DESCRIPTION OF EUT 9 2.2 DESCRIPTION OF TEST MODES 11 2.3 PARAMETERS OF TEST SOFTWARE 11 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 2.5 SUPPORT UNITS 12 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 13 3.1 LIMIT 13 3.2 TEST PROCEDURE 13 3.3 DEVIATION FROM TEST STANDARD 13 3.4 TEST SETUP 14 3.5 EUT OPERATING CONDITIONS 14 3.6 TEST RESULTS 14 4 . RADIATED EMISSION TEST 15 4.1 LIMIT 15 4.2 TEST PROCEDURE 16 4.3 DEVIATION FROM TEST STANDARD 16 4.4 TEST SETUP 17 4.5 EUT OPERATING CONDITIONS 18 4.6 TEST RESULT – 9 KHZ TO 30 MHZ 18 4.7 TEST RESULT – 30 MHZ TO 1000 MHZ 18 4.8 TEST RESULT – ABOVE 1000 MHZ 18 5 . BANDWIDTH TEST 19 5.1 LIMIT 19 5.2 TEST PROCEDURE 19 5.3 DEVIATION FROM STANDARD 19 5.4 TEST SETUP 19 5.5 EUT OPERATION CONDITIONS 19 Report No.: BTL-FCCP-2-1703C056J Page 4 of 63 Table of Contents Page 5.6 TEST RESULTS 19 6 . MAXIMUM OUTPUT POWER 20 6.1 LIMIT 20 6.2 TEST PROCEDURE 20 6.3 DEVIATION FROM STANDARD 20 6.4 TEST SETUP 20 6.5 EUT OPERATION CONDITIONS 20 6.6 TEST RESULTS 20 7 . CONDUCTED SPURIOUS EMISSION 21 7.1 LIMIT 21 7.2 TEST PROCEDURE 21 7.3 DEVIATION FROM STANDARD 21 7.4 TEST SETUP 21 7.5 EUT OPERATION CONDITIONS 21 7.6 TEST RESULTS 21 8 . POWER SPECTRAL DENSITY TEST 22 8.1 LIMIT 22 8.2 TEST PROCEDURE 22 8.3 DEVIATION FROM STANDARD 22 8.4 TEST SETUP 22 8.5 EUT OPERATION CONDITIONS 22 8.6 TEST RESULTS 22 9 . MEASUREMENT INSTRUMENTS LIST 23 10 . EUT TEST PHOTO 25 APPENDIX A – AC POWER LINE CONDUCTED EMISSIONS 29 APPENDIX B – RADIATED EMISSION – 9 KHZ TO 30 MHZ 34 APPENDIX C – RADIATED EMISSION – 30 MHZ TO 1000 MHZ 39 APPENDIX D – RADIATED EMISSION – ABOVE 1000 MHZ 42 APPENDIX E – BANDWIDTH 55 APPENDIX F – MAXIMUM OUTPUT POWER 57 APPENDIX G – CONDUCTED SPURIOUS EMISSION 59 APPENDIX H – POWER SPECTRAL DENSITY 62 Report No.: BTL-FCCP-2-1703C056J Page 5 of 63 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Jul. 22, 2020 R01 Modified the comments of CETECOM. Jul. 28, 2020 Report No.: BTL-FCCP-2-1703C056J Page 6 of 63 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart C (15.247) Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.247(a)(2) Bandwidth APPENDIX E PASS ------ 15.247(b)(3) Maximum Output Power APPENDIX F PASS ------ 15.247(d) Conducted Spurious Emission APPENDIX G PASS ------ 15.247(e) Power Spectral Density APPENDIX H PASS ------ 15.203 Antenna Requirement ------ PASS Note(2) Note: (1…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-1703C056J Page 29 of 89 12. EUT TEST PHOTO AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-1-1703C056J Page 30 of 89 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-1-1703C056J Page 31 of 89 Radiated Emissions Test Photos 30 MHz to 1000 MHz Report No.: BTL-FCCP-1-1703C056J Page 32 of 89 Radiated Emissions Test Photos Above 1 GHz
