2AFG6-SI06WiFi Module

文档类型：使用说明书 审核岗位：电子/结构/包装/认证/软件/测试/环保/ 产品经理 产品名称：无线模块 产品型号：SI06-B-B 文 件 修 订 履 历（外发时请删除！） 版本 修订日期 页次 修 订 说 明 修 订 人 V1.0 2020-08-13 所有 初版发行 葛娟 V1.1 2020-08-19 P5 软件设置部分，描述更新 葛娟 V1.2 2020-08-20 所有 更新产品名称，增加认证警告语，详见OA 葛娟 All pictures in this manual are for reference only, the actual product shall prevail WiFi Module User Manual Table of Contents 1. Special Statement ......................................................................................................................... 1 2. Safety Warning ............................................................................................................................... 1 3. Federal Communication Commission Interference Statement ..................................... 2 4. FCC Caution ..................................................................................................................................... 3 5. Non-modification Statement ................................................ ................................................. 3 6. IC Radiation Exposure Statement for Canada ..................................................................... 4 7. Declaration of Toxic and Hazardous Substances in Electronic Information Products ................................................................................................................................................ 6 8. Installation Steps ........................................................................................................................... 8 9. Software Settings .......................................................................................................................... 9 10. Key Specifications .................................................................................................................... 10 1 1. Special Statement ⚫ Intellectual property statement: the hardware design and software programs of this product are copyright protected. Anyone copying the contents of this product and instructions without the authorization of this company will bear the corresponding legal responsibilities. ⚫ This manual is for reference only. The actual final functions are subject to the actual ordering of the customer and the actual functions of the product received. ⚫ The pictures are for reference only, please refer to the actual product. The company reserves the right to make improvements on and changes to the product appearance and design without prior notice. 2. Safety Warning ⚫ Before operating this equipment, please read and observe the following precautions carefully to prevent improper operation. ⚫ Do not use the device in dusty and humid places to avoid causing internal circuit failures. ⚫ Do not place the device near heating objects such as electric heaters. ⚫ This device and accessories may contain some small parts, please keep them out of the reach of children to avoid danger. ⚫ The device is not waterproof, please keep it dry. 2 ⚫ The working temperature of this equipment is 0~40°C, and the working humidity is 10~90%RH. ⚫ Please contact professional maintenance personnel for all maintenance services. ⚫ Do not insert any sharp objects into the device. ⚫ Do not drop or hit the device to avoid damage to the device. 3. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. 3 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. 4. FCC Caution This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. 4 5. IC Radiation Exposure Statement for Canada This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1.This device may not cause interference. 2.This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1.L’appareil ne doit pas produire de brouillage; 2.L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This equipment complies with ISED RSS-102 radiation exposu…

Text truncated - open the document above for the full version.

Guangzhou Shirui Electronics Co., Ltd Date: 2020/10/15 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Guangzhou Shirui Electronics Co., Ltd Contact Name: Sarah Sun Title of Person: Regulatory Engineer Address: 192 Kezhu Road, Scientech Park, guangzhou Economic Technology Development District Guangzhou China

Guangzhou Shirui Electronics Co., Ltd Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AFG6-SI06 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation BOM list Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Guangzhou Shirui Electronics Co., Ltd Contact Name: Sarah Sun Title of Person: Regulatory Engineer Address: 192 Kezhu Road, Scientech Park, guangzhou Economic Technology Development District Guangzhou China Date:2020/10/15

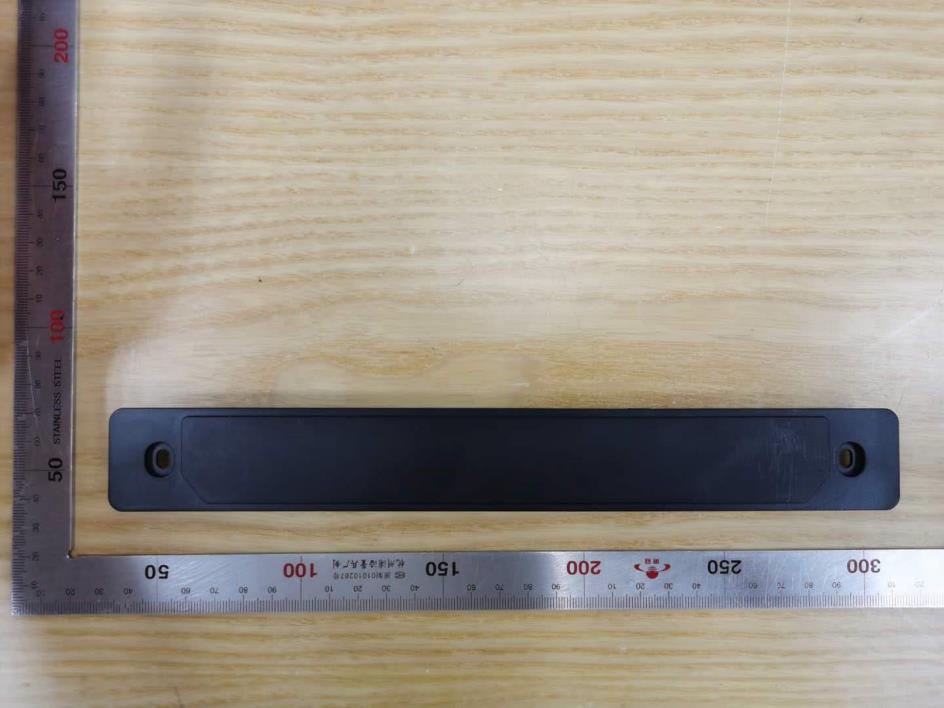

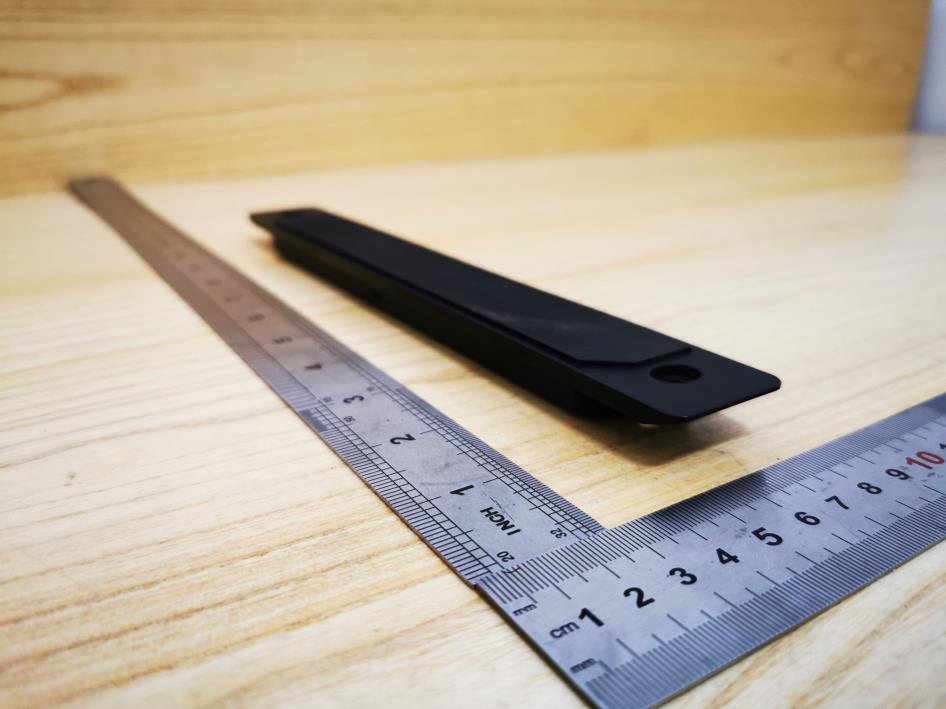

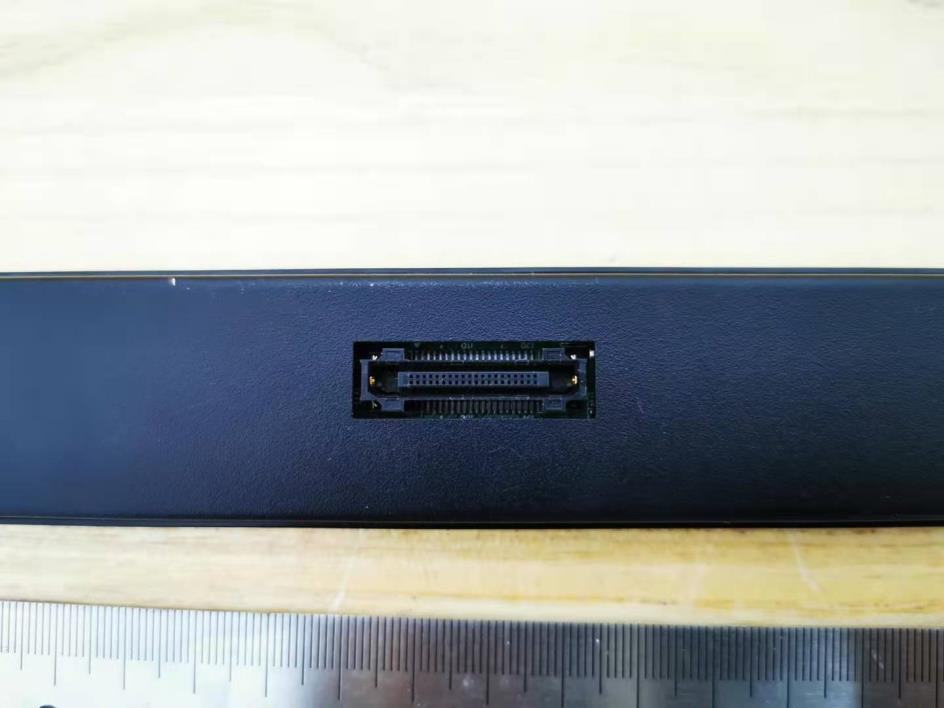

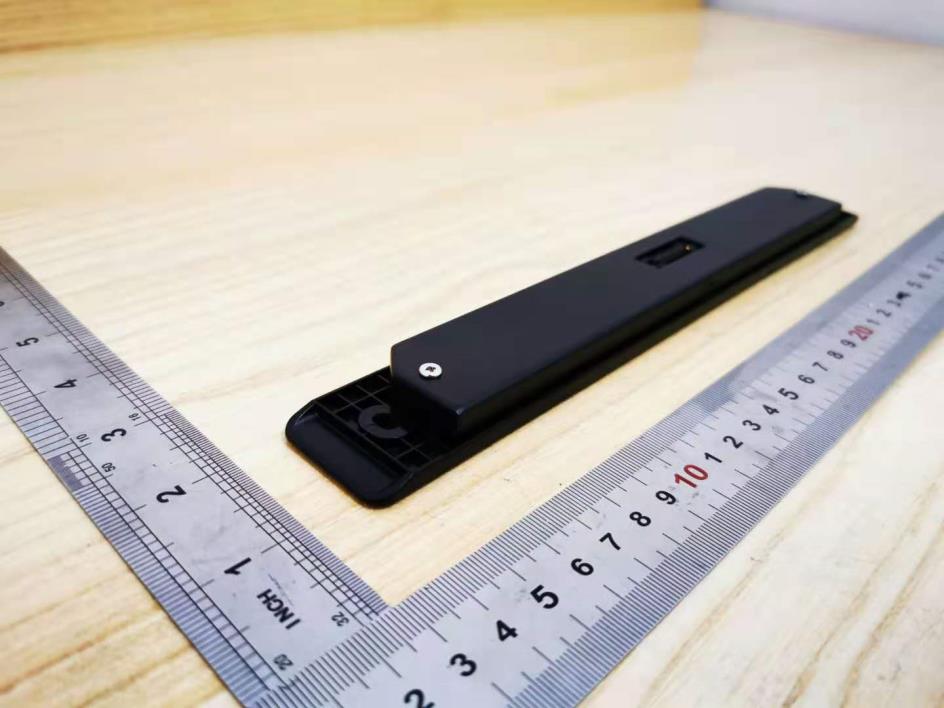

Appendix I External Photographs Page 2 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-1 View of EUT-2 Page 3 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-3 View of EUT-4 Page 4 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-5

65.0mmR1.0mm 20.0mm WiFi Module Made in China Model No.:SI06 S/N: XXXXXXXXXXXXXXXXXXX ManufacturerGuangzhou Shirui Electronics Co.,Ltd CAN ICES-3(B)/NMB-3(B) FCC ID:2AFG6-SI06 IC:22166-SI06

Appendix II Internal Photographs Page 2 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-1 Internal View of EUT-2 Page 3 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-3 Internal View of EUT-4 Module SKI.WB8821CU.1 2.4G WIFI ANT Module SKI.WB8821CU.1 5G WIFI and BT ANT Module SKI.W7613E.1 WIFI ANT 1 Module SKI.W7613E.1 WIFI ANT 2 Page 4 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-9 Internal View of EUT-10 Module SKI.W7613E.1 Module SKI.WB8821CU.1

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC RF EXPOSURE REPORT CERTIFICATION TEST REPORT For WiFi Module MODEL NUMBER: SI06 FCC ID: 2AFG6-SI06 REPORT NUMBER: 4789609364.2-19 ISSUE DATE: November 17, 2020 Prepared for Guangzhou Shirui Electronics Co Ltd 192 Kezhu Road, Scientech Park, guangzhou Economic Technology Development District Guangzhou China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4789609364.2-19 Page 2 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 11/17/2020 Initial Issue REPORT NO.: 4789609364.2-19 Page 3 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. REQUIREMENT ................................................................................................................. 6 REPORT NO.: 4789609364.2-19 Page 4 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Guangzhou Shirui Electronics Co Ltd Address: 192 Kezhu Road, Scientech Park, guangzhou Economic Technology Development District Guangzhou China Manufacturer Information Company Name: Guangzhou Shirui Electronics Co Ltd Address: 192 Kezhu Road, Scientech Park, guangzhou Economic Technology Development District Guangzhou China EUT Information EUT Name: WiFi Module Model: SI06 Sample Received Date: August 27, 2020 Sample Status: Normal Sample ID: 3283003 Date of Tested: August 27, 2020~ November 12, 2020 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47CFR§2.1091 PASS Prepared By: Checked By: Mick Zhang Shawn Wen Project Engineer Laboratory Leader Approved By: Stephen Guo Laboratory Manager REPORT NO.: 4789609364.2-19 Page 5 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4102.01) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1187) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. Has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules ISED (Company No.: 21320) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been registered and fully described in a report filed with Industry Canada. The Company Number is 21320. VCCI (Registration No.: G-20019, R-20004, C-20012 and T-20011) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with VCCI, the Membership No. is 3793. Facility Name: Chamber D, the VCCI registration No. is G-20019 and R-20004 Shielding Room B, the VCCI registration No. is C-20012 and T-20011 Note: All tests measurement facilities use to collect the measurement data are located at Building 10, Innovation Technology Park, Song Shan Lake Hi tech Development Zone, Dongguan, 523808, China. REPORT NO.: 4789609364.2-19 Page 6 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 4. REQUIREMENT LIMIT AND CALCULATION METHOD Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. Limits for General Population/Uncontrolled Exposure RF EXPOSURE LIMIT Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 …

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART E ISED RSS-247 ISSUE 2 CERTIFICATION TEST REPORT For WiFi Module MODEL NUMBER: SI06 FCC ID: 2AFG6-SI06 IC: 22166-SI06 REPORT NUMBER: 4789609364.2-5 ISSUE DATE: November 13, 2020 Prepared for Guangzhou Shirui Electronics Co Ltd 192 Kezhu Road, Scientech Park, guangzhou Economic Technology Development District Guangzhou China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4789609364.2-5 Page 2 of 308 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 11/13/2020 Initial Issue REPORT NO.: 4789609364.2-5 Page 3 of 308 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Clause Test Items FCC/IC Rules Test Results 1 6dB/26dB Bandwidth FCC 15.407 (a)&(e) RSS-247 Clause 6.2 PASS 2 99% Occupied Bandwidth RSS-Gen Clause 6.6 PASS 3 Conducted Output Power FCC 15.407 (a) RSS-247 Clause 6.2 PASS 4 Power Spectral Density FCC 15.407 (a) RSS-247 Clause 6.2 PASS 5 Radiated Bandedge and Spurious Emission FCC 15.407 (b) FCC 15.209 FCC 15.205 RSS-247 Clause 6.2 RSS-GEN Clause 8.9 PASS 6 Conducted Emission Test for AC Power Port FCC 15.207 RSS-GEN Clause 8.8 PASS 7 Frequency Stability FCC 15.407 (g) PASS 8 Dynamic Frequency Selection FCC 15.407 (h) RSS-247 Clause 6.3 PASS 9 Antenna Requirement FCC 15.203 RSS-GEN Clause 6.8 PASS Note: 1.This test report is only published to and used by the applicant, and it is not for evidence purpose in China. 2. The measurement result for the sample received is <Pass> according to < CFR 47 FCC PART 15 SUBPART C >< ISED RSS-247 > when <Accuracy Method> decision rule is applied. REPORT NO.: 4789609364.2-5 Page 4 of 308 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 7 2. TEST METHODOLOGY ..................................................................................................... 8 3. FACILITIES AND ACCREDITATION ................................................................................. 8 4. CALIBRATION AND UNCERTAINTY ................................................................................ 9 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 9 4.2. MEASUREMENT UNCERTAINTY ............................................................................... 9 5. EQUIPMENT UNDER TEST ..............................................................................................10 5.1. DESCRIPTION OF EUT .............................................................................................10 5.2. MAXIMUM OUTPUT POWER.....................................................................................11 5.3. CHANNEL LIST ..........................................................................................................12 5.4. TEST CHANNEL CONFIGURATION ..........................................................................13 5.5. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................15 5.6. THE WORSE CASE POWER SETTING PARAMETER ..............................................15 5.7. THE WORSE CASE CONFIGURATIONS ..................................................................16 5.8. DESCRIPTION OF TEST SETUP ...............................................................................17 6. MEASURING INSTRUMENT AND SOFTWARE USED ....................................................18 7. ANTENNA PORT TEST RESULTS ...................................................................................20 7.1. ON TIME AND DUTY CYCLE .....................................................................................20 7.2. 6/26 dB EMISSION BANDWIDTH AND 99 % OCCUPIED BANDWIDTH ...................21 7.3. CONDUCTED OUTPUT POWER ...............................................................................24 7.4. POWER SPECTRAL DENSITY ..................................................................................27 8. RADIATED TEST RESULTS .............................................................................................29 8.1. RESTRICTED BANDEDGE ........................................................................................36 8.1.1. 802.11a MODE ....................................................................................................36 UNII-1 BAND .....................................................................................................................36 UNII-2A BAND ...................................................................................................................38 UNII-2C BAND ..................................................................................…

Text truncated - open the document above for the full version.

REPORT NO.: 4789609364.2-5 Page 147 of 308 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. HARMONICS AND SPURIOUS EMISSIONS (HIGH CHANNEL, HORIZONTAL) No. Frequency Reading Correct Result Limit Margin Remark (MHz) (dBuV) (dB/m) (dBuV/m) (dBuV/m) (dB) 1 7044.000 45.86 6.52 52.38 74.00 -21.62 peak 2 11103.000 39.10 12.66 51.76 74.00 -22.24 peak 3 13611.000 34.21 16.10 50.31 74.00 -23.69 peak 4 15195.000 34.15 16.14 50.29 74.00 -23.71 peak 5 16724.000 32.06 20.09 52.15 74.00 -21.85 peak 6 17714.000 30.18 22.62 52.80 74.00 -21.20 peak Note: 1. Measurement = Reading Level + Correct Factor. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Peak: Peak detector. 4. Filter losses were only considered in the spurious frequency bands and the authorized band was not corrected for High Pass Filter losses. 5. Proper operation of the transmitter prior to adding the filter to the measurement chain. 6. Owing to the highest peak level of unwanted emission out of the restricted bands complies with the lowest limit(54dBuV/m), so all the test point was deemed to comply with the limits list in the standard. REPORT NO.: 4789609364.2-5 Page 148 of 308 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. HARMONICS AND SPURIOUS EMISSIONS (HIGH CHANNEL, VERTICAL) No. Frequency Reading Correct Result Limit Margin Remark (MHz) (dBuV) (dB/m) (dBuV/m) (dBuV/m) (dB) 1 7044.000 46.84 6.52 53.36 74.00 -20.64 peak 2 11103.000 42.70 12.66 55.36 74.00 -18.64 peak 3 11103.000 28.46 12.66 41.12 54.00 -12.88 AVG 4 13952.000 34.47 16.16 50.63 74.00 -23.37 peak 5 17065.000 31.79 20.79 52.58 74.00 -21.42 peak 6 17296.000 30.82 21.86 52.68 74.00 -21.32 peak 7 17923.000 29.82 23.42 53.24 74.00 -20.76 peak Note: 1. Measurement = Reading Level + Correct Factor. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Peak: Peak detector. 4. AVG: VBW=1/Ton, where: Ton is the transmitting duration. 5. For the transmitting duration, please refer to clause 7.1. 6. Filter losses were only considered in the spurious frequency bands and the authorized band was not corrected for High Pass Filter losses. 7. Proper operation of the transmitter prior to adding the filter to the measurement chain. 8. Owing to the highest peak level of unwanted emission out of the restricted bands complies with the lowest limit(54dBuV/m), so all the test point was deemed to comply with the limits list in the standard. REPORT NO.: 4789609364.2-5 Page 149 of 308 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. UNII-2C BAND HARMONICS AND SPURIOUS EMISSIONS (LOW CHANNEL, HORIZONTAL) No. Frequency Reading Correct Result Limit Margin Remark (MHz) (dBuV) (dB/m) (dBuV/m) (dBuV/m) (dB) 1 7044.000 44.77 6.52 51.29 74.00 -22.71 peak 2 11070.000 39.80 12.65 52.45 74.00 -21.55 peak 3 14436.000 33.64 16.64 50.28 74.00 -23.72 peak 4 16779.000 31.85 20.16 52.01 74.00 -21.99 peak 5 17109.000 31.63 20.91 52.54 74.00 -21.46 peak 6 17857.000 29.57 23.41 52.98 74.00 -21.02 peak Note: 1. Measurement = Reading Level + Correct Factor. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Peak: Peak detector. 4. Filter losses were only considered in the spurious frequency bands and the authorized band was not corrected for High Pass Filter losses. 5. Proper operation of the transmitter prior to adding the filter to the measurement chain. 6. Owing to the highest peak level of unwanted emission out of the restricted bands complies with the lowest limit(54dBuV/m), so all the test point was deemed to comply with the limits list in the standard. REPORT NO.: 4789609364.2-5 Page 150 of 308 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. HARMONICS AND SPURIOUS EMISSIONS (LOW CHANNEL, VERTICAL) No. Frequency Reading Correct Result Limit Margin Remark (MHz) (dBuV) (dB/m) (dBuV/m) (dBuV/m) (dB) 1 7044.000 45.45 6.52 51.97 74.00 -22.03 peak 2 11081.000 43.58 12.64 56.22 74.00 -17.78 peak 3 11081.000 29.75 12.64 42.39 54.00 -11.61 AVG 4 13798.000 32.87 17.05 49.92 74.00 -24.08 peak 5 16856.000 31.76 20.13 51.89 74.00 -22.11 peak 6 17208.000 30.74 21.26 52.00 74.00 -22.00 peak 7 17714.000 30.51 22.62 53.13 74.00 -20.87 peak Note: 1. Measurement = Reading Level + Correct Factor. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Peak: Peak detector. 4. AVG: VBW=1/Ton, where: Ton is the transmitting duration. 5. For the transmitting duration, please refer to clause 7.1. 6. Filter losses were only considered in the spurious frequency bands and the authorized band was not corrected for High Pass Filter losses. 7. Proper operation of the transmitter prior to adding the filter to the measurement chain. 8. Owing to the highest peak level of unwanted emission out of the restricted bands complies with the lowest limit(54dBuV/m), so all the test point was deemed to comply with the limits list in the standard. REPORT NO.…
