2AFG6-UCS10Integrated video conference terminal

Integrated video conference terminal User Manual Note：The product images are for illustrative purposes only and may slightly differ in appearance, colour, size, etc. from the actual product. ❖ Safety Warning and Precautions Before using and operating this device, please read thoroughly and comply with the following precautions in order to prevent accidents or abnormal operation. 1) Operating Environment ➢ Do not place the product in dusty and humid environments in case of internal short circuit. ➢ Do not place the product near heating devices(such as electrical heater). ➢ Operating temperature is 0-40°C, operating humidity is 10%-90%RH. Please use the product accordingly. 2) Children Safety The product and accessories may contain some small parts. Please keep them from children to avoid accidental swallowing or danger. 3) power supply Please use the standard power adapter. 4) Keep Dry The product is NOT waterproof.Please keep it dry. 5) Maintenance ➢ Please contact technical support for maintenance services. ➢ Do NOT insert any sharp or pointed object into the device. ➢ Prevent the device from falls and collisions with other objects,which may cause damages. ❖ Statement 1) Intellectual property right statement: The patents cover the hardware design and software of this product. Anyone reproduces the product or the contents of this instruction without prior written permission from the Company shall be liable to legal prosecutions. 2) The description, illustrations, etc. in this document may subject to change per the latest product specification and performance. 3) The product images are for illustrative purposes only and may slightly differ in appearance, colour, size, etc. from the actual product. 4) The Company reserves the rights to improve and change the appearance and design of the product without notice. Note: Users may find the type approval code of this product on the product’s nameplate. ❖ Accessories introduction Please check the following items in the product box： ⚫ HDMI cable x1 ⚫ Wall-mounted components x1 ⚫ USB cable ×1 ⚫ Power adapter ×1 ⚫ Battery ×2 ⚫ Remote control x1 ⚫ Peeping cover x1 ⚫ Warranty card ×1 ⚫ User Manual ×1 ⚫ Quick Use Guide ×1 1. Product Function Please familiarize yourself with the interface and buttons of the device before using this device. 1) HDMI OUT：Connect to the devices with HDMI input function 2) POWER：Tap to enter energy-saving,press and hold for at least 2 seconds to enter standby mode 3) AUX IN/OUT：Used for external audio equipment 4) 3.0：USB 3.0,used for upgrading and connecting with external mouse/keyboard 5) LAN：Connect RJ45 terminals 6) 2.0：Device,can be connected to a computer through a USB Type-A to Type-C data cable, providing the computer with camera, microphone and speaker 7) DC：Used for 12V power input power supply 8) Camera：Shooting performance 9) Hanging components 2. Mounting 1) Placed directly on the desktop. 2) Wall-mounted： Fix the bracket onto the wall with screws, then place the integrated video conferencing terminal onto the bracket. Integrated video conferencing terminal 3) Use with tablet：Fix the bracket onto the supporting bracket with screws, then place the integrated video conferencing terminal onto the bracket. Note: The connection of different samples may slightly differ. Please refer to the actual product. 3. Quick Start 1) Please use HDMI cable to connect this product to the monitor. 2) To turn on the device, press the power button on the back of the product or use remote control. 3) For the first use, please complete the network connection and device activation during device boot. 4) After successful activation, this product function would be fully functional. ❖ Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. ❖ FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. ❖ Non-modification Statement: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. ❖ IC Radiation Exposure Statement for Canada This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1.This device may not cause interfe…

Text truncated - open the document above for the full version.

Guangzhou Shirui Electronics Co., Ltd Date: 2020/7/21 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Guangzhou Shirui Electronics Co., Ltd Contact Name: Sarah Sun Title of Person: Regulatory Engineer Address: 192 Kezhu Road, Scientech Park, guangzhou Economic Technology Development District Guangzhou China

Guangzhou Shirui Electronics Co., Ltd Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject:Request for Confidentiality FCC ID: 2AFG6-UCS10 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Guangzhou Shirui Electronics Co., Ltd Contact Name: Sarah Sun Title of Person: Regulatory Engineer Address: 192 Kezhu Road, Scientech Park, guangzhou Economic Technology Development District Guangzhou China Date:2020/07/21

Guangzhou Shirui Electronics Co., Ltd Address: 192 Kezhu Road, Scientech Park, guangzhou Economic Technology Development District Guangzhou China Confirmation Letter We, Guangzhou Shirui Electronics Co., Ltd The product: Integrated video conferencing terminal And model No.: MSA10,MSA11,MSA12,MSA13,MSA14,MSA15,MSA16,MSA17,MSA18,MSA19, MS10,MS11,MS12,MS13,MS14,MS15,MS16,MS17,MS18,MS19, UC S10,UC S11,UC S12,UC S13,UC S14,UC S15,UC S16,UC S17,UC S18,UC S19 MSA10,MSA11,MSA12,MSA13,MSA14,MSA15,MSA16,MSA17,MSA18,MSA19, MS10,MS11,MS12,MS13,MS14,MS15,MS16,MS17,MS18,MS19 ,UC S11,UC S12,UC S13,UC S14,UC S15,UC S16,UC S17,UC S18,UC S19 have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical construction and mechanical construction with UC S10.The difference lies only the model number. _________________ Company Name: Guangzhou Shirui Electronics Co., Ltd Contact Name: Sarah Sun Title of Person: Regulatory Engineer Address: 192 Kezhu Road, Scientech Park, guangzhou Economic Technology Development District Guangzhou China

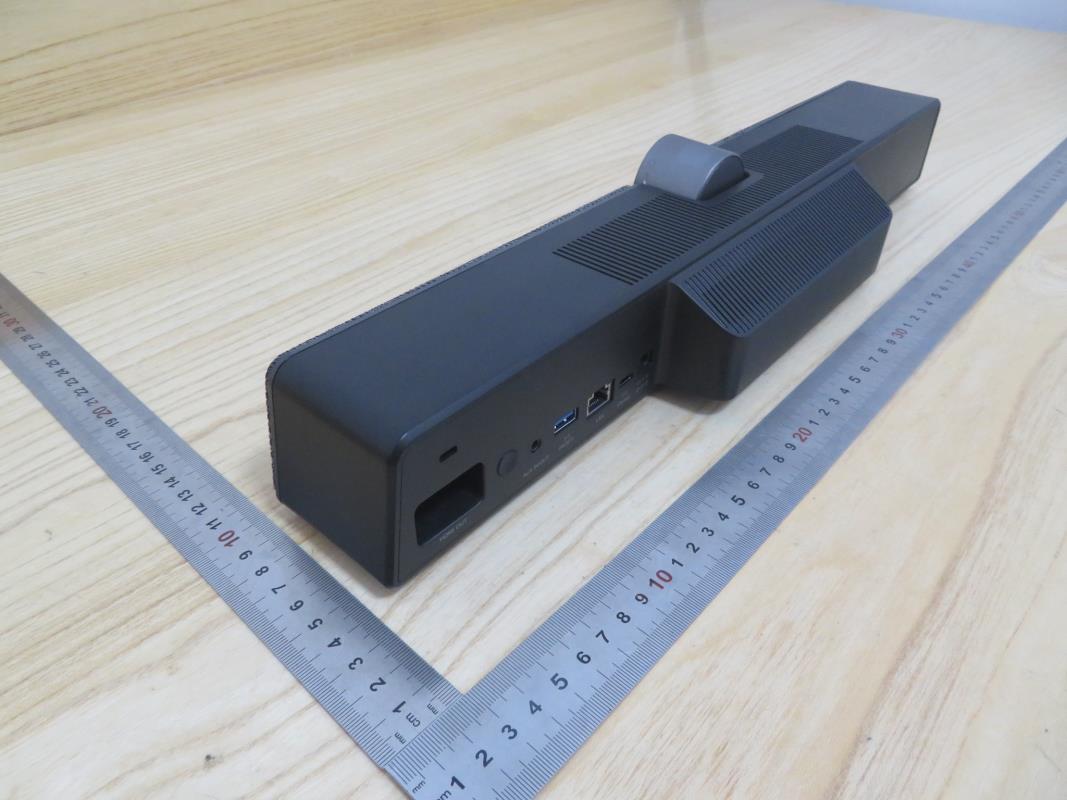

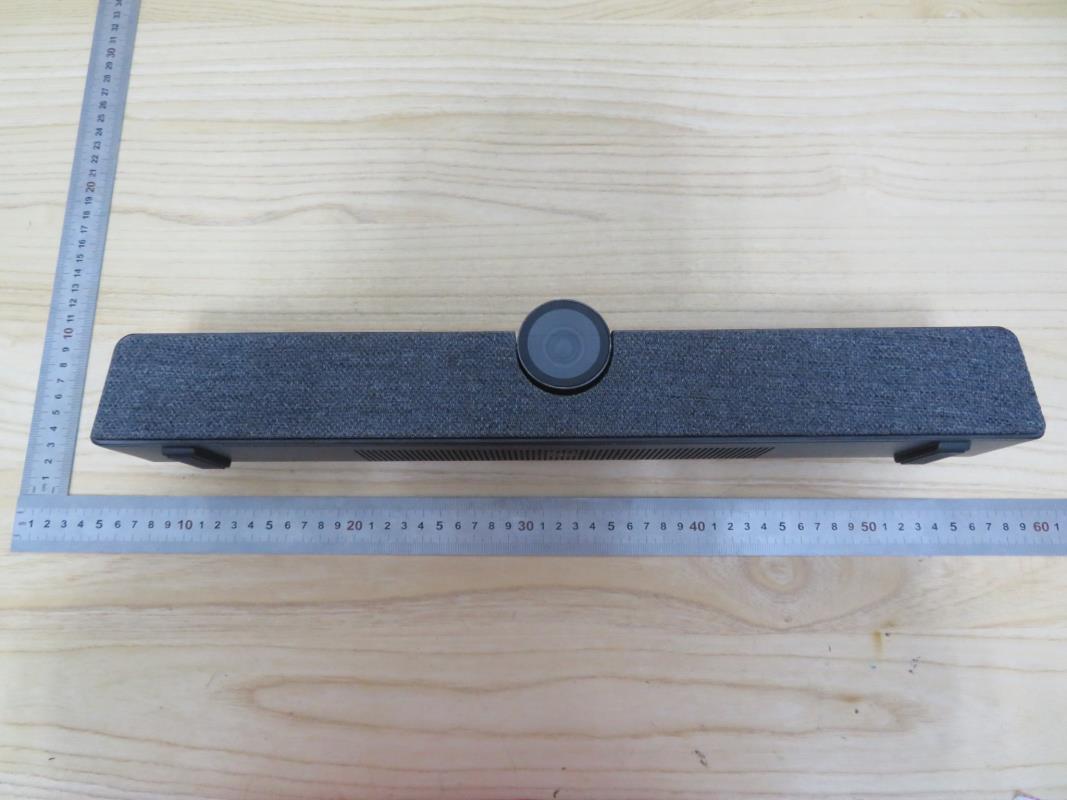

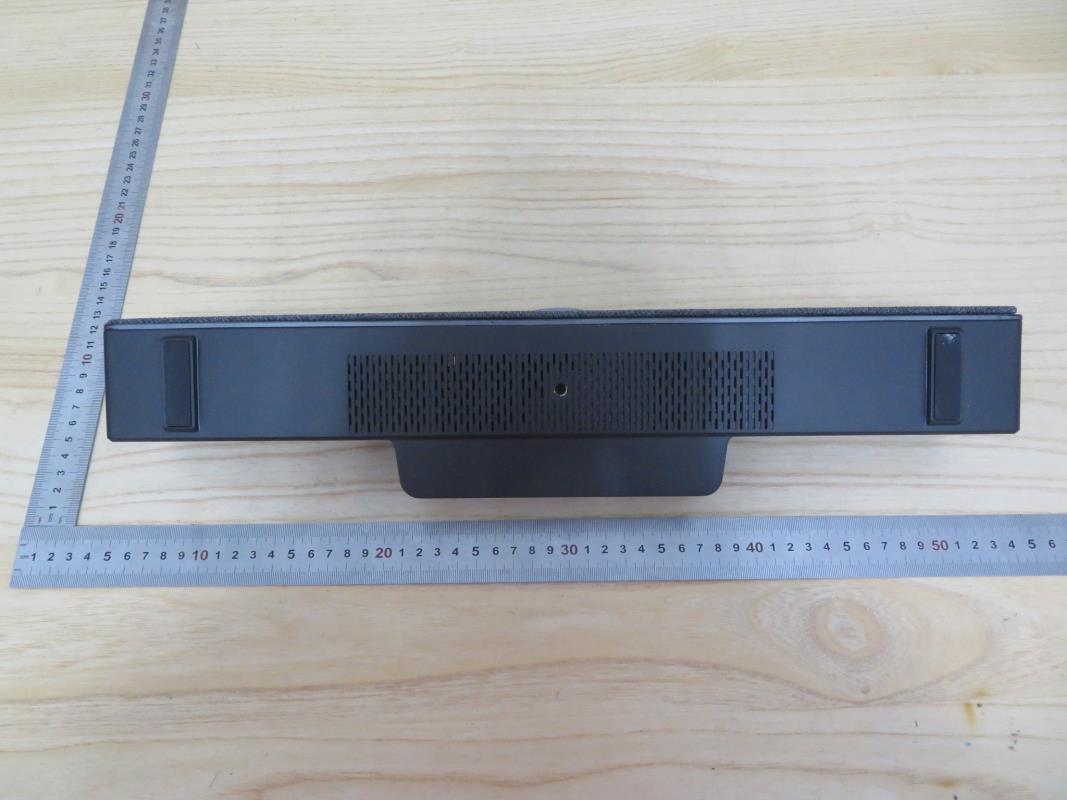

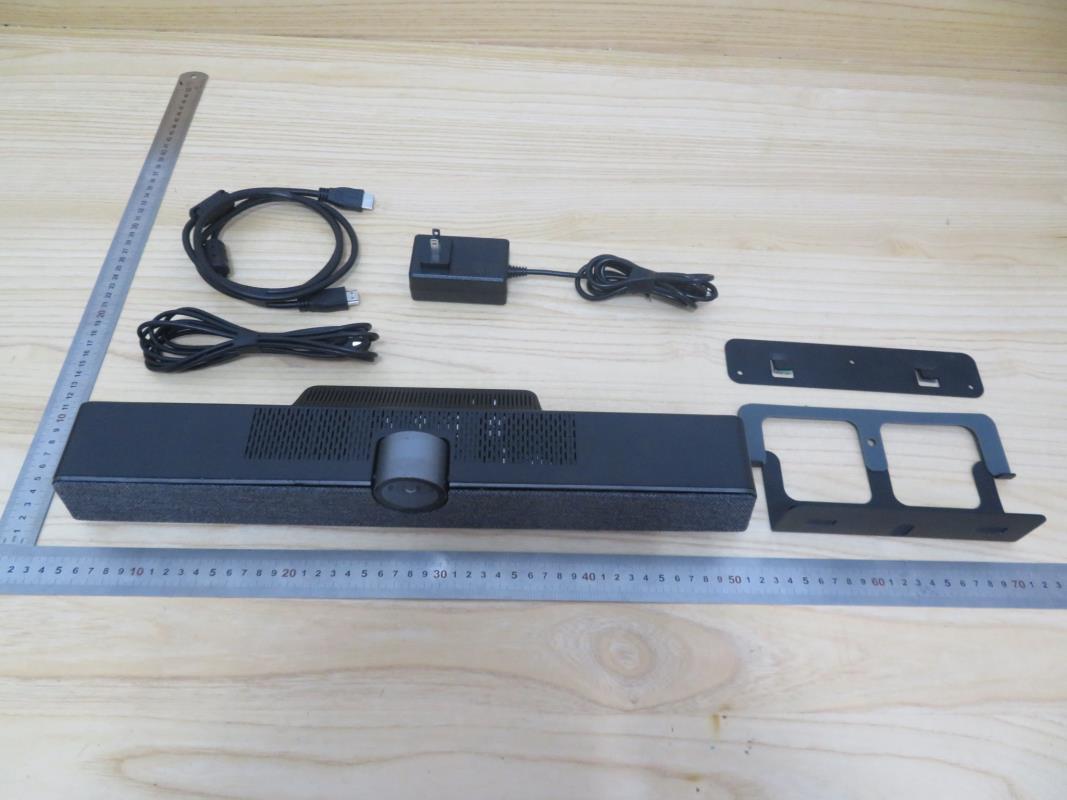

Appendix I External Photographs Page 2 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-1 View of EUT-2 Page 3 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-3 View of EUT-4 Page 4 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-5 View of EUT-6 Page 5 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-7 View of EUT-8

Label location

Appendix II Internal Photographs Page 2 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Open View of EUT Internal View of EUT-1 Page 3 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-2 Internal View of EUT-3 Module SKI.WB7668U.1 WIFI ANTENNA 1 Module SKI.WB7668U.1 WIFI ANTENNA 2 Module SKI.WB8821CU.1 WIFI ANTENNA 1 Module SKI.WB8821CU.1 WIFI ANTENNA 2 Page 4 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-8 Internal View of EUT-9 Page 5 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-10 Module SKI.WB7668U.1 Module SKI.WB8821CU.1 Module SKI.WB8821CU.1 ANTENNA 2 Module SKI.WB8821CU.1 ANTENNA 1 Module SKI.WB7668U.1 Antenna 1 Module SKI.WB7668U.1 Antenna 2

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. FCC RF EXPOSURE REPORT For Integrated video conference terminal MODEL NUMBER: UC S10, MSA10,MSA11,MSA12,MSA13,MSA14,MSA15,MSA16,MSA17,MSA18,MSA19 MS10,MS11,MS12,MS13,MS14,MS15,MS16,MS17,MS18,MS19 ,UC S11,UC S12,UC S13,UC S14,UC S15,UC S16,UC S17,UC S18,UC S19 REPORT NUMBER: 4789531252-14 FCC ID: 2AFG6-UCS10 ISSUE DATE: July 23, 2020 Prepared for GUANGZHOU SHIRUI ELECTRONICS CO LTD NO. 192 KEZHU ROAD SCIENCE PARK ECONOMIC-TECHNOLOGICAL DEVELOPMENT AREA GUANGZHOU GUANGDONG 510530 CHINA Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi-Tech Development Zone, Dongguan, People’s Republic of China Tel: +86 769-22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT No.: 4789531252-14 Page 2 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 3 2. TEST METHODOLOGY ........................................................................................................ 4 3. FACILITIES AND ACCREDITATION .................................................................................... 4 4. REQUIREMENT .................................................................................................................... 6 S =PG/(4πR 2 ) ................................................................................................................................ 6 REPORT No.: 4789531252-14 Page 3 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: GUANGZHOU SHIRUI ELECTRONICS CO LTD Address: NO. 192 KEZHU ROAD SCIENCE PARK ECONOMIC- TECHNOLOGICAL DEVELOPMENT AREA GUANGZHOU GUANGDONG 510530 CHINA Manufacturer Information Company Name: GUANGZHOU SHIRUI ELECTRONICS CO LTD Address: NO. 192 KEZHU ROAD SCIENCE PARK ECONOMIC- TECHNOLOGICAL DEVELOPMENT AREA GUANGZHOU GUANGDONG 510530 CHINA EUT Information EUT Name: Integrated video conference terminal Model for Canada: UC S10 Model for USA: Please refer to clause 3.1. Description of EUT Sample Received Date: July 1, 2020 Sample Status: Normal Sample ID: 3147330 Date of Tested: July 1 ~ 17, 2020 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47CFR§2.1091 KDB-447498 D01 V06 PASS Tested By: Checked By: Kebo Zhang Shawn Wen Project Engineer Laboratory Leader Approved By: Stephen Guo Laboratory Manager REPORT No.: 4789531252-14 Page 4 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4102.01) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1187) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. Has been recognized to perform compliance testing on equipment subject to the Commission's Delcaration of Conformity (DoC) and Certification rules ISED(Company No.: 21320) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been registered and fully described in a report filed with Industry Canada. The Company Number is 21320. VCCI (Registration No.: G-20019, R-20004, C-20012 and T-20011) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with VCCI, the Membership No. is 3793. Facility Name: Chamber D, the VCCI registration No. is G-20019 and R-20004 Shielding Room B , the VCCI registration No. is C-20012 and T-20011 Note 1: All tests measurement facilities use to collect the measurement data are located at Building 10, Innovation Technology Park, Song Shan Lake Hi tech Development Zone, Dongguan, 523808, China Note 2: The test anechoic chamber in UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. Note 3: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. And these measurements below 30MHz had been correlated to measurements performed on an OFS. REPORT No.: 4789531252-14 Page 5 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 3.1. DESCRIPTION OF EUT EUT Name Integrated video conference terminal Model for Canada UC S10 Model for USA UC S10,MSA10, MSA11,MSA12,MSA13,MSA14,MSA15,MSA16,MSA17, MSA18,MSA19,MS10,MS11,MS12,MS13,MS14,MS15,MS16,MS17,MS18, MS19,UC S11,UC S12,UC S13,UC S14,UC S15,UC S16,UC S17,UC S18, UC S19 M…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. CFR 47 FCC PART 15 SUBPART C ISED RSS-247 ISSUE 2 CERTIFICATION TEST REPORT For Integrated video conference terminal Model for Canada： UC S10 Model for USA： UC S10, MSA10, MSA11, MSA12, MSA13, MSA14, MSA15, MSA16, MSA17, MSA18, MSA19, MS10, MS11, MS12, MS13, MS14, MS15, MS16, MS17, MS18, MS19, UC S11, UC S12, UC S13, UC S14, UC S15, UC S16, UC S17, UC S18, UC S19 FCC ID: 2AFG6-UCS10 IC: 22166-UCS10 REPORT NUMBER: 4789531252-1 ISSUE DATE: July 20, 2020 Prepared for GUANGZHOU SHIRUI ELECTRONICS CO LTD NO. 192 KEZHU ROAD SCIENCE PARK ECONOMIC-TECHNOLOGICAL DEVELOPMENT AREA GUANGZHOU GUANGDONG 510530 CHINA Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4789531252-1 Page 2 of 171 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 07/20/2020 Initial Issue REPORT NO.: 4789531252-1 Page 3 of 171 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Clause Test Items FCC/ISED Rules Test Results 1 6dB Bandwidth and 99% Occupied Bandwidth FCC Part 15.247 (a) (2) RSS-247 Clause 5.2 (a) ISED RSS-Gen Clause 6.7 Pass 2 Conducted Output Power FCC Part 15.247 (b) (3) RSS-247 Clause 5.4 (d) Pass 3 Power Spectral Density FCC Part 15.247 (e) RSS-247 Clause 5.2 (b) Pass 4 Conducted Bandedge and Spurious Emission FCC Part 15.247 (d) RSS-247 Clause 5.5 Pass 5 Radiated Bandedge and Spurious Emission FCC Part 15.247 (d) FCC Part 15.209 FCC Part 15.205 RSS-247 Clause 5.5 RSS-GEN Clause 8.9 Pass 6 Conducted Emission Test for AC Power Port FCC Part 15.207 RSS-GEN Clause 8.8 Pass 7 Antenna Requirement FCC Part 15.203 RSS-GEN Clause 6.8 Pass Note: 1.This test report is only published to and used by the applicant, and it is not for evidence purpose in China. 2. The measurement result for the sample received is <Pass> according to < CFR 47 FCC PART 15 SUBPART C >< ISED RSS-247 > when <Accuracy Method> decision rule is applied. REPORT NO.: 4789531252-1 Page 4 of 171 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 6 2. TEST METHODOLOGY ........................................................................................................ 7 3. FACILITIES AND ACCREDITATION .................................................................................... 7 4. CALIBRATION AND UNCERTAINTY .................................................................................. 8 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 8 4.2. MEASUREMENT UNCERTAINTY ................................................................................. 8 5. EQUIPMENT UNDER TEST ................................................................................................. 9 5.1. DESCRIPTION OF EUT ................................................................................................. 9 5.2. CHANNEL LIST .............................................................................................................. 9 5.3. MAXIMUM OUTPUT POWER ...................................................................................... 10 5.4. TEST CHANNEL CONFIGURATION ........................................................................... 10 5.5. THE WORSE CASE POWER SETTING PARAMETER ............................................... 10 5.6. THE WORSE CASE CONFIGURATIONS.................................................................... 11 5.7. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 12 5.8. DESCRIPTION OF TEST SETUP ................................................................................ 13 6. MEASURING INSTRUMENT AND SOFTWARE USED ..................................................... 14 7. ANTENNA PORT TEST RESULTS .................................................................................... 16 7.1. ON TIME AND DUTY CYCLE ...................................................................................... 16 7.2. 6 dB DTS BANDWIDTH AND 99% OCCUPIED BANDWIDTH .................................... 17 7.3. CONDUCTED OUTPUT POWER ................................................................................ 19 7.4. POWER SPECTRAL DENSITY ................................................................................... 20 7.5. CONDUCTED BANDEDGE AND SPURIOUS EMISSIONS ........................................ 22 8. RADIATED TEST RESULTS .............................................................................................. 24 8.1. RESTRICTED BANDEDGE .......................................................…

Text truncated - open the document above for the full version.

REPORT NO.: 4789531252-1 Page 114 of 171 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11G_Ant1_2437 11G_Ant2_2437 REPORT NO.: 4789531252-1 Page 115 of 171 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11G_Ant1_2462 11G_Ant2_2462 REPORT NO.: 4789531252-1 Page 116 of 171 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant1_2412 11N20MIMO_Ant2_2412 REPORT NO.: 4789531252-1 Page 117 of 171 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant1_2437 11N20MIMO_Ant2_2437 REPORT NO.: 4789531252-1 Page 118 of 171 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant1_2462 11N20MIMO_Ant2_2462 REPORT NO.: 4789531252-1 Page 119 of 171 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N40MIMO_Ant1_2422 11N40MIMO_Ant2_2422 REPORT NO.: 4789531252-1 Page 120 of 171 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N40MIMO_Ant1_2437 11N40MIMO_Ant2_2437 REPORT NO.: 4789531252-1 Page 121 of 171 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N40MIMO_Ant1_2452 11N40MIMO_Ant2_2452 REPORT NO.: 4789531252-1 Page 122 of 171 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11.3. Appendix C: Maximum AVG conducted output power 11.3.1. Test Result Test Mode Antenna Channel Result[dBm] Limit[dBm] Verdict 11B Ant1 2412 12.67 <=30 PASS Ant2 2412 14.03 <=30 PASS Ant1 2437 12.35 <=30 PASS Ant2 2437 13.77 <=30 PASS Ant1 2462 12.63 <=30 PASS Ant2 2462 13.85 <=30 PASS 11G Ant1 2412 14.73 <=30 PASS Ant2 2412 16.05 <=30 PASS Ant1 2437 14.71 <=30 PASS Ant2 2437 16.60 <=30 PASS Ant1 2462 14.48 <=30 PASS Ant2 2462 16.07 <=30 PASS 11N20MIMO Ant1 2412 11.67 <=30 PASS Ant2 2412 13.07 <=30 PASS total 2412 15.4 <=30 PASS Ant1 2437 11.93 <=30 PASS Ant2 2437 13.50 <=30 PASS total 2437 15.8 <=30 PASS Ant1 2462 11.78 <=30 PASS Ant2 2462 13.21 <=30 PASS total 2462 15.6 <=30 PASS 11N40MIMO Ant1 2422 7.74 <=30 PASS Ant2 2422 10.06 <=30 PASS total 2422 12.1 <=30 PASS Ant1 2437 12.07 <=30 PASS Ant2 2437 13.65 <=30 PASS total 2437 15.9 <=30 PASS Ant1 2452 7.28 <=30 PASS Ant2 2452 9.61 <=30 PASS total 2452 11.6 <=30 PASS Note: 1. Conducted Power=Meas. Level+ Correction Factor 2. The Duty Cycle Factor (refer to section 7.1) had already compensated to the test data. REPORT NO.: 4789531252-1 Page 123 of 171 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the writte…

Text truncated - open the document above for the full version.
