GamePad For Mobile Phone Page 1 of 3 1.summarize： The PXN-P30S stretching handle is connected to android, IOS and other device terminals through bluetooth to connect to the game successfully. It can also be mapped by the APP. The product can be stretched and has a beautiful appearance。 2. functional characteristics： 2.1 bluetooth 4.0。 2.2 compatibility Andriod/iOS。 2.3 HOME、BACK、START、ABXY、LB、RB、RT、DPAD OF BUTTON。 2.4 Left and right 3D analog rocker， L3/R3。 2.5 POWER LED、MODEL led。 2.6 The linear transmission distance is over 7M。 2.7 Built-in lithium battery 3.7v, can be used continuously for more than 20 hours。 2.8 It can be charged of USB 。 3. Directions for use： 3.1 ON/OFF： 3.1.1 Press the power button for 1 second, the power lamp is always on, then the handle can be started。 3.1.2 Press the power button for 3 seconds to close the handle。 3.2 Connect： 3.2.1 Android direct connection mode： 3.2.1.1 Hold down the A+HOME button, the blue light flashes, find the "pin-p30a" device in the bluetooth upgrade Settings, click the bluetooth pairing, the blue light is always on after the successful connection, you can directly play: king of glory, exciting battlefield, endless duel, wilderness action (except the game itself to change the rules)； 3.2.2 IOS direct connection mode： 3.2.2.1 Hold down the Y+HOME button, the green light is flashing, find the "pin-p30i" device in the bluetooth upgrade Settings, click the blue tooth pair, the green light is always on after the successful connection, you can directly play: king of glory, exciting battlefield, endless duel, wilderness action (except the game itself to change the rules)； 3.2.3 Android standard mode: hold down the X+HOME button, the red light flashes, find the "pin-p30" device in the bluetooth upgrade Settings, click the bluetooth pairing, and the red light will stay on after the successful GamePad For Mobile Phone Page 1 of 3 connection。 3.3 Low power indicator： 3.3.1 The power lamp flashes when the voltage is lower than 3.5v。 3.3.2 Shutdown voltage：3.3V 。 3.4 Charging tips： 3.4.1 The handle is connected to the charging state: the power supply lamp inserted into the charging line flashes slowly, and the power supply lamp is always on。 3.4.2 Connectionless charging: the power supply lamp flashes slowly when plugged into the charging line, and the power supply lamp is always on。 3.5 Sleep function of handle: 3.5.1 Press the "HOME" button to turn on the handle in the connected state, no signal is received for 60 seconds, and sleep is entered。 34.5.2 After the handle is connected, no button or shaft action will enter into sleep for 5 minutes。 3.5.3 Press "Y+HOME" button in the pairing state, no signal is received for 60 seconds, and sleep is entered 。 5. Difficult to rule out： 4.1 When unable to boot, the built-in battery may be dead, please use the USB cable to charge the handle and then boot。 4.2 When the handle unexpectedly freezes or drops, please keep a short distance from the device or reconnect。 4.3 Factory setting RESET: there is a small hole on the back of the handle, press down with a toothpick or other strip hardware perforation, press the RESET button to restore the factory setting。 5. Attention： 5.1 Avoid strong vibration, do not disassemble, refit, repair。 5.2 Avoid storage in humid, high temperature, lampblack and other places。 5.3 Avoid water or other liquids entering the handle, which may affect the function of the handle。 5.4 Do not drop the handle into the fire or the river (sea) to avoid explosion or pollution。 5.5 The charging voltage of the product is usb4.5-5.5v dc power supply. Otherwise, it may not be charged or damage the product。 5.6 If you have quality problems or Suggestions, please contact with the seller or after-sales staff。 6. Other parameters： Search for current：10mA Working current：8mA GamePad For Mobile Phone Page 1 of 3 Low power：＜3.5V Shutdown voltage：3.3V Sleep current：Less than 20uA FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Shen Zhen PXN Electronics Technology Co., Ltd. Agent Authorization Company: Shen Zhen PXN Electronics Technology Co., Ltd. Address: Fenghuanggang Xixiang, Baoan, ShenZhen, China Product Name: GamePad For Mobile Phone Trade Mark: N/A Model Number(s): PXN-P30S, PXN-P30, PXN-P30PRO, PXN-P30X, PXN-P30J, PXN- P30Y, PXN-P31, PXN-P33, PXN-P20 FCC ID: 2AFGFPXN-P30S We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-05-08 Name: Pinghui Title: Engineer Company: Shen Zhen PXN Electronics Technology Co., Ltd.

Shen Zhen PXN Electronics Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Dear Sir/Madam, We, Shen Zhen PXN Electronics Technology Co., Ltd. Hereby declares the following statement for FCC, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product Name: GamePad For Mobile Phone Model Number(s): PXN-P30S, PXN-P30, PXN-P30PRO, PXN-P30X, PXN-P30J, PXN-P30Y, PXN-P31, PXN-P33, PXN-P20 Sincerely, Signature: Date: 2020-05-08 Name: Pinghui Title: Engineer Company: Shen Zhen PXN Electronics Technology Co., Ltd.

Shen Zhen PXN Electronics Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-05-08 Subject; Request for Confidentiality FCC ID: 2AFGFPXN-P30S To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Pinghui Title: Engineer

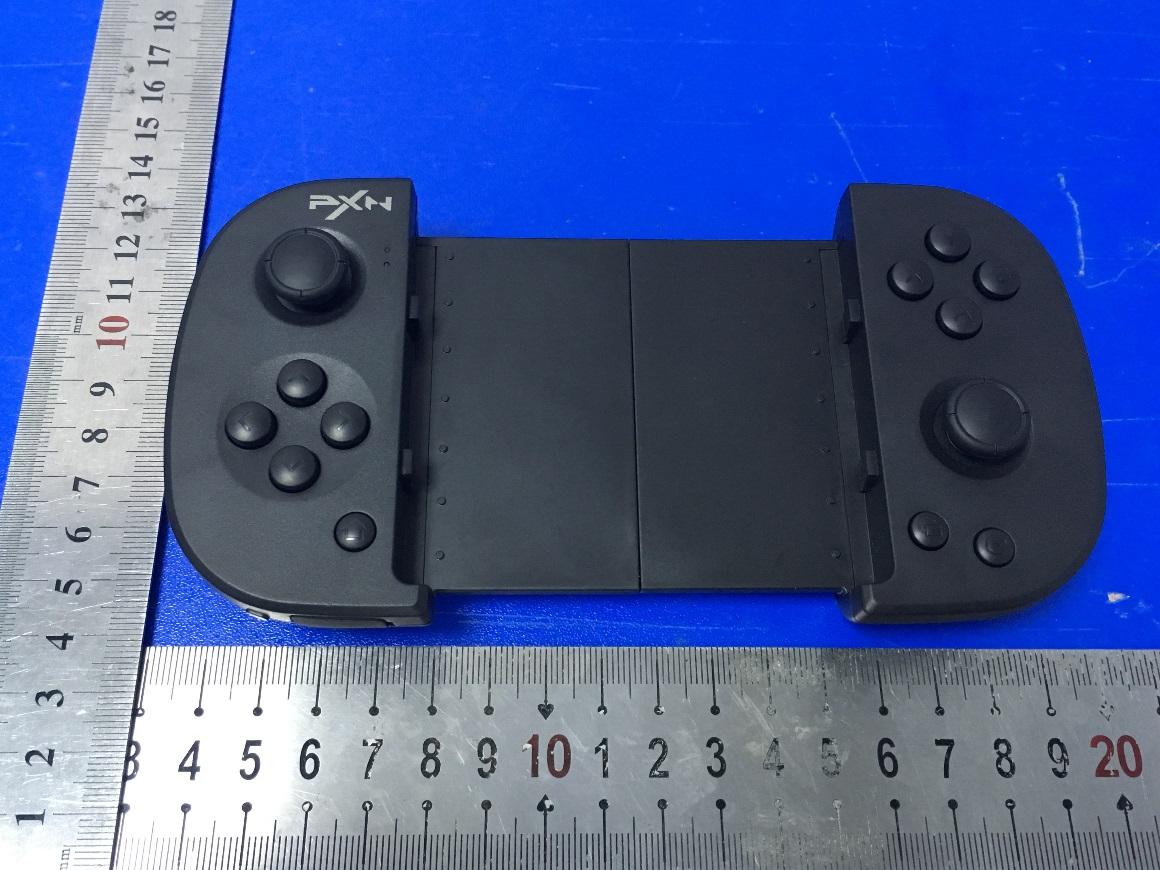

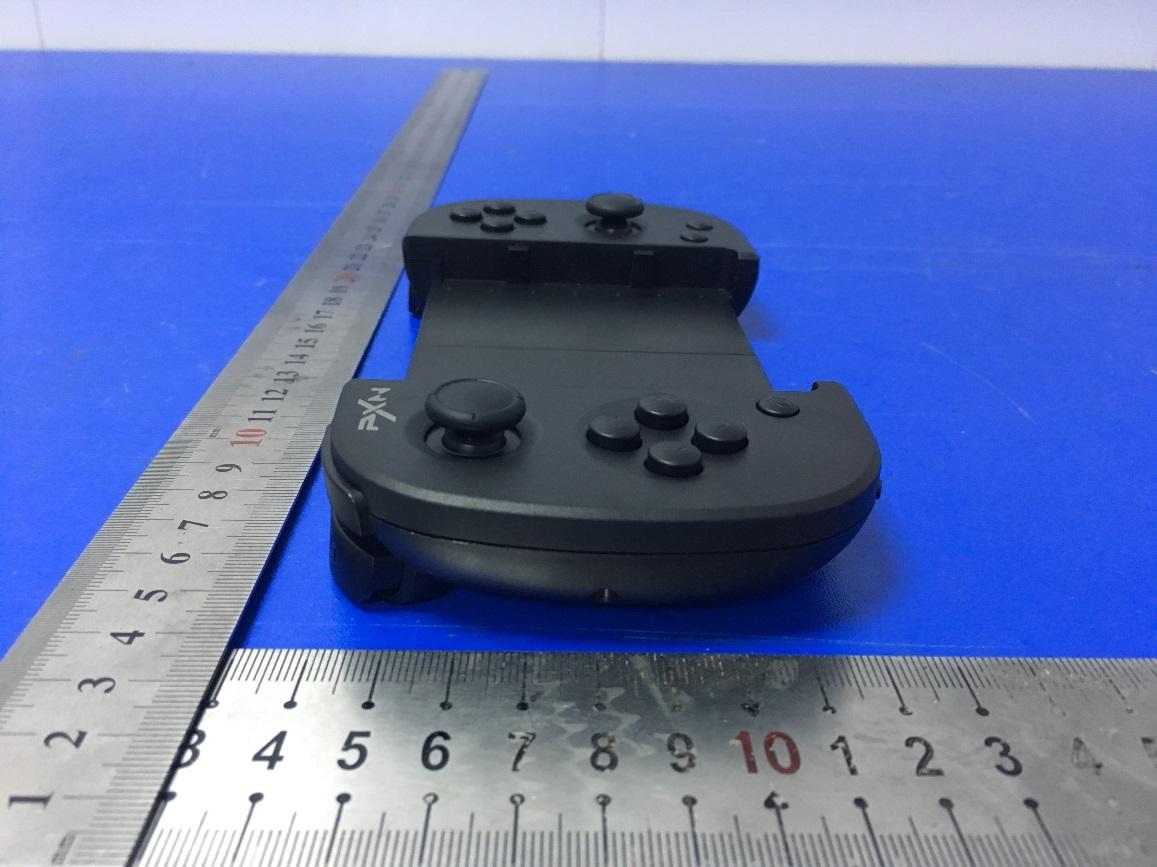

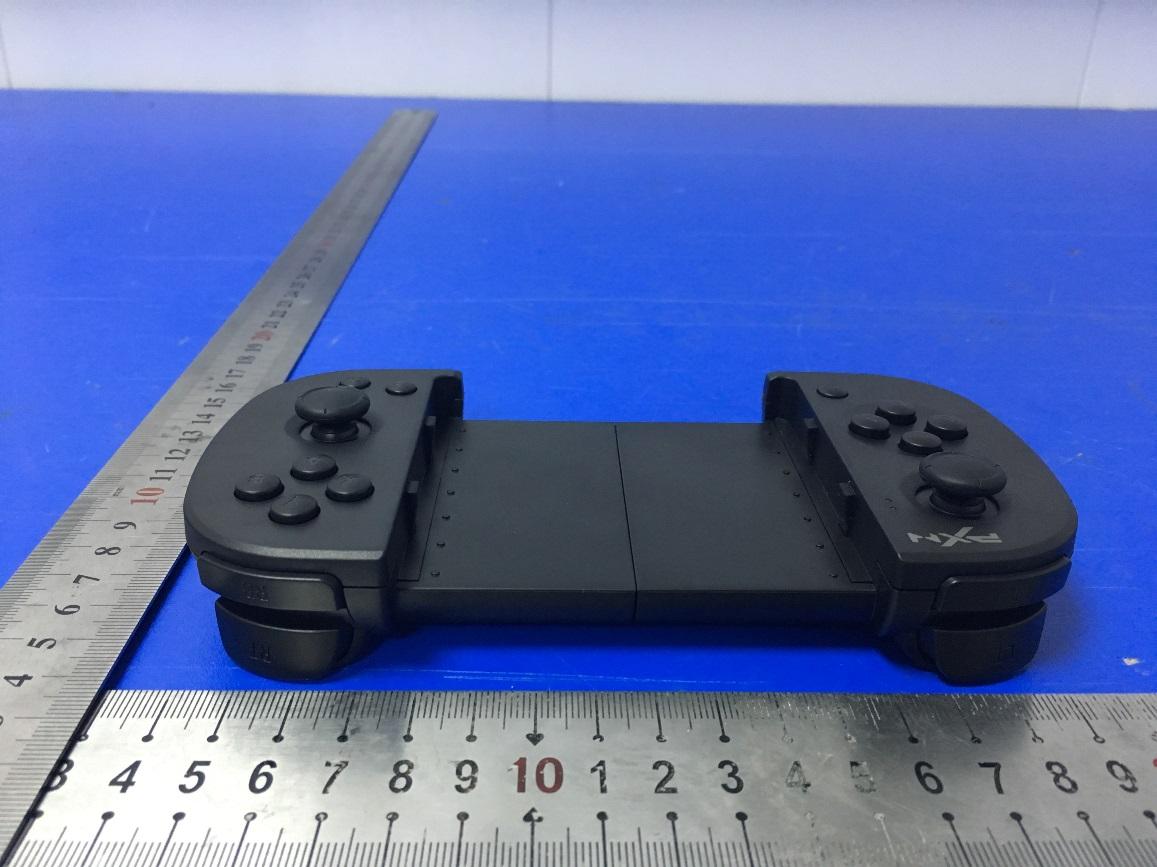

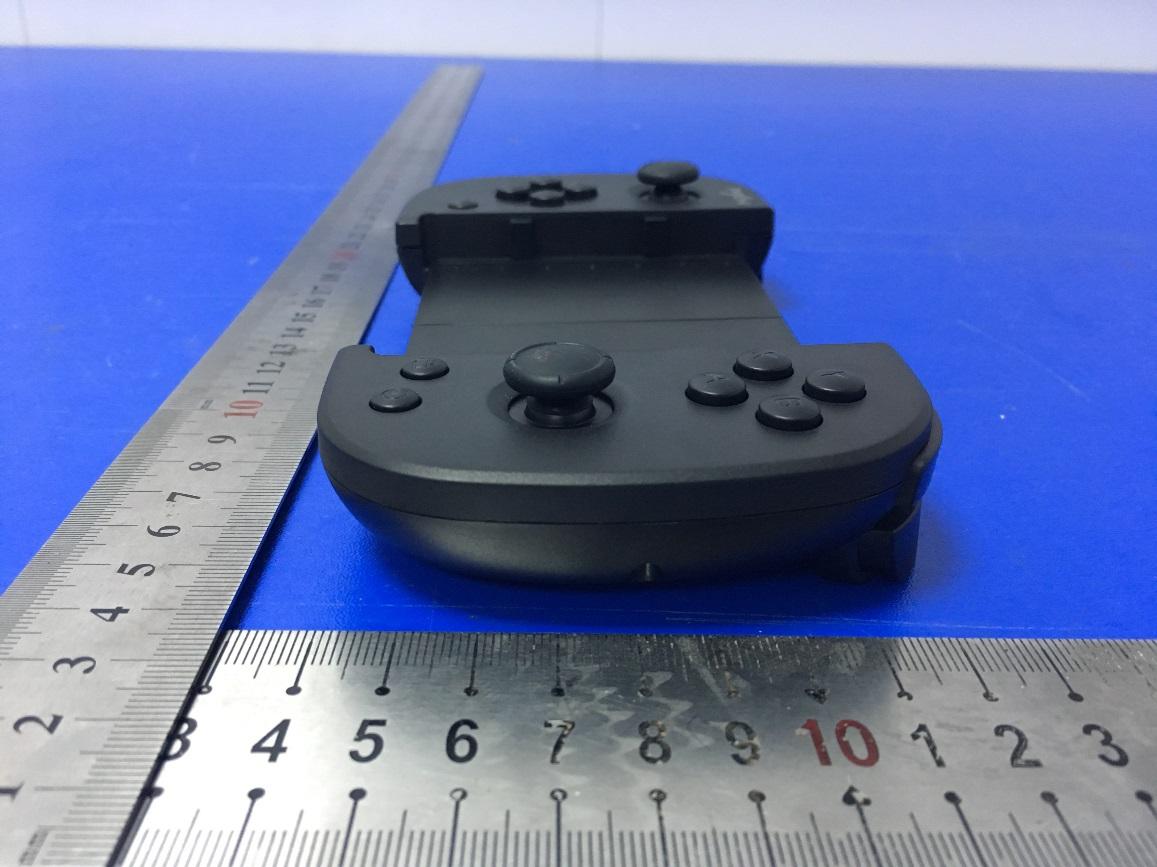

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L4.0cm*W3.0cm Label Location FCC ID: 2AFGFPXN-P30S GamePad For Mobile Phone Model No.: PXN-P30S Caution:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA Fig.3 Fig.4 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA Fig.9 Fig.10

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID : 2AFGFPXN-P30S Product name : GamePad For Mobile Phone Test Model : PXN-P30S Additional Model No. : PXN-P30, PXN-P30PRO, PXN-P30X, PXN-P30J, PXN-P30Y, PXN-P31, PXN-P33, PXN-P20 Model Declaration : PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power supply : Input: DC 5V, 350mA DC 3.7V by Rechargeable Li-Polymer Battery(250mAh) Bluetooth : 2402-2480MHz Channel Number : 40 channels for Bluetooth V4.0(DTS) Channel Spacing : 2MHz for Bluetooth V4.0(DTS) Modulation Type : GFSK for Bluetooth V4.0(DTS) Bluetooth Version : V4.0 Antenna Type : PCB Antenna Antenna Gain : 0dBi (maximum) Hardware version : A1 Software version : V0.19 Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results <BT LE> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -5.084 19 2440 -5.428 39 2480 -4.792 5. Manufacturing Tolerance <BT LE> GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) -5.0 -5.0 -4.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Complian…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA Page 1 of 14 Appendix A RF Test Data for BT V4.0(DTS) (Conducted Measurement) Product Name: GamePad For Mobile Phone Trade Mark: N/A Test Model: PXN-P30S Environmental Conditions Temperature: 24.3  C Relative Humidity: 53.7% ATM Pressure: 100.0 kPa Test Engineer: David Luo Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA Page 2 of 14 A.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH -5.084 30 PASS BT LE MCH -5.428 30 PASS BT LE HCH -4.792 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA Page 3 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA Page 4 of 14 A.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -22.724 8 PASS BT LE MCH -22.949 8 PASS BT LE HCH -22.430 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA Page 5 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA Page 6 of 14 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6854 ≥0.5 PASS BT LE MCH 0.6852 ≥0.5 PASS BT LE HCH 0.6839 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA Page 7 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA Page 8 of 14 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH -5.017 -37.002 -25.017 PASS BT LE MCH -5.51 -37.291 -25.510 PASS BT LE HCH -4.929 -36.536 -24.929 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA Page 9 of 14 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA Page 10 of 14 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA Page 11 of 14 A.6 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH -5.204 -49.638 -25.2 PASS BT LE HCH -4.818 -49.093 -24.82 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA Page 12 of 14 A.7 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -43.14 2.0 0 54.12 PEAK 74 PASS Ant1 2310.0 -53.25 2.0 0 44.01 AV 54 PASS Ant1 2390.0 -42.05 2.0 0 55.21 PEAK 74 PASS Ant1 2390.0 -53.06 2.0 0 44.2 AV 54 PASS 2480 Ant1 2483.5 -42.57 2.0 0 54.69 PEAK 74 PASS Ant1 2483.5 -52.52 2.0 0 44.74 AV 54 PASS Ant1 2500.0 -42.73 2.0 0 54.53 PEAK 74 PASS Ant1 2500.0 -52.30 2.0 0 44.96 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA Page 13 of 14 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA Page 14 of 14 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 34 FCC TEST REPORT For Shen Zhen PXN Electronics Technology Co., Ltd. GamePad For Mobile Phone Test Model: PXN-P30S Additional Model No.: Please Refer To Page 6 Prepared for : Shen Zhen PXN Electronics Technology Co., Ltd. Address : Fenghuanggang Xixiang, Baoan, ShenZhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : April 22, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : April 22, 2020 ~ April 23, 2020 Date of Report : April 26, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 34 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS200417051AEA Date of Issue .................................. : April 26, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Shen Zhen PXN Electronics Technology Co., Ltd. Address .......................................... : Fenghuanggang Xixiang, Baoan, ShenZhen, China Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No.................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : GamePad For Mobile Phone Trade Mark ..................................... : N/A Test Model ...................................... : PXN-P30S Ratings ........................................... : Input: DC 5V, 350mA DC 3.7V by Rechargeable Li-Polymer Battery(250mAh) Result ............................................ : Positive Compiled by: Supervised by: Approved by: Linda He / File administrators Jin Wang / Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 34 FCC -- TEST REPORT Test Model............................... : PXN-P30S EUT......................................... : GamePad For Mobile Phone Applicant............................... : Shen Zhen PXN Electronics Technology Co., Ltd. Address.................................. : Fenghuanggang Xixiang, Baoan, ShenZhen, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : LITE STAR ELECTRONICS TECHNOLOGY Co.,Ltd. Address................................... : Xingchen Science park Lianbi Road, Wulian Industry Area, Fenggang Town, Dongguan City, China Telephone............................... : / Fax.......................................... : / Factory................................... : LITE STAR ELECTRONICS TECHNOLOGY Co.,Ltd. Address................................... : Xingchen Science park Lianbi Road, Wulian Industry Area, Fenggang Town, Dongguan City, China Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200417051AEA April 26, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 34 Revision History Revision Issue Date Revisions Revised By 000 April 26, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFGFPXN-P30S Report No.: LCS200417051AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 34 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 6 1.3. EXTERNAL I/O CABLE ...........................................................................…
