2AFGFPXN-P6Wireless Gaming Controller

productinstruction WirelessGamingController PXN-P6 1． summarize ： ThisproductisawirelesscontrollerspeciallydesignedforBluetoothAndroiddevices(smartTV/TVbox/mobile phone).ItiscompatiblewithIOS/PCplatform.Thecontrollerhasabeautifulappearanceandmeetstheneedsof gameentertainmentfunctions 。 2. functionalcharacteristics ： 2.1System:PCWIN8/10/11,Android4.0orabove,IOS14.2orabove。 2.2 WiredandBluetoothconnectionmodes 。 2.3PCplatformwithD/X-INPUTdualmode. 2.4Thehandlehasbuilt-indualvibrationmotor,whichhasvibrationfunctioninPC. 2.5Built-inlithiumbattery550mA/H,chargingthehandlethroughUSBTYPE_Cdatacable. 2.6Powersavingmode.Ifthereisnoconnectionwithin1minuteornoactionwithin5minutesafterconnection,itwillgo tosleep.PresstheHOMEbuttontowakeup. 2.7IOSsupportsMFImode(XBOXONEControllerprotocolidentifier:XboxWirelessController). 2.8RGBLEDdisplay:PCX-INPUT/IOSmodegreen,AndroidHIDred,AndroidDirectconnectionmode/PCD-INPUTmode blue 2.9Thehandlecontainsarrowkeys,ABXYkeys,BACK,Start,LB,RB,LT,RT,L3,R3,andHOMEkeys. 3. productdiagram ： 3.1Frontbuttonfunctiondiagram： 3.2 Backandreceiverfunctiondiagram 4. instructions ： 4.1PowerON/OFF： 4.1.1ON：Pressthe"HOME"buttononthehandletopoweron. 4.1.2OFF：Pressandholdthe"HOME"buttonfor5seconds,andtheLEDlightwillturnoff. 4.2 AndroidBluetoothHIDconnection ： 4.2.1Pressandholdthe"X"+"HOME"keyofthehandleatthesametime,andreleasethehandwhentheRGBredlight ofthehandleflashes. 4.2.2OpenBluetoothsearchofAndroiddeviceandclick"PXN-P6A"topair. 4.2.3Theconnectionissuccessful,andtheRGBredlightofthehandleisalwayson. 4.3AndroidBluetoothDirectconnection: 4.3.1Pressandholdthe"A"+"HOME"keyofthehandleatthesametime,andreleasethehandwhentheRGBbluelight ofthehandleflashes. 4.3.2OpenBluetoothsearchofAndroiddeviceandclick"PXN-P6a"topair. 4.3.3Theconnectionissuccessful,andtheRGBbluelightofthehandleisalwayson. 4.4BluetoothIOSConnection: 4.4.1Pressandholdthe"B"+"HOME"keyofthehandleatthesametime,andreleasethehandwhentheRGBgreenlight flashonthehandle. 4.4.2OpenBluetoothsearchofAndroiddeviceandclick"PXN-P6M"topair. 4.4.3Theconnectionissuccessful,andtheRGBgreenlightofthehandleisalwayson. 4.5PCReceiverConnection: 4.5.1InserttheNanoreceiverintotheUSBportofyourcomputer, 4.5.2Longpressthe"START+HOME"buttonfor3secondswhenthecontrollerisoff,andthewhitelightofthecontroller flashes. ThegreenLEDisalwaysbrightaftersuccessfulconnection. 4.5.3InPCbelongstoX-INPUTmodekeyvalue. 4.6PCWiredConnection: 4.6.1ConnectthehandletothecomputerwithaUSBcable,andthehandlewillbeautomaticallyrecognizedasXinput mode. 4.6.2.TheRGBgreenlightoftheconnectedhandleisalwayson. 4.6.3Becausethedatacableisused,thehandlewillbecharged,sothecableisconnectedtothecomputer Thegreenlightblinksslowly. 5. functionaldescription ： 5.1ResetFunction: Whenthehandleappearsdysfunctional,crashorotherabnormalities,youcanpresstheswitchinthebackresetholeof thehandle,theopponent Thehandleisresetandshutdown,andthenpress"HOME"buttononthehandletorestarttheconnectionandpairing. 5.2DescriptionofSpecialFunctions: 5.2.1Lowpower:TheredLEDflasheswhenthebatteryvoltageislowerthan3.7V,andturnsoffwhenthebatteryvoltageis lowerthan3.5V Thehandle 5.2.2Sleep:thehandleisnotconnectedwithin1minuteandentersthesleepstate;Whenthehandleisinworking condition,itwillgotosleepfor5minuteswithoutanybuttonoraxisaction;Inthesleepstate,pressthe"HOME"keyto wakeup,andautomaticallyconnectbacktothemodebeforeshutdown.Thesleepcurrentislessthan50uA. 5.2.3Charging:Chargingvoltage:USB5V.ThehandlecanbechargedthroughUSBportssuchasmobilephonecharger, computerandTV. Thehandleshouldbefullychargedfor2-3hours. Chargingindication:Themobilephonechargerwillflashwithwhitelight(changetoredlightafteroneminute),andthe computerwillflashwithgreenlightwhenitisfull Thelightsgoout. 5.2.4Calibrationfunction:PresstheHOMEbuttononcewhenthecontrollerisoff,andpresstheBACK+RBkey(RGB)atthe sametimeafterthecontrolleristurnedon Thelightwillshinealternately.Pressthelefttrigger,therighttrigger,theleftrocker,therightrockerseveraltimes,and pressBACK+rightatthesametime Pressdowntherockertoexitthecalibration,andtheRGBlightgoesout. 6.Eliminationofproblems： 6.1Whenthedevicecannotbestarted,thebuilt-inbatterymaybedead.PleasechargethehandlewithaUSBcable. 6.2Incaseofaccidentalcrashordisconnectionofthehandle,keepthedistancebetweenthehandleandthedevicenot toofarandreconnect. 7.ATTENTIONS： 7.1Avoidstrongvibration.Donotdisassemble,modifyorrepairbyyourself. 7.2Avoidstoringinhumid,hightemperature,lampblackandotherplaces. 7.3Avoidwaterorotherliquidsenteringthehandle,whichmayaffectthefunctionofthehandle. 7.4Thereisabatteryinside,pleasedonotfallthehandleintothefire,itmayexplode. 7.5ThechargingvoltageofthisproductshallbeUSB4.5-5.5VDCpowersupply,otherwiseitmaynotbechargedorthe productmaybedamaged. 7.6Ifnotinuse,pressandholdthe"HOME"buttonfor3secondstoclosethehandle. 7.7Childrenshouldusetheproductunderthesupervisionofanadult. 7.8Ifyouhaveanyqualityproblemsorsuggestions,pleasecontactthesellerorafter-salespersonnel. FCCStatement ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15of theFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidential installation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedin accordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisno guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterference toradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouraged totrytocorrecttheinterferencebyoneormoreofthefollowingmeasures: •Reorientorrelocatethereceivingantenna. •Increasetheseparationbetweentheequipmentandreceiver. •Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. •Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Caution:Anychangesormodificationstothisdevicenotexplicitlyapprovedbymanufacturercouldvoidyourauthority tooperatethisequipment. Thisdevicecompliesw…

Text truncated - open the document above for the full version.

Sincerely, Name/Title： Pinghui Chen/RD/engineer Company: Shen Zhen PXN Electronics Technology Co., Ltd. Address: Fenghuanggang Xixiang, Baoan Shenzhen China Phone: 0755-29703896 Fax: 0755-29703896 E-Mail: [email protected]

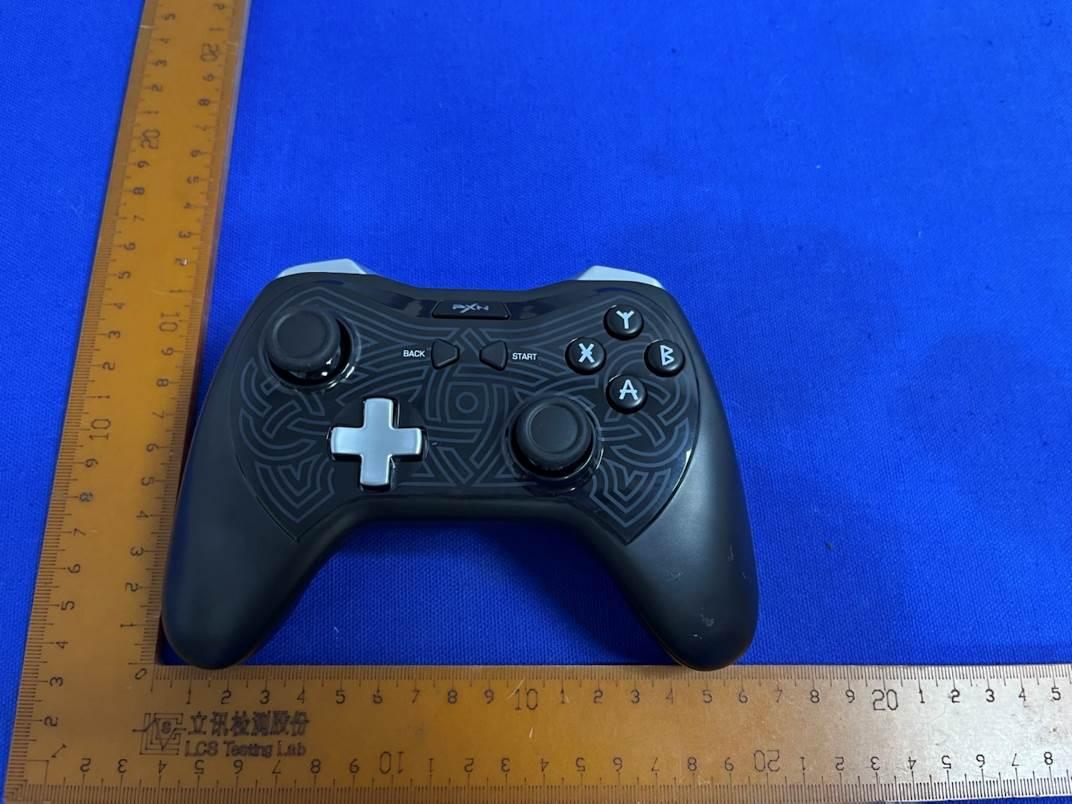

Page1of4FCCID:2AFGFPXN-P6 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of4FCCID:2AFGFPXN-P6 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of4FCCID:2AFGFPXN-P6 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of4FCCID:2AFGFPXN-P6 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Fig.8

Page1of1FCCID:2AFGFPXN-P6 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity LABELANDLOCATION (Size:L3.0cmx6.0cm) LabelLocation WirelessGamingController Model:PXN-P6 FCCID:2AFGFPXN-P6

Page1of6FCCID:2AFGFPXN-P6 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity InternalPhotosoftheEUT Fig.1 Fig.2 Page2of6FCCID:2AFGFPXN-P6 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of6FCCID:2AFGFPXN-P6 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Antenna Page4of6FCCID:2AFGFPXN-P6 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Fig.8 Page5of6FCCID:2AFGFPXN-P6 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.9 Fig.10 Page6of6FCCID:2AFGFPXN-P6 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.11

Page1of3FCCID:2AFGFPXN-P6 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCRFExposureEvaluation 1.ProductInformation FCCID:2AFGFPXN-P6 Productname:WirelessGamingController TestModel:PXN-P6 AdditionalModelNo. : PXN-P6S,PXN-P6PRO,PXN-9606,PXN-9616,PXN-9626, PXN-P20,PXN-P20PRO,PXN-P20S ModelDeclaration : PCBboard,structureandinternalofthesemodel(s)arethesame, Sonoadditionalmodelsweretested PowerSupply: Input:5.0V350mA DC3.7VbyRechargeableLi-ionBattery,550mAh HardwareVersion:A3 SoftwareVersion:V02 Bluetooth:2402MHz~2480MHz ChannelNumber:40channelsforBluetoothV5.0(DTS) ChannelSpacing:2MHzforBluetoothV5.0(DTS) ModulationType:GFSKforBluetoothV5.0(DTS) BluetoothVersion:V5.0 AntennaType:PCBAntenna AntennaGain:1.26dBi Exposurecategory:Generalpopulation/uncontrolledenvironment EUTType:ProductionUnit DeviceType:PortableDevice 2.EvaluationmethodandLimit AccordingtoKDB447498D01GeneralRFExposureGuidancev06Section4.3.1StandaloneSAR testexclusionconsiderations:“UnlessspecificallyrequiredbythepublishedRFexposureKDB procedures,standalone1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulation exposureconditions,bymeasurementornumericalsimulation,isnotrequiredwhenthe correspondingSARTestExclusionThresholdcondition,listedbelow,issatisfied.Thesetest exclusionconditionsarebasedonsource-basedtime-averagedmaximumconductedoutputpower oftheRFchannelrequiringevaluation,adjustedfortune-uptolerance,andtheminimumtest separationdistancerequiredfortheexposureconditions.22Theminimumtestseparationdistance isdeterminedbythesmallestdistancefromtheantennaandradiatingstructuresoroutersurfaceof thedevice,accordingtothehostformfactor,exposureconditionsandplatformrequirements,toany partofthebodyorextremityofauserorbystander(see5)ofsection4.1).ToqualifyforSARtest exclusion,thetestseparationdistancesappliedmustbefullyexplainedandjustifiedbythe operatingconfigurationsandexposureconditionsofthetransmitterandapplicablehostplatform requirements,typicallyintheSARmeasurementorSARanalysisreport,accordingtotherequired publishedRFexposureKDBprocedures.WhennootherRFexposuretestingorreportingis required,astatementofjustificationandcompliancemustbeincludedintheequipmentapproval,in lieuoftheSARreport,toqualifyfortheSARtestexclusion.Whenrequired,thedevicespecific conditionsdescribedintheotherpublishedRFexposureKDBproceduresmustbesatisfiedbefore applyingtheseSARtestexclusionprovisions;forexample,handheldPTTtwo-wayradios,handsets, laptops&tabletsetc.“ [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f(GHz)]≤3.0for1-gSARand≤7.5for10-gextremitySAR,where: •f(GHz)istheRFchanneltransmitfrequencyinGHz Page2of3FCCID:2AFGFPXN-P6 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity •PoweranddistanceareroundedtothenearestmWandmmbeforecalculation •Theresultisroundedtoonedecimalplaceforcomparison •3.0and7.5arereferredtoasthenumericthresholdsinthestep2below Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mm andfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmaccordingtof)insection4.1isappliedto determineSARtestexclusion. Whenoneofthefollowingtestexclusionconditionsissatisfiedforallcombinationsof simultaneoustransmissionconfigurations,furtherequipmentapprovalisnotrequiredto incorporatetransmittermodulesinhostdevicesthatoperateinthemixedmobileandportablehost platformexposureconditions.ThegranteeisresponsiblefordocumentingthisaccordingtoClassI permissivechangerequirements.AntennasthatqualifyforstandaloneSARtestexclusionmust applytheestimatedstandaloneSARtodeterminesimultaneoustransmissiontestexclusion. a)The[∑of(thehighestmeasuredorestimatedSARforeachstandaloneantennaconfiguration, adjustedformaximumtune-uptolerance)/1.6W/kg]+[∑ofMPEratios]is≤1.0. b)TheSARtopeaklocationseparationratiosofallsimultaneouslytransmittingantennapairs operatinginportabledeviceexposureconditionsareall≤0.04,andthe[∑ofMPEratios]is≤ 1.0. 3.ReferEvaluationMethod ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadio FrequencyElectromagneticFields,3kHzto300GHz. FCCKDBpublication447498D01GeneralRFExposureGuidancev06:MobileandPortableDevices RFExposureProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1093:Radiofrequencyradiationexposureevaluation:portabledevices 4.ConductedPowerResults <BTLE> ModeChannelFrequency(MHz) PeakConductedOutputPower(dBm) GFSK 02402 -1.42 192440 -1.34 392480 -0.93 <BT2LE> ModeChannelFrequency(MHz) PeakConductedOutputPower(dBm) GFSK 02402 -1.47 192440 -1.37 392480 -0.98 Page3of3FCCID:2AFGFPXN-P6 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 5.ManufacturingTolerance <BTLE> GFSK(Peak) ChannelChannel0Channel19Channel39 Target(dBm)-1.0-1.00 Tolerance±(dB)1.01.01.0 <BT2LE> GFSK(Peak) ChannelChannel0Channel19Channel39 Target(dBm)-1.0-1.00 Tolerance±(dB)1.01.01.0 6.EvaluationResults 6.1StandaloneEvaluation Band/Modef(GHz) Antenna Distance (mm) RFoutputpowerSARTest Exclusion Threshold SARTest Exclusion dBmmW BTLEGFSK2.48051.01.25890.3965<3.0Yes BT2LEGFSK2.48051.01.25890.3965<3.0Yes Remark: 1.Outputpowerincludingtuneuptolerance; 2.Whentheminimumtestseparationdistanceis<5mm,adistanceof5mmaccordingtof)insection 4.1isappliedtodetermineSARtestexclusion. 6.2SimultaneousTransmissionforSARExclusion ThesamplesupportoneBTmodular.Noneedconsidersimultaneoustransmissio…

Text truncated - open the document above for the full version.

Antenna Study  Project Name:Wrieless G aming Controller  Debug ging frequency band: 2400 ‐ 2500MHz  Valuation date ： 2022.12.03 08  Client Name: LITE STAR ELECTRONICS TECHNOLOGY Co.,Ltd. 1 Internal Antenna 2 Testing 3D microwave darkroom(6m*6m*6m) Testing environment External Antenna 3 Antenna • Antenna name: 2.4G • Antenna Type ： PCB • Covers ： 2400 ‐ 2500MHz 4 S Parameter_Return Loss&VSWR 5 Efficiency and Gain‐Smith Frequency ID 1 2 3 4 5 6 7 8 9 10 11 Frequency (MHz) 2400.0 2410.0 2420.0 2430. 0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 2500.0 Gain (dBi) 0.54 0.98 0.94 0.71 0.57 0. 71 1.01 1.26 1.12 1.04 1.16 Efficiency (%) 39.82 40.52 40.83 42.40 42.39 43.67 45.88 47.35 46.50 46.37 48.60 2400.0MHz H+V, Eff: 39.8%Back View2400.0MHz Total(E1-XZ), Max= -0.14dBi2400.0MHz Total(E2-YZ), Max= -0.76dBiTotal(H-XY), Max= 0.12dBi, CirD=13.03 0.54 -1.31 -3.15 -4.99 -6.83 -8.67 -10.52 -12.36 -14.2 -16.04 -17.88 -19.73 -21.57 -23.41 -25.25 -27.1 -28.94 -30.78 2410.0MHz H+V, Eff: 40.5%Back View2410.0MHz Total(E1-XZ), Max= -0.18dBi2410.0MHz Total(E2-YZ), Max= -0.20dBiTotal(H-XY), Max= 0.41dBi, CirD=14.06 0.98 -0.86 -2.7 -4.54 -6.38 -8.23 -10.07 -11.91 -13.75 -15.59 -17.44 -19.28 -21.12 -22.96 -24.8 -26.65 -28.49 -30.33 2420.0MHz H+V, Eff: 40.8%Back View2420.0MHz Total(E1-XZ), Max= -0.78dBi2420.0MHz Total(E2-YZ), Max= -0.64dBiTotal(H-XY), Max= 0.61dBi, CirD=14.01 0.94 -0.9 -2.74 -4.58 -6.43 -8.27 -10.11 -11.95 -13.8 -15.64 -17.48 -19.32 -21.16 -23.01 -24.85 -26.69 -28.53 -30.37 2430.0MHz H+V, Eff: 42.4%Back View2430.0MHz Total(E1-XZ), Max= -1.56dBi2430.0MHz Total(E2-YZ), Max= -1.23dBiTotal(H-XY), Max= 0.25dBi, CirD=12.21 0.71 -1.13 -2.97 -4.81 -6.65 -8.5 -10.34 -12.18 -14.02 -15.87 -17.71 -19.55 -21.39 -23.23 -25.08 -26.92 -28.76 -30.6 2440.0MHz H+V, Eff: 42.4%Back View2440.0MHz Total(E1-XZ), Max= -1.51dBi2440.0MHz Total(E2-YZ), Max= -1.60dBiTotal(H-XY), Max= 0.00dBi, CirD=11.74 0.57 -1.27 -3.12 -4.96 -6.8 -8.64 -10.48 -12.33 -14.17 -16.01 -17.85 -19.7 -21.54 -23.38 -25.22 -27.06 -28.91 -30.75 2450.0MHz H+V, Eff: 43.7%Back View2450.0MHz Total(E1-XZ), Max= -1.21dBi2450.0MHz Total(E2-YZ), Max= -1.46dBiTotal(H-XY), Max= 0.18dBi, CirD=11.94 0.71 -1.13 -2.97 -4.81 -6.66 -8.5 -10.34 -12.18 -14.02 -15.87 -17.71 -19.55 -21.39 -23.24 -25.08 -26.92 -28.76 -30.6 2460.0MHz H+V, Eff: 45.9%Back View2460.0MHz Total(E1-XZ), Max= -1.05dBi2460.0MHz Total(E2-YZ), Max= -1.15dBiTotal(H-XY), Max= 0.50dBi, CirD=12.36 1.01 -0.83 -2.67 -4.52 -6.36 -8.2 -10.04 -11.88 -13.73 -15.57 -17.41 -19.25 -21.09 -22.94 -24.78 -26.62 -28.46 -30.31 2470.0MHz H+V, Eff: 47.3%Back View2470.0MHz Total(E1-XZ), Max= -0.82dBi2470.0MHz Total(E2-YZ), Max= -1.20dBiTotal(H-XY), Max= 0.79dBi, CirD=13.04 1.26 -0.58 -2.42 -4.27 -6.11 -7.95 -9.79 -11.64 -13.48 -15.32 -17.16 -19 -20.85 -22.69 -24.53 -26.37 -28.21 -30.06 2480.0MHz H+V, Eff: 46.5%Back View2480.0MHz Total(E1-XZ), Max= -0.92dBi2480.0MHz Total(E2-YZ), Max= -1.61dBiTotal(H-XY), Max= 0.85dBi, CirD=14.10 1.12 -0.72 -2.56 -4.4 -6.24 -8.09 -9.93 -11.77 -13.61 -15.45 -17.3 -19.14 -20.98 -22.82 -24.66 -26.51 -28.35 -30.19 2490.0MHz H+V, Eff: 46.4%Back View2490.0MHz Total(E1-XZ), Max= -1.14dBi2490.0MHz Total(E2-YZ), Max= -1.89dBiTotal(H-XY), Max= 0.83dBi, CirD=14.78 1.04 -0.8 -2.64 -4.49 -6.33 -8.17 -10.01 -11.85 -13.7 -15.54 -17.38 -19.22 -21.07 -22.91 -24.75 -26.59 -28.43 -30.28 2500.0MHz H+V, Eff: 48.6%Back View2500.0MHz Total(E1-XZ), Max= -0.31dBi2500.0MHz Total(E2-YZ), Max= -1.53dBiTotal(H-XY), Max= 0.97dBi, CirD=14.28 1.16 -0.69 -2.53 -4.37 -6.21 -8.05 -9.9 -11.74 -13.58 -15.42 -17.27 -19.11 -20.95 -22.79 -24.63 -26.48 -28.32 -30.16

Page1of34FCCID:2AFGFPXN-P6ReportNo.:LCSA111522006EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity AppendixA RFTestDataforBTLE(ConductedMeasurement) ProductName:WirelessGamingController TestModel:PXN-P6 EnvironmentalConditions Temperature:23.5°C RelativeHumidity:52.2% ATMPressure:100.0kPa TestEngineer:NickPeng Supervisedby:LiHuan Page2of34FCCID:2AFGFPXN-P6ReportNo.:LCSA111522006EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.16dBBandwidth ConditionModeFrequency(MHz)Antenna6dBBandwidth(MHz)Limit6dBBandwidth(MHz)Verdict NVNTBLE1M2402Ant10.677>=0.5Pass NVNTBLE1M2440Ant10.691>=0.5Pass NVNTBLE1M2480Ant10.688>=0.5Pass NVNTBLE2M2402Ant11.278>=0.5Pass NVNTBLE2M2440Ant11.269>=0.5Pass NVNTBLE2M2480Ant11.268>=0.5Pass Page3of34FCCID:2AFGFPXN-P6ReportNo.:LCSA111522006EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs 6dBBandwidthNVNTBLE1M2402MHzAnt1 6dBBandwidthNVNTBLE1M2440MHzAnt1 Page4of34FCCID:2AFGFPXN-P6ReportNo.:LCSA111522006EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 6dBBandwidthNVNTBLE1M2480MHzAnt1 6dBBandwidthNVNTBLE2M2402MHzAnt1 Page5of34FCCID:2AFGFPXN-P6ReportNo.:LCSA111522006EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 6dBBandwidthNVNTBLE2M2440MHzAnt1 6dBBandwidthNVNTBLE2M2480MHzAnt1 Page6of34FCCID:2AFGFPXN-P6ReportNo.:LCSA111522006EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.2MaximumConductedOutputPower ConditionModeFrequency(MHz)AntennaTotalPower(dBm)Limit(dBm)Verdict NVNTBLE1M2402Ant1-1.4230Pass NVNTBLE1M2440Ant1-1.3430Pass NVNTBLE1M2480Ant1-0.9330Pass NVNTBLE2M2402Ant1-1.4730Pass NVNTBLE2M2440Ant1-1.3730Pass NVNTBLE2M2480Ant1-0.9830Pass Page7of34FCCID:2AFGFPXN-P6ReportNo.:LCSA111522006EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs PowerNVNTBLE1M2402MHzAnt1 PowerNVNTBLE1M2440MHzAnt1 Page8of34FCCID:2AFGFPXN-P6ReportNo.:LCSA111522006EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity PowerNVNTBLE1M2480MHzAnt1 PowerNVNTBLE2M2402MHzAnt1 Page9of34FCCID:2AFGFPXN-P6ReportNo.:LCSA111522006EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity PowerNVNTBLE2M2440MHzAnt1 PowerNVNTBLE2M2480MHzAnt1 Page10of34FCCID:2AFGFPXN-P6ReportNo.:LCSA111522006EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.3MaximumPowerSpectralDensityLevel ConditionModeFrequency (MHz) AntennaConductedPSD (dBm/3kHz) Duty Factor(dB) TotalPSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNTBLE1M2402Ant1-14.740-14.748Pass NVNTBLE1M2440Ant1-14.970-14.978Pass NVNTBLE1M2480Ant1-14.310-14.318Pass NVNTBLE2M2402Ant1-15.50-15.58Pass NVNTBLE2M2440Ant1-15.570-15.578Pass NVNTBLE2M2480Ant1-15.660-15.668Pass Page11of34FCCID:2AFGFPXN-P6ReportNo.:LCSA111522006EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs PSDNVNTBLE1M2402MHzAnt1 PSDNVNTBLE1M2440MHzAnt1 Page12of34FCCID:2AFGFPXN-P6ReportNo.:LCSA111522006EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity PSDNVNTBLE1M2480MHzAnt1 PSDNVNTBLE2M2402MHzAnt1 Page13of34FCCID:2AFGFPXN-P6ReportNo.:LCSA111522006EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity PSDNVNTBLE2M2440MHzAnt1 PSDNVNTBLE2M2480MHzAnt1 Page14of34FCCID:2AFGFPXN-P6ReportNo.:LCSA111522006EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A…

Text truncated - open the document above for the full version.

Page24of34FCCID:2AFGFPXN-P6ReportNo.:LCSA111522006EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Tx.SpuriousNVNTBLE2M2440MHzAnt1Ref Tx.SpuriousNVNTBLE2M2440MHzAnt1Emission Page25of34FCCID:2AFGFPXN-P6ReportNo.:LCSA111522006EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Tx.SpuriousNVNTBLE2M2480MHzAnt1Ref Tx.SpuriousNVNTBLE2M2480MHzAnt1Emission Page26of34FCCID:2AFGFPXN-P6ReportNo.:LCSA111522006EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.6DutyCycle ConditionModeFrequency(MHz)AntennaDutyCycle(%)CorrectionFactor(dB)1/T(kHz) NVNTBLE1M2402Ant110000.01 NVNTBLE1M2440Ant110000.01 NVNTBLE1M2480Ant110000.01 NVNTBLE2M2402Ant110000.01 NVNTBLE2M2440Ant110000.01 NVNTBLE2M2480Ant110000.01 Page27of34FCCID:2AFGFPXN-P6ReportNo.:LCSA111522006EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs DutyCycleNVNTBLE1M2402MHzAnt1 DutyCycleNVNTBLE1M2440MHzAnt1 Page28of34FCCID:2AFGFPXN-P6ReportNo.:LCSA111522006EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity DutyCycleNVNTBLE1M2480MHzAnt1 DutyCycleNVNTBLE2M2402MHzAnt1 Page29of34FCCID:2AFGFPXN-P6ReportNo.:LCSA111522006EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity DutyCycleNVNTBLE2M2440MHzAnt1 DutyCycleNVNTBLE2M2480MHzAnt1 Page30of34FCCID:2AFGFPXN-P6ReportNo.:LCSA111522006EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.7RestrictBand ConditionModeFrequency (MHz) AntennaSpurFreq (MHz) Power (dBm) Gain (dBi) E (dBuV/m) DetectorLimit (dBuV/m) Verdict NVNTBLE1M2402Ant12310-49.73247.53Peak74Pass NVNTBLE1M2402Ant12310-57.62239.64Average54Pass NVNTBLE1M2402Ant12329.104-42.87254.39Peak74Pass NVNTBLE1M2402Ant12354.256-51.27245.99Average54Pass NVNTBLE1M2402Ant12390-46.58250.68Peak74Pass NVNTBLE1M2402Ant12390-56.58240.68Average54Pass NVNTBLE1M2480Ant12483.5-48.14249.12Peak74Pass NVNTBLE1M2480Ant12483.5-57240.26Average54Pass NVNTBLE1M2480Ant12483.632-45.47251.79Peak74Pass NVNTBLE1M2480Ant12491.72-56.63240.63Average54Pass NVNTBLE1M2480Ant12500-47.32249.94Peak74Pass NVNTBLE1M2480Ant12500-57.74239.52Average54Pass NVNTBLE2M2402Ant12310-48.45248.81Peak74Pass NVNTBLE2M2402Ant12310-57.94239.32Average54Pass NVNTBLE2M2402Ant12337.456-41.49255.77Peak74Pass NVNTBLE2M2402Ant12353.968-52.12245.14Average54Pass NVNTBLE2M2402Ant12390-46.85250.41Peak74Pass NVNTBLE2M2402Ant12390-54.55242.71Average54Pass NVNTBLE2M2480Ant12483.5-46.12251.14Peak74Pass NVNTBLE2M2480Ant12483.5-54.41242.85Average54Pass NVNTBLE2M2480Ant12491.504-44.15253.11Peak74Pass NVNTBLE2M2480Ant12483.512-54.41242.85Average54Pass NVNTBLE2M2480Ant12500-49.05248.21Peak74Pass NVNTBLE2M2480Ant12500-57.72239.54Average54Pass Page31of34FCCID:2AFGFPXN-P6ReportNo.:LCSA111522006EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs RestrictBandNVNTBLE1M2402MHzAnt1Peak RestrictBandNVNTBLE1M2402MHzAnt1Average Page32of34FCCID:2AFGFPXN-P6ReportNo.:LCSA111522006EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity RestrictBandNVNTBLE1M2480MHzAnt1Peak RestrictBandNVNTBLE1M2480MHzAnt1Average Page33of34FCCID:2AFGFPXN-P6Re…
