2AFH27199-66NECKBAND BLUETOOTH EARBUDS

Hi-fi hands-free bluetooth headphone user Manual Hello, dear customer Welcome for using our hi-fi hands-free bluetooth headphone , Please read carefully the user manual before use it to make sure proper operation . ！Keep it away from water , don’t immerse headphone in any liquid ！Keep it away from heat resource . ！Adjust the volume to proper,avoid to harm your health and device Function Spec introduction for Hi-fi hands-free bluetooth headphone ------------------------------------------------------------------------------------------- 1. Wireless bluetooth , can receive the bluetooth audio transmission signals for distance from 8-10 meters .We can also receive and control reversely bluetooth media player such as Iphone, Ipad ,PC, laptop and other bluetooth audio files .( few devices can not achieve all functions in effect from operation system or other reason). Call Answering for mobile phone /headphone switch , hi-fi calling , call quality is clear , no echo . 2. Call hands-free function Call answering for mobile phone / headphone ,Hi-Fi calling , call quality is clear , no echo. 3. Automatic re-connection ,memory play function For this function , can help you to re connect your bluetooth device which connected successfully last time . And memory play the music course before you turn off last time . 4. Micro USB port charging function Micro USB for charging， Easy and Convenient 5. Low power alarm , power off function When the power is not enough ,the headphone have low power alarm function and power off function automatically . Port / Button function explanation 1. Turn On / Turn Off / Play/ Pause key 2. Volume “-” key Under bluetooth connection status , short or long press it to make the volume smaller gradually. 3. Volume “+”key Under bluetooth connection status , short or long press it to make the volume larger gradually 4. Bluetooth key When the call is coming , headphone has a vibration alert ,short press one time for call answering ; Long press for 2 seconds for refuse ;Press two times continuously for returning to last call. 5. Next Track key Under bluetooth connection status ,short press for next track. 6. Previous Track key Under bluetooth connection status ,short press for previous track. 7. Play Mode Switch over Push switch button to sound outside play mode .This is 8、9 speaker sound .Pull switch button to headphone play mode.This is 10 speaker sound. 8. Left Outer Speaker 9. Right Outer Speaker 10. In-ear Earphone 11. Micro USB Charging port , standard 5V . Basic operation Explanation ： 1. Turn on/Turn off key.Vibrating alert 2 seconds when the headphone is switched on . Red and blue light flash alternately.After connect well , the headphone will make an indicated sound of “ Du, Du”.Bluetooth headphone name for “ Echo” .Under the music mode ,Short press “turn on” one time,stop music, Short press it again ,play music. 2. Under bluetooth connection status ,short or long press it to make the volume smaller gradually.short or long press it to make the volume larger gradually. 3. Under bluetooth mode , when the call is coming , short press bluetooth button for call answering .Short press bluetooth button for hanging up. When the call is coming ,long press about two seconds for refuse .Press two times continuously for returning to last call. 4. After pairing bluetooth connection.Under the music mode short press 5 for next track ,press 6 for previous track. 5. Play Mode Switch over ,Push switch button to sound outside play mode .This is 8、9 speaker sound. Pull switch button to headphone play mode.This is 10 speaker sound. 6. Connect Micro USB cable with computer USB port or adaptor for charging ,the indicator shows red light .the red indicated light become blue after the battery is full .You can charge when is turn on or off . We suggest to charge under power off status . 7. Bluetooth adopt point-point connection , we can only connect for one device for one time . Pairing mode can not be deleted under connection status , It only can be deleted in interrupt status. 8. It is not allowed to occur the same bluetooth device in the same media device in bluetooth list . Otherwise you can not find another same or similar named bluetooth headphone . Product Technical Specification 1. Product Dimension ：125mm（L）*185mm(W)*18mm(H) 2. Product Weight ： About 45G Headphone parameter : 1. Outer Speaker Diameter ：13*18mm Oval Speaker 2. Outer Speaker Impedance ：8Ω 3. Inner Speaker Diameter :6.9mm 4. Inner Speaker Impedance : 16Ω 5. Sensitivity ：90±3DB Bluetooth parameter ： 1. Bluetooth specification ： Bluetooth V4.0 2. Power supply voltage ： 3.3V～4.2V 3. Working current： ≤30mA 4. Standby current ： ≤50uA 5. Wireless transmission range More than 10 meters 6. Sensitivity ： -80dBm<0.1%BER 7. Frequency Range ： 2.402GHz-2.480GHZ 9. Audio Performance ： Support AAC,MP3,SBC,Stereo Battery Parameter ： 1. Battery specification: Standard battery : 138MA Lithium ion battery 2. Endurance Time ：up to 7-8hours ( based on 50% voice volume) ( if play High Bit Rate video , the play time will be shorter ) 3. Charging Standard ： AC 100v～240v/50-60Hz ，Output 5v/300～500MA（Use the standard international certified charger , or use computer USB port for charging ) 4. Charging time About 2 hours (depends on different current ) Product packing list Headphone 1pc USB Charging cable 1pc Product Manual 1pc Attention & Remark 1. You need select the mobile phone in mobile phone bluetooth settings , then you can use the hands-free function . 2. The headphone have bluetooth signal jamproof system , can prevent signal from interference;But under high frequency or ferromagnetic environment , the products still are disturbed . So try to avoid using the product under such environment . 3. Bluetooth belongs to bidirectional transmission device, the transmission distance will be affected according to different user media device . We suggest to use the proper bluetooth devices. 。 4. Few mobile phones do not have cross-fade function , so it…

Text truncated - open the document above for the full version.

RWD INDUSRIAL CO., LTD 3F, Block 1, Chuangxinghong Industrial Zone, Dashuikeng, No.1398, Guanguang Rd, Guanlan, Bao’an District, Shenzhen, China DATE :2015-08-04 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Kevin Yu of Shenzhen EBO Technology Co., Ltd. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with RWD INDUSRIAL CO., LTD and 3F, Block 1, Chuangxinghong Industrial Zone, Dashuikeng, No.1398, Guanguang Rd, Guanlan, Bao’an District, Shenzhen, China Dated this / Day of 4/8/2015 / Agency agreement expiration date: 3/8/2016 By: Raincy Jin Signature Printed Title: Marketing Executive On behalf of : RWD INDUSRIAL CO., LTD Telephone: +86 13823348480

RWD INDUSRIAL CO., LTD 3F, Block 1, Chuangxinghong Industrial Zone, Dashuikeng, No.1398, Guanguang Rd, Guanlan, Bao’an District, Shenzhen, China DATE :2015-08-04 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AFH27199-66 Product Name:NECKBAND BLUETOOTH EARBUDS Request for Long-term Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission rules, we hereby request that the following documents be held confidential long term:  Block diagram  Schematics  Operational Description These documents contain detailed system and equipment description and related information about the product which RWD INDUSRIAL CO., LTD. considers to be proprietary, confidential, and a custom design and, otherwise would not release to the general public. Since this design is a basis from which future technological products will evolve, RWD INDUSRIAL CO., LTD. Considers this information to be of benefit to its competitors, and that the disclosure of information in these documents would give competitors an unfair advantage in the market Dated this / Day of 4/8/2015/ By:Raincy Jin Signature Printed Title:Marketing Executive On behalf of : RWD INDUSRIAL CO., LTD Telephone:+86 13823348480 These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors.

RWD INDUSRIAL CO., LTD 3F, Block 1, Chuangxinghong Industrial Zone, Dashuikeng, No.1398, Guanguang Rd, Guanlan, Bao’an District, Shenzhen, China DATE : 2015-08-04 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AFH27199-66 Product Name:NECKBAND BLUETOOTH EARBUDS Request for Short-Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.  Test Setup Photos  External Photos  Internal Photos  User Manual These documents contain detailed system and equipment description and related information about the product which RWD INDUSRIAL CO., LTD. considers to be proprietary, confidential, and a custom design and, otherwise would not release to the general public. Since this design is a basis from which future technological products will evolve, RWD INDUSRIAL CO., LTD. considers this information to be of benefit to its competitors, and that the disclosure of information in these documents would give competitors an unfair advantage in the market This request is being made retroactively due to an over site on our part. We understand that the information has been publicly available since the date of grant. Dated this / Day of 4/8/2015/ By:Raincy Jin Signature Printed Title:Marketing Executive On behalf of : RWD INDUSRIAL CO., LTD Telephone:+86 13823348480 information has been publicly available after 180 days since the date of grant.

Differences Declaration To whom concern, We, RWD INDUSRIAL CO., LTD hereby declares: The product model(s) RWD-P750BT, 7199-66 are identical in the PCB layout, interior structure and electrical circuits with the product model 7199-66, the only differences are the model name for commercial purpose. Authorized signature:  Position: Marketing Executive Date: 2015/8/9 The product model(s) RWD-P750BT is identical in the PCB layout, interior structure and electrical circuits with the product model 7199-66, the only differences are the model name for commercial purpose.

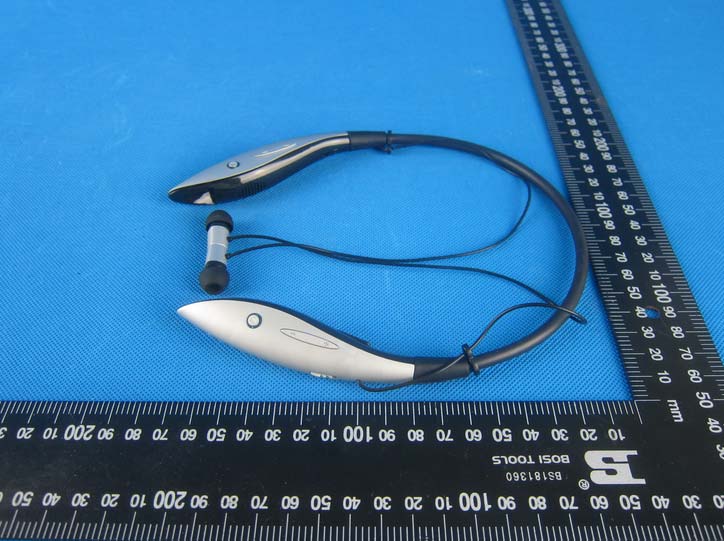

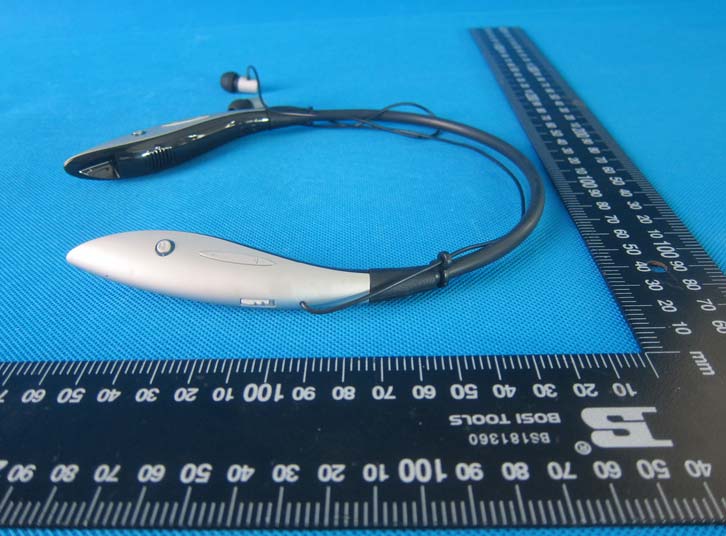

External Photos of EUT Sample

Label Label location

Internal Photos of EUT Sample RF Antenna

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Ant gain 0dBi, so Ant numeric gain=1 Field strength = 98.93 dBuV/m @3m So Pt={ [10 ( 98.93 /20) /10 6 x3] 2 /30x1 }x1000 mW = 2.345 mW So (2.345 mW/5mm)x √2.441 GHz = 0.74 < 3 Then SAR evaluation is not required

Shenzhen EBO Technology Co., Ltd . 1-4F, Huafeng Science Park, Xin’an Sixth Road, 82 th District, Bao’an, Shenzhen, China. Telephone: +86-755-29451282, Fax: +86-755-22639141 Report No.: EBO1507067-E541 Page: 1 of 23 Authorized Signature: Kevin Yu Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the EBO product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of EBO International Electrical Approvals or testing done by EBO International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by EBO International Electrical Approvals in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only FCC REPORT Applicant: RWD INDUSRIAL CO., LTD Address of Applicant: 3F, Block 1, Chuangxinghong Industrial Zone, Dashuikeng, No.1398, Guanguang Rd, Guanlan, Bao’an District, Shenzhen, China Equipment Under Test (EUT) Product Name: NECKBAND BLUETOOTH EARBUDS Trade Mark: LEEDS Model No.: RWD-P750BT, 7199-66 FCC ID: 2AFH27199-66 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249:2014 Date of sample receipt: July 22, 2015 Date of Test: July 22, 2015 To July 31, 2015 Date of report issued: July 31, 2015 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Shenzhen EBO Technology Co., Ltd . Report No.: EBO1507067-E541 Page: 2 of 23 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.ebotek.cn 2 Version Version No. Date Description 00July 31, 2015 Original Prepared By: Date: July 31, 2015 Project Engineer Check By: Date: July 31, 2015 Reviewer and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.ebotek.cn. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” Testd By: Shenzhen EBO Technology Co., Ltd . Report No.: EBO1507067-E541 Page: 3 of 23 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.ebotek.cn and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.ebotek.cn. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 3 Contents Page 1 COVER PAGE ...........................................................................................................................................1 2 VERSION .................................................................................................................................................. 2 3CONTENTS.............................................................................................................................................. 3 4TEST SUMMARY ..................................................................................................................................... 4 4.1M EASUREMENT UNCERTAINTY............................................................................................................ 4 5GENERAL INFORMATION...................................................................................................................... 5 5.1C LIENT INFORMATION......................................................................................................................... 5 5.2G ENERAL DESCRIPTI…

Text truncated - open the document above for the full version.

Shenzhen EBO Technology Co., Ltd . 1-4F, Huafeng Science Park, Xin’an Sixth Road, 82 th District, Bao’an, Shenzhen, China. Telephone: +86-755-29451282, Fax: +86-755-22639141 Report No.: EBO1507067-E542 Page: 1 of 23 Authorized Signature: Kevin Yu Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the EBO product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of EBO International Electrical Approvals or testing done by EBO International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by EBO International Electrical Approvals in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only FCC REPORT Applicant: RWD INDUSRIAL CO., LTD Address of Applicant: 3F, Block 1, Chuangxinghong Industrial Zone, Dashuikeng, No.1398, Guanguang Rd, Guanlan, Bao’an District, Shenzhen, China Equipment Under Test (EUT) Product Name: NECKBAND BLUETOOTH EARBUDS Trade Mark: LEEDS Model No.: RWD-P750BT, 7199-66 FCC ID: 2AFH27199-66 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249:2014 Date of sample receipt: July 22, 2015 Date of Test: July 22, 2015 To July 31, 2015 Date of report issued: July 31, 2015 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Shenzhen EBO Technology Co., Ltd . Report No.: EBO1507067-E542 Page: 2 of 23 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.ebotek.cn 2 Version Version No. Date Description 00July 31, 2015 Original Prepared By: Date: July 31, 2015 Project Engineer Check By: Date: July 31, 2015 Reviewer and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.ebotek.cn . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” Testd By: Shenzhen EBO Technology Co., Ltd . Report No.: EBO1507067-E542 Page: 3 of 23 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.ebotek.cn and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.ebotek.cn . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 3 Contents Page 1 COVER PAGE............................................................................................................................................ 1 2 VERSION .................................................................................................................................................. 2 3CONTENTS.............................................................................................................................................. 3 4TEST SUMMARY..................................................................................................................................... 4 5GENERAL INFORMATION...................................................................................................................... 5 5.1CLIENT INFORMATION......................................................................................................................... 5 5.2GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3TEST…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS 1. Conducted Emission Test Setup 2. Radiated Emission Test Setup
