Installation Guide www.janusintl.com/noke INTRODUCTION 1 Before Starting This installation guide provides instructions for installing a Nokē Screen in various settings such as pedestrian gates, parking entries, and interior pedestals. The Nokē Screen controls existing electronic locks. This guide is intended for licensed electricians and trained technicians only. Make sure you have received the parts listed below--contact your dealer for any missing parts. The Nokē Screen also includes a software application (app) which can be downloaded from noke.app. Parts Note: The Backplate is delivered with a Mylar film over the Mounting Holes for additional waterproofing. Before mounting the Backplate to a shroud or wall, the installers will need to remove this Mylar film. Nokē Screen Backplate Mounting Screws Torx Wrench Anchors Torx Screws Mounting Holes SPECIFICATIONS 2 Dimensions 2in. x 0.8in. x 5in. (5cm. x 2cm. x 12.7cm) Material Polished Zinc Connectivity Bluetooth enabled, WiFi Power 12V - 24V DC input (requires 2 Amp capable), PoE Backup Battery None (backup from power supply switch) Lock Activation 850mA / 0.01-25 Sec. Operating Temperature -22°F to 140°F (-30°C to 60°C) Water Resistance Rating IPX6 Buttons Backlit for visibility Alerts Multi-color LED indicator and auditory sounds INSTALLATION 3 Installing the Backplate Before drilling into walls, make sure there are no water or electrical lines in the way. For wall mounting, use a pencil to trace the desired back plate holes onto the wall. Then, drill the holes in the wall and set the anchors. If mounting on any masonry exterior walls, use machine screws for metal plates and toggle screws for interior drywall. Check that the bottom tabs on the back plate are facing away from the wall. Also, make sure the wall hole for the electrical power lines up with the large center hole in the back plate. Note: Installers need to fill any gaps in the screw holes (illustrated in red) to create a waterproof seal. Also, make sure you remove outer stickers from waterproofing sticker. Screw Backplate Wiring Tabs Wall Anchor Because the Backplate is also a heatsink, these upper and lower holes need to be clear of silicone and debris. By keeping these holes clear, natural convention can occur. INITIALIZATION 4 Wiring When using PoE for power and data, connect the CAT6 into the control board port as shown below. 1. No devices other than Nokē products should be plugged into the switch. 2. Use approved conduit only--never run high voltage inside. Always adhere to all local building and electrical codes. 3. If there are any discrepancies between your local building codes and this manual, always adhere to local codes, which take precedence. Nokē Screen Control Board Cat6 Line Power Board (Close Up) Entry Point INITIALIZATION 5 When not using PoE for power and data, use an Altronix power supply to power Nokē Screen. Data will need to be provided via WiFi. First, connect the power supply wire (12V- 24V DC) and both the ground (GND) and earth ground (ESD GND) wires to their relay push pin connectors on the relay board, and then insert the relay board into the control board. (Use only 18-gauge, 2 conductor wire.) Connect wires coming from the entry point (or gate) to the common (COM) and either normally open (NO) or normally closed (NC) pins on the power board. Extra connectors are provided on the power board to connect and control additional electrical locks to the Nokē Screen. Power Board (Close Up) Nokē Screen Control Board Note: Gate wiring can be installed into NC_1, depending upon the type of entry being used. +24v DC Ground Entry Point INITIALIZATION 6 Setting Up the Application To initialize the Nokē Screen, you can either gather information from the unit and submit it online or use the Nokē Sma rt Entry mobile device application (available on Google Play/Apple stores). The website is: www.smartentry.noke.com. Before initializing the device, you need a Nokē login and password (see your Janus International Project Manager), and the device must be connected to a PoE cable or 12V- 24V power supply and data line (Ethernet cable). To initialize your Nokē Screen, 1. Once the device is powered up properly, the Welcome Screen displays. 2. Press C on the keypad to access the Test/Diagnostics menu. 3. Press 9 on the keypad to display the device information. 4. Take a photo of the device information since this initialization screen only appears this one time. 5. Press 0 on the keypad to display the QR code. 6. Log in to the Storage Smart Entry app and navigate to the device site. (If you have access to multiple sites, an arrow next to the site name appears on the Home screen.) INITIALIZATION 7 7. Press Upload. 8. Go to the menu page (icon on the upper- right corner of the app) and press Add Gateway. 9. Name the gateway with a similar name to the device name. 10. Use the Comments section to record how the device was wired (for example, PoE, 12V D.C. etc.). INITIALIZATION 8 11. Press Save and Finish. INITIALIZATION 9 12. Press the + button in the upper right-hand corner of the app to add your device. 13. Using the app, scan the QR code on the Nokē Screen display. 14. After scanning, name your device and select what type of entry it controls (for example, gate, door, elevator, sliding door, etc.). Consider using a logical name or consult with a facility manager when naming the device. INITIALIZATION 10 15. When finished, press Done. INITIALIZATION 11 Connecting to WiFi Before connecting the Nokē Screen keypad to the WiFi, you need your device’s SSID and password. Usually, you can find this on the bottom of your device. To connect to WiFi, 1. From the Nokē Smart Entry Web Portal, select Settings > WiFi, and then select the + icon in the top-right corner. The Add WiFi Network form is displayed. 2. Add your device’s Network SSID and Network Passphrase into the form, and then select Add WiFi Network. 3. Add the new Nokē Screen keypad to the site in your mobile app. 4. Connec…

Text truncated - open the document above for the full version.

Noke Inc Agent Authorization Company: Noke Inc Address: 2000 Ashton Blvd. Suite 375 Lehi,Utah 84043, United States Product Name: NokeScreen Model Number(s): KP2-000001 Product Description: NokeScreen We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022/09/19 Name: Jack Gosling Title: Director o f Hardware Company: Noke Inc

Noke Inc Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022/09/19 Subject; Request for Confidentiality FCC ID: 2AFRJ-KP2-000001 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jack Gosling Title: Director o f Hardware

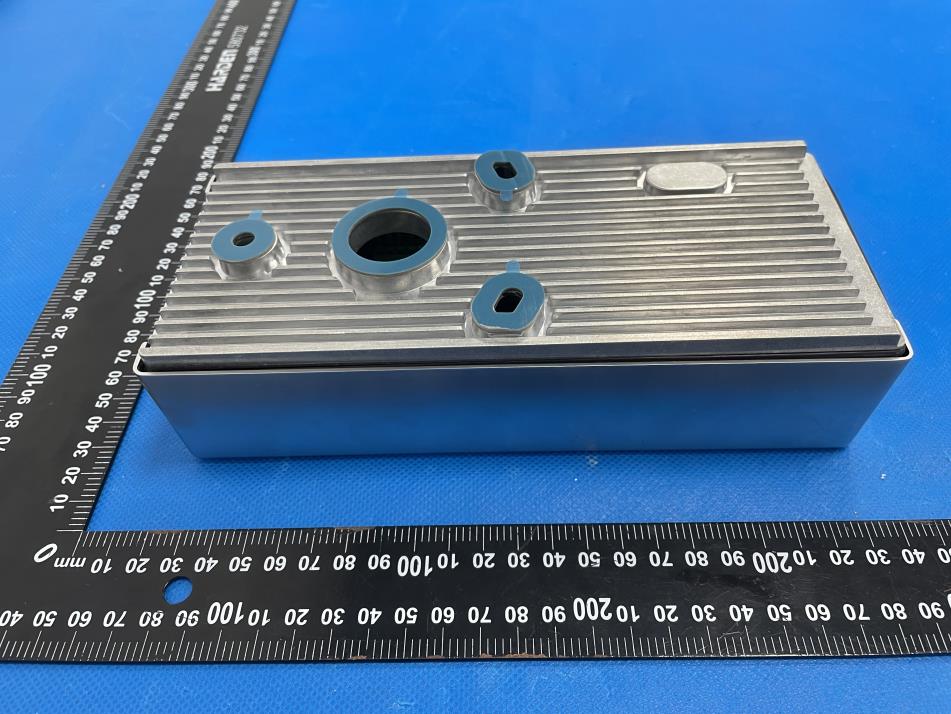

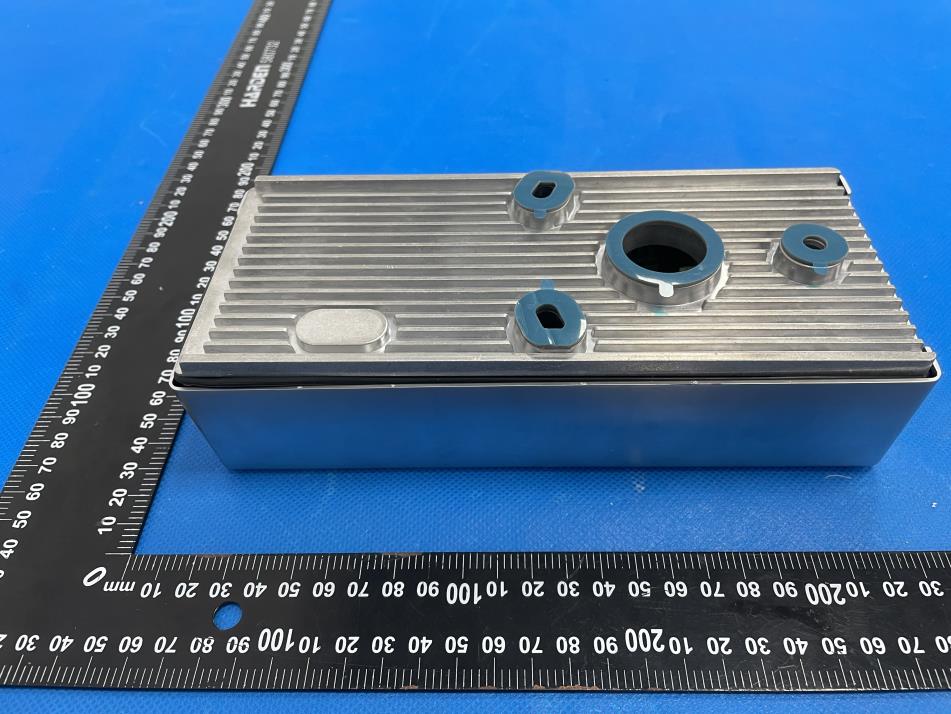

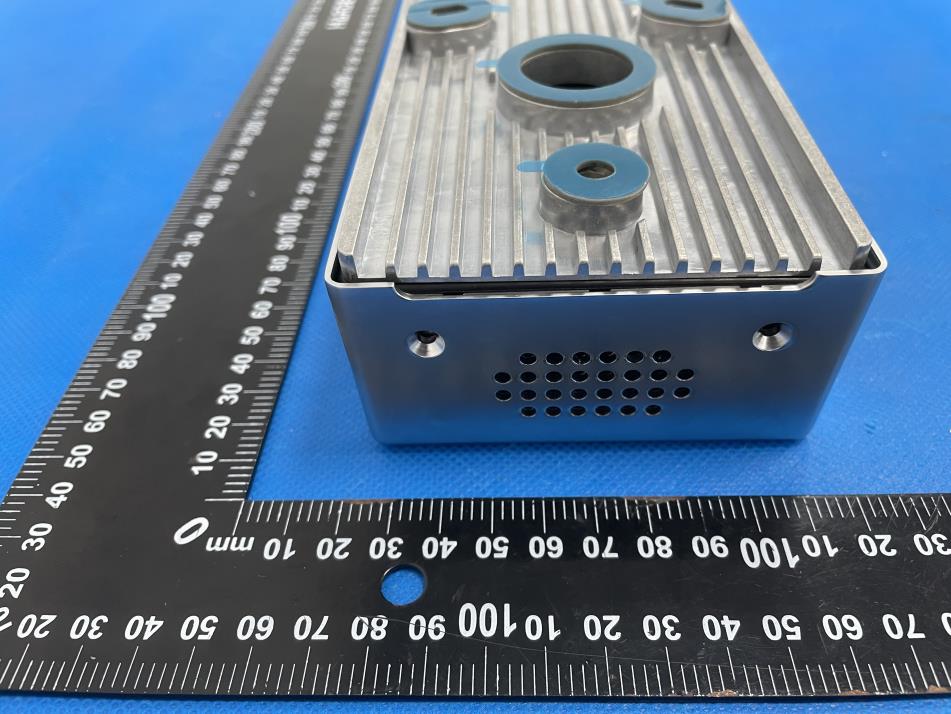

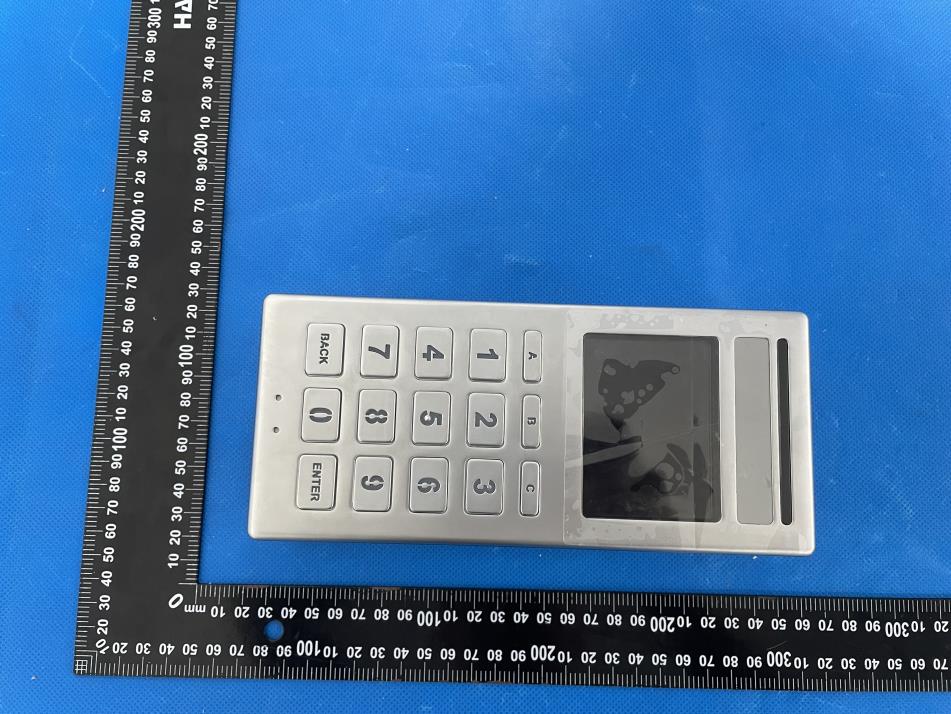

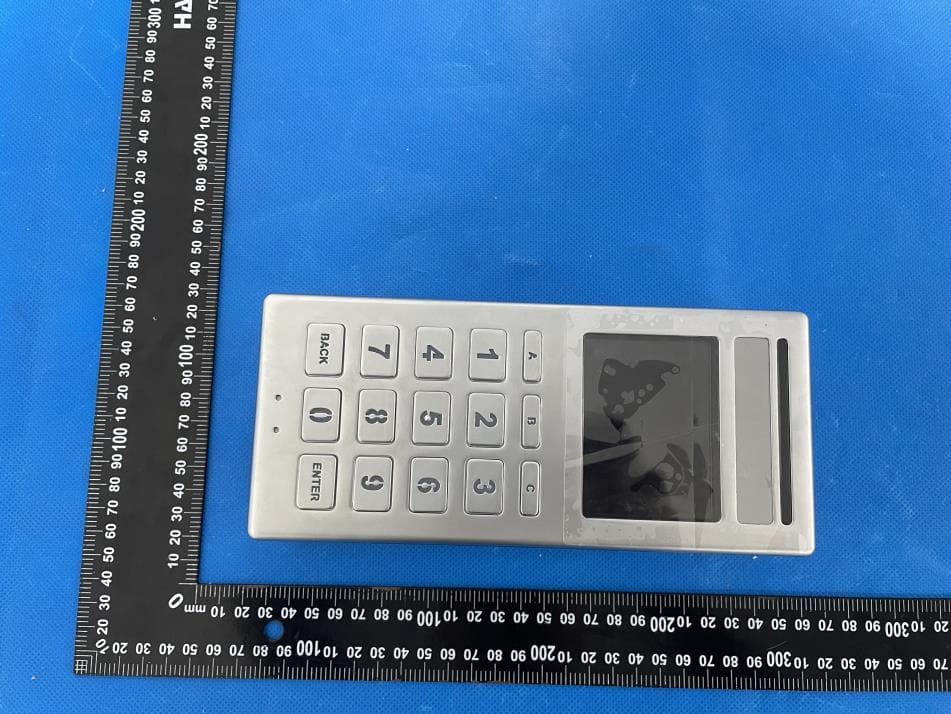

External Photos (FCC ID: 2AFRJ-KP2-000001)

Size:40*20mm NokeScreen FCC ID: 2AFRJ-KP2-000001 Label location

Internal Photos (FCC ID: 2AFRJ-KP2-000001) Antenna WIFI BT Antenna B BT Antenna A

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2AFRJ-KP2-000001 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS Tune up Produce power Maximum peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result BLE 4±1 5 3.16 0.63(-1.98dBi) 0.00040 1 Pass 2.4GWIFI 14±1 15 31.62 2.12(3.26dBi) 0.01334 1 Pass For the Max simultaneous transmission: Power Density (S) (mW/ cm2) Total Power Density (S) Limit Result BLE 0.00040 0.01374 1 Pass 2.4GHz WIFI 0.01334 For the max result : 0.01374≤ 1.0, compliance with FCC's RF Exposure
