2AFRVFC-MB-R10QRF Mini RGB controller

Shenzhen FeiCan Technology CO.,LTD ADD：5F, B Block of E Building,Lianchuang Industrial Area,Zhangge Tangqian village,Guanlan Street,Longhua District,Shenzhen,China TEL:0755-66609352 FAX:0755-21503635 E-mail:[email protected] http://feicanled.en.alibaba.com/ 1/4 1 Product Specifications Products name：RF Mini RGB controller Model number：FC-MB-R10Q Product Description: This RF Mini RGB controller adopted the advanced computer control chip. Controlled by 433Mhz wireless remote.Its mainly used to controlled all kinds of constant voltage led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.It integrated with low cost,easy connection,simple manipulation and others advantages.User can choose the mode of fade, strobe,Blasting flash,flicker,and other Static color model. What’s more, this controller have the characteristics of small volume, easy to carry,etc, its popular amount the many markets. Technical Parameters: ● Working temperature：-20-60°C ● Input voltage：DC5-24V ● Output：3 circuit ● Connection mode：Common anode ● controller size：L40.0×W12.0×H5mm ● controller size：L85.9×W39.6×H6.9mm ● Net weight：35g Shenzhen FeiCan Technology CO.,LTD ADD：5F, B Block of E Building,Lianchuang Industrial Area,Zhangge Tangqian village,Guanlan Street,Longhua District,Shenzhen,China TEL:0755-66609352 FAX:0755-21503635 E-mail:[email protected] http://feicanled.en.alibaba.com/ 2/4 2 ● Gross weight：40g ● Static power consumption：<0.5W ● Output current：<2A*3CH(each circuit) ● Output power： 5V:<30W, 12V:<72W External dimension: （controller size） （Remote size） Connection description: Power input :5.5x2.1mm female DC connector Signal output port:2.54mm female 4 pins Direction for use: 1.The match code instructions: Press the ON/OFF key within 4 seconds when power the controller.Each time powered the controller, just can be match code for one time. If want to match code again, then Shenzhen FeiCan Technology CO.,LTD ADD：5F, B Block of E Building,Lianchuang Industrial Area,Zhangge Tangqian village,Guanlan Street,Longhua District,Shenzhen,China TEL:0755-66609352 FAX:0755-21503635 E-mail:[email protected] http://feicanled.en.alibaba.com/ 3/4 3 need to cut off the power , connected to the power again. 2.Remote control function instructions: There are 10 buttons on the remote , the functions are as below: Turn ON/OFF the controller. Press this key within 4 seconds to match code when powered the controller. Auto play key. on any state to press this button , the controller will be take turns to play each dynamic mode by cycle for 3 times. In dynamic mode, press this key switch to static mode for the first time,the color will backword/forward to the next color when press each time. In dynamic mode, press this key switch to static mode for the first time,the brightness will increase/decrease for one level when press each time,total 5 level. In static mode, press this key switch to dynamic mode for the first time,switch to the next backward/forward mode when press each time. In static mode, press this key switch to dynamic mode,the changing speed will increase/decrease for one level when press each time,total 10 level. 3、This controller's sequence is +RGB order,in case of other sequence(+BRG/+GRB) will appear in the other effect. Based on sequence of + RGB, pattern are as follows: Dynami c model NO. Mode NO. Mode NO. Mode 1 7 color fade 8 Purple fade in and fade out 15 Blue blasting flash 2 3 color fade in and fade out 9 Blue fade in and fade out 16 Purple blasting flash 3 7 color fade in and fade out 10 3 Color Jump 17 Yellow blasting flash 4 White fade in and fade out 11 6 color Jump 18 White blasting flash 5 Green fade in and fade out 12 3 color flash 19 3 color blasting flash 6 Yellow fade in and fade out 13 Red blasting flash Shenzhen FeiCan Technology CO.,LTD ADD：5F, B Block of E Building,Lianchuang Industrial Area,Zhangge Tangqian village,Guanlan Street,Longhua District,Shenzhen,China TEL:0755-66609352 FAX:0755-21503635 E-mail:[email protected] http://feicanled.en.alibaba.com/ 4/4 4 7 Red fade in and fade out 14 Green blasting flash Static mode NO. Mode NO. Mode NO. Mode 1 Red 8 Milk-white 15 Blue-purple 2 Green 9 Dark yellow 16 Yellow-white 3 Blue 10 Sky blue 17 yellow 4 White 11 Brown 18 cyan 5 Orange 12 Pink-white 19 purple 6 Light green 13 Light-yellow 20 Blue-white 7 Dark blue 14 Light blue Typical Applications: cautions 1、This products Input voltage is DC5-24V,other input voltage are not allowed. 2、Lead wire should be connected correctly,according to the wire color and the connecting diagram offers. 3、Overload are prohibited. FCC Caution： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna . -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a…

Text truncated - open the document above for the full version.

Shenzhen FeiCan Technology Co., Limited Agent Authorization Company: Shenzhen FeiCan Technology Co., Limited Address: 5B, B Block of E Building, Lianchuang Industrial Area, Zhangge Tangqian village, Guanlan Street, Longhua District, Shenzhen, China Product Name: RF Mini RGB controller Trademark: N/A Model Number(s): FC-MB-R10Q FCC ID: 2AFRVFC-MB-R10Q We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020/11/26 Name: Wendy Luo Title: sales manager Company: Shenzhen FeiCan Technology Co., Limited

Shenzhen FeiCan Technology Co., Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020/11/26 Subject; Request for Confidentiality FCC ID: 2AFRVFC-MB-R10Q To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Wendy Luo Title: sales manager

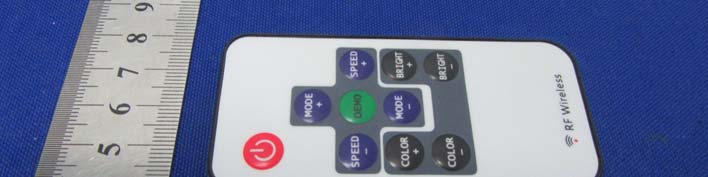

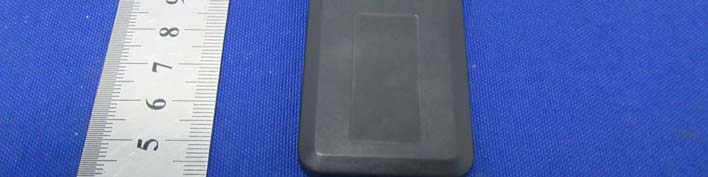

External Photos
