2AFRVFC433RMT5Remote Controller

User Manual Products Name:Wireless RF 20 Keys LED Controller Model No:FC-L1B-R20Q Products Description: Wireless RF 20 Keys RGB controller adopted the advanced computer control chip. Its mainly used to controlled all kinds of constant voltage led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.It integrated with easy connection,simple manipulation and power off memory function.User can choose color jump, fade,fash mode ,and the lights brightness are adjustable according to the user actual requirement. Technical Parameters: ● Working temperature：-20-60°C ● Input voltage：DC12~24V Optional ● Output：3 circuit ● Connection mode：Common anode or Cathode ● Controller size：L102.5×W65×H30mm ● package size：L135×W80×H54mm ● Net weight：190g ● Function Model:14models. ● Static power consumption：<1W ● Output current：<4A/ch ● Output power： 12V/4A < 144W；24V/4A< 288W； External Dimension: Connecting Drawing: Key Functions: R R F F 2 2 0 0 K K e e y y s s Key Function On/off Turn on/off Brightness+/- Press this two keys to increase/decrease the brightness Static color mode key Can be choose the Static model fast by the key Speed up/down press these two keys to increase/decrease the changing speed AUTO Press this key to realize Dynamic mode FLASH White color strobe Press this key to realize 7 color strobe JUMP3 Dynamic mode key Press this key to realize 3 color jump JUMP7 Dynamic mode key Press this key to realize 7 color jump FADE3 Dynamic mode key Press this key to realize 3 color fade mode FADE7 Dynamic mode key FADE7 Dynamic mode key Direction for using: 1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power； 2. Operation: you will receive remote control in front of receiver to ensure that there is no barrier between the remote controller and receiver. 3.The key-press functions are shown in the table as below (in accordance with the key position order): Common Problem and solution method: Problems Possible cause Solution Lamp does not light after power 1.Power cord is not properly connected, or there is not output switching power supply 2.Lamp power cord is not connected or short circuit 1.Connect the power cord properly or replay the power 2.Connected lighting power cord 2. After connecting some of the load the controller does not work The connected load is too large，so that it has burned in some of the components of the controller Replace parts of components or replace the controller 3. After connecting to power the controller is working properly，but remote control can not work 1. The blank on the button cell of remote controller did not pulled out 2. the remote controller do not target the receiver 1.Take away the transparent blank 2.Target the remote controller to the receiver Brightness + Brightness - pause ON/OFF Static red Static green Static blue Static white Static orange Static yellow Static Cyan Static purple Auto run Three color jump Three color fade Speed + Flash Seven color jump Seven color fade Speed - FCC Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Shenzhen FeiCan Technology Co., Limited Address: 5F, B Block of E Building,Lianchuang Industrial Area,Zhangge Tangqian village, Guanlan Street,Longhua District,Shenzhen, China Tel: 0755-66609352 Fax: 0755-21503635 2015-09-07 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: 2AFRVFC433RMT5 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Wendy Luo / sales manager Contact information / address : 5F, B Block of E Building,Lianchuang Industrial Area,Zhangge Tangqian village, Guanlan Street,Longhua District,Shenzhen, China Tel: 0755-66609352 Fax: 0755-21503635 E-mail: [email protected]

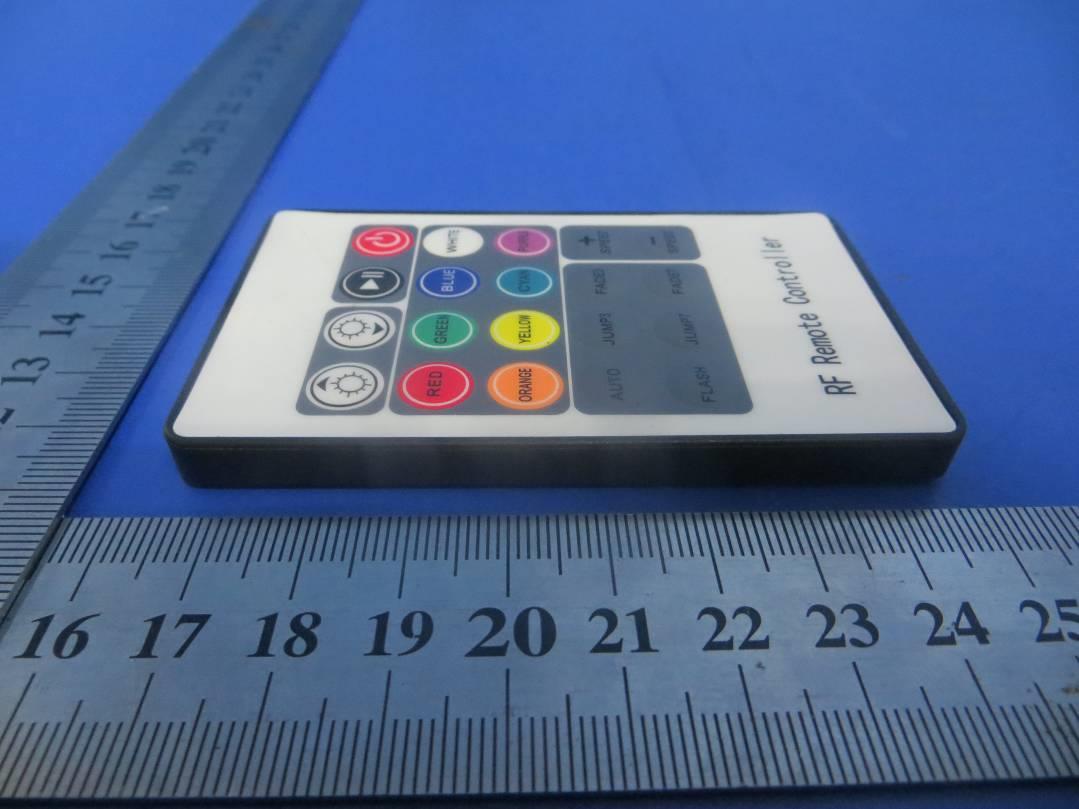

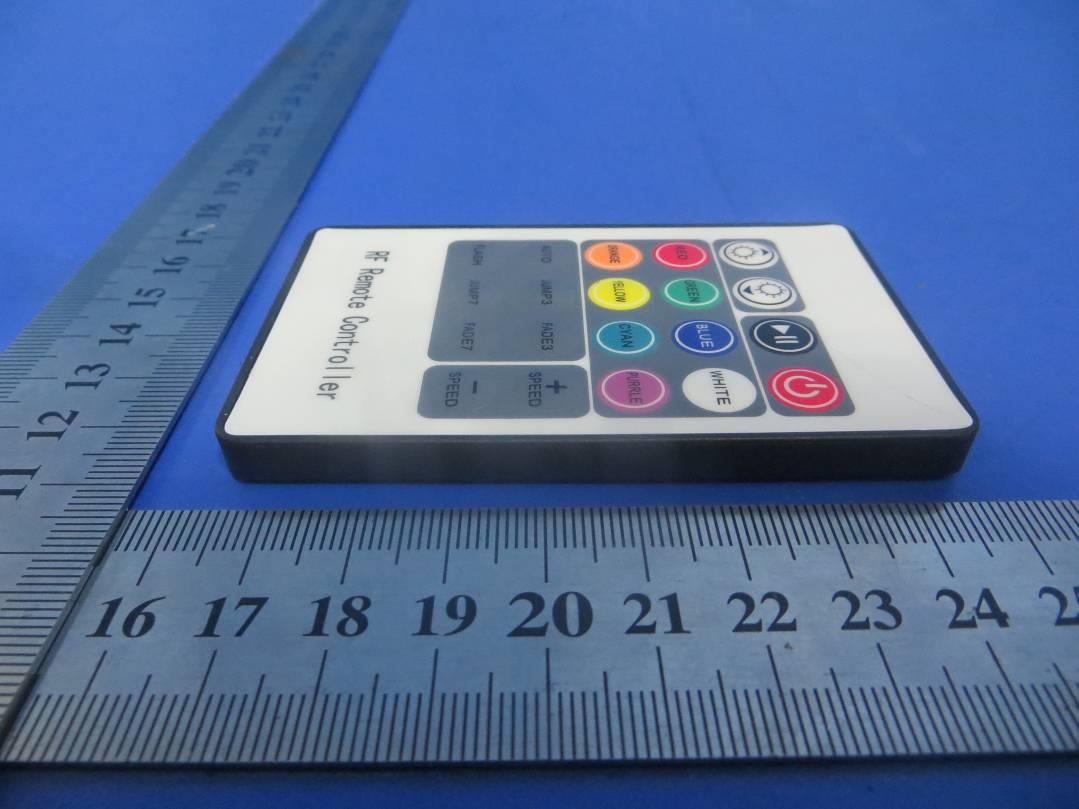

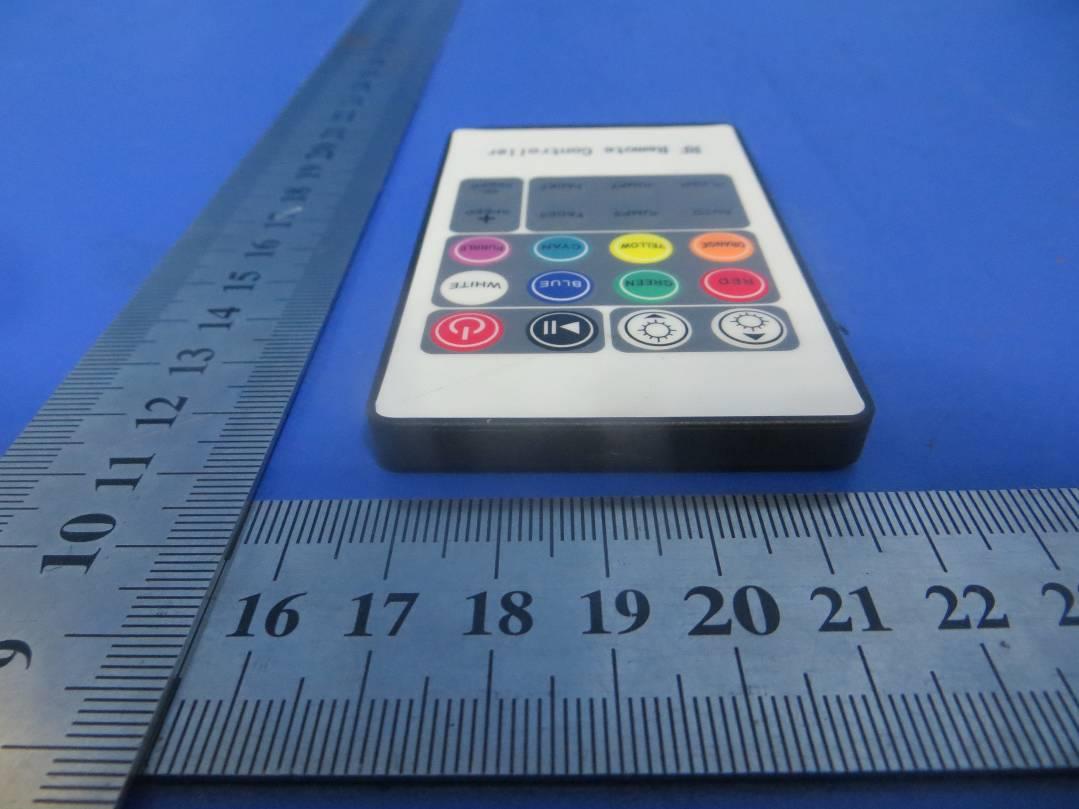

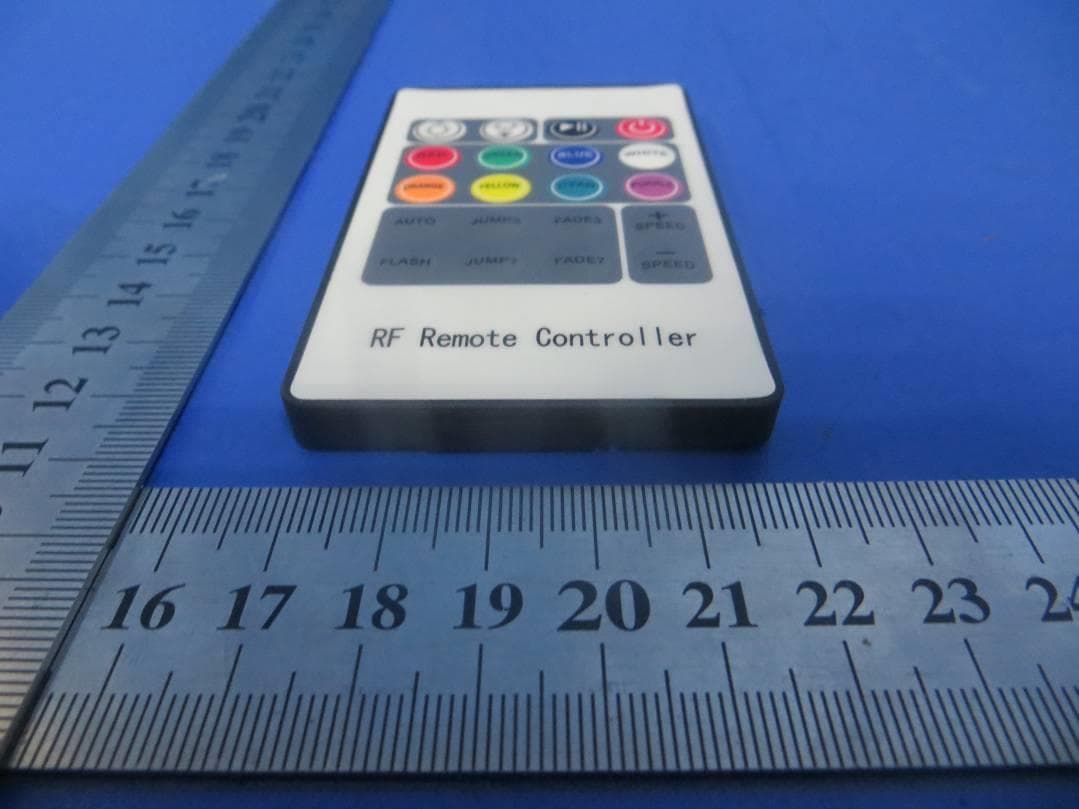

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFRVFC433RMT5 Report No.: LCS1508211255E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1. EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFRVFC433RMT5 Report No.: LCS1508211255E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFRVFC433RMT5 Report No.: LCS1508211255E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFRVFC433RMT5 Report No.: LCS1508211255E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AFRVFC433RMT5 Report No.: LCS1508211255E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size:L:2.5cm*W:1.0cm Label And Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFRVFC433RMT5 Report No.: LCS1508211255E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFRVFC433RMT5 Report No.: LCS1508211255E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3 Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFRVFC433RMT5 Report No.: LCS1508211255E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 28 FCC TEST REPORT For Shenzhen FeiCan Technology Co., Limited Remote Controller Prepared for : Shenzhen FeiCan Technology Co., Limited Address : 5F, B Block of E Building,Lianchuang Industrial Area,Zhangge Tangqian village, Guanlan Street,Longhua District,Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : August 21, 2015 Number of tested samples : 1 Serial number : Prototype Date of Test : August 21, 2015 – September 07, 2015 Date of Report : September 07, 2015 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFRVFC433RMT5 Report No.: LCS1508211255E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 28 FCC TEST REPORT FCC CFR 47 PART 15 C(15.231): 2014 Report Reference No. .............. : LCS1508211255E Date of Issue ................................ : September 07, 2015 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : Shenzhen FeiCan Technology Co., Limited Address ........................................ : 5F, B Block of E Building,Lianchuang Industrial Area,Zhangge Tangqian village, Guanlan Street,Longhua District,Shenzhen, China Test Specification Standard ....................................... : FCC CFR 47 PART 15 Subpart C : 2014 Test Report Form No. ................ : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : Remote Controller Trade Mark .................................. : FEICAN Model/ Type reference ................. : FC-L1B-R20Q Working voltage .......................... : DC 3V by battery Result ......................................... : Positive Compiled by: Supervised by: Approved by: Jacky Li/ File administrators Glin Lu/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFRVFC433RMT5 Report No.: LCS1508211255E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 28 FCC--TEST REPORT Type / Model........................... : FC-L1B-R20Q EUT......................................... : Remote Controller Applicant............................... : Shenzhen FeiCan Technology Co., Limited Address.................................. : 5F, B Block of E Building,Lianchuang Industrial Area,Zhangge Tangqian village, Guanlan Street,Longhua District,Shenzhen, China Telephone............................... : 0755-66609352 Fax.......................................... : 0755-21503635 Manufacturer........................ : Shenzhen FeiCan Technology Co., Limited Address................................... : 5F, B Block of E Building,Lianchuang Industrial Area,Zhangge Tangqian village, Guanlan Street,Longhua District,Shenzhen, China Telephone............................... : 0755-66609352 Fax.......................................... : 0755-21503635 Factory................................... : Shenzhen FeiCan Technology Co., Limited Address................................... : 5F, B Block of E Building,Lianchuang Industrial Area,Zhangge Tangqian village, Guanlan Street,Longhua District,Shenzhen, China Telephone............................... : 0755-66609352 Fax.......................................... : 0755-21503635 Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1508211255E September 07, 2015 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFRVFC433RMT5 Report No.: LCS1508211255E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 28 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................... 5 1.2. OBJECTIVE ............................................................................................................................................................ 5 1.3. ENVIRONMENTAL CONDITIONS ............................................................................................................................. 6 1.4. HOST SYSTEM CONFIGURATION LIST AND DETAILS .....…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFRVFC24GRMT4 Report No.: LCS1508211254E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 1. TEST SETUP PHOTOGRAPHS 1.1 Photo Of Radiated Emission Measurement(X Position) Fig.1 Fig.2
