2AFRVFC24GRMT42.4G Remote Controller

Pictures Product Description Controller Technical Parameters 2.4G Touch Screen RGB LED control system ●Working Voltage：DC12-24V ●Max Load Control Current：6A/circuit ●Standby Power Consumption：0.5W ●Output Connection: Common anode ●Common anode：85mm×45mm×23mm Mode No:FC-PB-RGB2.4G manufactuer: Shenzhen Feican Technology Co.,Limited trade mark:FEICAN ●This system is a high-performance RGB LED touch remote controller, adopting the most advanced PWM control technology, controlling all RGB LED products with Five lines and three circuits( common anode),owning 640 thousand colors and 12 automatical changing modes to choose. ●Also, It has the memory function(that is to say, the previous settings will be resumed when power on again). It is widely used in LED RGB strip light, LED module and so on.With the technology of the 2.4G high frequency wireless remote control, it has the the characteristics of low power consumption, long distance transmission, and strong anti-interference ability ,high speed telecommunications, etc. ●The remote looks fashionable and elegant , with simple and practical functions of color changing and brightness dimming, the capacitive touch screen design makes the remote easy to use . ●The modular design and easy screwed terminals enable the controller easy to match with all kinds of LED lights. Remote Technical Parameters Remote Functions of Keys NumberMode Brightness state Speed stateNumberMode Brightness state Speed state 1 Static white colorAdjustableUnadjustable 11White color glitters AdjustableAdjustable 2 White color gradual changes AdjustableAdjustable 12Red color frequently blinks AdjustableAdjustable 3 All colors gradual changeAdjustableAdjustable 13Red color glitters AdjustableAdjustable 4Red/green/ blue three colors gradual change AdjustableAdjustable 14Green color frequently blinks AdjustableAdjustable 5Seven colors jump to change AdjustableAdjustable 15Green color glitters AdjustableAdjustable 6Three colors jump to change AdjustableAdjustable 16Blue color frequently blinks AdjustableAdjustable 7Red/ green jumps to change AdjustableAdjustable 17Blue color glitters AdjustableAdjustable 8Red/blue jumps to change AdjustableAdjustable 18Yellow color frequently blinks AdjustableAdjustable 9Blue/green jumps to change AdjustableAdjustable 19Yellow color glitters AdjustableAdjustable 10White color frequently blinks AdjustableAdjustable 20 Programming(Code Clearing and Code Matching ) Remark:Mode"1" White only;Mode"2"Color ring free to choose,Brightness adjusts color light only;Mode"3" White (off) ●Code Matching：For a new kit ( remote& controller), the remote can work only when it is programmed to the controller.Please follow the below instructions: Confirm correctly connect the power supply, LED controller and LED load. Press key 5 once within 3 seconds when power on again,the light will blink 3 times when it is done. ●Code Clearing：The code can be cleared as needed.The kit (remote and controller) will stay in the original state after code clearing,and it can work when code matching is done. Please follow the below instructions: Switch off the power, then switch on again, and long press key 5(within 3 seconds) the moment you see the light is on.The LED light blinks nine times swiftly when it is done. Program List Circulation mode Remote Distance20-30m Dimension110×52×30mm Modulate MethodGFSK Transmit Power6db Standby Power Consumption 10uA ItemParameters Working VoltageAAA*2pcs(3V) Radio Frequency2400-2483.5MHz Attention: Connection: Attention Caution ●.Please do not use the controller in the place with widely range metal area or strong electromagnetic wave nearby, otherwise, the remote distance will be seriously affected. ●1.Thanks for using 2.4G RGB LED touching remote control system,please read the instruction carefully before using. It states that you have read this instruction and accepted the caution when you start to use. ●2.Sune-LED Solutions Corp. reserves the right of final explanation and amendment to the products.Data is subject to change without prior notice. 1.he regular product for sale is a kit (remote and controller). The user can re-programme freely as needed. One remote can control countless controllers, but one controller can only be controlled by six remotes (Max). 2.Please check the battery installation and controller(totally discharge the power), when you programme after switching off and switching on. ●Please check whether the input voltage of the constant voltage power supply is in accordance with the controller, and please check the connection of both the cathode and anode, otherwise the controller will be broken. ●.Please do not connect wires with power on.Please switch on only when it is in right connection and no short circuit. ●Please keep your figure off the touching ring when installing the batteries, to improve its sensitivity, and use the remote (3 seconds later) after the installation.Please reinstall the batteries, if the touching ring is found low-sensitivity. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is …

Text truncated - open the document above for the full version.

Shenzhen FeiCan Technology Co., Limited Address: 5F, B Block of E Building,Lianchuang Industrial Area,Zhangge Tangqian village, Guanlan Street,Longhua District,Shenzhen, China Tel: 0755-66609352 Fax: 0755-21503635 2015-09-07 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: 2AFRVFC24GRMT4 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Wendy Luo / sales manager Contact information / address : 5F, B Block of E Building,Lianchuang Industrial Area,Zhangge Tangqian village, Guanlan Street,Longhua District,Shenzhen, China Tel: 0755-66609352 Fax: 0755-21503635 E-mail: [email protected]

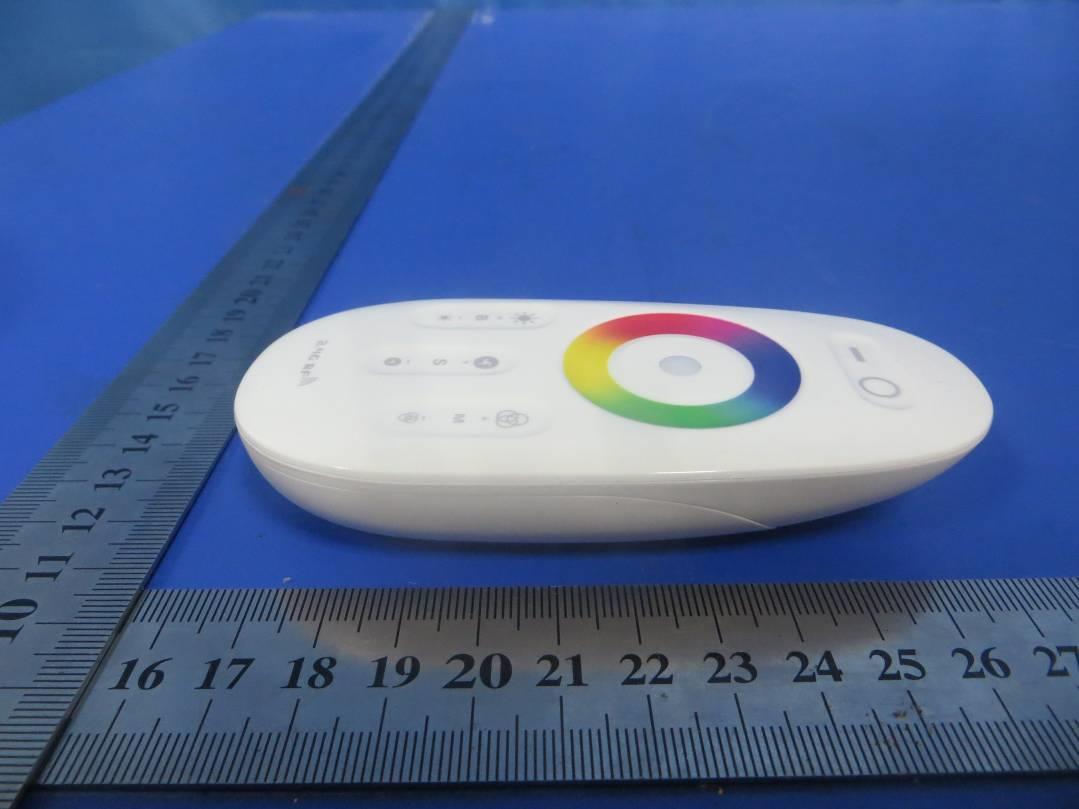

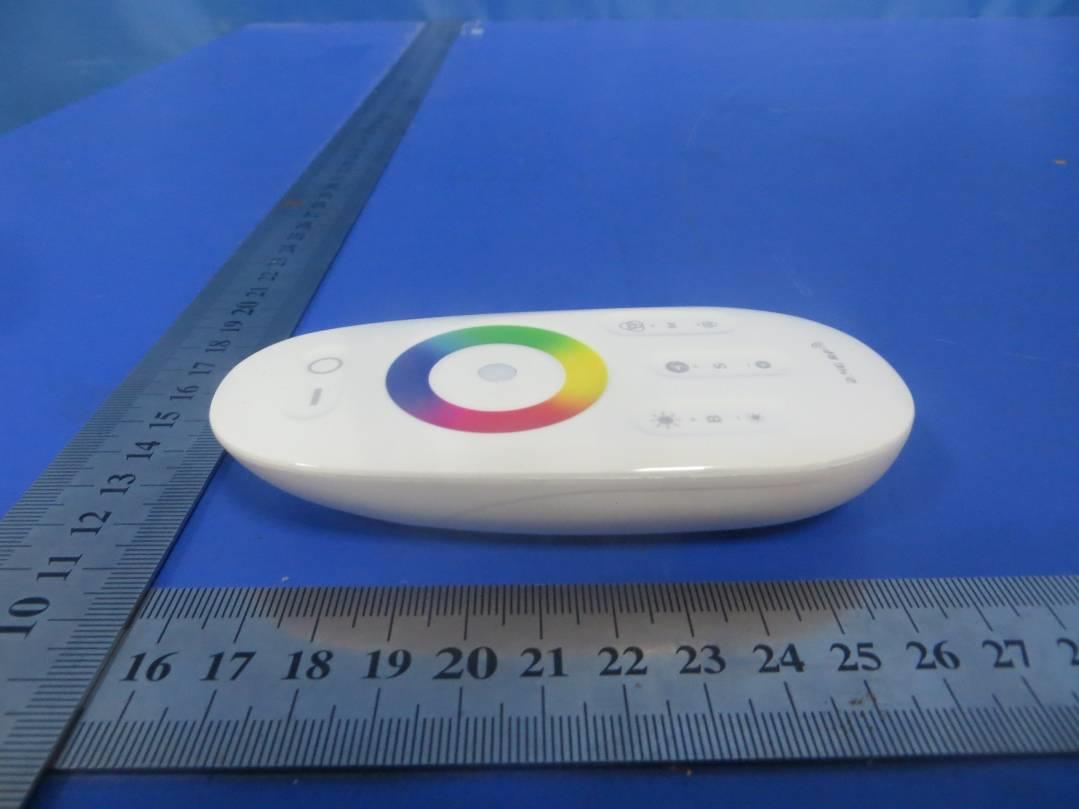

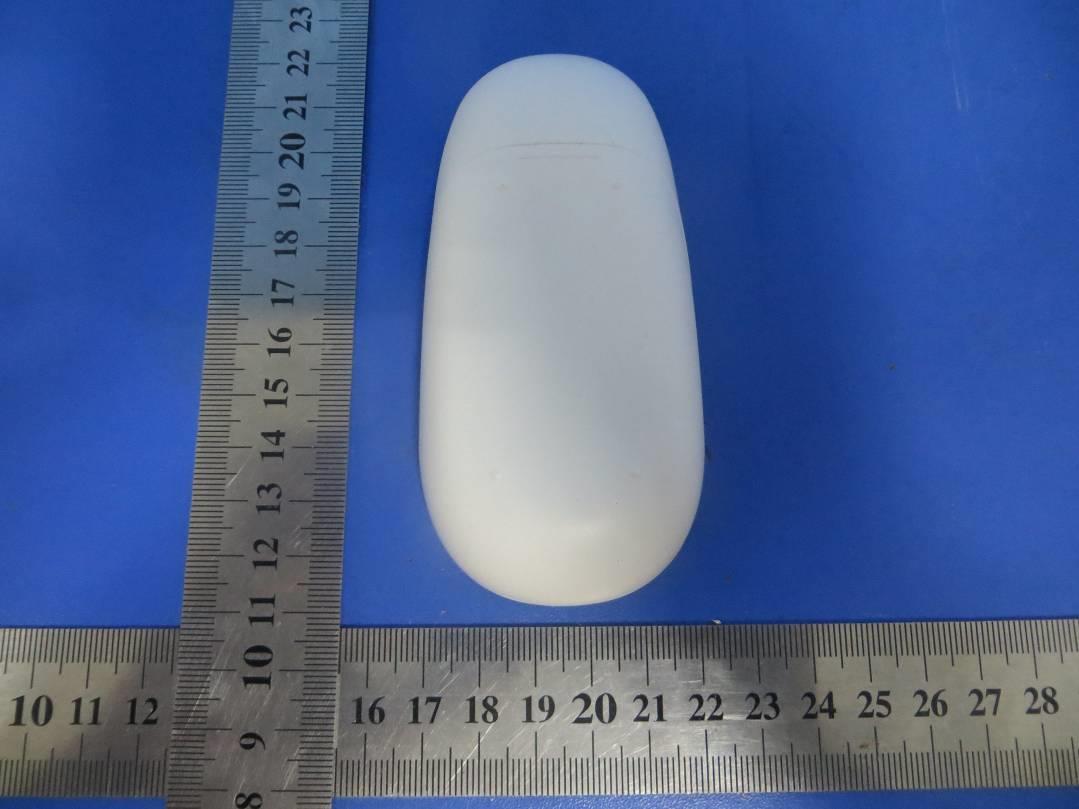

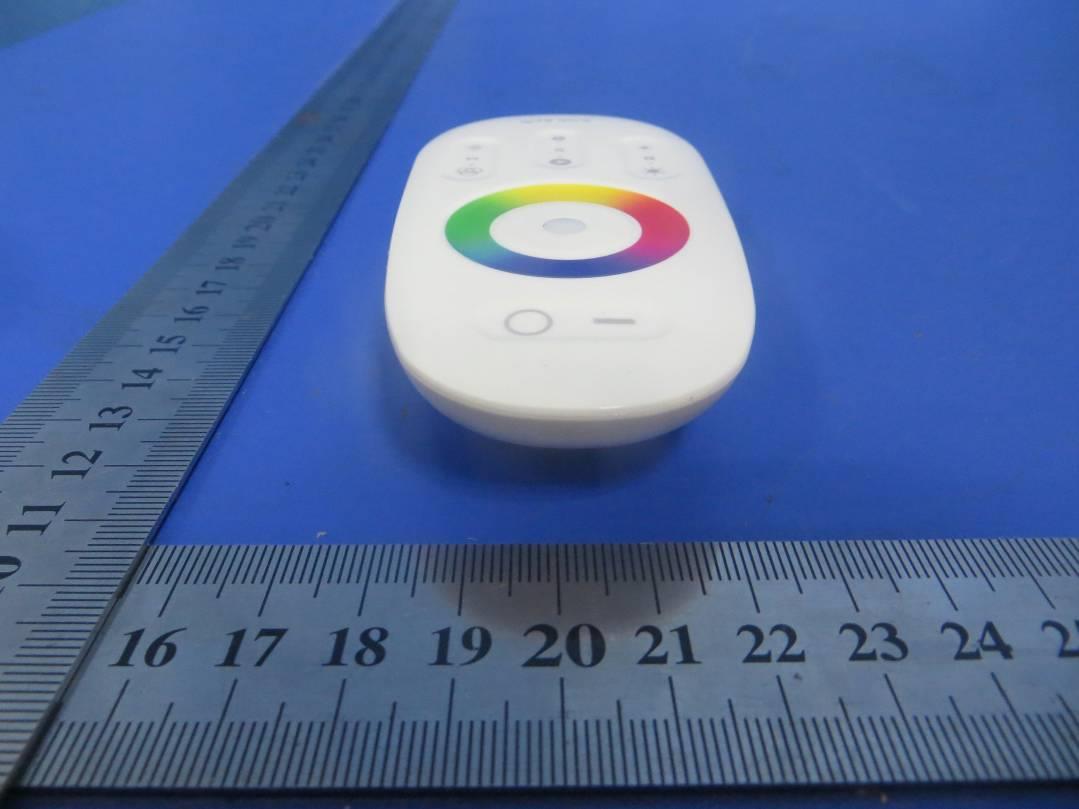

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AFRVFC24GRMT4 Report No.: LCS1508211254E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AFRVFC24GRMT4 Report No.: LCS1508211254E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AFRVFC24GRMT4 Report No.: LCS1508211254E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFRVFC24GRMT4 Report No.: LCS1508211254E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION Size: L3.0cm*W2.0cm Material: Tagboard Glue: adhesive sticker Font color: Black Label color: White Label Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFRVFC24GRMT4 Report No.: LCS1508211254E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFRVFC24GRMT4 Report No.: LCS1508211254E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFRVFC24GRMT4 Report No.: LCS1508211254E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFRVFC24GRMT4 Report No.: LCS1508211254E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 24 FCC TEST REPORT FOR Shenzhen FeiCan Technology Co., Limited 2.4G Remote Controller Model No.: FC-PB-RGB2.4G Additional model No.: FC-PB-2.4G, FC-PB-RGBW2.4G02, FC-TH-WIFI01, FC-PB-2.4G02 Prepared for : Shenzhen FeiCan Technology Co., Limited Address : 5F, B Block of E Building,Lianchuang Industrial Area, Zhangge Tangqian village, Guanlan Street,Longhua District, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong , China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : August 21, 2015 Number of tested samples : 1 Serial number : Prototype Date of Test : August 21, 2015 - September 07, 2015 Date of Report : September 07, 2015 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFRVFC24GRMT4 Report No.: LCS1508211254E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 24 FCC TEST REPORT FCC CFR 47 PART 15 C(15.249): 2014 Report Reference No. ............... : LCS1508211254E Date of Issue ................................. : September 07, 2015 Testing Laboratory Name .......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ......................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : Shenzhen FeiCan Technology Co., Limited Address ......................................... : 5F, B Block of E Building,Lianchuang Industrial Area, Zhangge Tangqian village, Guanlan Street,Longhua District, Shenzhen, China Test Specification Standard ........................................ : FCC CFR 47 PART 15 C(15.249): 2014 Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ............................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................ : 2.4G Remote Controller Trade Mark ................................... : FEICAN Model/ Type reference.................. : FC-PB-RGB2.4G Ratings .......................................... : DC 3.0V by battery Result ......................................... : Positive Compiled by: Supervised by: Approved by: Jacky Li/ File administrators Glin Lu/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFRVFC24GRMT4 Report No.: LCS1508211254E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 24 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1508211254E September 07, 2015 Date of issue Type / Model........................... : FC-PB-RGB2.4G EUT......................................... : 2.4G Remote Controller Applicant............................... : Shenzhen FeiCan Technology Co., Limited Address.................................. : 5F, B Block of E Building,Lianchuang Industrial Area, Zhangge Tangqian village, Guanlan Street,Longhua District, Shenzhen, China Telephone............................... : 0755-66609352 Fax.......................................... : 0755-21503635 Manufacturer........................ : Shenzhen FeiCan Technology Co., Limited Address................................... : 5F, B Block of E Building,Lianchuang Industrial Area, Zhangge Tangqian village, Guanlan Street,Longhua District, Shenzhen, China Telephone............................... : 0755-66609352 Fax.......................................... : 0755-21503635 Factory................................... : Shenzhen FeiCan Technology Co., Limited Address................................... : 5F, B Block of E Building,Lianchuang Industrial Area, Zhangge Tangqian village, Guanlan Street,Longhua District, Shenzhen, China Telephone............................... : 0755-66609352 Fax.......................................... : 0755-21503635 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AFRVFC24GRMT4 Report No.: LCS1508211254E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 24 TABLE OF CONTENTS 1. GENERAL INFORMATION .............................................................................................. 5 1.1. Description of Device (EUT) ...................................................................................................... 5 1.2. Host System Configuration List and Details ............................................................................... 5 1.3. External I/O ................................................................................................................................. 5 1.4. Descr…
