2AFVB-JB304S15Villa Door Station

Model No.15C flush mount 93X168X52(mm) Model No.15D flush mount, card reader. 93X168X52(mm) 1. Door stations User’s manual (Door stations ) JB-304 Model No.15 series 2. Technical parameters 3. Structure 4. Installation Camera: Viewing angle: Lens: Resolution: Min. illumination: Video output: Audio SNR: Audio distortion: Standby current: Working current: Working voltage: Environment temperature: 1/3” SONY CCD or 1/3” CMOS 92° F=3.6 420TV Line 0.01 LUX 1Vp-p/75Ω ≥25dB ≤7% ≤60mA ≤230mA DC18V±10% -40°C～+45°C LEDs Camera Light sensor Cast aluminium panel Speaker Name tag Call button Microphone Screw Screw Card reader inside a. Produce a groove on a proper position of the wall(). b. Take off the door panel from the box with the enclosed screw driver(). c. Fix the box in the groove with screws and expansion plugs or cement(). d. Fix the door panel in the box with the screws(). (75x150x50mm) ① ②③ ① ④ Door panel Box expansion plugs ② ① ③ B. Use cards to release doors 5. Operation on door stations A. Call residents 1 6. Door station list Product podel numbers Sizes: L x W x D (mm) Exclusive featureshotos Model names Series m 102X175X39 CALL MIC JB-304MGCQ-S15 Model No.15A Model No.15B Model No.15C Model No.15D Model No.18 JB-304MNCW-S15 With name tag and surface mount With card reader and surface mount With card reader and flush mount With name tag and flush mount JB-304MNCQ-S15 JB-304MCQ-S18A JB-304MGCQ-S18A JB-304MGCW-S15 93X168X52 93X168X52 79X148X45 79X148X45 With keypad With keypad and card reader XIMAN LEELEN TECHNOLOGY CO.,LTD. 65, SUNBAN SOUTH ROAD, JIMEI, XIAMEN, 361021 CHINA This appliance shall not be disposed together with the normal waste. It must be recycled. Atitude during opertion below 2000m. 2 FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

MET Laboratories TCB - Samples Agent Authorization Letter 2015-010-19 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Most Technology Service Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Haoye Chen Position: Manager Company Name: Xiamen Leelen Technology Co., Ltd Address: 65 Sunban South Road, Jimei Industrial Zone, Xiamen, Fujian, China E-Mail: [email protected]

MET Laboratories TCB - Samples Long Term Confidentiality Request Letter 2015-10-19 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Villa Door Station/ JB-304MGCQ-S15) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - e.g. Block diagram - e.g. SCH - e.g. Operational Description required to be submitted with this application be permanently withheld from public review. SPECIFY REASON FOR REQUEST (i.e. the above documents are company proprietary information that could never get into the possession of your competition). Please contact me if there is any information you may need. Sincerely, Name: Haoye Chen Position: Manager Company Name: Xiamen Leelen Technology Co., Ltd Address: 65 Sunban South Road, Jimei Industrial Zone, Xiamen, Fujian, China E-Mail: [email protected]

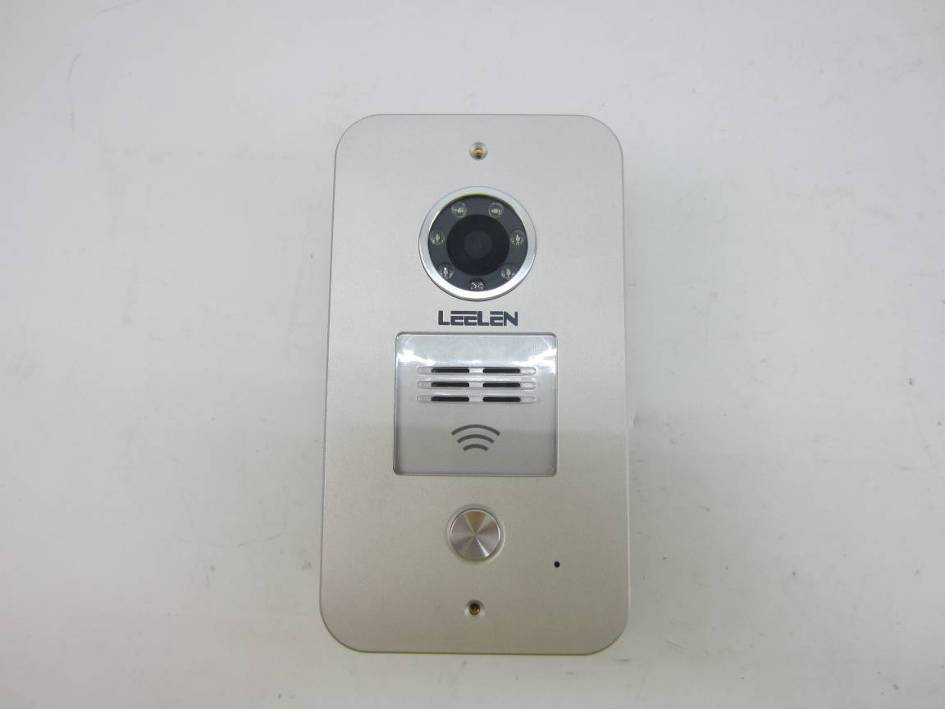

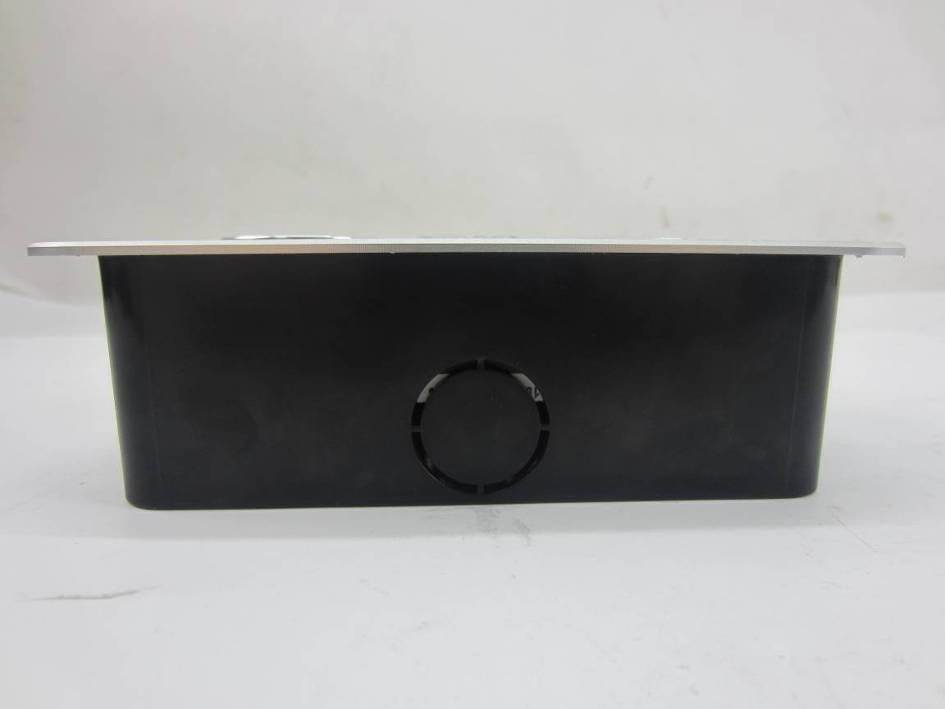

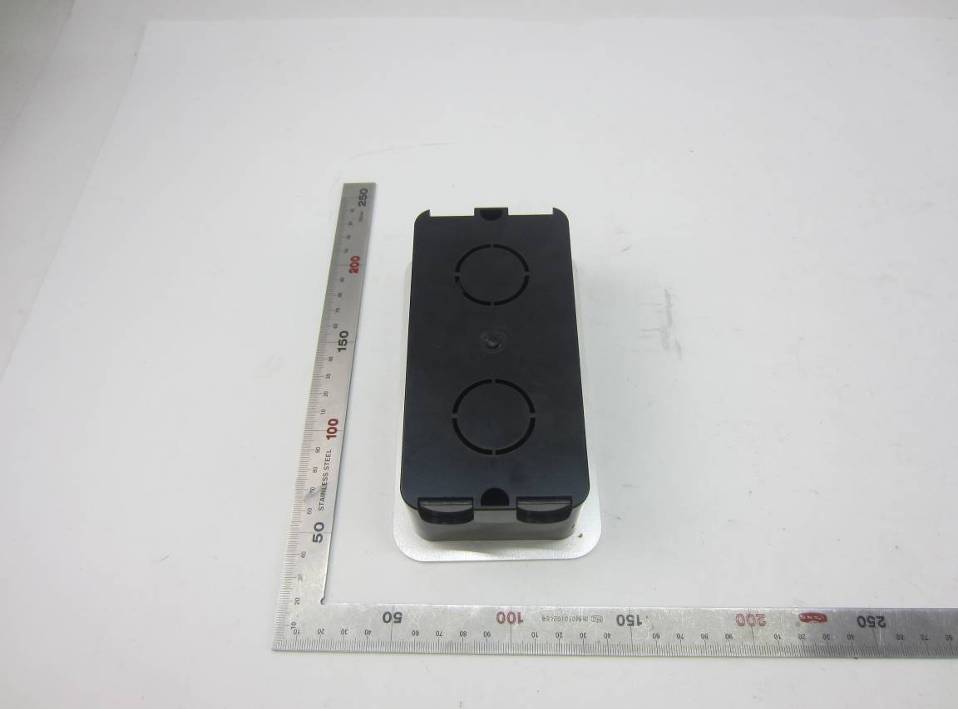

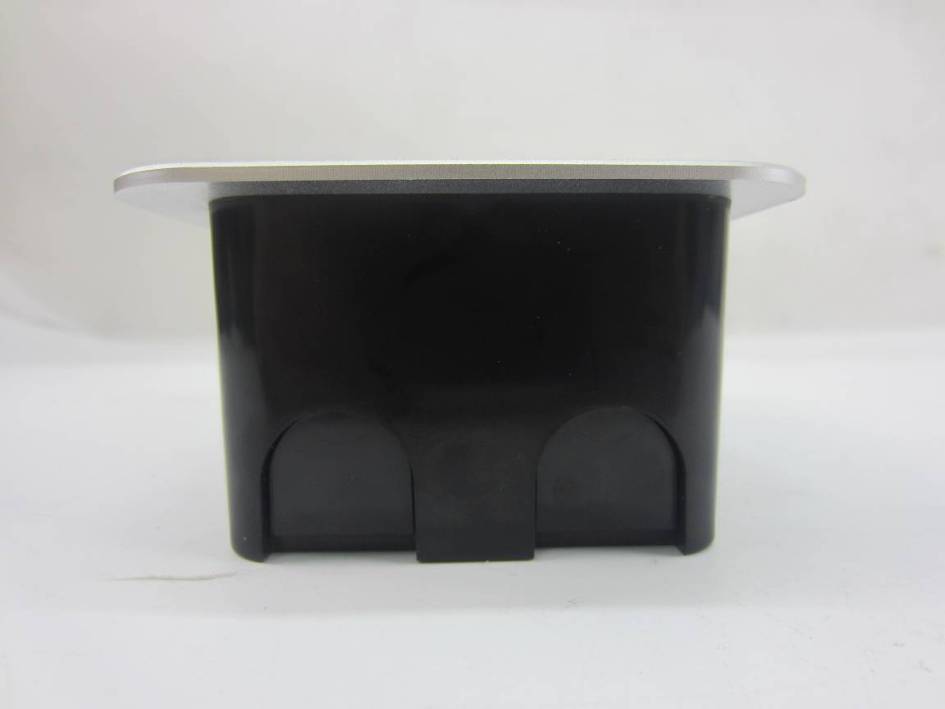

Model No.: JB-304MGCQ-S15 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE Model No.: JB-304MGCQ-S15 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE Model No.: JB-304MGCQ-S15 TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE Model No.: JB-304MGCQ-S15 PHOTO OF THE ENTIRE SAMPLE PHOTO OF THE ENTIRE SAMPLE

Label Label location

Model No.: JB-304MGCQ-S15 INTERNAL PHOTO OF SAMPLE – 1 INTERNAL PHOTO OF SAMPLE – 2 Model No.: JB-304MGCQ-S15 INTERNAL PHOTO OF SAMPLE – 3 INTERNAL PHOTO OF SAMPLE – 4 Model No.: JB-304MGCQ-S15 INTERNAL PHOTO OF SAMPLE – 5 INTERNAL PHOTO OF SAMPLE – 6 Model No.: JB-304MGCQ-S15 INTERNAL PHOTO OF SAMPLE – 7 INTERNAL PHOTO OF SAMPLE – 8 Model No.: JB-304MGCQ-S15 INTERNAL PHOTO OF SAMPLE – 9 INTERNAL PHOTO OF SAMPLE – 10 Model No.: JB-304MGCQ-S15 INTERNAL PHOTO OF SAMPLE – 11 INTERNAL PHOTO OF SAMPLE – 12

Report No.: MTE/DYY/A15091138 Page 1 of 19 TEST REPORT For Applicant : XIAMEN LEELEN TECHNOLOGY CO.,LTD Address : 65 Sunban South Road, Jimei Industrial Zone, Xiamen, China Product Name : Villa Door Station Model Name : JB-304MGCQ-S15 Series Model Name: : JB-304MGCW-S15,JB-304MGCQ-S18A,JB-304MCQ-S18A, JB-304MNCQ-S15, JB-304MNCW-S15 Remark : Only difference in the model name. Brand Name : FCC ID : 2AFVB-JB304S15 Report No. : MTE/DYY/A15091138 Date o f Issue : Sept. 07, 2015 Issued by :Most Technology Service Co., Ltd. Address : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-8602 6850 Fax : 86-755-26013350 The report consists 19 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The clien t should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Report No.: MTE/DYY/A15091138 Page 2 of 19 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY............................................................... 3 2. GENERAL INFORMATION................................................................................. 4 2.1 Product Information ................................................................................................................ 4 2.2 Objective ................................................................................................................................ 4 2.3 Test Standards and Results .................................................................................................... 5 2.4 Environmental Conditions....................................................................................................... 5 3. TEST METHODOLOGY ..................................................................................... 6 3. 1TEST FACILITY...................................................................................................................... 6 4. SETUP OF EQUIPMENT UNDER TEST ............................................................ 7 4.1 SETUP CONFIGURATION OF EUT....................................................................................... 7 4.2 TEST EQUIPMENT LIST........................................................................................................7 5. 47 CFR Part 15 C Requirements ...................................................................... 8 5.1.1 Applicable Standard ............................................................................................................ 8 5.1.2 Evaluation Criteria ............................................................................................................... 8 5.1.3 Result: Compliance. ............................................................................................................ 8 5.2 CONDUCTED EMISSION TEST ............................................................................................ 9 5.2.1Requirement......................................................................................................................... 9 5.2.2 Block Diagram of Test Setup ...............................................................................................9 5.2.3 Test procedure..................................................................................................................... 9 5.2.4 Test Result........................................................................................................................... 9 5.3 Radiated Emission ............................................................................................................... 10 5.3.1Requirement....................................................................................................................... 10 5.4.2 Test Configuration...............................................................................................................11 5.4.3 Test Procedure: ................................................................................................................. 12 5.4.4 Test Result......................................................................................................................... 12 5.4 FREQUENCY STABILITY .................................................................................................... 14 5.4.1 Requirement...................................................................................................................... 14 5.4.2 Measurement Procedure ................................................................................................... 14 5.4.3 Test SET-UP ...................................................................................................................... 14 5.4.5 Measurement Results........................................................................................................ 15 5.5 20 dB OCCUPIED BANDWIDTH MEASUREMENT............................................................. 16 5.5.1 Requirement...................................................................................................................... 16 5.5.2 Test Set-up ........................................................................................................................ 16 5.5.3 Measurement Procedure ................................................................................................... 16 5.5.4 20dB Bandwidth Measurement Result.............................................................................. 17 APPENDIX 1............................................................................................................................................................18 PHOTOGRPHS OF TEST SET ........................................................................…

Text truncated - open the document above for the full version.

Model No.: JB-304MGCQ-S15 RE TEST SETUP RE TEST SETUP
