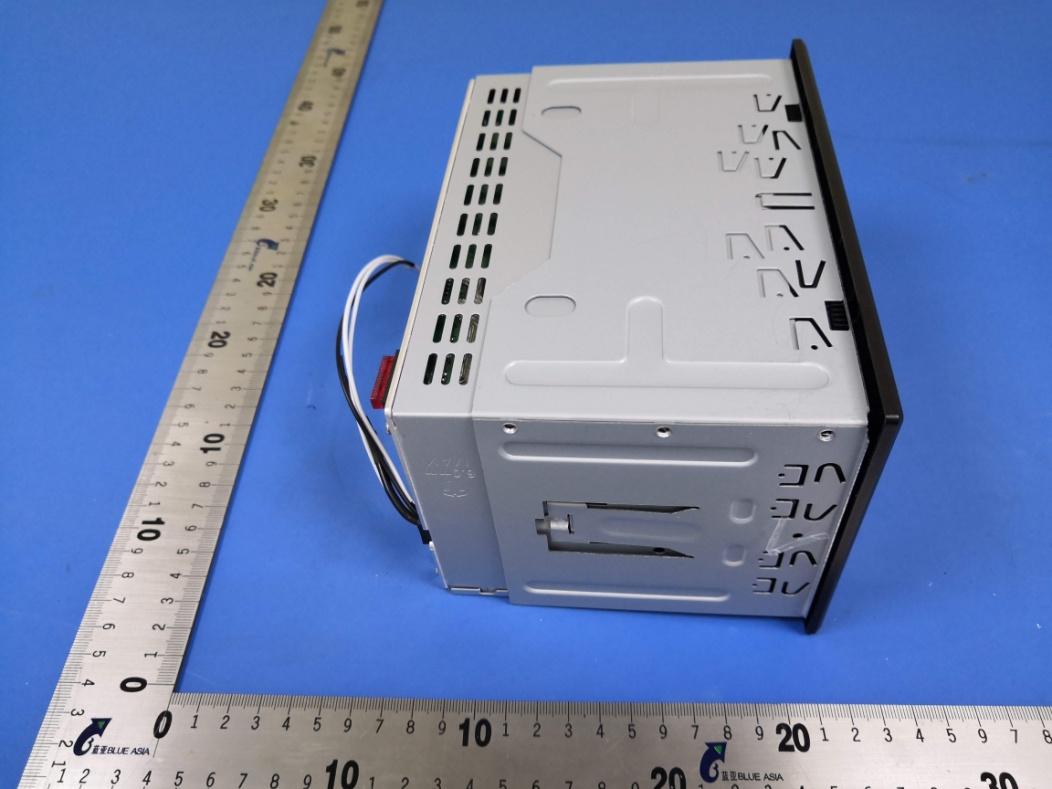

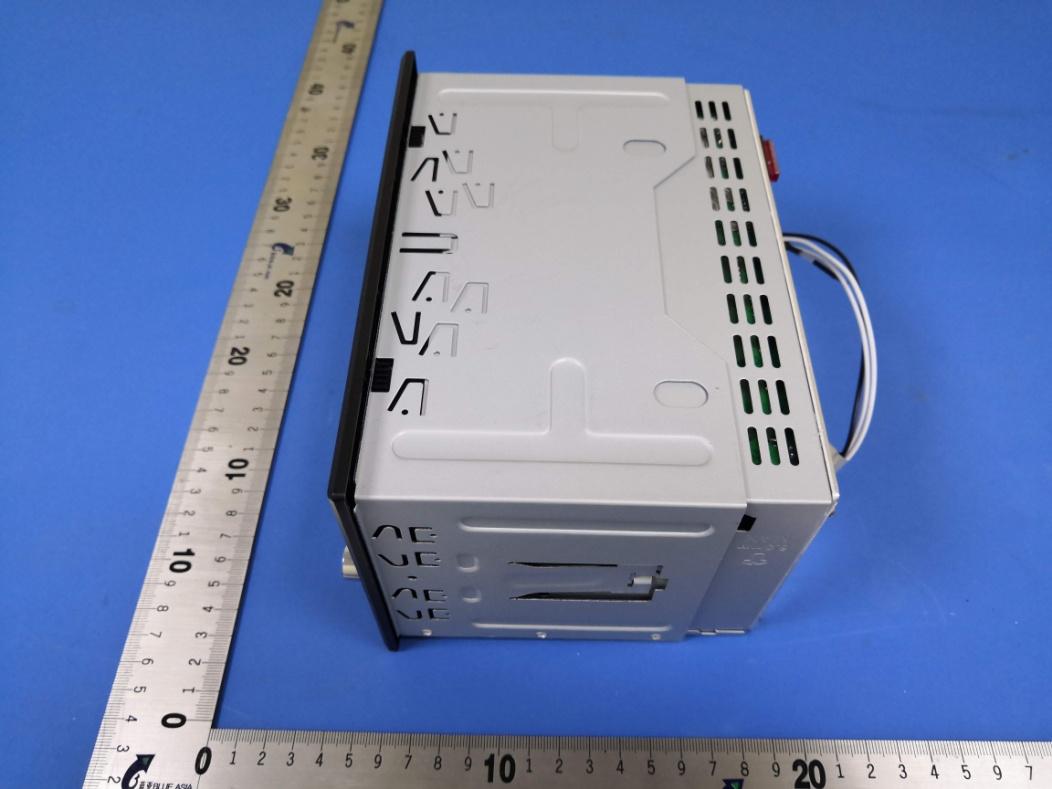

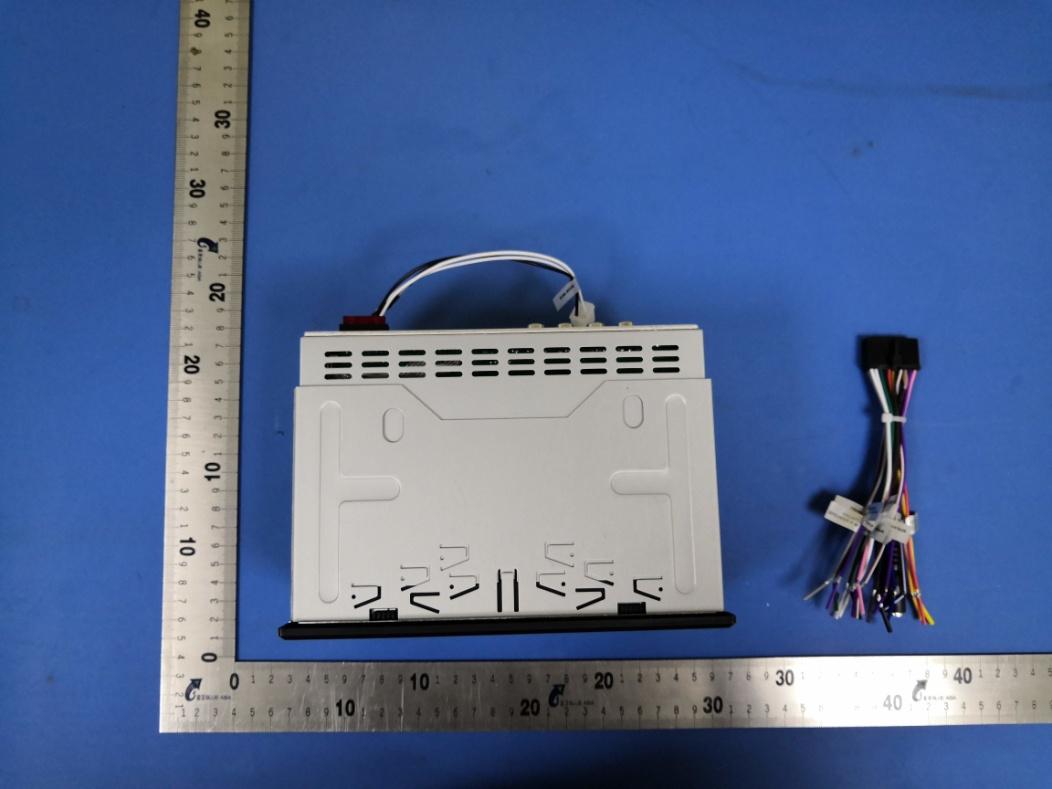

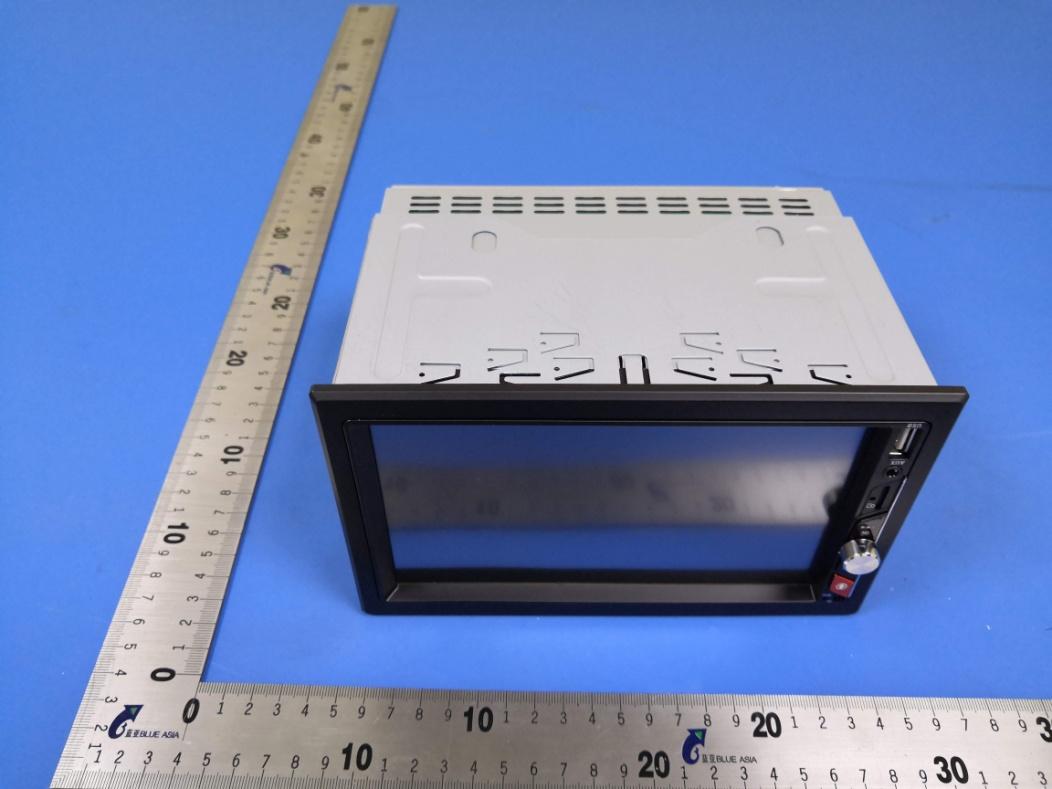

2AFXA-AVM700UICar Media Receiver

FCC ID: 2AFXA-AVM700UI Product Name: Car Media Receiver Model No.: AVM700Ui,XVM700Ui,JVM700Ui,JVM700UiS, AVM700UiS,AVM700USN,CMM7720,CMM720,CMR2720, XDM700U,DM620N,XVM279NAV All models are electrically identical ,only model no is different. <Signature> Name Yiu Sang Li Title Manager Company FengShun Peiying Electro-Acoustic Co., Ltd

2020/3/13 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:__2AFXA-AVM700UI Product Name:___Car Media Receiver _______ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) Schematics Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> NameYiu Sang Li TitleManager CompanyFengShun Peiying Electro-Acoustic Co., Ltd

Model No.: AVM700Ui

Model No.: AVM700Ui

Page 1 of 2 RF Exposure Evaluation Report 1 RF EXPOSURE Product Name Car Media Receiver Model No. AVM700Ui, XVM700Ui,JVM700Ui,JVM700UiS, AVM700UiS,AVM700USN,CMM7720,CMM720, CMR2720,XDM700U,DM620N,XVM279NAV FCC ID 2AFXA-AVM700UI 1.1 LIMITS The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation 17  The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion Page 2 of 2 1.2 EUT RF EXPOSURE EVALUATION Operational Mode: EDR （pi/4DQPSK worst case） Channel Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dB) Maximum tune-up Power(dB m) Maximum tune-up Power(mW ) Calculated value Exclusion threshold 2402MHz 5.19 ±1 6.19 4.16 1.29 3 2441MHz 4.97 ±1 5.97 3.95 1.24 3 2480MHz 4.67 ±1 5.67 3.65 1.16 3 Conclusion: the calculated value ≤3.0, SAR is exempted.

Page 1 of77 TEST REPORT Product Name : Car Media Receiver Brand Mark : DUAL/AXXERA/JENSEN Model No. : AVM700Ui, XVM700Ui,JVM700Ui,JVM700UiS, AVM700UiS,AVM700USN,CMM7720,CMM720, CMR2720,XDM700U,DM620N,XVM279NAV FCC ID : 2AFXA-AVM700UI Report Number : BLA-EMC-202002-A1101 Date of Sample Receipt : 2020/2/27 Date of Test : 2020/3/11 to 2020/3/11 Date of Issue : 2020/3/11 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: FengShun Peiying Electro-Acoustic Co., Ltd 2nd Floor, Block F, Hongwei Industrial Area,No.6 Liuxian 2 Road, Baocheng 70 Area, Bao'an, Shenzhen City, Guangdong Province, P.R. China Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. IOT Test Centre of BlueAsia No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen,China TEL: +86-755-28682673 FAX: +86-755-28682673 Compiled by: Review by: Approved by: Date: 2020/3/11 Report No.: BLA-EMC-202002-A1101 Page 2 of77 REPORT REVISE RECORD Version No. Date Description 00 2020/3/11 Original Report No.: BLA-EMC-202002-A1101 Page 3 of77 TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................6 2 GENERAL INFORMATION .........................................................................................................................7 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................7 4 TEST ENVIRONMENT ................................................................................................................................8 5 TEST MODE ................................................................................................................................................8 6 MEASUREMENT UNCERTAINTY ..............................................................................................................8 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................9 8 LABORATORY LOCATION .........................................................................................................................9 9 TEST INSTRUMENTS LIST ..................................................................................................................... 10 ANTENNA REQUIREMENT .............................................................................................................................. 14 CONCLUSION ...................................................................................................................................................................... 14 CONDUCTED SPURIOUS EMISSIONS ........................................................................................................... 15 LIMITS ............................................................................................................................................................................. 15 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 15 TEST DATA ........................................................................................................................................................................ 16 20DB BANDWIDTH .......................................................................................................................................... 17 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 17 TEST DATA ........................................................................................................................................................................ 17 CONDUCTED PEAK OUTPUT POWER .......................................................................................................... 18 LIMITS ............................................................................................................................................................................. 18 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 18 TEST DATA ........................................................................................................................................................................ 19 RADIATED SPURIOUS EMISSIONS ............................................................................................................... 20 LIMITS ............................................................................................................................................................................. 20 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 20 PROCEDURE ................................................................................................................................................................... 21 TEST DATA ........................................................................................................................................................................ 23 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS ......................................................... 28 LIMITS ............................................................................................................................................................................. 28 Report No.: BLA-EMC-202002-A1101 Page 4 of77 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 29 PROCEDURE ...............................................................................…

Text truncated - open the document above for the full version.

Report No.: BLA-EMC-202002-A1101 Page 51 of77 10.5 APPENDIX: NUMBER OF HOPPING CHANNELS Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH1 Ant1 Hop 79 >=15 PASS 2DH1 Ant1 Hop 79 >=15 PASS Report No.: BLA-EMC-202002-A1101 Page 52 of77 Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop Report No.: BLA-EMC-202002-A1101 Page 53 of77 10.6 APPENDIX:BAND EDGE MEASUREMENTS Test Result TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1 Ant1 Low 2402 2.74 -56.26 <=-17.26 PASS High 2480 2.17 -55.21 <=-17.84 PASS Low Hop_2402 2.69 -37.56 -17.31 PASS High Hop_2480 2.29 -54.48 -17.71 PASS 2DH1 Ant1 Low 2402 2.76 -54.42 <=-17.24 PASS High 2480 2.19 -54.58 <=-17.81 PASS Low Hop_2402 2.74 -49.83 -17.26 PASS High Hop_2480 2.31 -54.17 -17.69 PASS Report No.: BLA-EMC-202002-A1101 Page 54 of77 Test Graphs DH1_Ant1_Low_2402 DH1_Ant1_High_2480 DH1_Ant1_Low_Hop_2402 Report No.: BLA-EMC-202002-A1101 Page 55 of77 DH1_Ant1_High_Hop_2480 2DH1_Ant1_Low_2402 Report No.: BLA-EMC-202002-A1101 Page 56 of77 2DH1_Ant1_High_2480 2DH1_Ant1_Low_Hop_2402 Report No.: BLA-EMC-202002-A1101 Page 57 of77 2DH1_Ant1_High_Hop_2480 Report No.: BLA-EMC-202002-A1101 Page 58 of77 10.7 APPENDIX:CONDUCTED SPURIOUSEMISSION Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1 Ant1 2402 Reference 2.72 2.72 --- PASS 30~1000 30~1000 -61.645 <=-17.28 PASS 1000~26500 1000~26500 -39.76 <=-17.28 PASS 2441 Reference 2.14 2.14 --- PASS 30~1000 30~1000 -61.197 <=-17.858 PASS 1000~26500 1000~26500 -39.167 <=-17.858 PASS 2480 Reference 2.17 2.17 --- PASS 30~1000 30~1000 -61.423 <=-17.828 PASS 1000~26500 1000~26500 -39.17 <=-17.828 PASS 2DH1 Ant1 2402 Reference 2.77 2.77 --- PASS 30~1000 30~1000 -67.933 <=-17.235 PASS 1000~26500 1000~26500 -51.163 <=-17.235 PASS 2441 Reference 2.05 2.05 --- PASS 30~1000 30~1000 -64.079 <=-17.955 PASS 1000~26500 1000~26500 -52.766 <=-17.955 PASS 2480 Reference 2.08 2.08 --- PASS 30~1000 30~1000 -66.753 <=-17.919 PASS 1000~26500 1000~26500 -52.451 <=-17.919 PASS Report No.: BLA-EMC-202002-A1101 Page 59 of77 Test Graphs DH1_Ant1_2402_0~Reference DH1_Ant1_2402_30~1000 DH1_Ant1_2402_1000~26500 Report No.: BLA-EMC-202002-A1101 Page 60 of77 DH1_Ant1_2441_0~Reference DH1_Ant1_2441_30~1000 Report No.: BLA-EMC-202002-A1101 Page 61 of77 DH1_Ant1_2441_1000~26500 DH1_Ant1_2480_0~Reference Report No.: BLA-EMC-202002-A1101 Page 62 of77 DH1_Ant1_2480_30~1000 DH1_Ant1_2480_1000~26500 Report No.: BLA-EMC-202002-A1101 Page 63 of77 2DH1_Ant1_2402_0~Reference 2DH1_Ant1_2402_30~1000 Report No.: BLA-EMC-202002-A1101 Page 64 of77 2DH1_Ant1_2402_1000~26500 2DH1_Ant1_2441_0~Reference Report No.: BLA-EMC-202002-A1101 Page 65 of77 2DH1_Ant1_2441_30~1000 2DH1_Ant1_2441_1000~26500 Report No.: BLA-EMC-202002-A1101 Page 66 of77 2DH1_Ant1_2480_0~Reference 2DH1_Ant1_2480_30~1000 Report No.: BLA-EMC-202002-A1101 Page 67 of77 2DH1_Ant1_2480_1000~26500 Report No.: BLA-EMC-202002-A1101 Page 68 of77 APPENDIX A: PHOTOGRAPHS OF TEST SETUP Antenna Requirement Radiated Spurious Emissions Report No.: BLA-EMC-202002-A1101 Page 69 of77 APPENDIX B: PHOTOGRAPHS OF EUT Report No.: BLA-EMC-202002-A1101 Page 70 of77 Report No.: BLA-EMC-202002-A1101 Page 71 of77 Report No.: BLA-EMC-202002-A1101 Page 72 of77 Report No.: BLA-EMC-202002-A1101 Page 73 of77 Report No.: BLA-EMC-202002-A1101 Page 74 of77 Report No.: BLA-EMC-202002-A1101 Page 75 of77 Report No.: BLA-EMC-202002-A1101 Page 76 of77 T Report No.: BLA-EMC-202002-A1101 Page 77 of77 ----END OF REPORT---- The test report is effective only with both signature and specialized stamp, The result(s) shown in this report refer only to the sample(s) tested. Without written approval of BlueAsia, this report can’t be reproduced except in full.
