2AFXA-CDR6221Car Multimedia Player

Installation CDR6221 6. Tune/Track Up 7. Volume/Power/Mute 8. Tune/Track Down 9. USB port 10. AUX 1. MIC 2. MiroSD card slot 3. Eject-Press to eject disc 4. Reset 5. Press- Mode Change Press and hold -- Voice Activation 10 WATTS Front & Rear Camera This Quick Start Guide gives you the basics to start using your CDR6221. Please visit www.jensenmobile.com to download a complete owner’s manual or call customer service at 1-888-921-4088 (Monday-Friday, 9AM-5PM EST). DVD Multimedia Receiver with Bluetooth featuring a 6.2” digital touch screen TFT NSC0121-V01 2021 Press the Top Left Source icon to enter Main Source Menu In the Menu mode, press the desired icon to enter the desired mode: 1. Radio Direct 2. Media Player Last Source 3. BT Handsfree Direct 4. DISC Direct 5. USB Direct 6. microSD Card Direct 7. BT Streaming Direct 8.AUX In Direct 9. Rear/Front Camera 10. Main System Setup Menu 11.Press Clock to Standby Monitor - Press screen anywhere to return - Audio will still continue to play while in Standby mode Main Menu 45 11 10 3 1 2 6897 1 14 15 2 3 4 5 678910111213 Tuner OperationHandfree Operation Media Player Operation Media Player Operation System Settings Select the Tuner icon from the Main Menu screen 1. Current Mode Icon / Main Source Menu 2.Tuner Presets - Long press to set 3.AM Direct 4.FM Direct 5.Bluetooth Handsfree Direct 6.Stereo / Mono 7.Previous Station - Long Press Manual Tune 8.AS/PS - Auto Scan / Preset Scan 9. Direct Station Entry 10.Station Number 11.Station Search 12.Next Station - Long Press Manual Tune 13.EQ Settings 14. Quick BAND Select - FM 1-2-3 | AM 1-2 15.Monitor Standby USB/MicroSD Media operation will work the same way 1. Current Mode / Main Source Menu 2. BT Streaming Music Direct 3. USB Media Direct 4. SD Media Direct 5. Bluetooth Handsfree Direct 6.Shuffle On / Off 7.Repeat 1 | All | Off 8. Direct File Entry 9. Drive File List 10. EQ Settings 11.Track Down 12. Play/Pause 13. Track Up 14.Track Time / Status Bar 15. File Playing - ID3 Metadata 16. File Playing -Album Art 17.Track Counter of Folder 18.Press Clock to Standby Monitor VIOLET/WHITE BLUE/WHITE ORANGE 3 2 5 4 6789 13111210 1 18 14 17 16 15 BT Media Player Press EQ icon in each Source to select EQ settings Source Tone Memory - Each Source will remember their EQ settings 1. Main System Volume 2. EQ Settings 3.EQ On/Off 4.Loudness On/Off 5. EQ Reset 6. Return to Source 7. EQ Presets / Custom 8. Balance / Fader Subwoofer Frequency,Fader and Balance controls do not have Source Tone Memory. 1. Main Volume 2. Fader Reset 3. Subwoofer ON/OFF 4. Return to Source 5. Return to EQ Controls Press GEAR icon in MAIN Source Menu 1. Back to Main Menu 2. General Setup 3. Clock Settings 4. System Audio 5. Bluetooth 6. Display - RGB LED, TFT 7.About - Software Version 2 34 1 8 6 7 5 23 4 1 5 3 2 6 4 5 7 1 Bluetooth Microphone-The microphone is built-in to the receiver. • To ensure the best conversation quality/performance, stay within 3 feet (1 meter) of the unit’s microphone when talking. Pairing and Connecting Before using Bluetooth functions, you must pair your mobile phone to the CDR6221.The device name is “JENSEN BT”.The Bluetooth passcode “0000”.To ensure the best recep- tion for pairing and re-connection, please make sure the mobile phone battery is fully charged before you begin. • Try to perform pairing within a few minutes of the mobile phone being turned on. • Once the unit has been paired with the mobile phone, the unit’s model number,“JENSEN BT”, will be displayed on the mobile phone. • To achieve the best performance, always keep the mobile phone within 10 feet (3 meters) of the unit. • Always keep a clear path between the mobile phone and the unit. Never place a metal object or any other obstacle between the mobile phone and the unit. • Some mobile phones may have a “Power Saving Mode” option. PLEASE DO NOT use the power saving mode with the CDR6221. • Before accepting or making a call, make sure your mobile phone’s “Bluetooth function” is turned on. 1 234 45 10 1 11 678 3 2 9 Dialing a Number Press keypad to dial a numbe Making a Call Dial number,press to connect a call 1. Current Mode / Main Source Menu 2. Dial Keypad 3. Back to Last Source 4. Bluetooth Keypad 5. Contacts - must be manually synced 6. Keypad Backspace 7. Recent Calls 8. Device Manager 9. Call Button 10. Number 11. Press Clock to Standby Monitor - Press screen anywhere to return - Audio will still continue to play while in Standby Transferring Audio Press to transfer call audio between the headunit and mobile phone. 1. Hang Up 2. Call Transfer 3. MIC Mute 4. Return to Keypad Warranty Coverage Limited 1-year warranty when purchased from an authorized Jensen dealer. or *Limited 2-year warranty when purchased from and professionally installed by an authorized Jensen dealer. (Proof of purchase and Installation required) [email protected] This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Namsung America Inc warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year (or two years*) from the date of the original purchase. Namsung America Inc agrees, at our option, during the warranty period, to repair any defect in material or workmanship or to furnish an equal new, renewed or comparable product (whichever is deemed necessary) in exchange without charges, subject to verification of the defect or malfunction and proof of the date of purchase. Subsequent replacement products are warranted for the balance of the original warranty period. Who is covered? This warranty is extended to the original retail purchaser for products purchased from an authorized JENSEN dealer and used in the U.S.A. What is covered? This warranty covers all defects in material and workmanship in this product. The following are not covered: software, installation/removal costs, damage resulting from accident, misuse, abuse, neglect, product modifica…

Text truncated - open the document above for the full version.

Product Name:Car Multimedia Player Brand Mark:JENSEN Model No.:CDR6221, CDR462 FCC ID:2AFXA-CDR6221 All models are electrically identical, only model no is different. <Signature> Name :Yiu Sang Li Title :Manager Company :FengShun Peiying Electro-Acoustic Co., Ltd

2020/12/31 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:__2AFXA-CDR6221 Product Name:Car Multimedia Player ___ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) Schematics Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> NameYiu Sang Li TitleManager CompanyFengShun Peiying Electro-Acoustic Co., Ltd

Model No.: CDR6221

Model No.: CDR6221

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√ f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Worse case is as below: [2480 MHz 8dBm（ 6.31 mW）output power] (6.31 mW /5mm) ·[√2.480(GHz)]= 2 <3.0 for 1-g SAR Then SAR evaluation is not required

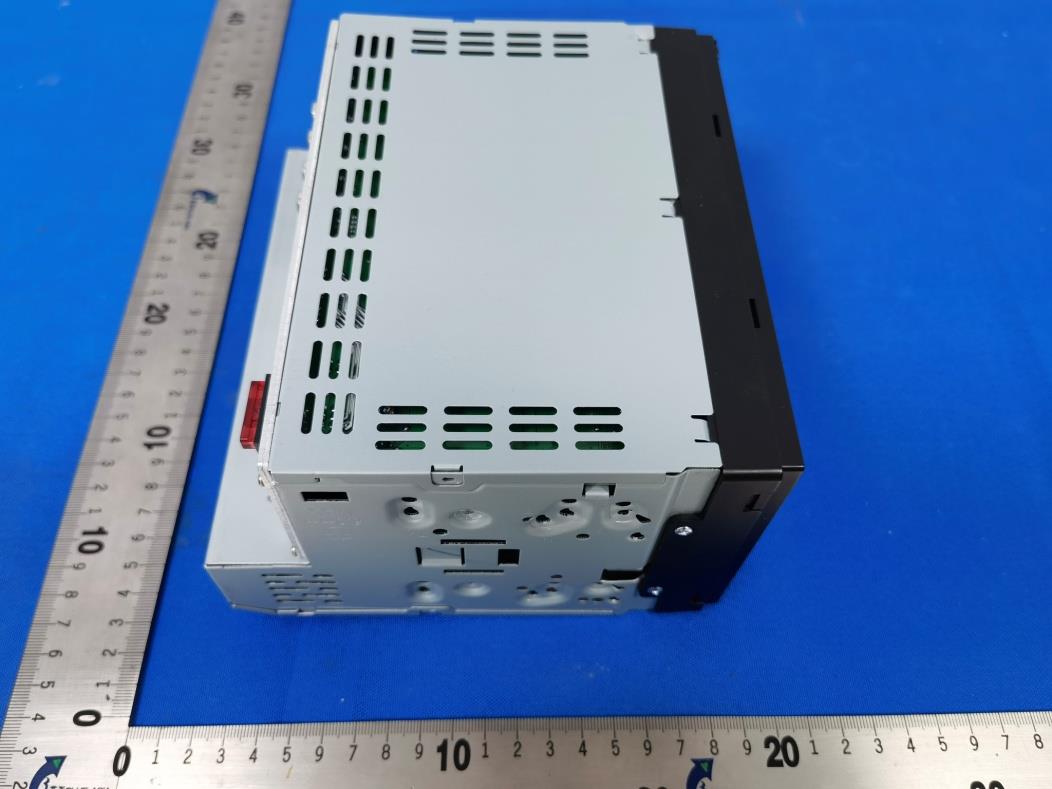

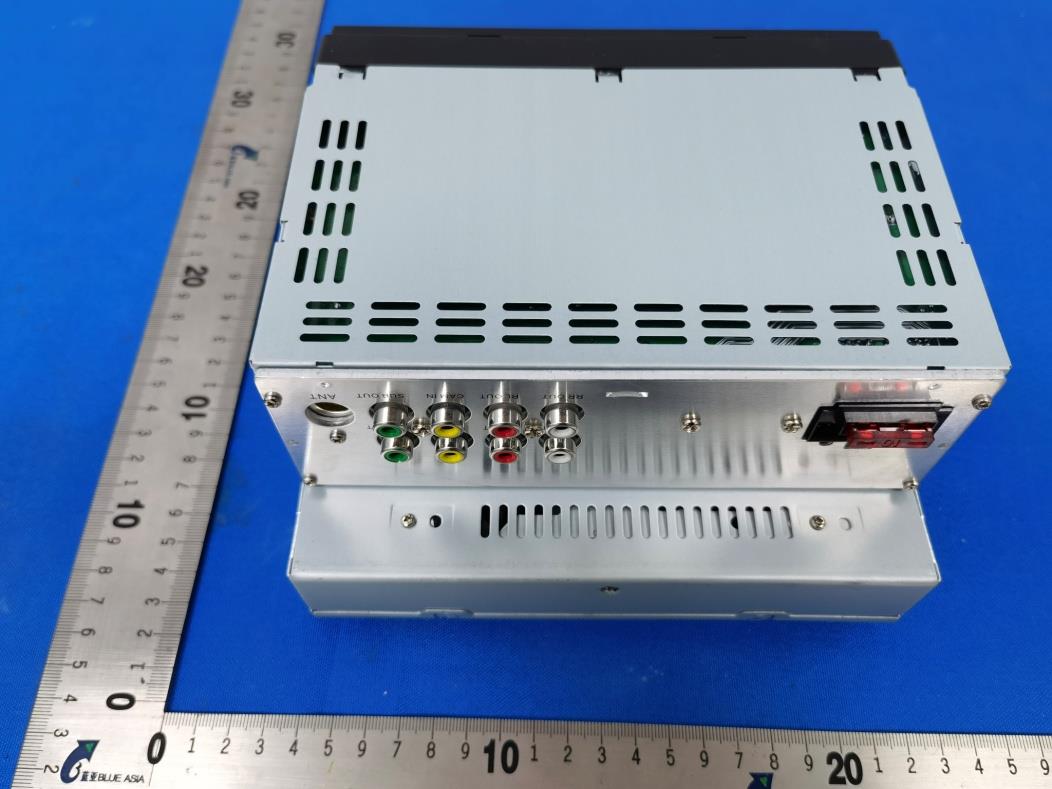

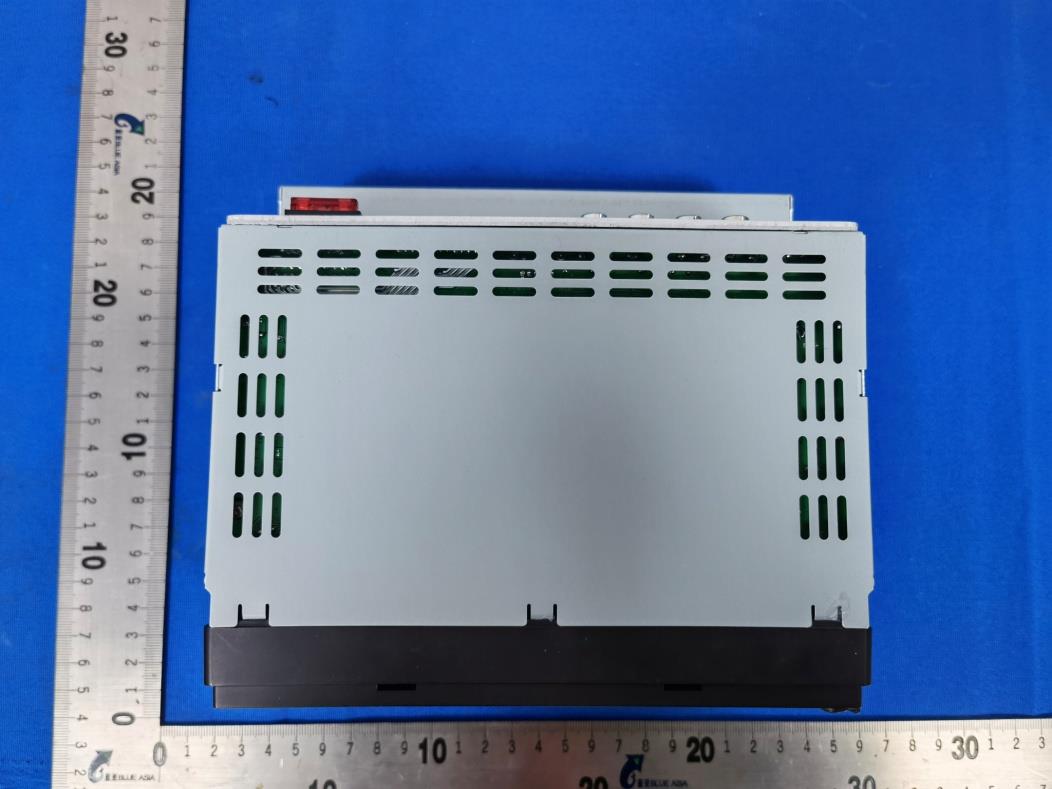

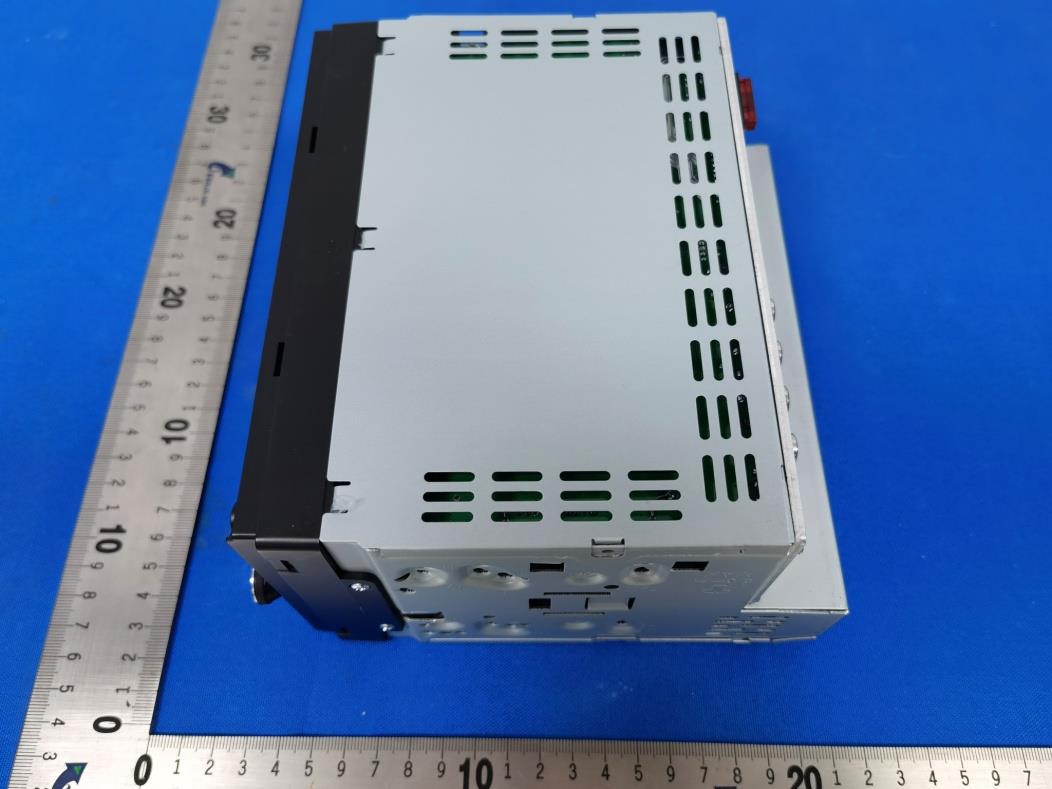

Report No.: BLA-EMC-202012-A9101 Page 75 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com APPENDIX A: PHOTOGRAPHS OF TEST SETUP Radiated Spurious Emissions Report No.: BLA-EMC-202012-A9101 Page 76 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com APPENDIX B: PHOTOGRAPHS OF EUT Report No.: BLA-EMC-202012-A9101 Page 77 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202012-A9101 Page 78 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202012-A9101 Page 79 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202012-A9101 Page 80 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202012-A9101 Page 81 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202012-A9101 Page 82 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com ----END OF REPORT---- The test report is effective only with both signature and specialized stamp, The result(s) shown in this report refer only to the sample(s) tested. Without written approval of BlueAsia, this report can’t be reproduced except in full.

Report No.: BLA-EMC-202012-A9101 Page 44 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10 APPENDIX Appendix1 10.1 APPENDIXA: 20DBEMISSION BANDWIDTH Test Result TestMode Antenna Channel 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH1 Ant1 2402 1.128 2401.457 2402.585 --- PASS 2441 1.128 2440.457 2441.585 --- PASS 2480 1.125 2479.457 2480.582 --- PASS 2DH1 Ant1 2402 1.416 2401.310 2402.726 --- PASS 2441 1.419 2440.307 2441.726 --- PASS 2480 1.416 2479.310 2480.726 --- PASS 3DH1 Ant1 2402 1.416 2401.316 2402.732 --- PASS 2441 1.413 2440.319 2441.732 --- PASS 2480 1.410 2479.319 2480.729 --- PASS Report No.: BLA-EMC-202012-A9101 Page 45 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 2DH1_Ant1_2402 Report No.: BLA-EMC-202012-A9101 Page 46 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 2DH1_Ant1_2441 2DH1_Ant1_2480 3DH1_Ant1_2402 Report No.: BLA-EMC-202012-A9101 Page 47 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 3DH1_Ant1_2441 3DH1_Ant1_2480 Report No.: BLA-EMC-202012-A9101 Page 48 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.2 APPENDIXC: MAXIMUM CONDUCTED OUTPUT POWER Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH1 Ant1 2402 3.67 <=20.97 PASS 2441 3.88 <=20.97 PASS 2480 4.87 <=20.97 PASS 2DH1 Ant1 2402 5.63 <=20.97 PASS 2441 6.1 <=20.97 PASS 2480 7.36 <=20.97 PASS 3DH1 Ant1 2402 6.14 <=20.97 PASS 2441 6.54 <=20.97 PASS 2480 7.86 <=20.97 PASS Report No.: BLA-EMC-202012-A9101 Page 49 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 Report No.: BLA-EMC-202012-A9101 Page 50 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 2DH1_Ant1_2402 2DH1_Ant1_2441 2DH1_Ant1_2480 Report No.: BLA-EMC-202012-A9101 Page 51 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 3DH1_Ant1_2402 3DH1_Ant1_2441 3DH1_Ant1_2480 Report No.: BLA-EMC-202012-A9101 Page 52 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202012-A9101 Page 53 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.3 APPENDIXD: CARRIER FREQUENCY SEPARATION Test Result TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH1 Ant1 Hop 0.978 >=0.752 PASS 2DH1 Ant1 Hop 1 >=0.946 PASS 3DH1 Ant1 Hop 0.99 >=0.944 PASS Report No.: BLA-EMC-202012-A9101 Page 54 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop Report No.: BLA-EMC-202012-A9101 Page 55 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.4 APPENDIXE: TIME OF OCCUPANCY Test Result TestMode Antenna Channel BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.38 330 0.125 <=0.4 PASS DH3 Ant1 Hop 1.64 150 0.245 <=0.4 PASS DH5 Ant1 Hop 2.89 130 0.375 <=0.4 PASS Report No.: BLA-EMC-202012-A9101 Page 56 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop Report No.: BLA-EMC-202012-A9101 Page 57 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com DH5_Ant1_Hop Report No.: BLA-EMC-202012-A9101 Page 58 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.5 APPENDIXF: NUMBER OF HOPPING CHANNELS Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH1 Ant1 Hop 79 >=15 PASS 2DH1 Ant1 Hop 79 >=15 PASS 3DH1 Ant1 Hop 79 >=15 PASS Report No.: BLA-EMC-202012-A9101 Page 59 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop Report No.: BLA-EMC-202012-A9101 Page 60 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.6 APPENDIXG:BAND EDGE MEASUREMENTS Test Result TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1 Ant1 Low 2402 2.88 -56.12 <=-17.13 PASS High 2480 4.39 -55.58 <=-15.61 PASS Low Hop_2402 3.78 -55.08 -16.22 PASS High Hop_2480 5.36 -55.43 -14.64 PASS 2DH1 Ant1 Low 2402 1.70 -56.13 <=-18.3 PASS High 2480 3.53 -55.69 <=-16.47 PASS Low Hop_2402 4.15 -55.41 -15.85 PASS High Hop_2480 6.48 -55.14 -13.52 PASS 3DH1 Ant1 Low 2402 1.33 -56.09 <=-18.67 PASS High 2480 3.40 -55.18 <=-16.6 PASS Low Hop_2402 4.49 -54.5 -15.51 PASS High Hop_2480 6.49 -55.28 -13.51 PASS Report No.: BLA-EMC-202012-A9101 Page 61 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_Low_2402 DH1_Ant1_High_2480 DH1_Ant1_Low_Hop_2402 DH1_Ant1_High_Hop_2480 Report No.: BLA-EMC-202012-A9101 Page 62 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 2DH1_Ant1_Low_2402 2DH1_Ant1_High_2480 2DH1_Ant1_Low_Hop_2402 Report No.: BLA-EMC-202012-A9101 Page 63 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel:…

Text truncated - open the document above for the full version.

Page 1 of 82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Add: Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TEST REPORT Product Name : Car Multimedia Player Brand Mark : JENSEN Model No. : CDR6221, CDR462 FCC ID : 2AFXA-CDR6221 Report Number : BLA-EMC-202012-A9101 Date of Sample Receipt : 2020/12/28 Date of Test : 2020/12/28 to 2021/1/8 Date of Issue : 2021/1/8 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: FengShun Peiying Electro-Acoustic Co., Ltd 2nd Floor, Block F, Hongwei Industrial Area,No.6 Liuxian 2 Road, Baocheng 70 Area, Bao'an, Shenzhen City, Guangdong Province, P.R. China Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China TEL: +86-755-23059481 Compiled by: Review by: Approved by: Date: 2021/1/8 Report No.: BLA-EMC-202012-A9101 Page 2 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com REPORT REVISE RECORD Version No. Date Description 00 2021/1/8 Original Report No.: BLA-EMC-202012-A9101 Page 3 of82 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................6 2 GENERAL INFORMATION .........................................................................................................................7 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................7 4 TEST ENVIRONMENT ................................................................................................................................8 5 TEST MODE ................................................................................................................................................8 6 MEASUREMENT UNCERTAINTY ..............................................................................................................8 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................9 8 LABORATORY LOCATION .........................................................................................................................9 9 TEST INSTRUMENTS LIST ..................................................................................................................... 10 ANTENNA REQUIREMENT .............................................................................................................................. 14 CONCLUSION ...................................................................................................................................................................... 14 RADIATED SPURIOUS EMISSIONS ............................................................................................................... 15 LIMITS ............................................................................................................................................................................. 15 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 16 PROCEDURE ................................................................................................................................................................... 16 TEST DATA ........................................................................................................................................................................ 18 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS ......................................................... 26 LIMITS ............................................................................................................................................................................. 26 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 27 PROCEDURE ................................................................................................................................................................... 27 TEST DATA ........................................................................................................................................................................ 29 CONDUCTED SPURIOUS EMISSIONS ........................................................................................................... 33 LIMITS ............................................................................................................................................................................. 33 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 33 TEST DATA ........................................................................................................................................................................ 34 CONDUCTED BAND EDGES MEASUREMENT ............................................................................................. 35 LIMITS ............................................................................................................................................................................. 35 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 35 TEST DATA ...............................................................................................…

Text truncated - open the document above for the full version.

Model No.: CDR6221
