2AG7C-BABY2MBaby Monitor

QUICK GUIDE ORIGINALITY DESIGN SMART - AND BEAUTIFUL Baby 4S&2M DC 5V 1 Power cable x 2 Camera Screws Manual Please consult this checklist for all parts. What's in the box Drill Template Power adapter x 2 Monitor Reset pin DC 5V 2 Power port TF card slot Microphone Status light Temperature and humidity sensor Call/Pair RESET Power ON/OFF Night light ON/OFF DC 5V/1A Support local TF Card storage (Max.128G) Capture sound for your video Blinking red light: wait for network connection (slow) connecting the network (fast) Solid blue light on: camera is working correctly Solid red light on: camera is malfunctional Detect the temperature and humidity of the environment Press to make a call; long press to pair Press and hold for 5 seconds to reset the camera (if you have modified settings, they will return to factory defaults) Long press to turn on or turn off power Press to turn on or turn off night light Description Microphone Status light Call & Pair Speaker RESET Night light Power ON/OFF Night light ON/OFF Temperature and humidity sensor Power port TF card slot Status light of charging Orange light: Charging Green light: Fully charged Status light of charging 2 1 3 4 5 6 7 8 1.Status light 2.Microphone 3.Direction 4.OK 5.Back 6.Menu 7.Call 8.Zoom in/out 3 Power port DC 5V/1A Orange: Working Black: Sleep or power off Capture sound for your video Adjust the angle to get better signals Long press 5 seconds to turn on and turn off the monitor Switch cameras (dual screen)； Zoom the image in 1X, 2X or 4X (single screen) On homepage, press to enter the menu interface; On homepage, long press to enter the setting interface Control the rotation directions; select the menu items Comfirm or awake the screen Make a call after pressing the button Support local TF Card storage (Max.128G) Press with pin to reset the monitor Press to back up; On homepage, long press to stop playing music Microphone Antenna ON/OFF button Menu Description Status light Zoom in/out Direction OK Call TF card slot RESET Back Speaker ON/OFF button Antenna Stand RESET Volume DC 5V Power port TF card slot 4 Installation Method 1： Clamp the camera to the edge of the bed and twist the body to find an ideal viewing angle. Method 2： Use the included mounting bracket to fix the camera to a clean surface. ① ② 1. Press part ① and clamp the camera to the edge of the bed. 2. Twist part ② to adjust viewing angle. 1. Install the screws to the wall according to the position of the drill template. Do not tighten the screws to the end, as you need to leave a gap for hanging the camera. 2. Snap the camera mounting holes (at the bottom) into the screws and push the camera downwards until it stuck. Specification Baby 4S [email protected], 85°/50°/100° 0 °C to 40 °C TF card (up to 256GB) 1920x1080 69 x 63 x 119mm DC 5V, 1A Up to 4.5W iOS 9 / Android 5.0 or later 2412-2462MHz (Max. power＜30dBm ) 905-925MHz (Max. power＜30dBm ) Product name Lens&FOV(H/V/D) Working temp Local storage Resolution Size Power input Consumption Supported phone OS 2.4GHz Wi-Fi Wi-Fi HaLow Baby 2M 3000mAh 0 °C to 40 °C TF card (up to 128GB) 272P(480 x 272) 154 x 79 x 20 mm DC 5V, 1A 905-925MHz (Max. power＜30dBm ) Product name Battery capacity Working temp Local storage Resolution Size Power input Wi-Fi HaLow Connect the camera to the App 5 Connection iPadAndroidIOS The camera can be connected to both the monitor and the App. Generally, it is connected to the monitor by default. Follow the steps below to connect the camera to the App: 1. Make sure the Wi-Fi network is a 2.4 GHz network, as the camera doesn't support 5 GHz Wi-Fi. 2. Download the corresponding App on your phone. Register a new account to log in or use an exsiting account to log in directly. 3. Reset the camera until the status light is red in fast blinking. (You have to connect the camera to the App within 2 minutes; otherwise, you have to reset the camera again.) (If you are using the monitor, the audio and video will be temporarily disconnected, and will automatically resume after the camera is successfully configured with the network. The maximum time is 2 minutes.） 4. Follow the step instructions on your smart phone to add the monitor, and scan the QR code with your camera. App Download · Support The App is available for both iOS and Android OS. Scan the QR code or search "CloudEdge" at App Store and Google Play. Download and install the App at your phone. You can select the App according to needs. Download App(IOS&android) Connection 2.4GHz5GHz 6 Set up router Please keep network available The router supports the 2.4GHz Wi-Fi (doesn't support the 5GHz), and is connected to the Wi-Fi network. Please set the parameters of the router before connecting the Wi-Fi network, and record the SSID and password of your Wi-Fi. Pairing of camera and monitor Unbind the monitor and camera: 1. Press Menu button on the monitor screen, and select > Camera. 2. Select Camera 1 or Camera 2 which you need to unbind. 3. Long press OK button to release the binding. Pair the monitor and camera: 1. Press Menu button on the monitor screen, and select > Camera. 2. Select Camera 1 or Camera 2 which you need to pair. 3. Long press the camera pair button until you hear the prompt tone. 4. Press OK button on the monitor screen to start pairing. 5. (Optional) For 2 cameras, repeat step 2 ~ step 4. Power on the camera and the monitor, and they will automatically connect. If the connection fails, please follow the steps below to pair. The pairing is distance limited, so make the distance between the camera and the monitor is no more than 200m. DC 5V 7 Usage Note： * For different products, you may add 1 or 2 cameras. If you have added 2 cameras, the monitor screen will display 2 live views at the same time. * If you want to set parameters or enable functions of one of the cameras, you need to select the camera first. Camera selection method (2 cameras) On home page, press button to switch camera between Cam1 and Cam2 if you have added two cameras. If y…

Text truncated - open the document above for the full version.

HangzhouMeari TechnologyCo., Ltd. Attention:ApplicationExaminer Re: Certificationdesignatinga U.S. agent for serviceof processpursuantto section2.911(d)(7)of the FCC rules To whom it may concern, This letter is to confirmboth [TianHengConsulting,LLC] (“Agent ”) and [HangzhouMeari TechnologyCo., Ltd. ] (“Applicant”) acknowledgeconsentto obligationsof each party pursuantto 47 CFR part §2.911(d)(7) of the FCC rules in regard to the agent for serviceof process. I [ZhiyangChai ] HEREBYCERTIFYTHATI am authorizedto make the representationsabove on behalf of the Applicant.I furtheracknowledgethe requirementto maintainan agent extendsfor no less than one year after the terminationof all marketingand importationor the conclusionof and commission-related proceedinginvolvingthe equipmentand agree to immediatelynotify the FCC if there is any changein the status identifiedabove. Applicant CompanyName: HangzhouMeari TechnologyCo., Ltd. CompanyFRN:0025181900 ContactName:ZhiyangChai Address:Room 604-605,Building1,No.768JianghongRoad,Changhestreet,Binjiang District,Hangzhou,zhejiang,China TelephoneNo: +86-571-56565099 Email: [email protected] Signature: Date: 03/01 /202 4 I,HualingDong,HEREBYCERTIFYTHATI am authorizedto make the representationsabove on behalf of the Agent.I consentto the obligationto accept serviceof processon behalf of the applicantin regard to all certificationapplicationsto the FCC submittedby above applicantand agree to immediatelynotify the FCC if there is changein this representation. Agent CompanyName: TianHengConsulting,LLC CompanyFRN:0033401258 ContactName: HualingDong Address: 392 AndoverStreet, Wilmington,MA 01887,UnitedStates TelephoneNo: +1 617-997-4010 Email: [email protected] Signature: Issue Date: March 01 , 202 4ExpiryDate:March 01 , 202 5

CoveredEquipmentIdentificationLetter ForCertificationServiceintheUSA FederalCommunicationCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21048 Towhomitmayconcern PursuanttoSection2.911(d)(5)(ii)oftheCommission’sRules(47C.F.R.)weattestasfollows: We, applicant CompanyName:HangzhouMeariTechnologyCo.,Ltd. Address:Room604-605,Building1,No.768Jianghong Road,ChangheStreet,BinjiangDistrict, Hangzhou,Zhejiang,China Phone:+86-15869048127 certifythat,asofthedateofthefilingoftheapplication,theapplicantisnotidentifiedon theCoveredListasanentityproducing“covered”equipment. Ifyouhaveanyquestions,pleasefeelfreetocontactusattheaddressshownbelow. Sincerely, SignatureDate:2024-03-27 Name/Title:ZhiyangChai/Manager Company:HangzhouMeariTechnologyCo.,Ltd. Address: Room 604-605, Building 1, No. 768 Jianghong Road, Changhe Street, Binjiang District, Hangzhou, Zhejiang, China Phone: +86-15869048127 Fax Number: N/A E-Mail: [email protected]

CoveredEquipmentAttestationLetter ForCertificationServiceintheUSA FederalCommunicationCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21048 Towhomitmayconcern PursuanttoSection2.911(d)(5)(i)-(ii)oftheCommission’sRules(47C.F.R.)weattestas followsfortheproductlistedbelow: FCCIDModelname 2AG7C-BABY2M Baby2M,Baby2MN We, applicant CompanyName:HangzhouMeariTechnologyCo.,Ltd. Address:Room604-605,Building1,No.768Jianghong Road,ChangheStreet,BinjiangDistrict, Hangzhou,Zhejiang,China Phone:+86-15869048127 certifythattheequipmentforwhichauthorizationissoughtisnot“covered”equipment prohibitedfromreceivinganequipmentauthorizationpursuanttosection2.903oftheFCC rules. Ifyouhaveanyquestions,pleasefeelfreetocontactusattheaddressshownbelow. Sincerely, SignatureDate:2024-03-27 Name/Title:ZhiyangChai/Manager Company:HangzhouMeariTechnologyCo.,Ltd. Address:Room604-605,Building1,No.768JianghongRoad,ChangheStreet,Binjiang District,Hangzhou,Zhejiang,China Phone:+86-15869048127 E-Mail:[email protected]

HangzhouMeariTechnologyCo.,Ltd. Room604-605,Building1,No.768JianghongRoad,ChangheStreet,Binjiang District,Hangzhou,Zhejiang,China FCCID:2AG7C-BABY2 Date: March 27, 2024 M ModelNumber:Baby2M,Baby2MN To:FederalCommunicationCommission AuthorizationandEvaluationDivision7435OaklandMillsRoad Columbia,MD21048 ToWhomItMayConcern, We, HangzhouMeariTechnologyCo.,Ltd. herebydeclarethatourproduct (Baby Monitor) ModelNumber: Baby2M,Baby2MN board,Schematic,Hardwareversion, Softwareversion,structureandinternalphotosaresame,nameddifferentlydueto marketingpurposes. Shouldyouhaveanyquestionsorcommentsregardingthismatter,pleasehavemybest attention. Sincerely, (Signed) Name / Title: Zhiyang Chai/Manager Company: Hangzhou Meari Technology Co., Ltd. Address: Room 604-605, Building 1, No. 768 Jianghong Road, Changhe Street, Binjiang District, Hangzhou, Zhejiang, China Phone: +86-15869048127 E-Mail:[email protected]

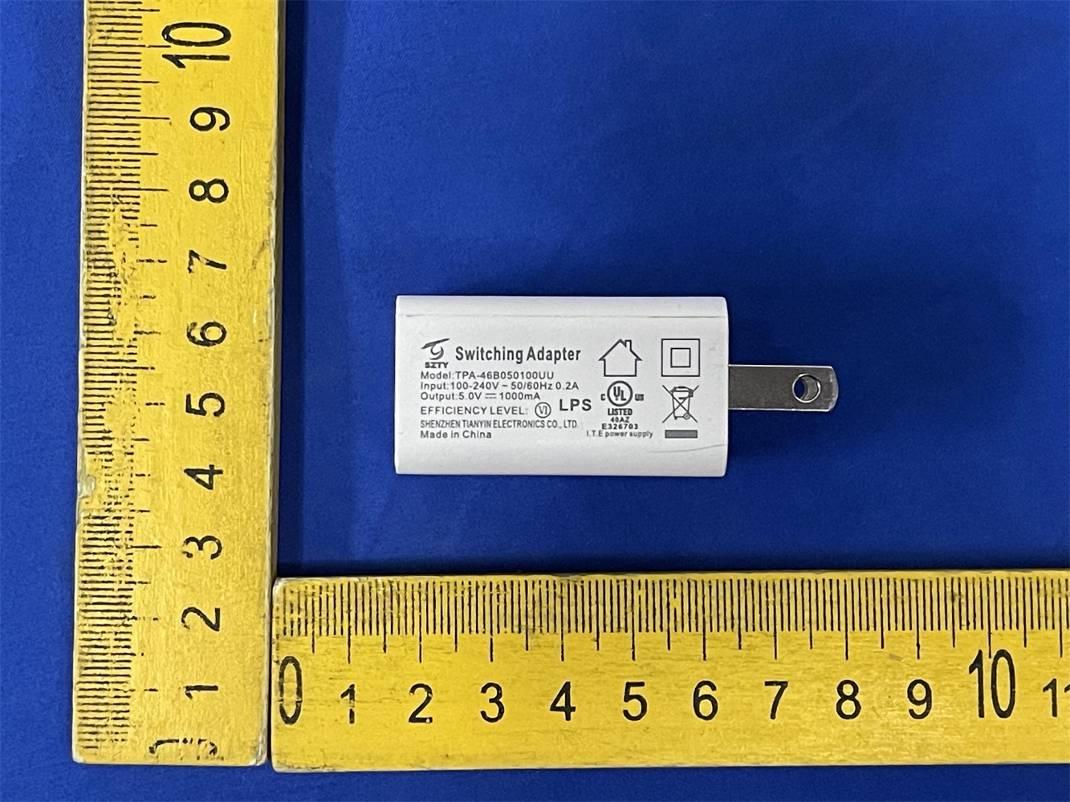

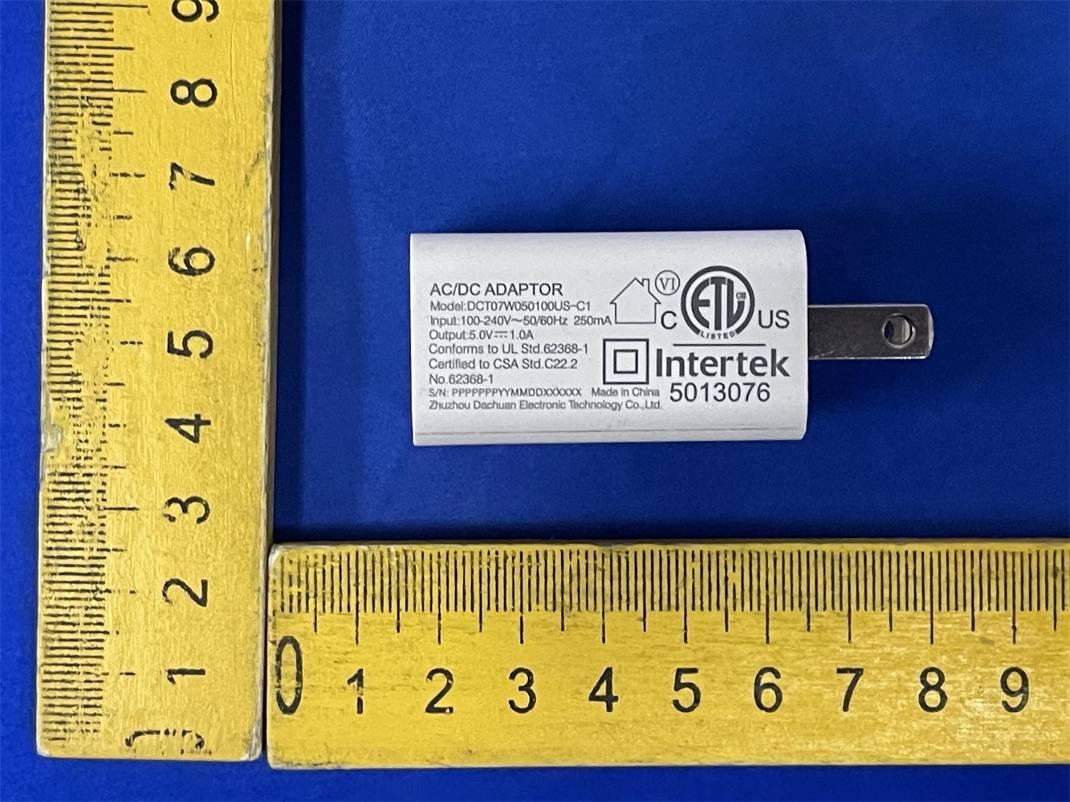

Report No.: GTS20231020001-1-106 Page 33 of 40 6. E X T E R N A L A N D I N T E R N A L P H O T O S O F T H E EUT Fig. 1 Fig. 2 Report No.: GTS20231020001-1-106 Page 34 of 40 Fig. 3 Fig. 4 Report No.: GTS20231020001-1-106 Page 35 of 40 Fig. 5 Fig. 6 Report No.: GTS20231020001-1-106 Page 36 of 40 Fig. 7 Fig. 8 Antenna Report No.: GTS20231020001-1-106 Page 37 of 40 Fig. 9 Fig. 10

Labellocation

Report No.: GTS20231020001-1-106 Page 38 of 41 Fig. 11 Fig. 12 Report No.: GTS20231020001-1-106 Page 39 of 41 Fig. 13 Fig. 14 Report No.: GTS20231020001-1-106 Page 40 of 41 Fig. 15 Fig. 16 Report No.: GTS20231020001-1-106 Page 41 of 41 Fig. 17 Fig. 18 .......................End of Report.........................

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No...................... : FCC ID. ............................................ : GTS20231020001-1-107 2AG7C-BABY2M Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Jenny Zeng Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Mar. 20, 2024 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Hangzhou Meari Technology Co., Ltd. Address ............................................ : Room 604-605, Building 1, No.768 Jianghong Road, Changhe Street, Binjiang District, Hangzhou, Zhejiang, China Test specification ........................... : Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Baby Monitor Trade Mark ....................................... : N/A Manufacturer .................................... : Hangzhou Meari Technology Co., Ltd. Model/Type reference ...................... : Baby 2M Listed Models .................................. : Baby 2MN Hardware Version ............................ : BABY2M-A3MB REV1_0 Software Version .............................. : N/A Rating ............................................... : DC 3.7V by battery Recharged by DC 5.0V Result ............................................... : PASS Report No.: GTS20231020001-1-107 Page 2 of 8 T E S T R E P O R T Test Report No. : GTS20231020001-1-107 Mar. 20, 2024 ______________________________________________________________________________________________ Date of issue Equipment under Test : Baby Monitor Model /Type : Baby 2M Listed model : Baby 2MN Applicant : Hangzhou Meari Technology Co., Ltd. Address : Room 604-605, Building 1, No.768 Jianghong Road, Changhe Street, Binjiang District, Hangzhou, Zhejiang, China Manufacturer : Hangzhou Meari Technology Co., Ltd. Address : 4F of Building 1 and 2-4F of Building 2, No. 91 Chutian Road, Xixing Street, Binjiang District, Hangzhou, Zhejiang, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20231020001-1-107 Page 3 of 8 Contents 1. SUMMARY ................................................................................................................................................................. 4 1.1 EUT CONFIGURATION ........................................................................................................................................................ 4 1.2 PRODUCT DESCRIPTION ..................................................................................................................................................... 4 2. TEST ENVIRONMENT ................................................................................................................................................. 5 2.1 ADDRESS OF THE TEST LABORATORY ..................................................................................................................................... 5 2.2 TEST FACILITY .................................................................................................................................................................. 5 2.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................................ 5 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .................................................................................................................. 5 3. METHOD OF MEASUREMENT .................................................................................................................................... 6 3.1 APPLICABLE STANDARD ...................................................................................................................................................... 6 3.2 REQUIREMENT ................................................................................................................................................................. 6 3.3 LIMIT ............................................................................................................................................................................. 6 3.4 MPE CALCULATION METHOD ............................................................................................................................................. 7 3.5 ANTENNA INFORMATION ................................................................................................................................................... 7 4. CONDUCTED POWER RESULTS ......................…

Text truncated - open the document above for the full version.

上海杰盛康通信工程有限公司 ShanghaiJesoncomCommunicationEngineeringCo.,Ltd Confidential 杰盛康机密，未经允许，请勿转载 第 1 页共 11 页 客户承认书 SPECIFICATIONFORAPPROVAL CUSTOMER/PROJECT客户/机型：觅睿 CUSTOMERP.N./客户物料号： PRODUCTNAME./物料名称：868-915M天线 MODELNO./物料型号：26B035A SPECIFICATION/物料规格： VERSION 版本 DATE 日期 REVISIONDESCRIPTION 修订说明 T:A2023.12.4新增 SUPPLIERAUTHORIZEDSIGNATURE/供应商承认签核 制作/PREPARED审核/CHECKED批准/APPROVED 李兴洁 CUSTOMERAUTHORIZEDSIGNATURE/客户承认签核 项 目 质 量 Pleasereturntousonecopyof“SPECIFICATIONFORAPPROVAL”withyour approvedsignature.//客户确认签字，盖章后请回传一份承认书给我司. ADD:No.358LiuyuanRD.,BaoshanUrbanIndustrialDistrict.,Shanghai,PR.China. 地址：上海市宝山城市工业园区柳园路358号2号楼1楼 TEL:+86-21-66276925(26/29/35)－615 上海杰盛康通信工程有限公司 ShanghaiJesoncomCommunicationEngineeringCo.,Ltd Confidential 杰盛康机密，未经允许，请勿转载 第 2 页共 11 页 目录 1名词解释.....................................................................................................................................3 2 测试设备 .....................................................................................................................................3 3适用频段.....................................................................................................................................3 4 基本测试项目 .............................................................................................................................4 4.1驻波比图...........................................................................................................................4 4.2 史密斯阻抗图 ...................................................................................................................4 4.3辐射方向图.......................................................................................................................4 4.4 增益和效率 .......................................................................................................................4 4.5TRP&TIS测试..................................................................................................................4 5 测试指标和数据图表 .................................................................................................................4 5.1驻波比...............................................................................................................................4 5.2 史密斯阻抗圆图 ...............................................................................................................5 5.3辐射方向图.......................................................................................................................5 5.4 增益和效率 .......................................................................................................................9 6环境处理建议.............................................................................................................................9 7 阻抗匹配要求 .............................................................................................................................9 8天线外形图...............................................................................................................................10 9 天线安装指导 ...........................................................................................................................11 9.1天线安装位置说明.........................................................................................................11 10 其他 .........................................................................................................................................11 上海杰盛康通信工程有限公司 ShanghaiJesoncomCommunicationEngineeringCo.,Ltd Confidential 杰盛康机密，未经允许，请勿转载 第 3 页共 11 页 1名词解释 dBiDecibelrelativeisotropicantenna TxTransmitfrequency RxReceivefrequency TRPTotalRadiatedPower TISTotalIsotropicSensitivity VSWRVoltageStandingWaveRatio GSMGlobalServiceforMobilecommunication DCSDigitalCommunicationSystem CDMACodeDivisionMultipleAccess WCDMAWidebandCodeDivisionMultipleAccess 2 测试设备 可根据实际情况自行增减 矢量网络分析仪 综合测试仪 SATIMO64位暗室 3 适用频段 将适用的频段用其他颜色标出。 制式频段 GSM800824MHz～896MHz GSM900890MHz～915MHz DCS18001710MHz～1785MHz PCS19001850MHz～1910MHz CDMA800825MHz～835MHz WCDMA900880MHz～915MHz WCDMA21001920MHz～1980MHz NB-B5824MHz～896MHz NB-B8890MHz～915MHz 868M-915M868M-915M 上海杰盛康通信工程有限公司 ShanghaiJesoncomCommunicationEngineeringCo.,Ltd Confidential 杰盛康机密，未经允许，请勿转载 第 4 页共 11 页 4基本测试项目 4.1驻波比图 4.2史密斯阻抗图 4.3辐射方向图 4.4增益和效率 4.5TRP&TIS测试 5测试指标和数据图表 5.1驻波比 5.1.1驻波比图 上海杰盛康通信工程有限公司 ShanghaiJesoncomCommunicationEngineeringCo.,Ltd Confidential 杰盛康机密，未经允许，请勿转载 第 5 页共 11 页 5.1.2 驻波比数据 Freq/MHz868915 VSWR2.082.22 5.2史密斯阻抗圆图 5.3辐射方向图 上海杰盛康通信工程有限公司 ShanghaiJesoncomCommunicationEngineeringCo.,Ltd Confidential 杰盛康机密，未经允许，请勿转载 第 6 页共 11 页 5.3.1H-plane 上海杰盛康通信工程有限公司 ShanghaiJesoncomCommunicationEngineeringCo.,Ltd Confidential 杰盛康机密，未经允许，请勿转载 第 7 页共 11 页 5.3.2E-plane E1 上海杰盛康通信工程有限公司 ShanghaiJesoncomCommunicationEngineeringCo.,Ltd Confidential 杰盛康机密，未经允许，请勿转载 第 8 页共 11 页 E2 上海杰盛康通信工程有限公司 ShanghaiJesoncomCommunicationEngineeringCo.,Ltd Confidential 杰盛康机密，未经允许，请勿转载 第 9 页共 11 页 5.4增益和效率 频率(MHz)增益(dBi)效率(%) 8381.2930.67 8481.8337.87 8582.4443.01 8682.7544.90 8782.7649.12 8882.9351.64 8982.7253.01 9152.7450.47 9251.9740.36 9351.0831.11 9450.2330.95 8381.2930.67 8481.8337.87 8582.4443.01 8682.7544.90 6环境处理建议 环境不需要做处理 7 阻抗匹配要求 匹配电路没有修改 上海杰盛康通信工程有限公司 ShanghaiJesoncomCommunicationEngineeringCo.,Ltd Confidential 杰盛康机密，未经允许，请勿转载 第 10 页共 11 页 8天线外形图 上海杰盛康通信工程有限公司 ShanghaiJesoncomCommunicationEngineeringCo.,Ltd Confidential 杰盛康机密，未经允许，请勿转载 第 11 页共 11 页 9天线安装指导 9.1天线安装位置说明 10 其他

FCCID:2AG7C-BABY2M 1 Case No. : GTS20231020001-1-106 Ambient Condition: 22 °C, 59 %RH, Atmos100.1Kpa, Test Date: 2024.3.16 Test Engineer: Evan ouyang Appendix A.1: DTS Bandwidth Test Result Test Mode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict SRD Ant1 905 1.804 904.112 905.916 0.5 PASS 915 1.784 914.116 915.900 0.5 PASS 925 1.780 924.116 925.896 0.5 PASS FCCID:2AG7C-BABY2M 2 Test Graphs SRD_Ant1_905 SRD_Ant1_915 SRD_Ant1_925 FCCID:2AG7C-BABY2M 3 Appendix A.2: Occupied Channel Bandwidth Test Result Test Mode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict SRD Ant1 905 1.8109 904.0937 905.9046 --- --- 915 1.8196 914.0885 915.9081 --- --- 925 1.8117 924.0988 925.9105 --- --- FCCID:2AG7C-BABY2M 4 Test Graphs SRD_Ant1_905 SRD_Ant1_915 SRD_Ant1_925 FCCID:2AG7C-BABY2M 5 Appendix A.3: Maximum conducted output power Test Result Test Mode Antenna Frequency[MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict SRD Ant1 905 28.44 ≤30 PASS 915 28.40 ≤30 PASS 925 28.46 ≤30 PASS FCCID:2AG7C-BABY2M 6 Appendix A.4: Maximum power spectral density Test Result Test Mode Antenna Frequency[MHz] Result[dBm/3kHz] Limit[dBm/3kHz] Verdict SRD Ant1 905 4.42 ≤8.00 PASS 915 4.10 ≤8.00 PASS 925 4.07 ≤8.00 PASS FCCID:2AG7C-BABY2M 7 Test Graphs SRD_Ant1_905 SRD_Ant1_915 SRD_Ant1_925 FCCID:2AG7C-BABY2M 8 Appendix A.5: Band edge measurements Test Result Test Mode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict SRD Ant1 Low 905 21.21 -32.04 ≤1.21 PASS High 925 20.57 -31.39 ≤0.57 PASS FCCID:2AG7C-BABY2M 9 Test Graphs SRD_Ant1_Low_905 SRD_Ant1_High_925 FCCID:2AG7C-BABY2M 10 Appendix A.6: Conducted Spurious Emission Test Result Test Mode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict SRD Ant1 905 Reference 20.64 20.64 --- PASS 30~1000 20.64 -49.28 ≤0.64 PASS 1000~26500 20.64 -32.63 ≤0.64 PASS 915 Reference 20.08 20.08 --- PASS 30~1000 20.08 -48.86 ≤0.08 PASS 1000~26500 20.08 -33.47 ≤0.08 PASS 925 Reference 19.03 19.03 --- PASS 30~1000 19.03 -50.33 ≤-0.97 PASS 1000~26500 19.03 -33.95 ≤-0.97 PASS FCCID:2AG7C-BABY2M 11 Test Graphs SRD_Ant1_905_0~Reference SRD_Ant1_905_30~1000 SRD_Ant1_905_1000~26500 FCCID:2AG7C-BABY2M 12 SRD_Ant1_915_0~Reference SRD_Ant1_915_30~1000 SRD_Ant1_915_1000~26500 FCCID:2AG7C-BABY2M 13 SRD_Ant1_925_0~Reference SRD_Ant1_925_30~1000 SRD_Ant1_925_1000~26500

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : GTS20231020001-1-106 2AG7C-BABY2M Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Evan Ouyang Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Mar. 20, 2024 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong,China Applicant’s name ............................ : Hangzhou Meari Technology Co., Ltd. Address ............................................ : Room 604-605, Building 1, No.768 Jianghong Road, Changhe Street, Binjiang District, Hangzhou, Zhejiang, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Baby Monitor Trade Mark ....................................... : N/A Manufacturer .................................... : Hangzhou Meari Technology Co., Ltd. Model/Type reference ...................... : Baby 2M Listed Models .................................. : Baby 2MN Hardware Version ............................ : BABY2M-A3MB REV1_0 Software Version .............................. : N/A Rating ............................................... : DC 3.7V by battery Recharged by DC 5.0V Result ............................................... : PASS Report No.: GTS20231020001-1-106 Page 2 of 41 T E S T R E P O R T Test Report No. : GTS20231020001-1-106 Mar. 20, 2024 ______________________________________________________________________________________________ Date of issue Equipment under Test : Baby Monitor Model /Type : Baby 2M Listed model : Baby 2MN Applicant : Hangzhou Meari Technology Co., Ltd. Address : Room 604-605, Building 1, No.768 Jianghong Road, Changhe Street, Binjiang District, Hangzhou, Zhejiang, China Manufacturer : Hangzhou Meari Technology Co., Ltd. Address : 4F of Building 1 and 2-4F of Building 2, No. 91 Chutian Road, Xixing Street, Binjiang District, Hangzhou, Zhejiang, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20231020001-1-106 Page 3 of 41 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 6 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 6 2.5. EUT operation mode .............................................................................................................................. 6 2.6. Block Diagram of Test Setup ................................................................................................................. 7 2.7. EUT …

Text truncated - open the document above for the full version.
