2AG7C-BABY4TBaby Monitor

Baby4T&1M ORIGINALITYDESIGNSMART-ANDBEAUTIFUL QUICKGUIDE What'sinthebox 1 Camera Monitor Type-Ccablex2 Poweradapterx2 Screws DrillTemplate Pleaseconsultthischecklistforallparts. ManualResetpin 2 Description humiditysensor Temperatureandhumiditysensor Nightlight Speaker Statuslight PowerON/OFF NightlightON/OFF Call&Pair Microphone Reset SDcardslot Type-Cport Statuslight ofcharging Type-CportDC5V/1A SDcardslotSupportlocalSDCardstorage(Max.128G) MicrophoneCapturesoundforyourvideo Statuslight Blinkingredlight:waitfornetworkconnection(slow) connectingthenetwork(fast) Solidbluelighton:cameraisworkingcorrectly Solidredlighton:cameraismalfunctional Temperatureand Detectthetemperatureandhumidityoftheenvironment Call/PairPresstomakeacall;longpresstopair Pressandholdfor5secondstoresetthecamera(ifyouhave modifiedsettings,theywillreturntofactorydefaults) Reset PowerON/OFF Longpresstoturnonorturnoffpower Nightlight ON/OFF Statuslight ofcharging Microphone Presstoturnonorturnoffnightlight Orangelight:Charging Greenlight:Fullycharged Zoomin/out Menu Statuslightofcharging Statuslightofusing Direction OK Call Back 3 Description Type-CportDC5V/1A Antenna ON/OFFbutton Speaker Screenholder SDcardslot Reset Type-Cport Statuslight ofcharging Statuslight ofusing Microphone Antenna Orangelight:Charging Greenlight:Fullycharged Yellowlight:Themonitorison Nolight:Themonitorisoff Capturesoundforyourvideo Adjusttheangletogetbettersignals ON/OFFbutton Longpress5secondstoturnonandturnoffthemonitor Switchcameras(dualscreen)； Zoomin/out Zoomtheimagein1X,2Xor4X(singlescreen) Menu Direction OK Call SDcardslot Reset Back Onhomepage,presstoenterthemenuinterface; Onhomepage,longpresstoenterthesettinginterface Controltherotationdirections;selectthemenuitems Confirm(menuinterface); Enterfullscreenviewingmode(homepage) Makeacallafterpressingthebutton SupportlocalSDCardstorage(Max.128G) Presswithpintoresetthemonitor Presstobackup; Onhomepage,longpresstostopplayingmusic 4 Installation 1.Presspart①andclamp thecameratotheedgeof thebed. 2.Twistpart②toadjust viewingangle. ② ① 1.Installthescrewstothewallaccordingtothepositionof thedrilltemplate.Donottightenthescrewstotheend,as youneedtoleaveagapforhangingthecamera. 2.Snapthecameramountingholes(atthebottom)intothe screwsandpushthecameradownwardsuntilitstuck. Method1： Clampthecameratotheedgeofthebedandtwistthebodytofindanideal viewingangle. Method2： Usetheincludedmountingbrackettofixthecameratoacleansurface. 5 Connection ConnectthecameratotheApp ThecameracanbeconnectedbothtothemonitorandtheApp.Generally, itisconnectedtothemonitorbydefault. FollowthestepsbelowtoconnectthecameratotheApp: 1.MakesuretheWi-Finetworkisa2.4GHznetwork,asthecameradoesn't support5GHzWi-Fi. 2.DownloadthecorrespondingApponyourphone.Registeranewaccount tologinorlogindirectly. 3.Resetthecamerauntilthestatuslightisredinfastblinking. (YouhavetoconnectthecameratotheAppwithin2minutes;otherwise,you havetoresetthecameraagain.) (Ifyouareusingthemonitor,theaudioandvideowillbetemporarily disconnected,andwillautomaticallyresumeafterthecameraissuccessfully configuredwiththenetwork.Themaximumtimeis2minutes.） 4.Followthestepinstructionsonyoursmartphonetoaddthemonitor,and scantheQRcodewithyourcamera. AppDownload TheAppisavailableforbothiOSandAndroidOS.ScantheQRcodeor search"CloudEdge"atAppStoreandGooglePlay.Downloadandinstallthe Appatyourphone.YoucanselecttheAppaccordingtoneeds. ·Support iPadIOSAndroid DownloadApp(IOS&android) 6 Connection Setuprouter Theroutersupportsthe2.4GHzWiFi(doesn'tsupportthe5GHz),andis connectedtotheWiFinetwork.Pleasesettheparametersoftherouter beforeconnectingtheWiFinetwork,andrecordtheSSIDandpasswordof yourWiFi. Pleasekeepnetworkavailable 2.4GHz5GHz Pairingofcameraandmonitor Poweronthecameraandthemonitor,andtheywillautomaticallyconnect. Iftheconnectionfails,pleasefollowthestepsbelowtopair.Thepairingis distancelimited,somakethedistancebetweenthecameraandthe monitorisnomorethan200m. Unbindthemonitorandcamera: 1.PressMenubuttononthemonitorscreen,andselect>Camera. 2.SelectCamera1orCamera2whichyouneedtounbind. 3.LongpressOKbuttontoreleasethebinding. Pairthemonitorandcamera: 1.PressMenubuttononthemonitorscreen,andselect>Camera. 2.SelectCamera1orCamera2whichyouneedtopair. 3.Longpressthecamerapairingbuttonuntilyouheartheprompttone. 4.PressOKbuttononthemonitorscreentostartpairing. 5.(Optional)For2cameras,repeatstep2~step4. 7 Usage Note： *Fordifferentproducts,youmayadd1or2cameras.Ifyouhaveadded2 cameras,themonitorscreenwilldisplay2liveviewsatthesametime. *Ifyouwanttosetparametersorenablefunctionsofoneofthe cameras,youneedtoselectthecamerafirst. Cameraselectionmethod(2cameras) Onhomepage,pressbuttontoswitchcamerabetweenCam1and Cam2ifyouhaveaddedtwocameras. Ifyouhaveaddedtwocameras,selectonecamerayouneedandpressOK buttononmonitortoenterfullscreenviewingmode.Andthenyoucan pressbuttonagaintozoominandzoomout.(buttondoesnot workwhenthescreenisnotinfullscreen.) Playmusic Youcanplaymusictosoothyourbabywhenbabyiscryingorsleeping. Therearevarioussoftmusictoselect.PressMenuonmonitor,selectand pressOKtoenter.Youcanselectdifferentmusic,changemusiccyclemode, Sadjustthemusicvolume. 8 Usage Photo&video Takeaphoto: Youcantakeaphotowhenyouwanttocaptureaninterestingsceneofbaby. PressMenubuttononmonitor,selectandpressOKtotakeaphoto. Recordavideo: Youcanrecordavideowhenyouwanttocaptureameaningfultimeofbaby. PressMenubuttononthemonitorscreen,selectandpressOKtorecord. Viewthetakenphotosandrecordedvideos: 1.PressMenubuttononthemonitorscreen,selectandpressOKto entertheinterface. 2.Selectthecameraanddate,selectthephotoorvideoyouwanttoview, andpressOKtoenterpreviewmode. *Foravideo,pressOKtoplayorpauseinthepreviewmode. *Pressbackupbuttontoquitprevieworreturntomainmenu. Powersave Turnonthefunctiontosavepower. Ifyoucan'tpreviewontheApp,pleasecheckwhetherthisfunctionisturned oninthemonitor,orresetthecameraandthenaddittoAppagain. *Theonthemainscreenindicatesthecamera'spowerbattery.Please chargethecameraintimeifneeded. 9 Usage Feedingreminder Remi…

Text truncated - open the document above for the full version.

ModelDeclarationLetter We,theundersigningcompany CompanyName:HangzhouMeariTechnologyCo.,Ltd. Address:Room604-605,Building1,No.768JianghongRoad,Changhestreet,Binjiang District,Hangzhou,zhejiang，China Herebyconfirmthatthefollowingproducts: The PCB board, structure and internal of these model(s) above are the same, Only the Product description:Baby Monitor Type designation: Baby4T,Baby4S,Baby4SM,Baby4TM,Baby4Q That model name is different. Date: 2022-12-16 Name: Zhiyang Chai Telephone: +8615869048127 E-mail: [email protected] Signature: FCC ID: 2AG7C-BABY4T

Confidentiality Request Letter For Certification Service in the USA FederalCommunicationCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21048 Towhomitmayconcern PursuanttoParagraphs§0.457and0.459oftheCommission’sRules(47C.F.R.)andSection §552(b)(4)oftheFreedomofInformationAct,werequestconfidentialityforthe documentationofthefollowingproducts: FCC ID 2AG7C-BABY4T Model name Baby4T,Baby4S,Baby4SM,Baby4TM,Baby4Q Signature  the Operational Description  the Block Diagram the Schematics The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Fortheproductslistedabove,werequestpermanentconfidentialityforallapplicable exhibitsasthereare: Sincerely, 2022-12-16 Date PrintedNameofSignee: Company:HangzhouMeariTechnologyCo.,Ltd. Address: Room604-605,Building1,No.768JianghongRoad,Changhestreet,Binjiang District,Hangzhou,zhejiang ， China Phone: +8615869048127 Email:[email protected]

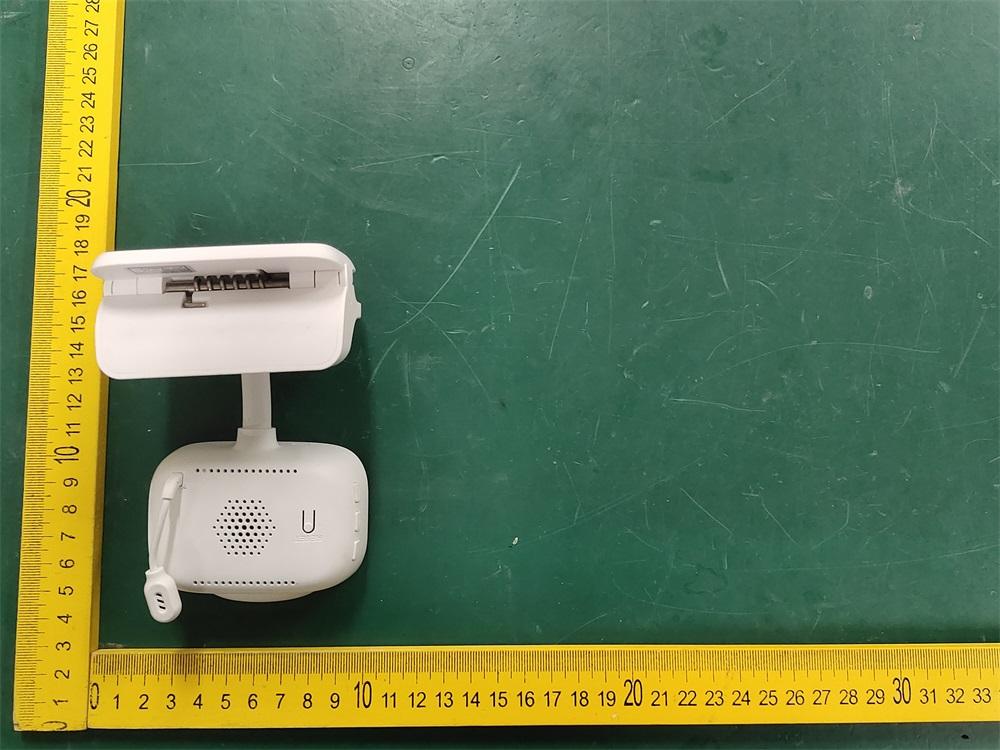

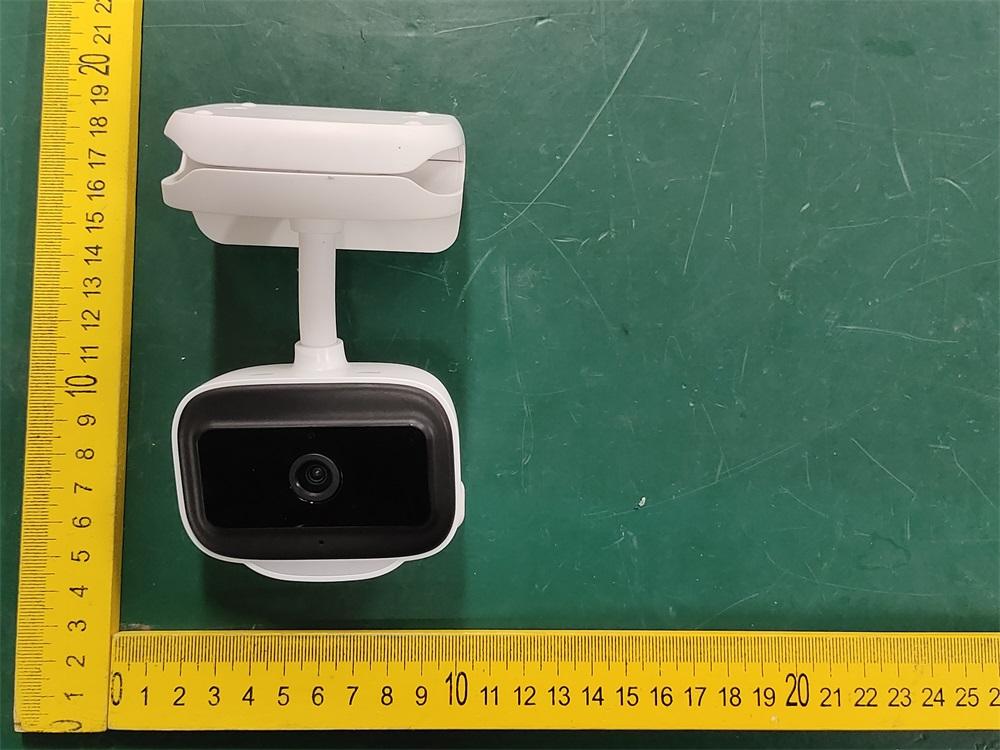

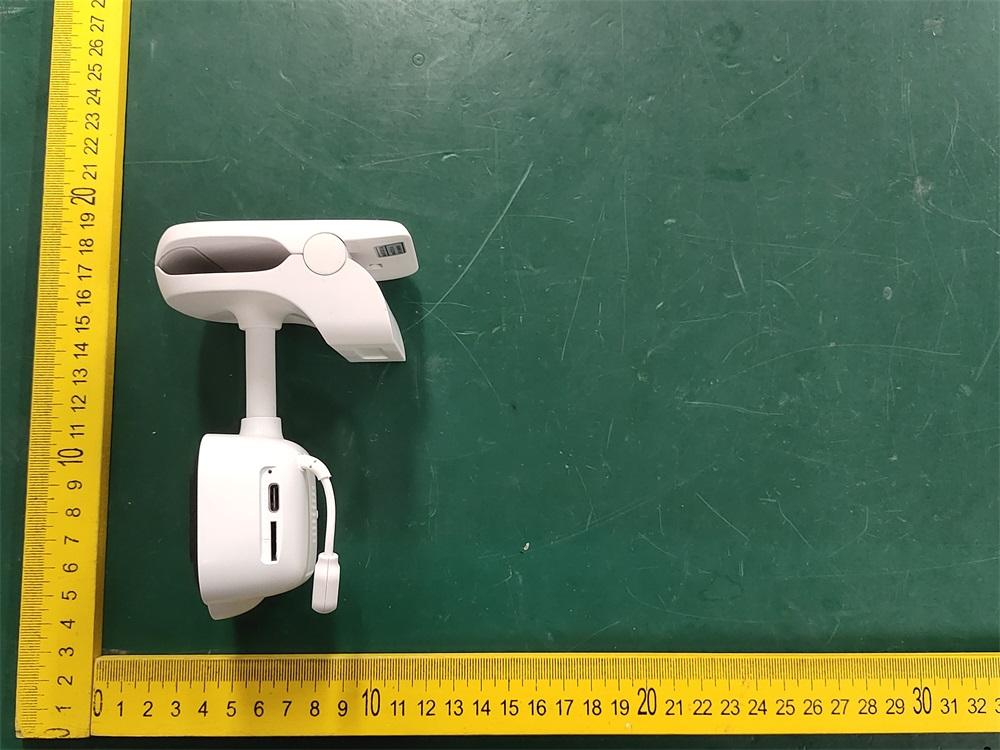

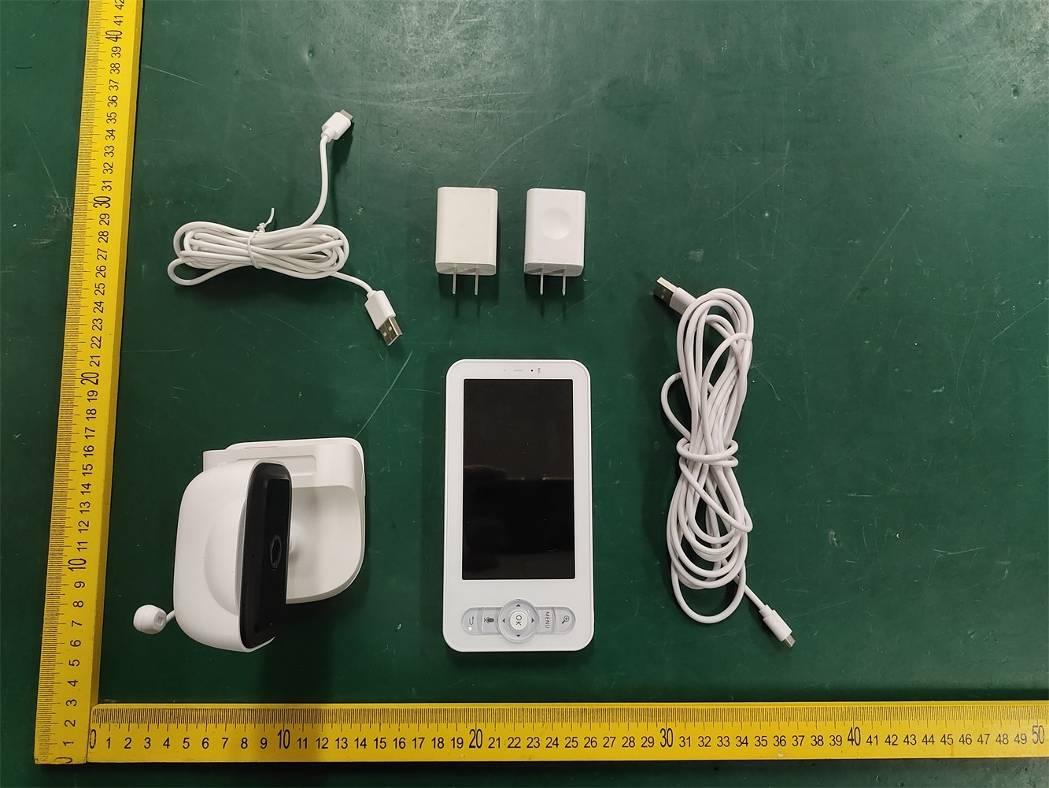

ReportNo.:GTS20220930008-1-26Page 33 of 43 6.EXTERNALANDINTERNALPHOTOSOFTHEEUT Fig.1 Fig.2 ReportNo.:GTS20220930008-1-26Page 34 of 43 Fig.3 Fig.4 ReportNo.:GTS20220930008-1-26Page 35 of 43 Fig.5 Fig.6 ReportNo.:GTS20220930008-1-26Page 36 of 43 Fig.7 Fig.8 ReportNo.:GTS20220930008-1-26Page 37 of 43 Fig.9 Fig.10

Labellocation

ReportNo.:GTS20220930008-1-26Page 38 of 43 Fig.11 Fig.12 SRDAntenna ReportNo.:GTS20220930008-1-26Page 39 of 43 Fig.13 Fig.14 ReportNo.:GTS20220930008-1-26Page 40 of 43 Fig.15 Fig.16 ReportNo.:GTS20220930008-1-26Page 41 of 43 Fig.17 Fig.18 2.4GWLAN Antenna ReportNo.:GTS20220930008-1-26Page 42 of 43 Fig.19 Fig.20 ReportNo.:GTS20220930008-1-26Page 43 of 43 Fig.21 Fig.22 .......................EndofReport........................

ShenzhenGlobalTestServiceCo.,Ltd. No.7-101and8A-104,Building7and8,DCCCulturalandCreativeGarden,No.98,PingxinNorthRoad, ShangmuguCommunity,PinghuStreet,LonggangDistrict,Shenzhen,Guangdong RFExposureevaluation ReportReferenceNo........................: FCCID..................................................: GTS20220930008-1-28 2AG7C-BABY4T Compiledby (position+printedname+signature) .. :FileadministratorsPeterXiao Supervisedby (position+printedname+signature)..:TestEngineerJennyZeng Approvedby (position+printedname+signature)..: ManagerJasonHu Dateofissue.........................................:Dec.13,2022 RepresentativeLaboratoryName.:ShenzhenGlobalTestServiceCo.,Ltd. Address.................................................: No.7-101and8A-104,Building7and8,DCCCulturalandCreative Garden,No.98,PingxinNorthRoad,ShangmuguCommunity, PinghuStreet,LonggangDistrict,Shenzhen,Guangdong Applicant’sname ............................... :HangzhouMeariTechnologyCo.,Ltd. Address.................................................: Room604-605,Building1,No.768JianghongRoad,Changhe street,BinjiangDistrict,Hangzhou,zhejiang,China Testspecification .............................. : Standard................................................: 47CFR § 1.1310 47CFR§2.1091 KDB447498D01GeneralRFExposureGuidancev06 TRFOriginator......................................:ShenzhenGlobalTestServiceCo.,Ltd. MasterTRF...........................................:Dated2014-12 ShenzhenGlobalTestServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenGlobalTestServiceCo.,Ltd.isacknowledgedascopyrightownerandsourceofthematerial. ShenzhenGlobalTestServiceCo.,Ltd.takesnoresponsibilityforandwillnotassumeliabilityfordamages resultingfromthereader'sinterpretationofthereproducedmaterialduetoitsplacementandcontext. Testitemdescription........................:BabyMonitor TradeMark............................................:N/A Manufacturer ......................................... :HangzhouMeariTechnologyCo.,Ltd. Model/Typereference ......................... :Baby4T ListedModels......................................:Baby4S,Baby4SM,Baby4TM,Baby4Q HardwareVersion...............................:BABY4S-T3MB-GC1_REV1_0 SoftwareVersion..................................:ppstrong-c92-m_general_baby_sta-5.2 Rating.....................................................:DC5.0V/1.0AbyAdapter Result ..................................................... :PASS ReportNo.:GTS20220930008-1-28Page 2 of 11 TESTREPORT TestReportNo.: GTS20220930008-1-28 Dec.13,2022 ______________________________________________________________________________________________ Dateofissue EquipmentunderTest:BabyMonitor Model/Type:Baby4T Listedmodel:Baby4S,Baby4SM,Baby4TM,Baby4Q Applicant :HangzhouMeariTechnologyCo.,Ltd. Address : Room604-605,Building1,No.768JianghongRoad,Changhestreet, BinjiangDistrict,Hangzhou,zhejiang,China Manufacturer : HangzhouMeariTechnologyCo.,Ltd. Address: 4FofBuilding1and2-4FofBuilding2,No.91ChutianRoad, XixingStreet,BinjiangDistrict,Hangzhou,Zhejiang,China TestResult:PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:GTS20220930008-1-28Page 3 of 11 Contents 1.SUMMARY...................................................................................................................................................................4 1.1EUTCONFIGURATION........................................................................................................................................................4 1.2PRODUCTDESCRIPTION......................................................................................................................................................4 2.TESTENVIRONMENT....................................................................................................................................................5 2.1ADDRESSOFTHETESTLABORATORY.....................................................................................................................................5 2.2TESTFACILITY...................................................................................................................................................................5 2.3ENVIRONMENTALCONDITIONS.............................................................................................................................................5 2.4STATEMENTOFTHEMEASUREMENTUNCERTAINTY..................................................................................................................5 3.METHODOFMEASUREMENT......................................................................................................................................6 3.1APPLICABLESTANDARD......................................................................................................................................................6 3.2REQUIREMENT..................................................................................................................................................................6 3.3LIMIT..............................................................................................................................................................................6 3.4MPECALCULATIONMETHOD.............................................................................................................................................7 3.5ANTENNAINFORMATION....................................................................................................................................................7 4.CONDUCTEDPOWERRESULTS.....................................................................................................................................8 5.MANUFACTURINGTOLERANCE.................................................................................................................…

Text truncated - open the document above for the full version.

Case No. : GTS20220930008-1-26 Ambient Condition: 26 °C, 50 %RH, Atmos100.1Kpa, Test Date: 2022.11.24 Test Engineer: Jenny zeng Appendix A.1: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 9.600 2406.960 2416.560 0.5 PASS 2437 10.040 2431.960 2442.000 0.5 PASS 2462 9.120 2457.440 2466.560 0.5 PASS 11G Ant1 2412 16.280 2403.840 2420.120 0.5 PASS 2437 16.320 2428.840 2445.160 0.5 PASS 2462 16.320 2453.800 2470.120 0.5 PASS 11N20SISO Ant1 2412 16.720 2403.640 2420.360 0.5 PASS 2437 16.920 2428.440 2445.360 0.5 PASS 2462 16.720 2453.440 2470.160 0.5 PASS 11N40SISO Ant1 2422 35.040 2404.480 2439.520 0.5 PASS 2437 35.120 2419.400 2454.520 0.5 PASS 2452 35.120 2434.400 2469.520 0.5 PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Appendix A.2: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.267 2405.386 2418.653 --- --- 2437 13.197 2430.412 2443.609 --- --- 2462 13.065 2455.461 2468.526 --- --- 11G Ant1 2412 16.846 2403.584 2420.430 --- --- 2437 16.848 2428.577 2445.425 --- --- 2462 16.790 2453.573 2470.363 --- --- 11N20SISO Ant1 2412 17.701 2403.157 2420.858 --- --- 2437 17.670 2428.172 2445.842 --- --- 2462 17.627 2453.173 2470.800 --- --- 11N40SISO Ant1 2422 35.946 2403.961 2439.907 --- --- 2437 36.046 2418.900 2454.946 --- --- 2452 35.919 2433.984 2469.903 --- --- Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Appendix A.3: Maximum conducted output power Test Result Peak TestMode Antenna Frequency[ MHz] Set Power Peak Powert[dBm] Conducted Limit[dBm] Verdict 11B Ant1 2412 --- 20.49 ≤30.00 PASS 2437 --- 20.44 ≤30.00 PASS 2462 --- 20.24 ≤30.00 PASS 11G Ant1 2412 --- 21.35 ≤30.00 PASS 2437 --- 21.35 ≤30.00 PASS 2462 --- 21.22 ≤30.00 PASS 11N20SISO Ant1 2412 --- 21.34 ≤30.00 PASS 2437 --- 21.29 ≤30.00 PASS 2462 --- 21.02 ≤30.00 PASS 11N40SISO Ant1 2422 --- 21.52 ≤30.00 PASS 2437 --- 21.21 ≤30.00 PASS 2452 --- 21.93 ≤30.00 PASS Appendix A.4: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -8.78 ≤8.00 PASS 2437 -9.55 ≤8.00 PASS 2462 -9.77 ≤8.00 PASS 11G Ant1 2412 -12.72 ≤8.00 PASS 2437 -14.37 ≤8.00 PASS 2462 -14.29 ≤8.00 PASS 11N20SISO Ant1 2412 -13.31 ≤8.00 PASS 2437 -13.89 ≤8.00 PASS 2462 -14.46 ≤8.00 PASS 11N40SISO Ant1 2422 -18.29 ≤8.00 PASS 2437 -17.86 ≤8.00 PASS 2452 -18.25 ≤8.00 PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Appendix A.5: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 5.36 -38.58 ≤-14.64 PASS High 2462 4.12 -48.07 ≤-15.88 PASS 11G Ant1 Low 2412 1.27 -30.86 ≤-18.73 PASS High 2462 -0.27 -46.16 ≤-20.27 PASS 11N20SISO Ant1 Low 2412 1.36 -30.03 ≤-18.64 PASS High 2462 -0.29 -44.94 ≤-20.29 PASS 11N40SISO Ant1 Low 2422 -3.44 -36.24 ≤-23.44 PASS High 2452 -4.12 -40.42 ≤-24.12 PASS

Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 Appendix A.6: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 3.65 3.65 --- PASS 30~1000 3.65 -60.84 ≤-16.35 PASS 1000~26500 3.65 -47.81 ≤-16.35 PASS 2437 Reference 2.97 2.97 --- PASS 30~1000 2.97 -60.76 ≤-17.03 PASS 1000~26500 2.97 -47.46 ≤-17.03 PASS 2462 Reference 2.69 2.69 --- PASS 30~1000 2.69 -60.22 ≤-17.31 PASS 1000~26500 2.69 -39.06 ≤-17.31 PASS 11G Ant1 2412 Reference -0.10 -0.10 --- PASS 30~1000 -0.10 -60.11 ≤-20.1 PASS 1000~26500 -0.10 -29.96 ≤-20.1 PASS 2437 Reference -3.43 -3.43 --- PASS 30~1000 -3.43 -59.89 ≤-23.43 PASS 1000~26500 -3.43 -47.22 ≤-23.43 PASS 2462 Reference -0.84 -0.84 --- PASS 30~1000 -0.84 -60.08 ≤-20.84 PASS 1000~26500 -0.84 -37.92 ≤-20.84 PASS 11N20SISO Ant1 2412 Reference 0.46 0.46 --- PASS 30~1000 0.46 -60.18 ≤-19.54 PASS 1000~26500 0.46 -47.66 ≤-19.54 PASS 2437 Reference -1.05 -1.05 --- PASS 30~1000 -1.05 -59.98 ≤-21.05 PASS 1000~26500 -1.05 -47.55 ≤-21.05 PASS 2462 Reference -3.85 -3.85 --- PASS 30~1000 -3.85 -60.77 ≤-23.85 PASS 1000~26500 -3.85 -47.64 ≤-23.85 PASS 11N40SISO Ant1 2422 Reference -3.80 -3.80 --- PASS 30~1000 -3.80 -54.43 ≤-23.8 PASS 1000~26500 -3.80 -34.09 ≤-23.8 PASS 2437 Reference -4.74 -4.74 --- PASS 30~1000 -4.74 -55.91 ≤-24.74 PASS 1000~26500 -4.74 -39.95 ≤-24.74 PASS 2452 Reference -4.34 -4.34 --- PASS 30~1000 -4.34 -56.41 ≤-24.34 PASS 1000~26500 -4.34 -26.52 ≤-24.34 PASS Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 11N40SISO_Ant1_2452_1000~26500

Case No. : GTS20220930008-1-27 Ambient Condition: 26 °C, 50 %RH, Atmos100.1Kpa, Test Date: 2022.11.24 Test Engineer: Jenny zeng Appendix B.1: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict SRD Ant1 905 1.816 904.120 905.936 0.5 PASS 915 1.760 914.136 915.896 0.5 PASS 925 1.712 924.176 925.888 0.5 PASS Test Graphs SRD_Ant1_905 SRD_Ant1_915 SRD_Ant1_925 Appendix B.2: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict SRD Ant1 905 1.7976 904.101 905.899 --- --- 915 1.7948 914.097 915.891 --- --- 925 1.7958 924.099 925.895 --- --- Test Graphs SRD_Ant1_905 SRD_Ant1_915 SRD_Ant1_925 Appendix B.3: Maximum conducted output power Test Result Peak TestMode Antenna Frequency[MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict SRD Ant1 905 27.11 ≤30 PASS 915 27.28 ≤30 PASS 925 27.16 ≤30 PASS Appendix B.4: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3kHz] Limit[dBm/3kHz] Verdict SRD Ant1 905 -1.01 ≤8.00 PASS 915 -0.04 ≤8.00 PASS 925 0.39 ≤8.00 PASS Test Graphs SRD_Ant1_905 SRD_Ant1_915 SRD_Ant1_925 Appendix B.5: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict SRD Ant1 Low 905 10.94 -33.4 ≤-9.06 PASS High 925 12.71 -28.71 ≤-7.29 PASS Test Graphs SRD_Ant1_Low_905 SRD_Ant1_High_925 Appendix B.6: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict SRD Ant1 905 Reference 12.88 12.88 --- PASS 30~1000 12.88 -52.54 ≤-7.12 PASS 1000~26500 12.88 -42.98 ≤-7.12 PASS 915 Reference 13.51 13.51 --- PASS 30~1000 13.51 -57.63 ≤-6.49 PASS 1000~26500 13.51 -45.67 ≤-6.49 PASS 925 Reference 13.24 13.24 --- PASS 30~1000 13.24 -54.38 ≤-6.76 PASS 1000~26500 13.24 -44.83 ≤-6.76 PASS Test Graphs SRD_Ant1_905_0~Reference SRD_Ant1_905_30~1000 SRD_Ant1_905_1000~26500 SRD_Ant1_915_0~Reference SRD_Ant1_915_30~1000 SRD_Ant1_915_1000~26500 SRD_Ant1_925_0~Reference SRD_Ant1_925_30~1000 SRD_Ant1_925_1000~26500
