2AG7C-MINI-D2IP CAMERA

QUICK GUIDE ORIGINALITY DESIGN SMART - AND BEAUTIFUL 8S 1 Please consult this checklist for all parts. What's in the box Power adapter Mini 8S USB cable Adhesive tape I/MPin Status light Reset Microphone Power SD card slot Speaker USB Description Power Status light DC5V±10% Red light solid on: the camera network is abnormal Blinking red light: awaiting WiFi connection (faster blinking) Blue light solid on: camera running correctly Blinking blue light: currently connecting (faster blinking) Captures sound for your video Supports local SD Card storage ( Max.128G) Press and hold for 5 seconds with pin to reset the camera (if you have modified settings, they will return to factory defaults) Microphone SD card slot Reset 2 3 Install 1 Stick the adhesive tape in the middle of camera bottom 2 Put the camera on the clean plane 4 Download Smart Life is available for both iOS and Android OS. Rearch the name 'Smart Life'in App Store or Android Market, or scan upper QR-Code to download the App. Set up router This device only supports 2.4GHz frequency band router, does not support 5GHz frequency band router, please set the relevant parameters of the router before WiFi configuration, WiFi passwords do not include special characters such as ~!@#$%^&*(). When the device is configured in WiFi, the mobile phone and device are as close as to the router, which can speed up the configuration of the device. Connect Please keep network available Android IOS ·Support Dowoload App(IOS&android) 5 Registration process Step 1 Open the Smart Life App, click "Register", read the "Privacy Policy" and click "Agree" . Step 2 input a legal and valid Mobile number or Email address and click "Continue". Input Verification Code, then log in the app. 6 QR Code Configuration Getting started Process Step 1 Open the Smart Life App, click "+" or "Add Device". Then select "All" on the "Select Device Type" page. Step 2 Select "Security Camera". Power the device on and make sure the indicator is flashing quickly or a prompt tone is heard. 3.The device will be unbind from previous account after been deleted from App. Further ,the device will be resetted automattically once from blue light to red light. 1. Please follow the instructions and make sure the passwords are inputed correctly. 2. One device can only be added with one App account, if the device has been added with another account already, then it can 't be added to any another account again. 7 Step 3 Input WiFi passwords and click "Confirm", scan the QR Code with a device. (You can change the network connection) About 20cm 8 Step 4 Click "I heard the beep" when the device comes out "dong dong dong". And you can complete the configuration about 30s. Step 5 The device is added, and the device nickname can also be changed in this interface. 9 Q: Why is it still in the list of devices after reseting? A: The reset device only resets the network configuration of the camera, but cannot change the configuration on the App, remove the camera, and must be deleted by the App. Q: How to cut the camera network to another router? A: First remove and reset the device on the App and then configure the device again by the App. Q: Why doesn't the device identify the SD card? A: It is recommended to plug in SD card after power cut. Confirm whether the SD card is normally available and the format is FAT32. And the TF card can’t be identified when the internet environment is not good. Q: Why I can’t get the notifications with my cell phone App? A: Please confirm that the App has been running on the phone, and the relevant reminder function has been opened;Message notification and authority confirmation in the mobile phone system have been opened. Q: The device cannot be previewed properly? A: Check whether the network is normal, you can place the camera close to the router, and if not, it is recommended to reset the device and add it again. FAQ DaytimeNight 10 Functions Video flip Flip your video stream vertically anytime for maximum flexibility. Motion detection Motion sensors will notify you when movement is detected. Record Record every moment using high capacity SD card storage. Day & Night Powerful night vision means no interruptions, even in complete darkness. 11 Functions FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and consider removing the no- collocation statement. This device complies with Part 15 of …

Text truncated - open the document above for the full version.

Hangzhou Meari Technology Co., Ltd. Attention: Application Examiner Re: Certification designating a U.S. agent for service of process pursuant to section 2.911(d)(7) of the FCC rules To whom it may concern, This letter is to confirm both [TianHeng Consulting, LLC] (“Agent”) and [Hangzhou Meari Technology Co., Ltd.] (“Applicant”) acknowledge consent to obligations of each party pursuant to 47 CFR part §2.911(d)(7) of the FCC rules in regard to the agent for service of process. I [Zhiyang Chai] HEREBY CERTIFY THAT I am authorized to make the representations above on behalf of the Applicant. I further acknowledge the requirement to maintain an agent extends for no less than one year after the termination of all marketing and importation or the conclusion of and commission-related proceeding involving the equipment and agree to immediately notify the FCC if there is any change in the status identified above. Applicant Company Name : Hangzhou Meari Technology Co., Ltd. Contact Name : Zhiyang Chai Address : Room 604-605,Building 1,No.768 Jianghong Road,Changhe street,Binjiang District,Hangzhou,zhejiang,China Telephone No : +86 - 571 - 56565099 Email : [email protected] Signature: ____________________________________ Date: ___02/15/2023_______ I, Hualing Dong, HEREBY CERTIFY THAT I am authorized to make the representations above on behalf of the Agent. I consent to the obligation to accept service of process on behalf of the applicant in regard to all certification applications to the FCC submitted by above applicant during the period of this agreement which ends at the specified date below. I agree to immediately notify the FCC if there is change in this representation. This current agreement term is one year. Agent Company Name : TianHeng Consulting, LLC FRN : 0033401258 Contact Name : Hualing Dong Address : 392 Andover Street, Wilmington, MA 01887, United States Telephone No : +1 617-997-4010 Email : [email protected] Signature: ____________________________________ Issue Date: February 15, 2023 Expiry Date: February 15, 2024 FRN 0025181900 :

HangzhouMeariTechnologyCo.,Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023.4.28 Ref: Attestation Statements Part 2.911(d)(5)(i) Filling FCC ID: 2AG7C-MINI-D2 Hangzhou Meari Technology Co., Ltd. Certifies that the equipment for which authorization is soughtis not“covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, ----------------------------------- GranteeContact’sSignature ZhiyangChai Printedname

HangzhouMeariTechnologyCo.,Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023.4.28 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filling FCC ID: 2AG7C-MINI-D2 Hangzhou Meari Technology Co., Ltd. Certifies that, as of the date of the filling of the application, the applicantis notidentified on the Covered List as an entity producing “covered” equipment. Sincerely, ----------------------------------- GranteeContact’sSignature ZhiyangChai Printedname

Confidentiality Request Letter For Certification Service in the USA FederalCommunicationCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21048 Towhomitmayconcern PursuanttoParagraphs§0.457and0.459oftheCommission’sRules(47C.F.R.)andSection §552(b)(4)oftheFreedomofInformationAct,werequestconfidentialityforthe documentationofthefollowingproducts: Model name Mini 8S,Mini 8T, Mini 9S, Mini 9T, Mini 12S, Mini 12T, Mini 12Q, Mini 16S, Mini 16T, M1, M1T, M1C, IN1, IN1T, M4, M4T, FCC ID 2AG7C-MINI-D2 LV-PWF1, SL2S Fortheproductslistedabove,werequestpermanentconfidentialityforallapplicable exhibitsasthereare: Signature 2023-4-2  theOperationalDescription  theBlockDiagram theSchematics Theabovelistedexhibitscontaintradesecretsandproprietaryinformationthatcouldbeof benefittoourcompetitors. Ifyouhaveanyquestions,pleasefeelfreetocontactusattheaddressshownbelow. Sincerely, 8 Date PrintedNameofSignee: Company:HangzhouMeariTechnologyCo.,Ltd. Address: Room604-605,Building1,No.768JianghongRoad,Changhestreet,Binjiang District,Hangzhou,zhejiang ， China Phone: +8615869048127 Email:[email protected]

ModelDeclarationLetter We,theundersigningcompany CompanyName:HangzhouMeariTechnologyCo.,Ltd. Address:Room604-605,Building1,No.768JianghongRoad,Changhestreet,Binjiang District,Hangzhou,zhejiang，China Herebyconfirmthatthefollowingproducts: Tha Product description:IP CAMERA Type designation:Mini 8S,Mini 8T, Mini 9S, Mini 9T, Mini 12S, Mini 12T, Mini 12Q, Mini 16S, Mini 16T, M1, M1T, M1C, IN1, IN1T, M4, M4T, LV-PWF1, SL2S t PCB board, structure and internal of these model(s) are the same, Only the model name and the appearance different. Date: 2023-4-28 Name: Zhiyang Chai Telephone: +8615869048127 E-mail: [email protected] Signature: FCC ID: 2AG7C-MINI-D2

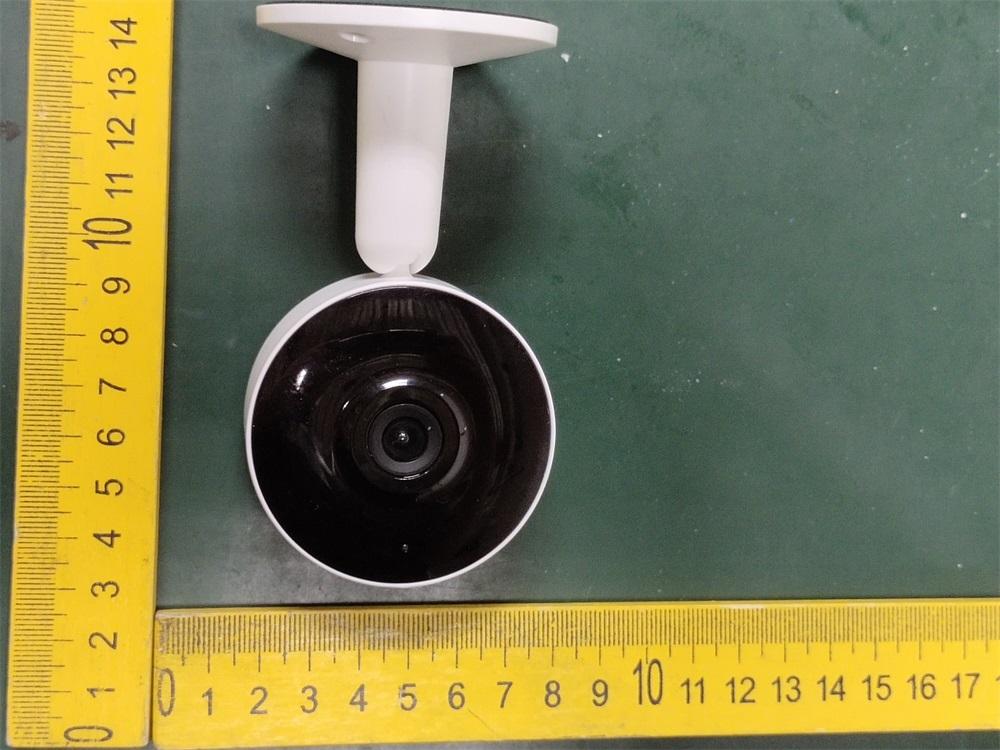

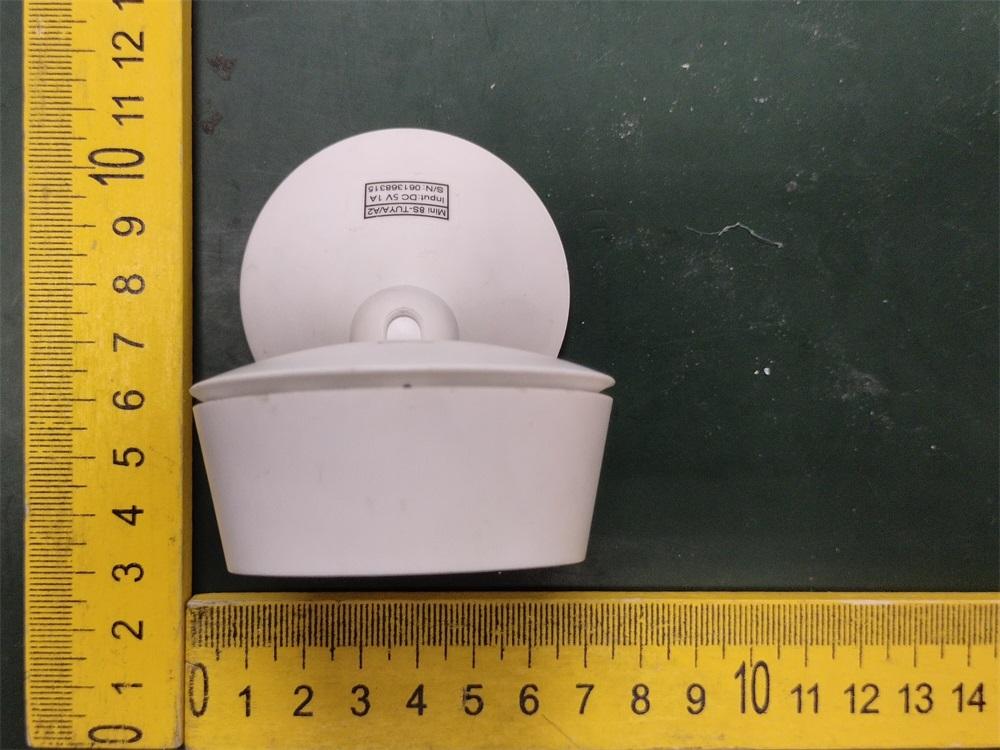

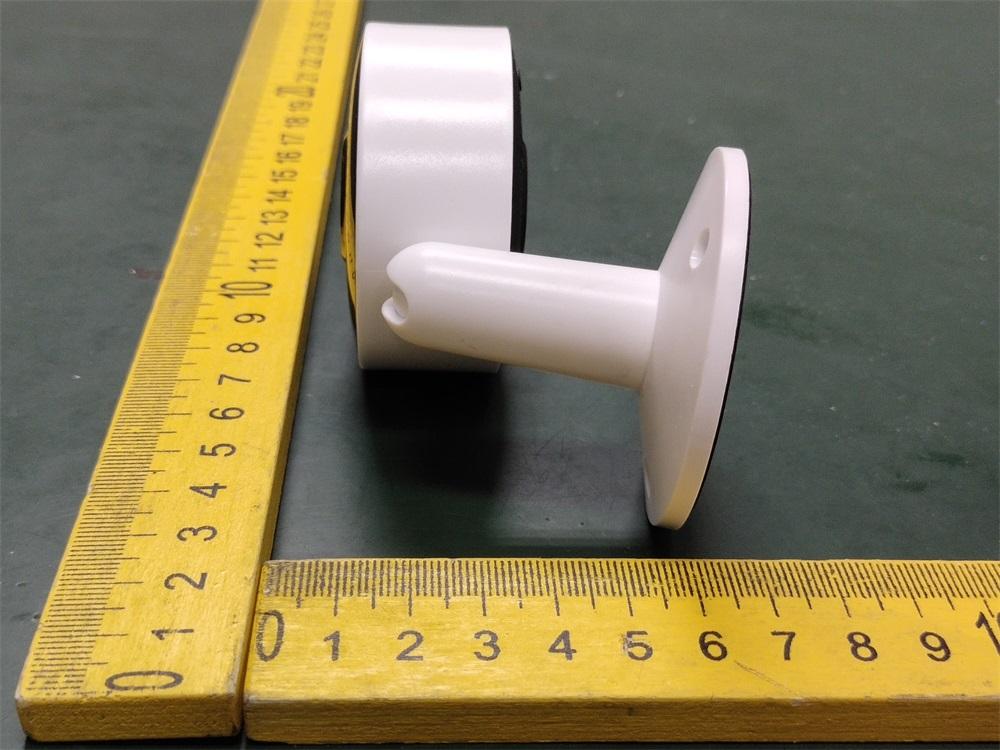

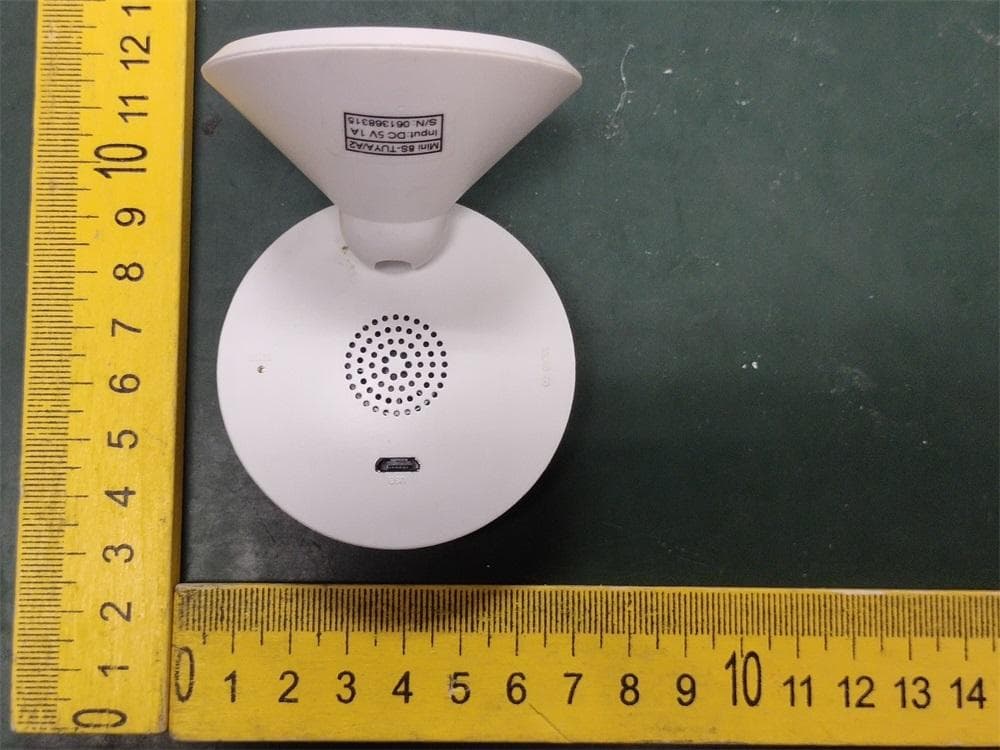

Report No.: GTS20230202009-1-57 Page 33 of 45 6. E X T E R N A L A N D I N T E R N A L P H O T O S O F T H E EUT Fig. 1 Fig. 2 Report No.: GTS20230202009-1-57 Page 34 of 45 Fig. 3 Fig. 4 Report No.: GTS20230202009-1-57 Page 35 of 45 Fig. 5 Fig. 6 Report No.: GTS20230202009-1-57 Page 36 of 45 Fig. 7 Fig. 8 Report No.: GTS20230202009-1-57 Page 37 of 45 Fig. 9 Fig. 10 Report No.: GTS20230202009-1-57 Page 38 of 45 Fig. 11 Fig. 12 Report No.: GTS20230202009-1-57 Page 39 of 45 Fig. 13 Fig. 14 Report No.: GTS20230202009-1-57 Page 40 of 45 Fig. 15 Fig. 16

Labellocation

Report No.: GTS20230202009-1-57 Page 41 of 45 Fig. 17 Fig. 18 Report No.: GTS20230202009-1-57 Page 42 of 45 Fig. 19 Fig. 20 Report No.: GTS20230202009-1-57 Page 43 of 45 Fig. 21 Fig. 22 Antenna Report No.: GTS20230202009-1-57 Page 44 of 45 Fig. 23 Fig. 24 Report No.: GTS20230202009-1-57 Page 45 of 45 Fig. 25 .......................End of Report........................

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No...................... : FCC ID. ............................................ : GTS20230202009-1-58 2AG7C-MINI-D2 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Jenny Zeng Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Apr.24, 2023 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Hangzhou Meari Technology Co., Ltd. Address ............................................ : Room 604-605, Building 1, No.768 Jianghong Road, Changhe Street, Binjiang District, Hangzhou, Zhejiang, China Test specification ........................... : Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : IP CAMERA Trade Mark ....................................... : N/A Manufacturer .................................... : Hangzhou Meari Technology Co., Ltd. Model/Type reference ...................... : Mini 8S Listed Models .................................. : Mini 8T, Mini 9S, Mini 9T, Mini 12S, Mini 12T, Mini 12Q, Mini 16S, Mini 16T, M1, M1T, M1C, IN1, IN1T, M4, M4T, LV-PWF1, SL2S Hardware Version ............................ : MINI9S-D2MB-MIS3 REV 1_0 Software Version .............................. : ppstrong-c9-m_general-5.2.1 Rating ............................................... : DC 5.0V/1.0A by Adapter Result ............................................... : PASS Report No.: GTS20230202009-1-58 Page 2 of 11 T E S T R E P O R T Test Report No. : GTS20230202009-1-58 Apr.24, 2023 ______________________________________________________________________________________________ Date of issue Equipment under Test : IP CAMERA Model /Type : Mini 8S Listed model : Mini 8T, Mini 9S, Mini 9T, Mini 12S, Mini 12T, Mini 12Q, Mini 16S, Mini 16T, M1, M1T, M1C, IN1, IN1T, M4, M4T, LV-PWF1, SL2S Applicant : Hangzhou Meari Technology Co., Ltd. Address : Room 604-605, Building 1, No.768 Jianghong Road, Changhe Street, Binjiang District, Hangzhou, Zhejiang, China Manufacturer : Hangzhou Meari Technology Co., Ltd. Address : 4F of Building 1 and 2-4F of Building 2, No. 91 Chutian Road, Xixing Street, Binjiang District, Hangzhou,Zhejiang,China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20230202009-1-58 Page 3 of 11 Contents 1. SUMMARY ................................................................................................................................................................. 4 1.1 EUT CONFIGURATION ........................................................................................................................................................ 4 1.2 PRODUCT DESCRIPTION ..................................................................................................................................................... 4 2. TEST ENVIRONMENT ................................................................................................................................................. 5 2.1 ADDRESS OF THE TEST LABORATORY ..................................................................................................................................... 5 2.2 TEST FACILITY .................................................................................................................................................................. 5 2.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................................ 5 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .................................................................................................................. 5 3. METHOD OF MEASUREMENT .................................................................................................................................... 6 3.1 APPLICABLE STANDARD ...................................................................................................................................................... 6 3.2 REQUIREMENT ................................................................................................................................................................. 6 3.3 LIMIT ............................................................................................................................................................................. 6 3.4 MPE CALCULATION METHOD ....................................................................................................................................…

Text truncated - open the document above for the full version.

深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 1 页 共 10 页 英佳创联系方式（工厂）： 深圳市光明区马田办事处石家社区企航腾石智创园7-8楼 电话+86-755-27810060/23192199; 传真：+86-0755-27810057 公司网址：http://www.szsyjc.com 电子信箱: [email protected] CUSTOMER NAME 客户名称 杭州觅睿科技有限公司 CUSTOMER P/N 客户料号 112010068 PART NAME 品 名 2.4G 铜件内置天线 （适用于机型：mini8s） P/ N 料 号 YJC-6N000-B222-A APPROVAL REV. 版 次 A1 DELIVERY DATE 送样日期 2020 年08月 15日 PREPARED BY 承 办 叶素清 CHECKED BY 审 核 伍龙飞 APPROVED BY 核 准 Customer Approved 客 户 承 认 Prepared By 承 办 Checked By 审 核 Approved By 核 准 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 2 页 共 10 页 目录 1、 封面················································································1 2、 目录················································································2 3、 产品结构图·······································································3 4、 天线技术参数及环境性能测试···············································4 5、 天线实物及天线插附位置图··················································5 6、 天线性能测试图·································································5 7、 天线有源测试数据······························································6 8、 2D、3D测试数据(2.4G测试数据)·······································7-9 9、 ROHS物料控制报告·························································· 10 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 3 页 共 10 页 产品图面： 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 4 页 共 10 页 天线技术参数及环境测试: 电器技术参数 电 性 能 指 标 Electrical Specifications 频率范围 2400~2500 MHZ Frequency Range 2400~2500 MHZ 电压驻波比 ＜1.92 VSWR ＜1.92 输入阻抗 50 Ω Input Impedance 50 Ω 方向 全向 Direction All 增益 3.0 dBi Gain 3.0 dBi 机 械 指 标 Mechanical Specifications 天线材质 洋白铜 Antenna material copper 工作温度 -20°C~+70°C Working Temperature -20°C~+70°C 工作湿度 20%~80% Working Humidity 20%~80% 环境性能测试: 项目 测试条件 规格 储存环境 在没有指定的情况下测试温度、湿度、气压如下： 1. 温度为-20°C～+70°C 2.相对湿度为45%-85% 3.气压为86kpa-106kpa 电气机械性能正常 高低温试验 在70°C与-20°C之间进行5次循环，然后在正常条件下 1-2H，检查外观质量。 尺寸应满足规定并应满 足满足于机械、电气性能 耐恒定 湿热试验 相对湿度95±3%，试验温度：40°C.持续2H作用后， 试品取出后5min之内测定电气性能，试品在正常条 件下1-2H，检查外观质量 尺寸应满足规定并应满 足满足于机械、电气性能 振动试验 振频范围10-55HZ，位移幅值：0.35MM，加速度幅值： 50.0M/S，扫频循环次数：30次 电气机械性能正常 跌落试验 1M高空按照互相垂直的轴方向自由跌落3次 电气机械性能正常 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 5 页 共 10 页 天线实物图及插附位置图： 天线性能测试图： 天线插附位置 GND ANT 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 6 页 共 10 页 天线有源测试数据： 样机型号 协议模式 信道 TRP(dbm) TIS(dbm) mini8s 802.11b 6 17.36 -86.06 802.11g 6 17.4 -71.64 802.11n 6 16.29 -69.28 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 7 页 共 10 页 2D、3D测试数据 （2.4G测试数据） Frequency Efficiency (%) Gain.(dBi) 2400MHz 69.66 2.81 2410MHz 70.79 2.86 2420MHz 71.29 2.94 2430MHz 69.66 2.79 2440MHz 69.82 2.90 2450MHz 68.23 2.71 2460MHz 66.99 2.57 2470MHz 66.53 2.52 2480MHz 62.23 2.05 2490MHz 63.10 2.14 2500MHz 61.66 1.95 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 8 页 共 10 页 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 9 页 共 10 页 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 10 页 共 10 页 物 料 RoHS 符 合 性 宣 告 表 兹证明向貴司交货的零組件、辅助材料所使用的原材料、以及生产工程中的添加剂等均符合RoHS限制使用有害物质指令的环保要求 （RoHS指令 2011/65/EC) 关于零组件、辅助材料所使用的原材料、包装材料以及和产过程中使用的添加剂等的构成成份报告如下： 组成物料名称 Component /Part Name 组成材料 Material Composition ICP 报告编号 ICP report # 测试机构 Test Org. 测试时间 Test Date 有 害 物 质 含 量(ppm) 是否合格? PASS? Cd Pb Hg Cr 6+ PBB PBDE PASS 洋白铜 铜 CANEC1922053501 SGS 19/11/13 ND 28 ND ND ND ND PASS

FCCID: 2AG7C-MINI-D2 1 Case No. : GTS20230202009-1-57 Ambient Condition: 23 °C, 49 %RH, Atmos100.1Kpa, Test Date: 2023.4.23 Test Engineer: Jenny zeng Appendix A.1: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11BAnt1 24129.0402407.4802416.5200.5PASS 24379.0402432.4802441.5200.5PASS 24629.0402457.4802466.5200.5PASS 11GAnt1 241216.5202403.7202420.2400.5PASS 243716.5602428.7202445.2800.5PASS 246216.5602453.7202470.2800.5PASS 11N20SISOAnt1 241217.7202403.1202420.8400.5PASS 243717.8002428.1202445.9200.5PASS 246217.8002453.0802470.8800.5PASS 11N40SISOAnt1 242236.4802403.7602440.2400.5PASS 243736.4802418.7602455.2400.5PASS 245236.4002433.7602470.1600.5PASS FCCID: 2AG7C-MINI-D2 2 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 FCCID: 2AG7C-MINI-D2 3 11B_Ant1_2462 11G_Ant1_2412 FCCID: 2AG7C-MINI-D2 4 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 FCCID: 2AG7C-MINI-D2 5 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 FCCID: 2AG7C-MINI-D2 6 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCCID: 2AG7C-MINI-D2 7 Appendix A.2: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.642 2405.171 2418.813 --- --- 2437 13.663 2430.201 2443.864 --- --- 2462 13.607 2455.126 2468.733 --- --- 11G Ant1 2412 17.100 2403.349 2420.449 --- --- 2437 17.154 2428.340 2445.494 --- --- 2462 17.004 2453.397 2470.401 --- --- 11N20SISO Ant1 2412 18.055 2402.962 2421.017 --- --- 2437 18.125 2427.938 2446.063 --- --- 2462 18.047 2452.929 2470.976 --- --- 11N40SISO Ant1 2422 36.585 2403.782 2440.367 --- --- 2437 36.590 2418.772 2455.362 --- --- 2452 36.436 2433.779 2470.215 --- --- FCCID: 2AG7C-MINI-D2 8 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 FCCID: 2AG7C-MINI-D2 9 11B_Ant1_2462 11G_Ant1_2412 FCCID: 2AG7C-MINI-D2 10 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 FCCID: 2AG7C-MINI-D2 11 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 FCCID: 2AG7C-MINI-D2 12 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCCID: 2AG7C-MINI-D2 13 Appendix A.3: Maximum conducted output power Test Result Peak TestMode Antenna Frequency[M Hz] Peak Powert[dBm] Conducted Limit[dBm] Verdict 11B Ant1 2412 18.26 ≤30.00 PASS 2437 18.83 ≤30.00 PASS 2462 18.39 ≤30.00 PASS 11G Ant1 2412 20.66 ≤30.00 PASS 2437 21.68 ≤30.00 PASS 2462 20.62 ≤30.00 PASS 11N20SISO Ant1 2412 20.65 ≤30.00 PASS 2437 21.85 ≤30.00 PASS 2462 20.85 ≤30.00 PASS 11N40SISO Ant1 2422 20.95 ≤30.00 PASS 2437 20.09 ≤30.00 PASS 2452 20.03 ≤30.00 PASS FCCID: 2AG7C-MINI-D2 14 Appendix A.4: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -15.35 ≤8.00 PASS 2437 -15.67 ≤8.00 PASS 2462 -15.17 ≤8.00 PASS 11G Ant1 2412 -15.04 ≤8.00 PASS 2437 -14.23 ≤8.00 PASS 2462 -15.15 ≤8.00 PASS 11N20SISO Ant1 2412 -14.48 ≤8.00 PASS 2437 -13.89 ≤8.00 PASS 2462 -13.97 ≤8.00 PASS 11N40SISO Ant1 2422 -15.51 ≤8.00 PASS 2437 -15.99 ≤8.00 PASS 2452 -16.44 ≤8.00 PASS FCCID: 2AG7C-MINI-D2 15 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 FCCID: 2AG7C-MINI-D2 16 11B_Ant1_2462 11G_Ant1_2412 FCCID: 2AG7C-MINI-D2 17 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 FCCID: 2AG7C-MINI-D2 18 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 FCCID: 2AG7C-MINI-D2 19 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCCID: 2AG7C-MINI-D2 20 Appendix A.5: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 4.59 -42.76 ≤-15.41 PASS High 2462 5.00 -48.21 ≤-15.01 PASS 11G Ant1 Low 2412 -0.94 -32.75 ≤-20.94 PASS High 2462 -0.72 -46.28 ≤-20.72 PASS 11N20SISO Ant1 Low 2412 -0.75 -31.36 ≤-20.75 PASS High 2462 -0.45 -42.13 ≤-20.45 PASS 11N40SISO Ant1 Low 2422 -4.92 -34.32 ≤-24.92 PASS High 2452 -4.21 -41.04 ≤-24.21 PASS

FCCID: 2AG7C-MINI-D2 21 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 FCCID: 2AG7C-MINI-D2 22 11G_Ant1_Low_2412 11G_Ant1_High_2462 FCCID: 2AG7C-MINI-D2 23 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 FCCID: 2AG7C-MINI-D2 24 11N40SISO_Ant1_High_2452 FCCID: 2AG7C-MINI-D2 25 Appendix A.6: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 4.13 4.13 --- PASS 30~1000 4.13 -60.34 ≤-15.87 PASS 1000~26500 4.13 -34.29 ≤-15.87 PASS 2437 Reference 4.25 4.25 --- PASS 30~1000 4.25 -59.8 ≤-15.75 PASS 1000~26500 4.25 -34.36 ≤-15.75 PASS 2462 Reference 4.56 4.56 --- PASS 30~1000 4.56 -59.43 ≤-15.44 PASS 1000~26500 4.56 -34.73 ≤-15.44 PASS 11G Ant1 2412 Reference -1.33 -1.33 --- PASS 30~1000 -1.33 -60.24 ≤-21.33 PASS 1000~26500 -1.33 -43.15 ≤-21.33 PASS 2437 Reference -0.28 -0.28 --- PASS 30~1000 -0.28 -60.59 ≤-20.28 PASS 1000~26500 -0.28 -42.08 ≤-20.28 PASS 2462 Reference -1.31 -1.31 --- PASS 30~1000 -1.31 -60.44 ≤-21.31 PASS 1000~26500 -1.31 -44.41 ≤-21.31 PASS 11N20SISO Ant1 2412 Reference -1.72 -1.72 --- PASS 30~1000 -1.72 -60.67 ≤-21.72 PASS 1000~26500 -1.72 -31.96 ≤-21.72 PASS 2437 Reference -0.65 -0.65 --- PASS 30~1000 -0.65 -49.69 ≤-20.65 PASS 1000~26500 -0.65 -34.74 ≤-20.65 PASS 2462 Reference -1.66 -1.66 --- PASS 30~1000 -1.66 -60.47 ≤-21.66 PASS 1000~26500 -1.66 -42.14 ≤-21.66 PASS 11N40SISO Ant1 2422 Reference -5.48 -5.48 --- PASS 30~1000 -5.48 -60.58 ≤-25.48 PASS 1000~26500 -5.48 -44.05 ≤-25.48 PASS 2437 Reference -4.67 -4.67 --- PASS 30~1000 -4.67 -60.01 ≤-24.67 PASS 1000~26500 -4.67 -41.47 ≤-24.67 PASS 2452 Reference -4.86 -4.86 --- PASS 30~1000 -4.86 -60.19 ≤-24.86 PASS 1000~26500 -4.86 -33.86 ≤-24.86 PASS FCCID: 2AG7C-MINI-D2 26 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 FCCID: 2AG7C-MINI-D2 27 11B_Ant1_2412_1000~26500 11B_Ant1_2437_0~Reference FCCID: 2AG7C-MINI-D2 28 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference FCCID: 2AG7C-MINI-D2 29 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 FCCID: 2AG7C-MINI-D2 30 11G_Ant1_2412_0~Reference 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 FCCID: 2AG7C-MINI-D2 31 11G_Ant1_2437_0~Reference 11G_Ant1_2437_30~1000 FCCID: 2AG7C-MINI-D2 32 11G_Ant1_2437_1000~26500 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 FCCID: 2AG7C-MINI-D2 33 11G_Ant1_2462_1000~26500 11N20SISO_Ant1_2412_0~Reference FCCID: 2AG7C-MINI-D2 34 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference FCCID: 2AG7C-MINI-D2 35 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 FCCID: 2AG7C-MINI-D2 36 11N20SISO_Ant1_2462_0~Reference 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 FCCID: 2AG7C-MINI-D2 37 11N40SISO_Ant1_2422_0~Reference 11N40SISO_Ant1_2422_30~1000 FCCID: 2AG7C-MINI-D2 38 11N40SISO_Ant1_2422_1000~26500 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 FCCID: 2AG7C-MINI-D2 39 11N40SISO_Ant1_2437_1000~26500 11N40SISO_Ant1_2452_0~Reference FCCID: 2AG7C-MINI-D2 40 11N40SISO_Ant1_2452_30~1000 11N40SISO_Ant1_2452_1000~26500

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .....................: FCC ID. ............................................ : GTS20230202009-1-57 2AG7C-MINI-D2 Compiled by ( position+printed name+signature) .. : File administrators Peter Xiao Supervised by ( position+printed name+signature) .. : Test Engineer Jenny Zeng Approved by ( position+printed name+signature) .. : Manager Jason Hu Date of issue ..................................... : Apr.24, 2023 Representative Laboratory Name .: Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong,China Applicant’s name ............................ : Hangzhou Meari Technology Co., Ltd. Address ............................................ : Room 604-605, Building 1, No.768 Jianghong Road, Changhe Street, Binjiang District, Hangzhou, Zhejiang, China Test specification ...........................: Standard ........................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400- 2483.5 MHz and 5725-5850 MHz ANSI C63.10-2013 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ....................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes …
