2AG7C-R831CAMERA WIFI Module

Hangzhou Meari Technology Co., Ltd. Attention: Application Examiner Re: Certification designating a U.S. agent for service of process pursuant to section 2.911(d)(7) of the FCC rules To whom it may concern, This letter is to confirm both [TianHeng Consulting, LLC] (“Agent”) and [Hangzhou Meari Technology Co., Ltd.] (“Applicant”) acknowledge consent to obligations of each party pursuant to 47 CFR part §2.911(d)(7) of the FCC rules in regard to the agent for service of process. I [Zhiyang Chai] HEREBY CERTIFY THAT I am authorized to make the representations above on behalf of the Applicant. I further acknowledge the requirement to maintain an agent extends for no less than one year after the termination of all marketing and importation or the conclusion of and commission-related proceeding involving the equipment and agree to immediately notify the FCC if there is any change in the status identified above. Applicant Company Name : Hangzhou Meari Technology Co., Ltd. Contact Name : Zhiyang Chai Address : Room 604-605,Building 1,No.768 Jianghong Road,Changhe street,Binjiang District,Hangzhou,zhejiang,China Telephone No : +86 - 571 - 56565099 Email : [email protected] Signature: ____________________________________ Date: ___02/15/2023_______ I, Hualing Dong, HEREBY CERTIFY THAT I am authorized to make the representations above on behalf of the Agent. I consent to the obligation to accept service of process on behalf of the applicant in regard to all certification applications to the FCC submitted by above applicant during the period of this agreement which ends at the specified date below. I agree to immediately notify the FCC if there is change in this representation. This current agreement term is one year. Agent Company Name : TianHeng Consulting, LLC FRN : 0033401258 Contact Name : Hualing Dong Address : 392 Andover Street, Wilmington, MA 01887, United States Telephone No : +1 617-997-4010 Email : [email protected] Signature: ____________________________________ Issue Date: February 15, 2023 Expiry Date: February 15, 2024 FRN 0025181900 :

HangzhouMeariTechnologyCo.,Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023.4.24 Ref: Attestation Statements Part 2.911(d)(5)(i) Filling FCC ID: 2AG7C-R831 Hangzhou Meari Technology Co., Ltd. Certifies that the equipment for which authorization is soughtis not“covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, ----------------------------------- GranteeContact’sSignature ZhiyangChai Printedname

HangzhouMeariTechnologyCo.,Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023.4.24 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filling FCC ID: 2AG7C-R831 Hangzhou Meari Technology Co., Ltd. Certifies that, as of the date of the filling of the application, the applicantis notidentified on the Covered List as an entity producing “covered” equipment. Sincerely, ----------------------------------- GranteeContact’sSignature ZhiyangChai Printedname

Confidentiality Request Letter For Certification Service in the USA FederalCommunicationCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21048 Towhomitmayconcern PursuanttoParagraphs§0.457and0.459oftheCommission’sRules(47C.F.R.)andSection §552(b)(4)oftheFreedomofInformationAct,werequestconfidentialityforthe documentationofthefollowingproducts: FCC ID 2AG7C-R831 Model name R831,Mini18S,Mini18T,MiniCam,Speed18T,Speed18S,PTCam, PT-cam,Speed4S,Speed4T,DOME1,DOME1PRO,P2T,P2F,P2, Speed12S,Speed12T,Speed22S,Speed22T,OP1,INDOOR1, INDOOR1PRO,Mini8S,Mini8T,M1,Mini9T,M4,M4T,OUTDOOR1 Fortheproductslistedabove,werequestpermanentconfidentialityforallapplicable exhibitsasthereare: Signature  theOperationalDescription  theBlockDiagram theSchematics Theabovelistedexhibitscontaintradesecretsandproprietaryinformationthatcouldbeof benefittoourcompetitors. Ifyouhaveanyquestions,pleasefeelfreetocontactusattheaddressshownbelow. Sincerely, 2023-4-24 Date PrintedNameofSignee: Company:HangzhouMeariTechnologyCo.,Ltd. Address: Room604-605,Building1,No.768JianghongRoad,Changhestreet,Binjiang District,Hangzhou,zhejiang ， China Phone: +8615869048127 Email:[email protected]

ModelDeclarationLetter We,theundersigningcompany CompanyName:HangzhouMeariTechnologyCo.,Ltd. Address:Room604-605,Building1,No.768JianghongRoad,Changhestreet,Binjiang District,Hangzhou,zhejiang，China Date: 2023-4-24 Name: Zhiyang Chai Telephone: +8615869048127 E-mail: [email protected] Hereby confirm that the following products: That PCBboard,structureandinternalofthesemodel(s)arethesame,Only the model namedifferent,Sonoadditionalmodels Product description: CAMERA WIFI Module Type designation:R831,Mini18S,Mini18T,MiniCam,Speed18T,Speed18S,PTCam, PT-cam,Speed4S,Speed4T,DOME1,DOME1PRO,P2T,P2F,P2,Speed12S,Speed12T, Speed22S,Speed22T,OP1,INDOOR1,INDOOR1PRO,Mini8S,Mini8T,M1,Mini9T,M4, M4T,OUTDOOR1 weretested. Signature: FCC ID: 2AG7C-R831

HangzhouMeariTechnologyCo.,Ltd.FCCModularApprovalStatement 1 Receiver FederalCommunicationCommission EquipmentAuthorizationDevision,Application ProcessingBranch 7435OaklandMillsRoad Columbia,MD21048 Subject:Modular Approval Statement Date: Apr.24, 2023 FCC Certification Number: 2AG7C-R831 TOWHOMITMAYCONCERN PursuanttoParagraphsCFR§15.212,weherewithdeclareforourmodule Model Name/Number:CAMERA WIFI Module/ R831,Mini18S,Mini18T,MiniCam,Speed18T,Speed18S,PTCam,PT-cam,Speed4S, Speed4T,DOME1,DOME1PRO,P2T,P2F,P2,Speed12S,Speed12T,Speed22S,Speed22T, OP1,INDOOR1,INDOOR1PRO,Mini8S,Mini8T,M1,Mini9T,M4,M4T,OUTDOOR1 . ModularapprovalrequirementYesNo* (a)Theradioelementsmusthavetheradiofrequencycircuitrybeshielded. Physical/discreteandtuningcapacitorsmaybelocatedexternaltotheshield, butmustbeonthemoduleassembly. Yes *Pleaseprovideadetailedexplanationiftheansweris“No.”: (b)Themoduleshallhavebufferedmodulation/datainput(s)(ifsuchinputsare provided)toensurethatthemodulewillcomplywiththerequirementssetout intheapplicablestandardunderconditionsofexcessivedataratesorover- modulation. Yes *Pleaseprovideadetailedexplanationiftheansweris“No.”: (c)Themoduleshallhaveitsownpowersupplyregulationonthemodule.This istoensurethatthemodulewillcomplywiththerequirementssetoutinthe applicablestandardregardlessofthedesignofthepowersupplyingcircuitryin thehostdevicewhichhousesthemodule. Yes *Pleaseprovideadetailedexplanationiftheansweris“No.”: (d)Themoduleshallcomplywiththeprovisionsforexternalpoweramplifiers andantennasdetailedinthisstandard.Theequipmentcertificationsubmission shallcontainadetaileddescriptionoftheconfigurationofallantennasthatwill beusedwiththemodule. Yes *Pleaseprovideadetailedexplanationiftheansweris“No.”: (e)Themoduleshallbetestedforcompliancewiththeapplicablestandardina stand-aloneconfiguration,i.e.themodulemustnotbeinsideanotherdevice duringtesting. Yes *Pleaseprovideadetailedexplanationiftheansweris“No.”: HangzhouMeariTechnologyCo.,Ltd.FCCModularApprovalStatement 2 (f)ThemoduleshallcomplywiththeCategoryIequipmentlabeling requirementsandCFR§15.212(a)(1)(vi). Yes *Pleaseprovideadetailedexplanationiftheansweris“No.”: (g)ThemoduleshallcomplywithapplicableRSS-102exposurerequirements andanyapplicableFCCRFexposurerequirementwhicharebasedonthe intendeduse/configurations. Yes *Pleaseprovideadetailedexplanationiftheansweris“No.”: (i)ThemodulartransmittercomplieswithallapplicableFCCrules.Instructions formaintainingcompliancearegivenintheuserinstructions. Yes Ifyouhaveanyquestions,pleasefeelfreetocontactusattheaddressshownbelow BestRegards, ____________________ (Signed) Name/Title:ZhiyangChai/Manager

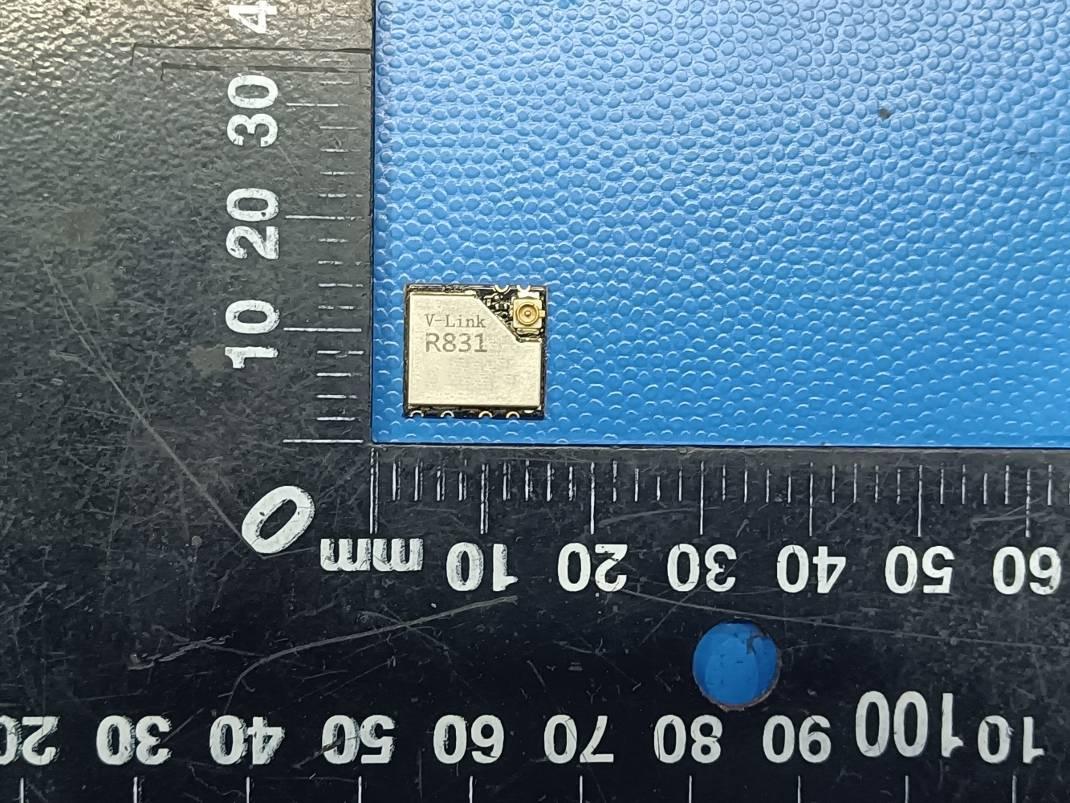

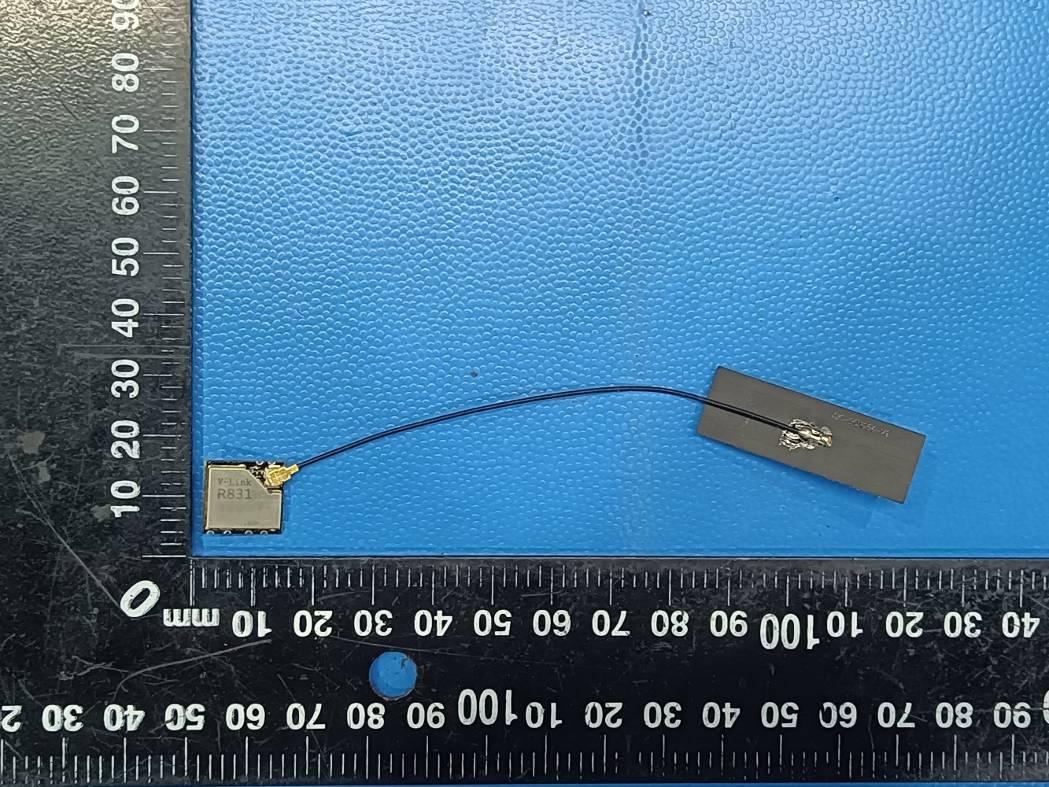

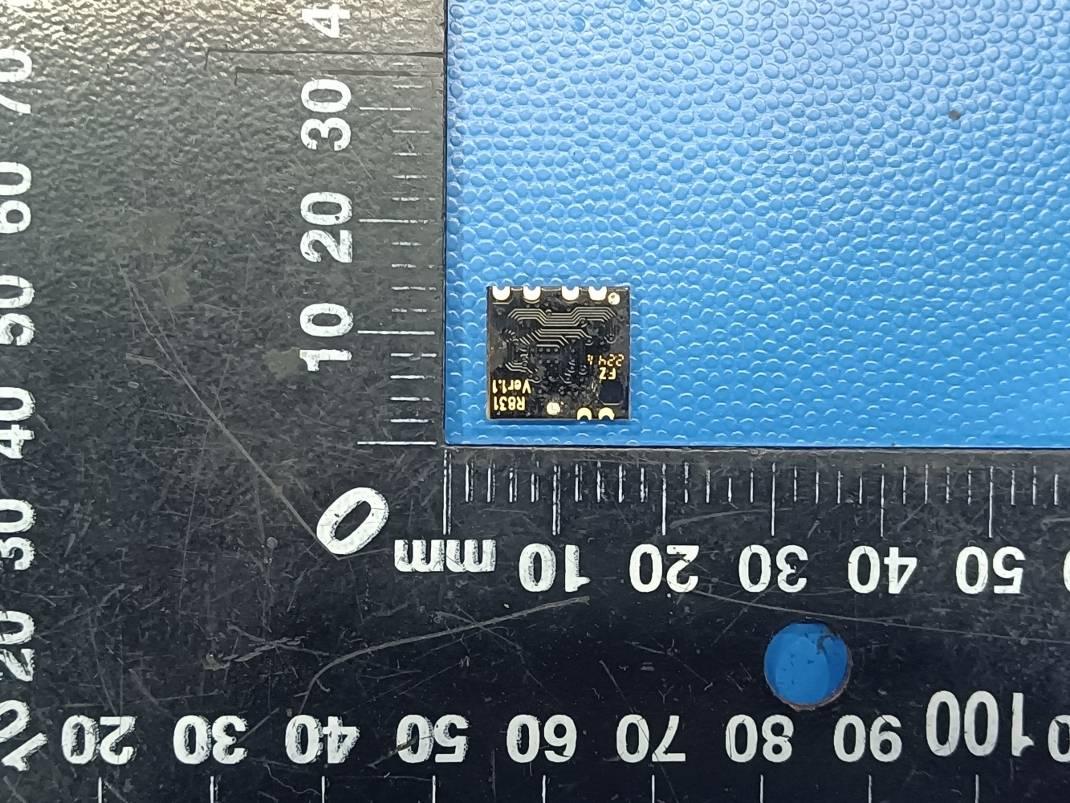

Report No.: GTS20230330014-1-10 Page 30 of 32 6. E X T E R N A L A N D I N T E R N A L P H O T O S O F T H E EUT Fig. 1 Fig. 2 Antenna IPEX Ant. Port Report No.: GTS20230330014-1-10 Page 31 of 32 Fig. 3 Fig. 4 Report No.: GTS20230330014-1-10 Page 32 of 32 Fig. 5 Fig. 6 .......................End of Report........................

Labellocation FCCID:2AG7C-R831

Report No.: GTS20230330014-1-10 Page 30 of 32 6. E X T E R N A L A N D I N T E R N A L P H O T O S O F T H E EUT Fig. 1 Fig. 2 Antenna IPEX Ant. Port Report No.: GTS20230330014-1-10 Page 31 of 32 Fig. 3 Fig. 4 Report No.: GTS20230330014-1-10 Page 32 of 32 Fig. 5 Fig. 6 .......................End of Report........................

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No...................... : FCC ID. ............................................ : GTS20230330014-1-13 2AG7C-R831 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Jenny Zeng Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Apr.21, 2023 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Hangzhou Meari Technology Co., Ltd. Address ............................................ : Room 604-605, Building 1, No.768 Jianghong Road, Changhe Street, Binjiang District, Hangzhou, Zhejiang, China Test specification ........................... : Standard ........................................... : 47CFR §1.1310 Basis and purpose 47CFR §2.1091 Radiofrequency radiation exposure evaluation: mobile devices KDB447498 D01 General RF Exposure Guidance v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : CAMERA WIFI Module Trade Mark ....................................... : N/A Manufacturer .................................... : Hangzhou Meari Technology Co., Ltd. Model/Type reference ...................... : R831 Listed Models .................................. : Mini 18S, Mini 18T, MiniCam, Speed 18T, Speed 18S, PTCam, PT-cam, Speed 4S, Speed 4T, DOME1, DOME1 PRO, P2T, P2F, P2, Speed 12S, Speed 12T, Speed 22S, Speed 22T, OP1, INDOOR1, INDOOR1 PRO, Mini 8S, Mini 8T, M1, Mini 9T, M4, M4T, OUTDOOR1 Hardware Version ............................ : R831 Ver1.1 Software Version .............................. : V5.13.0.1 Rating ............................................... : DC 3.3V Result ............................................... : PASS Report No.: GTS20230330014-1-13 Page 2 of 12 T E S T R E P O R T Test Report No. : GTS20230330014-1-13 Apr.21, 2023 ______________________________________________________________________________________________ Date of issue Equipment under Test : CAMERA WIFI Module Model /Type : R831 Listed model : Mini 18S, Mini 18T, MiniCam, Speed 18T, Speed 18S, PTCam, PT-cam, Speed 4S, Speed 4T, DOME1, DOME1 PRO, P2T, P2F, P2, Speed 12S, Speed 12T, Speed 22S, Speed 22T, OP1, INDOOR1, INDOOR1 PRO, Mini 8S, Mini 8T, M1, Mini 9T, M4, M4T, OUTDOOR1 Applicant : Hangzhou Meari Technology Co., Ltd. Address : Room 604-605, Building 1, No.768 Jianghong Road, Changhe Street, Binjiang District, Hangzhou, Zhejiang, China Manufacturer : Hangzhou Meari Technology Co., Ltd. Address : 4F of Building 1 and 2-4F of Building 2, No. 91 Chutian Road, Xixing Street, Binjiang District, Hangzhou, Zhejiang, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20230330014-1-13 Page 3 of 12 Contents 1. SUMMARY ................................................................................................................................................................. 4 1.1 EUT CONFIGURATION ........................................................................................................................................................ 4 1.2 PRODUCT DESCRIPTION ..................................................................................................................................................... 4 2. TEST ENVIRONMENT ................................................................................................................................................. 5 2.1 ADDRESS OF THE TEST LABORATORY ..................................................................................................................................... 5 2.2 TEST FACILITY .................................................................................................................................................................. 5 2.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................................ 5 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .................................................................................................................. 5 3. METHOD OF MEASUREMENT .................................................................................................................................... 6 3.1 APPLICABLE STANDARD ...................................................................................................................................................... 6 3.2 REQUIREMENT ................................................................................................................................................................. 6 3.3 LIMIT ..................................................................…

Text truncated - open the document above for the full version.

深圳市英佳创电子科技有限公司 http://www.szsyjc.com 零件承认书 ApprovalSheet 供方（Supplier）:深圳市英佳创电子科技有限公司 产品名称(PartName):2.4G/5.8GHz黑色FPC内置天线1.13灰色线L=55MM 图号（Pcode）: 版本（version)：V1.0 物料编码(matecialCode）:YJC-6N055-G09 日期（Date):2023年03月17日 供方确认 客户确认 拟制/日期 审核 / 日期批准 / 日期 黄腾伍龙飞肖汉 质量/日期 研发/日期产品经理/日期 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第1页共15页 总部地址：深圳市光明区马田街道油麻岗路11号宏域光明谷C栋 东莞分厂：东莞市桥头镇石水口银河三路2号英佳创产业园 杭州办事处：杭州市滨江区物联网街369号大华江虹国际创新园B栋212 绵阳办事处：四川省绵阳市高新区绵兴东路35号万向高新国际4F-34号 电话：0755-27810060传真：0755-27810057网址：www.szsyjc.com CUSTOMERNAME 客户名称 觅睿 CUSTOMERP/N 客户料号 PARTNAME 品名 2.4G/5.8GHz黑色FPC内置天线 （适用于Speed10T&Speed10F机型） P/N 料号 YJC-6N055-G09 APPROVALREV. 版次 A0 DELIVERYDATE 送样日期 2023年03月11日 PREPAREDBY 承办 黄腾 CHECKEDBY 审核 伍龙飞 APPROVEDBY 核准 CustomerApproved 客户承认 PreparedBy 承办 CheckedBy 审核 ApprovedBy 核准 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第2页共15页 目录 1、封面··········································································1 2、目录··········································································2 3、修订履历表·································································3 4、天线平面图·································································4 5、线端和馈线尺寸平面图··················································5 6、天线技术参数······························································6 7、环境性能测试······························································6 8、天线贴附位置图···························································7 9、天线性能测试图···························································7 10、OTA有源测试数据·························································8 11、2D、3D测试数据······················································9-12 12 、天线背胶Tesa68910简介 ········································· 13-14 13 、 ROHS 物料控制报告 ··················································· 15 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第3页共15页 3、修订履历表： 版本变更内容及更改原因日期发行 A/0初版发行2023年03月17日 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第4页共15页 天线平面图： 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第5页共15页 线端和馈线尺寸平面图： 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第6页共15页 天线技术参数及环境测试： 电器技术参数 电性能指标ElectricalSpecifications 频率范围2400-2500MHz/5150-5850MHzFrequencyRange2400-2500MHz/5150-5850MHz 电压驻波比＜1.92VSWR＜1.92 输入阻抗50ΩInputImpedance50Ω 方向全向DirectionAll 增益3.0dBiGain3.0dBi 机械指标MechanicalSpecifications 天线颜色黑色AntennaColorBLACK 接口形式一代线端InputconnectorXD(I代) 工作温度-20°C~+70°CWorkingTemperature-20°C~+70°C 工作湿度20%~80%WorkingHumidity20%~80% 环境性能测试: 项目测试条件规格 储存环境 在没有指定的情况下测试温度、湿度、气压如下： 1.温度为-20°C～+70°C 2.相对湿度为45%-85% 3.气压为86kpa-106kpa 电气机械性能正常 高低温试验 在70°C与-20°C之间进行5次循环，然后在正常条件下 1-2H，检查外观质量。 尺寸应满足规定并应满足 满足于机械、电气性能 耐恒定 湿热试验 相对湿度95±3%，试验温度：40°C.持续2H作用后， 试品取出后5min之内测定电气性能，试品在正常条 件下1-2H，检查外观质量 尺寸应满足规定并应满足 满足于机械、电气性能 振动试验 振频范围10-55HZ，位移幅值：0.35MM，加速度幅值： 50.0M/S，扫频循环次数：30次 电气机械性能正常 跌落试验1M高空按照互相垂直的轴方向自由跌落3次电气机械性能正常 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第7页共15页 天线贴附位置图： 天线性能测试图 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第8页共15页 OTA有源测试数据统计： ItemMeasurementBandChannelFrequencyMaxMinTotal 1TRPWIFI_B(11M)1241222.735.5816.84 2TRPWIFI_B(11M)6243722.191.7316.59 3TRPWIFI_B(11M)11246222.264.2316.77 4TIS(EIRP)WIFI_B(11M)12412-67.51-85.3-79.28 5TIS(EIRP)WIFI_B(11M)62437-68.39-89.85-84.31 6TIS(EIRP)WIFI_B(11M)112462-70.87-89.68-84.28 7TRPWIFI_A(6M)36518020.814.4714.95 8TRPWIFI_A(6M)100550021.19-3.1515.03 9TRPWIFI_A(6M)165582520.544.2115.41 10TIS(EIRP)WIFI_A(54M)365180-64.82-81.05-75.27 11TIS(EIRP)WIFI_A(54M)1005500-56.96-81.23-75.02 12TIS(EIRP)WIFI_A(54M)1655825-62.72-79.19-74.06 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第9页共15页 2D.3D测试数据 （2.4G/5.8G测试数据） FrequencyEfficiency(%)Gain.(dBi) 2400MHz 48.293.60 2410MHz 50.083.82 2420MHz 50.933.76 2430MHz 53.583.81 2440MHz 45.813.44 2450MHz 50.583.05 2460MHz 50.123.56 2470MHz 52.483.69 2480MHz 50.123.46 2490MHz 50.003.07 2500MHz 48.422.91 5150MHz49.202.99 5250MHz48.422.88 5350MHz44.982.29 5450MHz46.882.16 5550MHz45.922.99 5650MHz44.67 3.50 5750MHz45.193.14 5850MHz39.172.05 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第10页共15页 （Phi02D图） （Phi902D图） （Theta902D图） 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第11页共15页 3D测试图 （3D2400MHz） （3D2450MHz） （3D2500MHz） 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第12页共15页 (3D5150MHz) (3D5450MHz) (3D5850MHz) 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第13页共15页 Tesa68910简介 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第14页共15页 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第15页共15页 ROHS物料控制报告 兹证明向貴司交货的零組件、辅助材料所使用的原材料、以及生产工程中的添加剂等均符合RoHS限制使用有害物质指令的环保要求（RoHS指令 2011/65/EC) 关于零组件、辅助材料所使用的原材料、包装材料以及和产过程中使用的添加剂等的构成成份报告如下： 组成物料名 称Component /PartName 组成材料 Material Composition ICP报告编号 ICPreport# 测试机构 TestOrg. 测试时间 TestDate 有害物质含量(ppm) 是否合格? PASS? CdPbHgCr 6+ PBBPBDEPASS 线材 铁氟龙同 轴线缆 SZXEC2202766604 SGS22/08/18NDNDNDNDNDNDPASS FPCFPC软板 A2220205292202001E SGS 22/06/14NDNDNDNDNDNDPASS 环保锡丝环保锡丝 SZXEC2203054806 SGS22/09/19ND 43 NDNDNDNDPASS XD（I） 锡磷青铜 CANEC2219082501 SGS 22/09/13 NDNDNDNDNDND PASS 金镀层A2220404860101001CCTI 22/09/17 NDNDNDNDNDND PASS

FCCID: 2AG7C-R831 1 Case No. : GTS20230330014-1-11 Ambient Condition: 24 °C, 47 %RH, Atmos100.1Kpa, Test Date: 2023.4.14 Test Engineer: Jenny zeng Appendix B.1: Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 19.920 5169.960 5189.880 --- --- 5200 27.480 5186.760 5214.240 --- --- 5240 19.680 5230.080 5249.760 --- --- 11N20SISO Ant1 5180 20.160 5169.920 5190.080 --- --- 5200 20.560 5189.720 5210.280 --- --- 5240 20.400 5229.720 5250.120 --- --- FCCID: 2AG7C-R831 2 Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 FCCID: 2AG7C-R831 3 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 FCCID: 2AG7C-R831 4 Appendix B.2: Occupied channel bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 16.710 5171.630 5188.340 --- --- 5200 17.402 5191.417 5208.819 --- --- 5240 16.719 5231.631 5248.350 --- --- 11N20SISO Ant1 5180 17.800 5171.061 5188.861 --- --- 5200 17.812 5191.034 5208.846 --- --- 5240 17.820 5231.029 5248.849 --- --- FCCID: 2AG7C-R831 5 Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 FCCID: 2AG7C-R831 6 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 FCCID: 2AG7C-R831 7 Appendix B.3: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11A Ant1 5180 30.00 30.00 100.00 5200 30.00 30.00 100.00 5240 30.00 30.00 100.00 11N20SISO Ant1 5180 30.00 30.00 100.00 5200 30.00 30.00 100.00 5240 30.00 30.00 100.00 FCCID: 2AG7C-R831 8 Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 FCCID: 2AG7C-R831 9 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 FCCID: 2AG7C-R831 10 Appendix B.4: Maximum conducted output power Test Result Channel Power Test Mode Antenna Frequency[M Hz] Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant1 5180 17.31 100.00 0.00 17.31 ≤23.98 PASS 5200 17.27 100.00 0.00 17.27 ≤23.98 PASS 5240 16.92 100.00 0.00 16.92 ≤23.98 PASS 11N20SISO Ant1 5180 17.05 100.00 0.00 17.05 ≤23.98 PASS 5200 17.24 100.00 0.00 17.24 ≤23.98 PASS 5240 16.62 100.00 0.00 16.62 ≤23.98 PASS Note：The Duty Cycle Factor is compensated in the graph. FCCID: 2AG7C-R831 11 Appendix B.5: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result [dBm/MHz] Limit[dBm/MHz] Verdict 11A Ant1 5180 5.19 ≤11.00 PASS 5200 5.08 ≤11.00 PASS 5240 4.95 ≤11.00 PASS 11N20SISO Ant1 5180 4.72 ≤11.00 PASS 5200 4.74 ≤11.00 PASS 5240 4.27 ≤11.00 PASS Note：1.The Result and Limit Unit is dBm/500 kHz in the band 5.7255.85 GHz. 2.The Duty Cycle Factor and RBW Factor is compensated in the graph. FCCID: 2AG7C-R831 12 Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 FCCID: 2AG7C-R831 13 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 FCCID: 2AG7C-R831 14 Appendix B.6: Band edge measurements Test Result B1 TestMode Antenna ChName Frequency[MHz] Result[dBm] Limit[dBm] Verdict 11A Ant1 Low 5180 -37.07 ≤-27 PASS High 5240 -37.86 ≤-27 PASS 11N20SISO Ant1 Low 5180 -37.72 ≤-27 PASS High 5240 -38.09 ≤-27 PASS FCCID: 2AG7C-R831 15 Test Graphs B1 11A_Ant1_Low_5180 11A_Ant1_High_5240 11N20SISO_Ant1_Low_5180 FCCID: 2AG7C-R831 16 11N20SISO_Ant1_High_5240 FCCID: 2AG7C-R831 17 Appendix B.7: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] Max. Fre [MHz] Max. Level [dBm] Limit [dBm] Verdict 11A Ant1 5180 30~5140 5020.6 -47.27 ≤-27 PASS 5360~40000 24272.64 -37.79 ≤-27 PASS 5200 30~5140 5117.35 -45.45 ≤-27 PASS 5360~40000 26855.73 -37.57 ≤-27 PASS 5240 30~5140 5081.24 -46.68 ≤-27 PASS 5360~40000 24313.03 -38.15 ≤-27 PASS 11N20SISO Ant1 5180 30~5140 5022.3 -44.98 ≤-27 PASS 5360~40000 24776.13 -38.23 ≤-27 PASS 5200 30~5140 4933.39 -47.03 ≤-27 PASS 5360~40000 25290.44 -38.39 ≤-27 PASS 5240 30~5140 4962.17 -46.93 ≤-27 PASS 5360~40000 26889.64 -37.67 ≤-27 PASS FCCID: 2AG7C-R831 18 Test Graphs 11A_Ant1_5180_30~5140 11A_Ant1_5180_5360~40000 11A_Ant1_5200_30~5140 FCCID: 2AG7C-R831 19 11A_Ant1_5200_5360~40000 11A_Ant1_5240_30~5140 11A_Ant1_5240_5360~40000 FCCID: 2AG7C-R831 20 11N20SISO_Ant1_5180_30~5140 11N20SISO_Ant1_5180_5360~40000 11N20SISO_Ant1_5200_30~5140 FCCID: 2AG7C-R831 21 11N20SISO_Ant1_5200_5360~40000 11N20SISO_Ant1_5240_30~5140 11N20SISO_Ant1_5240_5360~40000

FCCID: 2AG7C-R831 1 Case No. : GTS20230330014-1-11 Ambient Condition: 23 °C, 46 %RH, Atmos100.1Kpa, Test Date: 2023.4.14 Test Engineer: Jenny zeng Appendix C.1: Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5260 24.360 5247.960 5272.320 --- --- 5280 22.840 5269.040 5291.880 --- --- 5320 22.760 5309.600 5332.360 --- --- 11N20SISO Ant1 5260 20.440 5249.760 5270.200 --- --- 5280 20.760 5269.640 5290.400 --- --- 5320 20.720 5309.640 5330.360 --- --- FCCID: 2AG7C-R831 2 Test Graphs 11A_Ant1_5260 11A_Ant1_5280 11A_Ant1_5320 FCCID: 2AG7C-R831 3 11N20SISO_Ant1_5260 11N20SISO_Ant1_5280 11N20SISO_Ant1_5320 FCCID: 2AG7C-R831 4 Appendix C.2: Occupied channel bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5260 17.200 5251.419 5268.619 --- --- 5280 17.159 5271.457 5288.616 --- --- 5320 17.111 5311.497 5328.608 --- --- 11N20SISO Ant1 5260 17.828 5251.019 5268.847 --- --- 5280 17.837 5271.008 5288.845 --- --- 5320 17.827 5311.027 5328.854 --- --- FCCID: 2AG7C-R831 5 Test Graphs 11A_Ant1_5260 11A_Ant1_5280 11A_Ant1_5320 FCCID: 2AG7C-R831 6 11N20SISO_Ant1_5260 11N20SISO_Ant1_5280 11N20SISO_Ant1_5320 FCCID: 2AG7C-R831 7 Appendix C.3: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11A Ant1 5260 30.00 30.00 100.00 5280 30.00 30.00 100.00 5320 30.00 30.00 100.00 11N20SISO Ant1 5260 30.00 30.00 100.00 5280 30.00 30.00 100.00 5320 30.00 30.00 100.00 FCCID: 2AG7C-R831 8 Test Graphs 11A_Ant1_5260 11A_Ant1_5280 11A_Ant1_5320 FCCID: 2AG7C-R831 9 11N20SISO_Ant1_5260 11N20SISO_Ant1_5280 11N20SISO_Ant1_5320 FCCID: 2AG7C-R831 10 Appendix C.4: Maximum conducted output power Test Result Channel Power Test Mode Antenna Frequency[ MHz] Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant1 5260 17.60 100.00 0.00 17.60 ≤23.98 PASS 5280 17.03 100.00 0.00 17.03 ≤23.98 PASS 5320 17.20 100.00 0.00 17.20 ≤23.98 PASS 11N20SISO Ant1 5260 17.10 100.00 0.00 17.10 ≤23.98 PASS 5280 16.97 100.00 0.00 16.97 ≤23.98 PASS 5320 16.98 100.00 0.00 16.98 ≤23.98 PASS Note：The Duty Cycle Factor is compensated in the graph. FCCID: 2AG7C-R831 11 Appendix C.5: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result [dBm/MHz] Limit[dBm/MHz] Verdict 11A Ant1 5260 5.56 ≤11.00 PASS 5280 4.99 ≤11.00 PASS 5320 5.2 ≤11.00 PASS 11N20SISO Ant1 5260 4.88 ≤11.00 PASS 5280 4.74 ≤11.00 PASS 5320 4.84 ≤11.00 PASS Note：1.The Result and Limit Unit is dBm/500 kHz in the band 5.7255.85 GHz. 2.The Duty Cycle Factor and RBW Factor is compensated in the graph. FCCID: 2AG7C-R831 12 Test Graphs 11A_Ant1_5260 11A_Ant1_5280 11A_Ant1_5320 FCCID: 2AG7C-R831 13 11N20SISO_Ant1_5260 11N20SISO_Ant1_5280 11N20SISO_Ant1_5320 FCCID: 2AG7C-R831 14 Appendix C.6: Band edge measurements Test Result B2 TestMode Antenna ChName Frequency[MHz] Result[dBm] Limit[dBm] Verdict 11A Ant1 Low 5260 -37.48 ≤-27 PASS High 5320 -38.36 ≤-27 PASS 11N20SISO Ant1 Low 5260 -37.18 ≤-27 PASS High 5320 -38.05 ≤-27 PASS FCCID: 2AG7C-R831 15 Test Graphs B2 11A_Ant1_Low_5260 11A_Ant1_High_5320 11N20SISO_Ant1_Low_5260 FCCID: 2AG7C-R831 16 11N20SISO_Ant1_High_5320 FCCID: 2AG7C-R831 17 Appendix C.7: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] Max. Fre [MHz] Max. Level [dBm] Limit [dBm] Verdict 11A Ant1 5260 30~5140 4878.2 -46.73 ≤-27 PASS 5360~40000 26062.27 -37.3 ≤-27 PASS 5280 30~5140 5104.23 -46.67 ≤-27 PASS 5360~40000 24232.97 -37.84 ≤-27 PASS 5320 30~5140 4927.94 -47.17 ≤-27 PASS 5360~40000 25117.32 -37.95 ≤-27 PASS 11N20SISO Ant1 5260 30~5140 4898.81 -46.95 ≤-27 PASS 5360~40000 26873.77 -37.57 ≤-27 PASS 5280 30~5140 4924.53 -46.74 ≤-27 PASS 5360~40000 26997.11 -37.86 ≤-27 PASS 5320 30~5140 4971.54 -46.49 ≤-27 PASS 5360~40000 24944.2 -38.19 ≤-27 PASS FCCID: 2AG7C-R831 18 Test Graphs 11A_Ant1_5260_30~5140 11A_Ant1_5260_5360~40000 11A_Ant1_5280_30~5140 FCCID: 2AG7C-R831 19 11A_Ant1_5280_5360~40000 11A_Ant1_5320_30~5140 11A_Ant1_5320_5360~40000 FCCID: 2AG7C-R831 20 11N20SISO_Ant1_5260_30~5140 11N20SISO_Ant1_5260_5360~40000 11N20SISO_Ant1_5280_30~5140 FCCID: 2AG7C-R831 21 11N20SISO_Ant1_5280_5360~40000 11N20SISO_Ant1_5320_30~5140 11N20SISO_Ant1_5320_5360~40000

FCCID: 2AG7C-R831 1 Case No. : GTS20230330014-1-11 Ambient Condition: 22 °C, 46 %RH, Atmos100.1Kpa, Test Date: 2023.4.14 Test Engineer: Jenny zeng Appendix D.1: Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5500 24.760 5490.160 5514.920 --- --- 5600 29.400 5585.440 5614.840 --- --- 5700 19.800 5690.000 5709.800 --- --- 11N20SISO Ant1 5500 20.640 5489.800 5510.440 --- --- 5600 20.520 5589.840 5610.360 --- --- 5700 20.600 5689.680 5710.280 --- --- FCCID: 2AG7C-R831 2 Test Graphs 11A_Ant1_5500 11A_Ant1_5600 11A_Ant1_5700 FCCID: 2AG7C-R831 3 11N20SISO_Ant1_5500 11N20SISO_Ant1_5600 11N20SISO_Ant1_5700 FCCID: 2AG7C-R831 4 Appendix D.2: Occupied channel bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5500 16.848 5491.633 5508.481 --- --- 5600 16.955 5591.500 5608.455 --- --- 5700 16.749 5691.615 5708.364 --- --- 11N20SISO Ant1 5500 17.843 5491.068 5508.911 --- --- 5600 17.848 5591.082 5608.930 --- --- 5700 17.831 5691.070 5708.901 --- --- FCCID: 2AG7C-R831 5 Test Graphs 11A_Ant1_5500 11A_Ant1_5600 11A_Ant1_5700 FCCID: 2AG7C-R831 6 11N20SISO_Ant1_5500 11N20SISO_Ant1_5600 11N20SISO_Ant1_5700 FCCID: 2AG7C-R831 7 Appendix D.3: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11A Ant1 5500 30.00 30.00 100.00 5600 30.00 30.00 100 5700 30.00 30.00 100.00 11N20SISO Ant1 5500 30.00 30.00 100.00 5600 30.00 30.00 100.00 5700 30.00 30.00 100.00 FCCID: 2AG7C-R831 8 Test Graphs 11A_Ant1_5500 11A_Ant1_5600 11A_Ant1_5700 FCCID: 2AG7C-R831 9 11N20SISO_Ant1_5500 11N20SISO_Ant1_5600 11N20SISO_Ant1_5700 FCCID: 2AG7C-R831 10 Appendix D.4: Maximum conducted output power Test Result Channel Power Test Mode Antenna Frequency[ MHz] Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant1 5500 16.98 100.00 0.00 16.98 ≤23.98 PASS 5600 17.78 100.00 0.00 17.78 ≤23.98 PASS 5700 17.76 100.00 0.00 17.76 ≤23.97 PASS 11N20SISO Ant1 …
