2AG7C-SNAP20GABATTERY CAMERA

QUICK GUIDE ORIGINALITY DESIGN SMART - AND BEAUTIFUL BATTERY CAM Snap 20S 1 Please consult this checklist for all parts. What's in the box Bracket(B) USB cable Snap 20S Power adapter ScrewsManual Bracket(A) 2 Description Power Port ON/OFF button Status light DC 5V±10% Press the button for 3 seconds to turn on/off the camera Solid red light on (3~5s): network is malfunctional Blinking red light: wait for network connection (slow) connecting the network (fast) Solid blue light on: camera is working correctly Support local SD Card storage (Max.128G) Press and hold on for 5 seconds to reset the camera Reset SD card slot Battery9600mAh rechargeable Li batteries PIR Lens Microphone Speaker Micro USB SD card slot Reset Status light ON/OFF button 3 Installation Mode 1 Bracket (A) Installation Mode 2 Bracket (B) Installation 2. Install the camera in the bracket and tighten the bracket. 1. Fix the bracket on the wall. 1. Fix the bracket on a clesn and flat surface. 2. Bring the camera closer to the bracket. 0~90° 0~360° After ajusting the camera angle, please tighten the bracket. 4 Connection 2.4GHz5GHz Please keep network available Set up router The router supports the 2.4GHz WiFi (doesn't support the 5GHz), and is connected to the WiFi network.Please set the parameters of the router before connecting the WiFi network, and record the SSID and password of your WiFi. Download SmartLife or Tuya Smart is available for both iOS and Android OS. Search the name 'SmartLife','Tuya Smart' in App Store or Google Play, or scan the QR- Code to download the App. You can select the App according to needs. ipadAndroidIOS ·Support Download App(IOS&android) 5 Connection Registration process Step 1 Step 2 Input a legal and valid Mobile number or Email address and click "Get Verification Code". Input the verification code to log in. Open the Smart Life App, click "Sign Up", read the "User Agreement Privacy Policy" and click "Agree" . 6 QR Code Configuration Open the Smart Life App, click "My" >> "Home Management" >> "Create a home", and you can customize the home name and related settings . 1 Click "Add Device" or "+", and then select "Security & Sensor" >> "Smart Camera" to add camera. 2 7 QR Code Configuration Power on and reset camera until the status indicator is flashing quickly or a prompt tone is heard, and then click "Next". Then input your WiFi's passwords and click "Next". Click " " to change network. 3 Note: 1) Camera only supports 2.4GHz WiFi network. 2) The number of bits in the ssid and passwords of the router should not exceed 24 digits. 8 QR Code Configuration In this interface, you should scan the QR code in your phone with the camera,when the camera comes out "dong dong dong". And you can complete the configuration about 30s. 4 9 QR Code Configuration When connecting, you should make sure your router,mobile,and camera are as close as possible.When camera added successffully,click " " you could also DIY the camera's name. 5 10 Settings In "Smart Camera" interface,click " ",you can set the camera common functions. 11 Q: Why is it still in the list of devices after reseting? A: The reset device only resets the network configuration of the camera, but cannot change the configuration on the App, remove the camera, and must be deleted by the App. Q: How to cut the camera network to another router? A: First remove and reset the device on the App and then configure the device again by the App. Q: Why doesn't the device identify the SD card? A: It is recommended to plug in SD card after power cut. Confirm whether the SD card is normally available and the format is FAT32. And the TF card can’t be identified when the internet environment is not good. Q: Why I can’t get the notifications with my cell phone App? A: Please confirm that the App has been running on the phone, and the relevant reminder function has been opened;Message notification and authority confirmation in the mobile phone system have been opened. Q: The device cannot be previewed properly? A: Check whether the network is normal, you can place the camera close to the router, and if not, it is recommended to reset the device and add it again. FAQ 12 Functions DaytimeNight Record Using SD card or Opening the Cloud-Storage Service, to keep recording for every moment. Day & Night Powerful night vision means no interruptions, even in complete darkness. Two-way audio When you see a visitor from the live view of camera, you can call and then communicate with the vistor by your App function. PIR When someone passes by, an alarm will be triggered and sent to your phone. Low battery alarm You can set a low-battery alarm threshold in your phone App. The threshold is set to a minimum of 10% and a maximum of 50%. When the battery power of the camera is lower than the set threshold, the App will have a reminder. Remote wake-up The camera will be in a sleep mode to save power; you can have a preview in App to wake up the camera remotely. 13 Functions FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the d…

Text truncated - open the document above for the full version.

ModelDeclarationLetter We,theundersigningcompany CompanyName:HangzhouMeariTechnologyCo.,Ltd. Address:Room604-605,Building1,No.768JianghongRoad,Changhestreet,Binjiang District,Hangzhou,zhejiang，China Hereby confirm that the following products: Product description: BATTERY CAMERA Type designation: Snap 20S, Snap 20T,Snap 20SL,Snap 20TL,EOB1-1002-WHT,WIFICBO30WT That PCB board,structure and internal of these model(s) are the same,Only the model name is different. Date: 2023-01-03 Name: Zhiyang Chai Telephone: +8615869048127 E-mail: [email protected] Signature: FCC ID:2AG7C-SNAP20GA

Confidentiality Request Letter For Certification Service in the USA FederalCommunicationCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21048 Towhomitmayconcern PursuanttoParagraphs§0.457and0.459oftheCommission’sRules(47C.F.R.)andSection §552(b)(4)oftheFreedomofInformationAct,werequestconfidentialityforthe documentationofthefollowingproducts: FCC ID 2AG7C-SNAP20GA Model name Snap 20S,Snap 20T,Snap 20SL,Snap 20TL,EOB1-1002-WHT,WIFICBO30WT Fortheproductslistedabove,werequestpermanentconfidentialityforallapplicable exhibitsasthereare:  theOperationalDescription  theBlockDiagram theSchematics Theabovelistedexhibitscontaintradesecretsandproprietaryinformationthatcouldbeof benefittoourcompetitors. Ifyouhaveanyquestions,pleasefeelfreetocontactusattheaddressshownbelow. Sincerely, SignatureDat 2023-01-03 e PrintedNameofSignee: Company:HangzhouMeariTechnologyCo.,Ltd. Address: Room604-605,Building1,No.768JianghongRoad,Changhestreet,Binjiang District,Hangzhou,zhejiang，China Phone: +8615869048127 Email:[email protected]

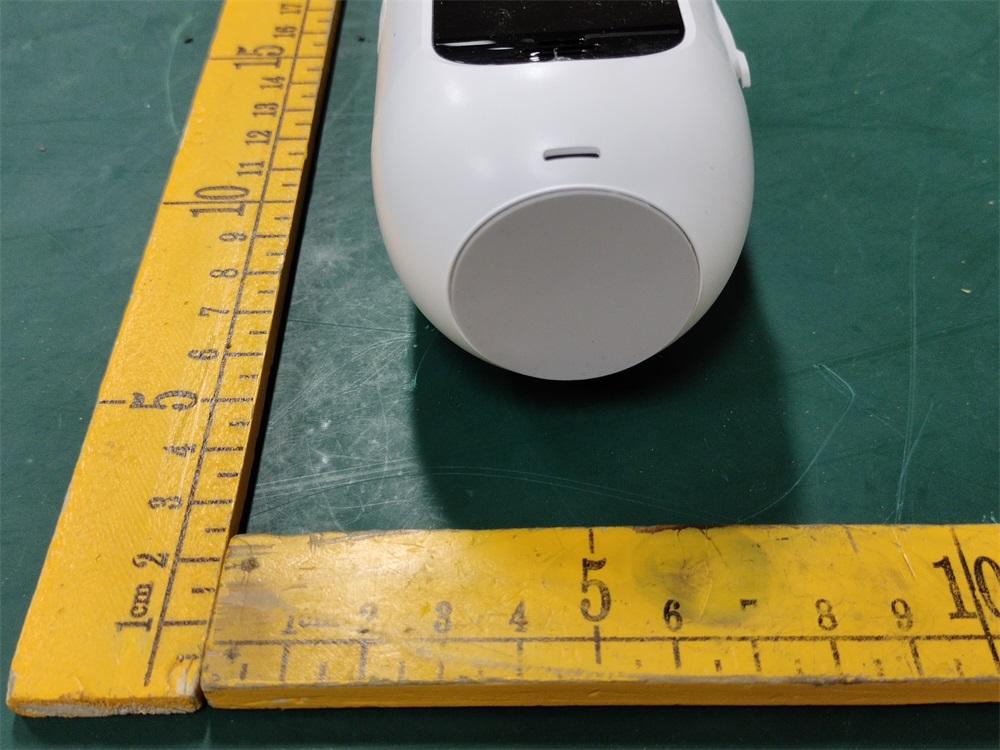

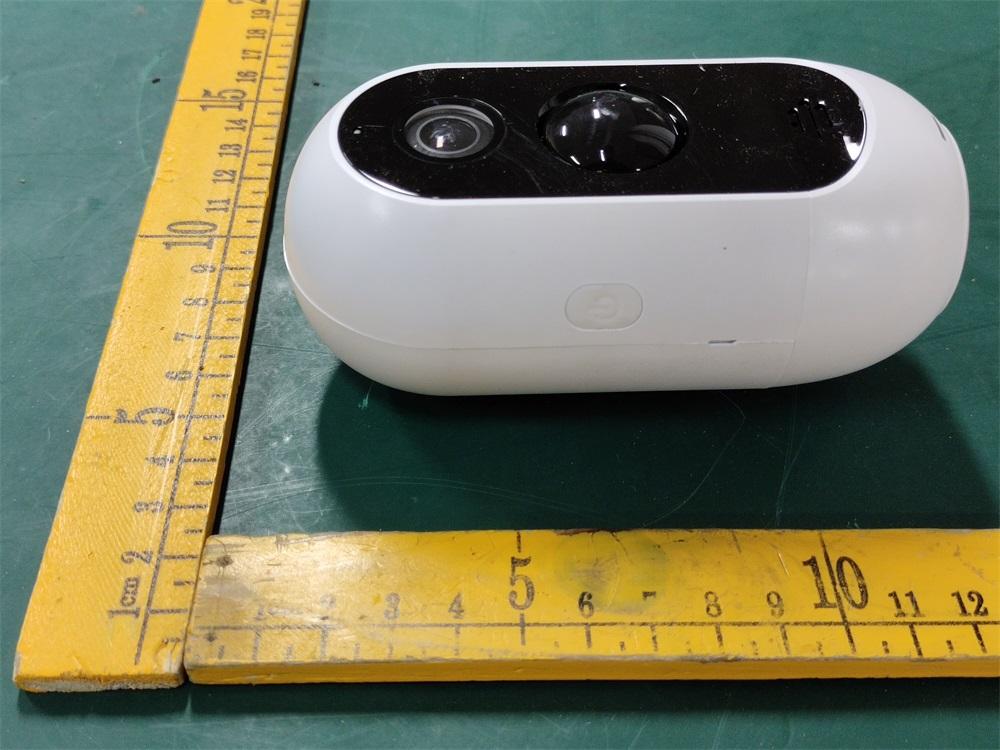

Report No.: GTS20221109002-1-21 Page 33 of 42 6. E X T E R N A L A N D I N T E R N A L P H O T O S O F T H E EUT Fig. 1 Fig. 2 Report No.: GTS20221109002-1-21 Page 34 of 42 Fig. 3 Fig. 4 Report No.: GTS20221109002-1-21 Page 35 of 42 Fig. 5 Fig. 6 Report No.: GTS20221109002-1-21 Page 36 of 42 Fig. 7 Fig. 8 Report No.: GTS20221109002-1-21 Page 37 of 42 Fig. 9 Fig. 10

Labellocation

Report No.: GTS20221109002-1-21 Page 38 of 42 Fig. 11 Fig. 12 Report No.: GTS20221109002-1-21 Page 39 of 42 Fig. 13 Fig. 14 Antennt Report No.: GTS20221109002-1-21 Page 40 of 42 Fig. 15 Fig. 16 Report No.: GTS20221109002-1-21 Page 41 of 42 Fig. 17 Fig. 18 Report No.: GTS20221109002-1-21 Page 42 of 42 Fig. 19 .......................End of Report........................

ShenzhenGlobalTestServiceCo.,Ltd. No.7-101and8A-104,Building7and8,DCCCulturalandCreativeGarden,No.98,PingxinNorthRoad, ShangmuguCommunity,PinghuStreet,LonggangDistrict,Shenzhen,Guangdong RFExposureevaluation ReportReferenceNo........................: FCCID..................................................: GTS20221109002-1-22 2AG7C-SNAP20GA Compiledby (position+printedname+signature) .. :FileadministratorsPeterXiao Supervisedby (position+printedname+signature)..:TestEngineerJennyZeng Approvedby (position+printedname+signature)..: ManagerJasonHu Dateofissue.........................................:Dec.26,2022 RepresentativeLaboratoryName.:ShenzhenGlobalTestServiceCo.,Ltd. Address.................................................: No.7-101and8A-104,Building7and8,DCCCulturalandCreative Garden,No.98,PingxinNorthRoad,ShangmuguCommunity, PinghuStreet,LonggangDistrict,Shenzhen,Guangdong Applicant’sname ............................... :HangzhouMeariTechnologyCo.,Ltd. Address.................................................: Room604-605,Building1,No.768JianghongRoad,Changhestreet, BinjiangDistrict,Hangzhou,zhejiang,China Testspecification .............................. : Standard................................................: 47CFR § 1.1310 47CFR§2.1091 KDB447498D01GeneralRFExposureGuidancev06 TRFOriginator......................................:ShenzhenGlobalTestServiceCo.,Ltd. MasterTRF...........................................:Dated2014-12 ShenzhenGlobalTestServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenGlobalTestServiceCo.,Ltd.isacknowledgedascopyrightownerandsourceofthematerial. ShenzhenGlobalTestServiceCo.,Ltd.takesnoresponsibilityforandwillnotassumeliabilityfordamages resultingfromthereader'sinterpretationofthereproducedmaterialduetoitsplacementandcontext. Testitemdescription........................:BATTERYCAMERA TradeMark............................................:N/A Manufacturer ......................................... :HangzhouMeariTechnologyCo.,Ltd. Model/Typereference ......................... :Snap20S ListedModels......................................:Snap20T,Snap20SL,Snap20TL,EOB1-1002-WHT, WIFICBO30WT HardwareVersion...............................:SNAP20S-G1MB-SP1_REV2_0 SoftwareVersion..................................:ppstrong-b9-tuya2_general-3.1 Rating ..................................................... :DC5.0V/1.0AbyAdapter(Built-inrechargeablebattery) Result ..................................................... :PASS ReportNo.:GTS20221109002-1-22Page 2 of 11 TESTREPORT TestReportNo.: GTS20221109002-1-22 Dec.26,2022 ______________________________________________________________________________________________ Dateofissue EquipmentunderTest:BATTERYCAMERA Model/Type:Snap20S Listedmodel:Snap20T,Snap20SL,Snap20TL,EOB1-1002-WHT,WIFICBO30WT Applicant :HangzhouMeariTechnologyCo.,Ltd. Address : Room604-605,Building1,No.768JianghongRoad,Changhestreet, BinjiangDistrict,Hangzhou,zhejiang,China Manufacturer :HangzhouMeariTechnologyCo.,Ltd. Address: 4FofBuilding1and2-4FofBuilding2,No.91ChutianRoad, XixingStreet,BinjiangDistrict,Hangzhou,Zhejiang,China TestResult:PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:GTS20221109002-1-22Page 3 of 11 Contents 1.SUMMARY...................................................................................................................................................................4 1.1EUTCONFIGURATION........................................................................................................................................................4 1.2PRODUCTDESCRIPTION......................................................................................................................................................4 2.TESTENVIRONMENT....................................................................................................................................................5 2.1ADDRESSOFTHETESTLABORATORY.....................................................................................................................................5 2.2TESTFACILITY...................................................................................................................................................................5 2.3ENVIRONMENTALCONDITIONS.............................................................................................................................................5 2.4STATEMENTOFTHEMEASUREMENTUNCERTAINTY..................................................................................................................5 3.METHODOFMEASUREMENT......................................................................................................................................6 3.1APPLICABLESTANDARD......................................................................................................................................................6 3.2REQUIREMENT..................................................................................................................................................................6 3.3LIMIT..............................................................................................................................................................................6 3.4MPECALCULATIONMETHOD.............................................................................................................................................7 3.5ANTENNAINFORMATION....................................................................................................................................................7 4.CONDUCTEDPOWERRESULTS.....................................................................................................................................8 5.MANUFACTURINGTOLERANCE...................................…

Text truncated - open the document above for the full version.

Case No. : GTS20221109002-1-21 Ambient Condition: 25 °C, 45 %RH, Atmos100.1Kpa, Test Date: 2022.12.16 Test Engineer: Jenny zeng Appendix A.1: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 9.560 2407.440 2417.000 0.5 PASS 2437 9.600 2432.440 2442.040 0.5 PASS 2462 10.040 2456.960 2467.000 0.5 PASS 11G Ant1 2412 16.320 2403.840 2420.160 0.5 PASS 2437 16.320 2428.840 2445.160 0.5 PASS 2462 16.320 2453.840 2470.160 0.5 PASS 11N20SISO Ant1 2412 17.080 2403.400 2420.480 0.5 PASS 2437 16.920 2428.600 2445.520 0.5 PASS 2462 16.680 2453.600 2470.280 0.5 PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Appendix A.2: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 12.855 2405.570 2418.425 --- --- 2437 12.900 2430.553 2443.453 --- --- 2462 12.867 2455.543 2468.410 --- --- 11G Ant1 2412 16.754 2403.621 2420.375 --- --- 2437 16.801 2428.608 2445.409 --- --- 2462 16.781 2453.598 2470.379 --- --- 11N20SISO Ant1 2412 17.614 2403.194 2420.808 --- --- 2437 17.625 2428.196 2445.821 --- --- 2462 17.596 2453.185 2470.781 --- --- Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Appendix A.3: Maximum conducted output power Test Result Peak TestMode Antenna Frequency[MH z] Peak Powert[dBm] Conducted Limit[dBm] Verdict 11B Ant1 2412 20.38 ≤30.00 PASS 2437 20.78 ≤30.00 PASS 2462 20.87 ≤30.00 PASS 11G Ant1 2412 21.07 ≤30.00 PASS 2437 21.30 ≤30.00 PASS 2462 21.57 ≤30.00 PASS 11N20SISO Ant1 2412 21.81 ≤30.00 PASS 2437 21.43 ≤30.00 PASS 2462 21.23 ≤30.00 PASS Appendix A.4: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -7.87 ≤8.00 PASS 2437 -6.41 ≤8.00 PASS 2462 -6.37 ≤8.00 PASS 11G Ant1 2412 -12.8 ≤8.00 PASS 2437 -13.21 ≤8.00 PASS 2462 -12.91 ≤8.00 PASS 11N20SISO Ant1 2412 -12.8 ≤8.00 PASS 2437 -13.13 ≤8.00 PASS 2462 -12.72 ≤8.00 PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437

11N20SISO_Ant1_2462 Appendix A.5: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 6.44 -39.85 ≤-13.56 PASS High 2462 6.02 -47.14 ≤-13.98 PASS 11G Ant1 Low 2412 1.32 -37.62 ≤-18.68 PASS High 2462 1.06 -47.71 ≤-18.94 PASS 11N20SISO Ant1 Low 2412 1.42 -36.65 ≤-18.58 PASS High 2462 1.06 -47.16 ≤-18.94 PASS Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 Appendix A.6: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 6.34 6.34 --- PASS 30~1000 6.34 -59.83 ≤-13.66 PASS 1000~26500 6.34 -47.99 ≤-13.66 PASS 2437 Reference 4.22 4.22 --- PASS 30~1000 4.22 -60.62 ≤-15.78 PASS 1000~26500 4.22 -46.59 ≤-15.78 PASS 2462 Reference 4.19 4.19 --- PASS 30~1000 4.19 -59.89 ≤-15.81 PASS 1000~26500 4.19 -46.88 ≤-15.81 PASS 11G Ant1 2412 Reference -1.87 -1.87 --- PASS 30~1000 -1.87 -59.97 ≤-21.87 PASS 1000~26500 -1.87 -47.73 ≤-21.87 PASS 2437 Reference 0.33 0.33 --- PASS 30~1000 0.33 -60.18 ≤-19.67 PASS 1000~26500 0.33 -37.04 ≤-19.67 PASS 2462 Reference -2.16 -2.16 --- PASS 30~1000 -2.16 -60.06 ≤-22.16 PASS 1000~26500 -2.16 -46.89 ≤-22.16 PASS 11N20SISO Ant1 2412 Reference 0.85 0.85 --- PASS 30~1000 0.85 -60.15 ≤-19.15 PASS 1000~26500 0.85 -47.78 ≤-19.15 PASS 2437 Reference -1.50 -1.50 --- PASS 30~1000 -1.50 -59.91 ≤-21.5 PASS 1000~26500 -1.50 -47.69 ≤-21.5 PASS 2462 Reference 0.12 0.12 --- PASS 30~1000 0.12 -59.25 ≤-19.88 PASS 1000~26500 0.12 -47.92 ≤-19.88 PASS Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500

ShenzhenGlobalTestServiceCo.,Ltd. No.7-101and8A-104,Building7and8,DCCCulturalandCreativeGarden,No.98,PingxinNorthRoad, ShangmuguCommunity,PinghuStreet,LonggangDistrict,Shenzhen,Guangdong FCCPART15SUBPARTCTESTREPORT FCCPART15.247 ReportReferenceNo........................: FCCID.................................................: GTS20221109002-1-21 2AG7C-SNAP20GA Compiledby (position+printedname+signature)..:FileadministratorsPeterXiao Supervisedby (position+printedname+signature)..:TestEngineerJennyZeng Approvedby (position+printedname+signature)..: ManagerJasonHu Dateofissue ......................................... :Dec.26,2022 RepresentativeLaboratoryName . :ShenzhenGlobalTestServiceCo.,Ltd. Address.................................................: No.7-101and8A-104,Building7and8,DCCCulturalandCreative Garden,No.98,PingxinNorthRoad,ShangmuguCommunity,Pinghu Street,LonggangDistrict,Shenzhen,Guangdong,China Applicant’sname...............................:HangzhouMeariTechnologyCo.,Ltd. Address ................................................. : Room604-605,Building1,No.768JianghongRoad,Changhestreet, BinjiangDistrict,Hangzhou,zhejiang,China Testspecification..............................: Standard................................................: FCCPart15.247:Operationwithinthebands902-928MHz,2400- 2483.5MHzand5725-5850MHz ANSIC63.10-2013 TRFOriginator......................................:ShenzhenGlobalTestServiceCo.,Ltd. MasterTRF...........................................:Dated2014-12 ShenzhenGlobalTestServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongastheShenzhen GlobalTestServiceCo.,Ltd.isacknowledgedascopyrightownerandsourceofthematerial.ShenzhenGlobal TestServiceCo.,Ltd.takesnoresponsibilityforandwillnotassumeliabilityfordamagesresultingfromthe reader'sinterpretationofthereproducedmaterialduetoitsplacementandcontext. Testitemdescription........................:BATTERYCAMERA TradeMark............................................: N/A Manufacturer.........................................:HangzhouMeariTechnologyCo.,Ltd. Model/Typereference ......................... : Snap20S ListedModels ...................................... :Snap20T,Snap20SL,Snap20TL,EOB1-1002-WHT, WIFICBO30WT OperationFrequency..........................:From2412MHzto2462MHz HardwareVersion...............................:SNAP20S-G1MB-SP1_REV2_0 SoftwareVersion..................................:ppstrong-b9-tuya2_general-3.1 Rating.....................................................:DC5.0V/1.0AbyAdapter(Built-inrechargeablebattery) Result.....................................................:PASS ReportNo.:GTS20221109002-1-21Page 2 of 42 TESTREPORT TestReportNo.: GTS20221109002-1-21 Dec.26,2022 ____________________________________________________________________________________ Dateofissue EquipmentunderTest : BATTERYCAMERA Model/Type:Snap20S Listedmodel : Snap20T,Snap20SL,Snap20TL,EOB1-1002-WHT,WIFICBO30WT Applicant : HangzhouMeariTechnologyCo.,Ltd. Address: Room604-605,Building1,No.768JianghongRoad,Changhestreet, BinjiangDistrict,Hangzhou,zhejiang,China Manufacturer :HangzhouMeariTechnologyCo.,Ltd. Address: 4FofBuilding1and2-4FofBuilding2,No.91ChutianRoad, XixingStreet,BinjiangDistrict,Hangzhou,Zhejiang,China TestResult : PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:GTS20221109002-1-21Page 3 of 42 Contents 1.TESTSTANDARDS.........................................................................................................................................4 2.SUMMARY.......................................................................................................................................................5 2.1.GeneralRemarks...................................................................................................................................5 2.2.ProductDescription................................................................................................................................5 2.3.EquipmentUnderTest............................................................................................................................6 2.4.ShortdescriptionoftheEquipmentunderTest(EUT)...........................................................................6 2.5.EUToperationmode..............................................................................................................................6 2.6.BlockDiagramofTestSetup..................................................................................................................6 2.7.RelatedSubmittal(s)/Grant(s)..............................................................................................................7 2.8.EUTExerciseSoftware..........................................................................................................................7 2.9.SpecialAccessories...............................................................................................................................7 2.10.ExternalI/OCable................................................................................................................................7 2.11.Modifications.........................................................................................................................................7 3.TESTENVIRONMENT.....................................................................................................................................8 3.1.Addressofthetestlaboratory................................................................................................................8 3.2.TestFacility.............................................................................................................................................8 3.3.Environmentalconditions..........................................................................…

Text truncated - open the document above for the full version.

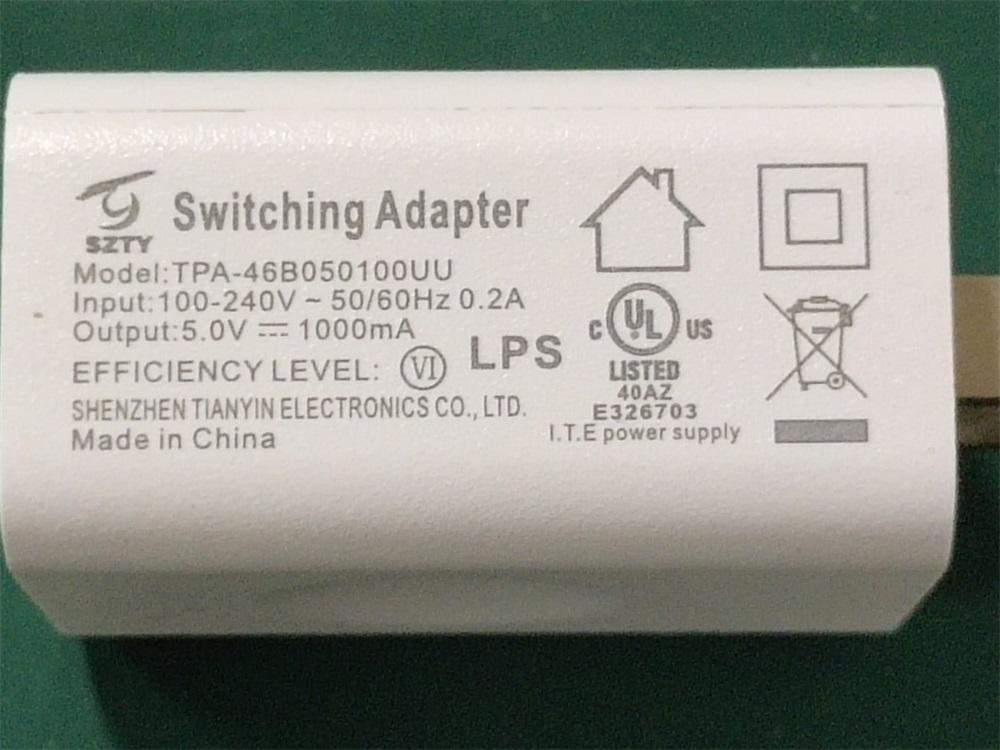

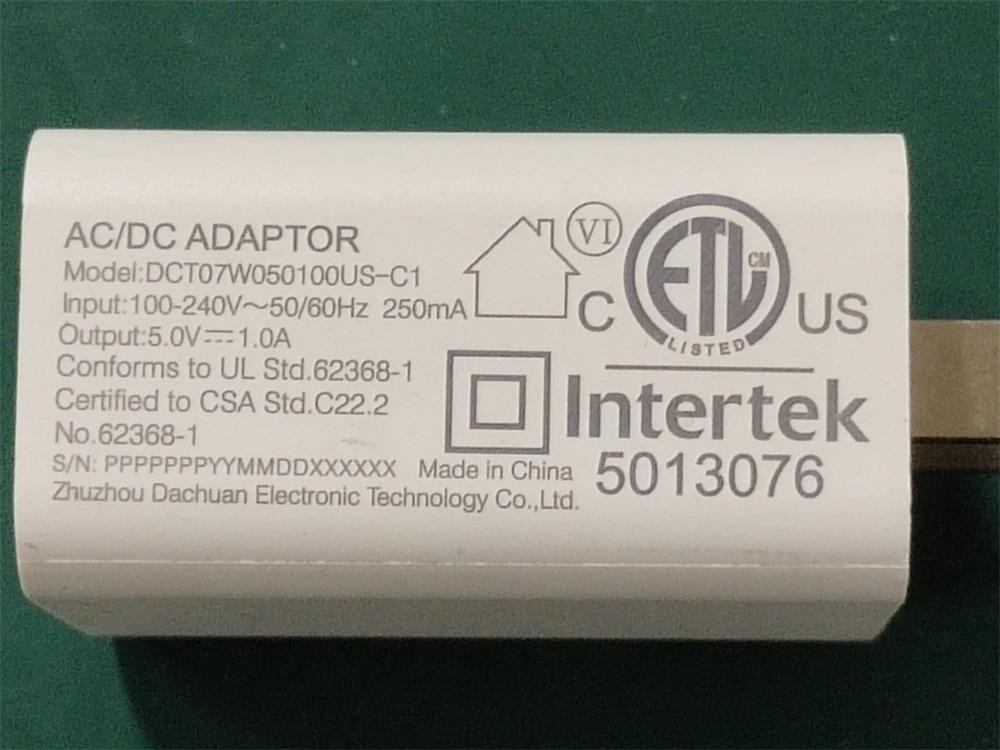

Report No.: GTS20221109002-1-21 Page 30 of 42 5. T E S T S E T U P P H O T O S O F T H E E U T Adapter: TPA-46B050100UU Radiated Emission Report No.: GTS20221109002-1-21 Page 31 of 42 Conducted Emission Adapter:DCT07W050100US-C1 Radiated Emission Report No.: GTS20221109002-1-21 Page 32 of 42 Conducted Emission
